Boss Audio Systems BV4200B Manuale utente

Compatible with PAL DVD (Video

CD) and NTSC DVD (Video CD)

This player can play discs recorded in

either PAL or NTSC format.

• A single LSI chip now integrates all

major DVD playback circuit functions

including MPEG2 decoder, video D/A

converter, and audio decoders.

• L/R stereo analog audio outputs for

connection to existing head unit aux

inputs. Video output is composite

video.

• Supplied remote handles

multi-function software (multi-language

audio-track/subtitle, multi-angle, multi-

story, etc.), plus all basic functions.

USE THIS PRODUCT SAFELY

When Driving

Keep the volume level low enough to be

aware of road and traffic conditions.

When Washing the Car

Do not expose the product to water or

excessive moisture. This could cause

electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce

very high temperatures inside your

vehicle. Give the interior a chance to

cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with

a 12 volt DC, negative ground battery

system (the regular system in a North

American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into

the slot of this player.

Failure to observe this may cause

malfunction due to the precise

mechanism of this unit.

Use Authorized Service Center

Do not attempt to disassemble or adjust

this precision product. Please contact

Boss Audio for all service.

For Installation

The unit should be installed in a

horizontal position with the front end up

at a convenient angle, but not more than

30˚.

FEATURES

CONTENTS

Safety Information ........................................................................................4

Disc Notes .....................................................................................................5

Installation .....................................................................................................6

Using the Detachable Front Panel .............................................................9

Wiring Connection ......................................................................................10

20 Pin Socket Connection ......................................................................10

Location and Function of Keys..................................................................11

The Player ...............................................................................................11

Remote Control........................................................................................12

Remote Control...........................................................................................14

Preparing the Remote Control.................................................................14

General Operation.......................................................................................15

Basic Play Operation ..................................................................................16

Advanced Operation...................................................................................17

Repeat Play/ Paragraph Repeat Play ...................................................................17

PBC Menu Playback of VCD/SVCD .....................................................................17

On-screen Display Function .................................................................................17

Random Playing....................................................................................................18

Zoom Function......................................................................................................18

Special Function for DVD .....................................................................................18

Special Function for VCD and CD ........................................................................19

Setup ............................................................................................................20

System Setup .......................................................................................................20

Language Setup ...................................................................................................20

Audio Setup ..........................................................................................................20

Trouble Shooting.........................................................................................21

Specifications..............................................................................................22

CAUTION:

MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

MOBILE DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE MOBILE

DVD PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND - DO NOT

REPAIR YOURSELF. REFER SERVICING

TO QUALIFIED PERSONNEL.

WARNING:

• TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

• TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

• THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is protected

by method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this

authorized by Macrovision Corporation,

and is intended for home and other

limited viewing uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

SAFETY INFORMATION

Region Management Information

Region Management Information:

This Mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

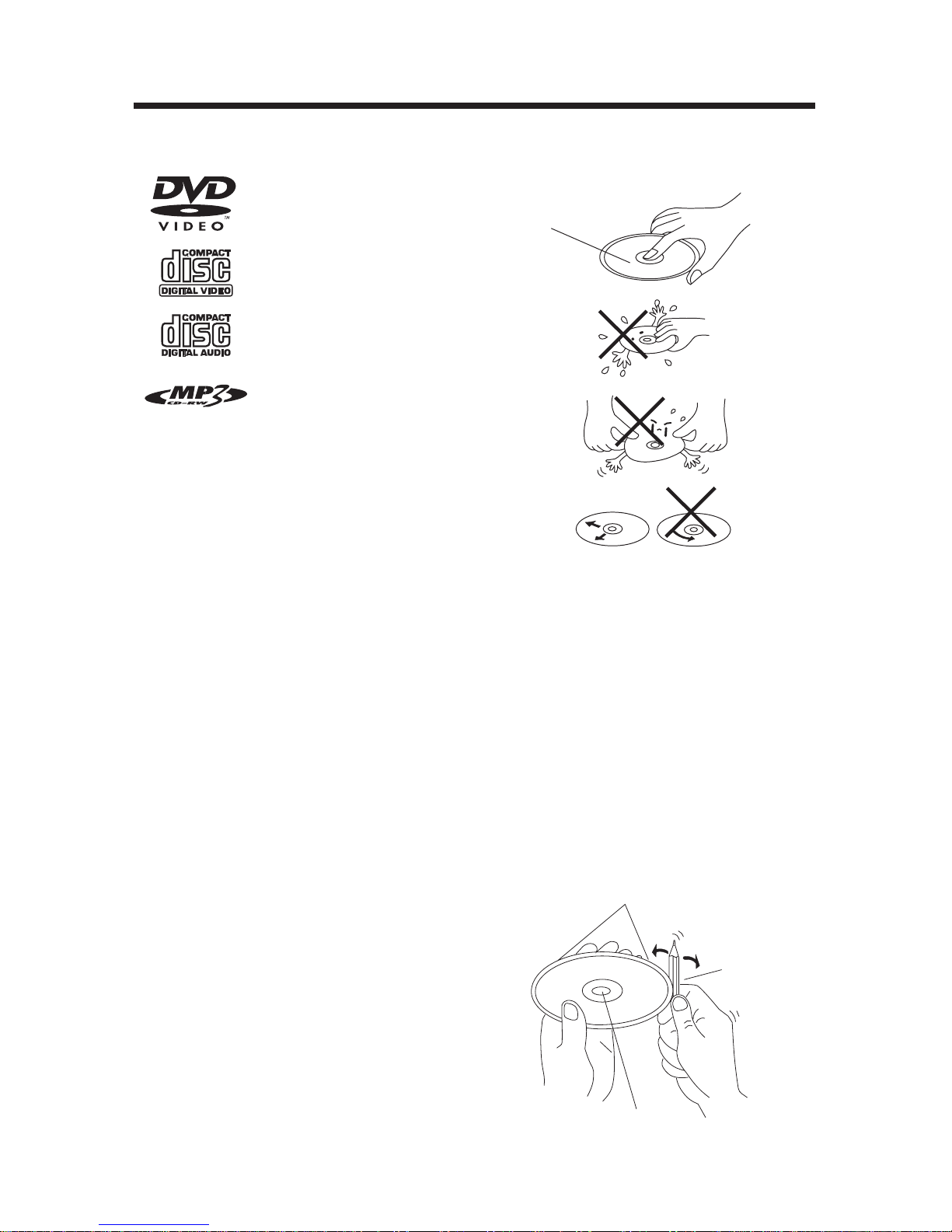

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc

Video CD

12 cm disc

MP3

12 cm disc

Handling and Cleaning

• Dirt, dust, scratches and warping disc

will cause misoperation.

• Do not place stickers or make

scratches on discs.

• Do not warp discs.

• A disc should always be kept in its

case when not in use to prevent from

damage.

• Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Preparing New Discs with Rough

Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a ball

point pen or pencil as shown on the right.

To remove the rough edges, press the

side of the pen or pencil against the

inside and outside edges of the disc.

Rough spots

on inside edge

Ball point pen

or pencil

Rough spots on

outside edge

Label side up

Do not touch

the underside

of the disc

Do not bend

Wipe the disc from center

toward the outside edge

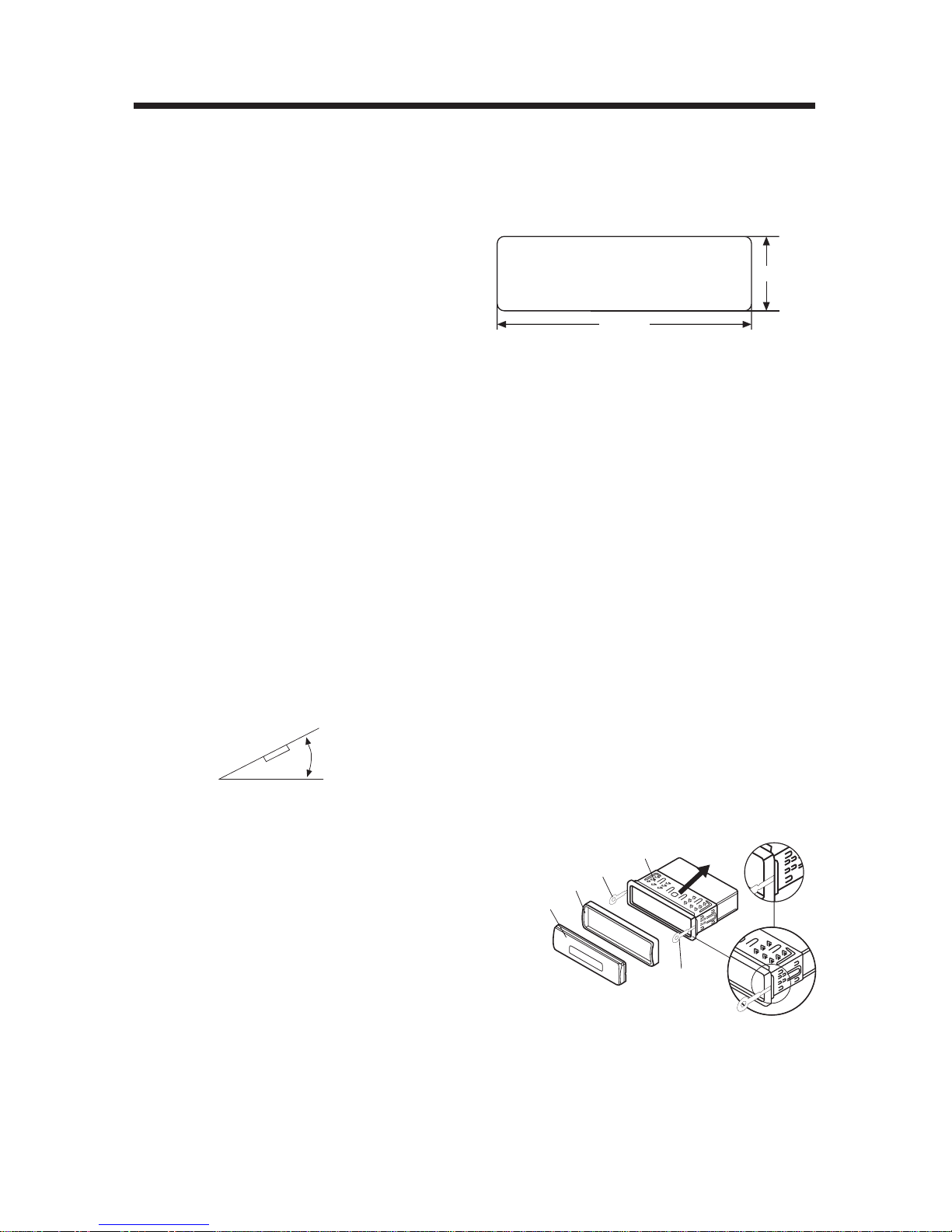

INSTALLATION

Notes:

• Choose the mounting location where

the unit will not interfere with the

normal driving function of the driver.

• Before finally installing the unit,

connect the wiring temporarily and

make sure it is all connected up

properly and the unit and the system

work properly.

• Use only the parts included with the

unit to ensure proper installation.

The use of unauthorized parts can

cause malfunctions.

• Consult with your nearest dealer if

installation requires the drilling of holes

or other modifications of the vehicle.

• Install the unit where it does not get in

the driver’s way and cannot injure the

passenger if there is a sudden stop,

like an emergency stop.

• If installation angle exceeds 30˚ from

horizontal, the unit might not give its

optimum performance.

• Avoid installing the unit where it would

be subject to high temperature, such

as from direct sunlight, or from hot air,

from the heater, or where it would be

subject to dust, dirt or excessive

vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either

from “Front” (conventional DIN Front-

mount) or “Rear” (DIN Rear-mount

installation, utilizing threaded screw holes

at the sides of the unit chassis).

For details, refer to the following

illustrated installation methods.

30˚

DIN FRONT-MOUNT (Method A)

Installation Opening

This unit can be installed in any dashboard

having an opening as shown below:

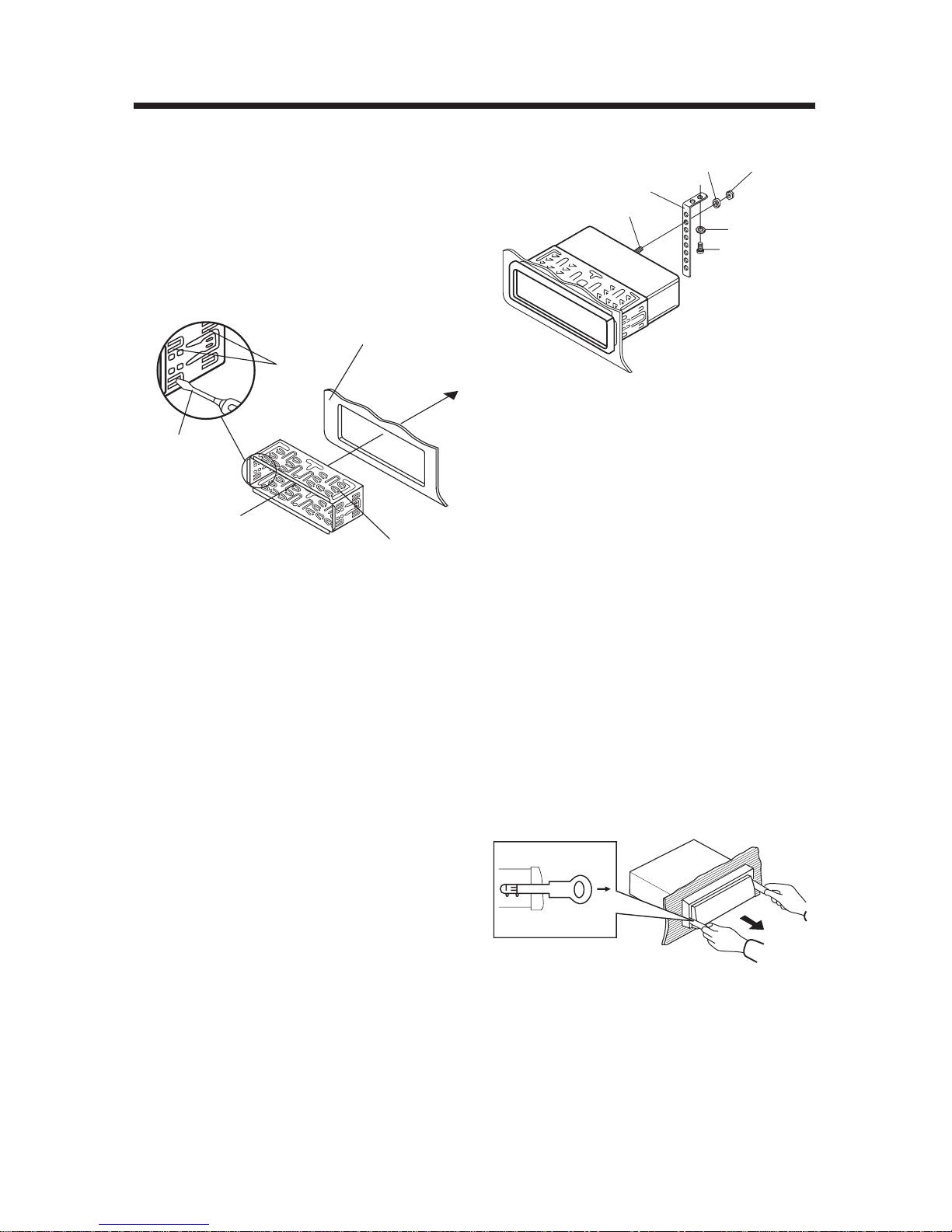

Installing the unit

Be sure you test all connections first, and

then follow these steps to install the unit.

1. Make sure the ignition is turned off,

and then disconnect the cable from

the vehicle battery's negative (-)

terminal.

2. Disconnect the wire harness and the

antenna.

3. Press the release button on the front

panel and remove the control panel

(see the steps of “removing the front

panel”).

4. Lift the top of the outer trim ring then

pull it out to remove it.

5. The two supplied keys release tabs

inside the unit's sleeve so you can

remove it. Insert the keys as far as they

will go (with the notches facing up) into

the appropriate slots at the middle left

and right sides of the unit. Then slide

the sleeve off the back of the unit.

Front Panel

Outer Trim Ring

L Key

Sleeve

R Key

182 mm

53 mm

6. Mount the sleeve by inserting the sleeve

into the opening of the dashboard and

bend open the tabs located around the

sleeve with a screwdriver. Not all tabs

will be able to make contact, so

examine which ones will be most

effective. Bending open the appropriate

tabs behind the dashboard to secure

the sleeve in place.

7. Reconnect the wire harness and the

antenna and be careful not to pinch

any wires or cables.

8. Slide the unit into the sleeve until it

locks into place.

9. To further secure the unit, use the

supplied metal strap to secure the back

of the unit in place. Use the supplied

hardware (Hex Nut (M5mm) and Spring

Washer) to attach one end of the strap

to the mounting bolt on the back of

the unit. If necessary, bend the metal

strap to fit your vehicle's mounting

area. Then use the supplied hardware

(Tapping Screw (5x25mm) and Plain

Washer) to attach the other end of

metal strap to a solid metal part of the

vehicle under the dashboard. This strap

also helps ensure proper electrical

grounding of the unit.

Note to install the short threading

terminal of the mounting bolt to the

back of the unit and the other long

threading terminal to the dashboard.

Sleeve

Dashboard

Screwdriver

Tabs

INSTALLATION

10. Reconnect the cable to the vehicle

battery's negative (-) terminal. Then

replace the outer trim ring and install

the unit's front panel. (see the steps

of “installing the front panel”).

Removing the unit

1. Make sure the ignition is turned off,

then disconnect the cable from the

vehicle battery's negative (-) terminal.

2. Remove the metal strap attached the

back of the unit (if attached).

3. Press the release button to remove the

front panel.

4. Lift the top of the outer trim ring then

pull it out to remove it.

5. Insert both of the supplied keys into

the slots at the middle left and right

sides of the unit, then pull the unit out

of the dashboard.

Spring Washer

Tapping Screw

Plain Washer

Hex Nut

Metal Strap

Mounting Bolt

INSTALLATION

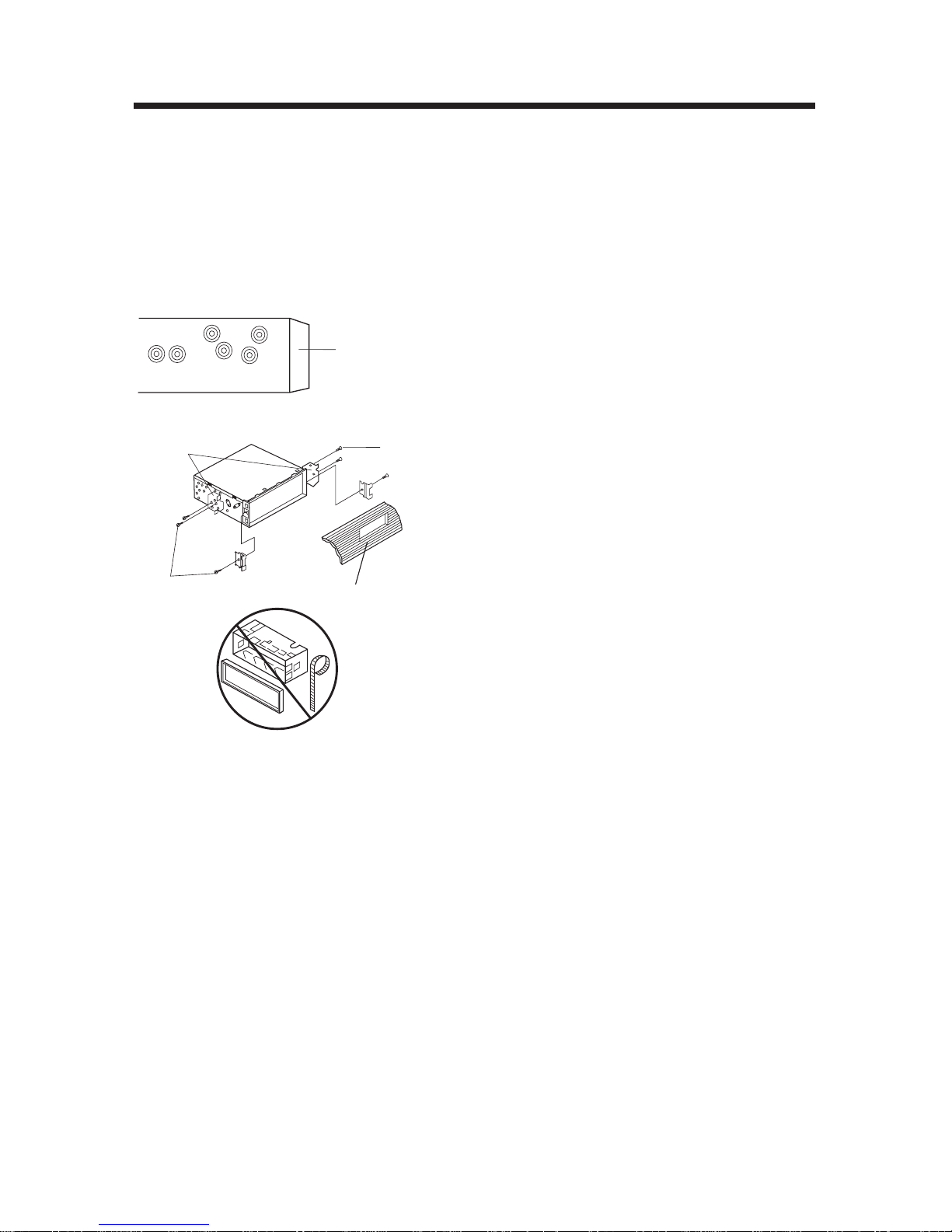

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota, follow

these mounting instructions.

Use the screw holes marked T (Toyota),

N (Nissan) located on both sides of the

unit to fasten the unit to the factory radio

mounting brackets supplied with your

vehicle.

To fasten the unit to the factory radio

mounting brackets.

1. Use a screwdriver to loose the hook's

screws of the front left and right sides

of the unit and remove the hooks.

2. Align the screw holes on the bracket

with the screw holes on the unit, and

then tighten the screws (5x5mm) on

each side.

Note: the outer trim ring, sleeve and the

metal strap are not used for method B

installation.

Dashboard or

Console

Factory Radio

Mounting

Bracket

Hook

Screw

Side view showing

Screw Holes marked

T, N

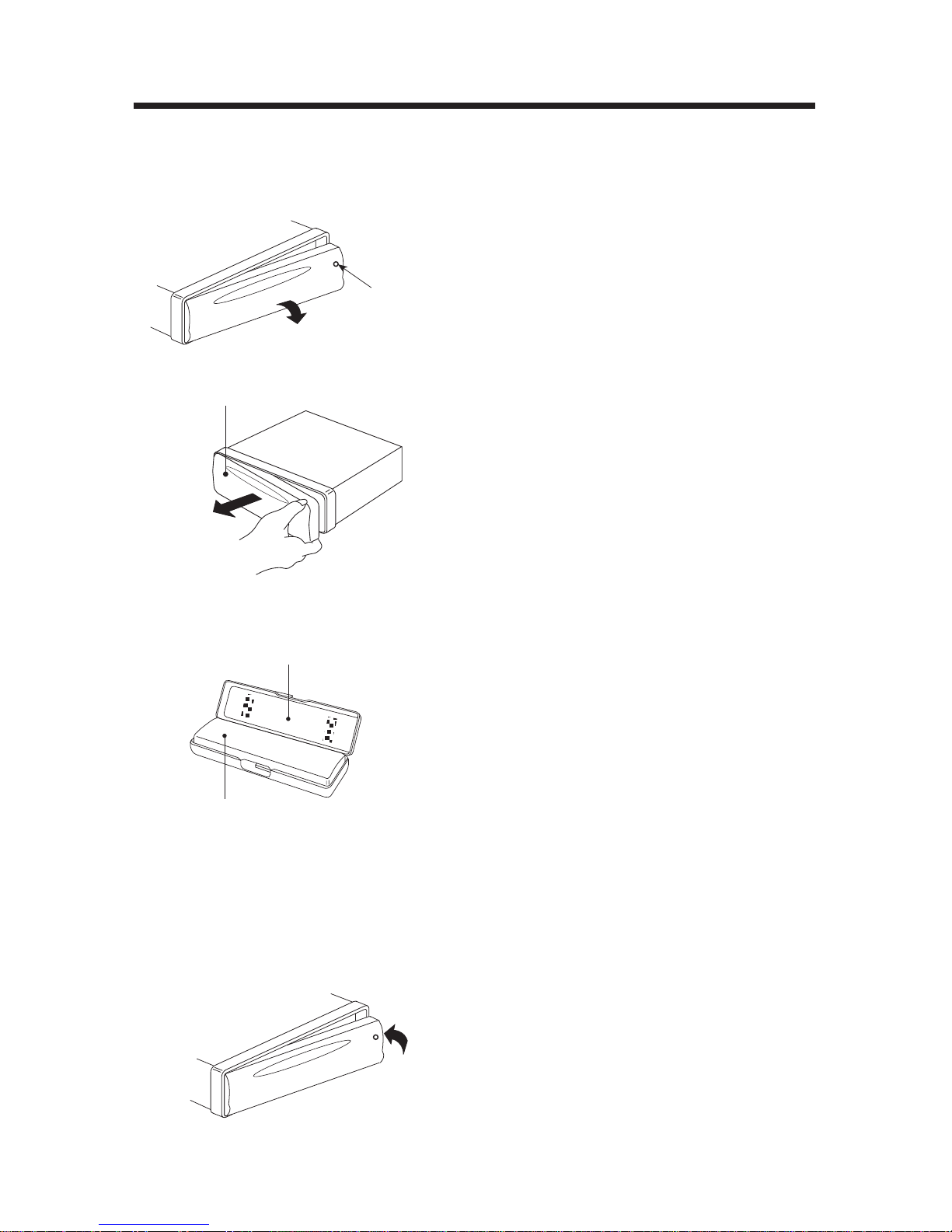

USING THE DETACHABLE FRONT PANEL

REMOVING THE FRONT PANEL

1. Press the release button (REL) on

the front panel and pull off the front

panel.

2. Keep front panel into the case.

INSTALLING THE FRONT PANEL

To install the front panel, insert the panel

into the housing and make sure the panel

is properly installed. Otherwise,

abnormality occurs on the display or some

keys will not function properly.

Protective Case

Front Panel

Precautions when handing

1. Do not drop the front panel.

2. Do not put pressure on the display or

control buttons when removing or

installing the front panel.

3. Do not touch the contacts on the front

panel or on the main unit body. It may

result in poor electrical contact.

4. If any dirt or foreign substances

adhered on the contacts, they can be

removed with a clean and dry cloth.

5. Do not expose the front panel to high

temperatures or direct sunlight in

anywhere.

6. Keep away any volatile agents (e.g.

benzene, thinner, or insecticides) from

touching the surface of the front panel.

7. Do not attempt to disassemble the

front panel.

Front Panel

Release Button

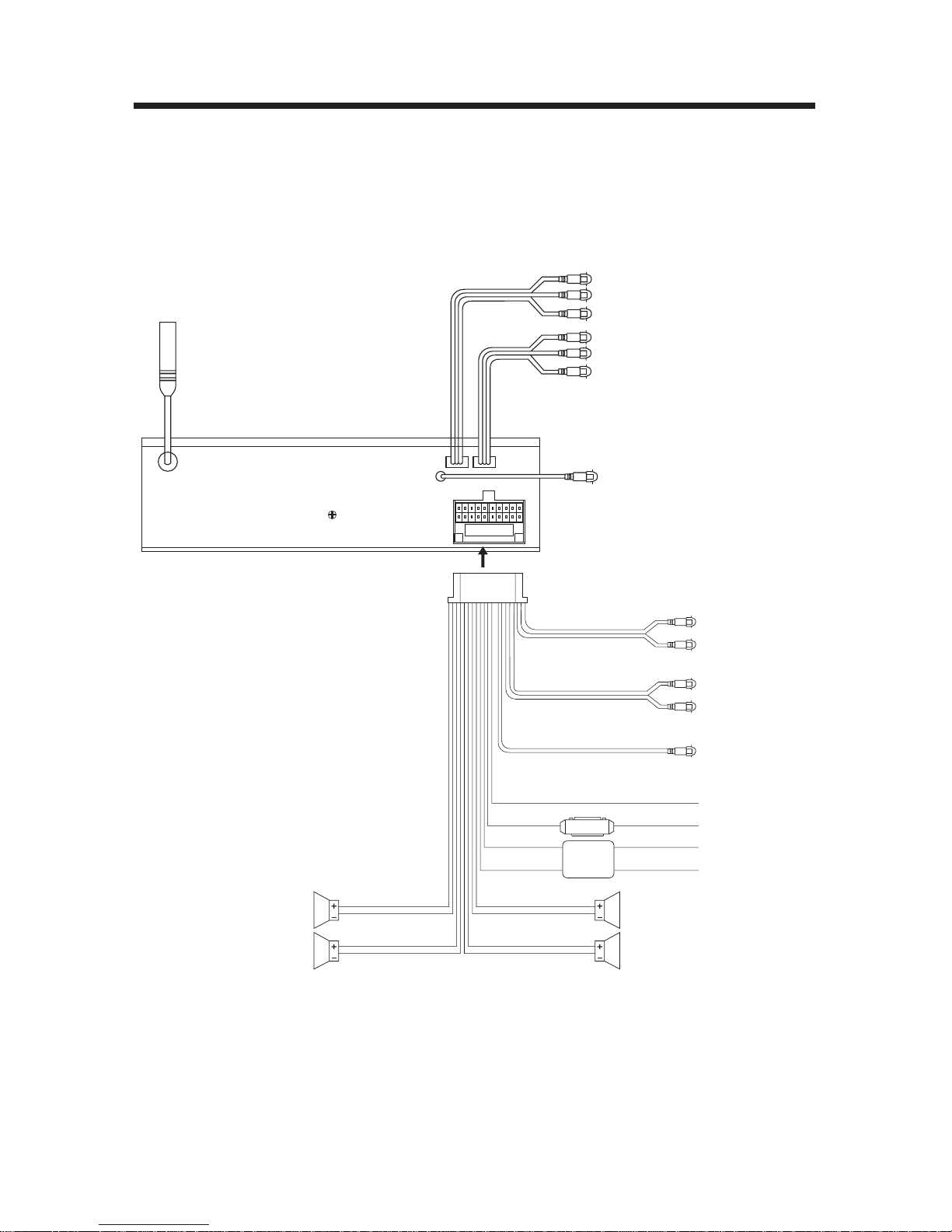

WIRING CONNECTION

20 PIN SOCKET CONNECTIN

FUSE

SUBWOOFER CABLE (GREEN)

CONSTANT 12 Volts

REAR RCA CABLE (GREY)

Rch

Lch

DIGITAL AUDIO (ORANGE)

VIDEO OUT 1 (YELLOW)

VIDEO OUT 2 (YELLOW)

REMOTE SOCKET (BLACK)

RED

WHITE

ANTENNA

CONNECTOR

IGNITION

SWITCH (ACC+)

CHOKE

BOX

FRONT Lch

SPEAKER

REAR Lch

SPEAKER

GREEN

GREEN/BLACK

WHITE

WHITE/BLACK

VIOLET

VIOLET/BLACK

GREY

GREY/BLACK

FRONT Rch

SPEAKER

REAR Rch

SPEAKER

BLUE

RED

YELLOW

BLACK

GROUND (B-)

POWER ANTENNA/

AMP TURN ON

AUDIO R IN (RED)

AUDIO L IN (WHITE)

VIDEO IN (YELLOW)

FRONT RCA CABLE (BROWN)

Rch

Lch

RED

WHITE

Indice

Altri manuali Boss Audio Systems Sistema video per auto

Boss Audio Systems

Boss Audio Systems Vision BVT5.6 Manuale utente

Boss Audio Systems

Boss Audio Systems Elite BE950WCPA Manuale utente

Boss Audio Systems

Boss Audio Systems DVD-9800B Manuale utente

Boss Audio Systems

Boss Audio Systems BV-8IRF Manuale utente

Boss Audio Systems

Boss Audio Systems BV60S Manuale utente

Boss Audio Systems

Boss Audio Systems BV15FLIP Manuale utente

Boss Audio Systems

Boss Audio Systems Vision DVD-8000 Manuale utente

Boss Audio Systems

Boss Audio Systems BV9055 Manuale utente

Boss Audio Systems

Boss Audio Systems BV7980 Manuale utente

Boss Audio Systems

Boss Audio Systems B V 17 FLIP Manuale utente

Boss Audio Systems

Boss Audio Systems BV11.2MC Manuale utente

Boss Audio Systems

Boss Audio Systems ELITE BV765B Manuale utente

Boss Audio Systems

Boss Audio Systems Vision BVH6 Manuale utente

Boss Audio Systems

Boss Audio Systems BV7.3FLIP Manuale utente

Boss Audio Systems

Boss Audio Systems BV9364B Manuale utente

Boss Audio Systems

Boss Audio Systems BV8.5BA Manuale utente

Boss Audio Systems

Boss Audio Systems BV6M Manuale utente

Boss Audio Systems

Boss Audio Systems BV7985 Manuale utente

Boss Audio Systems

Boss Audio Systems DVD-2800T Manuale utente

Boss Audio Systems

Boss Audio Systems BV9560B Manuale utente

Boss Audio Systems

Boss Audio Systems DVD-4000B Manuale utente

Boss Audio Systems

Boss Audio Systems BV10.2FLIP Manuale utente

Boss Audio Systems

Boss Audio Systems BV11.2 Manuale utente

Boss Audio Systems

Boss Audio Systems BV9990 Manuale utente

Manuali Sistema video per auto popolari di altre marche

Stinger

Stinger HEIGH10 RB10RAM13B Manuale utente

Eonon

Eonon E1057 Manuale utente

Milion

Milion D2223 Manuale utente

Metra Electronics

Metra Electronics 99-8153 Manuale utente

Voxx Electronics

Voxx Electronics HR8MA1 Manuale utente

Axxera

Axxera AV604Bi Manuale utente

Clarion

Clarion NX706E Manuale utente

Pyle view

Pyle view PLDN74BTi Manuale utente

Clarion

Clarion NX602 Manuale utente

PowerAcoustik

PowerAcoustik PTID-5850N Manuale utente

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guida utente

Lanzar

Lanzar SVDVD5 Manuale utente

Kia

Kia MTXM100YPPE Manuale utente

Eonon

Eonon E1060 Manuale utente

Macrom

Macrom M-AN900 Manuale utente

Hyundai

Hyundai BAPE-L3000N Manuale utente

r.LiNK

r.LiNK RL2-UCON8-SM Manuale utente

Blaupunkt

Blaupunkt DVP 01C Manuale utente
