Boss Audio Systems BV9.2F Manuale utente

DC 12V

9.2 TFT-LCD

16:9 Wide

1152*234

2 A/V RCA Inputs

(L)12.1 (W)10.8 (H)2.3inch

DC 12V

Right 2.8MHz Left 2.3MHz

Active Matrix TFT

Power Requirements

Power Consumption

Screen Size

Screen Format

Resolution Pixel

A/V Inputs

Dimensions

IR Power Requirements

IR Power Consumption

IR Transmitter Frequency

LCD Panel Type

Compatible video standard

NTSC/PAL auto select

SPECIFICATIONS

Note : This equipment has been tested and found to comply with the limits for

a Class A digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

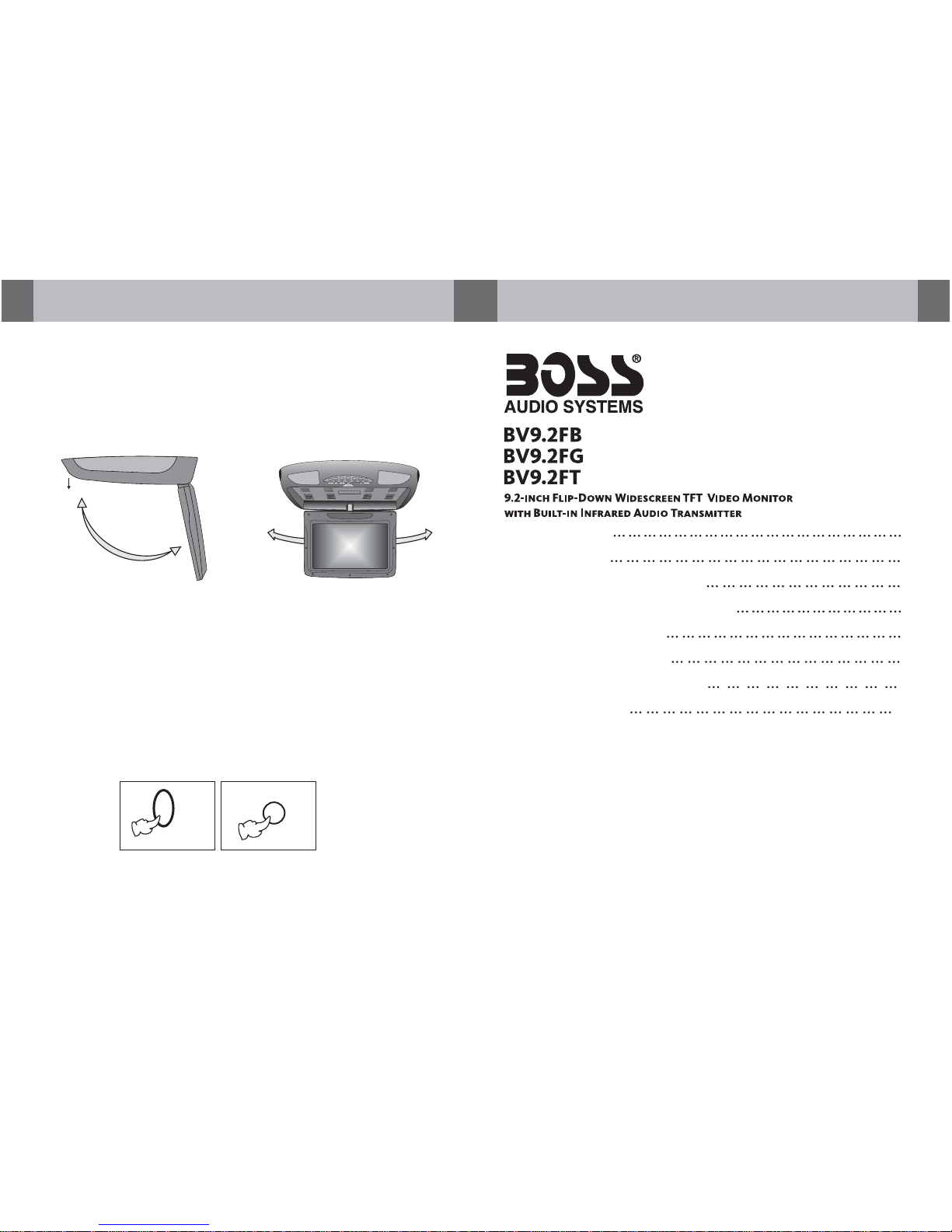

USER S MANUALMONITOR OPERATION

Releasing the Monitor

Push the open button (located on the front edge of the screen housing)

and lower the monitor to the desired angle. You can also adjust the

swivel angle.

How to watch the monitor

POWER

UNIT

REMOTE CONTROLLER

1.Connect the monitor to the external devices.

2.Press the POWER button on either the remote control or the unit once to turn

the power on.

Press the same POWER button to turn the power off.

3.Turn on the external devices and view.

PUSH BUTTON

PRECAUTIONS 4

INSTALLATION 5

FEATURES AND CONTROLS

A/V AND POWER CONNECTIONS 8

MONITOR OPERATION

Releasing the Monitor

How to watch the Monitor

SPECIFICATIONS 10

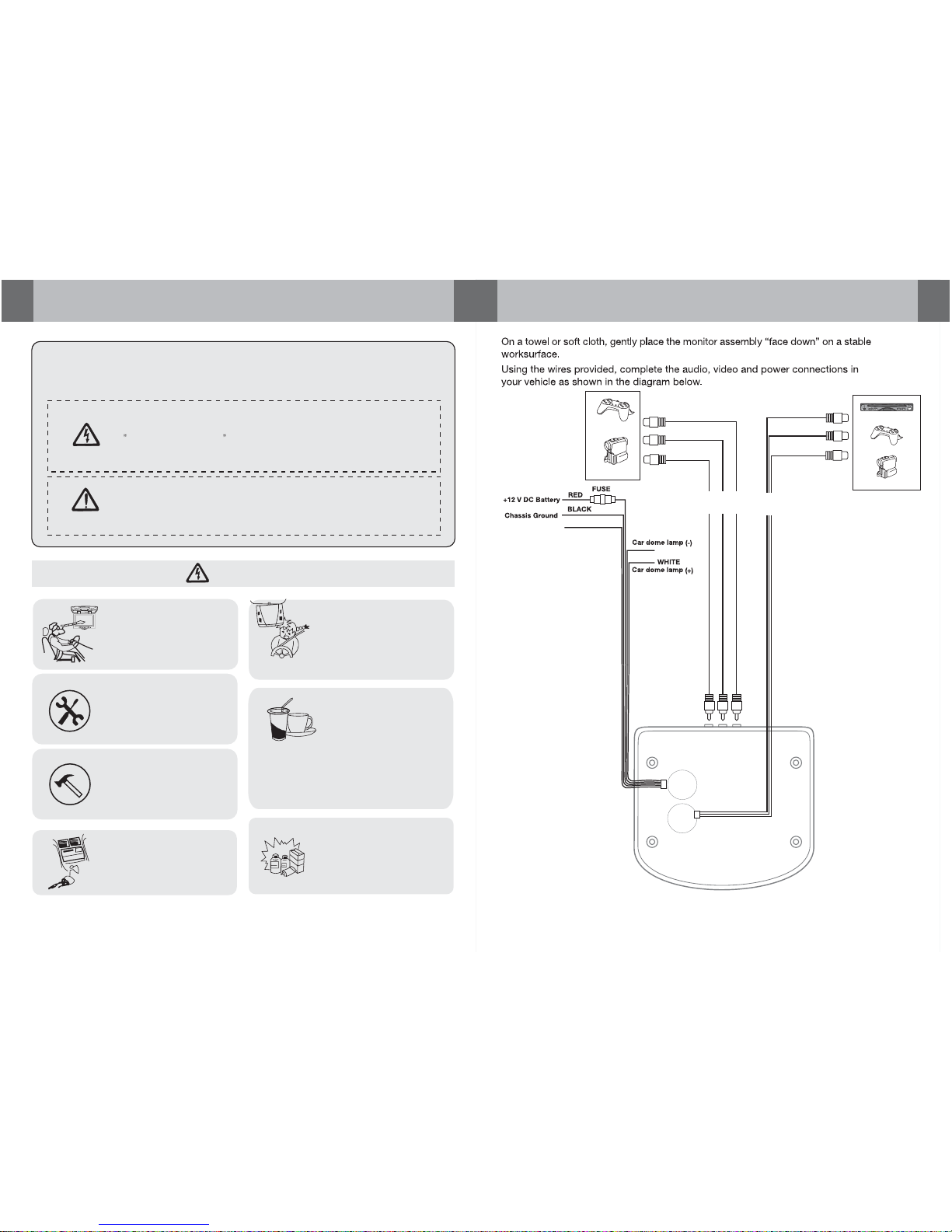

A/V AND POWER CONNECTIONS

PRECAUTIONS

Please read and observe all warnings and instructions in this owner s manual

and those marked on the unit. Retain this booklet for future reference.

There are two kinds of alarm symbols as follows:

WARNING

CAUTION

The lightning flash with arrowhead symbol within an equilateral

triangle is intended to alert the user to the presence of

dangerous voltage within the product s enclosure that may be

of sufficient magnitude to constitute a risk of electric shock to

people.

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying

the product.

Installation of all TV monitors

must be out of the drivers

field of vision.

Do not try and service these

products yourself. Seek only

a qualified service center or

factory service center.

Be careful not to drop or apply

pressure to the front panel of

your video monitor. If the screen

cracks due to misuse, your warranty

will be void!

Do not mount the product where

it will obstruct the deployment of

the airbag or in an area where it

would affect the vehicular control.

Also be careful to avoid mounting

the product where it can become

hazardous during sudden stops or

in the event of an accident.

Be careful not to overload your

cigarette lighter plug by adding

more than one device at a time.

Use extra caution with any liquids

in your car. If you or your child

spills any liquid on these products,

pull your vehicle to the roadside

and turn the key off to disconnect

or wipe the products with a towel. Do not

operate the equipment until all liquids have

either evaporated or you have had the monitor

inspected at a service center by a qualified

technician, Severe harm or danger can occur.

Use only a damp cloth to clean

the screen and use only purified

water on the cloth. Wring out all

excess water prior to wiping the

screen. Do not use any cleaners

or chemicals to clean the screen.

In most cases a dry cloth will do!

OWER

MEN

CAMCORDER

GAME White AUDIO(L)

Red AUDIO(R)

Yellow VIDEO

CAMCORDER

GAME

White AUDIO(L)

Red AUDIO(R)

Yellow VIDEO

YELLOW

ACC

AV Input

(AV 2) (AV 1)

AV Input

DVD PLAYER

VIDEO

GREEN

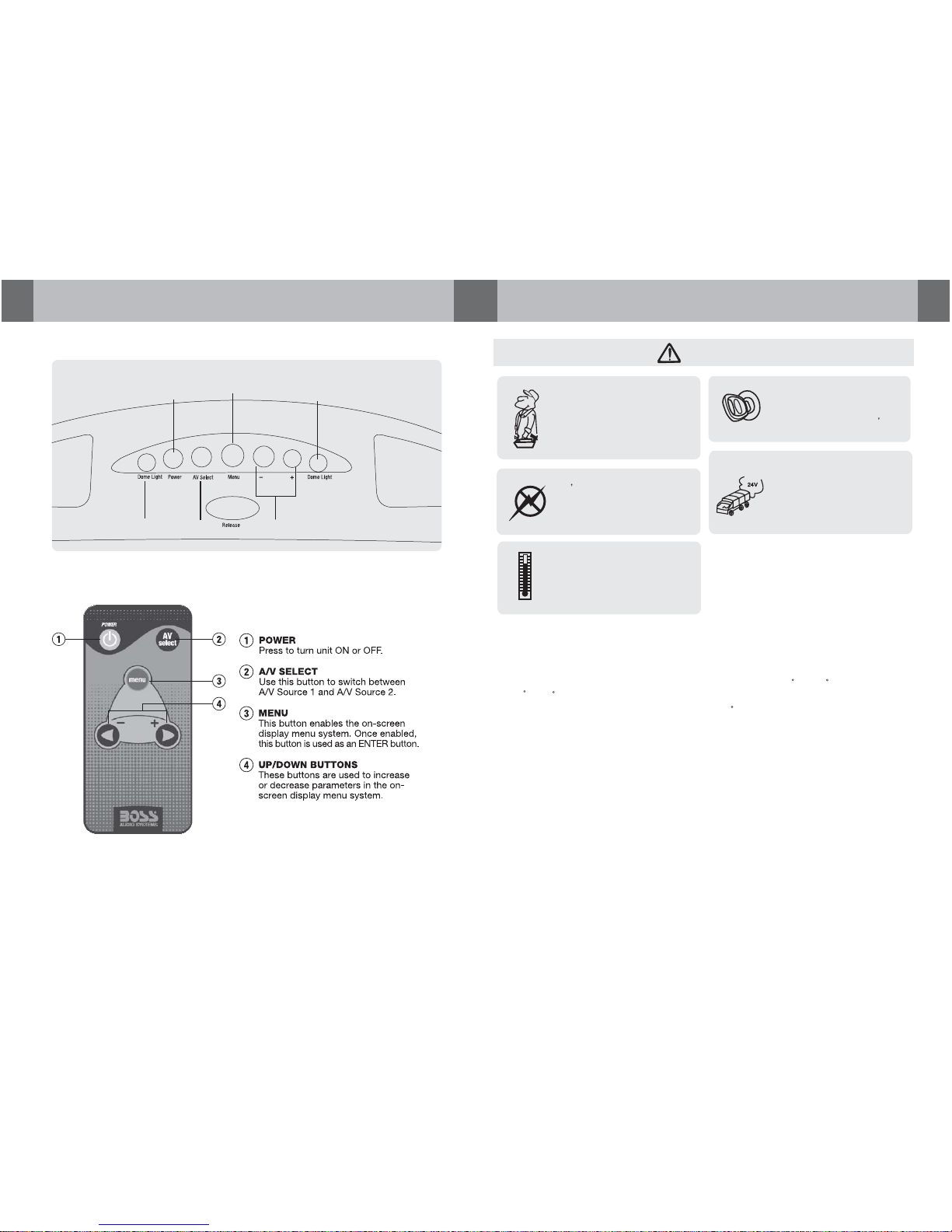

FEATURES AND CONTROLS

PRECAUTIONS

Quality installations are best

performed by qualified and

certifled installers.

Don t touch the unit if there is

a flash of lightning. It may

receive an electric shock.

Do not cover heater ducts or vents.

This may cause a fire or an electric

shock.

Watching the monitor for an

extended period of time

with the engine turned off

may deplete the vehicle s

battery.

This product is designed for

operation with a 12 Volt DC,

negative ground vehicle. It

is not suitable for operation

under other conditions or

voltages.

1. The operating temperature of this product is limited to 14 F~140 F

(-10 C~60 C).

Your vehicle can reach temperatures up to 100 C in the summertime.

2. When your vehicle is extremely hot or cold you must allow time for your air

conditioner or heater to cool or heat the vehicle and for operating temperatures

to return to normal operating ranges. Your monitor will return to its normal

functions when these operating ranges are achieved.

3.Optimum picture quality is achieved when you are directly in front of the monitor

(+/-45 degrees).

CAUTION

Check Point

Left Dome Light Button

POWER Button

A/V select

Button

MENU Button

Up/Down button

Right Dome Light Button

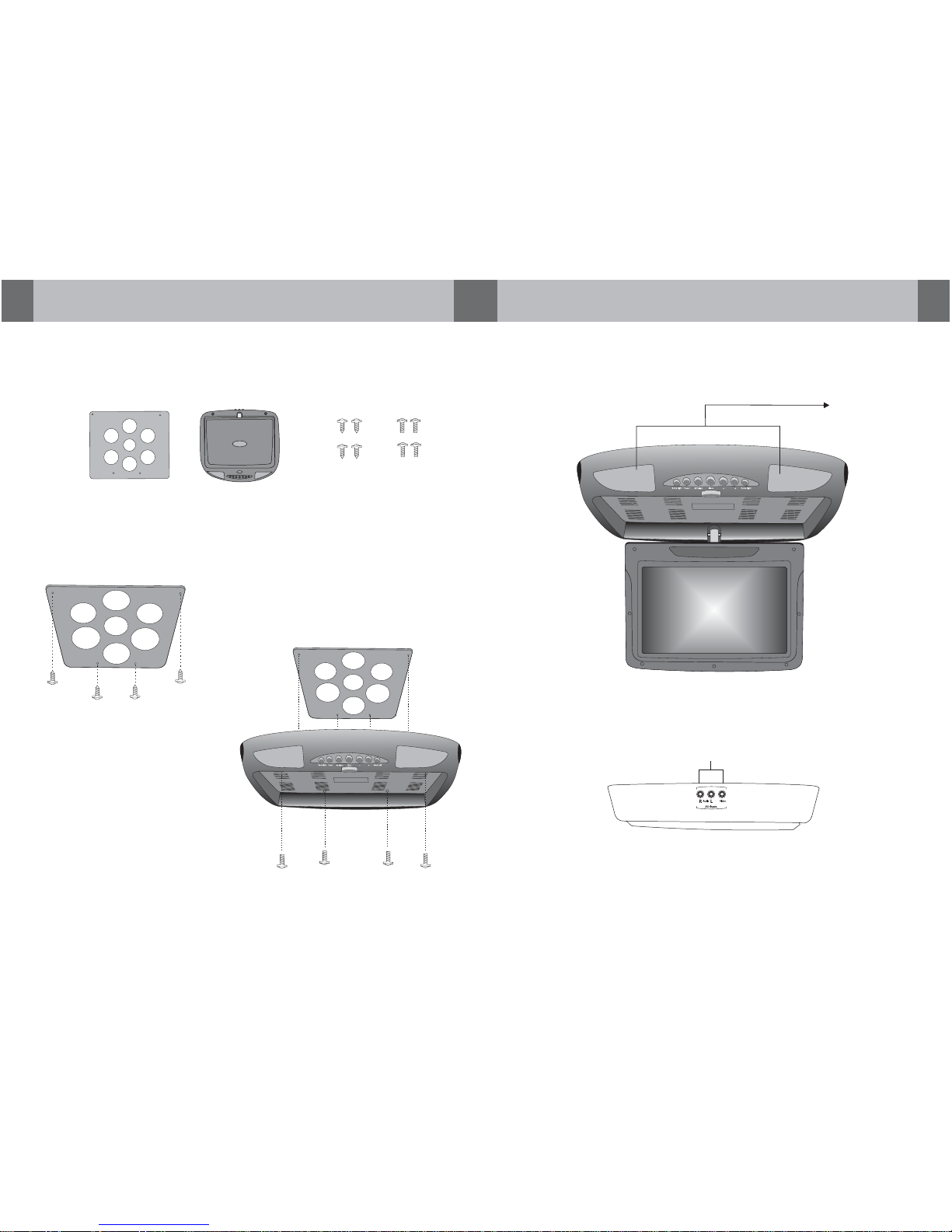

INSTALLATION FEATURES AND CONTROLS

1.Open the packaging and check that these parts are present.

INSTALLATION PLATE UNIT SCREW A SCREW B

2.Connect the external devices RCA cable or AV output as reguired. Refer to the

connection diagram on page 8 for details.

3.Match the position of installation bracket and

installation plate with screw A.

4.Secure the unit in place with the supplied

screw B.

AUX Input Jack

Dome light

Monitor

(Front)

Monitor

(Rear)
