BOSSCO BV10.1B Manuale utente

To ensure safety while driving

and to comply with laws,

drivers should not watch video or

operate the video device while driving.

-1-

Content

Content..............................................................................................

Installation steps...............................................................................

Remote control..................................................................................

Controls on main unit.........................................................................

Remote Control Description...............................................................

Universal functions..........................................................................

Radio operation................................................................................

Bluetooth Operation.........................................................................

Disc/USB/card operation...................................................................

1. Loading or unloading a disc, USB or card.....................................

1.1 Loading a disc, USB or card.......................................................

1.2 Unloading a disc, USB or card....................................................

2. Function Icons.............................................................................

2.1 Function Icons-board of Digital Video/CD(Video)/MPEG4/Image

/MP3/WMA.................................................................................

2.2 CD interface..............................................................................

3. Function of controls on the touch screen/main unit/remote

control........................................................................................

AUX IN operation..............................................................................

iPod operation..................................................................................

Rear View Camera.............................................................................

Troubleshooting...............................................................................

Specification....................................................................................

-2-

1. Remove the chassis from Slide Bracket Housing;

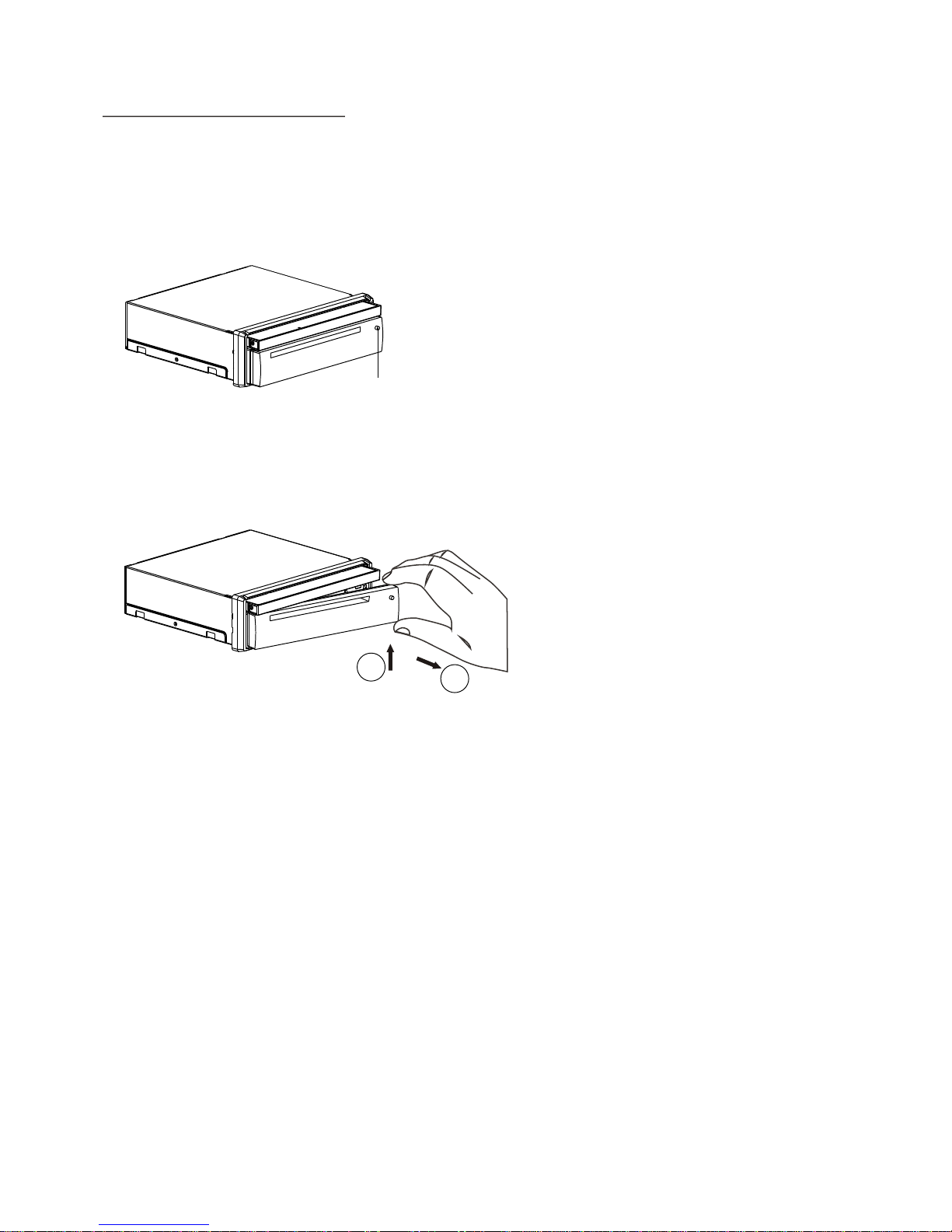

1) Press the REL button to release the control panel ;

2) Hold the right side of the control panel to pull it rightwards a little and then to

you for removing it ;

3) Remove the PLASTIC FRAME from the chassis (see the Installation diagram);

4) Insert the 2 KEY PLATES into the grooves at the both sides of the chassis till

they click(see the Installation diagram);

5) Pulling the two KEY PLATES to remove the chassis from the Slide Bracket

Housing ;

2. Mount the Sliding Bracket Housing in the position of car multimedia system and

bend some tabs of Sliding Bracket Housing to fix it.

3. Connecting all wires:

1) Connecting all wires according ot the wiring diagram on next page;

INSTALLATION STEPS

REL button

-3-

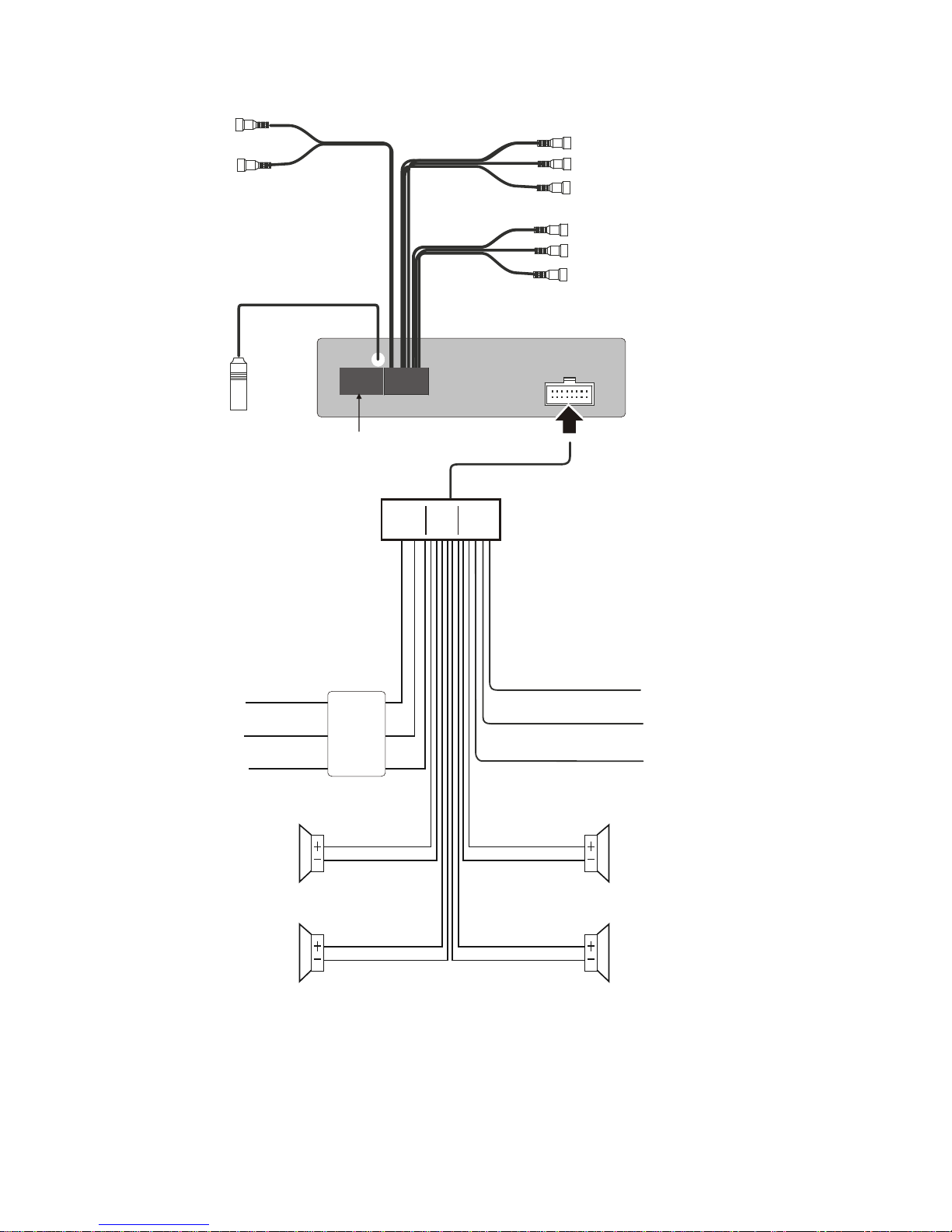

WIRING DIAGRAM

NOTE:

1. Must use 4 ohm speakers.

2. After connecting parking brake input line, video on screen of control panel

will be displayed only after

3. Before finishing wiring, do not attach control panel onto chassis.

applying parking brake.

SUBWOOFER GREY

VIDEO INPUT YELLOW

RCH RED

LCH WHITE

REAR AUDIO OUTPUT

LCH WHITE

RCH RED

VIDEO OUTPUT YELLOW

FRONT A/V OUTPUT

REAR CAMERA INPUT YELLOW

BROWN

PINK (B+)12V

REAR CAMERA SWITCH

(B-)PARKING BRAKE

GREY

GREY/BLACK

VIOLET

VIOLET/BLACK

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

AUTO ANTENNA

BLUE

GROUND(B-)

MEMORY BACK-UP(B+)

IGNITION SWITCH(B+) RED

YELLOW

BLACK

CHOKE

BOX

RADIO ANTENNA Not used

Front Left

Rear Left

Front Right

Rear Right

Opening

Clip

-4-

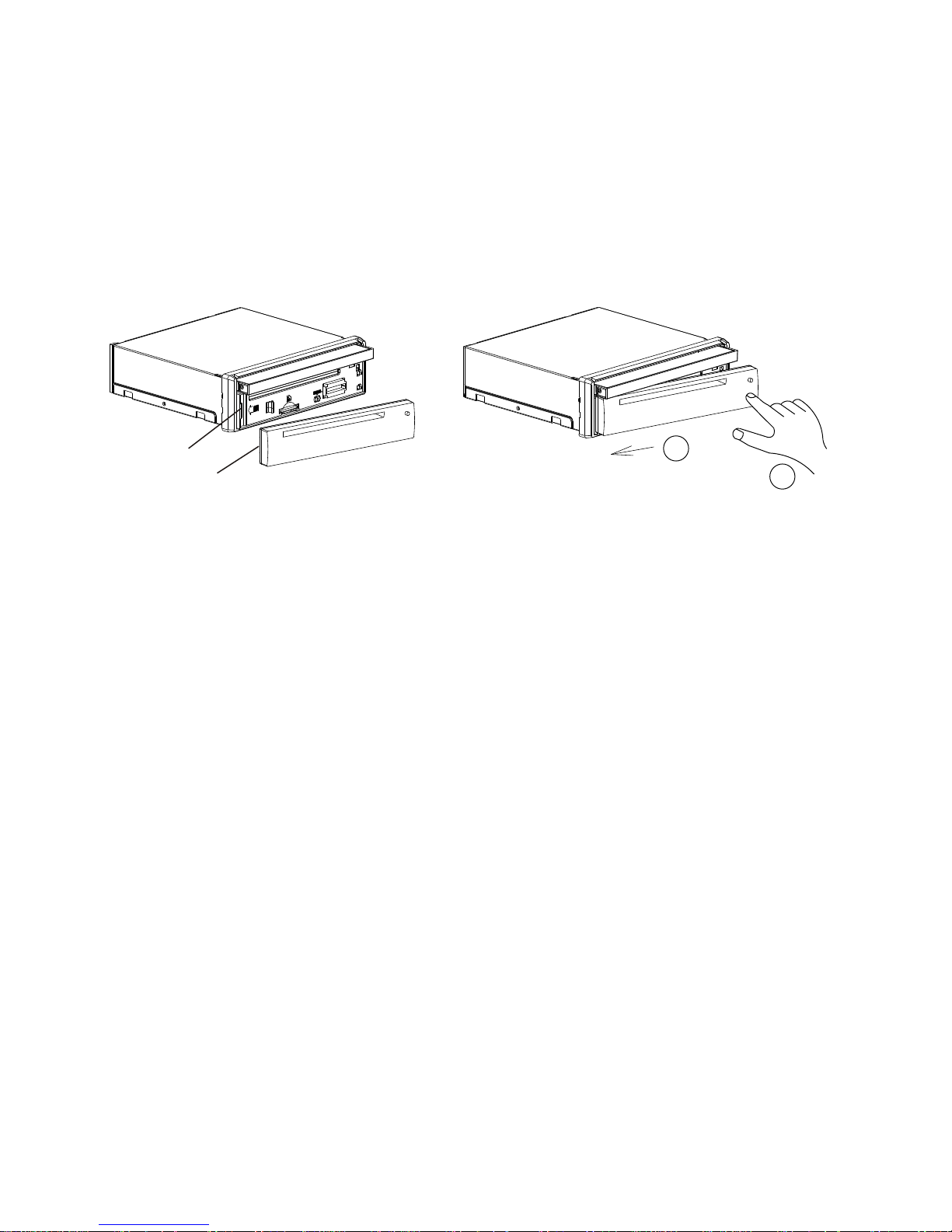

2) Attaching the control panel onto the chassis;

(1) Insert the left side of the control panel into the opening of the chassis .

(NOTE : the “clip” point on the control panel must be attached into the opening

of the chassis .)

(2) Gently push the right side of the control panel till you feel a “ Click” .

3) Testing it for making sure that it can work properly .

4. Installing chassis according to the installation diagram on next page:

1) Insert the chassis of the car multimedia system into the Sliding Bracket Housing.

2) Use the metal strap to fix the rear part of chassis.

5. Installing the monitor refer to next next page.

* Removing the chassis:

1) removing the monitor refer to next next page

2) Remove the metal strap from the chassis ;

3) Remove the control panel from the chassis;

4) Remove the plastic frame from the chassis;

5) Insert 2 key plates into the left and right sides of the chassis and draw the chassis

out of the sliding bracket housing.

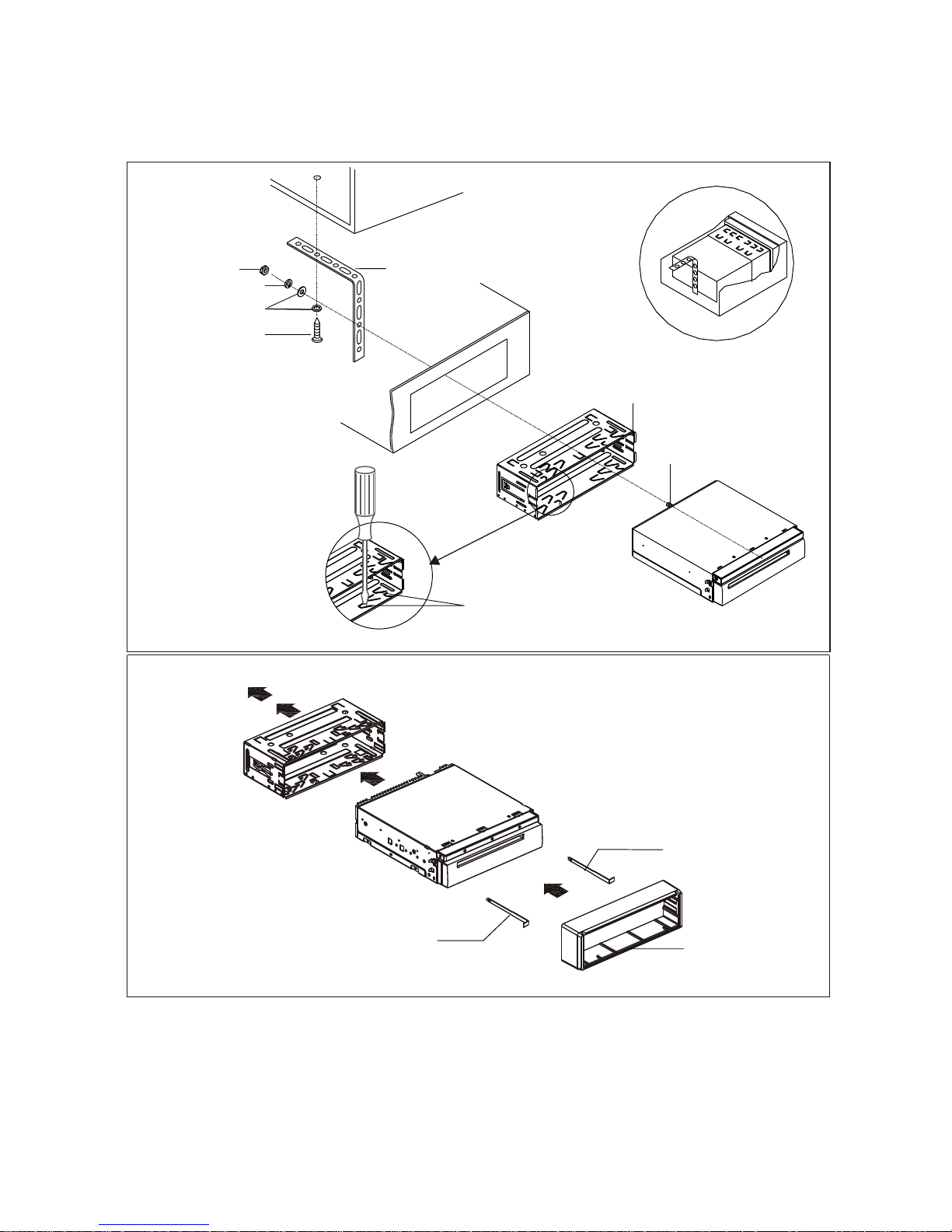

Installation Diagram

-5-

If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove

the PLASTIC TRIM OUT of the both sides away, then insert the two KEY PLATE into

left and right side of chassis as above illustration.

DASH BOARD

METAL MOUNTING

STRAP

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

CONSOLE

SLIDE BRACKET

HOUSING

HEX BOLT

SCREWDRIVER

TABS

KEY PLATE

KEY PLATE PLASTIC FRAME

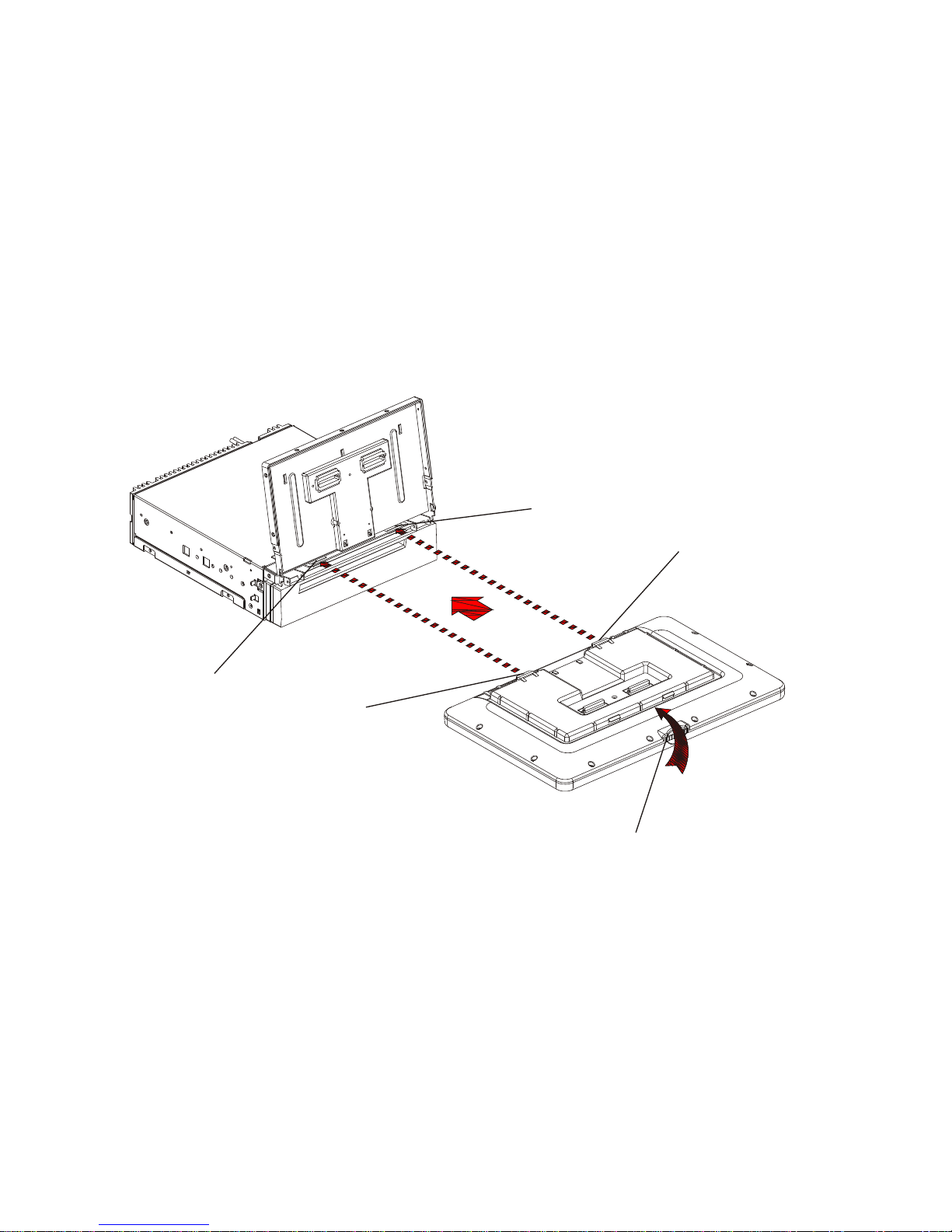

Installing the monitor.

1) Press the OPEN/MONITOR-ANGLE button to slide the monitor holder out and

stand it up.

2) Insert the 2 bulges of the monitor into the 2 hollows of the monitor holder and

flip up the monitor, then push the top middle part of the monitor to make the

monitor attach onto the monitor holder.

Removing the monitor.

1) Push the MONITOR REL to detach the monitor from the monitor holder;

2) Hold the top part of the monitor to pull away from the monitor holder and lift it

up to remove it.

-6-

Opening

Clip

Opening

Clip

MONITOR REL

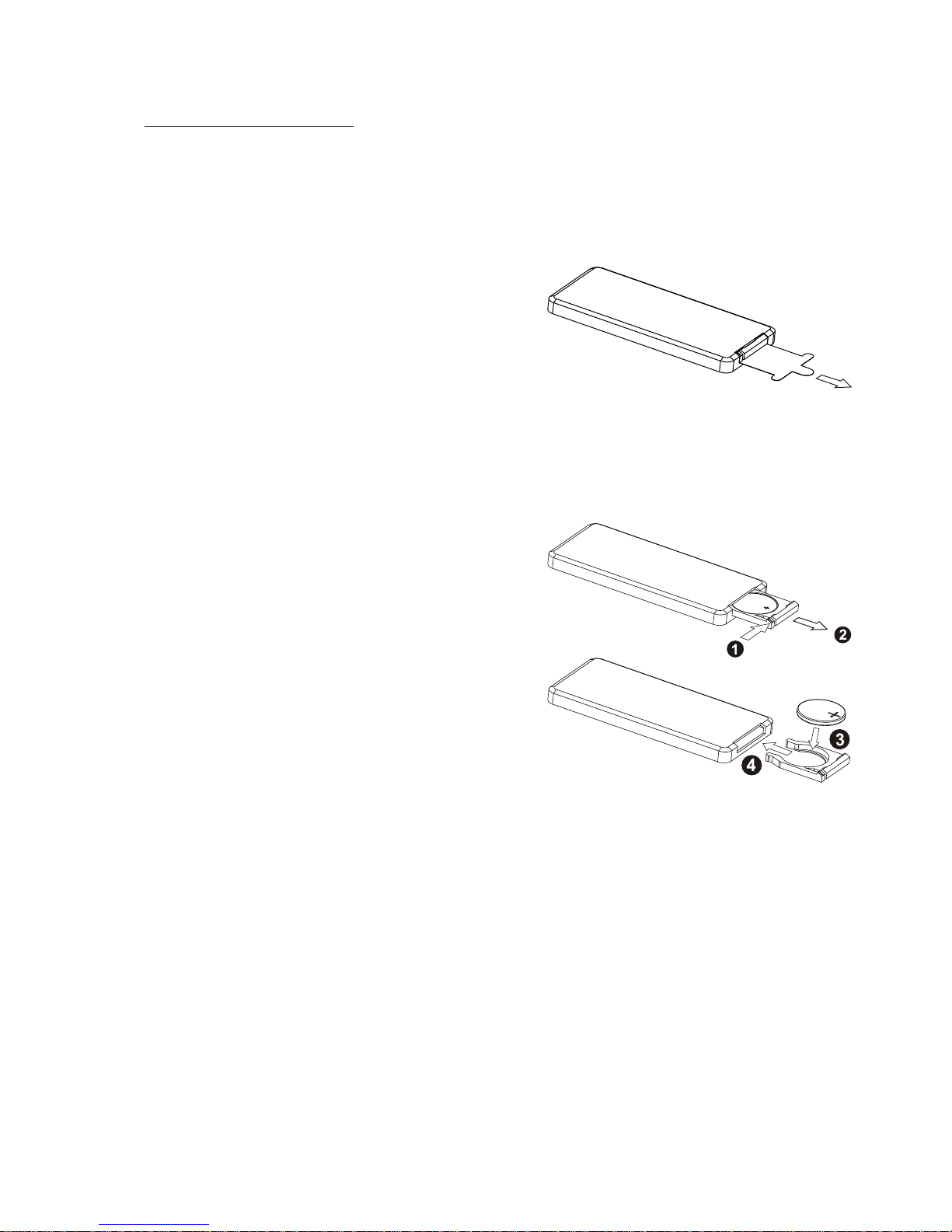

1. Removing insulating sheet

)

using remote control for the first time, you

can see an insulating sheet at the bottom

side of remote control as right.

you must remove the insulating sheet as right.

Otherwise, the remote control is disabled.

2. Replace battery

If the electric energy of battery is weak,

replace it.

1 Press and hold the movable block as direction

indicated by arrow 1 as right, at one time pull

batteryl holder out of remote control as

direction indicated by arrow 2 as right.

2 Replace the old battery by a new one with (+)

polarity side upward as right.

3 Insert the battery holder into remote control

again as right.

3 Note about using remote control

1 You should face the emitting window of remote control towards the sensor

window of the unit.

2 Operation angle for front panel: About 30 degree

3 The distance between the emitting window of remote control and the sensor

window of the unit : < 5M .

4 Battery Warning

leakage may cause damage to remote control.1 Battery

2 Do not throw batteries into fire.

3.To avoid risk of accident, keep batteries out of reach of children.

REMOTE CONTROL

-7-

-8-

Controls on Main Unit

1. AUX IN JACK

2. USB PORT and COVER

3. SEL BUTTON and VOL KNOB

4. REL BUTTON

5. IR SENSOR WINDOW

6. RESET BUTTON

7. EJECT BUTTON

8. POWER/SOURCE BUTTON

9. BAND/ BUTTON

10. MUTE BUTTON

11. >>| BUTTON

12. |<< BUTTON

13. >|| BUTTON

14. SD/MMC CARD SLOT

15. LCD SREEN

16. OPEN BUTTON

17. MICROPHONE

18. BUTTON

Control Panel

Sliding Plate diagram af ter remo ving Control Panel

2 3

8 5

MIC
