BOSSCO EBand JS-10 Manuale utente

Owner’s Manual / Bedienungsanleitung / Mode d’emploi

Manuale dell'utente / Manual de instrucciones

Manual do Proprietário / Gebruikershandleiding

English

Deutsch

Français

Italiano

Español

Português

Nederlands

This product complies with the requirements of EMC Directive 2004/108/EC.

For EU Countries

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

NOTICE

AVIS

For the USA

FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment requires shielded interface cables in order to meet FCC class B limit.

Any unauthorized changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

For Canada

WARNING

This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead.

For C.A. US (Proposition 65)

Owner’s Manual

Play the guitar with your favorite songs as your backing

English

Deutsch

Français

Italiano

Español

Português

Nederlands

Panel Descriptions ...............................................3

Front Panel .....................................................3

Top Panel / Side Panels ..........................................4

Top Screen ......................................................4

Basic Operation .................................................5

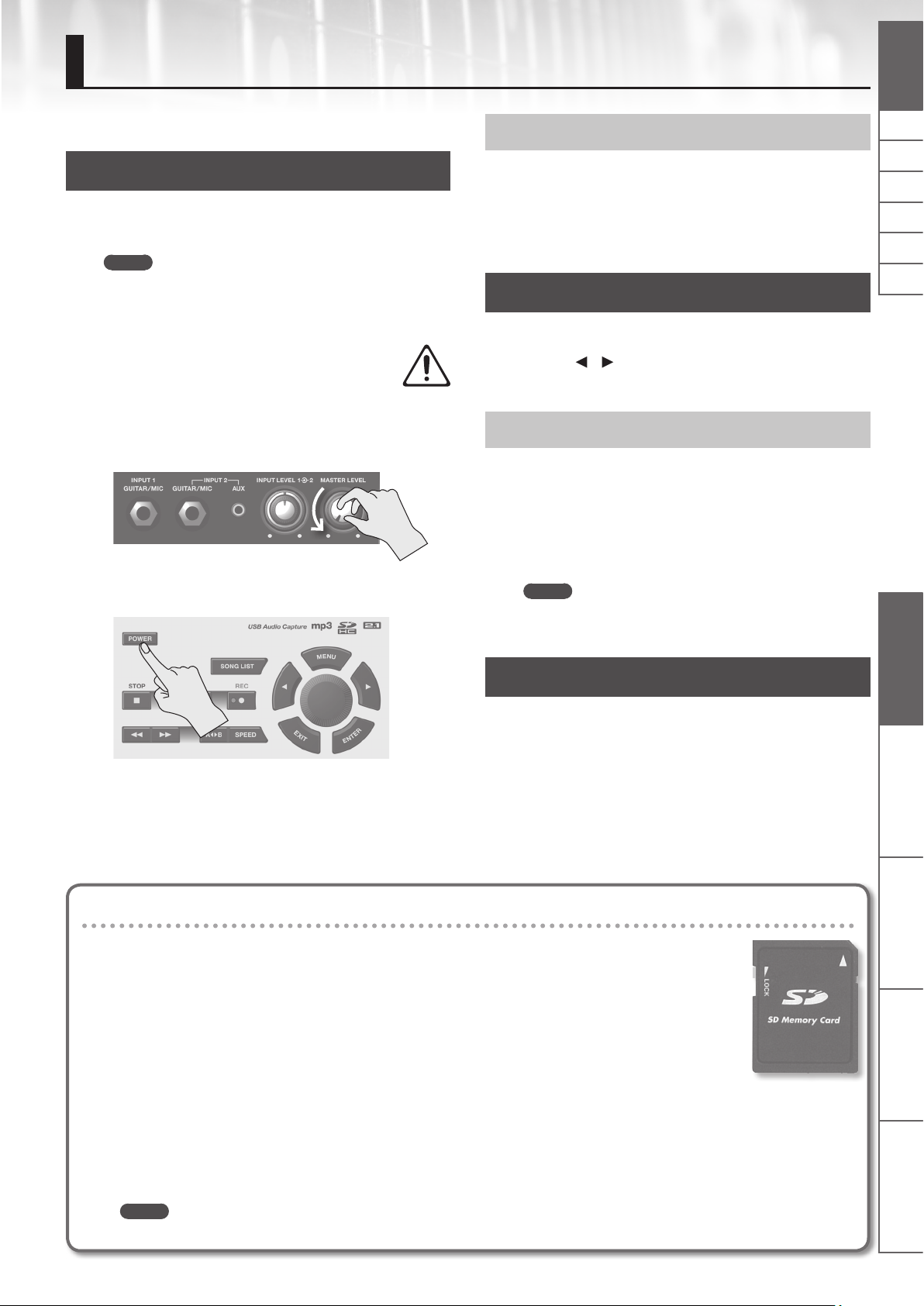

Turning the Power On ...........................................5

Turning the Power O .....................................5

Moving the Cursor ..............................................5

Selecting an Item .........................................5

Changing the Value .............................................5

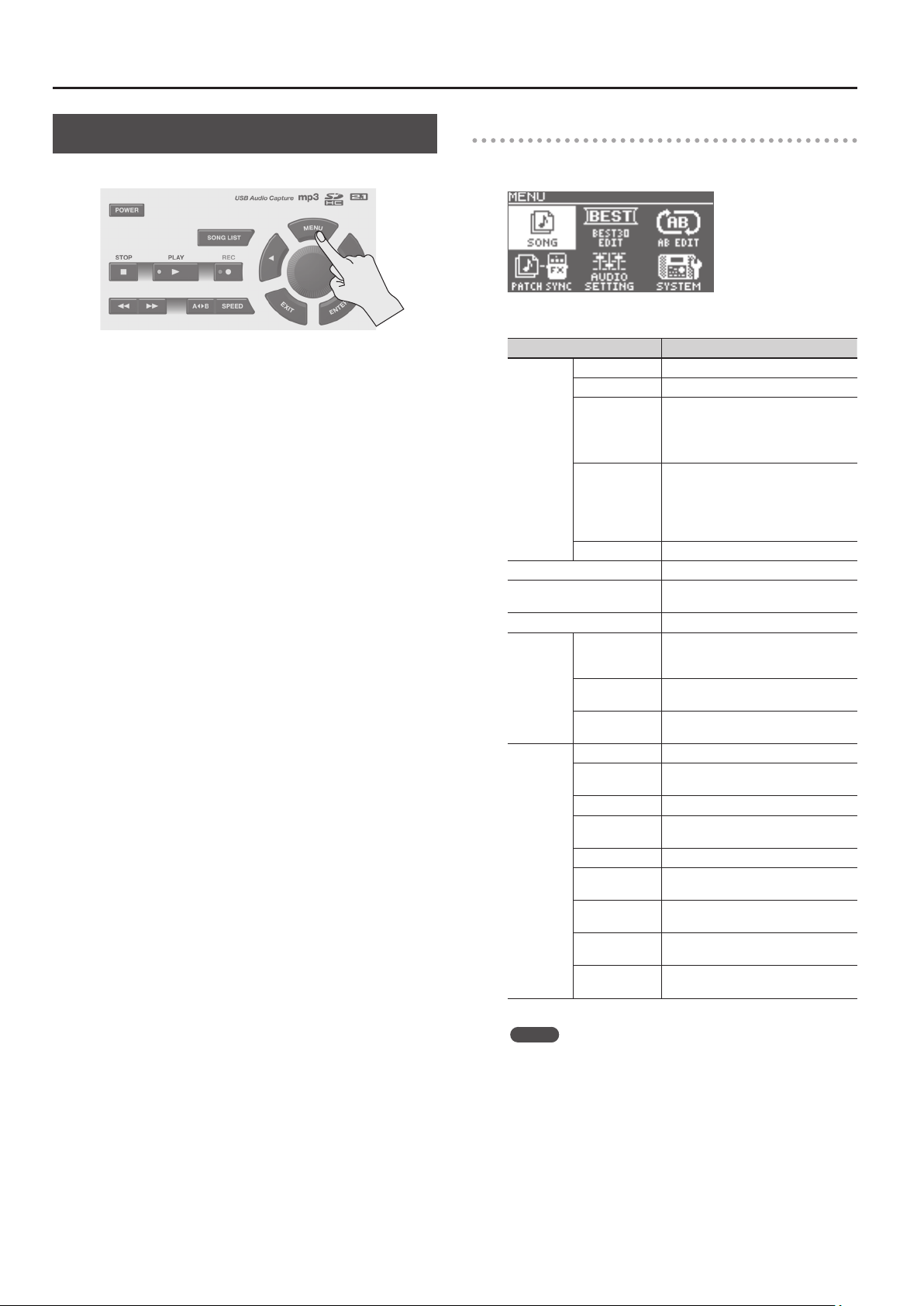

[MENU] Button ..................................................6

Play the Guitar with Songs as Your Backing . . . . . . . . . . . . . . . . . . . . . . . . 7

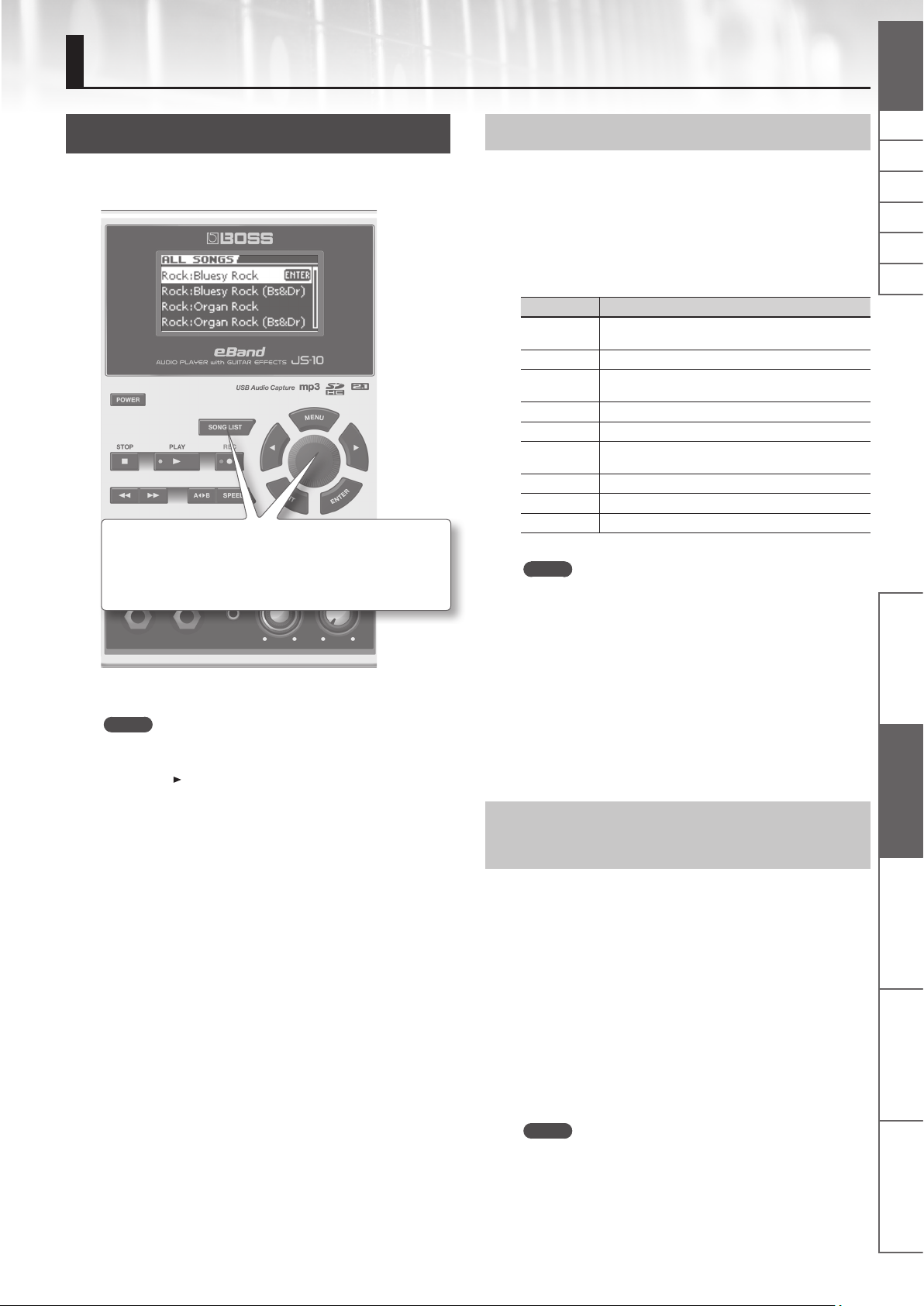

Selecting Songs .................................................7

Displaying Songs by Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Registering Your 30 Favorite Songs (BEST 30) . . . . . . . . . . . . . . .7

Selecting Songs on the USB Flash Drive . . . . . . . . . . . . . . . . . . . .8

Deleting Songs ...........................................8

Playing a Guitar While Playing Back a Song . . . . . . . . . . . . . . . . . . . . . . .8

Switching the Play Mode ..................................9

Tuning ..........................................................9

Recording Performances .......................................10

Switching Eects ...............................................10

Changing the Speed of Songs ..................................11

Changing the Pitch of Songs ...................................11

Removing the Center Sound (Center Cancel) . . . . . . . . . . . . . . . . . . . .12

Repeating Playback of a Specied Segment (AB REPEAT) . . . . . . . .12

Precise Adjustment of the AB REPEAT Segment . . . . . . . . . . .12

Importing Songs from a PC to the JS-10 (eBand Song List Editor) . .13

Before Using eBand Song List Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Connecting the JS-10 to Your PC . . . . . . . . . . . . . . . . . . . . . . . . . .13

Installing eBand Song List Editor on Your PC . . . . . . . . . . . . . .13

Starting Up eBand Song List Editor . . . . . . . . . . . . . . . . . . . . . . .13

Using eBand Song List Editor ...................................14

Ripping Songs from CD to the JS-10 (Ripping) . . . . . . . . . . . . .15

Editing Song Information ................................16

Ending the Connection with the PC . . . . . . . . . . . . . . . . . . . . . . .16

Convenient Functions ...........................................17

Editing the Eects. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Visually Editing the Sound (EZ EDIT) . . . . . . . . . . . . . . . . . . . . . .17

Advanced Editing of Sounds (PATCH EDIT) . . . . . . . . . . . . . . . .18

MENU of an EFFECT screen ...............................18

Saving Patches ...........................................19

Exchanging Two Patches (EXCHANGE) . . . . . . . . . . . . . . . . . . . .19

Initializing the Eect Settings (INITIALIZE) . . . . . . . . . . . . . . . . .19

Backing Up Data on an SD Card to a PC (BACK UP) . . . . . . . . . . . . . .20

Recovering Data Backed Up on a PC to the SD Card (RECOVERY) .20

Changing the Parameters of Songs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

View the Song Information ...............................21

Naming Songs .................................................21

Writing Songs to a USB Flash Drive (Export) . . . . . . . . . . . . . . . . . . . . .22

Importing Songs in the USB Flash Drive to the JS-10 (Import) . . . .22

Changing the Patch When the Song is Switched (PATCH SYNC) . .22

Specifying Audio Settings ......................................23

Switching the INPUT Jack Sensitivity . . . . . . . . . . . . . . . . . . . . . .23

Adjusting the Balance of Low to High Frequency Ranges

(Global EQ) ..............................................23

Turning O the JS-10 Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . .23

System Settings for the JS-10 ...................................24

Changing the Function of the USB COMPUTER Port . . . . . . .24

Allocating Functions to Footswitches . . . . . . . . . . . . . . . . . . . . .24

Backing Up Eect User Patches to an SD Card . . . . . . . . . . . . .24

Restoring Eect User Patches Backed Up on the SD Card . .25

Viewing Free Space on the SD Card and the USB Flash

Drive ....................................................25

Adjusting Display Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Enabling Auto O ........................................26

Listing the Files on the SD Card as a Song List . . . . . . . . . . . . .26

Selecting the Sound Output from the USB COMPUTER

Port .....................................................26

Initializing an SD Card (FORMAT) . . . . . . . . . . . . . . . . . . . . . . . . .26

Returning the JS-10’s Settings to Default Factory Settings .26

Using the JS-10 as a USB Audio Interfaces . . . . . . . . . . . . . . . . . . . . . . .27

Preparing a USB Driver ...................................27

Installing the USB Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Playing Songs on a PC Through the JS-10 . . . . . . . . . . . . . . . . .27

Using the Commercially Available SD Cards . . . . . . . . . . . . . . . . . . . . .28

Replacing the SD Card ...................................28

Using Footswitches and Expression Pedals . . . . . . . . . . . . . . . . . . . . . .30

Allocating Functions to Footswitches . . . . . . . . . . . . . . . . . . . . .30

Appendices ....................................................31

Eect Parameter List ...........................................31

Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Troubleshooting ...............................................37

Signal Flow ....................................................38

Memory Conguration in the JS-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Specications ..................................................39

USING THE UNIT SAFELY ........................................40

IMPORTANT NOTES .............................................41

Index ..........................................................43

Contents

Before using this unit, carefully read the sections titled “USING THE

UNIT SAFELY” (p. 40) and “IMPORTANT NOTES” (p. 41). These sections

provide important information concerning the proper operation

of the unit. Additionally, in order to gain a good grasp of every

feature provided by your new unit, this owner’s manual should be

read in its entirety, and it should be saved and kept on hand as a

convenient reference.

in any form without the written permission of BOSS CORPORATION.

eBand Song List Editor Convenient Functions Appendices

Panel Descriptions Play the Guitar with Songs

as Your Backing

NlPtEsItFrDeEnglish

Panel Descriptions

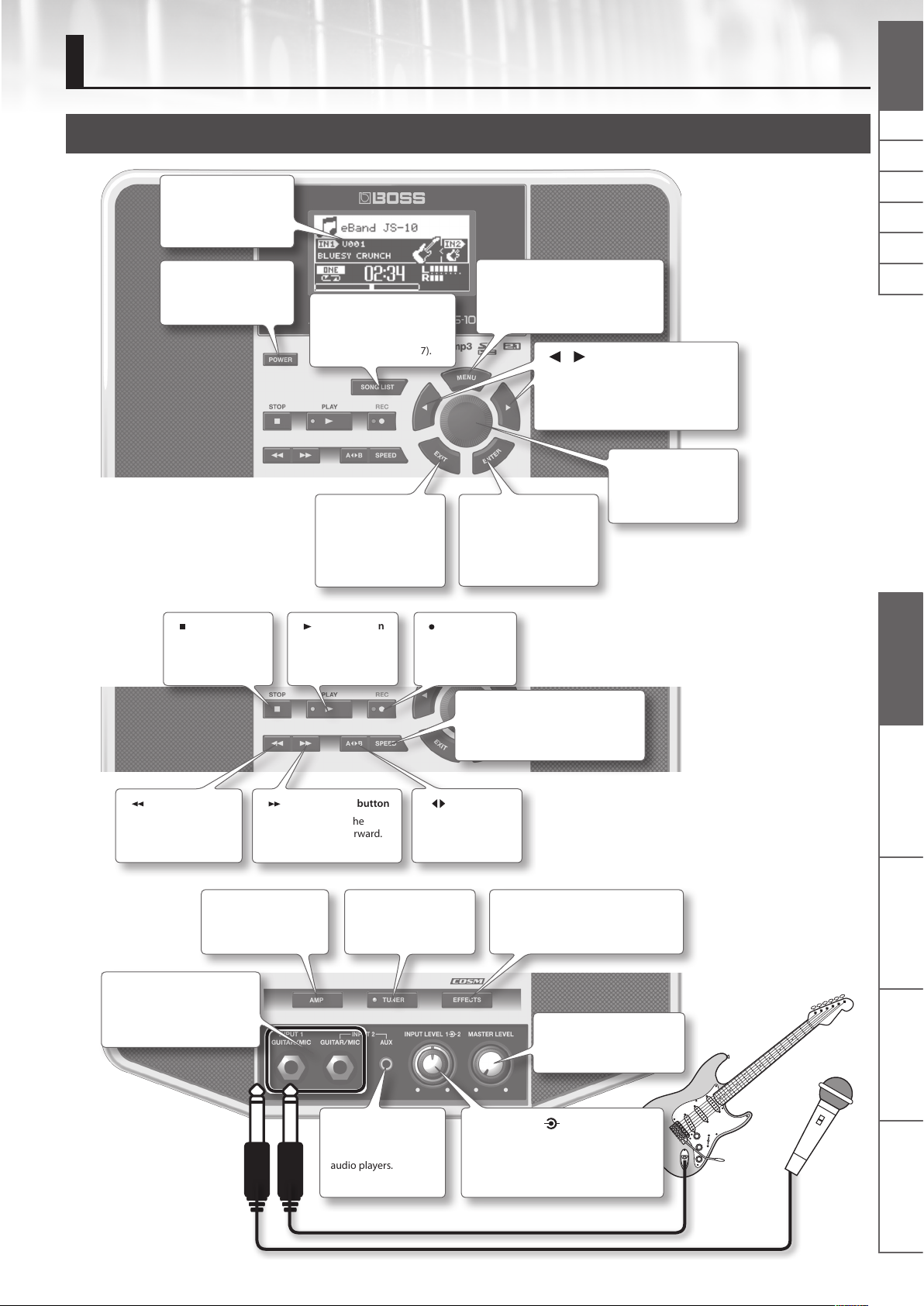

Front Panel

[MENU] button

This button calls up various dierent

functions depending on the screen

displayed (p. 6, p. 18).

Dial

Use this dial to change

values and settings.

[EXIT] button

Press this button to

cancel settings and

return to previous

screens.

[ENTER] button

Use this button to

conrm selection of an

item and to adjust/switch

the values of settings.

[POWER] button

This button switches the

power on and o (p. 5). [SONG LIST] button

This button displays songs

stored in the SD card and

the USB ash drive (p. 7). [ ] [ ] (Cursor) buttons

These buttons move the position of the

cursor (highlighted part) in the display.

Use the Dial to adjust the value of

highlighted item (parameter).

Display

Shows Song Name,

Eects Patch name and

other information.

[ ] (Rewind) button

This button moves

the playback location

backward.

[ ] (Fast Forward) button

This button moves the

playback location forward.

[A B] button

This button repeats

the playback (p. 12).

[ ] (STOP) button

This button stops

song playback or

recording.

[ ] (PLAY) button

This button starts

song playback.

[ ] (REC) button

This button

records the

performance.

[SPEED] button

This button changes the speed/pitch

of the song or removes the center

sound (p. 11, p. 12).

[MASTER LEVEL] knob

This knob adjusts the overall

volume of the JS-10.

INPUT 2 (AUX) jack

This jack connects

devices such as digital

audio players.

[AMP] button

This button displays

the AMP screen (p. 18).

[TUNER] button

This button displays the

TUNER screen (p. 9).

[EFFECTS] button

This button is used to select an eect

patch or to edit an eect (p. 10, p. 17).

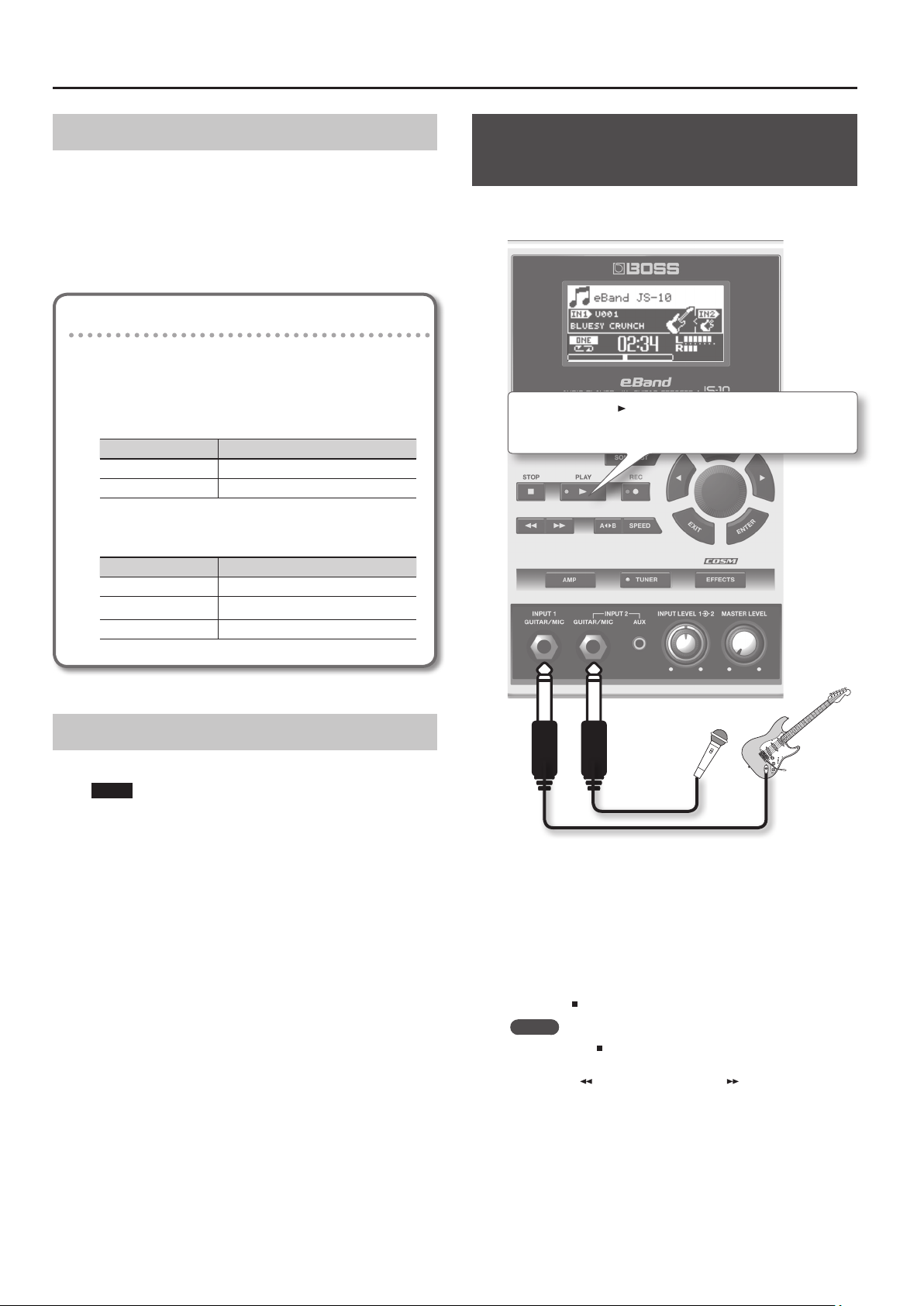

INPUT 1 (GUITAR/MIC) jack,

INPUT 2 (GUITAR/MIC) jack

These jacks connect guitars or

microphones.

[INPUT LEVEL 1 2] knob

The center knob adjusts the volume

of devices connected to INPUT 1, and

the outer knob adjusts the volume of

devices connected to INPUT 2.

Panel Descriptions

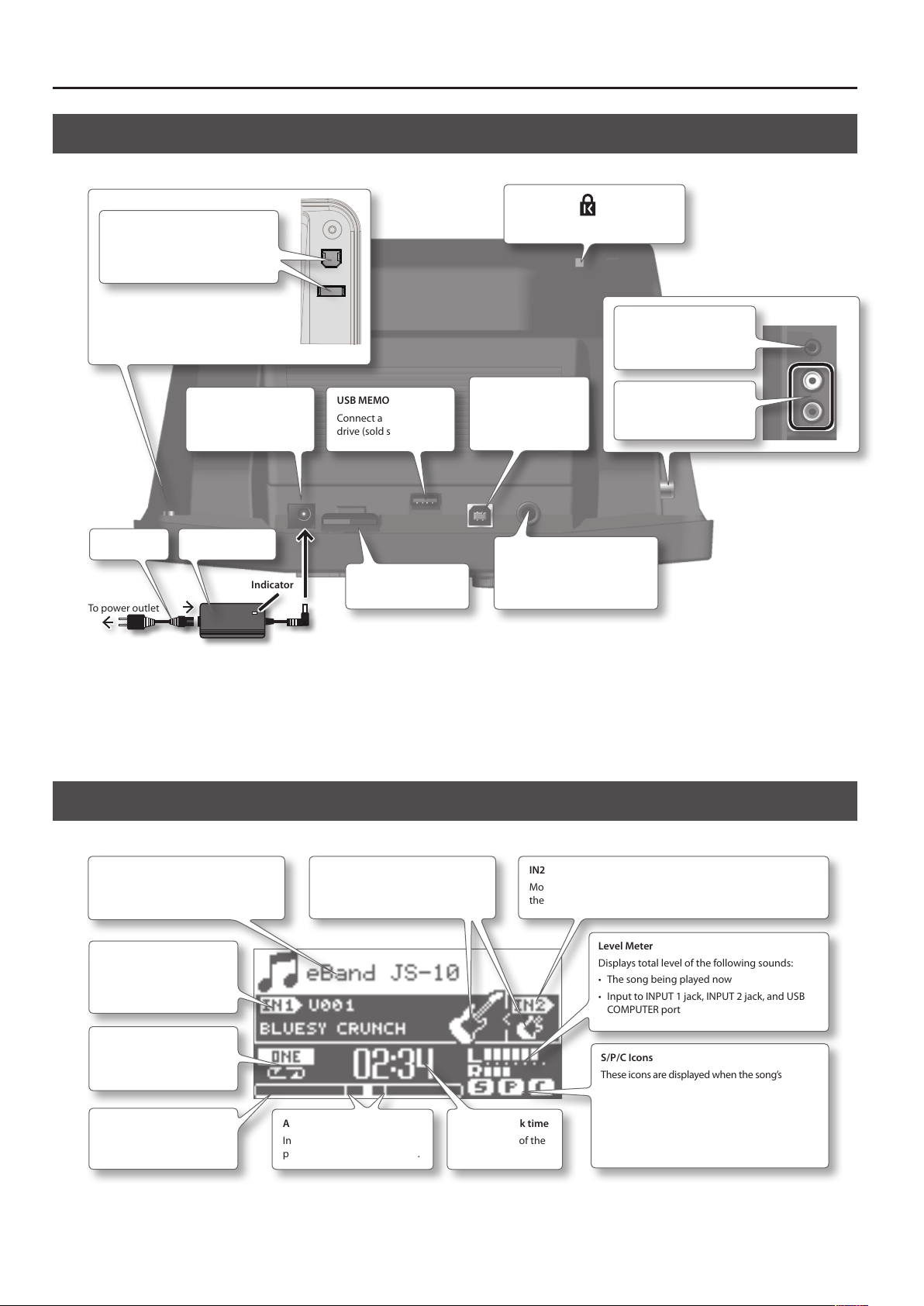

Top Panel / Side Panels

SD CARD slot

Insert an SD card.

EXP PEDAL/CTL 1, 2 jack

Connect a footswitch (sold

separately) or expression pedal

(sold separately) (p. 30).

Security slot ( )

http://www.kensington.com/

PHONES jack

Connect headphones

(sold separately).

LINE OUT jacks

Connect external

speakers.

USB COMPUTER port

Connect the JS-10 to

a PC with a USB cable

(p. 13, p. 27).

USB MEMORY port

Connect a USB ash

drive (sold separately).

USB cap holders

Place caps detached from the USB

MEMORY port or USB COMPUTER

port here.

DC IN jack

Connect the supplied

AC adaptor.

To power outlet

Indicator

AC adaptorPower cord

* To prevent malfunction and equipment failure, always turn down the volume, and turn o all the units before making any connections.

* Never insert or remove SD cards or SDHC cards while this unit is turned on. Doing so may corrupt the unit’s data or the data on the SD card or

SDHC card.

* Carefully insert the USB ash drive, SD card, or SDHC card all the way in – until they are rmly in place.

* Place the AC adaptor so the side with the indicator (see illustration) faces upwards and the side with textual information faces downwards.

The indicator will light when you plug the AC adaptor into an AC outlet.

Top Screen

This screen is the basic screen that appears when you turn on the power.

AB REPEAT Segment

Indicates the segment to be

played back repeatedly (p. 12).

Song playback time

Displays time of the

song.

Key and Song Name

Displays the key (p. 21) and name (p. 21)

of the currently selected song.

S/P/C Icons

These icons are displayed when the song’s

playback speed or pitch has been changed or

when Center Cancel is used.

S: Playback speed of the song has been changed

P: Pitch of the song has been changed

C: Center Cancel is turned on

Level Meter

Displays total level of the following sounds:

• The song being played now

• Input to INPUT 1 jack, INPUT 2 jack, and USB

COMPUTER port

IN2

Move the cursor here and the patch number and patch name of

the eect for the INPUT 2 (GUITAR/MIC) jack will be displayed.

Input Sensitivity Icons

Displays icons based on the GAIN

settings (p. 23).

Play Mode

Displays the type of

playback (p. 9).

IN1

Displays the eect patch

number and patch name for

INPUT 1 (GUITAR/MIC) jack.

Song playback location

Displays the current

location within the song.

The explanations in this manual include illustrations that depict what should typically be shown by the display.

Note, however, that your unit may incorporate a newer, enhanced version of the system (e.g., includes newer sounds), so what you actually see in the

display may not always match what appears in the manual.

eBand Song List Editor Convenient Functions Appendices

Panel Descriptions Play the Guitar with Songs

as Your Backing

NlPtEsItFrDeEnglish

Basic Operation

This section introduces the basic operations for using the JS-10.

Turning the Power On

Once everything is properly connected (p. 4), be sure to follow the

procedure below to turn on the power. If you turn on equipment in

the wrong order, you risk causing malfunction or equipment failure.

MEMO

• Before turning the unit on/o, always be sure to turn the volume

down. Even with the volume turned down, you might hear some

sound when switching the unit on/o. However, this is normal

and does not indicate a malfunction.

• With the factory settings, the JS-10 will automatically

be switched o 30 minutes after you stop playing or

operating the unit. If you don’t want the unit to turn

o automatically, change the “AUTO OFF” setting to

“OFF” as described on p. 26.

1. Turn the [MASTER LEVEL] knob down to the minimum

level.

2. Press the [POWER] button to turn the unit on.

The unit’s display will be lit.

* This unit is equipped with a protection circuit. A brief interval (a

few seconds) after turning the unit on is required before it will

operate normally.

3. Turn the [MASTER LEVEL] knob and adjust the volume.

Files included on the supplied SD card

The supplied SD card is inserted into the JS-10 prior to being shipped from the factory.

The following les are included on the SD card.

eBand Song List Editor

This PC software can rip songs from CDs to JS-10 and add names to eBand songs.

Connect the JS-10 with your PC to use this software. For details, refer to “Importing Songs from a PC to the JS-10 (eBand

Song List Editor)” (p. 13).

USB driver

This PC driver (control software) is used for listening to your PC’s sound on the JS-10.

For details, refer to “Using the JS-10 as a USB Audio Interfaces” (p. 27).

ROLAND folder

Files needed for the operation of the JS-10 are saved in this folder. Make sure not to change or delete the contents of this folder.

MEMO

For details about the memory conguration in JS-10 or the data that is saved, refer to “Memory Conguration in the JS-10” (p. 38).

Turning the Power O

1. Turn the [MASTER LEVEL] knob down to the minimum

level.

2. Press the [POWER] button.

The power turns o.

Moving the Cursor

There are multiple parameters (settings) and selections on the

screen.

Press the [ ] [ ] (Cursor) buttons to move the cursor.

The parameter value selected with the cursor will be highlighted.

Selecting an Item

To select a displayed item or icon, move the cursor to the item or

icon, and press the [ENTER] button.

This manual uses the following conventions to indicate the steps of

a procedure, such as pressing the [MENU] button in the Top screen,

selecting “SYSTEM,” and then pressing the [ENTER] button.

[MENU] button  “SYSTEM”  [ENTER] button

MEMO

Press the [EXIT] button several times until you return to the Top

screen.

Changing the Value

To change the parameter setting, move the cursor to the applicable

parameter value, then turn the Dial to change the value. The value

increases when the Dial is turned clockwise and decreases when it

is turned counterclockwise.

Basic Operation

[MENU] Button

Press the [MENU] button to display a menu for each screen.

The JS-10 has the following menu screens.

• Menu in the Top screen (p. 6)

• Menu in the SONG LIST screen (p. 7)

• Menu in the EFFECT screen (p. 18)

Menu on the top screen

Press the [MENU] button in the top screen to display the MENU

screen.

You can access the JS-10’s settings from this screen.

MENU Explanation

SONG

SONG INFO Conrm song information (p. 21).

SONG NAME Change song names (p. 21).

EXPORT

Write the selected song to the USB ash

drive (p. 22).

* “EXPORT” is not displayed if the USB

ash drive has not been inserted.

IMPORT

Store the selected songs on the USB ash

drive to the SD card (p. 22).

* “IMPORT” is not displayed if a song

on the USB ash drive has not been

selected.

ERASE Delete the selected song (p. 8).

BEST 30 EDIT Add the current song to the BEST 30 (p. 7).

AB EDIT Make precise settings for the AB REPEAT

function (p. 12).

PATCH SYNC Apply the setting in PATCH SYNC (p. 22).

AUDIO

SETTING

INPUT

Select the input sensitivity and other

settings that match the device connected

to INPUT 1 and INPUT 2 jacks (p. 23).

EQ Apply the equalizer on the overall sound

of the JS-10 and adjust its balance (p. 23).

SPEAKER Turns the JS-10’s built-in speakers on or

o (p. 23).

SYSTEM

USB MODE Switch the USB MODE (p. 24).

PEDAL Assign functions to an externally

connected footswitch (p. 30).

PATCH BACKUP Back up eects (p. 24).

PATCH RECOVER Recover the eects that were backed

up (p. 25).

SD INFO Check the free space on the SD card (p. 25).

USB MEMORY Check the free space on the USB ash

drive (p. 25).

SETTING Make a variety of the JS-10 settings

(p. 25 – p. 26).

SD CARD

FORMAT (*) Initialize (format) the SD card (p. 29).

FACTORY RESET Restore the JS-10 to its original default

factory settings (p. 26).

MEMO

(*) The SD card that is supplied with the JS-10 cannot be

initialized.

eBand Song List Editor Convenient Functions Appendices

Panel Descriptions Play the Guitar with Songs

as Your Backing

NlPtEsItFrDeEnglish

Play the Guitar with Songs as Your Backing

Selecting Songs

Here’s how to select the song you want to hear or the rhythm you

want played.

1. Press the [SONG LIST] button.

The SONG LIST screen appears.

2. Turn the Dial to select a song.

3. Press the [ENTER] button.

MEMO

• You can also select a song by turning the dial while a song name

is selected in the Top screen.

• Press the [ ] (PLAY) button in the SONG LIST screen to audition

the selected song.

• The JS-10 can handle up to 4,000 songs.

Displaying Songs by Category

Here’s how to have songs be displayed according to a category you

select, such as the album title or artist name.

1. Follow this sequence of steps: [SONG LIST] button 

[MENU] button.

The MENU popup appears.

2. Select a category.

MENU Explanation

ALL SONGS Songs recorded with the JS-10 and songs that have album

title and artist name registered are listed.

USER Data recorded with the JS-10 is added to this category.

BEST 30 The thirty favorite songs are listed, if these songs have

already been ranked (1–30).

ALBUM Songs are listed by album title.

ARTIST Songs are listed by artist name.

RHYTHM Rhythms contained on the SD card included with the

JS-10 are listed.

USB MEMORY Files stored in the USB ash drive are listed.

SD CARD Files stored in the SD card are listed.

REMOVE Removes the selected song from the BEST 30 list.

MEMO

• “ALBUM” and “ARTIST” are available when album titles or artist

names are registered with the songs.

• “SD CARD” is available when SD VIEW (p. 26) is ON.

• “REMOVE” is available when BEST 30 is displayed.

• By using the included eBand Song List Editor (p. 13), you can use

your computer to register and edit album titles and artist names.

Also, when you import an audio le, you can select the target

song list (Song, Rhythm, or User).

• Categorization of songs works on songs included with the JS-10

and songs stored with eBand Song List Editor (p. 13).

3. Press the [ENTER] button.

Registering Your 30 Favorite Songs (BEST

30)

You can set the songs listed when BEST 30 is selected as the song

category.

Registering your favorite songs allows you to always have the songs

you want in song lists.

1. Before starting, select songs you want to list in the BEST

30.

2. Follow this sequence of steps: [MENU] button  “BEST 30

EDIT”  [ENTER] button.

The BEST 30 EDIT screen appears.

3. Select the rank.

4. Press the [ENTER] button.

MEMO

You cannot register songs in the USB ash drive as BEST 30.

Play the Guitar with Songs as Your Backing

Selecting Songs on the USB Flash Drive

You can select songs on the USB ash drive.

1. Follow this sequence of steps: [SONG LIST] button 

[MENU] button  “USB MEMORY”  [ENTER] button.

2. Select the song you want to play.

3. Press the [ENTER] button.

File formats supported by the JS-10

eBand format

Roland/BOSS proprietary compression format

MP3 format

MP3 Format

Sampling rate 44.1 kHz

Bit rate 64 K – 320 Kbps

WAV format

WAV Format

Sampling rate 44.1 kHz

Quantization bit rate 16 bits

Encoding Uncompressed (Linear)

Deleting Songs

Here’s how to delete the selected song.

NOTE

You cannot restore songs once they are deleted.

1. Before starting, select the song you want to delete (p. 7).

2. Follow this sequence of steps: [MENU] button  “SONG”

 [ENTER] button  “ERASE”  [ENTER] button.

The message “Are you sure?” appears.

3. To delete a song, press [ENTER] button.

The song will be deleted.

Playing a Guitar While Playing Back a

Song

You can enjoy playing a guitar while playing back a favorite song as

your backing.

1. Press the [ ] (PLAY) button.

The playback of the song will start.

2. Gradually turn the [MASTER LEVEL] knob clockwise until

you reach the desired volume level.

3. Turn the [INPUT LEVEL 1] knob and [INPUT LEVEL 2]

knob down to the minimum level (turn completely

counterclockwise).

4. While playing the guitar, gradually turn the [INPUT LEVEL

1] knob or [INPUT LEVEL 2] knob clockwise until you reach

the desired volume level.

5. Press the [ ] (STOP) button to stop the song.

MEMO

• Pressing the [ ] (STOP) button while the song is stopped will

return the song playback location to the beginning (00:00).

• Press the [ ] (Rewind) button or the [ ] (Fast Forward)

button to move the song’s playback location back or forward.

• Howling (feedback) could be produced depending on the

location of microphones relative to speakers. This can be

remedied by:

1. Changing the orientation of the microphone(s).

2. Relocating microphone(s) at a greater distance from speakers.

3. Lowering volume levels.

* When you connect a microphone, select an eect from the

categories for microphones (p. 10). Also, switch the input

sensitivity of the INPUT jack to mic (p. 23).

Altri manuali per eBand JS-10

Indice

Lingue:

Altri manuali BOSSCO Lettore multimediale

BOSSCO

BOSSCO eBand Guida all'installazione

Manuali Lettore multimediale popolari di altre marche

Visual Land

Visual Land Impulse Manuale utente

limHD

limHD 200i Manuale utente

Transcend

Transcend DMP10 Manuale utente

Philips

Philips GoGear Muse SA2MUS08 Manuale utente

Fantec

Fantec MM-HDRL Manuale utente

Dune HD

Dune HD Duo 4K Manuale utente

IAdea

IAdea HMP-505S Manuale utente

Camos

Camos MMS-1000 Manuale utente

Energy

Energy 75 Series Manuale utente

Z3 Technology

Z3 Technology DME-03 Manuale utente

Sony

Sony SVR-2000 Guida utente

Meicheng

Meicheng HD-1080K12 Manuale utente

DENAFRIPS

DENAFRIPS ARCE Manuale utente

Topaz

Topaz CMS Media Player Istruzioni per l’uso

InFocus

InFocus LightCast Manuale utente

IconBiT

IconBiT XDS1003D Manuale utente

Quanmax

Quanmax QDSP-2090 Series Manuale utente

Samsung

Samsung MP-80S Manuale utente

BOSSCO eBand JS-10 Manuale utente

Manuali Lettore multimediale popolari di altre marche
