Thank you, and congratulations on your choice of BOSS DD-6 Digital Delay.
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and
“IMPORTANT NOTES” (separate sheet). These sections provide important information con-
cerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a good grasp of every feature pro-
vided by your new unit, this manual should be read in its entirety. The manual should be
saved and kept on hand as a convenient reference.
A battery is supplied with the unit. The life of this battery may be limited, however, since
its primary purpose was to enable testing.
Copyright © 2002 BOSS CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the
written permission of BOSS CORPORATION.
DD-6_e.book 2 ページ ２００６年７月２５日 火曜日 午後３時３７分
3
Features
●
Amazing delay times, even allowing long delays of up to 5.2 seconds (*1).
Even in HOLD mode, there is plenty of room for loop play and sound on sound.
●
Includes the world’s first “warp” function, which allows you to use the pedal to shift
from the most popular, standard delays to some out-of-this-world spaces, with fantas-
tic delays.
●
This 2-in/2-out full stereo delay puts out a delay sound with a big, solid sound.
●
Provides stereo effects like panning and “direct + effect.”
●
The delay time can be set in real time by pressing the pedal to input the tempo.
(*1) Some of the effects can be set to a maximum of 2.6 seconds when used in stereo.
DD-6_e.book 3 ページ ２００６年７月２５日 火曜日 午後３時３７分
4
Panel Description

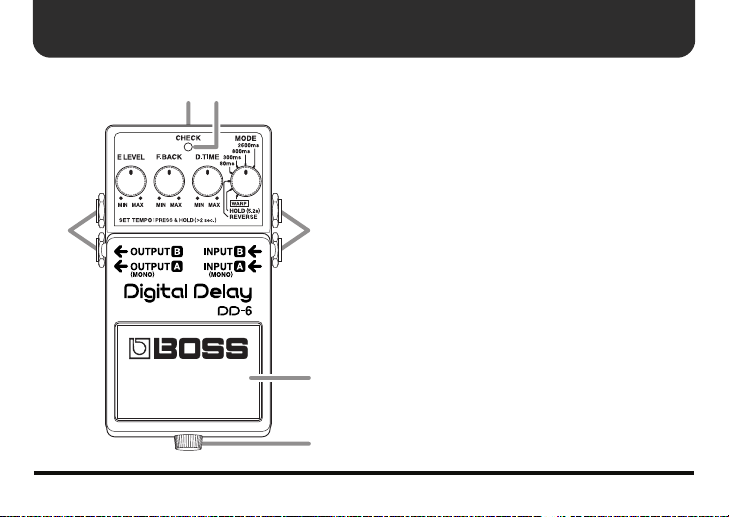

fig.01
1. AC Adaptor Jack
Accepts connection of an AC Adaptor (op-
tionally available BOSS PSA-Series). By us-
ing an AC Adaptor, you can play without
being concerned about how much battery
power you have left.
* As soon as you connect the AC adaptor, the unit
is turned on.
* If there are batteries in the unit while an AC
adaptor is being used, normal operation will
continue should the line voltage be interrupted
(power blackout or power cord disconnection).
* Use only the specified AC adaptor (PSA-Series).
2. CHECK Indicator
This is a combination indicator, which indi-
cates whether the effect is on or off, indicates
the various functions (p. 12–15), and func-
tions as the battery check indicator.
3
1
4
5
6
2
DD-6_e.book 4 ページ ２００６年７月２５日 火曜日 午後３時３７分
5
Panel Description
The indicator lights when an effect is ON.
* If this indicator goes dim or no longer lights
while an effect is ON, or when the functions are
indicated, the battery is near exhaustion and
should be replaced immediately. For instructions
on changing the batteries, refer to “Changing
the Battery” (p. 19).
* The CHECK indicator shows whether the effect
is on or off, and indicates the different functions.
It does not indicate whether the power to the
device is on or not.
3. OUTPUT-A (MONO) Jack
OUTPUT-B Jack
The output jacks are used to connect the unit
to an amplifier or another effects unit.
* The unit’s functions differ according to how it is
connected. Refer to “Setting the Output
Method” (p. 16).
4. INPUT-A (MONO) Jack
INPUT-B Jack
These jacks accept input signals (coming
from a guitar, some other musical instru-
ment, or another effects unit).
* The unit’s functions differ according to how it is
connected. Refer to “Setting the Output
Method” (p. 16).
* When running the unit on battery power, the
INPUT-A (MONO) and INPUT-B jacks double
as power switches. Power to the unit is turned
on when you plug into the INPUT-A (MONO)
or INPUT-B jack; the power is turned off when
the cable is unplugged. Be sure to disconnect
any cord plugged into the INPUT-A (MONO)
or INPUT-B jack when not using this effects
device. When the AC adaptor is used, the power
remains on at all times, and this function is
disabled.
DD-6_e.book 5 ページ ２００６年７月２５日 火曜日 午後３時３７分
6
Panel Description
5. Pedal Switch
This is used for switching the effect on and
off, and for switching between the different
functions (p. 12–15).
6. Thumbscrew
When this screw is loosened, the pedal will
open, allowing you to change the battery.
* For instructions on changing the battery, refer
to “Changing the Battery” (p. 19).

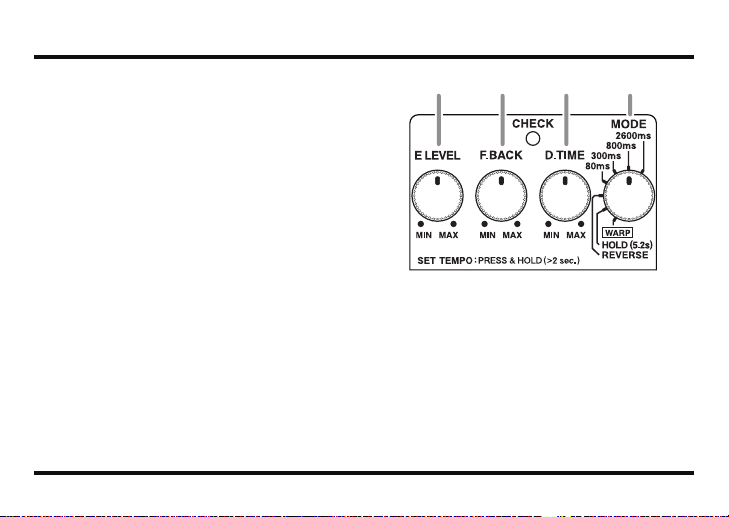

fig.02
7. E.LEVEL (effect level) Knob
This adjusts the volume of the effect sound.
Turn the knob to the right (clockwise) to in-
crease the effect sound. When set to MAX,
the effect is played at the same volume as the
direct sound.
* Only the effect sound is output when the E.LEVEL
knob is set to MAX while in REVERSE mode.
8 9 107
DD-6_e.book 6 ページ ２００６年７月２５日 火曜日 午後３時３７分
7
Panel Description
8. F.BACK (feedback) Knob
This adjusts the feedback level. The number
of times the delay sound is repeated increas-
es as the knob is turned to the right.
* This cannot be used in HOLD mode.
* Oscillation may occur when the knob is set at
certain positions.
9. D.TIME (delay time) Knob
This is a fine adjustment for the delay time.
The delay time can be changed within the al-
lowable range.
* This cannot be used in HOLD mode.
10. MODE Knob
This switches the delay effect and pedal
mode.
●
Ordinary Delay
* When inputting the tempo, refer to “Using the
Tempo Delay” (p. 12).
* When using long delay or other output, refer to
“Setting the Output Method” (p. 16).

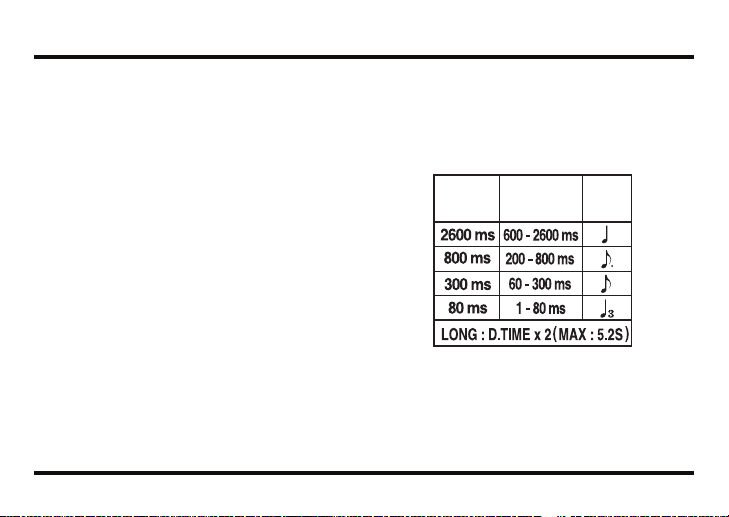

MODE
Switch
Delay
Time
Tempo
Setting
DD-6_e.book 7 ページ ２００６年７月２５日 火曜日 午後３時３７分
8
Panel Description
●

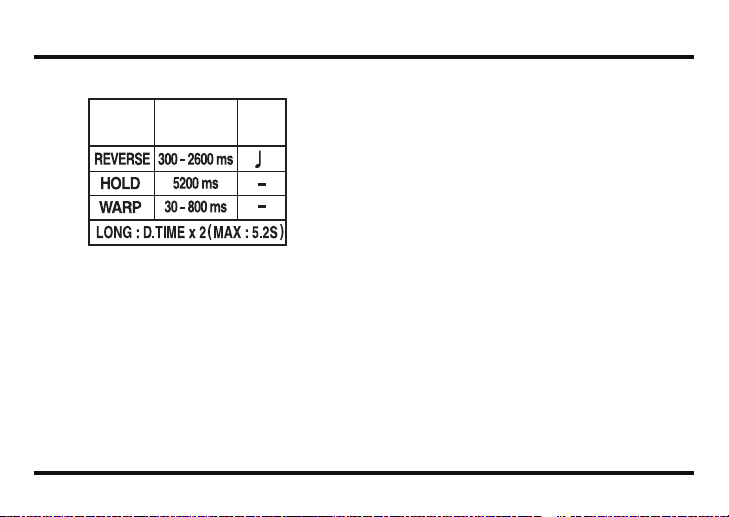

Specialized Delays
* When inputting the tempo, refer to “Using the
Tempo Delay” (p. 12).
* When using long delay or other output, refer to
“Setting the Output Method” (p. 16).
REVERSE:
This produces an effect where the sound
is played back in reverse.
You can get two different effects, “direct
sound + effect sound,” or “effect sound
only,” depending on the position of the
E.LEVEL knob. When the E.LEVEL knob
is turned up, so it’s near MAX, the unit
switches to “effect sound only.”
HOLD (5.2 s):
Up to 5.2 seconds of performance content
is recorded, then played back repeatedly.
*
For details,
refer to “Using the HOLD
(Overdubbing) Function” (p. 14).
WARP:
As the pedal is depressed, the amount of
feedback and the effect level increase
above the levels determined by the knob
positions.
*
For details,
refer to “Using the WARP Function”
(p. 15).
MODE
Switch
Delay
Time
Tempo
Setting
DD-6_e.book 8 ページ ２００６年７月２５日 火曜日 午後３時３７分
9
Connections
* Be sure to lower the output level of any device being connected.
* The unit’s functions differ according to how it is connected. Refer to “Setting the Output Method” (p. 16).

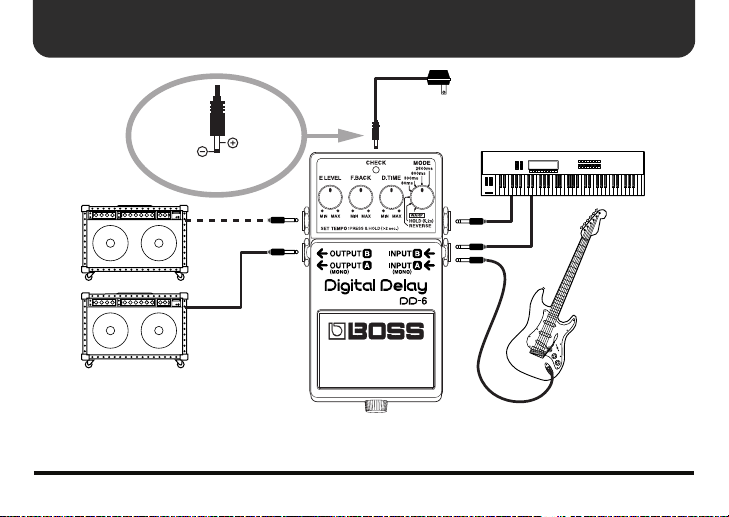

AC adaptor
BOSS PSA-series (option)
Electric
Guitar
Guitar Amplifier
OUT DC 9V/200mA
Keyboard
DD-6_e.book 9 ページ ２００６年７月２５日 火曜日 午後３時３７分
10
Connections
* When running the unit on battery power, inserting a plug into the INPUT-A (MONO) or INPUT-B Jack
will automatically switch the unit on.
* The use of an AC adaptor is recommended as the unit’s power consumption is relatively high. Should you
prefer to use batteries, please use the alkaline type.
* To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and
turn off the power on all devices before making any connections.
* If there are batteries in the unit while an AC adaptor is being used, normal operation will continue should
the line voltage be interrupted (power blackout or power cord disconnection).
* Once the connections have been completed (p. 9), turn on power to your various devices in the order
specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to
speakers and other devices.
When powering up: Turn on the power to your guitar amp last.
When powering down: Turn off the power to your guitar amp first.
* Always make sure to have the volume level turned down before switching on power. Even with the volume
all the way down, you may still hear some sound when the power is switched on, but this is normal, and
does not indicate a malfunction.
* When operating on battery power only, the unit’s indicator will become dim when battery power gets too
low. Replace the battery as soon as possible.
