BOSS ME-70 GUITAR MULTI-EFFECTS
TRAINING GUIDE
Contents
1. FEATURES
2. QUICK DEMO
3. GOING DEEP
4. FIVE FEATURES TO KNOW and SHOW
5. ACCESSORIES
6. ME-70 EFFECTS
BOSS ME-70 Training Guide
1. FEATURES
Super simple knob-based operation
COSM amp and effect modeling
Defaults to Manual Mode for use as virtual stomp boxes
8 Effect groups: Preamp, Comp/FX, OD/DS, Modulation,
Delay, Reverb, Pedal FX, NS
6 COSM amplifier models plus 4-band EQ
8 Comp/FX effects
10 Modulation effects, including Uni-V, Harmonist and
Rotary
10 delay types w/ up to 6,000ms delay time, including
Analog and Reverse
Built in 38-second Phrase Looper w/ unlimited overdubs
Modulation and Delay effects support tap tempo
72 programs-36 user, 36 preset
Built-in assignable Expression pedal
Built-in chromatic tuner
Tough metal case
Runs on batteries (included) or optional BOSS PSA-120S
AC adaptor
$418.50 List, $299 MAP
BOSS ME-70 Training Guide
2. QUICK DEMO
The Quick Demo is a way to get a customer interested in a product in less than
60 seconds.
Before You Start
1. Connect the MONO (L) Gt. AMP output of the ME-70 to the clean channel
of a good amp, such as a Roland JC-120 or other pro quality amp.
NOTE: It is very important to use a pro-quality guitar amp. Why run a high-
end effect through a low-end amp?
2. Set the amp’s tone controls for a flat response.
3. Connect the ME-70 to power using a BOSS PSA-120S AC Adaptor.
4. Plug a guitar into the GUITAR INPUT of the ME-70.
5. Make sure the ME-70 is in MANUAL MODE.
6. Turn all ME-70 effects off.
THE QUICK DEMO: USING THE ME-70
This Quick Demo has five steps. You can do some or all of the steps.
STEP ONE: Add Distortion
1. Make sure that all the effects are off; then play the guitar through the ME-
70 to show the dry sound.
2. Select a DISTORTION or OVERDRIVE type by rotating the
OVERDRIVE/DISTORTION TYPE KNOB.
BOSS ME-70 Training Guide
3. Set the OD/DS control knobs to an appropriate setting.
(Not suggested settings. For illustration only )
4. Press the OD/DS PEDAL to turn on the Overdrive.
5. Play some chords or leads.
STEP TWO: Add Modulation
1. Turn the MODULATION TYPE knob to select a Modulation effect. Do not
use Harmonist or Octave.
BOSS ME-70 Training Guide
2. Set the MODULATION Controls knobs to an appropriate setting.
(Not suggested settings. For illustration only)
3. Press the MOD PEDAL to turn on the Modulation effect.
4. Play some chords or leads.
STEP THREE: Add Delay
1. Turn the DELAY TYPE knob to select ANALOG.
BOSS ME-70 Training Guide
2. Set the DELAY Control knobs to an appropriate setting.
(Not suggested settings. For illustration only )
3. Press the DELAY PEDAL.
4. Play some chords or leads.
5. Hold the DELAY PEDAL down for two seconds.
6. Tap in a different delay time with the DELAY PEDAL.
NOTE: You can also change the rate of the Modulation effect by repeating
this procedure with the MOD PEDAL.
BOSS ME-70 Training Guide
STEP FOUR: Add PEDAL FX
1. Turn the EXPRESSION knob to select WAH.
2. Press the toe end of the EXPRESSION PEDAL hard to turn on the WAH.
The PEDAL FX LED will light.
3. Play some chords or leads using the WAH.
STEP FIVE: Show the Phrase Looper
NOTE: When using the Phrase Looper, use the DELAY PEDAL to control
all recording, playback, and overdub functions.
1. Set the DELAY TYPE knob to PHRASE LOOP.
2. Use the NUMBERED (FX PEDALS) to turn on/off effects needed for a
clean sound.
3. When you are ready to record, press the DELAY PEDAL.
BOSS ME-70 Training Guide
4. When you’re finished with the first loop, press the DELAY PEDAL. The
Phrase will play back.
NOTE: Make sure you do this on the beat.
5. Change the guitar’s tone using the NUMBERED (FX) PEDALS.
6. Press the DELAY PEDAL again to overdub another track onto the existing
loop.
7. If desired, repeat steps 4-6.
8. When you are finished, press the DELAY PEDAL twice to stop the looper.
NOTES:
BOSS ME-70 Training Guide
3. GOING DEEP
How to Switch to Memory Mode
1. Press the MOD and DELAY PEDALS down simultaneously. The BANK
number will appear in the LED display.
2. Press both pedals down again or press EXIT to return to Manual Mode.
The MANUAL MODE LED will light to confirm Manual Mode.
How to Change Programs in Memory Mode
1. Press the left or right NS/ THRES/BANK BUTTONS to select a BANK.
2. Press PEDAL ONE, TWO or THREE to select a patch within the BANK.
Or
1. Press the COMP and OD/DS PEDALS simultaneously to engage BANK
SELECT.
2. Press PEDAL ONE or PEDAL TWO as needed to select the BANK.
3. Press PEDAL THREE or PEDAL FOUR to confirm the selection.
4. Press PEDAL ONE, TWO, THREE OR FOUR to select a patch within the
BANK.
How to Edit a Program
1. Use the above procedures to select a patch in a USER BANK.
2. Press EDIT.
3. Adjust the settings of the knobs and pedals.
NOTE: you must move the knobs past their current stored settings to
enable the new settings.
3. Press WRITE twice.
How to Use the Tuner
1. Press the OD/DS and MOD PEDALS down simultaneously.
2. Tune up. The note played will show in the Display. The red LED’s in the
display will indicate whether the note is sharp, flat, or in tune.
3. Press the OD/DS and MOD PEDALS again or press EXIT to return to play
mode.
BOSS ME-70 Training Guide
How to Use EZ TONE
EZ-TONE is a set of preset effects. Each effect in the ME-70 comes with an
optimized pre-made setting. These are useful for quick patch setups when you
want to get a good sound without having to dial in every parameter of ever effect.
1. Press EZ TONE.
2. Turn a TYPE KNOB to select the EZ-TONE for that effect. Each EZ-Tone
is numbered.
How to Write Your Own EZ-TONES
1. Use the above procedures to select an EZ-TONE.
2. Turn the effects KNOBS to dial in the settings.
3. While holding down the EZ-TONE BUTTON, press WRITE.
4. Press the left or right NS THRES/BACK BUTTONS to select the effect you
want to save.
5. Press WRITE again.
How to Re-Initialize the ME-70
1. Set the ME-70 to Manual Mode.
2. While holding down the EDIT/EXIT BUTTON, press the MOD PEDAL. An
“F” (factory reset) will appear in the display.
3. Press WRITE twice.
Indice
Altri manuali BOSSCO Pedale musicale
BOSSCO
BOSSCO AW-3 Dynamic Wah Manuale utente
BOSSCO
BOSSCO PH-3 Phase Shifter Manuale utente
BOSSCO
BOSSCO ME-5 Manuale utente
BOSSCO
BOSSCO Foot Volume FV-500H Manuale utente
BOSSCO
BOSSCO Boss BF-1 Flanger Manuale utente
BOSSCO
BOSSCO OD-2R Turbo Over Drive Manuale utente
BOSSCO
BOSSCO LM-2 Limiter Manuale utente
BOSSCO
BOSSCO XT-2 Xtortion Manuale utente
BOSSCO
BOSSCO CEB-3 Bass Chorus Manuale utente
BOSSCO
BOSSCO RC-1 Manuale utente
BOSSCO
BOSSCO Boss DD-3A Manuale operativo e di manutenzione
BOSSCO
BOSSCO Loop Station RC-5 Manuale utente
BOSSCO
BOSSCO TW-1 Touch Wah Manuale utente
BOSSCO
BOSSCO PH-3 Phase Shifter Manuale utente
BOSSCO
BOSSCO RC-2 Manuale utente
BOSSCO
BOSSCO CH-1 Super Chorus Manuale utente
BOSSCO
BOSSCO ME-8 Manuale operativo e di manutenzione
BOSSCO
BOSSCO RC-300 Loop Station Manuale utente
BOSSCO
BOSSCO PS-3 Manuale utente
BOSSCO

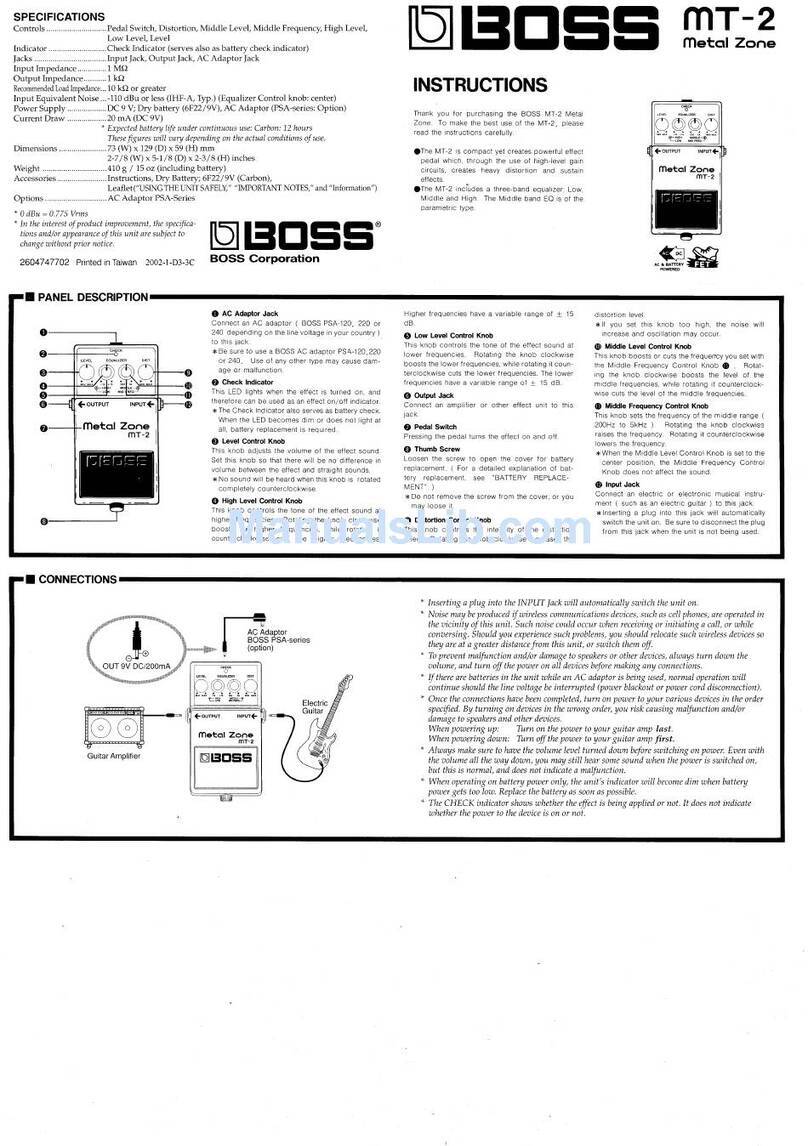

BOSSCO Metal Zone MT-2 Manuale utente
