BOSSP80 Quick Installation Guide
- 1 -
The following procedure describes the
basic
steps
needed
to set
up the BOSSP80:
1.

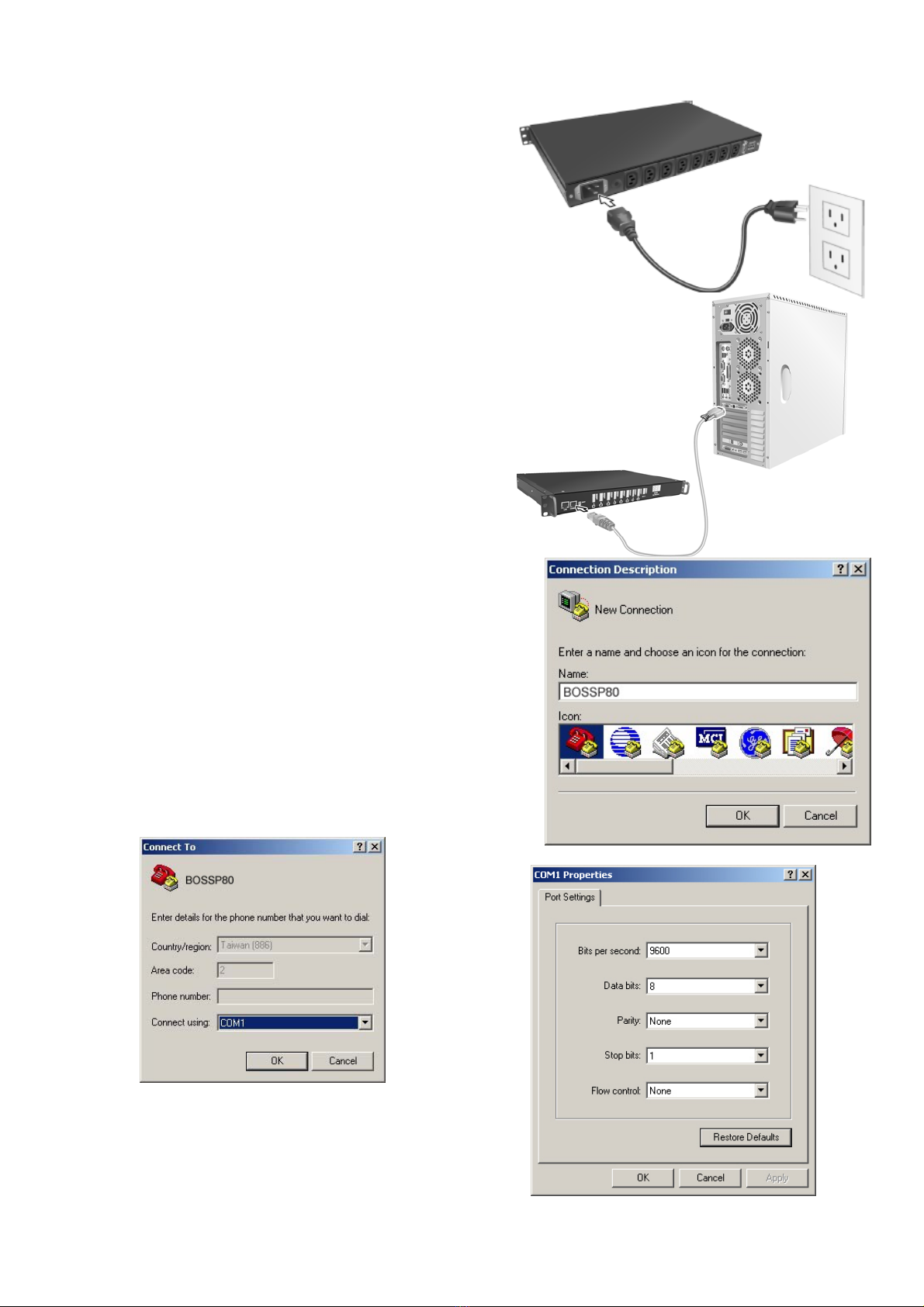

To set the mode of operation for the BOSSP80 (S1
=off, S2= off). To
set up
the hardware, connect power
to
the power
inlet and output devices to the
power
outlets.
2.
To
configure the
BOSSP80, you can use the console
(HyperTerminal) or WAN port.
Connect the BOSSP80 to
a
console and a
WAN to
enable
its configuration
through
the console
or browser
menu.
3.
Follow these steps to start HyperTerminal and
communicate with the BOSSP80:
1.
To start HyperTerminal,
click
Start
,
Programs
,
Accessories
,
Communications
, and
HyperTerminal
from the Windows
Start button.
2.
A
New Connection
opens. Type a name for the
connection
in the
Name
field and select an icon for the connection. Click
OK
when done.
3.
From the
Connect using
drop-down box, select the
COM
port
that you have
connected to the
BOSSP80. Click
OK
when done.
4.
The
Properties
window opens. Click
Restore Defaults
to
use the default settings. Make sure that the
Bits per second
field is set to 9600. Click
OK
when done.
