Boston Whaler 320 Outrage Manuale utente

“The mission of Boston Whaler®is to

provide consumers with the

safest, highest quality, most durable

boats in the world”

INFORMATION IN THIS PUBLICATION IS BASED ON THE LATEST PRODUCT SPECIFICATIONS AVAILABLE AT PRINTING, BOSTON WHALER®BOATS, INC. RESERVES THE RIGHT

TO MAKE CHANGESATANYTIME WITHOUT NOTICE, INTHE COLORS, EQUIPMENT, SPECIFICATIONS, MATERIALS AND PRICES OFALL MODELS, OR TO DISCONTINUE MODELS.

SHOULD CHANGES OR MODIFICATIONS TO THE MODELS BE MADE BOSTON WHALER®IS NOT OBLIGATED TO MAKE SIMILAR CHANGES OR MODIFICATIONS TO MODELS

SOLD PRIOR TO THE DATE OF SUCH CHANGES. THE FOLLOWING ARE REGISTERED TRADEMARKS OF THE BRUNSWICK CORPORATION:

180 DAUNTLESS, BOSTON WHALER®. MRP #1808107

Rev G 11/08/05

Boston Whaler founder

RichardT.Fisher demon-

strating one of the fea-

tures that has made Bos-

ton Whaler the “Unsink-

able Legend”in this1961

LIFE Magazine Photo.

Richard T. Fisher was

posthumously inducted

into the National Marine

Manufacturer’s Associa-

tion(NMMA)Hall ofFame

on September 26, 1996

for accomplishments

madein marineengineer-

ing and construction.

History

In 1958, company founder Richard T. Fisher introduced the first Boston Whaler boat in Braintree, Massachussetts. It

featured two significant innovations: first, its twin sponson hull design produced superior stability and a remarkably dry

ride; second, its unique foam core construction made the boat not only durable, but unsinkable as well. Fisher took every

opportunity to illustrate the unique characteristics of the BostonWhaler. His most famous demonstration was captured in

1961, by Life Magazine. The series of photographs showed the boat underway, the boat being sawed in half and ulti-

mately Fisher motoring away in the remaining half of the boat. And through the years many other demonstrations have

proved the toughness and durability of the BostonWhaler hull.And though you may never cut your boat in half, this only

goes to show one thing, people whose livelihood and lives depend on boats consistently choose Boston Whaler because

of their seaworthiness, dependablility and the inherent safety of a hull that won’t sink even if severely damaged. Boston

Whalers are built to last. For over 40 years Boston Whaler® has strived to make each model better, providing you with

a safe and fun boating experience. That is the reason we offer a 10 year limited transferable warranty. It is also an

excellent reason why you can trust the safety of your family and friends to a Boston Whaler.

PLEASE KEEP THIS BOOK AND OTHER MATERIALS IN A SECURE PLACE, AND BE SURE TO HAND IT

OVER TO THE NEW OWNER IF YOU SELL THE BOAT.

This Owner’s Manual has been written to provide specific information about your boat and it should be read carefully.

Keep this booklet in the Owner’s Manual Packet. The Owner’s Manual Packet has been compiled to help you operate

your boat with safety and pleasure. It contains details of the boat, the equipment supplied or fitted, it’s systems and

information on it’s operation and maintenance. Please familiarize yourself with the boat and it’s operation before

using it. If this is your first boat, or you are changing to a type of boat you are not familiar with, for your own comfort

and safety, please ensure that you obtain handling and operating experience before “assuming command” of your

boat.Your Boston Whaler® dealer or localYacht Club will be pleased to advise you of marine safety classes and safe

boating classes in your area.

Introduction

Section 1 - 320 Outrage

Table of Contents

320 Outrage-Owner’s Manual

Section 1-320 Outrage

Table of Contents 1

Construction Standards 2

Our Hull 2

Servicing your Boston Whaler 2

Hull Identification Number 2

Section 2-General Arrangement & Specifications

Specifications & Dimensions 3

Standard Features 4-5

Notable Options 6

Storage 7

Through-hull Fittings 8

Deck Occupancy 9

CanvasArrangment 10

Standard Seating Arrangement 10

Label Locations 11

Section 3-Fuel System

Fuel System 12

Fuel Tank 12

Fuel Fill 12

Fuel System Diagram 12

Fuel Vent 13

Primer Bulbs (Optional) 13

Tank Selection 13

EmptyTank 14

Hoses & Fittings 14

Tank Cleaning 14

Remote Oil System (Optional) 14

Static Electricity and the Fuel System 15

Section 4-DC Electrical System

Battery Information 16

Battery Box Locations 16

Battery Maintenance 16

Dual Battery Switches 17

Instrument Panel Wiring Diagram 18

Battery & Switch Diagram 18

Main Breaker Panel Wiring Diagram 19

Hull Wiring Diagram 19

ADSS Wiring Diagram 20

Waste System-Inland Waters Diagram 20

Waste System-Overboard Discharge Diagram 20

Anchor Windlass Wiring Diagram 20

Instrument Panel Arrangement 21

Smartcraft®System View 22

Ignition Shutdown Switch 23

Electric Downrigger Receptacles 23

Main Breaker Panel 24

Engine Starting Procedure 25

Navigation Lighting 26

Shore Power 27

Operation 27

Battery Charger 27

Section 5-Water & Waste System

Freshwater System & Diagram 28

Freshwater Pump 28

Freshwater Shower 28

Maintenance 29

Disinfecting the System 29

Winterizing the System 29

Raw Water 30

Operation/Maintenance 30

Raw Water System Diagram 30

Seacock Operation 30

Head System 31

Dock-Side Discharge 31

Standard Waste System Diagram 31

Optional Inland Waters Diagram 31

Macerator 32

Operation/Maintenance 32

Environmental Considerations 32

Section 6-Bilge System

Bilge Pump System Diagram 33

Operation/Maintenance 33

Section 7-Livewell System

Livewell 34

Operation 34

Flow Control Valve 34

Maintenance 34

Livewell System Diagram 34

Section 8-Propulsion System

Hydraulic Steering Information (Optional) 35

Operation/Maintenance 35

Power Steering Information 36

Gear Shift & Throttle Control 37

Digital Throttle & Shift (DTS) 37

Power Trim Operation 38

Helm Seat Track Maintenance 38

Propeller Information 39

Propeller Assembly 39

Section 9-Getting to know your Boston Whaler

Trim Tabs-Operation/Maintenance 40

Mooring Points/Lifting 41

Hull Maintenance 42

Hull Maintenance (Blisters) 42

Bottom Painting 42

Painted Hull Care (Bottom) 43

Vinyl Cushion Care 43

Long Term Storage 43

Engines 44

Fuel System 44

Trailer Storage 44

Electrical System 44

Drainage 44

Canvas Care & Maintenance 44

Trailer (Optional) 45

Trailer Safety 45

Bunk Trailer Terminology 45

Section 10-Anchoring Information

Anchoring Information 46

Lowering 46

Setting 46

Weighing 46

Anchor Windlass 47

Operation 47

Lowering 47

Raising 47

Emergency Operation 47

Section 11-Maintenance Log & Notes

Maintenance Log & Notes 48

Section 12-(ADSS)Active Deck Suspension System

ADSS Description 2

ADSS Operation/Maintenance 3

Section 1 - 320 Outrage

320 Outrage-Owner’s Manual

“THE MISSION OF BOSTON WHALER IS TO PROVIDE CONSUMERS WITH THE

SAFEST, HIGHEST QUALITY, MOST DURABLE BOATS IN THE WORLD”.

We are dedicated to creating a superior product providing you with comfort, performance, safety and dependability.

All of our boats comply with the safety standards set by the United States Coast Guard and are designed, engineered

and manufactured in accordance with applicable recommendations and guidelines of the American Boat and Yacht

Council (A.B.Y.C.) and certified by the National Marine Manufacturers Association (N.M.M.A.).

Construction Standards

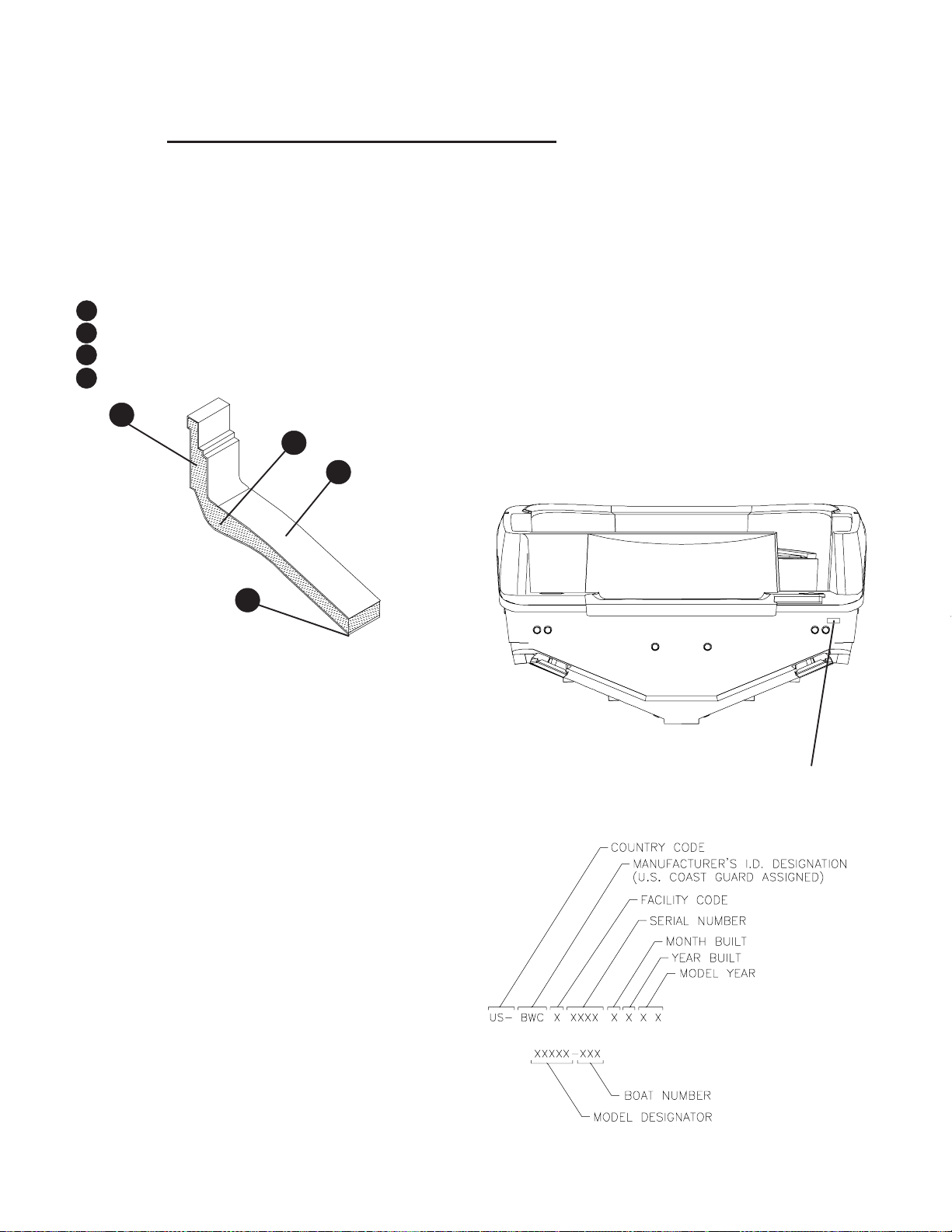

Hull Identifcation Number

The “Hull Identification Number” is located on the

starboard side of the transom wall.

Thisis themost importantidentifying factor andmust

beincluded in allcorrespondence related toyour ves-

sel. Failure to do so will only create delays.Also of

vital importance are the engine serial numbers and

part numbers when writing about or ordering parts

for your engine.

Our Hull

Boston Whaler® hulls are constructed with our pat-

ented Unibond™ construction. This involves shoot-

ing high density foam into a closed mold system.

The foam expands to fill voids in the hull, and when

thefinished product is pulledfrom the mold, thedeck

and the hull are chemically bonded to form a solid,

inseparable unit.

Hull

Identification

Number Location

Whenyour 320 Outrage needsto be serviced orregu-

lar maintenance is needed, it should be taken to an

authorized Boston Whaler® dealer.

To find a Boston Whaler® dealer in your area call:

1-800-942-5379

Domestic/International

If a problem is not handled to your satisfaction:

Discuss any warranty related problems directly

with the service manager of the dealership or your

sales person. Give the dealership an opportunity

to help the service department resolve the matter

for you.

Servicing your Boston Whaler Typical H.I.N. Description

1No air voids

2High density closed cell non-absorbent foam

3High quality resins and gelcoats

4Woven glass matting

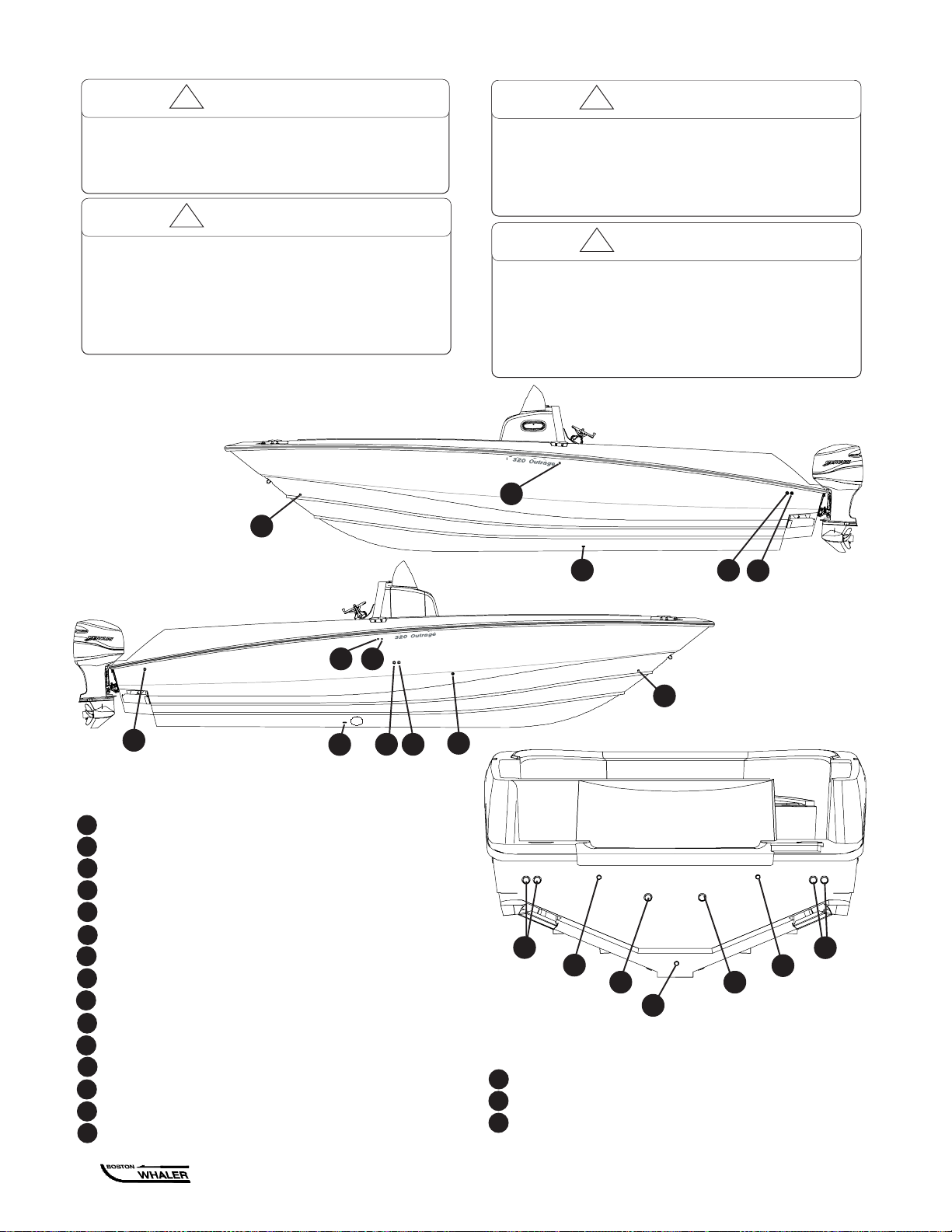

Section 2 - General Arrangement & Specifications

320 Outrage-Owner’s Manual

32’2”

10’2”

35’6”

1’10”

9’10”

8’11”

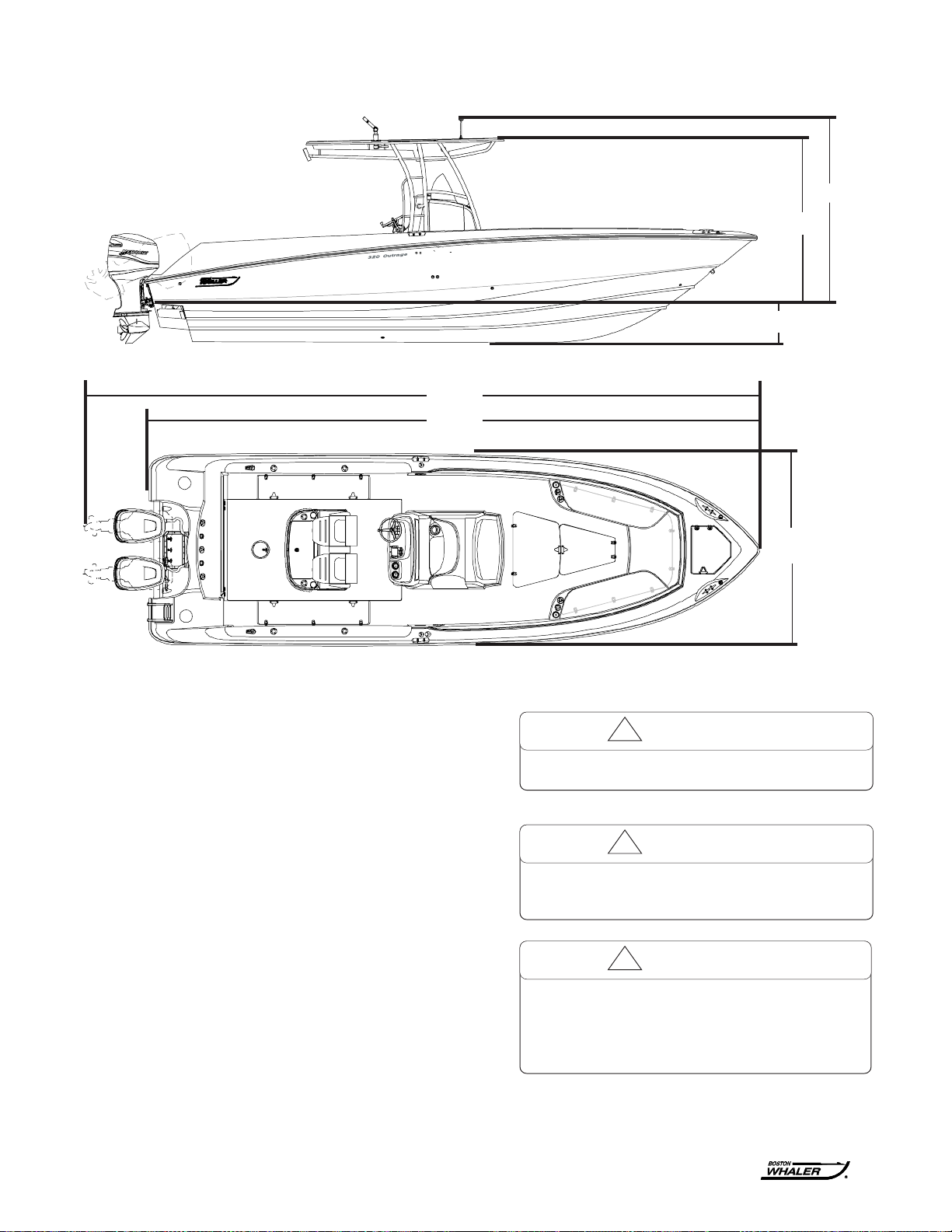

Overall Length 32’2” 9.80 m

Trailerable Length 35’6” 10.8 m

Bridge Clearance 9’10” 3.00 m

Beam 10’2” 3.10 m

Draft, (Hull Only) 1’10” .56 m

Weight (dry, no engine) 8500 lbs. 3855 kg

Swamped Capacity 4800 lbs 2177 kg

Maximum Engine Weight 1400 lbs 635 kg

Maximum Weight,

(passengers,engine(s),

gear,** 4300 lbs 1950 kg

Persons 14

Maximum Horsepower 600 HP 447 kw

Minimum Horsepower 400 HP 298 kw

Fuel Capacity 300 Gal.(U.S.) 1135 L

Water Capacity 40 Gal.(U.S.) 151 L

Waste Capacity 6.5 Gal (U.S.) 24 L

* Waterline

Specifications & Dimensions

Specified measurementsareapproximationsandare

subject to variance.

NOTICE

Optional equipment and loading of the boat will af-

fectthe draftmeasurements. Followtherecommen-

dations listed on your capacity plate regarding the

maximum amount of weight the boat can safely

carry.

Exceeding this weight will affect the bost’s perfor-

mance. DO NOT Exceed the weights listed on the

capacityplate.

NOTICE

Hardtop removed for clarity

Section 2 - General Arrangement & Specifications

320 Outrage-Owner’s Manual

Standard Features

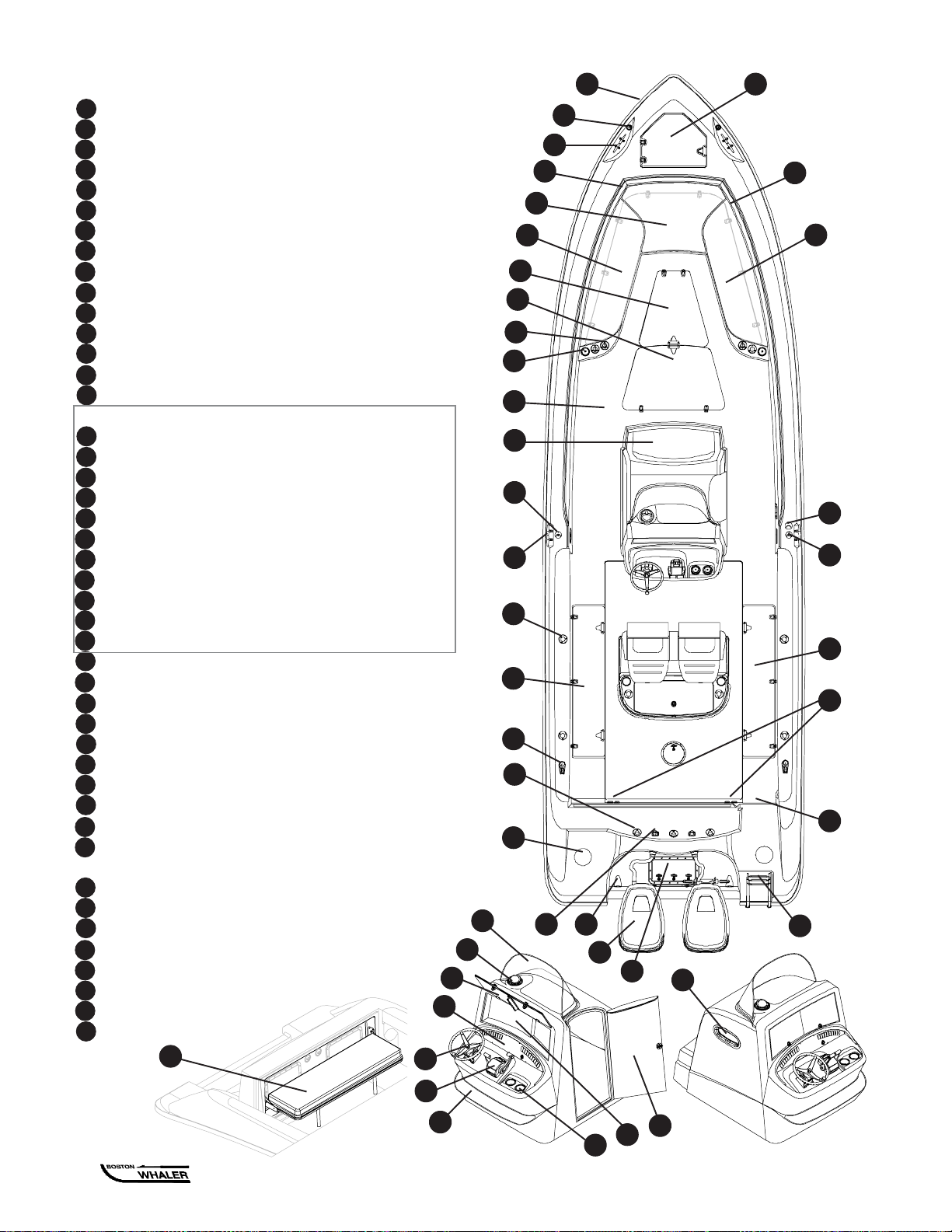

1Heavy Duty Rubrail

2Anchor Locker w/ Drain

3Bow Navigation Lights, (P&S)

4Stainless Steel Fwd. Cleats, (P&S)

5Welded Stainless Steel Low Profile Interior Rail

6Forward Bolsters

7Forward Seat, (Storage Under)

8Forward Port Seat, (Storage Under)

9 Forward Starboard Seat, (Storage Under)

10 Forward In-Deck Fishbox, Insulated

11 Forward In-Deck Storage

12 Forward Rodholders, (4-Port/Starboard)

13 Forward Cupholders, (2-Port/Starboard)

14 Self Bailing Cockpit

15 Forward Console Seat

SEE CONSOLE DETAIL

16 Molded Tempered Glass Windshield

17 Compass with Light

18 Electronics Box Door, Lockable

19 Instrument Panel

20 Stainless Steel Steering Wheel w/ Knob

21 Gear Shift/Throttle Control

22 Molded Console Footrests

23 Electronics Box Mounting Surface

24 Console Door, Lockable

25 Portlight w/ Screen

26 Console Cupholders, (2)

27 Port Fuel Fill

28 Stainless Steel Spring Cleat, (P&S)

29 Gunwale Mounted Rodholders (2), (P&S)

30 Port Fishbox, Insulated

31 Stainless Steel Hawse Pipe w/cupholders (2), (P&S)

32 Stern Rodholders, (3)

33 8 Inch Access Plate, (P&S)

34 Transom Oil Fill, (2) (Optional)

35 Motorwell Drain, (P&S)

36 Dual 250 CXXL DTS Verado 4-stroke

Mercury Engines

37 Motorwell Access Hatch

38 Telescoping Ladder w/ Lid

39 Transom Door

40 Cockpit Drains

41 Starboard Fishbox, Insulated

42 Starboard Fuel Fill

43 Waste Pumpout

44 Stern Foldaway Seat

1 2

8 9

34 35

36 37

Section 2 - General Arrangement & Specifications

320 Outrage-Owner’s Manual

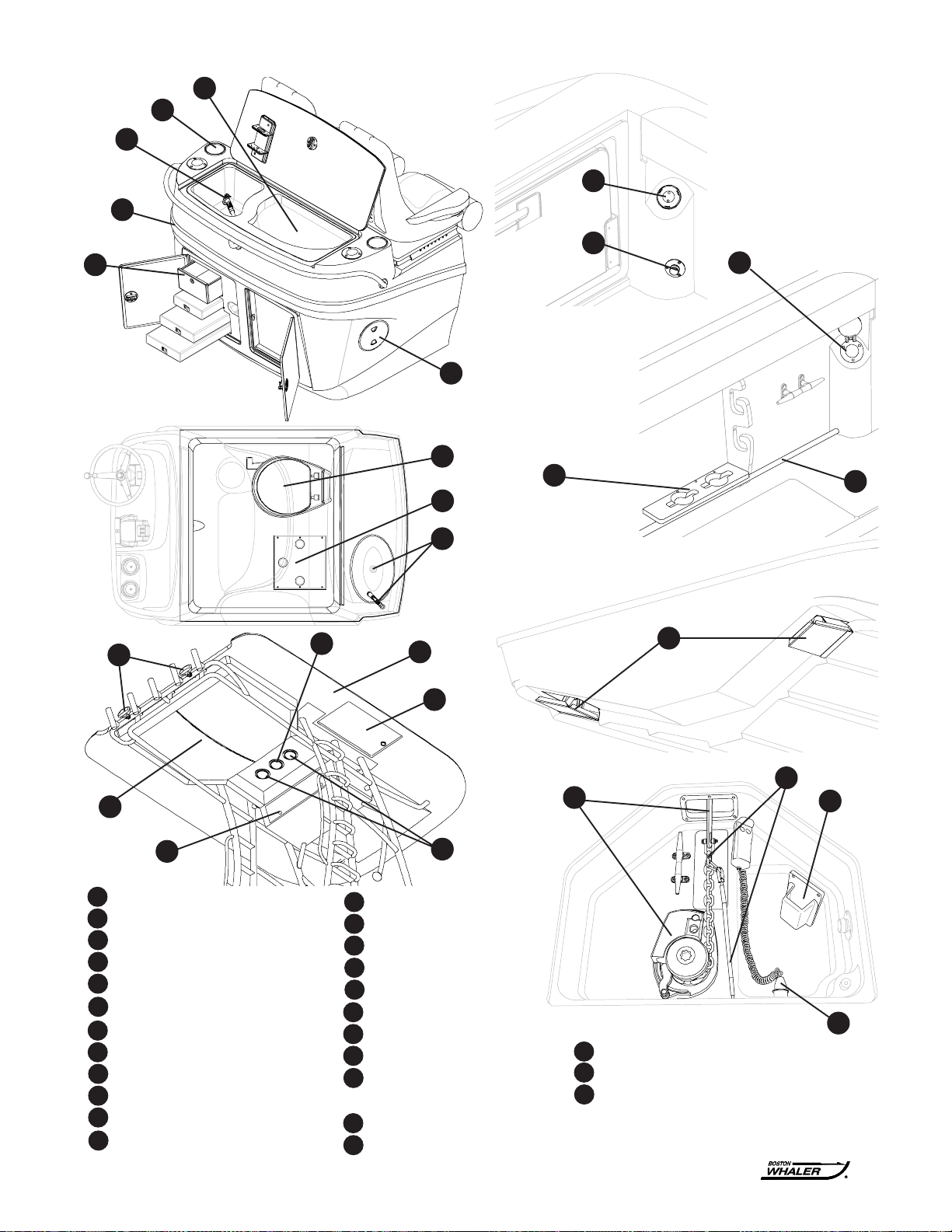

1Prep Station

2Prep Station, Tackle Center

3Pull-out Sprayer with Sink

4Prep Station Rodholder, (2)

5Prep Station Livewell

6Prep Station LivewellAccess

7Freshwater Fill

8Raw Water Connection

9Vacu-Flush Toilet

10 Vertical Rodholder

11 Freshwater Sprayer and Sink

12 Downrigger Weight Holder

13 Transom Shower

14 Hardtop, Fiberglass

15 Lifejacket Storage

16 Electronics Box

17 Hardtop Courtesy Lights

18 Map Light (RED)

19 Spreader Lights

20 Hardtop Hatch

21 Stainless Steel Toe

Rails, Port/Starboard

22 Electric Trim Tabs

23 Windlass &Anchor

19 18

23 24 25

24 Swivel & Lanyard

25 Remote Storage

26 Remote Connection

Standard

Features

Section 2 - General Arrangement & Specifications

320 Outrage-Owner’s Manual

320 Outrage, Notable Options

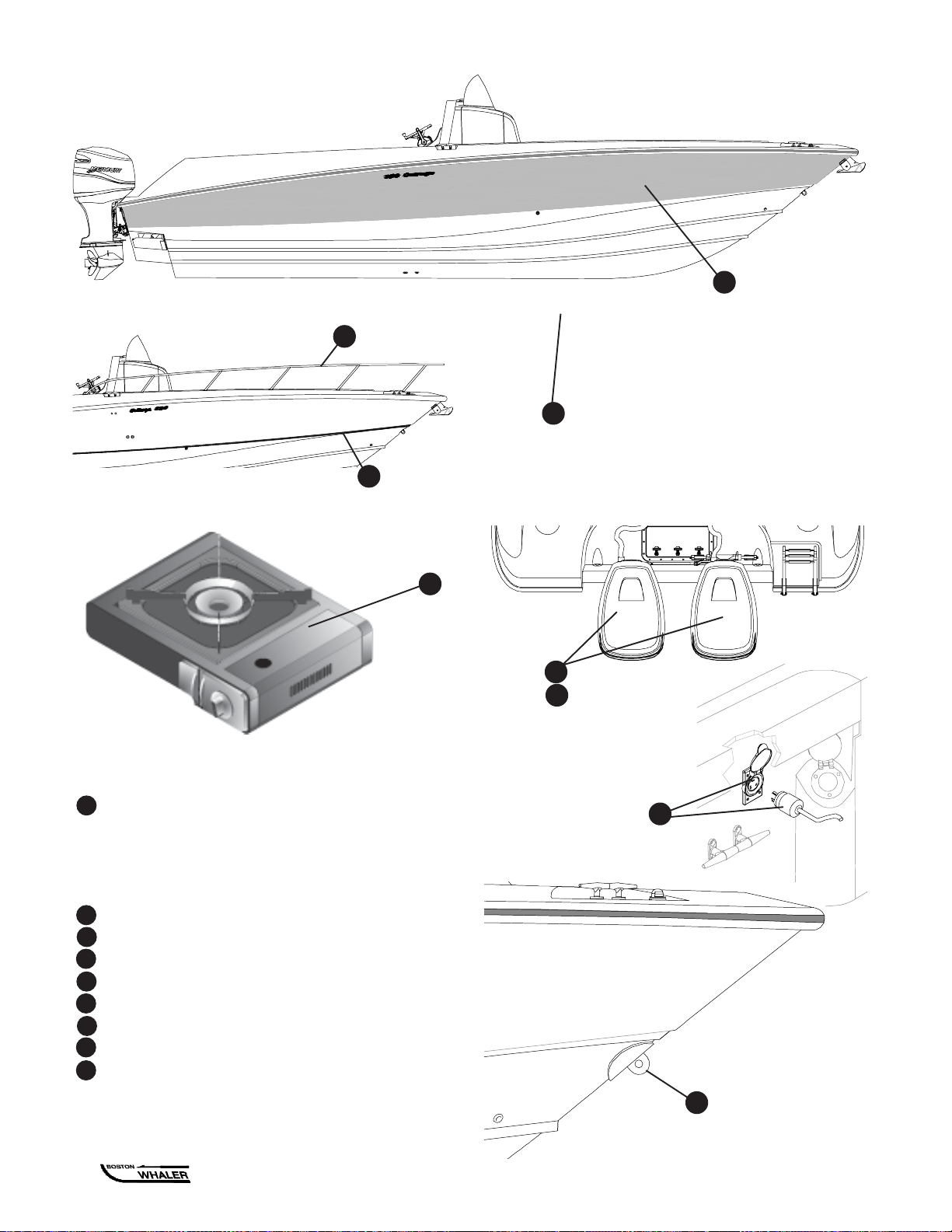

1Hull Colors-

Yellow w/ Black Graphics,

Fighting Lady Yellow w/ Black Graphics,

Light Blue w/ Black Graphics

Wasabi w/ Black Graphics

2 Red or Blue Graphics, Striping & Logos

3Tall Bow Rail

4 Radial Outriggers for Hard-Top (P&S)

5 225 CXXL Optimax DTS Dual Engines

6 275 CXXL DTS Verado 4-Stroke Dual Engines

712V Receptacle, port & starboard gunwales-(aft)

8 Butane Stove, Portable

9 Bow Tow Eye

Section 2 - General Arrangement & Specifications

320 Outrage-Owner’s Manual

1Pocket Storage, Port

2Console Storage, Port

3Gunwale Tip-Out Bin, Port

4Under Gunwale Rod Storage, Port

5Downrigger Ball Storage, Port

6Pocket Storage, Starboard

7Fire Extinguisher Pocket

8Console Storage, Starboard

9Gunwale Tip-Out Bin, Starboard

10 Under Gunwale Rod Storage, Starboard

11 Downrigger Ball Storage, Starboard

12 Lifejacket Storage, Hardtop

13 Lockable Electronics Box, Hardtop

14 Anchor Locker with Drain

15 24 Gal. (91L) Storage Well, (under forward seat)

25 26

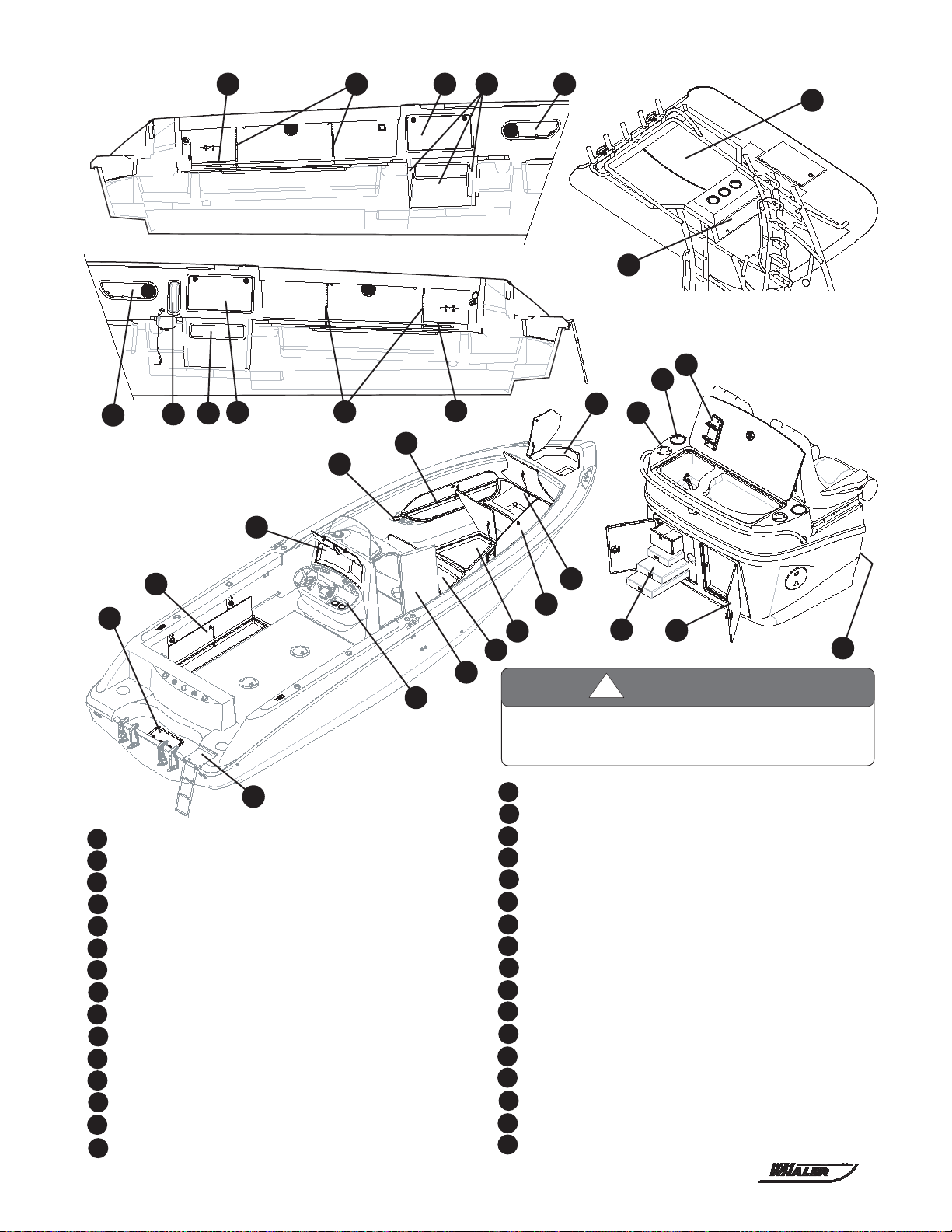

Storage 12345

78910 11

614

16 108 Gal. (409L), Forward Insulated Fishbox

17 80.5 Gal.(305L) Forward Locker Starboard

18 Forward In-Deck locker

19 Console, Lockable

20 Console Cupholder, (2)

21 Swim Ladder Stowage

22 Motorwell Access, Oil Tank Storage

23 Port Fishbox, 80 Gal.(302L) (Starboard is same)

24 Console Electronics Box, Lockable

25 Forward Cupholder, (Starboard is Identical)

26 80.5 Gal. (305L)Forward Locker, Port

27 Tackle Storage

28 Knife Storage

29 Storage Bin (in front)

30 Rodholder, Prep Station

31 Cupholders (2), Prep Station

32 Knife/Tool Holder in Door

WARNING

No Ventilation is provided. Fuel vapors are a fire and

explosion hazard. To avoid injury or death, DO NOT

store fuel or flammable liquids in any of these areas.

27 29

Underside of T-Top,

(looking up)

Section 2 - General Arrangement & Specifications

320 Outrage-Owner’s Manual

Thedeckdrainprovidesself-bailingcapabilitieswhilethe

boat is static in the water and no passengers on board.

This feature prevents the accumulation of water in the

cockpit. the drain must be in place when underway.

NOTICE

Depending on the type of boat you have, you may

have underwater fittings that need drain plugs.

Garboard drain plugs and fishbox drain plugs need

to be in place before the boat goes into the water.

Any fitting that will be underwater needs to be

plugged or the seacock needs to be closed

NOTICE

Through hull fittings should be checked for proper

seal annually. When the boat is in the water the un-

derwater fittings can be checked for dripping. It is

recommended that the underwater fittings be re-

moved, cleaned and resealed every other year.

NOTICE

If the through hull fittings need to be replaced, it is

recommended that an authorized Boston Whaler ®

dealer perform this type of repair. Through hull fit-

tings that are improperly installed can cause pre-

mature hull failure and may void the Boston

Whaler® limited warranty.

NOTICE

16 Livewell Drain

17 Garboard Drain

18 Active Deck Suspension System (ADSS) pan

drain, (Optional)

PORT

STARBOARD

1Anchor Locker Drain, Port

2Fuel Tank Vent, Port

3Raw Water/Livewell Inlet

4Bilge Pump Outlet

5Fishbox Pump Outlet, Port

6Anchor Locker Drain, Starboard

7Sink/Deck Drain

8Bilge Pump Outlet

9Fishbox Pump Outlet, Forward

10 Waste Vent

11 Fuel Vent, Starboard

12 Macerator Discharge

13 Fishbox Pumpout, Starboard

14 Deck Drains

15 Motorwell Drains

320 Outrage,Through-hull Fittings

11 10

AFT

812

15 16

17 18

Altri manuali per 320 Outrage

Indice

Altri manuali Boston Whaler Barca

Boston Whaler

Boston Whaler 170 Montauk Manuale utente

Boston Whaler

Boston Whaler Dauntless 210 Manuale utente

Boston Whaler

Boston Whaler 320 Outrage Manuale utente

Boston Whaler

Boston Whaler 305 conquest Manuale utente

Boston Whaler

Boston Whaler 370 Outrage Manuale utente

Boston Whaler

Boston Whaler 13' Super Sport Manuale utente

Boston Whaler

Boston Whaler 110 Tender Manuale utente

Boston Whaler

Boston Whaler 190 Montauk 2018 Manuale utente

Boston Whaler

Boston Whaler 230 Outrage Manuale utente

Boston Whaler

Boston Whaler Dauntless 210 Manuale utente

Boston Whaler

Boston Whaler 330 outrage Manuale utente

Boston Whaler

Boston Whaler CONQUEST 345 Manuale utente

Boston Whaler

Boston Whaler 110 Tender Manuale utente

Boston Whaler

Boston Whaler 305 conquest Manuale utente

Boston Whaler

Boston Whaler 255 Conquest Manuale utente

Boston Whaler

Boston Whaler 230 dauntless Manuale utente

Boston Whaler

Boston Whaler 280 Outrage Manuale utente

Boston Whaler

Boston Whaler 170 Super Sport 2018 Manuale utente

Boston Whaler

Boston Whaler 330 Outrage 2023 Manuale utente

Boston Whaler

Boston Whaler 37 Justice Series Manuale

Boston Whaler

Boston Whaler 250 OUTRAGE Manuale utente

Boston Whaler

Boston Whaler 130 Super Sport Manuale utente

Boston Whaler

Boston Whaler 320 Outrage Manuale utente

Boston Whaler

Boston Whaler 420 OUTRAGE Manuale utente

Manuali Barca popolari di altre marche

Raymarine

Raymarine ST70 Instrument Manuale utente

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport Manuale utente

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC Manuale utente

Tiara Yachts

Tiara Yachts C49 2024 Manuale utente

Monterey Boats

Monterey Boats Sport Yacht 330 Manuale utente

J 105 Manuale utente

PURSUIT

PURSUIT OS 335 Manuale utente

Jeanneau

Jeanneau SUN ODYSSEY 41 DS Manuale utente

Meridian

Meridian 490 Pilothouse Manuale utente

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 Manuale utente

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR Manuale utente

Swallow Boats

Swallow Boats BayRaider Manuale utente

Intex

Intex Excursion 5 Set Manuale utente

X SHORE

X SHORE EELEX 8000 Manuale utente

ISLAND PACKET

ISLAND PACKET 370 Manuale utente

Sea Ray

Sea Ray 175 Sport Manuale utente

Regal

Regal 2300 Manuale utente

Grand

Grand Silver Line S250 Manuale utente
