Important
Thank you for choosing BougeRV
Solar Panel.
Please read and understand the installation manual
before installing BougeRV Solar Panel. With proper
operation and maintenance, this solar panel could
provide you with clean, renewable solar electricity for
many years. This manual contains important
installation, maintenance, and safety information.
Retain this manual for future reference.
1
Limited Warranty
BougeRV Solar Panel comes with an 18-month limited
warranty that commences from the date of purchase.
If you have any questions during use, please feel free
to contact us:
Ps: The limited warranties do not apply to any of the following:
The solar panel which in BougeRV's absolute judgment have been
subjected to misuse, abuse, neglect or accident, alteration, or
improper installation, application, or removal. This includes, but is not
limited to, installation, application,or removal by any party other than
a BougeRV authorized dealer; non-observance of BougeRV's
installation, user's and/or maintenance instructions; power failure
surges, lightning, flood, fire, accidental breakage, or other events
beyond BougeRV's control.
service@bougerv.com
1-669-232-7427
（6:00 PM-12:00AM PST or leave us voice messasges）
www.bougerv.com
Message through [Ask a Question] in BougeRV Amazon shop
2
Safety
Precautions
• Do not stand on, drop, scratch, or allow objects to fall on the solar
panels as doing so may damage them and void the warranty.
• Do not place anything on the solar panel, even for a moment
because the resulting residue may damage or stain the glass surface.
• If the front glass is broken, or the back sheet is torn, contact with any
panel surface or panel frame can cause electric shock.
• Broken J-boxes or connectors are electrical hazards as well as
laceration hazards. Installers should remove any such solar panel
from the array and contact BougeRV for disposal instructions.
• Do not install or handle the solar panel when they are wet or during
periods of high wind.
• Do not block drain holes or allow water to pool in or near module
frames.
• Unconnected connectors must always be protected from pollution
(e.g dust, humidity, foreign particles, etc), prior to installation. Do not
leave unconnected (unprotected) connectors exposed to the
environment. A clean assembly environment is therefore essential to
avoid performance degradation.
• Save these instructions!
3
Electrical
Parameters
MODEL
Peak Power Pm (W)
Open circuit voltage Voc (V)
Max.power voltage Vmp (V)
Max.power current Imp (A)
Short circuit current Isc (A)
Solar cells Efficciency
Operating temperature limits
Cable/
Cable connector Model
Max.static load,
front(e.g.snow/wind)
Max.static load,
back(e.g.,wind)
Max.hailstone impact
(diameter/velocity)
Max.system voltage(V)
Series fuse rating
Application Class
Product Certification
/Standard
Product diameter (mm)
100W 180W 200W
21.4V 23.0V 23.4V
18.15V 19.2V 19.8V
5.51A 9.38A 10.10A
6.11A 10.23A 11.17A
21.90%
20.50% 22.50%
12AWG 3FT MC4
connectors 12AWG 3FT MC4
connectors 12AWG 3FT MC4
connectors
2400 Pa 2400 Pa 2400 Pa
2400 Pa 2400 Pa 2400 Pa
227g stell ball fall
down from 1m
height and 60m/s wind
227g stell ball fall
down from 1m
height and 60m/s wind
227g stell ball fall
down from 1m
height and 60m/s wind
1000V DC 1000V DC 1000V DC
10A 15A 15A
Class A Class A Class A
CE,ETL CE,ETL CE,ETL
995 *540 *35 1480 * 670 * 35 1480 * 670 * 35
SOLAR PANEL
SOLAR PANEL
SOLAR PANEL
4
Electrical
Connections

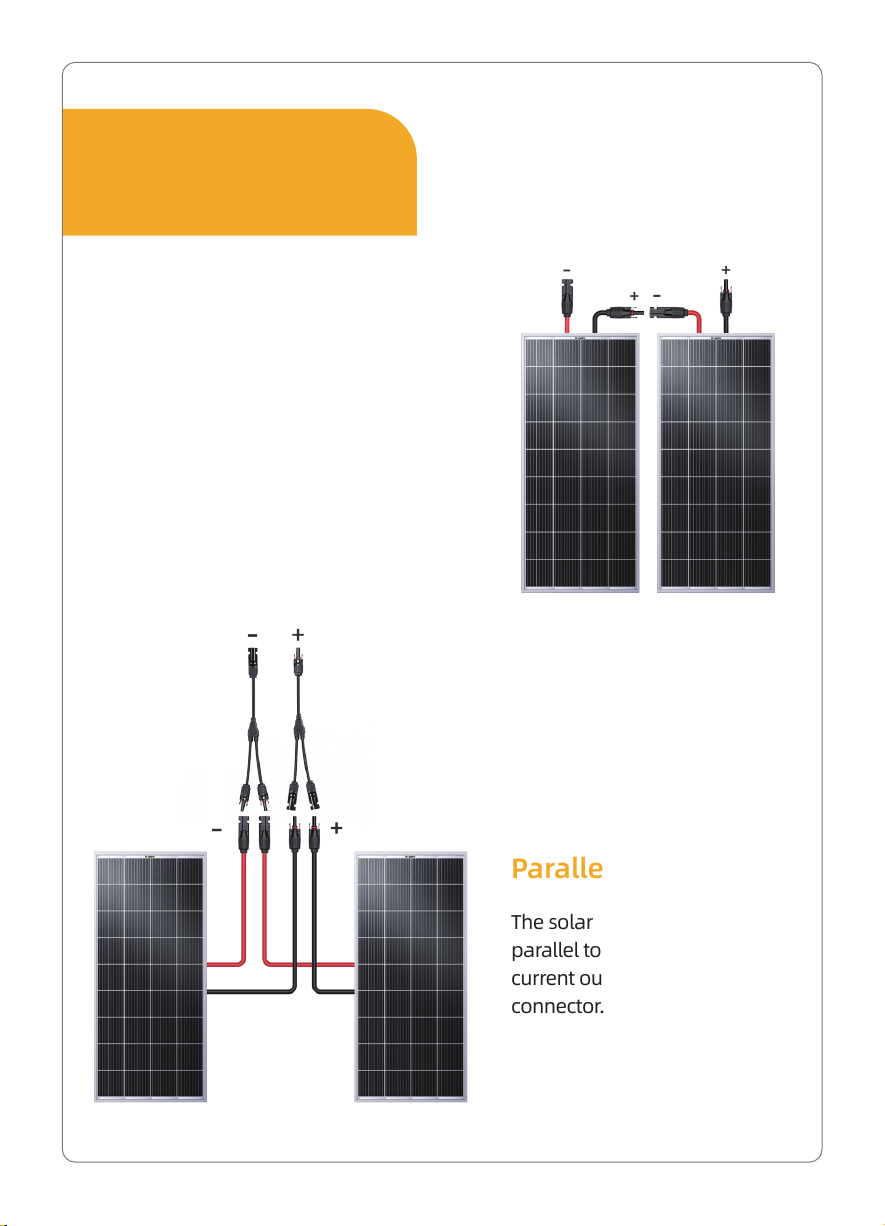

Series Connection
Parallel Connection
The panel may be wired in series to
produce the desired voltage output.
Electrical Connection
The solar panel can be wired in
parallel to produce the desired
current output with the parallel
connector.
Parallel Connection
5
Frequently
Asked Questions
Q2
A2
What should I do if the solar panel I received is damaged, missing
parts, or no output?
Please send relevant pictures to our after-sales mailbox service@boug-
erv.com immediately , and leave your order number. We will reply one by one
according to the chronological order sent by the customers.
Q1
A1
How to choose the appropriate solar accessories that fit the
solar panel if I want to build a solar system on my own?
BougeRV provides you with professional technical services. You can send us
your needs and the parameter information or instructions of your purchased
accessories directly to our email: service@bougerv.com, we will help you
build the ideal DIY solar system.
Q4
A4
Does it works with the portable power station?
Yes, BougeRV solar panels with mc4 connectors are suitable for most portable
power stations on the market. If you want to inquire about the specific model,
please contact us.
Q3
A3
What causes the low output power or no output during the use of solar
panels? How can I solve it ?
The output power of solar panels is mainly affected by light intensity, light angle,
and shadow occlusion during the use of solar panels. Therefore, during daily
use, the angle of illumination must be adjusted to prevent shadows, and the
obstructions on the solar panel must be cleaned regularly, such as bird
droppings, dust, and garbage. Such obstructions may cause the solar panel to
not output at all.
6
