Model 1500 Series
Gigabit Ethernet SPD
INSTALLATION INSTRUCTIONS
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
Model 1500-1D, 1500-2D, 1500-2D-W
WARNING:
Failure to connect the protector to a verified ground connection can result in improper operation of the protector during a surge
event.
1. For Model 1500-2D, verify that the DIN rail strip has a
known and verified ground connection. Otherwise, use
Model 1500-2D-W.
2. Loosen the screw holding the DIN rail adapters.
3. From an angle, hook the DIN rail adapter to the DIN rail
strip.
4. Tighten the screw until the module locks in place.
5. Plug the exposed RJ45 plug into the RJ45 socket
labeled “NETWORK”.
6. Plug the protected RJ45 plug (EQUIPMENT) into the
RJ45 socket on the other end.
7. MODEL 1500-2D-W: Connect the ground wire to a
known and verified ground connection.
To Reorient Clamps to Vertical/Horizontal Position:
1. Remove screw “A”.
2. Remove upper clamp “B”.
3. Remove screw “C” that holds lower clamp “D”.
4. Rotate lower clamp “D” 90 ° around the hole at the
center of the enclosure.
5. Fasten the screw “C” to hold lower clamp “D” in the new
position.
6. Adjust upper clamp “B” against lower clamp “D” and turn
screw “A” until the upper clamp “D” cannot disengage
from “B”.
DIN RAIL STRIP
DIN RAIL ADAPTER
C
90 °
A
DIN RAIL
SIDE VIEW
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
10/13
Model 1500 Series
Gigabit Ethernet SPD
INSTALLATION INSTRUCTIONS
Asia-Pacific: Tel: +886-2 2562-4117 • Fax: +886-2 2562-4116
Europe: Tel: +41-41 768 5555 • Fax: +41-41 768 5510
The Americas: Tel: +1-951 781-5500 • Fax: +1-951 781-5700
www.bourns.com

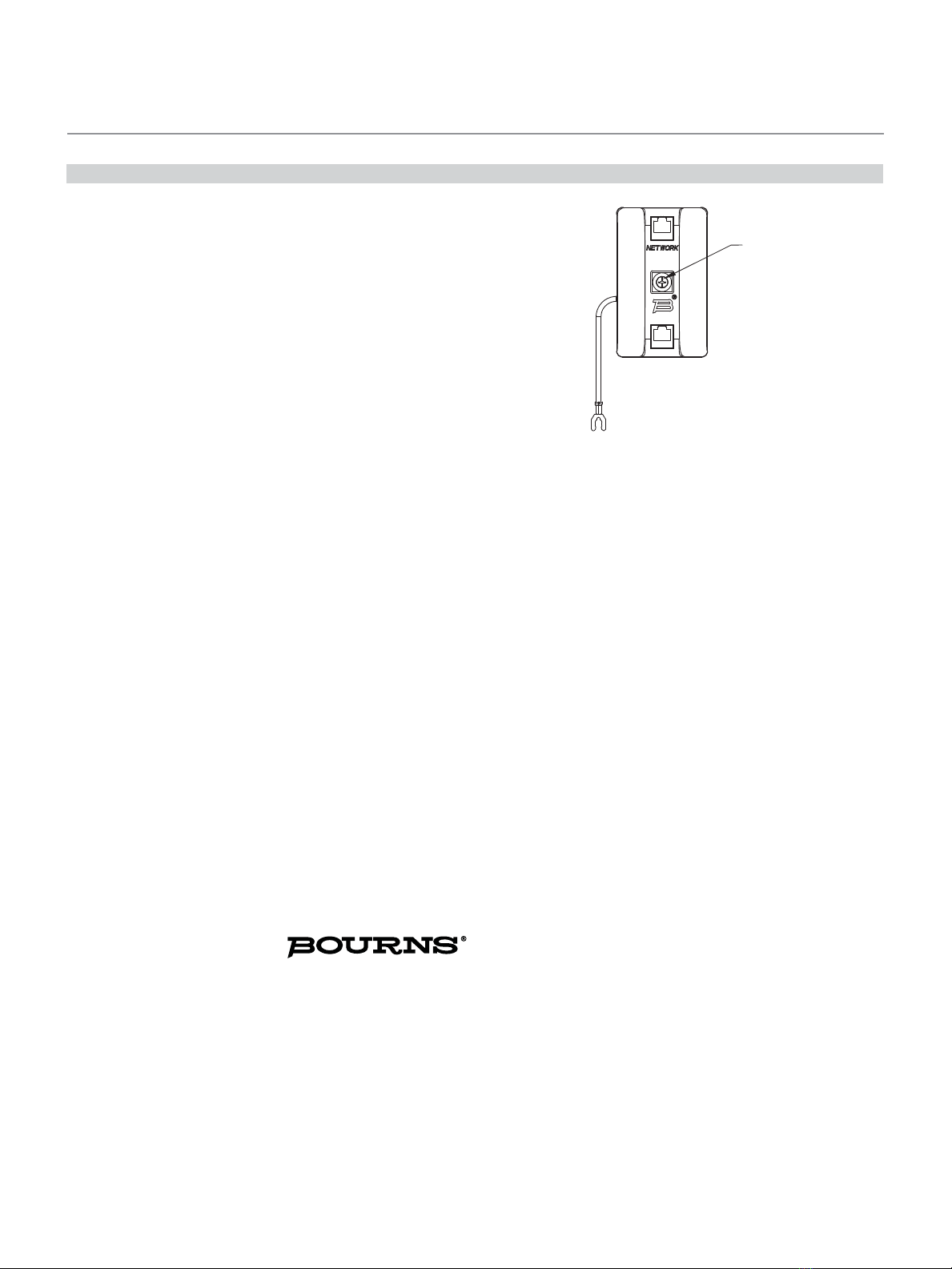

Model 1500-1S, 1500-2S, 1500-2S-W
1. Using a mounting screw (not provided), mount the
adapter to the wall/frame or a secure platform.
2. Plug the exposed RJ45 plug into the RJ45 socket
labeled “NETWORK”.
3. Plug the protected RJ45 plug (EQUIPMENT) into the
RJ45 socket on the other end.
4. MODEL 1500-2S-W: Connect the ground wire to a
known and verified ground connection.
USE SCREW TO SECURE
PROTECTOR TO WALL
CONNECT TO A KNOWN AND VERIFIED GROUND
