Bouyer SA-1127 Manuale utente

SA-1127

Mixer amplifier with sources 240W

120W - 7 inputs –6 zones

BI –241 Masques Notices-long_A

Code : 596672

Date : 08 / 2021

Version : 1

BOUYER INDUSTRIE

1270, avenue de Toulouse Tél : +33 (0)5 63 21 30 00 [email protected]

82000 Montauban –France Fax : +33 (0)5 63 03 08 26 www.bouyer.com

I. Introduction.....................................................................................................................................................1

II. Specification ....................................................................................................................................................2

III. Features.......................................................................................................................................................3

IV. Installation and connections .......................................................................................................................5

1. Input Jack 6.35mm connection (front panel)..............................................................................................5

2. Power connection........................................................................................................................................5

3. Speakers‘ lines outputs connection.............................................................................................................5

4. FM antenna connection ..............................................................................................................................6

5. XLR inputs connection .................................................................................................................................6

6. RCA inputs connection ................................................................................................................................6

7. PGM-1247-V2 paging console connection ..................................................................................................6

V. Usage ...............................................................................................................................................................6

VI. Preventive measures.................................................................................................................................11

I. Introduction

This mixer amplifier is made with a switching power supply, 7 inputs pre-amplification section, 120W class

D power amplification stage, a zone selection stage (6) with independent attenuation, a multiple sources module

with FM Tuner, USB reader, micro SD card reader and Bluetooth. All integrated into a 2U enclosure that can be

placed on a table or integrated into a 19 "rack.

This document is not legally binding, we reserve the right to modify descriptions and specifications without notice.

Summary

BOUYER INDUSTRIE

1270, avenue de Toulouse Tél : +33 (0)5 63 21 30 00 [email protected]

82000 Montauban –France Fax : +33 (0)5 63 03 08 26 www.bouyer.com

II. Specification

Input 1 (Mic1 / face avant)

Sensitivity

- 40dBu

Type

Mono

Connection

Jack 6.35mm female

Input 2 (Mic2/Line2)

Input 3 (Mic3/Line3)

Input 4 (Mic4/Line4)

Sensitivity

- 36,5dBu / - 10dBu

Type

Electronic symetric

Connection

XLR female

Alim fantôme

+48V (MIC)

Input 5 (Line5)

Input 6 (Line6)

Input 7 (EMC / priority)

Sensitivity

0dBu

Type

Stereo

Connection

2 x RCA females

Input 8 (Paging)

Type

Dedicated to PGM-1247-V2 console

Connection

RJ45 female

USB / micro SD (TF) reader

Type of files

MP3 / WAV / APE

Max. size supported

32 Go

Bluetooth 4.2

Max. range

10 m

Output (Out)

Sensitivity

0dBu

Type

Stereo

Connection

2 x RCA females

Outputs 100V

Level

100V / 70V / 16Ω / 8Ω / 4Ω

Power

120 W

Bandwidth

100 - 16Khz

Distortion

< 0.5% (@ 1Khz)

Type

Transformers

Connection

2 points screws terminals

Settings

Tone

Bass (+/-6dB)

Treble (+/-5dB)

Power

Mains

110V-265V AC 50Hz-60Hz

Consumption 1/8 Pmax

pink noise

47W

Battery

24V DC

Consumption 1/8 Pmax

pink noise

40W

Temperature

Use

-10° / + 45°C

Storage

-20° / + 75°C

Dimensions (l x p x h)

2U / rack 19''

438 x 405 x 88mm

Weight

9.5 Kg

BOUYER INDUSTRIE

1270, avenue de Toulouse Tél : +33 (0)5 63 21 30 00 [email protected]

82000 Montauban –France Fax : +33 (0)5 63 03 08 26 www.bouyer.com

III. Features

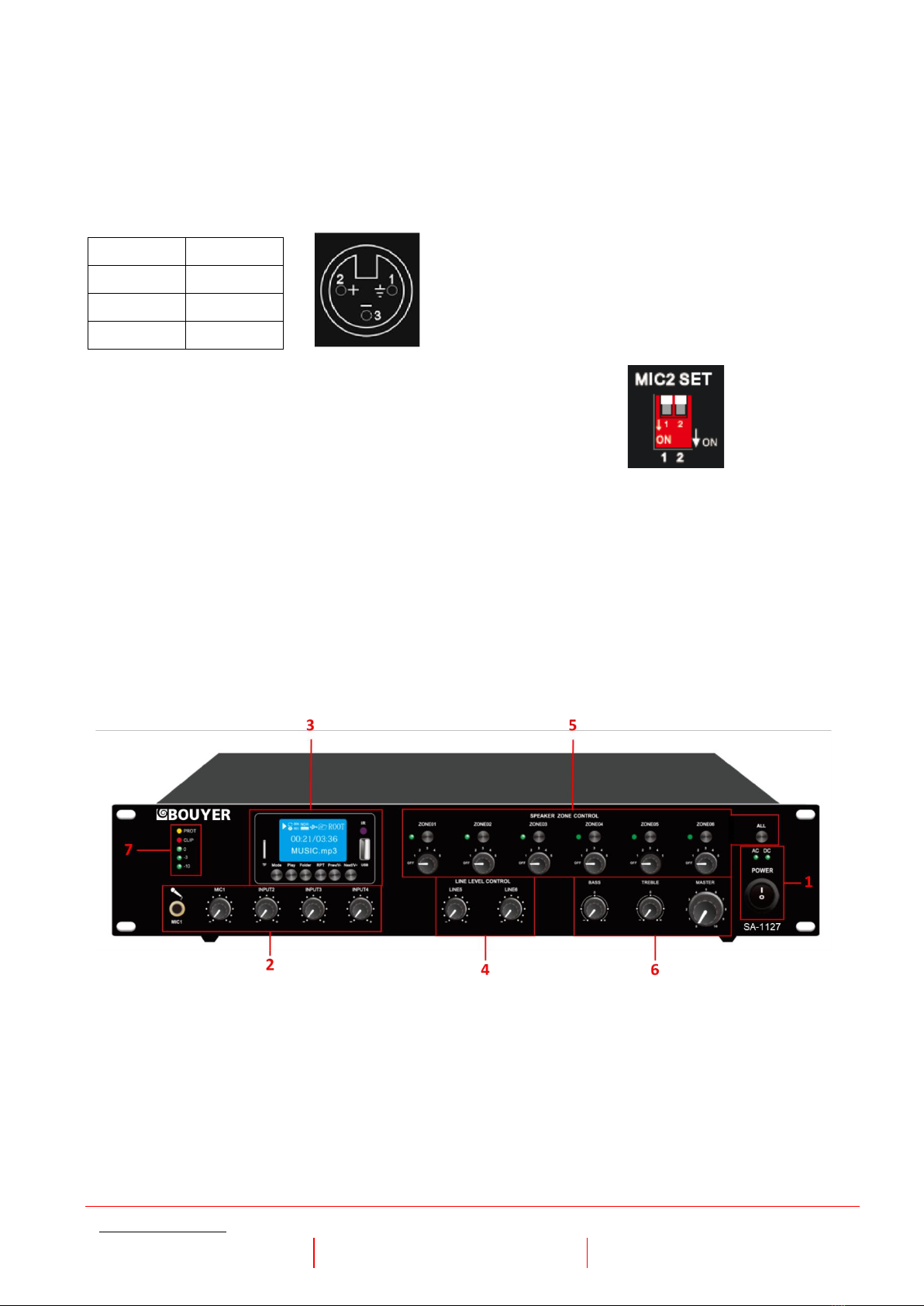

Front panel

In this part we will describe in detail the front panel and all available functionalities..

Zone (1) is composed of:

- An on / off switch to turn the product on or off

- A green "AC" LED (mains power)

- A green "DC" LED (battery power)

Zone (2) is composed of (left to right):

- Input "MIC1" (Microphone input in Jack 6.35mm with the 2nd highest priority level after the Input "EMC"

which will be described later)

- A switch for adjusting the volume of the Input "MIC1"

- A switch for adjusting the volume of the Input "INPUT2"

- A switch for adjusting the volume of the Input "INPUT3"

- A switch for adjusting the volume of the Input "INPUT4"

Zone (3) is the embedded USB / FM / micro SD / Bluetooth player, composed of:

- A backlit screen

- Parameters / selection buttons (detailed in part V)

- An Input for micro SD card on the left

- An Input for USB key on the right

Zone (4) is composed of (left to right):

-Volume switch for input ‘’LINE5’’

-Volume switch for input ‘’LINE6’’

BOUYER INDUSTRIE

1270, avenue de Toulouse Tél : +33 (0)5 63 21 30 00 [email protected]

82000 Montauban –France Fax : +33 (0)5 63 03 08 26 www.bouyer.com

Zone (5) is composed of (for all 6 zones available):

- A green LED indicating whether the area concerned is activated or not

- A zone selection button (top)

- A volume control switch (bottom)

Note: In addition, an "ALL" button allows you to directly select all 6 zones at once

Zone (6) is composed of (left to right):

- A bass control switch (BASS)

- A treble control switch (TREBLE)

- A general volume control switch (MASTER)

Zone (7) is composed of (top to bottom):

- A yellow LED when the product is in protection (PROT)

- A red LED when the audio signal is saturated on the input (CLIP)

- 3 green LEDs that light up depending on the signal level

Rear panel

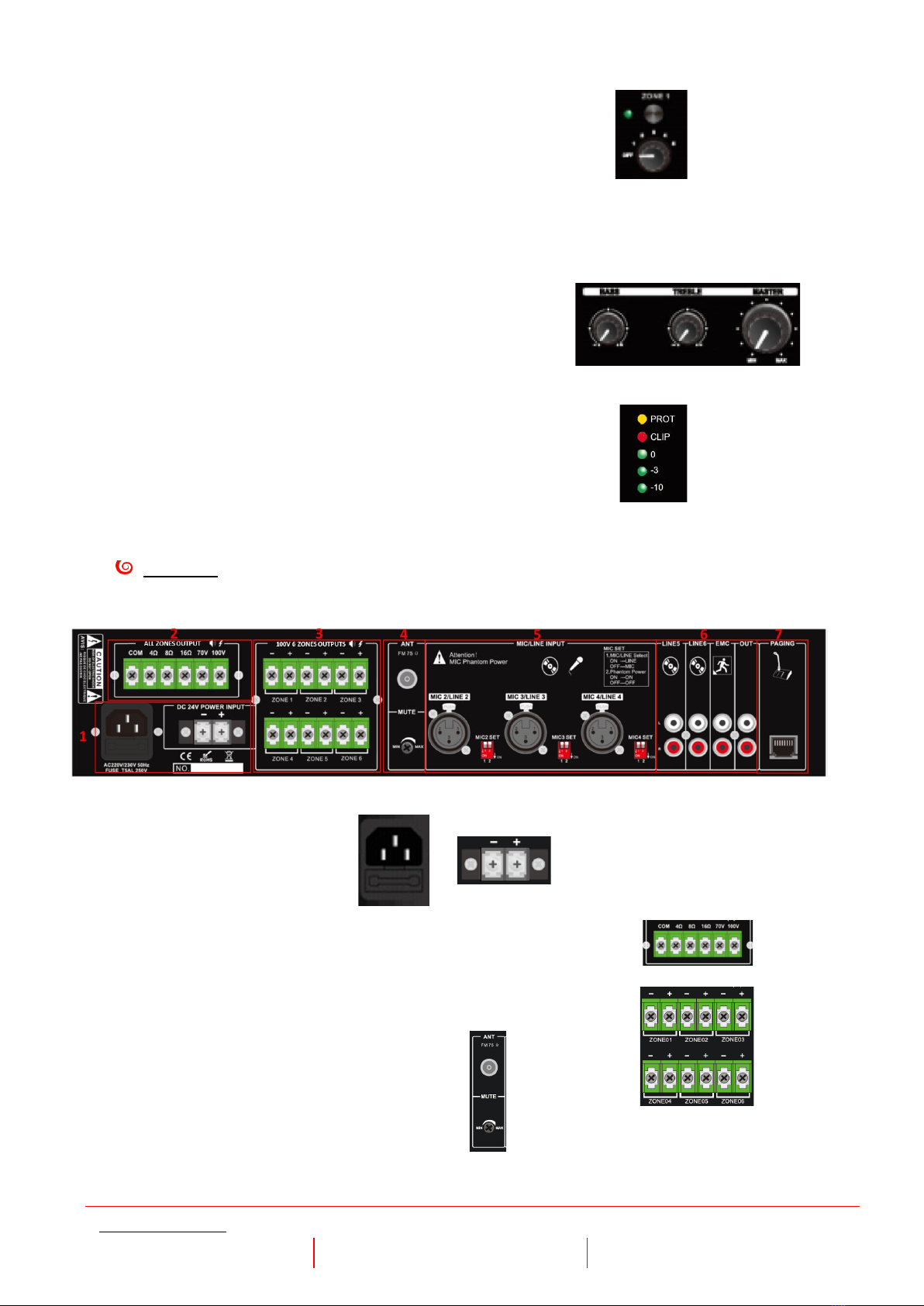

In this part we will describe in detail the rear panel and all available features.

Zone (1) is composed of:

-A mains plug + fuse location

-24V DC input for battery

Zone (2) is composed of 100V / 70V / 16Ω/ 8Ω/ 4Ωline output for all zones

Zone (3) is composed of 6 (100V) line outputs for 6 zones

Zone (4) is composed of:

-An FM antenna plug

-A switch to manage ‘’MIC1’’ attenuation (front)

BOUYER INDUSTRIE

1270, avenue de Toulouse Tél : +33 (0)5 63 21 30 00 [email protected]

82000 Montauban –France Fax : +33 (0)5 63 03 08 26 www.bouyer.com

Zone (5) is composed of (for inputs 2 / 3 / 4):

-XLR female input

-A switch to select mic. or line level on the left and

with or without phantom power on the right

Zone (6) is composed of (for inputs 5 / 6 / ‘’EMC’’ and output ‘’OUT’’):

-2 x RCA females inputs

Note: ‘’EMC’’ input has the highest priority in the system

Zone (7) is composed of RJ45 female input for PGM-1247-V2 paging console

(detailed later)

IV. Installation and connections

WARNING !

The device must not beexposed to falling water and splashing water.The device must imperatively be connected

to a power supply socket with earth conductor. Do not obstruct the ventilation openings.

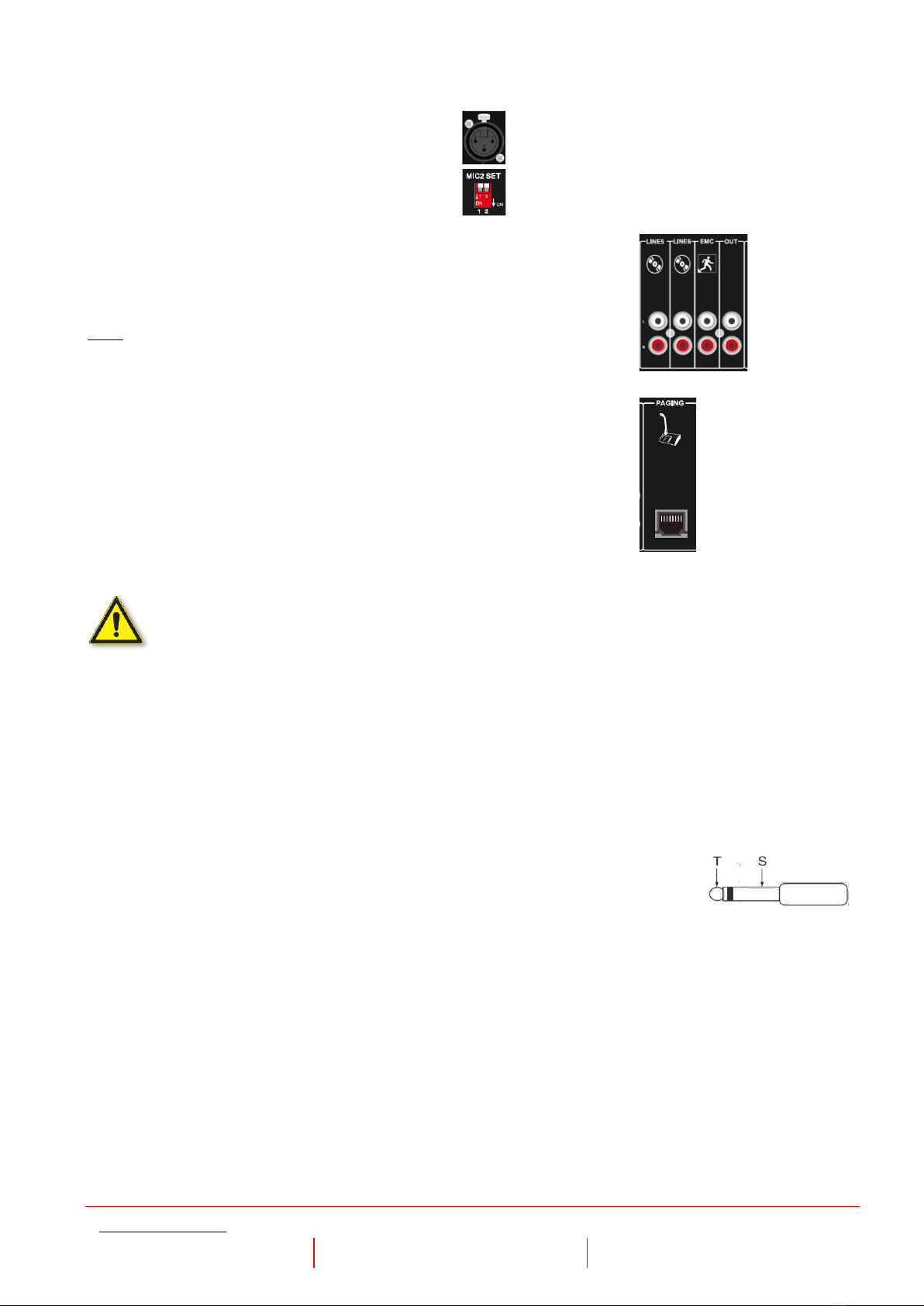

1. Input Jack 6.35mm connection (front panel)

The use of a stereo jack allows a balanced signal to be connected to the "MIC1" input present in zone (2) on the

front panel.

With Jack 6,35mm mono : T = hot point, S = ground (in this case of unbalanced

connection, the output signal will be attenuated by 6dB).

2. Power connection

Use the mains cable supplied with the product and plug it on the plug of the zone (1).

If a 24V battery power supply is chosen, connect the battery to the 2-point input of the zone (2).

3. Speakers‘ lines outputs connection

Connection must be made on zone (2) or (3) connectors.

Each of the outputs is accessible via a 2-point screw terminal block.

Mono 6,35mm jack plug

Stereo 6,35mm jack plug

Jack 6,35mm Mono

Jack 6,35mm Stereo

BOUYER INDUSTRIE

1270, avenue de Toulouse Tél : +33 (0)5 63 21 30 00 [email protected]

82000 Montauban –France Fax : +33 (0)5 63 03 08 26 www.bouyer.com

4. FM antenna connection

The connection is made on the FM antenna socket of zone (4).

Screw the coaxial cable supplied with the product onto the socket.

5. XLR inputs connection

The connection is made on the female XLR sockets located on the rear panel in zone (5).

Pin number

Type

Ground

To obtain line level, put switch 1 on the "ON" position downwards.

To obtain a microphone level, put switch 1 up.

If the console connected to the XLR socket accepts phantom power supply,

put switch 2 on the "ON" position downwards.

6. RCA inputs connection

The connection is made on the female RCA sockets on the rear panel in zone (6).

7. PGM-1247-V2 paging console connection

The connection is made on the RJ45 socket on the rear panel in zone (7).

V. Usage

To turn on the product, push the "POWER" switch in zone (1) upwards.

Depending on the power supply chosen, one of the LEDs above "POWER" will light up green. (If mains supply =

"AC" LED / if 24V supply = "DC" LED)

As presented in part ‘’ III. Features '', it is possible to select one or more zones using the upper zone buttons

(5) on the front panel and to adjust their output volumes independently using the switches below each zones.

A general volume "MASTER" is also available in zone (6).

To adjust the volume of each input independently, turn the corresponding switches in zones (2) and (4).

BOUYER INDUSTRIE

1270, avenue de Toulouse Tél : +33 (0)5 63 21 30 00 [email protected]

82000 Montauban –France Fax : +33 (0)5 63 03 08 26 www.bouyer.com

To adjust the bass and treble levels, turn the switches in zone (6).

To use zone (3) integrated USB / FM / micro SD / Bluetooth reader, refer to the following table.

To use the remote control associated with the embedded player, refer to the following table:

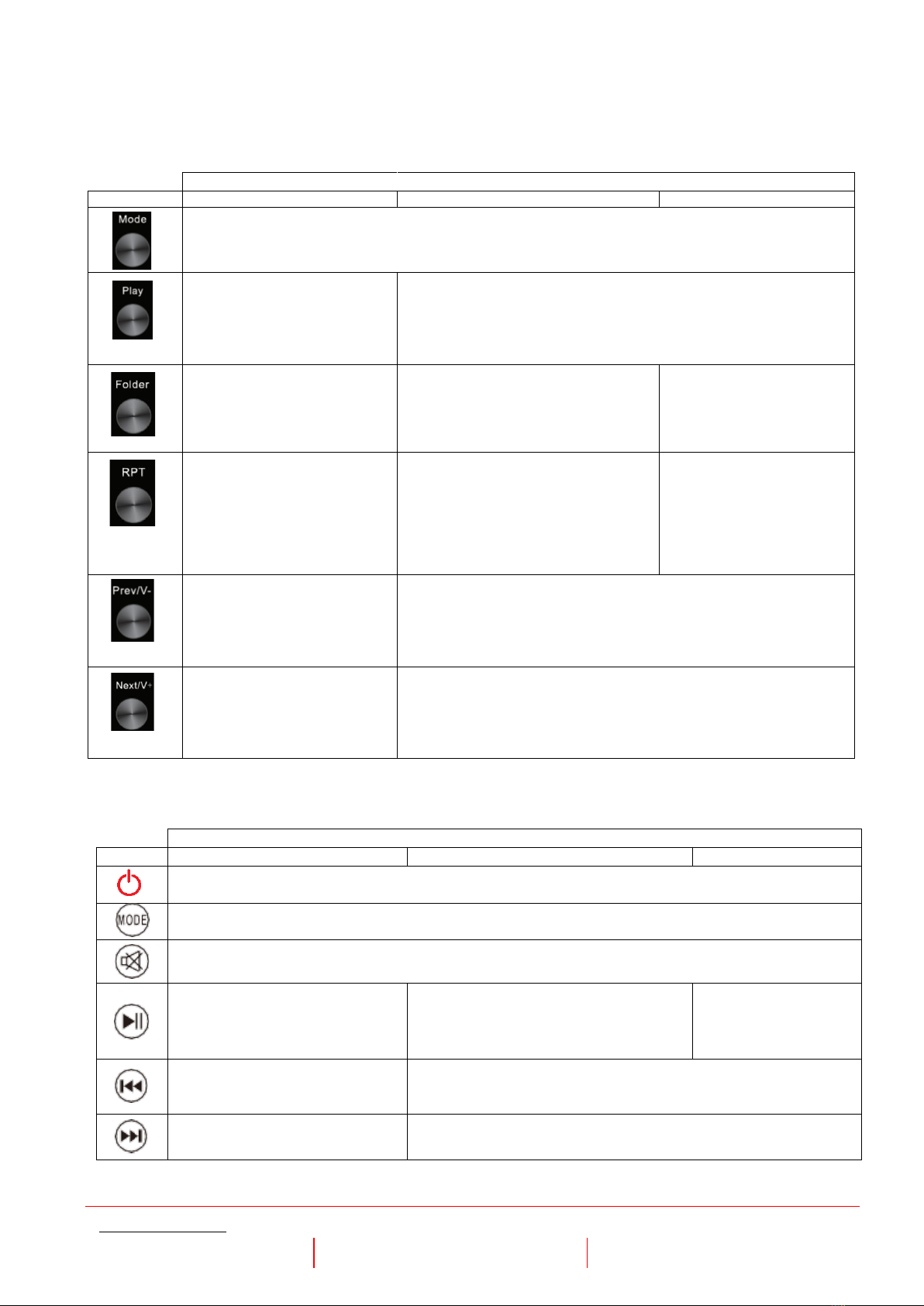

Mode used

Touche

Tuner FM

USB

Bluetooth

Turn on/off the module

Each time you press, a new mode is activated: USB / micro SD / FM / Bluetooth

1 short press mute the sound

1 short press saves the selected frequency

in the stored list

1 long press deletes the displayed

frequency from the stored list

1 short press = playback in progress paused

1 new short press = restart reading

1 short press = previous saved station

1 short press = previous track

1 short press = next saved station

1 short press = next track

Mode utilisé

Touche

Tuner FM

USB / micro SD

Bluetooth

One short press, a new mode is activated : USB / micro SD / FM / Bluetooth

To connect to Bluetooth, search for ‘’Ulisse’’ / code to connect = 1234

1 short press = save frequency in the

memorized list

1 long press = delete frequency from

the memorized list

1 short press = playback in progress paused

1 new short press = restart reading

1 short press = frequency - 0.1

Each time you press, a new folder on the USB or

micro SD key is activated

Equalizer choice :

-NOR = normal

-ROCK / POP /CLAS /JAZZ

-CONU = Vocal

1 short press = frequency + 0.1

1 long press> 3s = automatic scan of all

frequencies.

The player stores the stations (01, 02

...).

Each time you press, playback mode changes:

- N = Normal

- F = Repeat Folder

- A = Repeat All

- 1 = Repeat Track

- R = Random reading

1 short press = previous saved station

1 long press and hold > 2s = volume -

1 short press = previous track

1 long press and hold> 2s = volume -

1 short press = next saved station

1 long press and hold > 2s = volume +

(30 max.)

1 short press = next track

1 long press and hold > 2s = volume + (30 max.)

BOUYER INDUSTRIE

1270, avenue de Toulouse Tél : +33 (0)5 63 21 30 00 [email protected]

82000 Montauban –France Fax : +33 (0)5 63 03 08 26 www.bouyer.com

1 short press decrements the displayed

frequency by 0.1 (-0.1)

Allows to choose the equalizer for modes USB / micro SD / Bluetooth :

-NOR = normal / ROCK / POP / CLAS / JAZZ / CONU = vocal

1 short press decreases the volume

1 short press increases the volume

1 short press increases the displayed

frequency by 0.1 (+0.1)

Each time you press, playback mode changes:

- N = Normal

- F = Repeat Folder

- A = Repeat All

- 1 = Repeat Track

- R = Random reading

1 short press starts the automatic FM scan;

the entire frequency band is scanned.

The player stores the station in the form 01,

02,…

To select the desired station:

- press 1 then 2 to select program 12

- press 1057 to select 105.7Mhz

To directly select the desired track:

- press 1 then 2 to select track 12 of the folder

currently playing

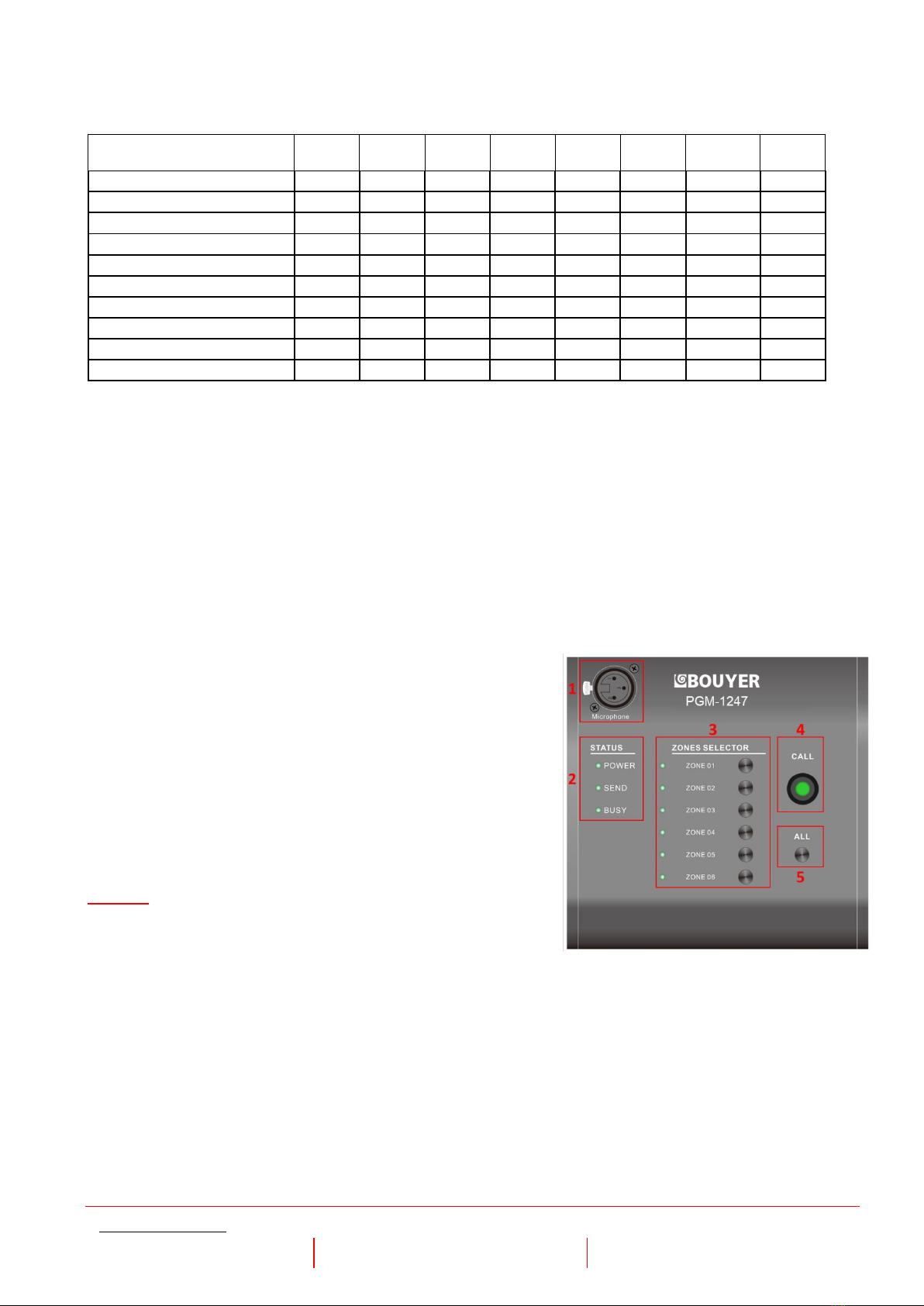

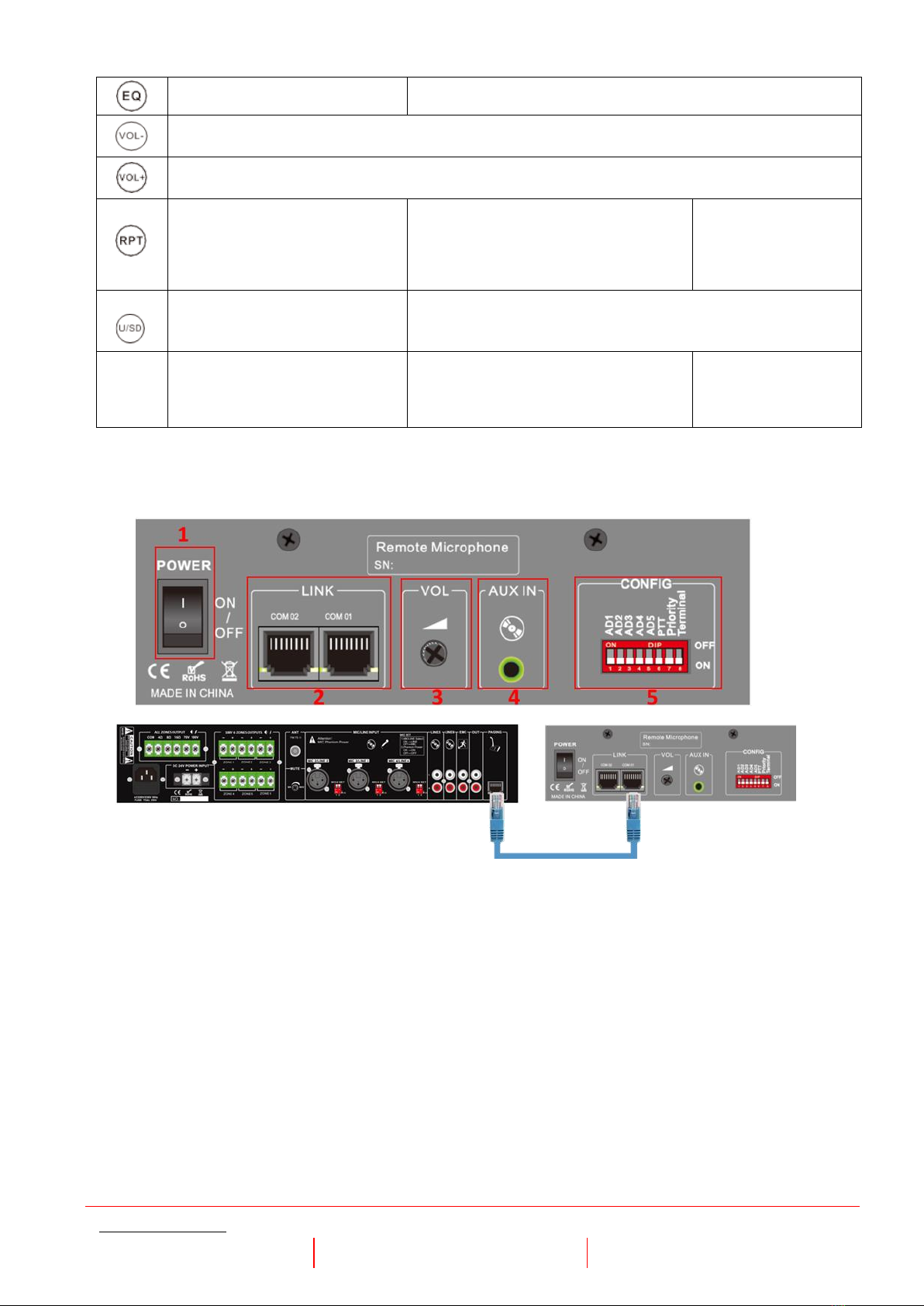

To use PGM-1247-V2 dedicated console, connect its RJ45 `` COM 01 '' output (shown below in zone (2)) with an

RJ45 cable to the RJ45 input `` Paging '' at the back of the mixer amplifier in zone (7).

It is possible to connect up to 10 consoles as indicated below (maximum wiring distance between the first and

the last console = 300 meters):

The first console must be connected to the mixer amplifier as explained previously.

The 2nd console must be connected to the "COM 02" port of console n ° 1 (and on its side to its Input RJ45 "COM

01"). If it is the last console connected in BUS mode, switch 8 ‘’Terminal’’ must be ‘’ON’’ (down position).

Each console must then be configured via the zone switches (5) on the rear panel seen previously so that they

are recognized by the system.

0..9

BOUYER INDUSTRIE

1270, avenue de Toulouse Tél : +33 (0)5 63 21 30 00 [email protected]

82000 Montauban –France Fax : +33 (0)5 63 03 08 26 www.bouyer.com

Here is an example of configuration for 10 consoles with first console with highest priority / to change console

with highest priority, switch on the console you want, switch 7 ‘’ON’’

Switch1

Switch2

Switch3

Switch4

Switch5

Switch6

Switch7

(priority)

Switch8

(last)

Console 1 / priority 1

Console 2 / priority 2

Console 3 / priority 2

Console 4 / priority 2

Console 5 / priority 2

Console 6 / priority 2

Console 7 / priority 2

Console 8 / priority 2

Console 9 / priority 2

Console 10 / priority 2

To note: console 10 being in this example the last console in BUS, this is why switch 8 must be ‘’ON’’. Only one

console can have higher priority on the others. Switches are ‘’ON’’ when they are down.

Once connected, switch ‘’POWER’’ of zone (1) upwards on ‘’ON’’.

To adjust the console volume (potentiometer in zone (3) above), follow the instructions below:

1) Test the Console by selecting a zone (to which speakers are connected) using the zone buttons (3) on the

front panel below

2) Press the `` CALL '' button (4) on the front panel below to trigger the chime and be able to speak (this allows

you to adjust the volume of the microphone in parallel according to the sound level received in the speakers /

this level is adjustable via the potentiometer (3) on the rear panel)

To speak in one or more zones from the console, you must:

1) Select the desired zone(s) with zone buttons (3) or all zones

with the button (5)

2) The LEDs of the selected zones then blinks in green (if LEDs are

staying in green permanently , it means zone(s) are busy)

3) Press the "CALL" button, the chime will trigger and then you

can speak (the ring on the microphone head also lights up in red)

4) Press the "CALL" button again to stop the broadcast

To note: If you prefer to maintain ‘’CALL’’ button to speak and

release it to end speaking then you can activate ‘’PTT’’ = ‘’Push To

Talk’’ switch on console rear, zone (5).

A 3.5mm Jack "AUX IN" input is also available on the rear panel (4). It allows you to broadcast a pre-recorded

message, for example via an external audio device such as a Smartphone. The operation for broadcasting is the

same as the one seen previously for speaking in one or more zones.

BOUYER INDUSTRIE

1270, avenue de Toulouse Tél : +33 (0)5 63 21 30 00 [email protected]

82000 Montauban –France Fax : +33 (0)5 63 03 08 26 www.bouyer.com

You must :

1) Select the desired zone(s) with zone buttons (3) or all zones with button (5)

2) The LEDs of selected zones then blink in green

3) Press the "CALL" button, the chime will trigger. Then you can start your pre-recorded message

4) Press the "CALL" button again to stop the broadcast

LEDs in zone (2) on the front of the console indicate:

- Green LED "POWER" on = Console powered on

- Green LED "SEND" on = Console broadcasting

- Green LED "BUSY" on = Input "EMC" of the mixer amplifier or Input "MIC1" are broadcasting

Below are some examples of the compatibility of our products on the different inputs available:

Input

Compatible product

Level

Connectivity

2 / 3 / 4

PGM-1000

Mic. / phantom power ON

(no need for batteries)

XLR female / XLR male (sold with PGM-1000)

2 / 3 / 4

GM-1052

Mic. / phantom power ON

DIN female / XLR male (GZ-140)

2 / 3 / 4

HF range

Mic. / line

XLR female / XLR male

5/6

GE-4267

RCA male / XLR male

RJ45

PGM-1247-V2

RJ45 male / RJ45 male

Indice

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
