Boyo Vision VTC700AI-4 Manuale utente
7" AI AHD Monitor & Cameras
System (4 Channel)
VTC700AI-4
Please read all instructions carefully before using, and keep the manual for future reference.
Contents
1. System Accessories ....................................................................................................................1
2. Installations ................................................................................................................................2
3. Wiring ..........................................................................................................................................4
4. Monitor Buttons .............................................................................................................................5
5. Remote Control Buttons ..............................................................................................................5
6. Setting, Configuration and Calibration ........................................................................................6
7. Menu ............................................................................................................................................7
7.1 Time .....................................................................................................................................7
7.2 Display ..................................................................................................................................7
7.3 BSD Smart Drive.....................................................................................................................8
7.3-1 Blind Zone Warning Calibration .................................................................................8
7.3-2 BSD Setting ...............................................................................................................10
7.4 Video Playback .....................................................................................................................10
7.5 System Setting ......................................................................................................................11
8. Specification ...................................................................................................................................12
Product Features:
7" AI monitor to detect vehicles and pedestrians
4 Cameras included for front view, rear view, left-side and right-side views
Warning Beeps when an object is detected in an alarm zone
Built-in DVR
1 x 65ft video extension and 3 x 33ft video extension included
Before Installation:
Please check contents.
Perform bench test. Ensure the product is working before installation by connecting the
monitor and the camera to 12-24VDC.
Perform pre-install test, before mounting the monitor and the cameras.
Position the camera and verify the view on the monitor before mounting.
For recording, please use the high speed C10 class memory card.
No repairable components inside. If not working, please request a part replacement.

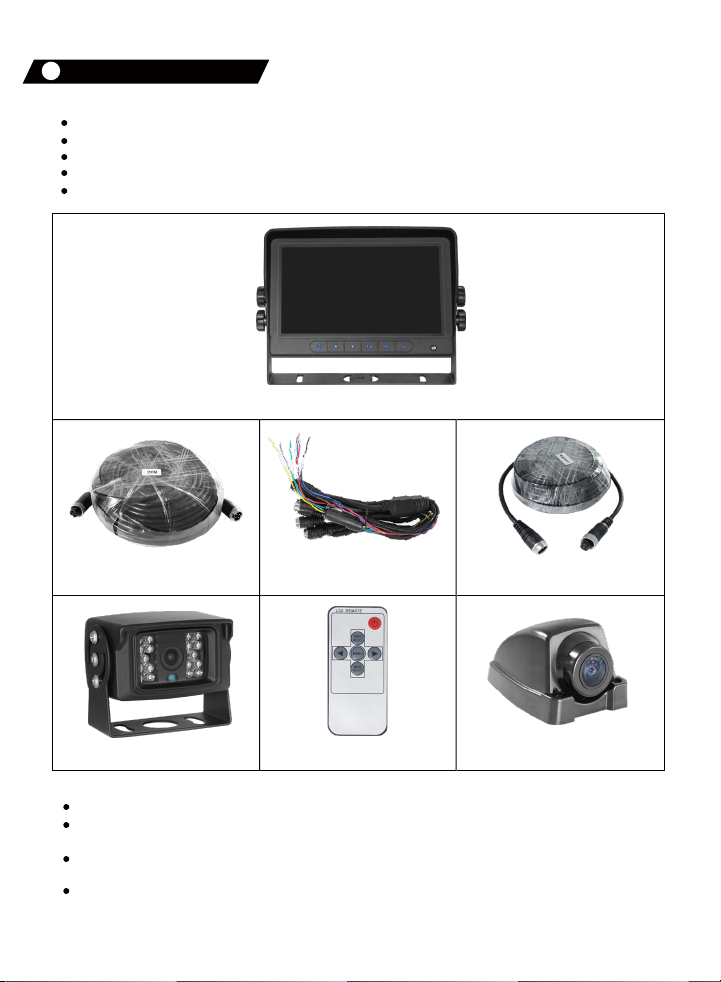

Monitor X 1
65ft
extension cord X 1 Adapter cable X 1
33ft
extension cord X 3
Remote control X 1 Camera X 2Camera X 2
1 System Accessories
1
Positioning the monitor and cameras.
The cameras should point toward the blind spots or not easily viewable positions.
The monitor should be placed where it is clearly visible from the driver without any objects
obstructing the view. At the same time. the monitor must not block driver's view of the road or
surroundings.

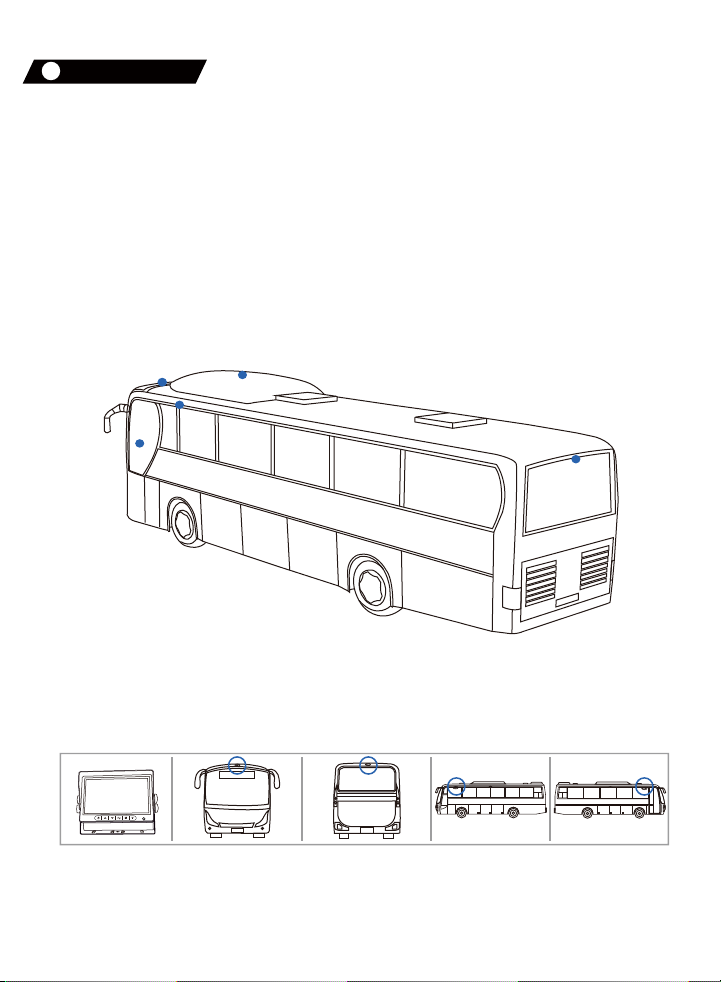

An example camera positions:
1. LCD Monitor 2. Front Camera 3. Backup Camera 4. Left Camera 5. Right Camera
1
2
3
5
4
2 Installations
2

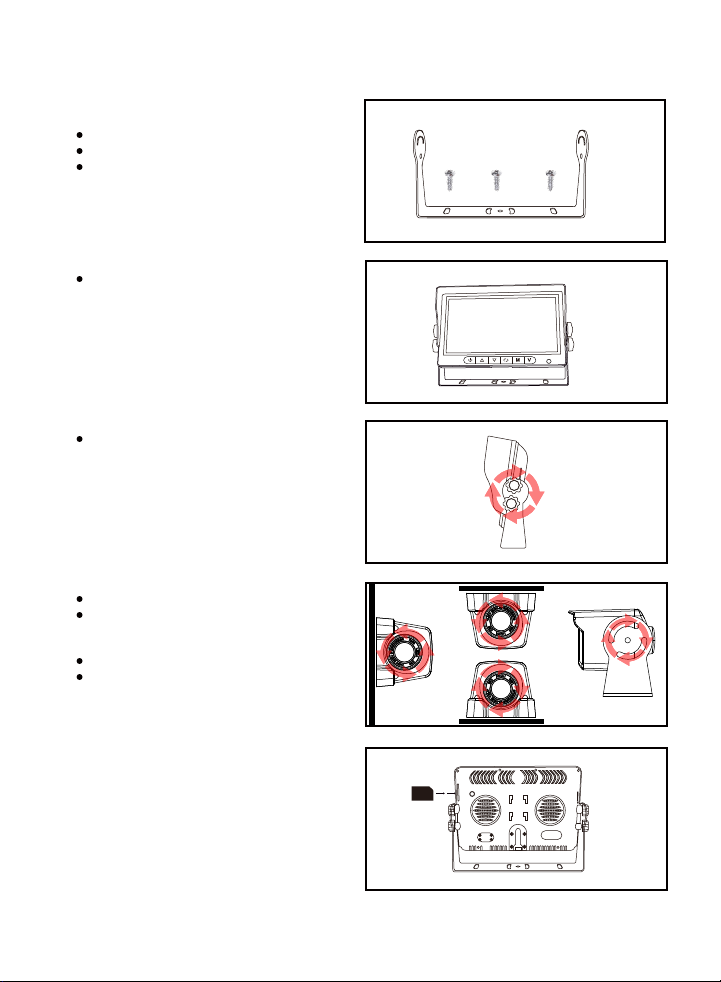

Monitor Installation
a. Install the monitor
bracket using the 3 self-tapping screws.
Screw in the center.
Adjust the angle.
Tighten all screws.
b. Install the monitor using 2 bolts on each sided.
Do not tighten bolts.
c. Adjust the monitor angle.
Tighten all bolts.
Camera Installation
a. The camera is mounted on the left and right sides
Rotate camera body for the best position.
Tighten screws to fix camera.
b. The camera is mounted for front and rear
Adjust the best position up and down.
Tighten screws to fix camera.
Memory Card Installation
SD
3

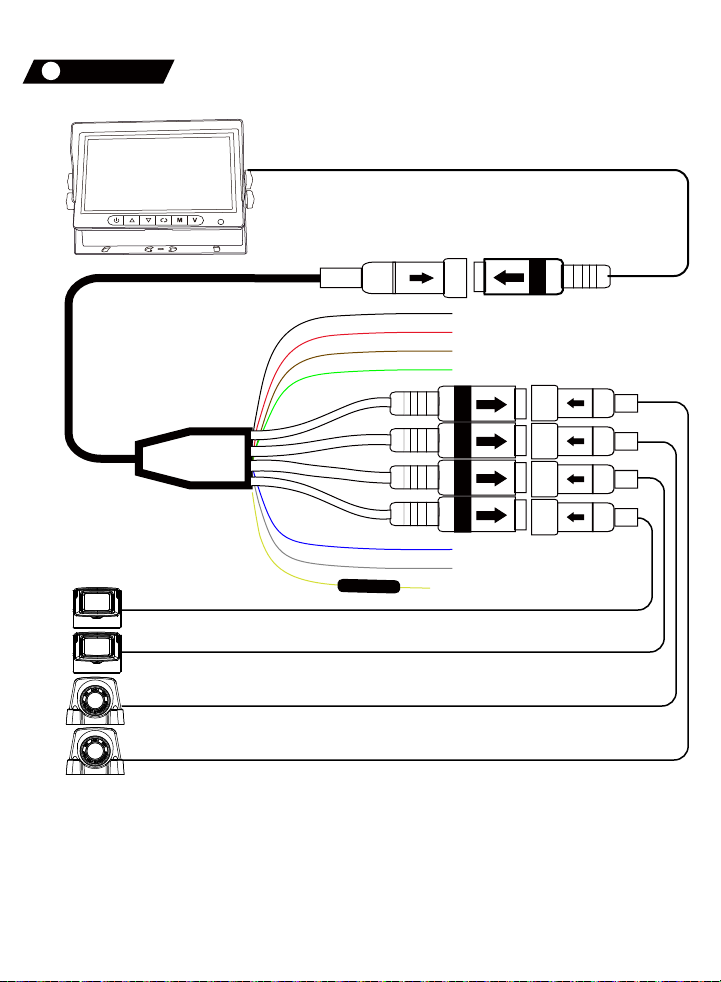

Black (GND 12V-)
Red (ACC 12V+)
Brown(CH1 TRIG)
Green(CH2 TRIG)
Blue(CH3 TRIG)
Gray(CH4 TRIG)
Yellow(Battery 12-24V)
3 Wiring
Connect to reverse trigger (e.g. backup light)
Connect to left trigger (e.g. the left turn signal)
Connect to right trigger (e.g. right turn signal)
The role of the trigger is to display specific camera. Let us suppose that the monitor is set to display the
rear-view camera while driving. If the right is triggered by turning on the right turn signal, the monitor will
display the right-side camera in full screen. When the right turn signal is turned off, the right-side camera
display is turned off and the rear-view camera is displayed.
4

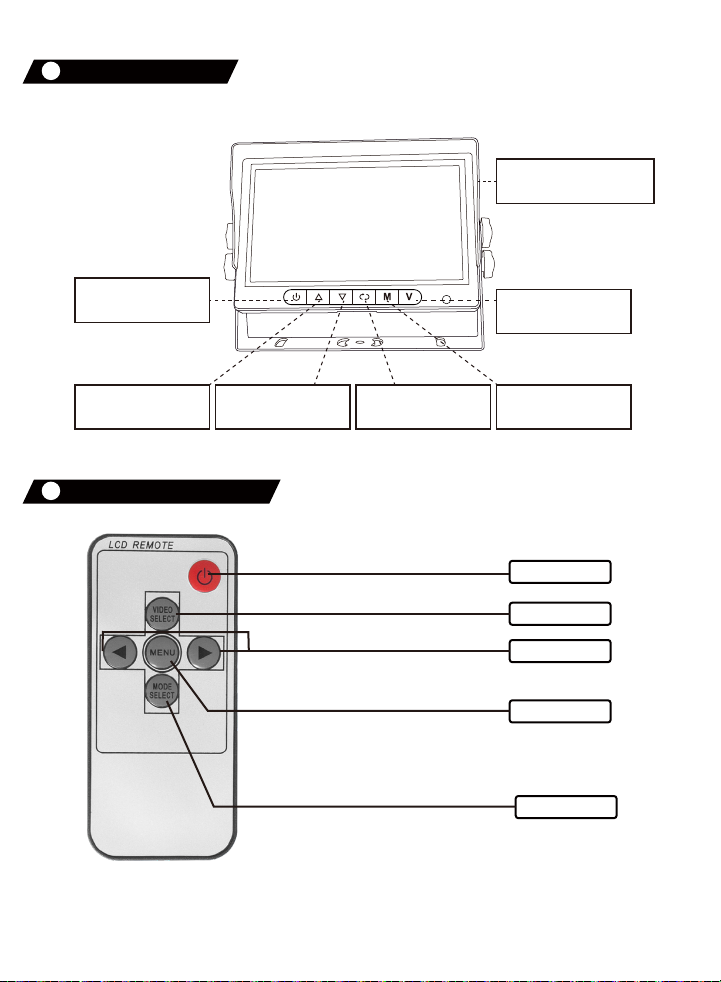

Operation: The system is operated using the buttons on the monitor or using a remote control
Power switch
Down button /
Decrease the volume
Up button / Increase
the volume
OK button / Start or
stop recording Menu Button
Channel switch
SD Card Slot
4 Monitor Buttons
5 Remote Control Buttons
power
video select
down/up
menu
mode select
5

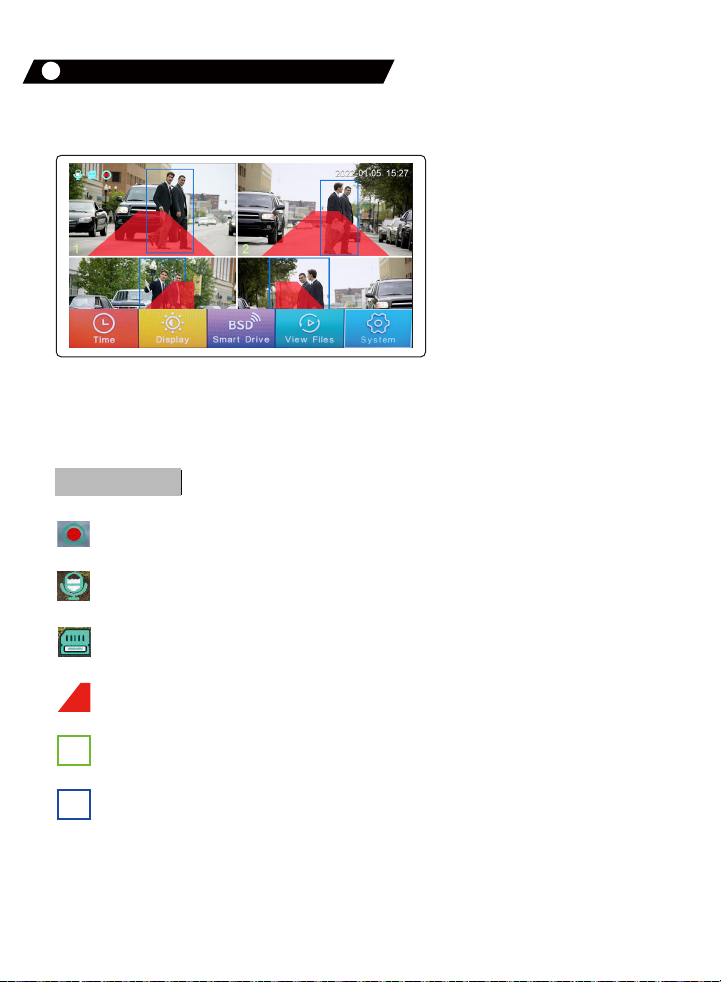

When a menu button is pressed, the menu bar appears at the bottom of the screen.
6 Setting, Configuration and Calibration
Recording icon: red dot flashing in recording status
Time icon
Recording icon: Recording status is on
SD card icon: SD memory card working status
Red Trapezoidal area: Blind zone alarm area
Green rectangular area: Traffic detected
Blue rectangle area: Pedestrian detected
2022-01-05 15:27
6

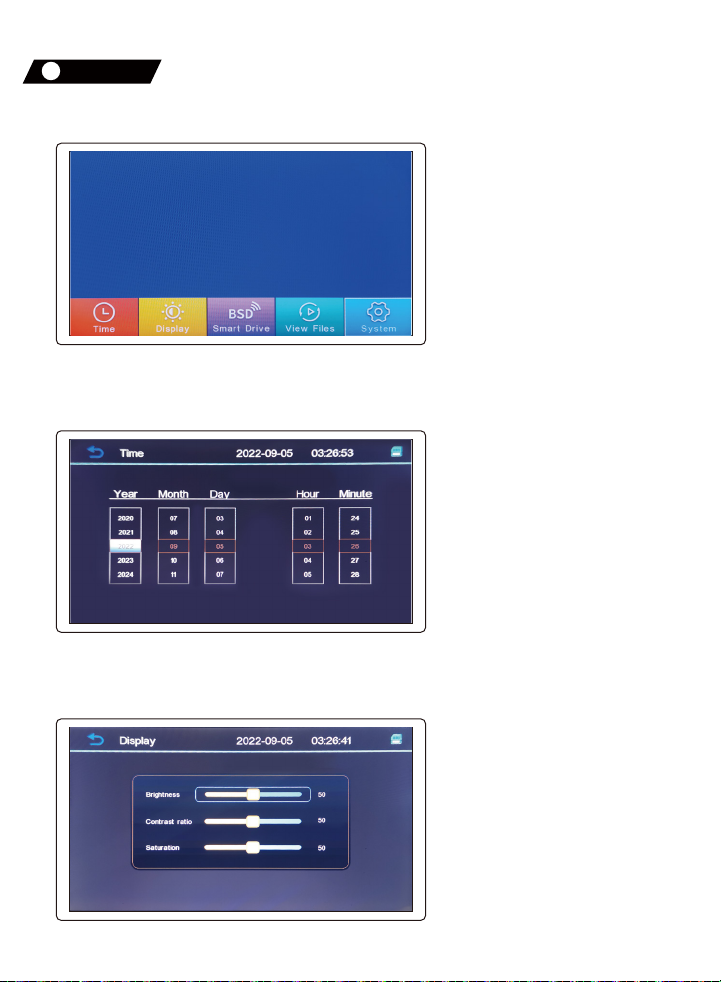

Display, BSD Smart Drive, View Files and System setting.
Press Menu button to enter and you will see five menu icons on screen: Time,
7.1 Time
To get to the Time setting, using up, down and OK button to choose your
settings, and press Menu button to back to main interface.
7.2 Display
The default value of Brightness, contrast and saturation is 50,
The Brightness, contrast and saturation value is between 0-100,
7 Menu
7

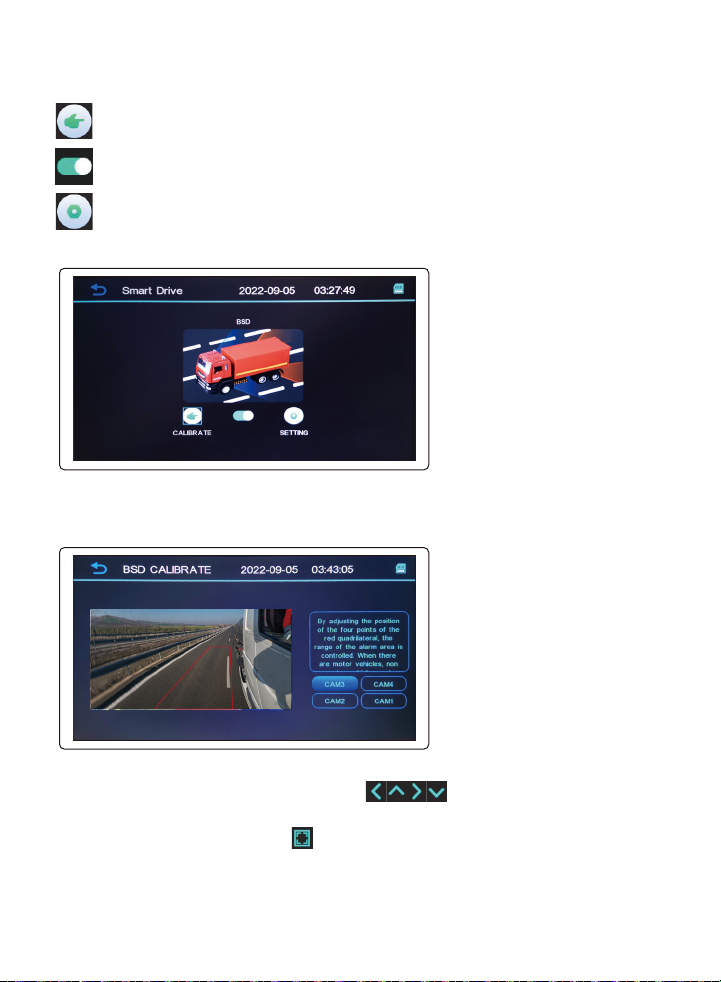

7.3 BSD Smart Drive
Calibrate: Blind zone alarm range setting
Turn on/off the blind spot alarm
Setting: Alarm tone on/off, sensitivity setting(high, mid, low)
7.3-1 Blind Zone Warning Calibration(left, right, front, back)
The red point is the current adjustment angle,choosing to
remove the position of red spot, choosing to toggle next setting corner,
after setting, click save and exit.
8
