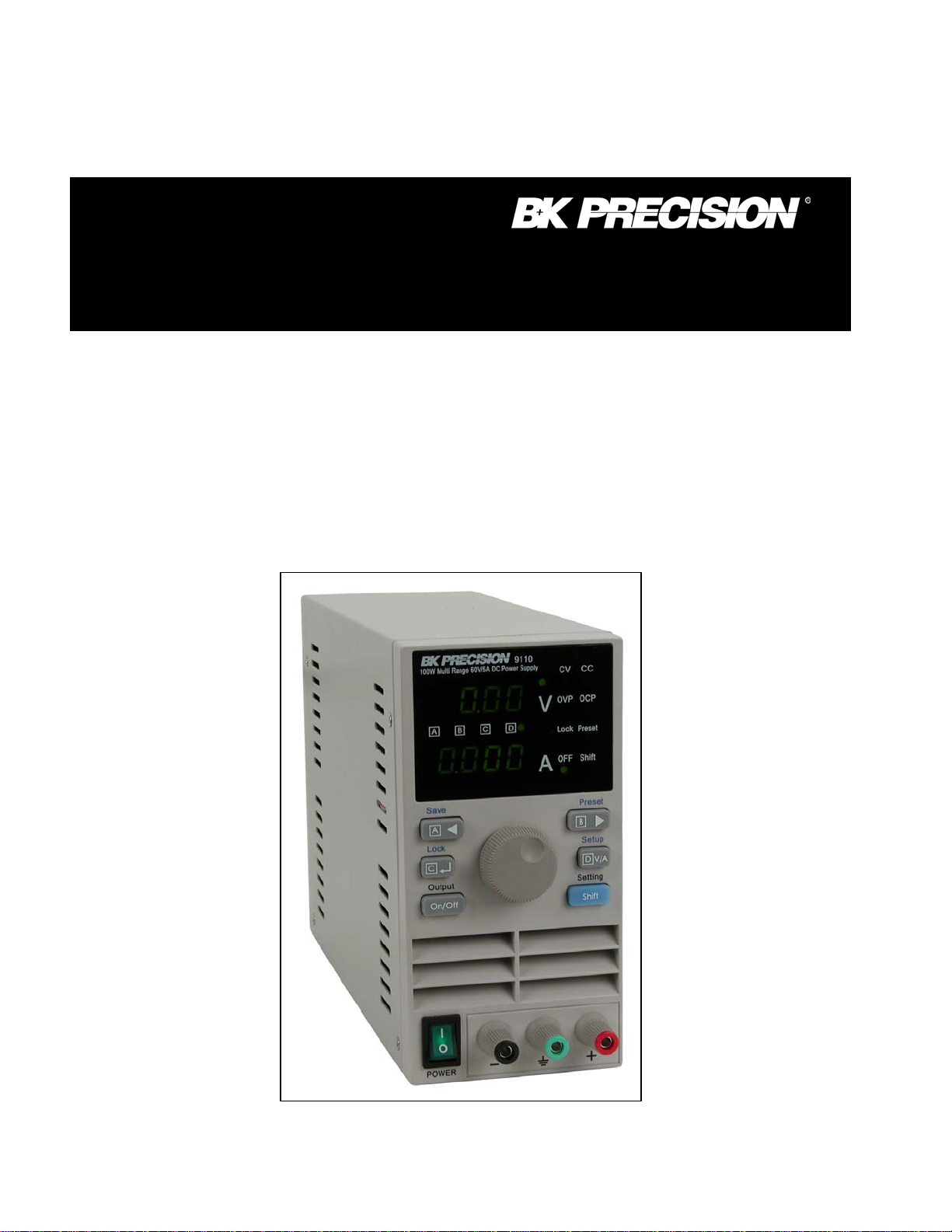

Model 9110

100W Multi Range 60V/5A DC Power Supply

INSTRUCTION

MANUAL Model 9110

Safety Regulations

To avoid electrical shock, do not open the cabinet. Refer servicing to

qualified personnel only.

To avoid injuries, always disconnect power, discharge circuits, and

remove external voltage sources before touching components.

KEEP AWAY FROM LIVE CIRCUITS.

We cannot accept responsibility for any direct or indirect financial

damage or loss of profit that might occur when using the power supply.

The instrument chassis and cover must be connected to an electrical

ground.

WARNING

Compliance Statements

This product is subject to Directive 2002/96/EC of the European

Parliament and the Council of the European Union on waste

electrical and electronic equipment (WEEE) , and in jurisdictions

adopting that Directive, is marked as being put on the market after

August 13, 2005, and should not be disposed of as unsorted

municipal waste. Please utilize your local WEEE collection

facilities in the disposition of this product and otherwise observe all

applicable requirements.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European

Union and other European countries with separate collection systems)

Protective Ground (Earth terminal)

Safety Symbols

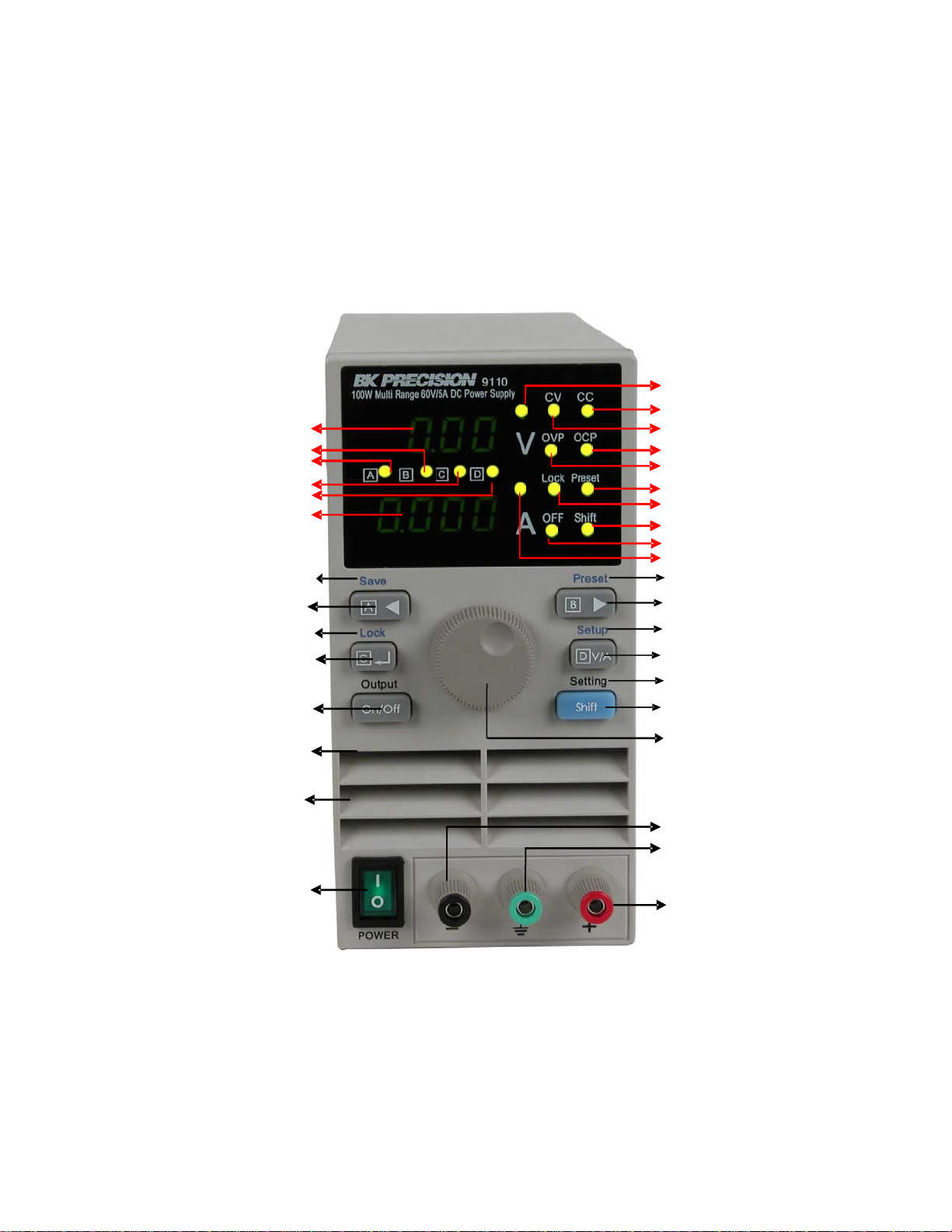

Front Panel layout

CC mode indicator

CV mode indicator

OCP indicator

OVP indicator

Keys locked indicator

Shift mode indicator

Output off indicator

knob

Display Voltage and Current setting

Secondary function key

Output +

Output -

Ground

Main power on/off

Air flow input

Keyboard lock (Shift)

Store voltage-ampere combination (Shift)

Current value

Cursor position B or preset B is active

Voltage value

Toggle between Voltage/Current

setting or store/recall preset D

Set Voltage indicator

OCP indicator

OVP indicator

Preset mode indicator

Set Current indicator

Output on/off

Enter or store/recall preset C values

Move cursor left or store/recall

preset A values

Current value

Cursor position A or preset A is active

Cursor position C or preset C is active

Cursor position D or preset D is active

Enter OVP, OCP, preset mode

Move cursor left or store/recall

preset B values

Recall Preset values

Introduction

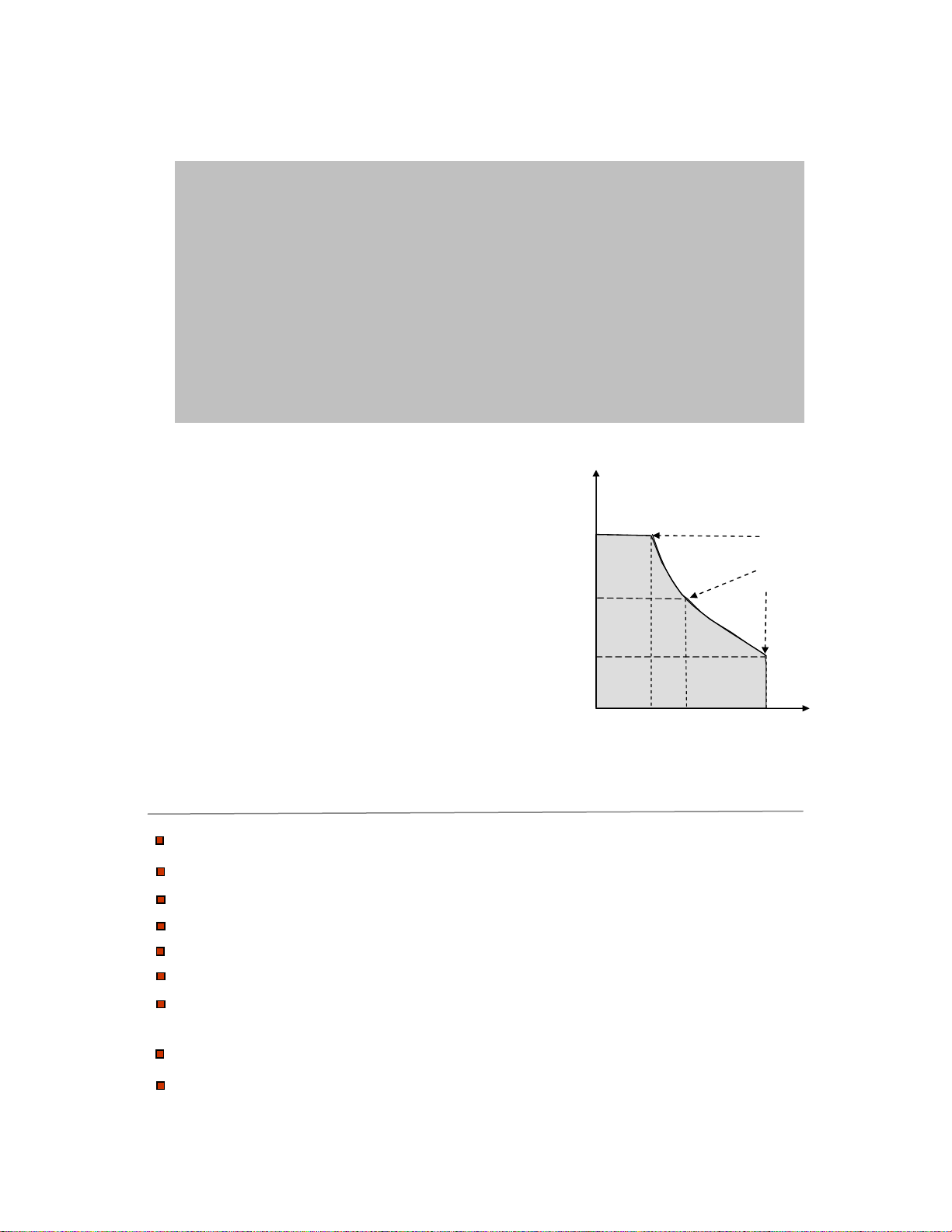

The 9110 is a new type of power supply. Unlike conventional

power supplies with fixed output ratings, the 9110 automatically

recalculates voltage/current limits for each setting, forming a

constant power hyperbolic shaped boundary as illustrated in the

diagram below. Any Volt/Amp combination that doesn’t exceed

100W, 60V or 5A can be set. By providing greatly expanded

choices of maximum power volt-ampere combinations, users can

cut down on the number of power supplies required and free up

valuable bench space.

12345

Power

100%

When setting the voltage to the maximum

value of 60V, the max. current value is

100W / 60V = 1.66A. For a 10V setting,

the max current is limited to 5A, in which

case the maximum output power is only

50W.

A maximum output power of 100W is

possible for all V/A combination that lie on

the hyperbolic curve.

Example:

Features

Bright, easy to read display

Low ripple and noise

10mV/1mA resolution over the full range

Digitally controlled, mixed linear/switching mode DC power supply

Output ON/OFF Control

Very compact size and light weight

High reliability due to OVP, OCP and OTP (over voltage, over

current, over temperature) protection

Store/Recall 100 groups with 4 sets of Volt/Amp memories each

CV (Constant Voltage) and CC (Constant Current) operation

Installation

Unpacking the instrument

This instrument was carefully inspected before shipment. Upon receipt,

inspect the instrument for damage that might have occurred in transit. If any

sign of damage is found, notify your B+K Precision distributor.

Check the list of supplied items

Verify that you have received the following items with your power supply. If

anything is missing, contact your authorized B+K Precision distributor.

- Power cord

- Instruction manual

Power Requirements

The 9110 can operate on 110V AC or 220V AC. Before connecting the power

cord to an AC outlet, make sure the voltage selector in the rear is set to the

correct line voltage.

If necessary, replace fuses according to this table.

The instrument power fuse is located in a fuse compartment below the AC

input receptacle. To access the fuse, first disconnect the power cord and then

remove the fuse cartridge.

Power-on procedure

Turn on the instrument by pressing the main power switch on the front panel

of the unit. The instrument will automatically revert to the last setting before

the power was turned off.

T0 2.5A, 250V198V to 242V220V AC

T0 3.15A, 250V99V to 121V110V AC

FuseRangeLine voltage

The 9 pin D-sub connector in the rear is for factory use only!

This instrument does not offer a remote control interface.

Note

Quick Start

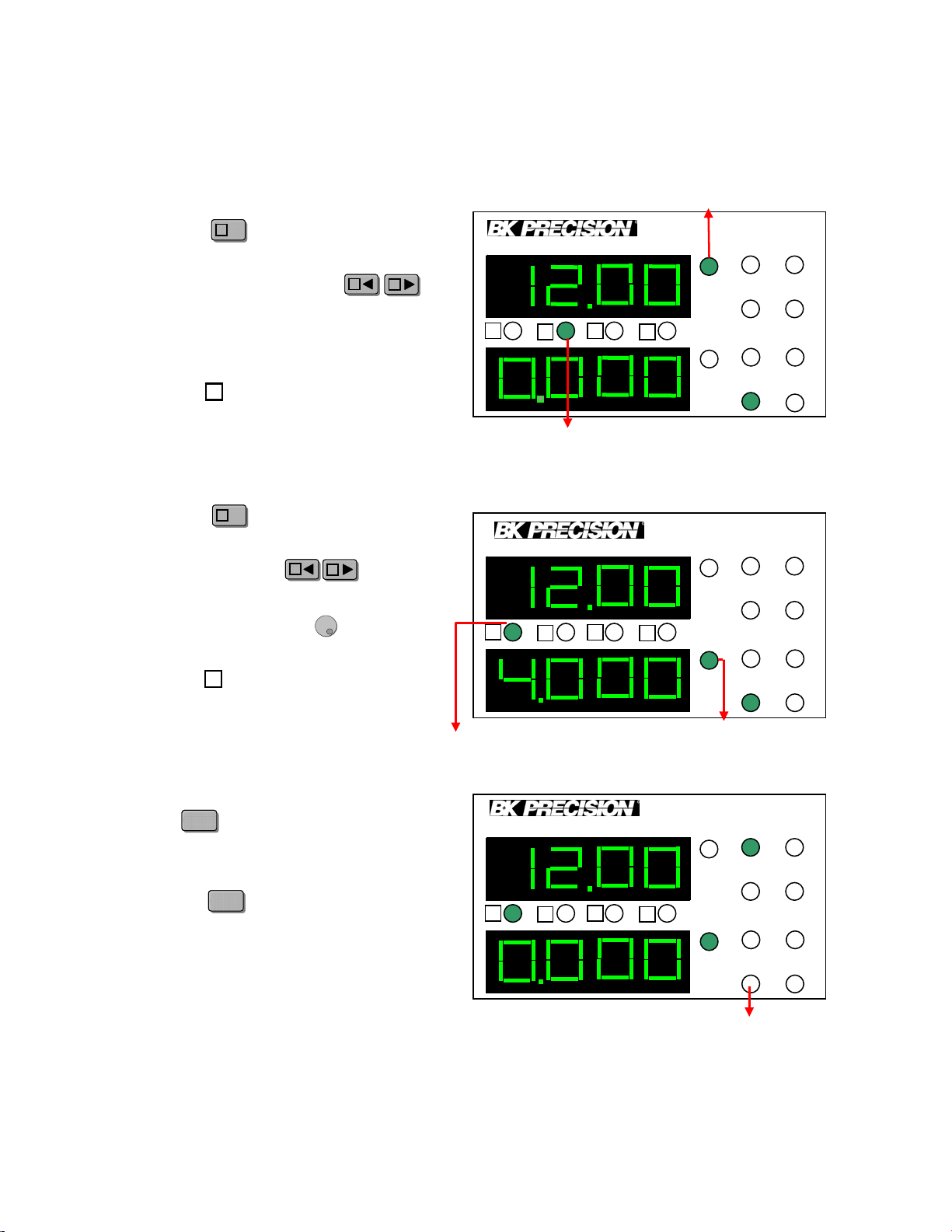

Set Voltage

Set Current

Turn output On/Off

Press to toggle the output between

ON or OFF. The OFF LED is lit when

the output is turned off. Each time you

press the key, the display will blink

for 3 seconds and the set value for Volts

and Amps is displayed. Afterwards, if

the instrument has been set to ON, the

actual output values for voltage and

current are displayed.

On/OffOn/Off

Set Voltage

100W Multi Range 60V/5A DC Power Supply CV CC

OVP OCP

OFF Shift

Lock Preset

ABCD

cursor in B position

9110

Press the key to turn the “V”

indicator on. Now you can set the voltage

value. Use the cursor keys

to highlight the desired digit then adjust

its value with the knob.

In this example the cursor is set to

position and the voltage value can be

adjusted in 1V increments.

DV/A

cursor in A position

CV CC

OVP OCP

OFF Shift

Lock Preset

ABCD

Set Current

100W Multi Range 60V/5A DC Power Supply

9110

CV CC

OVP OCP

OFF Shift

Lock Preset

ABCD

Output OFF Indicator

100W Multi Range 60V/5A DC Power Supply

9110

Press the key to turn on the “A”

indicator. Now you can set the current

value. Use cursors

to highlight the desired digit then adjust

its value with the knob.

In this example the cursor is set to

position and the current value can be

adjusted in 1A increments.

DV/A

The power supply usually displays the actual voltage and current value. Press

twice to check the set value for voltage and current. The display will blink for 3

seconds while displaying the set values.

ShiftShift

Check the Set Voltage and Set Current Value

Cursor Position and Step Size

Cursor position Voltage step size Current step size

0.1V

0.01V

0.1A

0.01A

0.001A

Key Lock Function

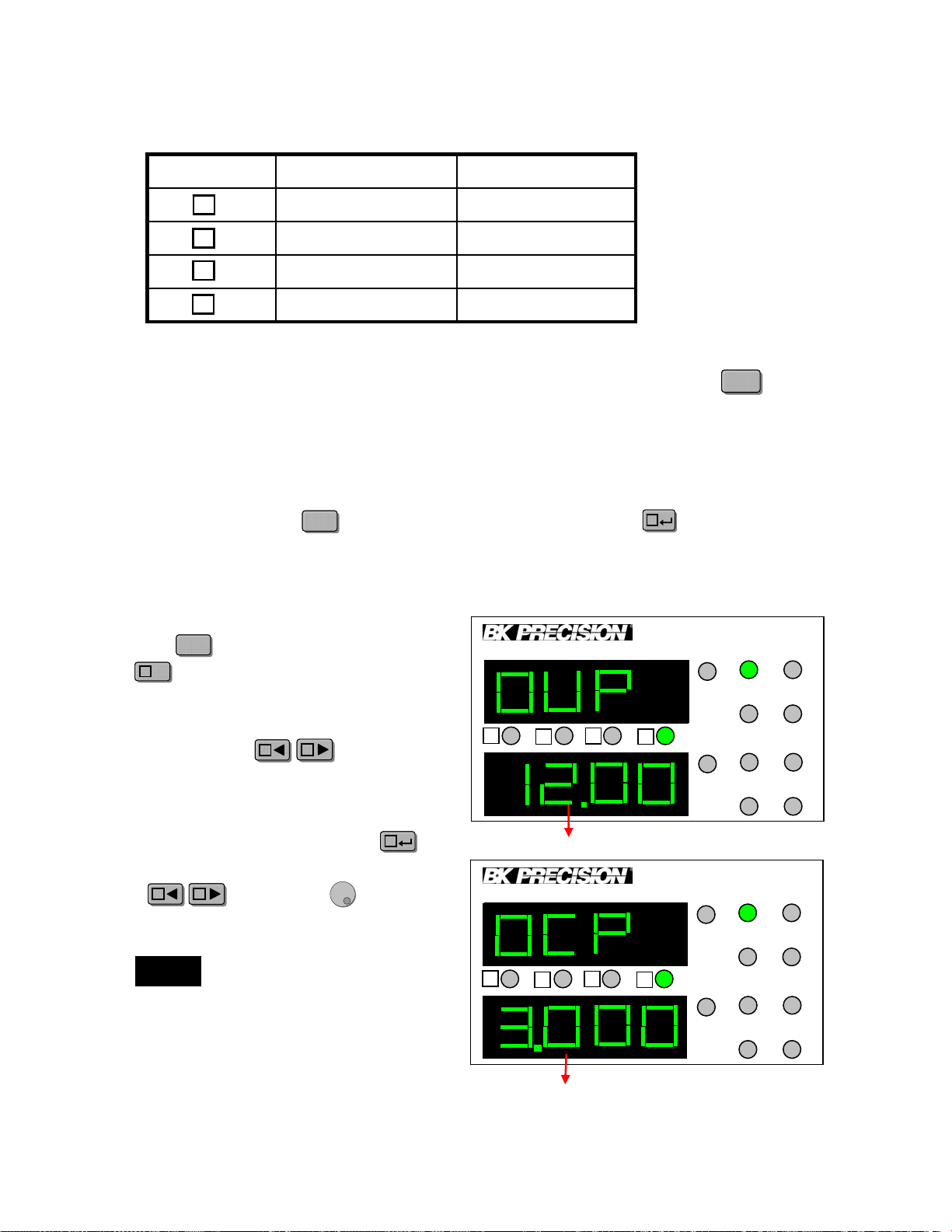

OVP Function

Press then press and hold the

(Setup) key for 3 seconds.

Afterwards the LCD will display OVP

and you can adjust the OVP value using

the cursor keys and the

knob.

ShiftShift

DV/A

OCP Function

The output of the power supply will

automatically turn off if the OVP and

OCP value are less than the actual

voltage and current value. Default

setting are OVP=61V and OCP=5.1A.

Note

This function locks the keyboard to prevent unintended modification of power

supply settings. Press (Shift LED will be lit), followed by the (Lock)

key. Now the keys and the knob are locked and the Lock LED is lit. Press the

Shift key followed by the Lock key again to disable the Lock function.

ShiftShift

CV CC

OVP OCP

OFF Shift

Lock Preset

ABCD

OVP Value

100W Multi Range 60V/5A DC Power Supply

9110

CV CC

OVP OCP

OFF Shift

Lock Preset

ABCD

OCP Value

100W Multi Range 60V/5A DC Power Supply

9110

After the OVP value is set, press to

enter OCP mode. Use the cursor keys

and the knob to set the

OCP value.

Selecting a Group Number

CV CC

OVP OCP

OFF Shift

Lock Preset

ABCD

100W Multi Range 60V/5A DC Power Supply

9110

To enter this mode, you have to step

through the previous 4 modes first. From

address mode, press to enter group

mode. Use the cursors and

the knob to select a group number.

There are 100 groups, each group can store

4 sets of voltage/current values. Press

to confirm the entry of the selected group

number.

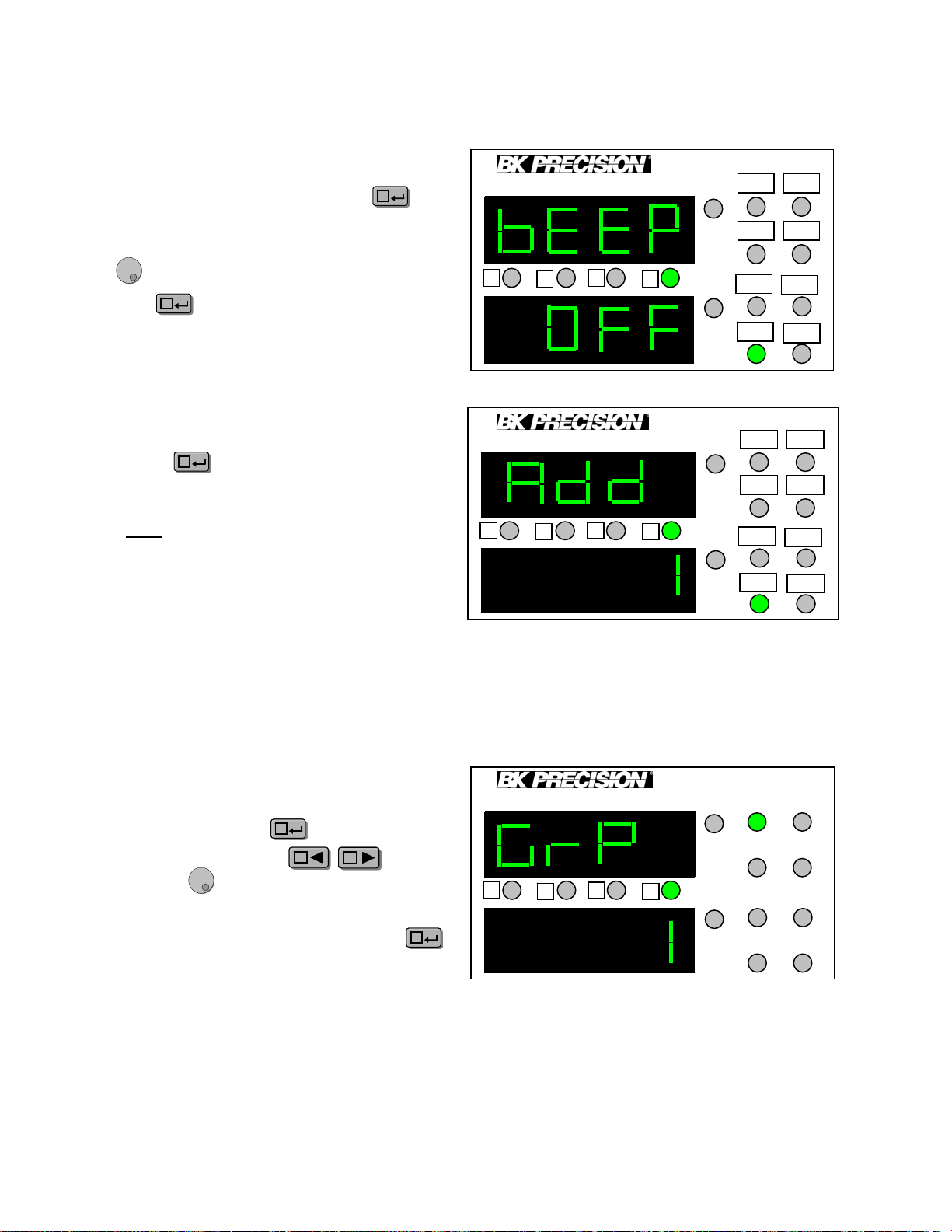

Key sound

Once the OCP value is set, press

to enter the BEEP mode. Use the knob

to turn the key sound ON or OFF.

Press to confirm.

Set address

Press twice to skip the address

menu and advance to the group menu.

Note:

This setting is for factory use only and

can be ignored.

CV CC

OVP OCP

OFF Shift

Lock Prog

ABCD

9110

100W Multi Range 60V/5A DC Power Supply

CV CC

OVP OCP

OFF Shift

Lock Prog

ABCD

9110

100W Multi Range 60V/5A DC Power Supply

CV CC

OVP OCP

OFF Shift

Lock Prog

ABCD

9110

100W Multi Range 60V/5A DC Power Supply

Preset Mode

Trouble shooting hints

2. Check if the OFF indicator is lit. If so, press the key to turn the output on.

3. Check if the OCP or OVP indicator is lit. If so, set the OVP or OCP value

appropriately.

If the output is disabled

1. Check if the voltage and current values are zero. If set to zero, set the voltage and

current value again.

If keys are disabled

Check the Lock LED. If it is lit, disable the Lock function.

On/OffOn/Off

Press followed by the (Preset) key. The Preset LED will turn on to indicate

that the Preset mode is now active. The most recently selected group number will

automatically be activated. To activate the preset values from a different group, follow

the instructions in “Selecting a group number”. Press one of the

keys to recall one of the corresponding stored Volt/Amp sets assigned in the previous

step. In this mode, the cursor functionality of the A,B,C, D keys is disabled. To exit this

mode, press then (Preset).

ShiftShift

DV/A

Storing Voltage/Current sets

Store up to four sets of voltage/current values to the group number assigned in the previous

paragraph. Press followed by the (Save) key. All 4 cursor LEDs

will blink simultaneously. Press one of the

keys to assign one of the 4 available memory location within this group. Proceed

accordingly for the other 3 sets.

DV/A

ShiftShift

Specification

Output Rating Voltage

Current

Model 9110

Load Regulation Voltage

Current

Line Regulation Voltage

Current

0~60 V

<0.01 %+3 mV

<0.01 %+3 mA

<0.01 %+3 mV

<0.1 %+3 mA

0~5 A

Power 100 W

Setting Accuracy Voltage

Current <0.05 %+10 mV

<0.2 %+2 mA

Display Accuracy Voltage

Current

Ripple Current

Voltage

<0.05 %+10 mV

<0.1 %+2 mA

<2.0 mVrms

<5 mArms

Dimension (mm) 88 mm x 175 mm x 282 mm

WxHxD

Weight Net 5.9 lbs (2.65 Kg )

Specifications and information are subject to change without notice.

Please visit www.bkprecision.com for the most current product

information.

3.47” x 6.9” x 11.11”

Altri manuali per 9110

Indice

Altri manuali B+K precision Alimentazione elettrica

B+K precision

B+K precision 9130C Series Manuale utente

B+K precision

B+K precision 1785B Manuale utente

B+K precision

B+K precision 1739 Manuale utente

B+K precision

B+K precision 1672 Manuale utente

B+K precision

B+K precision 9129B Manuale utente

B+K precision

B+K precision 0-30V Manuale utente

B+K precision

B+K precision 1672 Manuale utente

B+K precision

B+K precision PVS60085 Manuale utente

B+K precision

B+K precision 9120 Manuale utente

B+K precision

B+K precision 9201 Manuale utente

B+K precision

B+K precision 1696B Series Manuale utente

B+K precision

B+K precision 1680 Manuale utente

B+K precision

B+K precision PVS10005 Manuale utente

B+K precision

B+K precision 1688A Manuale utente

B+K precision

B+K precision 1670A Manuale utente

B+K precision

B+K precision 1744A Manuale utente

B+K precision

B+K precision 1696 Manuale utente

B+K precision

B+K precision 9115 Manuale del proprietario

B+K precision

B+K precision 1686A Manuale utente

B+K precision

B+K precision 9130 Manuale utente

B+K precision

B+K precision 1865B Manuale del proprietario

B+K precision

B+K precision 1698 Manuale utente

B+K precision

B+K precision MR Series Manuale utente

B+K precision

B+K precision 1760A Manuale utente

Manuali Alimentazione elettrica popolari di altre marche

Monacor

Monacor PS-12CCD Manuale utente

VOLTIMA

VOLTIMA MagicBox 15 Manuale utente

Agilent Technologies

Agilent Technologies 6032A Manuale utente

Miller

Miller Auto Deltaweld 452 Manuale utente

BCP

BCP PUOUBK Foglio di istruzioni

HC 2210 Manuale utente

Puls

Puls CT5.241 Manuale utente

OCZ

OCZ ZX1250W Manuale utente

iseg

iseg ECH 238 Manuale utente

Power

Power XXL A Series Manuale utente

Agilent Technologies

Agilent Technologies 6631B Manuale utente

Renogy

Renogy PHOENIX 300 Manuale utente

HP 6200B Manuale di servizio

Epson

Epson Stylus Scan 2500 Manuale operativo

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuale utente

Puls

Puls MiniLine ML50.100 Manuale utente

Puls

Puls AS-Interface SLA4.100 Manuale utente

Kenwood

Kenwood PS-60 Manuale utente
