Quick Guide

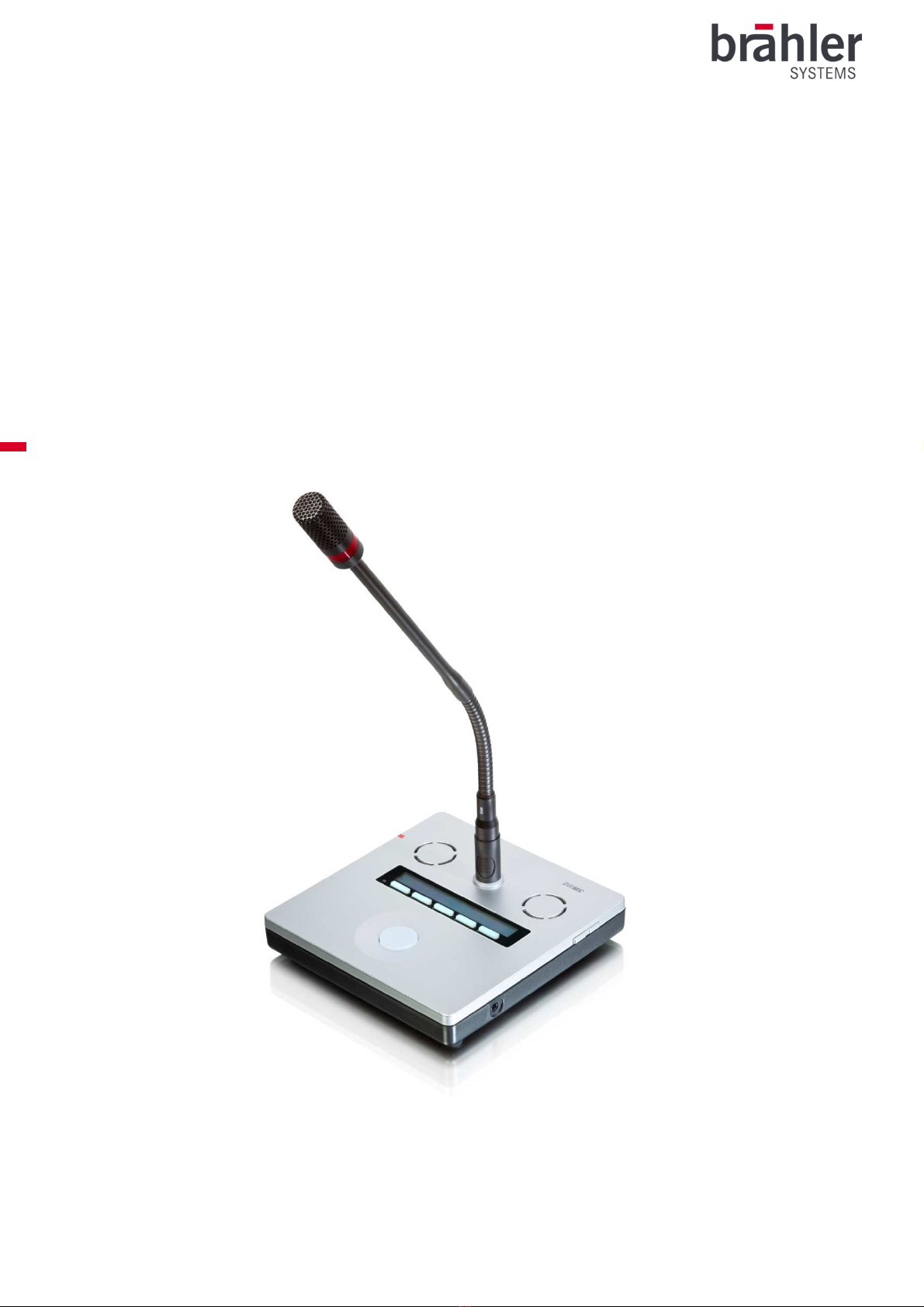

DIGIMIC

CMic CSV RFID

Classic Delegate Unit with channel selector, voting and identification

rtikel-Nr.: 05.0161.M

DIGIMIC

CMic CSV RFID

Quick Guide

BRÄHLER Systems GmbH

uf der lten Burg 6

53639 Königswinter

Germany

9 (0)

224

930

F +49 (0)2244 930-450

sales@braehler-systems.com

www.braehler-systems.com

05.0161.M 191023 V1.0 BRÄHLER Systems is committed to continually improving its products and so reserves the right to make technical modifications without notice.

Introduction

The delegate unit CMic CSV RFID from the

DIGIMIC family is a multi-functional unit for

your conference. It has a microphone,

loudspeaker, headphone connection, channel

selector and voting function. It is also

equipped with an RFID card reader.

The CMic CSV RFID is controlled via five

function keys. The actions are shown on an

OLED display. The display brightness adapts

automatically to the environment.

The language channels can be fed in either via

the DCen central control unit or via the DDol

interpreter unit. The CMic CSV RFID works in

a wired system with the DCen control unit in

stand-alone mode.

The CMic CSV RFID unit is connected to each other via a fixed cable and socket.

CMic CSV RFID units are not allowed to be mixed with other devices of the DIGIMIC family in a

chain. (Except the additional power supply DExt and the CChair CSV RFID.)

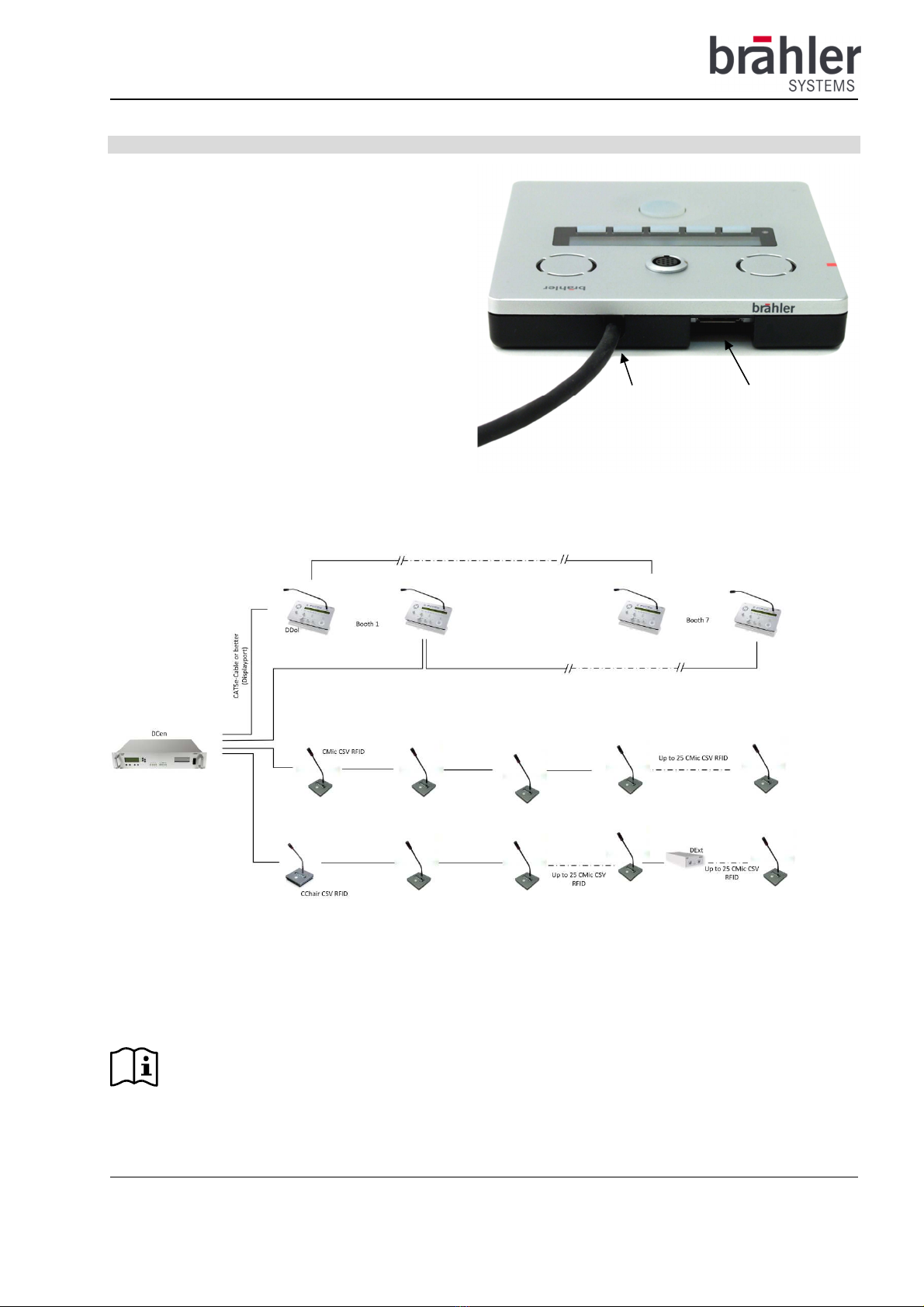

Connection to

the next unit

(Displayport)

Connection from

the previous unit

from the central

control unit

(Displayport)

Example

system image

DIGIMIC

CMic CSV RFID

Quick Guide

BRÄHLER Systems GmbH

uf der lten Burg 6

53639 Königswinter

Germany

9 (0)

224

930

F +49 (0)2244 930-450

sales@braehler-systems.com

www.braehler-systems.com

05.0161.M 191023 V1.0 BRÄHLER Systems is committed to continually improving its products and so reserves the right to make technical modifications without notice.

Headphone

You can hear what is being said in two ways - through the built-in speakers or through headphones. Connect

the headphones and adjust the volume. To adjust the volume, press the function keys or the rocker buttons

on the side of the CMic CSV RFID. The selected volume can be read on the display.

Microphone

The microphone is plugged in according to the sketch. Pay attention to the notch on the microphone plug

and the Minicon socket. Screw the microphone tight to lock it in place.

Press the microphone button to turn on the microphone. Press the Microphone button again to turn the

microphone off.

The CMic CSV RFID units operate in different mode settings. These are determined by the operator of the

conference. fter pressing the microphone key you have the following options.

The key and ring light up red: The microphone is open. You can speak to the remaining delegates.

The button and ring are off: The maximum number of speakers has been reached - you must try to switch

on your microphone again at a later time.

Button flashes red: The maximum number of speakers has been reached. You must wait (word request).

Your microphone is automatically activated as soon as it is your turn to speak.

notch

headphone jack

(3.5mm jack)

volume control

(function key)

icrophone button

volume control

(Rocker key)

DIGIMIC

CMic CSV RFID

Quick Guide

BRÄHLER Systems GmbH

uf der lten Burg 6

53639 Königswinter

Germany

9 (0)

224

930

F +49 (0)2244 930-450

sales@braehler-systems.com

www.braehler-systems.com

05.0161.M 191023 V1.0 BRÄHLER Systems is committed to continually improving its products and so reserves the right to make technical modifications without notice.

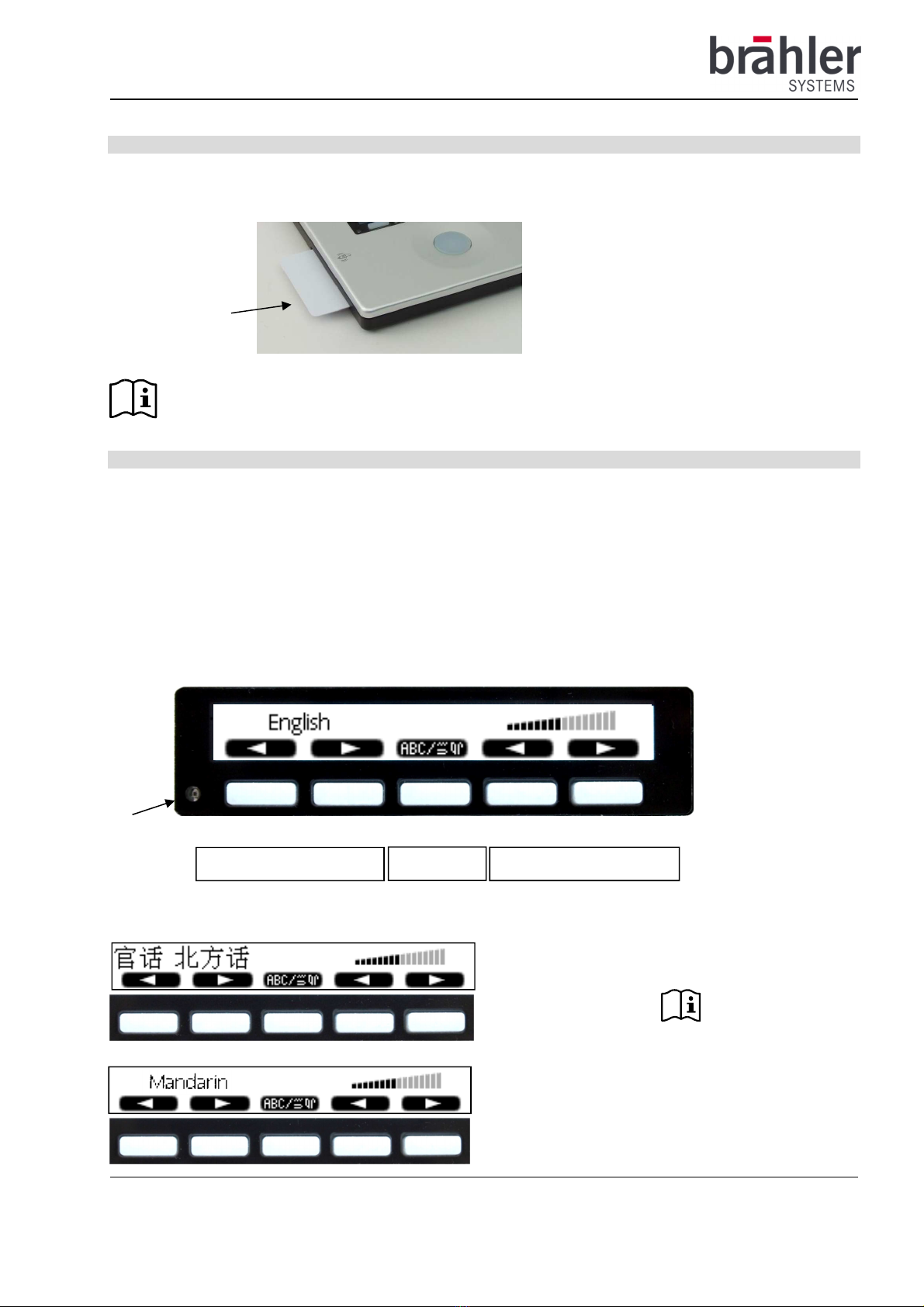

RFID card reader

Insert your personal RFID card into the RFID card reader. Your data is stored on your card for a specific

purpose. The DIGIMIC system can thus identify you and assign you rights, for example to take part in

voting.

The RFID cards are not automatically personalized - they must be programmed with the required

data before being issued.

Channel selector

The DIGIMIC channel selector system transmits up to 8 channels - original and 7 language channels.

Channel and language assignments are made at the central unit. The CMic CSV RFID automatically detects

which channels are occupied. Unused channels are skipped during dialing.

Example: In addition to the original channel, channels and 5 are occupied. When selecting the language via

the function key (+), the DIGIMIC CMic CSV RFID automatically jumps from channel 0 (original channel) to 3

and with the next press (+) to channel 5. Press the + key again to return to output channel 0.

The selected language will be displayed in native language or in English. Press the Mode button to switch to

the display mode.

Example: channel that displays the Chinese language in the country-specific mode:

Press the Mode button to switch the display to English:

RFID card in RFID

card reader

Channel selection

down up

Volume control

updown

Light sensor

Mode button

The channel

selector display is

only shown if the

desired channels

are defined in the

DCen32 central

unit. Otherwise

the boot-up logo

remains on the

display.

DIGIMIC

CMic CSV RFID

Quick Guide

BRÄHLER Systems GmbH

uf der lten Burg 6

53639 Königswinter

Germany

9 (0)

224

930

F +49 (0)2244 930-450

sales@braehler-systems.com

www.braehler-systems.com

05.0161.M 191023 V1.0 BRÄHLER Systems is committed to continually improving its products and so reserves the right to make technical modifications without notice.

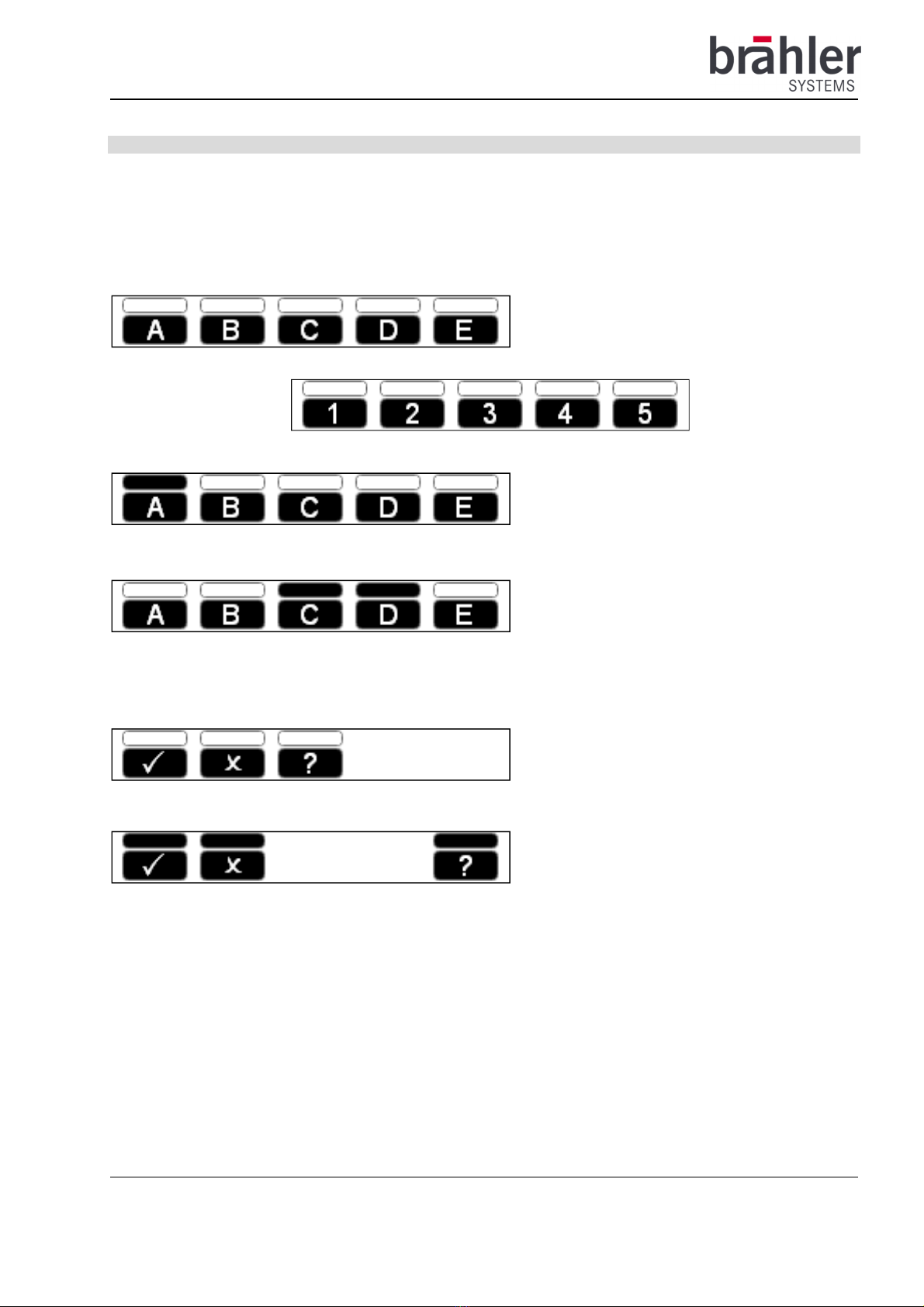

Voting

The DIGIMIC CMic CSV RFID can also be used for voting. DIGIVOTE basic interactive (S4.1190) or

brählerOS (OS.0100) must be used as software.

Press the function keys to vote. The display changes depending on the setting. Here are a few examples:

Display of all 5 keys and thus voting on five points (questions):

Display with digits dialed:

The delegate has selected key (question ):

Depending on the setting, the answers can be corrected several times,

or multiple answers may be allowed:

The following example provides for a parliamentary vote. There are only three possibilities: YES, NO,

BSTENTION:

different arrangement of the voting keys is specified here:

The special feature of this voting is the so-called Secret Mode: Here it is not shown which key was pressed.

ll keys are marked to indicate that you have selected.

DIGIMIC

CMic CSV RFID

Quick Guide

BRÄHLER Systems GmbH

uf der lten Burg 6

53639 Königswinter

Germany

9 (0)

224

930

F +49 (0)2244 930-450

sales@braehler-systems.com

www.braehler-systems.com

05.0161.M 191023 V1.0 BRÄHLER Systems is committed to continually improving its products and so reserves the right to make technical modifications without notice.

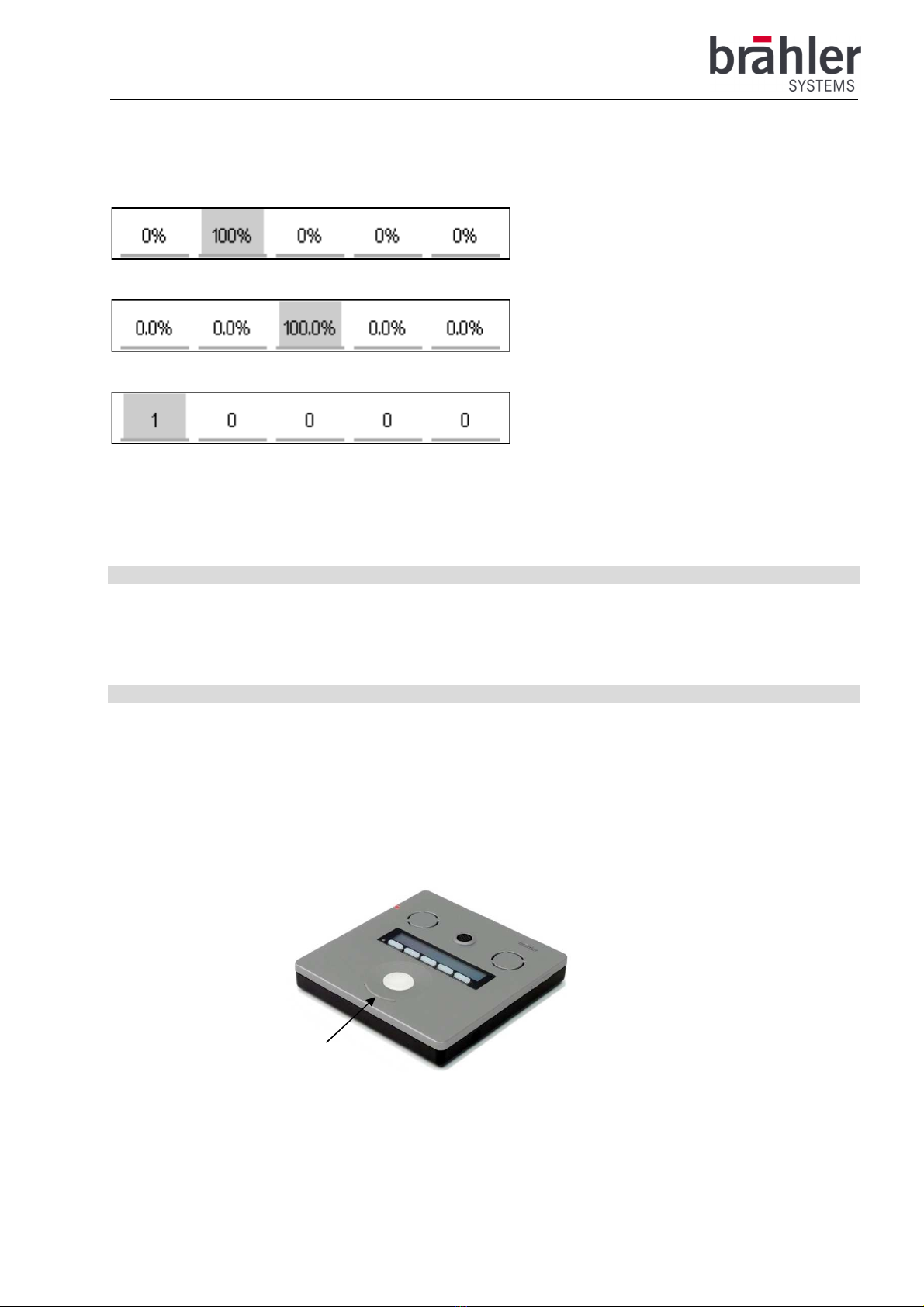

fter voting, the result can be shown on the display - even during operation. Various displays are possible:

Percentage ...

... with one decimal place

...or absolutely:

Detailed information about the software mentioned can be found in the DIGIVOTE basic interactive user

manual. This will be made available to you on request..

Screen saver

fter a few seconds, the display automatically switches to a screen saver mode and darkens. By pressing a

key or starting a voting, the display returns to normal operation.

Chairman version (CChair CSV RFID)

The DIGIMIC CMic CSV RFID is also available in a Chairman version. It gives special priority to the chairman

of a conference. Press the override button to mute all delegate units. There are two override variants:

Permanent: Press the override button to mute all delegate units. The delegates have to turn on their

microphones again to speak.

Temporary: By pressing and holding the override button, the delegate units are muted. s soon as you

release the override button, the delegate units are unlocked again.

Override-Taste

DIGIMIC

CMic CSV RFID

Quick Guide

BRÄHLER Systems GmbH

uf der lten Burg 6

53639 Königswinter

Germany

9 (0)

224

930

F +49 (0)2244 930-450

sales@braehler-systems.com

www.braehler-systems.com

05.0161.M 191023 V1.0 BRÄHLER Systems is committed to continually improving its products and so reserves the right to make technical modifications without notice.

Warnings

Set the CMic CSV RFID to an appropriate volume. Do not listen too loudly through the

headphones.

The ports of the CMic CSV RFID are only suitable for additional CMic CSV RFID, CChair CSV RFID

or DExt. Do not connect any other devices!

In case of faults contact a technician, do not try to repair, unscrew or similar the CMic CSV RFID

on your own.

DIGIMIC

CMic CSV RFID

Quick Guide

Further information about our products can be found on the Internet under:

www.braehler-systems.com

ll rights reserved, in particular (also in extracts) those of translation, reprinting, reproduction by copying or

similar procedures.

BRÄHLER Systems reserves the right to make technical changes without prior notice.

Brähler Systems GmbH

uf der lten Burg 6

53639 Königswinter, Germany

T +49 2244 930-0

F +49 2244 930-450

sales@braehler-systems.com
