Bradford White CDW2TW Guida all'applicazione

Effective: September, 2006

ECO 6885

Specification subject to

change without notice.

NOTE: BOTH MODEL AND

SERIAL NUMBERS ARE

REQUIRED FOR ORDERING

REPLACEMENTS PARTS.

Parts Book # 238-46805-00A

RESIDENTIAL GAS REPLACEMENT PARTS LIST

Combi2TM TTW®Gas Water Heater

“CDW2TW” Series

CDW2TW50T Series

Page 2

ItemDescription Model

CDW2TW50T10F(BN,CX)

1Blower Complete (normalaltitude)239-45583-00

Blower Complete (High altitude)243-45986-00

2 Air Mixing Inlet 239-45868-00

3 Pressure Switch (normalaltitude)239-45867-02

Pressure Switch (high altitude)239-45867-04

4Blower Temperature Switch 239-45865-00

5Blower Gasket 239-45866-00

6Blower Power Cord239-45990-00

73"Vent Adaptor with Vent Terminal239-46264-00

8OptionalCondensate Hose Kit 239-45875-00

9Flue Reducer 243-42572-00

10Heat Trap Insert 239-45167-00

11 Hot Water Outlet Anode (Aluminum)*** 224-32999-30

12Flue Baffle 239-45373-00

13Cold Water Inlet Dip Tube*** 229-45092-01

14Plug Type Anode (Aluminum) 224-38508-03

15Blower Harness 239-45617-02

16T&P Valve230-40594-02

17 Right Side Inner Door 239-45642-18

18 Screw #8-15 x3/4 239-44195-00

19 Left side Inner door 239-43968-18

20 Screw #10-12 x3/4239-44113-00

21Outer Door 243-43962-00

22 Brass Drain Valve265-42351-02

23 Flammable Vapor Sensor Clip 239-45648-00

24 Flammable Vapor Sensor 239-45560-00

25 Sensor Harness 239-45620-00

26 (Nat. Gas)Kit- Gas ControlValve w/Service Tool265-45613-02

(LP Gas)Kit- Gas ControlValve w/Service Tool265-45614-02

27Nat. Gas Control222-45613-02

LP Gas Control222-45614-02

28 Gas ControlService Tool239-45991-00

29ThermalWell 239-45651-02

30 Kit-Inner Door Gasket 239-44078-00

31Kit-IntegratedMixing Device 239-46225-01

32 Inlet Tee 239-45632-00

33 Flexible Connector 239-46347-02

34 Outlet Mixing Device 239-45631-00

35 OptionalASSEApprovedMixing Device 239-43740-01

*Inner door gasket kit recommended

**Ordering a complete burner assembly mayincrease deliverytime. Please order the specific component requiredfor the quickest delivery.

***Order with item10.

Page 3

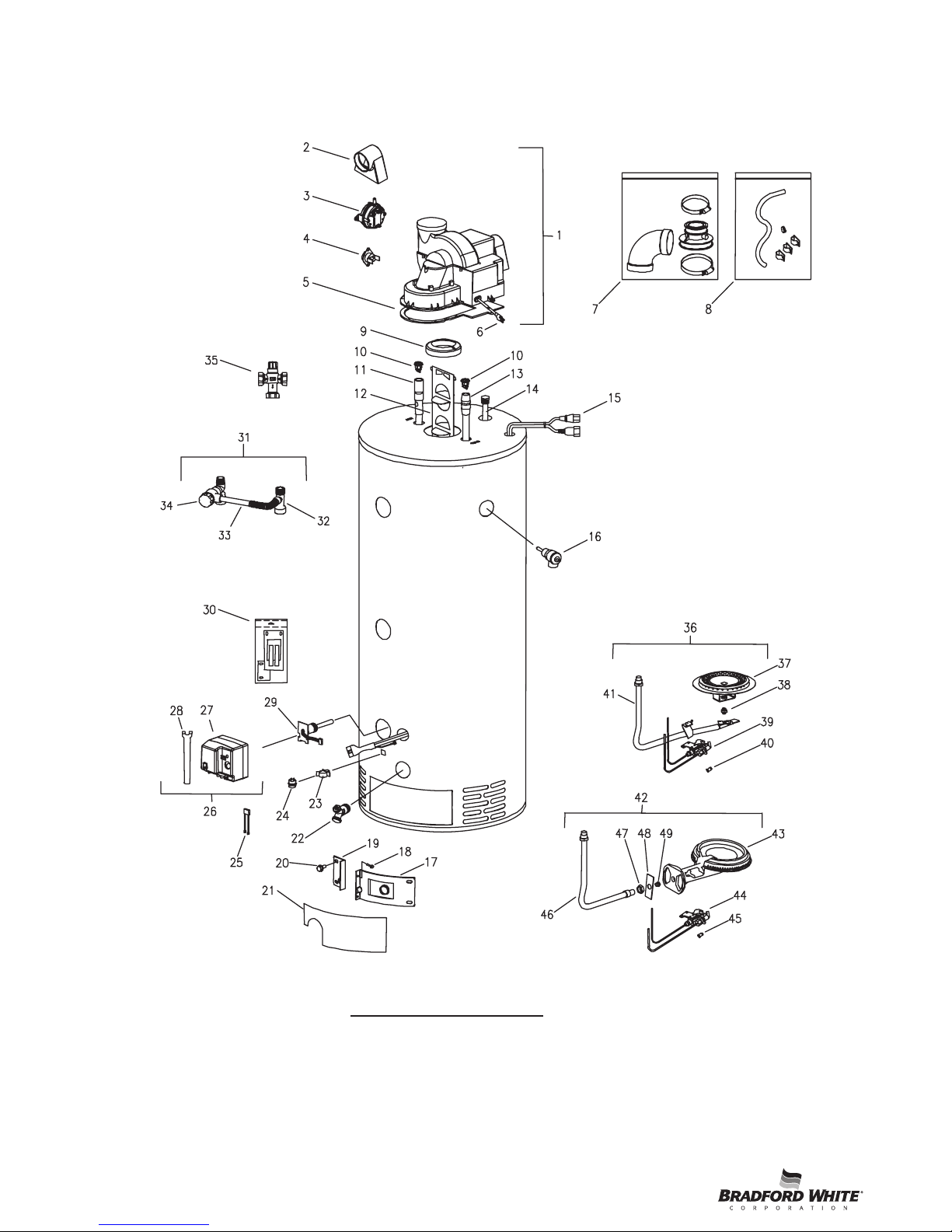

CDW2TW50T Series

Page 4

ItemDescription Model

CDW2TW50T10F(BN,CX)

36 Nat Gas Burner Assembly Complete** 265-45652-02-26

37Nat. Gas BNBurner** 228-42506-00

38 Nat. Gas Main Burner Orifice*234-41034-26

Nat. Gas High Altitude 2000 Ft. to 5000 Ft.*234-41034-29

Nat. Gas High Altitude 5000 Ft. to 8000 Ft.*234-41034-30

Nat. Gas High Altitude Over 8000 Ft.*234-41034-31

39Nat. Gas Pilot Assembly* 233-45653-01

40 Nat. Gas Pilot Orifice*234-45869-01

41Nat Gas Feedline 233-45615-02

42 LP Gas Burner Assembly Complete** 265-45655-02-43

43 LP Gas Cast Iron Burner*228-37743-00

44 LP Gas Pilot Assembly* 233-45653-03

45 LP Gas Pilot Orifice*234-45869-02

46 LP Gas FeedLine*233-45616-02

47Air Shutter Nut*239-18197-00

48 Air Shutter*239-35466-00

49LP Gas Main burner Orifice 234-35928-43

LP Gas High Altitude 2000 Ft. to 5000 Ft.*234-35928-44

LP Gas High Altitude 5000 Ft. to 8000 Ft.*234-35928-47

LP Gas High Altitude Over 8000 Ft.*234-35928-47

*Inner door gasket kit recommended

**Ordering a complete burner assembly mayincrease deliverytime. Please order the specific component requiredfor the quickest delivery.

***Order with item10.

Page 5

CDW2TW75T Series

Page 6

ItemDescription Model

CDW2TW75T10(BN,CX)

1Blower Complete (normalaltitude)239-45583-00

Blower Complete (High altitude)243-45986-00

2 Air Mixing Inlet 239-45868-00

3 Pressure Switch (normalaltitude)239-45867-02

Pressure Switch (high altitude)239-45867-04

4Blower Temperature Switch 239-45865-00

5Blower Gasket 239-45866-00

6Blower Power Cord239-45990-00

73"Vent Adaptor with Vent Terminal239-46264-00

8OptionalCondensate Hose Kit 239-45875-00

9Flue Reducer 243-42572-00

10Heat Trap Insert 239-45167-00

11 Hot Water Outlet Anode*** 224-32999-21

12Flue Baffle 239-45373-00

13Plug Type Anode224-38508-03

14Cold Water Inlet Dip Tube*** 229-39628-15

15Blower Harness 239-45617-02

16T&P Valve 230-40594-02

17 Inner Door 243-39207-00

18Outer Door 243-37177-00

19 Brass Drain Valve 265-42351-02

20 Harness SimulatedResistive Device 239-45949-00

21(Nat. Gas)Kit- Gas ControlValve w/Service Tool265-45613-02

(LP Gas)Kit- Gas ControlValve w/Service Tool265-45614-02

22 Nat. Gas Control222-45613-02

L.P. Gas Control222-45614-02

23 Gas ControlService Tool239-45991-00

24 ThermalWell 239-45651-02

25 Kit integratedMixing Device 239-46225-01

26 Inlet Tee 239-45632-00

27Flexible Connector 239-46347-02

28 Outlet Mixing Device 239-45631-00

29OptionalASSEApprovedMixing Device 239-43740-01

*Inner door gasket kit recommended

**Ordering a complete burner assembly mayincrease deliverytime. Please order the specific component requiredfor the quickest delivery.

***Order with item10.

Page 7

CDW2TW75T Series

Page 8

ItemDescription Model

CDW2TW75T10(BN,CX)

30 Nat Gas Burner Assembly Complete** 265-45652-03-21

31Nat. Gas BNBurner** 228-42506-00

32 Nat. Gas Main Burner Orifice*234-41034-21

Nat. Gas High Altitude 2000 Ft. to 5000 Ft.*234-41034-29

Nat. Gas High Altitude 5000 Ft. to 8000 Ft.*234-41034-31

Nat. Gas High Altitude Over 8000 Ft.*234-41034-21

33 Nat. Gas Pilot Assembly* 233-45653-02

34 Nat. Gas Pilot Orifice*234-45869-01

35 Nat Gas Feedline 233-46370-01

36 LP Gas Burner Assembly Complete** 265-45655-03-41

37LP Gas Cast Iron Burner*228-14173-00

38 LP Gas Pilot Assembly* 233-45653-04

39LP Gas Pilot Orifice*234-45869-02

40 LP Gas FeedLine*233-46371-01

41Air Shutter Nut*239-18197-00

42 Air Shutter*239-35466-00

43 LP Gas Main burner Orifice 234-35928-41

LP Gas High Altitude 2000 Ft. to 5000 Ft.*234-35928-44

LP Gas High Altitude 5000 Ft. to 8000 Ft.*234-35928-44

LP Gas High Altitude Over 8000 Ft.*234-35928-45

*Inner door gasket kit recommended

**Ordering a complete burner assembly mayincrease deliverytime. Please order the specific component requiredfor the quickest delivery.

***Order with item10.

Page 9

NOTES
