LVSD2
Verge®Lavatory System – LVS-Series
with Evero®Natural Quartz Material
Table of Contents
Safety Information .............................................................2
Supplies Required .............................................................2
Components ......................................................................3
Dimensions........................................................................4
Structural Rough-Ins..........................................................6
Plumbing and Electrical Rough-Ins - Personal Soap ........7
Plumbing and Electrical Rough-Ins - Shared Soap...........8
Bracket Mounting...............................................................9
Drain Assembly .................................................................9
Faucet Installation............................................................10
Bowl Mounting (to Bracket and Wall)...............................10
Strainer and P-Trap .........................................................11
Adjust Temperature with Water Running .........................11
Access Panel – Fold-Up Option ......................................12
Access Panel – Swing-Down Option...............................12
Cleaning and Maintenance..............................................13
Read the instructions in this manual before beginning installation. Save these instructions and refer to
them for inspection, maintenance, and troubleshooting information.
For questions regarding the operation, installation or maintenance of this product, visit bradleycorp.com or call 800.BRADLEY (800.272.3539).
Product warranties and parts information may also be found under “Resources” on our website at bradleycorp.com.
LVSD2 Installation
29/1/2022 Bradley • 215-1829 Rev. E: ECO 22-08-005
Safety Information
WARNING
Make sure that all water supply lines have been flushed and then completely turned off before beginning
installation. Debris in supply lines can cause valves to malfunction.
Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to installation. Electrical
power MUST remain off until installation is complete.
Installer's hardware must be appropriate for wall construction. Wall anchors must have a minimum pull-out
rating of 1,000 pounds.
IMPORTANT
Read this entire installation manual to ensure proper installation. When finished with the installation, file this
manual with the owner or maintenance department. Compliance and conformity to local codes and ordinances
is the responsibility of the installer. Product warranties may be found under “Products” on our Website at
www.bradleycorp.com.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
For standard height mounting, do not exceed the recommended 33.5" distance from the fixture rim to the
finished floor.
Supplies Required
• (6) ³⁄₈" fasteners and wall anchors for bowl and wall bracket (minimum pull-out rating of 1,000 lb)
• (2) ¼" fasteners and wall anchors for access panel brackets (minimum pull-out rating of 100 lb)
• ½" hot/cold or tempered stub-out
• 1½" NPT drain stub-out(s)
• OPTIONAL: (2) 110V GFCI protected electrical outlets for 100–120VAC plug-in transformers only
• OPTIONAL: (2) ³⁄₈" NPS x ³⁄₈" NPT Male Adapter for IR-DCD faucet only
• Screen filter(s) as needed, if not included with faucet(s)
• Drill
• Crescent wrench
• Tape measure
• Phillips screw driver
• Flat head screw driver
• Level
Installation LVSD2
Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022 3

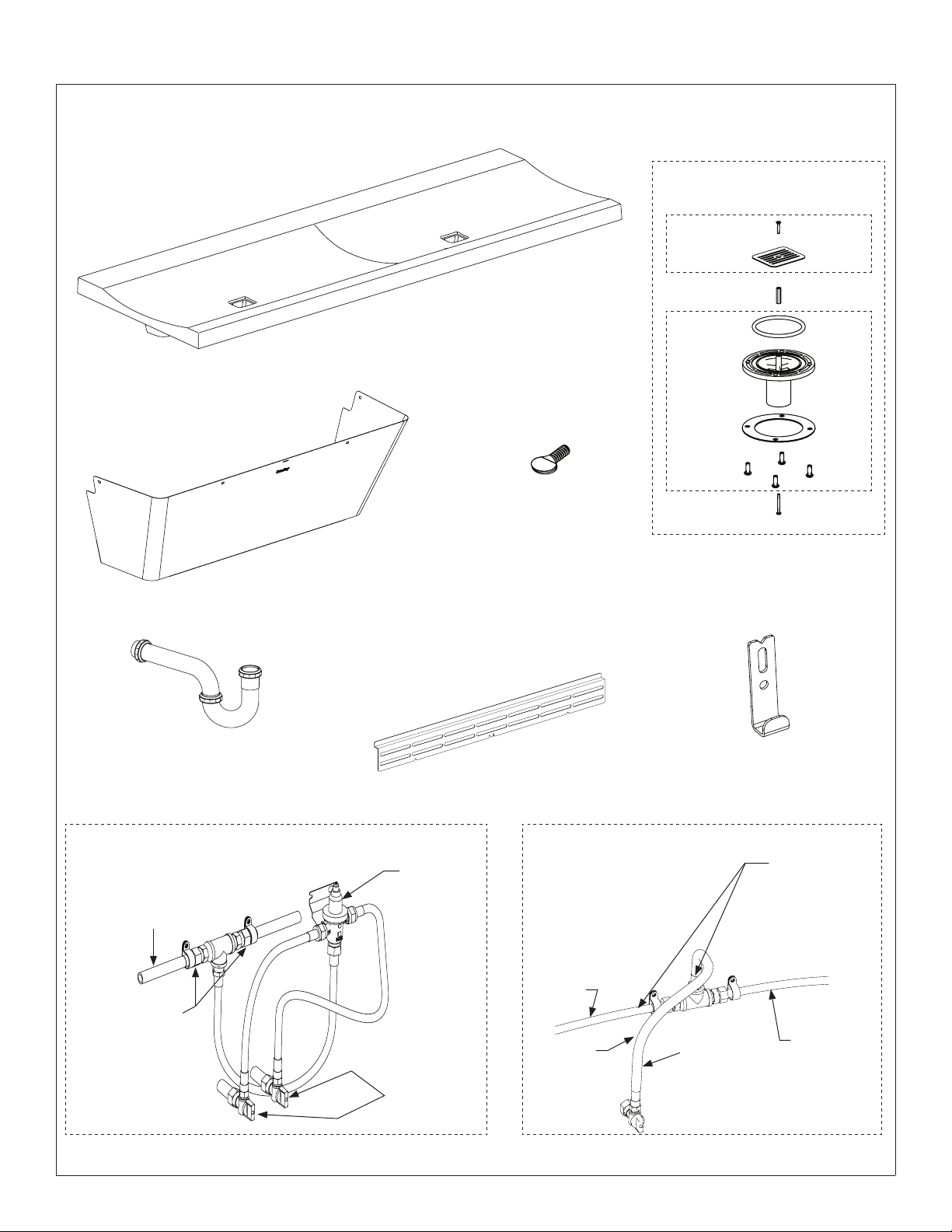

Components
Bowl
Contact your Bradley Representative for
color options
Individual Rough-In Option
Chrome P-Trap (S29-094)
Plastic P-Trap (269-1697)
Wall Bracket
(140-1128)
TMV Valve
(1/2" NPTM
Outlet)
(S45-2701)
Hose Prepack
(S45-2730)
TMV Supply Connections
Plastic Hose
Hose Prepack
(S45-2731)
Tempered Supply Connections
Plastic
Hose
Plastic Hose
Stainless
Steel
Hose
Access Panel
(186-2288)
Supply Fittings
(Standard)
(S45-2510)
and
(S45-2999)
for Verge Faucets
S53-3100, S53-3300,
S53-3500, & S53-3700
Supply Fittings
(Standard)
(S45-2511)
and
(S45-3100)
for Verge Faucets
S53-3100, S53-3300,
S53-3500, & S53-3700
Access Panel Wall Bracket
(140-1172)
Complete Drain Prepack
(S45-2862)
O-Ring
(125-111)
Drain
Adapter
Packing
Washer
#10-24
Screw
Drain
Adapter
Prepack
(S45-2480)
Prepack
(S45-2861) *Screw
Strainer
*Standoff, Hex,
SS #6-32 x 1"
*Screw #6-32
x 1-1/4" Pan
*Included in
Prepack S45-2778
#10 Access Panel
Thumb Screw
(160-536)
Access Panel Security
Screw Option
(S45-2880)
LVSD2 Installation
49/1/2022 Bradley • 215-1829 Rev. E: ECO 22-08-005

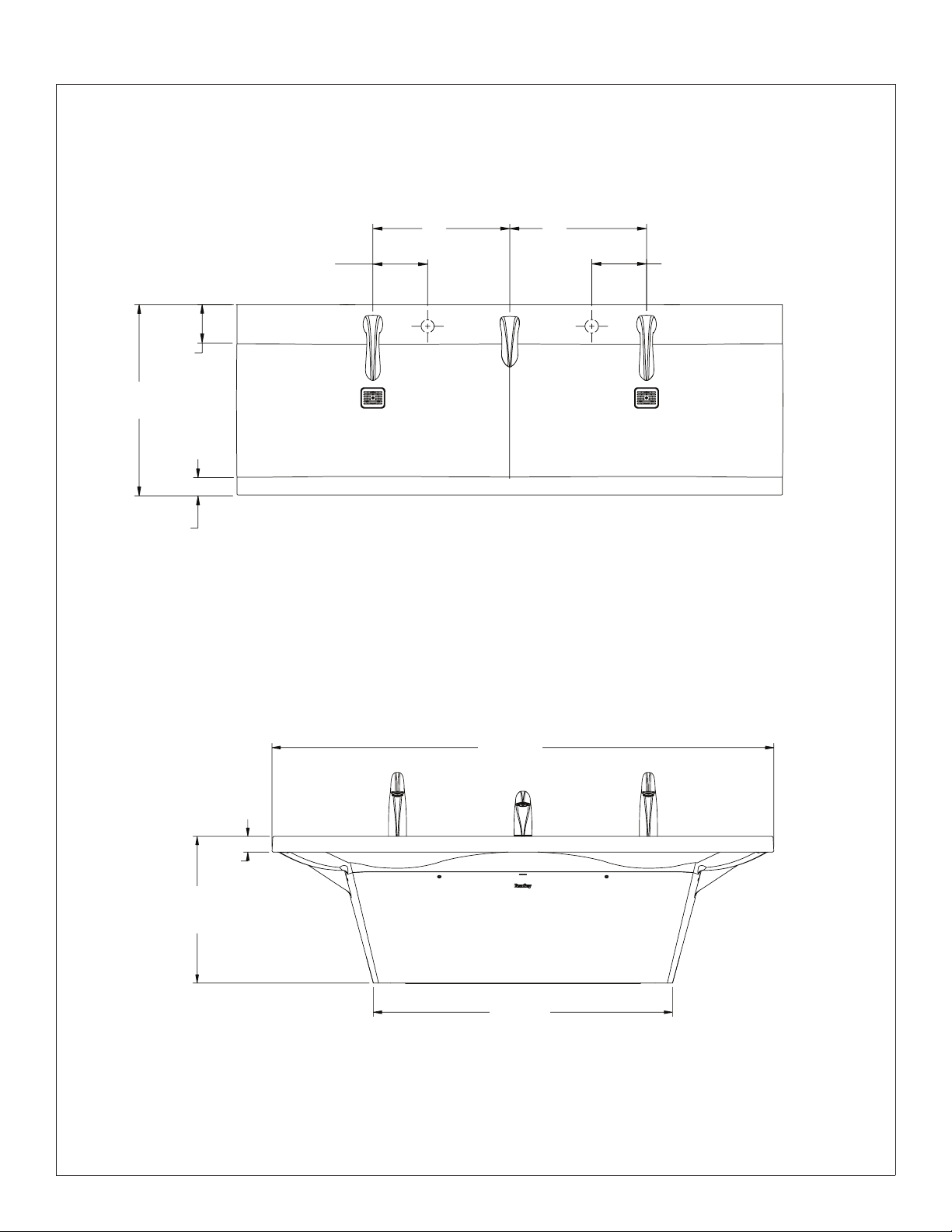

Dimensions (mm)
Top View (shown with Crestt Series Faucet & Soap)
Front View
15"
(381)
15"
(381)
21"
(533)
4¼"
(165)
2"
(51)
6"
(152)
6"
(152)
35¾"
(908)
60"
(1524)
17½"
(445)
1⁷⁄₈"
(48)
A A
A = Personal soap locations
Installation LVSD2
Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022 5

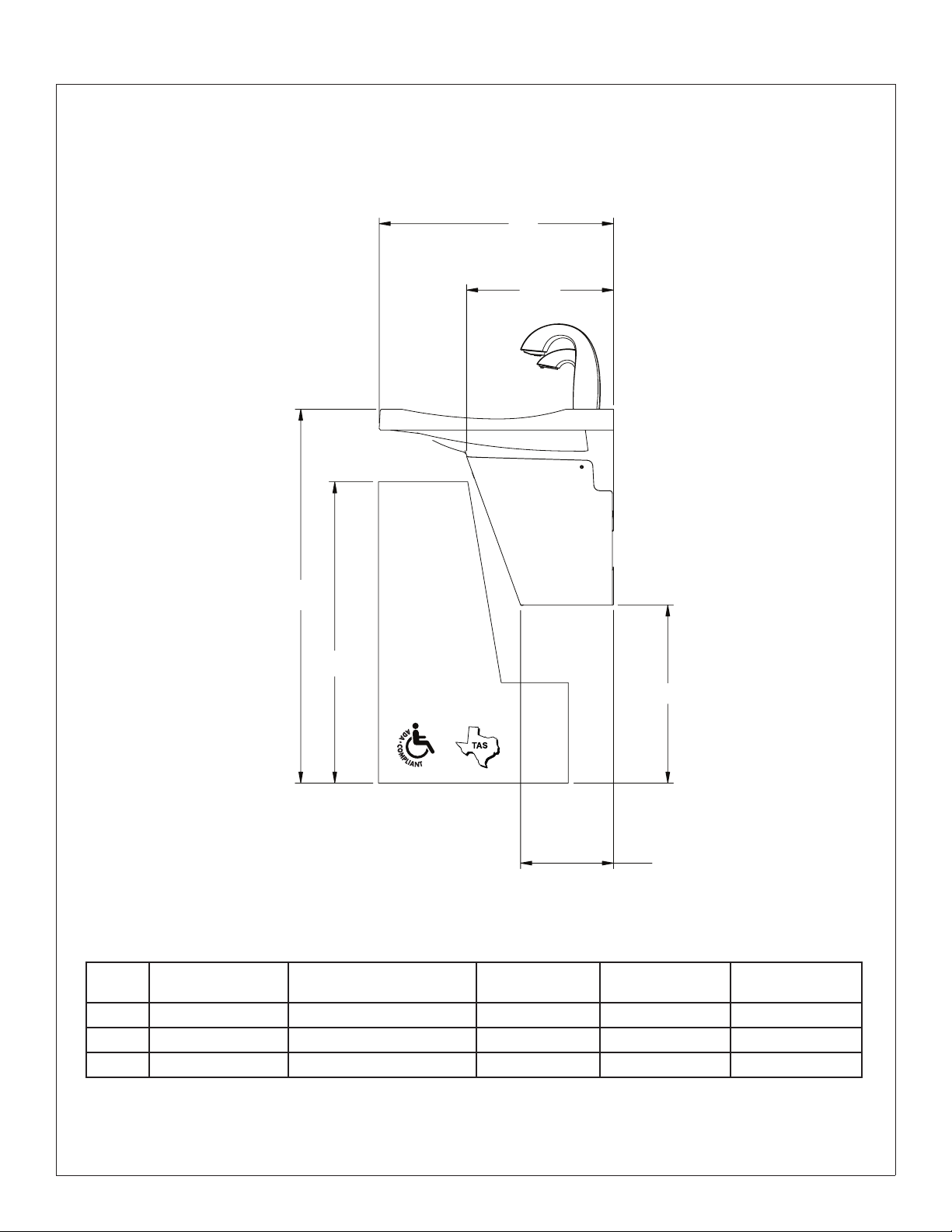

Side View
Dimensions (mm)
A
B
13¼"
(337)
C
8³⁄₈"
(213)
21"
(533)
ADA/TAS Standard
Height
ADA/TAS Juvenile Height
(Children 6-12 years)
CSA Standard
Height
OBC Standard
Height
AODA-2015
Standard Height
Dim A
33½" (851) 31" (787) 33½ (851) 33" (838) 32½" (826)
Dim B
27" (686) 24" (610) 29⁵⁄₈" (752) 28¹⁵⁄₁₆" (735) 28¹⁵⁄₁₆" (735)
Dim C
15¹⁵⁄₁₆ (405) 13⁷⁄₁₆" (341) 16⁵⁄₁₆" (414) 15⁷⁄₁₆" (391) 14¹⁵⁄₁₆" (379)
LVSD2 Installation
69/1/2022 Bradley • 215-1829 Rev. E: ECO 22-08-005
Mounting for Standard, ADA, and TAS height shown.

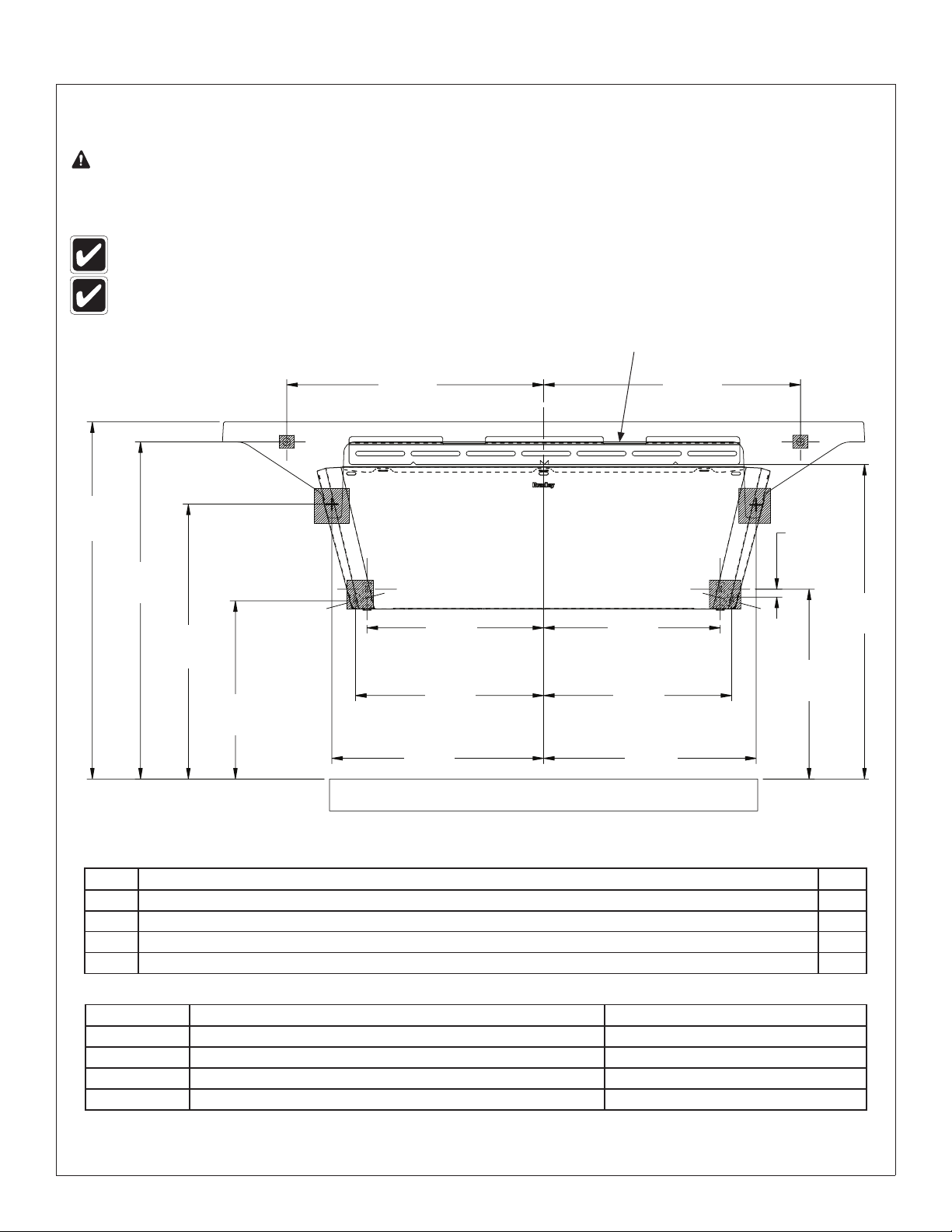

Structural Rough-Ins (mm)
Points A, B, and C require sufficient backing
compliant with local building codes.
Secure bracket to wall using min. (2) 3/8" anchor bolts to
the left of C/L and min. (2) 3/8" anchor bolts to the right of
C/L. The (2) anchor bolts to the right of C/L must be min.
16" apart from the anchor bolts to the left of C/L. When
mounting is complete, check to ensure the bracket is level.
See Step 1: Bracket Mounting for more information.
33½"
(851)
AA
25½"
(648)
29½"
(749)
B B
20"
(508)
C
L
16¾"
(425)
31⁵⁄₈"
(803)
20"
(508)
17⁵⁄₈"
(446)
16½"
(419)
16½"
(419)
17⁵⁄₈"
(446)
Finished Floor
C C
WARNING The bracket is not designed to support the bowl. Wall bracket
is a temporary support until bowl is mounted at location "A".
Ensure bowl is completely seated in the wall bracket and
securely fastened to the wall at point A.
24"
(610)
24"
(610)
D D
3/4"
(19)
17¾"
(452)
CODE DESCRIPTION QTY.
A Install (1) 3/8" wall anchor with a minimum pull-out force of 1,000 lb per local codes at locations shown. 2
B
Provide structural backing compliant with local building codes.
2
C
Install wall anchor with a minimum pull-out force of 100 lb per local codes at locations shown for fold-up access panel option.
2
D
Install wall anchor with a minimum pull-out force of 100 lb per local codes at locations shown for swing-down access panel option.
4
RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FIXTURE STYLE
33½" No Adjustment Standard Height, ADA, TAS, and CSA
30½" Subtract 3" Juvenile, ADA, and TAS
32½" Subtract 1" AODA
33" Subtract ½" OBC
Installation LVSD2
Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022 7

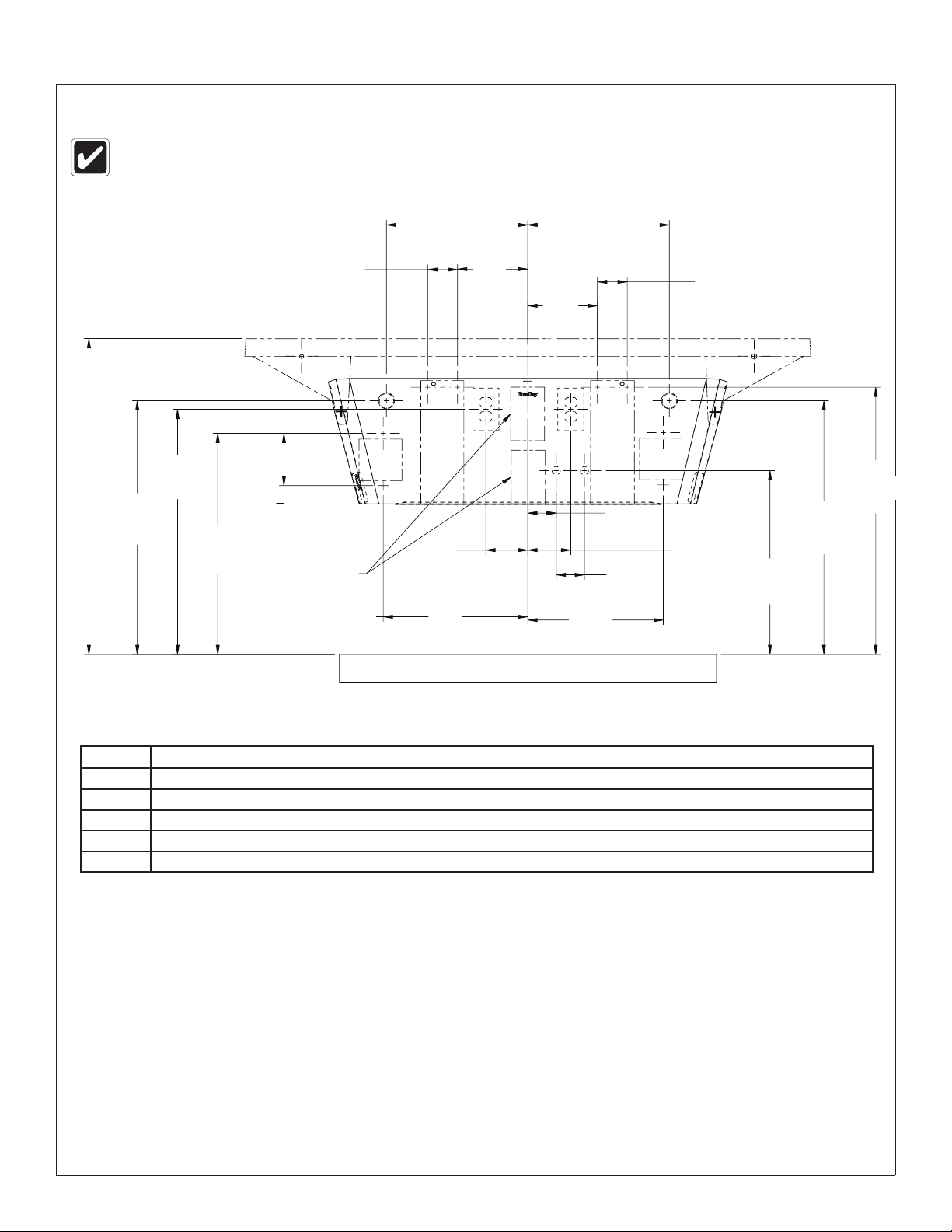

Plumbing and Electrical Rough-Ins - Personal Soap (mm)
Mounting for Standard, ADA, and TAS height shown.
33½"
(851)
4½"
(113)
4½"
(113)
3¹⁄₈"
(80)
7³⁄₈"
(187)
7½"
(190)
15³⁄₈"
(390)
Finished Floor
14³⁄₈"
(365)
3"
(76)
3"
(76)
19½"
(495)
26⁷⁄₈"
(684)
28³⁄₈"
(720)
15"
(381)
15"
(381)
3¹⁄₈"
(80)
5½"
(141)
Approx. Soap
Battery Box
Location
26"
(660)
23½"
(596)
26⁷⁄₈"
(684)
A
F F
F F
A
G GG G
E E
H C
CODE DESCRIPTION QTY.
A1½" NPT Drain, Stub-out 2" from wall, individual waste option 2
H,C ½" Nominal (5/8" O.D. Comp.) Hot/Cold supplies, Stub-out 2" from wall 1
E 110V GFI protected electrical outlet (AC faucet and soap only) 2
F #10 Anchors for Faucet Control Box Installation 4
G #10 Anchors for Soap Tank Installation 2
LVSD2 Installation
89/1/2022 Bradley • 215-1829 Rev. E: ECO 22-08-005

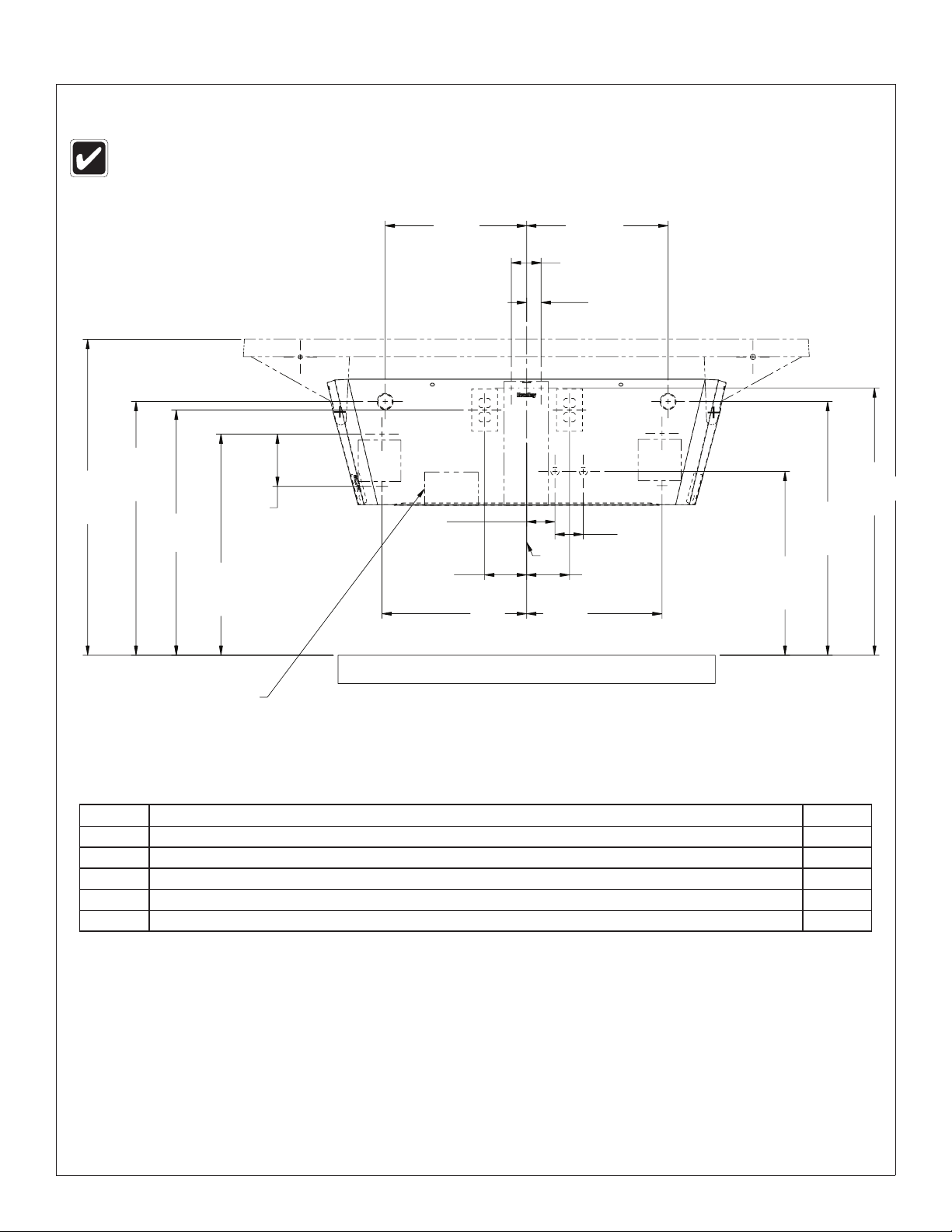

Plumbing and Electrical Rough-Ins - Shared Soap (mm)
Mounting for Standard, ADA, and TAS height shown.
33½"
(851)
4½"
(113)
4½"
(113)
3¹⁄₈"
(80)
1⁹⁄₁₆"
(39)
15³⁄₈"
(390)
Finished Floor
14³⁄₈"
(365)
3"
(76) 3"
(76)
19½"
(495)
26⁷⁄₈"
(684)
28³⁄₈"
(720)
15"
(381)
15"
(381)
5½"
(141)
Approx. Soap
Battery Box
Location
26"
(660)
23½"
(596)
26⁷⁄₈"
(684)
A
FF
FF
A
G G
E E
H C
CODE DESCRIPTION QTY.
A1½" NPT Drain, Stub-out 2" from wall, individual waste option 2
H,C ½" Nominal (5/8" O.D. Comp.) Hot/Cold supplies, Stub-out 2" from wall 1
E 110V GFI protected electrical outlet (AC faucet and soap only) 2
F #10 Anchors for Faucet Control Box Installation 4
G #10 Anchors for Soap Tank Installation 4
Installation LVSD2
Bradley • 215-1829 Rev. E: ECO 22-08-005 9/1/2022 9

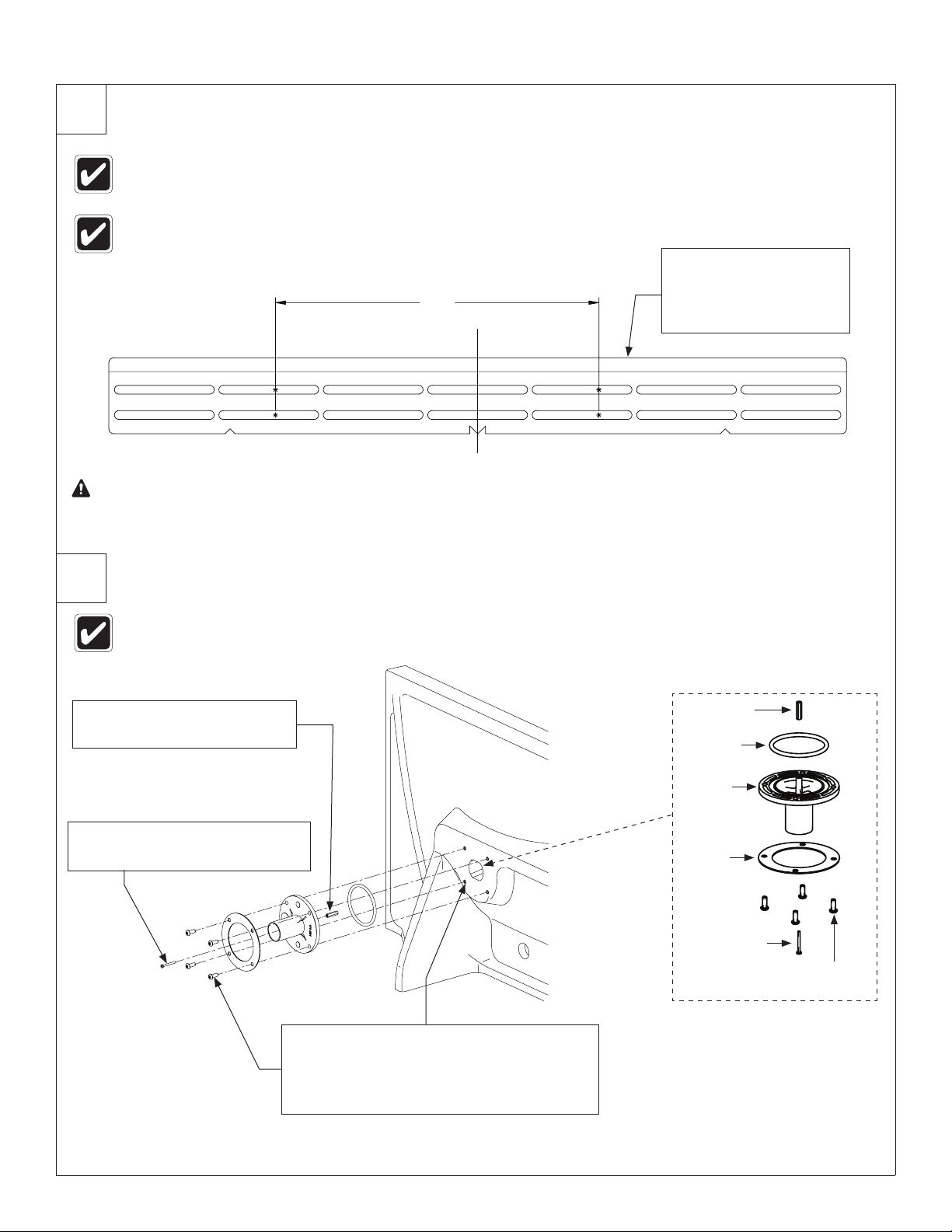

Bracket Mounting
Typical installation is shown. It may be necessary to repair the wall
after mounting. The fixture may not cover all of the wall modifications.
1
16"
(406 mm)
min.
Install wall bracket to wall
per structural rough-in
dimensions. Check to
ensure the bracket is
level. Example anchor
locations shown.
A
Mounting height per structural rough-in dimensions.
2Drain Assembly
For ease of drain installation, lay the bowl on its back.
Thread screw into drain adapter
until it becomes fully engaged.
A
Thread the standoff onto the
now fully engaged screw.
B
Assemble the remaining components as
shown and thread the four screws through
the drain adapter and into the basin inserts.
Ensure the screws compress the drain
adapter evenly onto the basin.
C
C
L
WARNING The bracket is not designed to support the bowl. Wall bracket
is a temporary support until bowl is mounted to wall.
O-Ring
Drain
Adapter
Packing
Washer
#10-24 x 1/2"
Screw
#6-32 x 1-1/4"
Screw
Standoff, Hex
SS #6-32 x 1"
LVSD2 Installation
10 9/1/2022 Bradley • 215-1829 Rev. E: ECO 22-08-005
Bowl Mounting (to Bracket and Wall)
4
Position bowl above wall bracket.
Press firmly on the back of the bowl
to seat the bowl flange into the wall
bracket lip. Ensure bowl is level.
A
Secure the bowl to the wall anchors
using fasteners per the structural
rough-in requirement (supplied by
installer).
B
WARNING Ensure bowl is completely seated in the wall bracket
and securely fastened to the wall at point A.
Faucet Installation
3
CAUTION Bracket is not intended to support the weight of bowl for an extended period of time.
Be sure to secure the bowl to the wall using appropriate fasteners.
For ease of installation, leave the bowl laying on its back.
Follow the installation instructions shipped with the faucet and soap
units for assembly and installation information.
Altri manuali per Verge LVSD2
1
Indice
Altri manuali Bradley Apparecchio per il bagno
Bradley
Bradley SXWS9148 Manuale utente
Bradley
Bradley Verge LVLD Series Manuale utente
Bradley
Bradley 600 Series Manuale utente
Bradley
Bradley ABP-1WCA Manuale utente
Bradley
Bradley Express SS Series Manuale utente
Bradley
Bradley LOFT Series Manuale utente
Bradley
Bradley S19345HXB Manuale utente
Bradley
Bradley Express SS Series Manuale utente
Bradley
Bradley s19314 series Manuale utente
Bradley
Bradley CBSHWR9000 Manuale utente
Bradley
Bradley s19314 series Manuale utente
Bradley
Bradley 500 Series Manuale utente
Bradley
Bradley WS-1X-HN Manuale utente
Bradley
Bradley OmniDeck with WashBar 5000 Series Manuale utente
Bradley
Bradley S19-130BF Manuale utente
Bradley
Bradley S19-310SBFW Manuale utente
Bradley
Bradley Halo S19314EW Manuale utente
Bradley
Bradley S19-310UU Manuale utente
Bradley
Bradley S19274HWR Manuale utente
Bradley
Bradley S19-304C2 Manuale utente
