TM
All STAINLESS STEEL GAS BBQ GRILL
USER’S MANUAL
MODEL NUMBER: PG-50506SRL
CUSTOMER SERVICE: (888)-287-0735
FOR OUTDOOR USE ONLY
LIMITED WARRANTY
TM
Model Number: PG-50506SRL
PermaSteel All Stainless Steel BBQ Grill
We warrant to the original consumer purchaser (“Purchaser”) of the PermaSteel All Stainless Steel
BBQ Grill (“Product”) that each Product shall be free from defects in workmanship and materials
for a period of the years listed below from the date of original purchase. Our obligation under this
warranty shall be limited to repair or replacement of, or adequate compensation for, the Product, at
the option of us, during the warranty period. Our liability shall not extend beyond repair or
replacement, or the cost equivalent thereto.
This warranty excludes normal wear and tear of the Product and its parts or components, and any
damage arising from any of the following: negligent use or misuse of the Product, use contrary to
this User’s Manual, or alteration by any one other than us. The warranty period of the years listed
below shall not be extended or renewed by the repair or replacement of, or compensation for, the
Product.
If your Product is defective or otherwise requires service or parts, please first call PermaSteel
Customer Service toll-free at (888)-287-0735, between 8:00 a.m. and 5:00 p.m., PST. Please tell
us which model you purchased, the date of purchase, and the problem with your Product. We will
use our very best efforts to honor this warranty, and repair, replace or compensate you for your
Product through your original place of purchase. A copy of your original purchase receipt must
accompany your service request.
Component Warranty Period:
Burners: 1 Year
Stainless Steel Flame Tamer: 1 Year
Stainless Steel Cooking Grids: 1 Year
Valves: 1 Year
Frame, Housing, Cart, Control Panel,
Igniter, and Related Parts: 1 Year
All Stainless Steel Parts: 1 Year
LIMITATION OF REMEDIES AND LIABILITY
We shall not be liable for any incidental or consequential damages for breach of any express or
implied warranty on its Product. Except to the extent prohibited by applicable law, any implied
warranty or merchantability or fitness for a particular purpose on this Product shall be limited to the
duration of the above warranty. Neither us nor anyone else who has been involved in the creation,
production, or delivery of the Product shall be liable for damages of any type, including but not
limited to any lost profits, lost savings, loss of anticipated benefits, or other incidental or
consequential damages which may arise out of the purchase, use, or inability to use the Product,
whether arising out of contract, negligence, strict tort, or under any warranty, or otherwise, even if
you have been advised of the possibility of such damage or any other claim by any other party.
Our liability for any breach of warranty shall be limited to repair or replacement of the defective part
or parts as described above. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you. The above
warranty gives you specific legal rights, and you may have other rights which vary from state to
state.
Notice:PermaSteel provides the PVC cover for your convenience only. We do not provide
warranty for PVC cover.
TABLE OF CONTENTS
TM
BEFORE YOU BEGIN
MESSAGE TO OUR USERS PAGE 1
SAFETY SYMBOLS PAGE 1
INSTALLATION & SAFETY PRECAUTIONS PAGE 2
PROPANE & GAS WARNING PAGE 2
ASSEMBLY
PARTS PAGE 3
STEP I PAGE 5
STEP II PAGE 6
STEP III PAGE 7
STEP IV PAGE 8
STEP V PAGE 9
STEP VI PAGE 10
POST ASSEMBLY
GAS CONNECTION PAGE 12
LEAK TESTING PAGE 17
FINAL INSTALLATION CHECK LIST PAGE 19
GRILL LIGHTING INSTRUCTION PAGE 20
OPERATING INSTRUCTION PAGE 22
CARE & MAINTENANCE PAGE 23
TROUBLE SHOOTING PAGE 24
FOOD SAFETY PAGE 26
GRILL STORAGE PAGE 26
1
Thank you for your purchase of our All Stainless Steel BBQ Gas Grill. We sincerely
wish you will enjoy using our fine products.
Please read this User’s Manual in its entirety before using the grill.
Please contact our customer service at (888)-287-0735 if you have any questions.
Please read this User’s Manual carefully. Failure to follow the provided instruction
can result in seriously bodily injury and/or property damage.
Some parts of this grill may have sharp edges. Please wear suitable protective gloves.
IMPORTANT: This grill is intended for outdoor use only and is not intended to be
installed in or on recreational vehicles or boats.
NOTE TO INSTALLER: Leave this User’s Manual with the customer after delivery
and/or installation.
NOTE TO CONSUMER: Leave this User’s Manual in a convenient place for future
reference.
The symbols listed here are being used through out this User’s Manual. Please pay
special attention to them. The meaning of each of the symbols is listed here:
DANGER–this symbol indicates an imminently hazardous situation which
will result in death or serious bodily injury if not properly followed.
WARNING– this symbol indicates a warning of potential serious bodily
injury if the instructions are not strictly followed. Please be sure to read and follow
all these messages carefully.
CAUTION – this symbol indicates a potentially hazardous situation which
may result in minor or moderate bodily injury if the instructions are not properly
followed.
SAFETY SYMBOLS
MESSAGE TO OUR USERS
2
WARNING
READ THIS SECTION FIRST BEFORE INSTALLING THE GRILL
Your grill has been designed to operate using only the gas specified on the rating
plate. Do not attempt to operate your grill with other gases.Failure to follow this
warning may result in a fire hazard and bodily harm, and PermaSteel will void your
warranty.
The installation of this appliance must conform with local codes or, in the absence
of local codes, with either the National Fuel Gas Code, ANSI Z223. 1/NFPA 54,
or CAN/CGA- B149.1; Natural Gas and Propane.
All electric accessories (such as rotisserie) must be electrically grounded in
accordance with local codes, or National Electrical Code, ANSI/NFPA 70, or
Canadian Electrical Code, CSA C22.1. Keep any electrical cords and/or fuel
supply hoses away from any hot surfaces.
This grill is safety certified for use in the United States and Canada only. Never
modify to use in other places. Modification may cause serious bodily injury or
property damage. PermaSteel is not responsible for any modifications, and all
warranties will be void.
WARNING
FOR YOUR SAFETY, PLEASE READ THIS SECTION FIRST
If you smell gas:
Shut off gas to the grill.
Extinguish any open flames immediately.
Open the grill lid.
If the odor persists, please call your gas supplier or your fire department
immediately.
Do not store or use gasoline or other flammable items in the vicinity of this grill.
Any LP cylinder that is not connected for use should not be stored in the vicinity
of this grill.
GAS WARNING
INSTALLATION
3
GRILL PARTS LIST
REF# DESCRIPTION Q’TY REF# DESCRIPTION Q’TY
1 Double-layer Lid 1 39 Hole Bushing 1
2 Temp.Gauge Seat 1 40 Rear Burner Cover 1
3 Temp.Gauge 1 41 Thermocouple Cover 1
4 Clip Rings 2 42 Thermocouple Bracket 1
5 Name Plate 1 43 Smoker 1
6 Lid Handle Seats 2 44 Smoker Cover 1
7 Lid Handle 1 45 Firebox 1
8 Rotisserie Kit 1 46 Corrugated Pipe B 1
9 Right Shelf Bracket 1 47 Thermocouple 1
10 Push Bars 2 48 Rear Panel 1
11 Right Side Shelf 1 49 Rear Burner 1
12 Grease Tray 1 50 Ignition Electrode, Rear Burner 1
13 Rear Burner Knob 1 51 Warming rack 1
14 Knobs 5 52 Cooking Grids 3
15 Control Panel 1 53 Flame tamers 3
16 Manifold, Main Burner 1 54 Main Burner Brackets 5
17 Rear Burner Valve 1 55 Main Burners 4
18 Safety Valve & Buttom 1 56 Left main Burner 1
19 Corrugated Pipe A 1 57 Left Side Shelf Bracket 1
20 Valves 5 58 Motor 1
21 Valve Bracket 1 59 Motor Bracket 1
22 Door Bracket 1 60 S-Style Hooks 4
23 Front Transom 1 61 Left Side Shelf 1
24 Door Handles 2 62 Left Side Drawer 1
25 Handle Seats 4 63 Snap Close 1
26 Drawer Front Panels 2 64 Right Panel 1
27 Drawers 2 65 Left Heat Shield 1
28 Sliding Bars 6 66 Tank Holder Brackets 2
29 Casters With Brake 2
67 Tank Holder 4
30 Bottom Panel 1 68 Tank Holder Rubber Strap 1
31 Right Drawer Transoms 2 69 Lower Door Hinge Bracket 1
32 Right Panel 1 70 Casters without Brakes 2
33 PVC Washers 2 71 Magets 4
34 Right Heat Shield 1 72 Ignitor Rod 1
35 Clapboard 1 73 Left Side Door 1
36 Acorn Nut 1 74 Upper Door Hinge Bracket 1
37 Rotary Pin 1 75 Regulator 1
38 Back Panel 1
4

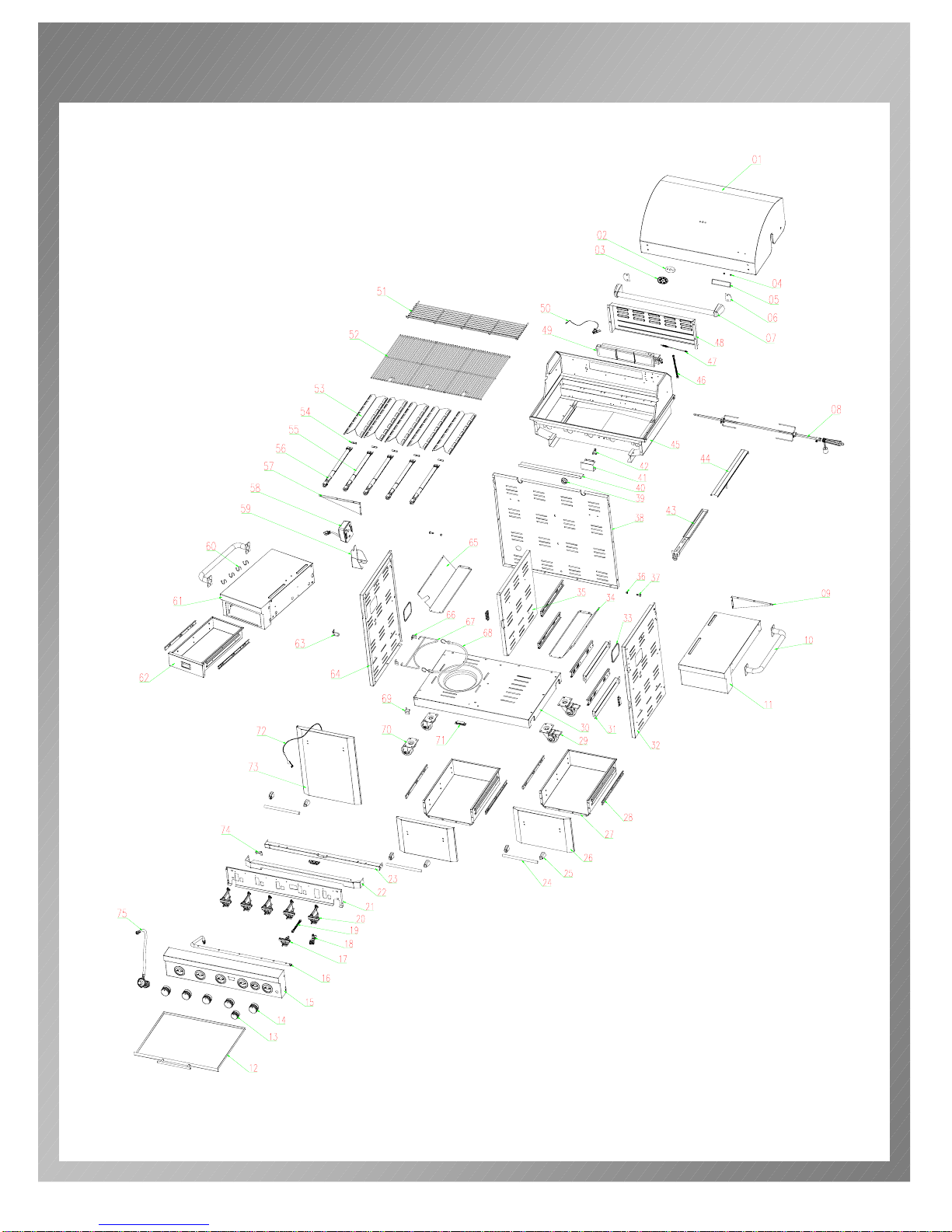

GRILL PARTS DIAGRAM
5
PLEASE READ AND FOLLOW THE INSTRUCTIONS CAREFULLY
STEP BY STEP

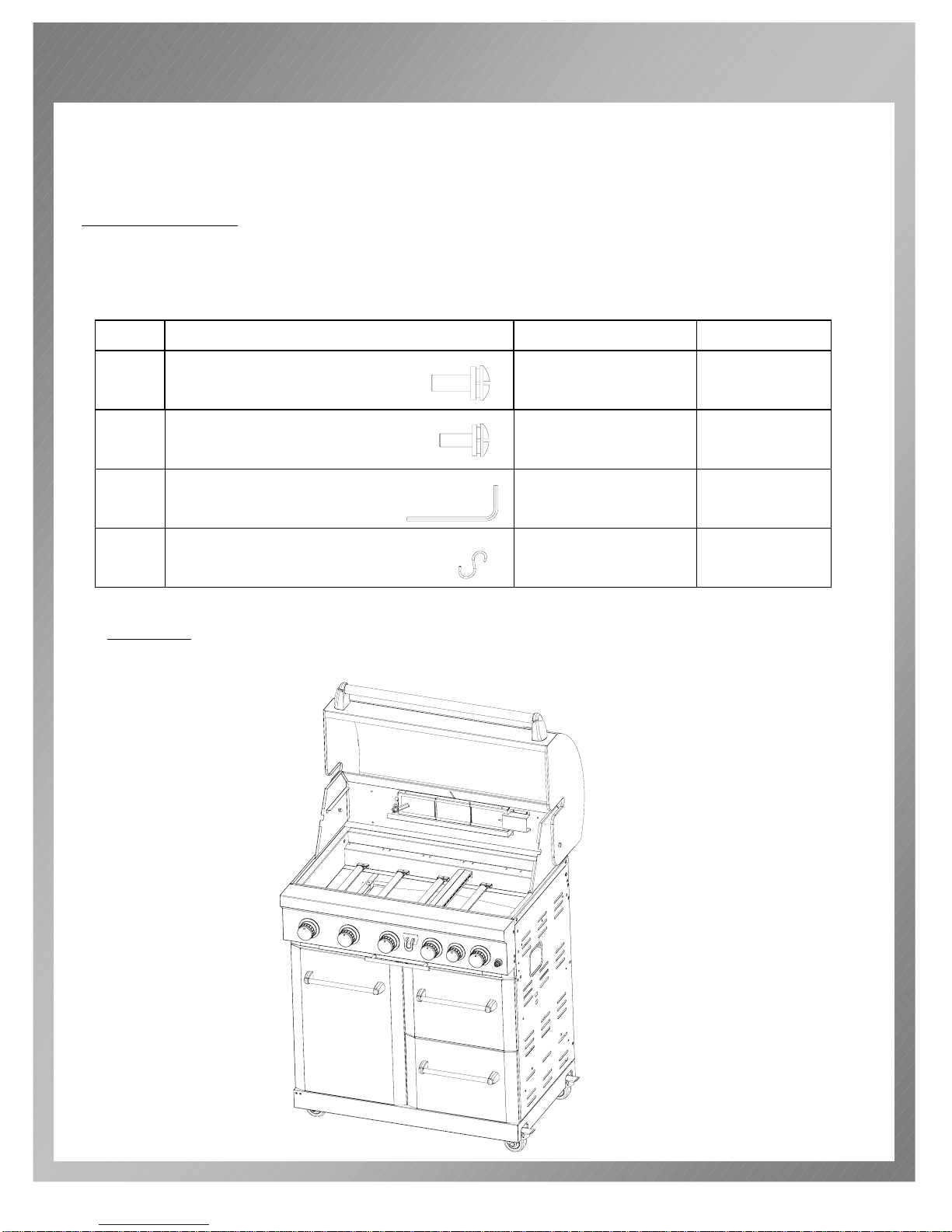

Tools Required:
#2 Philips head screwdriver (not provided)
Hexagon/Allen wrench (provided).
The following hardware kit is provided and packed in rotisserie motor carton:
ASSEMBLY INSTRUCTIONS
Item Description Specification Quantity
1 Truss head screw
(With Split lock And Gasket) 1/4-20x1/2” 20pcs
2 Truss head screw
(With Split lock And Gasket) 5/32-32x3/8” 5pcs
3 Hexagon wrench 1pc
4 BBQ hooks 4pcs
STEP I:
Take out main body of grill from carton. Remove all the packing materials.
6
ASSEMBLY INSTRUCTIONS

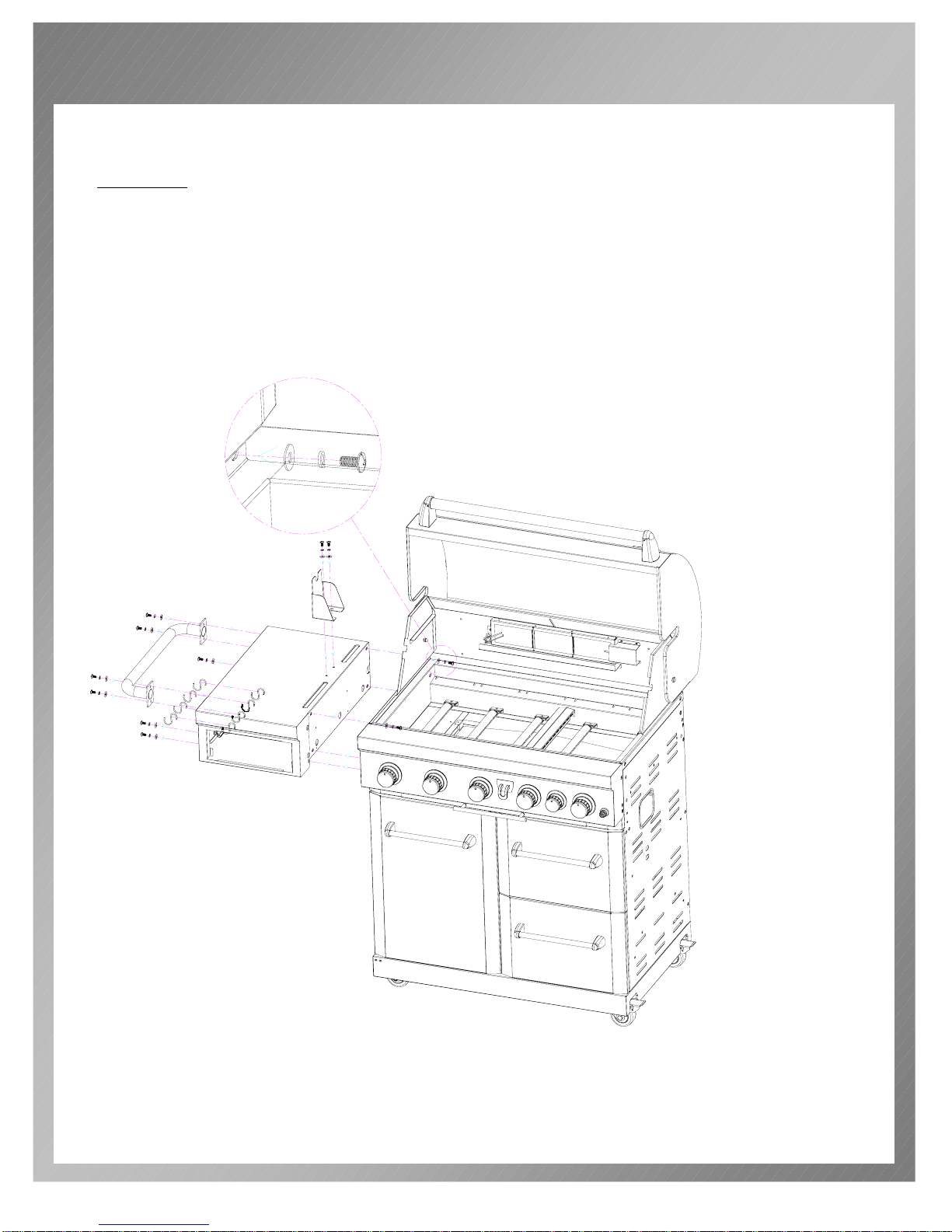

STEP II:
Take out left side shelf from carton.
Use two 1/4-20x1/2” screws to attach left side shelf from inside of the firebox,
and use three same screws to attach it from outside of firebox.
Use four 1/4-20x1/2” screws to attach push bar on left side shelf.
Use two 1/4-20x1/2” screws to install motor bracket on left side shelf.
Take out four S-style BBQ tool hooks from the hardware bag, then hang on
the edge of the left side shelf.
7
ASSEMBLY INSTRUCTIONS

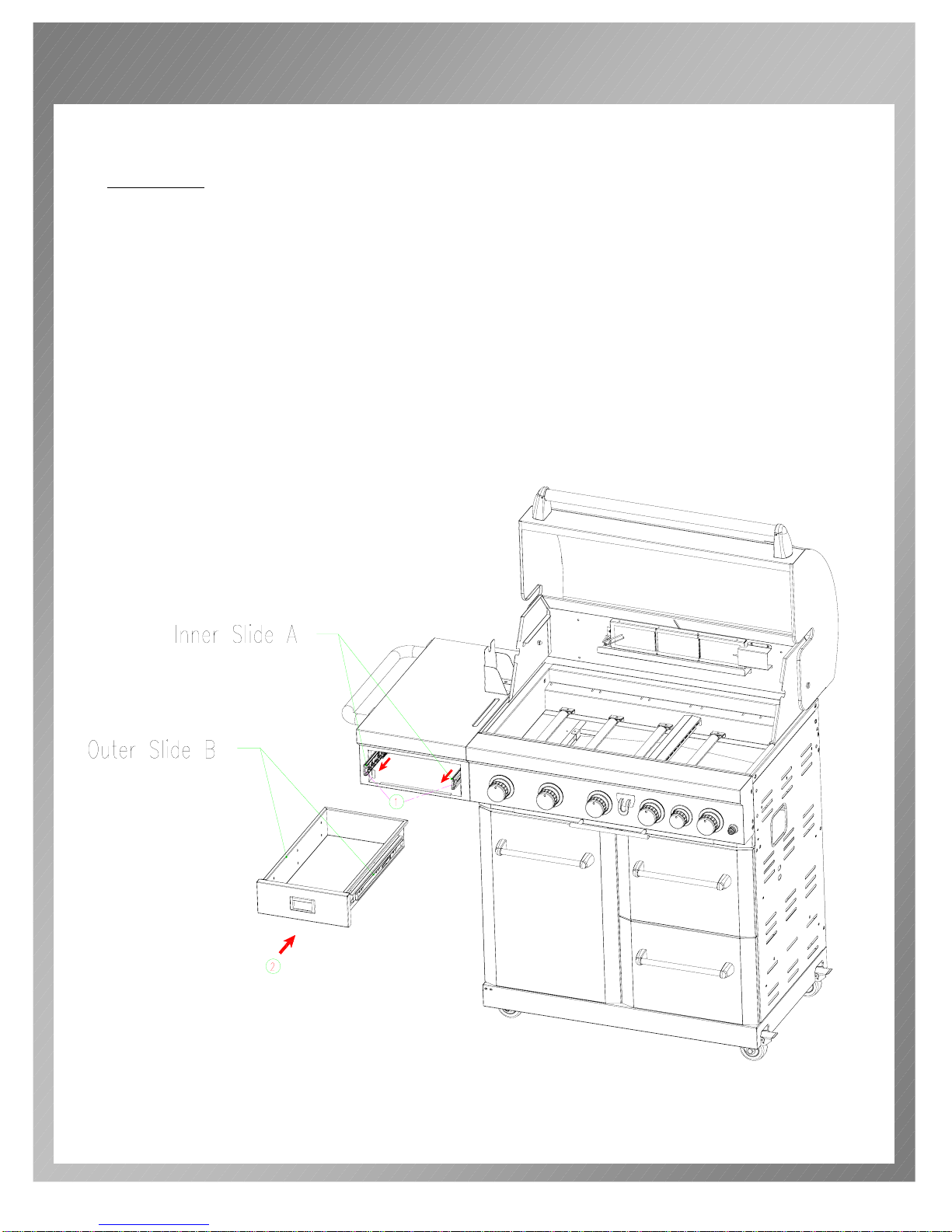

STEP III:
Remove the left side shelf drawer from inside grill cabinet.
Pull out the two drawers inner slides (A) attached to left side shelf, all the
way out.
Insert the drawer into left shelf , make sure the outer slides (B) insert into the
inner slides (A) push drawer in evenly and slowly on both sides.
Notice:push drawer in and out until it goes in smoothly and will not fall of slides
when pulled out ,if not please re-insert outer slides (B) into inner slides (A)
and repeat the steps.
