Brandstand Standroid Manuale
Standroid
Setup Instructions
A
A
A
B
B
B
5. Assemble waveline frame and place in front of Standroid make sure in middle.
After you assemble standroid ,lay horizantac and slide onefabric in position.
6. From the back insert the 2 bolts
that secure the TV profile. There
are 3 holes you can select the height
you need, push the fabric against the
screw and make a hole in the fabric.
7. Use the bolts supplied and attach to the TV as you can see in the above images.
Bolts(A) slide in to the hanging profile.Use wing nuts to secure TV profile.
8. After you connect the TV unit
you can cover the wires and the
connections by using the supplied
black fabric.
4. Force this last profile in
place and lock both sides,
it is made a little tight so it
locks the frame.
2. Connect only one horizontal
on the first joint, see picture.

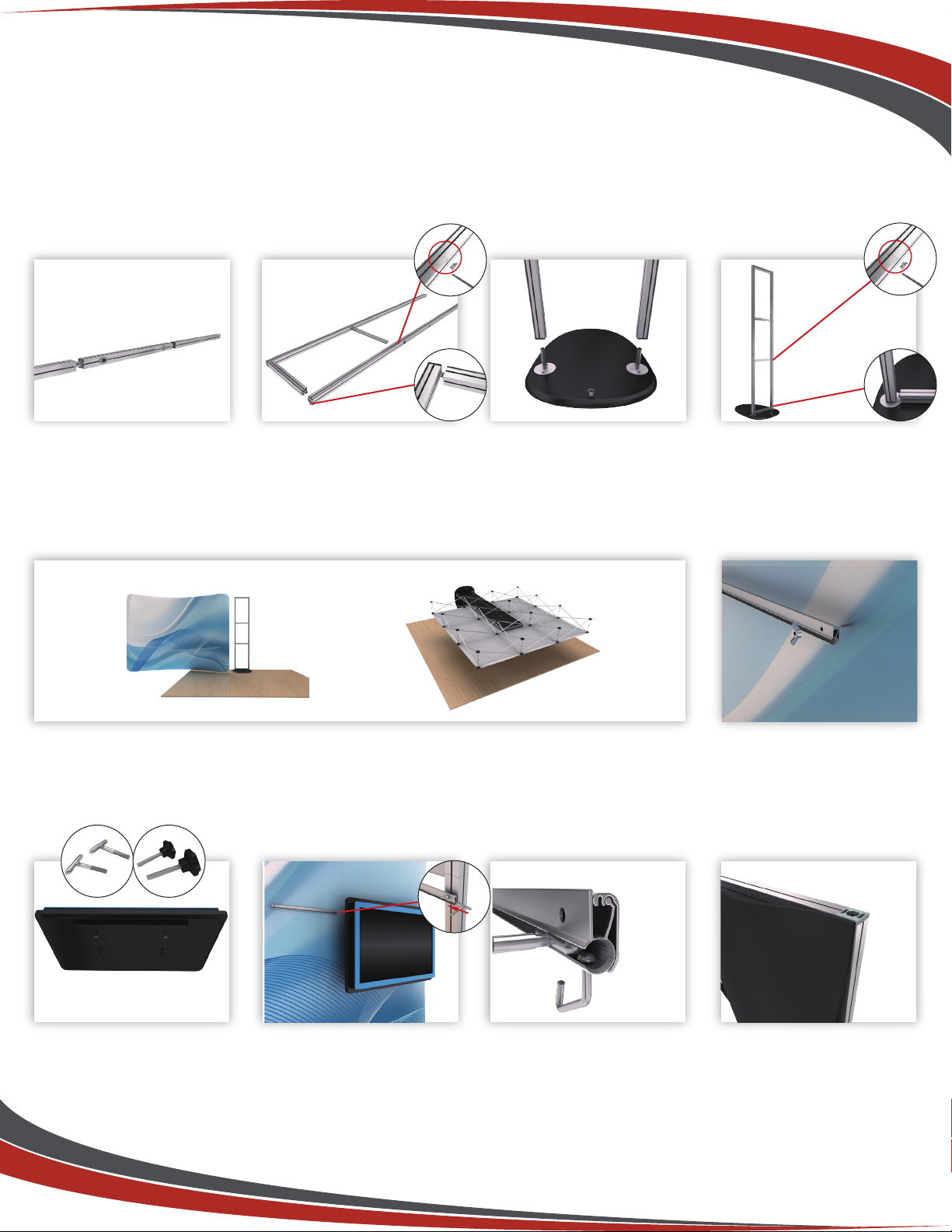

1. Assemble the bungie cord
poles by pushing the shafts
in the corded post.
3. Lift the frame and fit to
the base, push it all the way
in to the round plate.
1

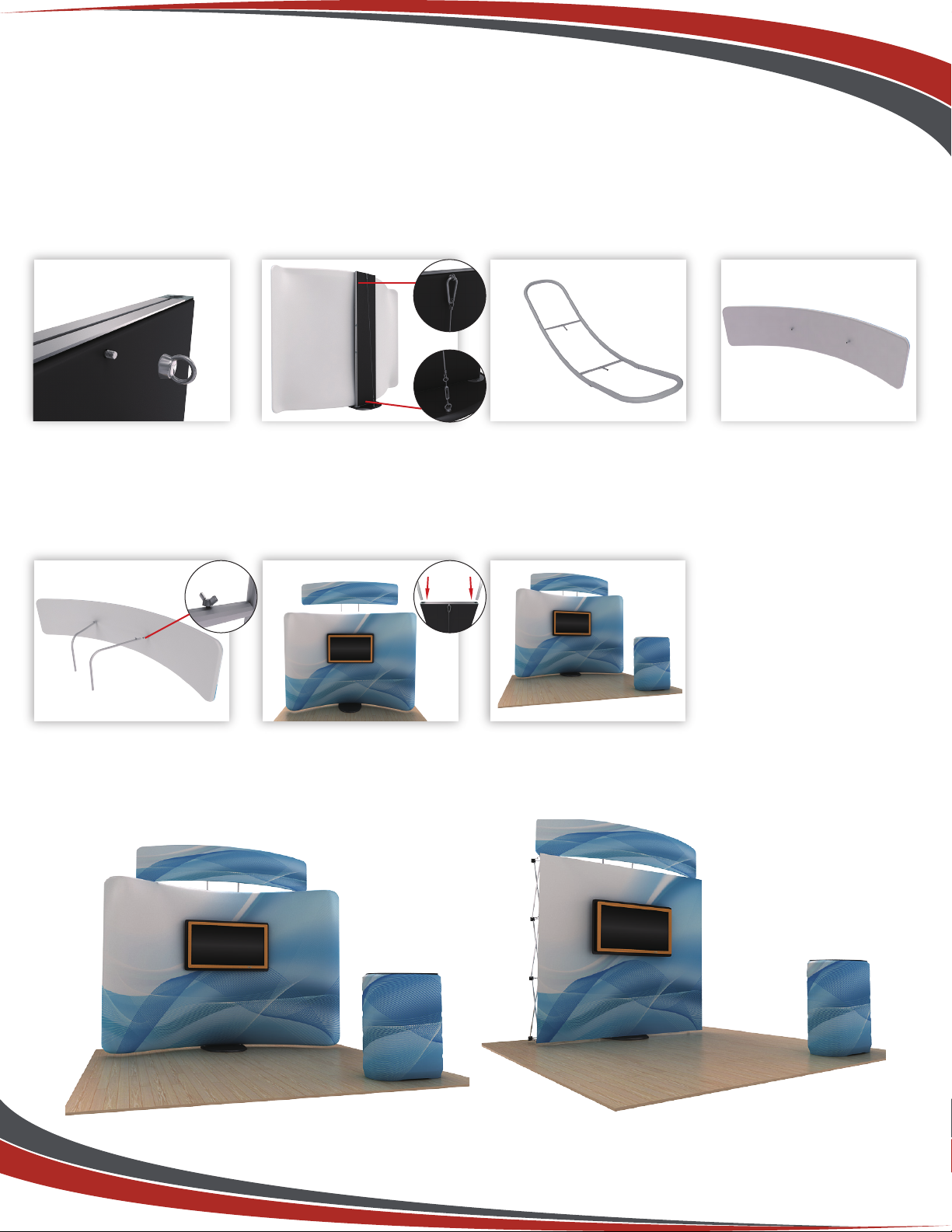

14. Lift header and place on top
of the frame that is holding the TV
unit.
15. Enjoy!
13. Slide the hanging post on to
the header and tighten the bolts
on to the small shaft.
12. Put the frame in the header
fabric and as you zip it, make
sure the hanging small pipes
come outside through the
eyelets.
10. Place the cable on the (C) via
a hook on the end of the cable,
and on the bottom use(D) to hook
and tension,screw tension hook till
the frame with the TV is 90°.
9. From the top of the joint insert
the belt through the fabric making
a hole, secure by (C)
11. Assemble the header frame
same shape as the above.
Follow color code.
CD
2
Standroid
Setup Instructions
