Digital Wi-Fi picture frame with 10.1” Touchscreen-LCD-Display

User’s Manual

Art. 21257

Model BRAUN DigiFrame 1019WiFi black

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Braun DigiFrame

1019 WiFi o cerca il tuo prodotto tra le migliori offerte di Cornici Digitali

Cautions

Precautions and maintenance

● For indoor use only.

● To avoid risk of fire or electric shock, do not expose the unit to moisture or

condensation.

● To avoid overheating, do not block the ventilation holes on the back oft he digital photo

frame.

● Keep the digital photo frame out of direct sunlight.

● Do not dismantle the digital photo frame. There is a risk of electric shock and there are

no user-serviceable parts inside. Dismantling the digital photo frame will avoid your

warranty.

Cleaning the LCD Screen

● Treat the screen with care. The screen of the digital photo frame is made of glass and

is easily broken or scratched.

● If fingerprints or dust accumulate on the LCD screen, we recommend using a soft, non-

abrasive cloth such as a camera lens cloth to clean the LCD screen.

● Moisten the cleaning cloth with the cleaning solution and apply the cloth tot he screen.

WARNING:

Please power off the unit before inserting or removing a card or

USB device.

Failure to do so may cause damage to the card/USB and the unit.

To reduce the risk of fire or electric shock, do not expose this

appliance to rain or moisture.

Note: This device is for private use only and not designed for

commercial utilization.

Introduction:

Thank you for purchasing the BRAUN DigiFrame 1019WiFi black.The product is

designed to allow quick and easy viewing of photos taken from your digital camera,

mobile phone, or from amemory storage card. Please read this user manual

carefully to learn the correct way to use the digital photo frame.

Features:

1. Supported picture formats: JPEG

2. Supported memory cards: Micro SD

3. USB-connection: Micro USB

4. Auto slideshow

5. Pre-installed Frameo-Software

6. 16GB internal memory

7. Adjustable brightness

8. Copy and delete files in the in-built memory &memory card

9. OSD languages: English and other languages selectable

10. Transfer photos and short videos possible (15s)

Packaging Check List:

1. 10,1 Inch (25,7 cm) digital photo frame

1piece

2. AC/DC adapter

1piece

3. User´s manual

1piece

4. Bracket

1piece

5.Screw 1piece

Contents

1. Getting started........................................................................................................... 4

2. frameo app.................................................................................................................. 4

3. terms of use................................................................................................................4

4. Welcome to Frameo...................................................................................................5

5. Operating informations.............................................................................................. 5

6. Settings........................................................................................................................ 6

6.1 My frame............................................................................................................ 6

6.2 Manage photos..................................................................................................6

6.3 My Friends........................................................................................................ 7

6.4 Display and Slideshow......................................................................................7

6.5 WiFi..................................................................................................................... 8

6.6 Backup und Restore.........................................................................................8

6.7 About...................................................................................................................8

7. Stand Instructions.......................................................................................................9

8. Technical Specifications...........................................................................................9

9. Privacy......................................................................................................................... 9

10. Technischer Support...............................................................................................10

11. Radio and TV interference statement.................................................................. 10

1.G e t t i n g started

Putthedigital photo frame with installing bracket onaflatposition steadily, then plug one

end oftheACadapter i n t o astandard 100 –240 VACelectrical outlet andtheother end

i n t o theD C INslot ontheright side oftheframe.

Slowly r e m o v e theprotective film covering ontheframe.

First, toset upyour frame follow theq u i c k start guide included i n thepackage.

Ify o u arenew tousing frameo then start byfollowing theterms ofuseonpage 4orfollow

theonscreen guide when powering i t onforthefirsttime.

Oncey o u have set upyour frameo, start connecting i t toyour friends and family.

2.frameo app

Tosend photos toyour frame, usetheframeo appfori O S orAndroid

Find theframeo app on:

Google play bysearching for“frameo”

AppStorebysearching forframeo

3 . Terms ofuse

When starting your frame forthefirsttime,y o u will need tosetup theframe.

A LLSETTINGS CANBECHANGED THROUGH THESETTINGS MENUAFTERWARDS.

First y o u start byselecting alanguage. Thisw i l l bethelanguage used throughout

frameo.

Connect your frame totheinternet byconnecting i t toaWi-Fi.

I F A NEWER VERSION O F THEFRAMEOSOFTWARE I S AVAILABLE,THENY O U W I L L BEPROMPTED

W I T H A N UPDATE DIALOG.I TI S RECOMMENDED TOUPDATE Y O U R FRAMEIMMEDIATELY I F

PROMPTED.

Enteryour name, and thelocation where y o u have placed your frame e.g.“Living

room”, “ K i t c h e n ” or“Office”.

4. Welcome to frameo

Start by connecting with your friends and family by providing them with a unique code from

your frame.

If you want to be able to send photos to the frame yourself, start by downloading the app

for iOS or Android on App Store or Google Play. Then use the code to connect your frame

and app as described below.

Connecting a new friend:

Make sure that your friend has downloaded and installed the frameo app

Click the add friend icon on your frame . A dialog will appear showing a unique

code which is valid for 24 hours.

Now share this code in whatever fashion you prefer e.g. SMS, E-Mail, IM, phone

call, to your friend.

ONCE YOUR FRIENDS HAVE ADDED THE CODE IN THEIR FRAMEO APP,THEY WILL

AUTOMATICALLY APPEAR ON YOUR FRAME AND BE ABLE TO SEND YOU PHOTOS.

5. Operating information

You interact with your frame through its touchscreen.

Swipe left or right to go through your photos.

To access the menu bar, simply tap once on the screen, this will show the menu.

In the menu bar you will find quick access to the add friends dialog and the settings

6. Settings

Through settings, you can personalize your frame to your needs.

6.1 My frame

Frame name:

Changes the name of your frame. This is also the name the connected friends and family

will see in their list of connected frames.

Frame location:

Changes the location of your frame. This is the location displayed on your friends' and

family's list of connected frames which can help to distinguish frames from each other.

Set language:

Sets the language throughout your frame.

Sleep mode:

frameo offers a sleep mode which turns off the screen to reduce power consumption while

you e.g. are sleeping. Its default setting is to turn off the screen at 23:00 and turn on the

screen again at 07:00.

To change this just set the sleep mode start/end time.

YOUR FRAME IS NOT POWERED DOWN OR IN STANDBY,SO YOU WILL STILL BE ABLE TO RECEIVE

PHOTOS DURING SLEEP MODE.

6.2 Manage photos

Show/hide photos:

Select which photos to show/hide by tapping the particular photos you wish to show/hide.

Hidden photos will NOT be deleted from your frame, you can always select them to be

shown again.

Use to select or deselect all

Delete photos:

Select photos that you want to permanently delete from your frame by tapping the photo.

Use to select or deselect all and to delete the selected photos.

Import photos:

Allows you to import photos from an external SD card.

BEFORE YOU TRY TO IMPORT PHOTOS FROM A SD CARD,MAKE SURE YOU HAVE A SD CARD

WITH PHOTOS ON INSERTED INTO YOUR FRAME.

Startbyselecting thephotos that y o u want toi m p o r t onto your frame.

Onceselected tapthei m p o r t button tostart thei m p o r t process.

I TI S CURRENTLY NOTPOSSIBLE TOA D D ACAPTIONO R DEFINE THEMOSTIMPORTANT P A R T O F

THEP H O T O W H E N USING THEIMPORT FUNCTION.A LTERNATIVELY A D D YOURSELF TOY O U R

FRIEND LISTA N D SEND THEMUSING THEA P P .

6 . 3 MyFriends

Thislist contains allthepeople that areallowed tosend photos toyour frame.

R e m o v e person

Toremove aperson fromthislist, thereby removing their permission tosend y o u photos,

tapthedelete i c o n .Y o u will then beasked toconfirm theremoval and i f y o u would like

tor e m o v e allphotos received fromthisperson.

Addperson

Toallow anew person tosend y o u photos, simply taptheadd friend button andshare

thepresented code i n whatever w a y y o u prefer.

6 . 4 Display a n d Slideshow

Timer

Define theduration aphoto should bedisplayed.

Show caption

Setswhether ornot todisplay thecaptions thatyour friends have sent with thephoto.

Check todisplay captions. Uncheck tohide captions.

Brightness level

Adjust thebrightness level ofthescreen.

Video playback

Determines how videos should be played when autoplay is enabled.

󱕰 Loop videos: The video will loop until the slideshow timer is up.

󱕰 Play once: The video will play once and show it’s thumbnail until the timer is up.

󱕰 Play once and continue: The video will play once and continue to the next photo, or

video, once it completes.

Playback audio

Sets the default audio playback behaviour of videos in the slideshow to ON or OFF.

Audio can always be manually enabled/disabled regardless of this setting.

Video volume

Adjust the volume level for video sounds on the frames.

Automatic backup

Ifchecked, your frame w i l l automatically takeabackup within 30hours ofy o u receiving

new photos ormakingchanges onyour frame.

REQUIRES THATY O U HAVEINSERTED AWRITEABLE SDCARDI N T O THEFRAME.

Restore f r o m backup

B E F O R E Y O U ATTEMPT TORESTORE Y O U R FRAME,S T A R T BYCONFIRMING THATY O U R BACKUP

I S UP- TO- DATE.

Torestore fromabackup, y o u m u s t firstreset theframe. Iti s important tonotethat y o u

cannot restore toanewFrameo frame

Reset frame

Removes alldata fromyour frame. Thiswill permanently r e m o v e allyour photos,

friends/connections andsettings.

6 . 7 Update

Check f o r update

Check i f anupdate i s available foryour frame.

Shareanonymous analytics data

Sharing anonymous analytics data helps ustremendously with improving theframeo

software. Weunderstand i f y o u donot wish toshare thisdatawith us.Setchecked i f y o u

wish tohelp usi m p r o v e frameo. Setunchecked todeny thesharing ofanonymous

analytics data.

Guide

Opens theq u i c k start guide, which w a s shown when y o u firststarted theframe.

6 . 5 W i - F i

Setwhich Wi-Fitheframe should beconnected to.

6 . 6 Backup a n d Restore

Backup frame t o SDcard

Taptomakeabackup ofyour photos, friends andsettings. The timeofl a t e s t successful

backup will bedisplayed.

A NYEXISTING BACKUP O N THESDCARDW I L L BEOVERRIDDEN!

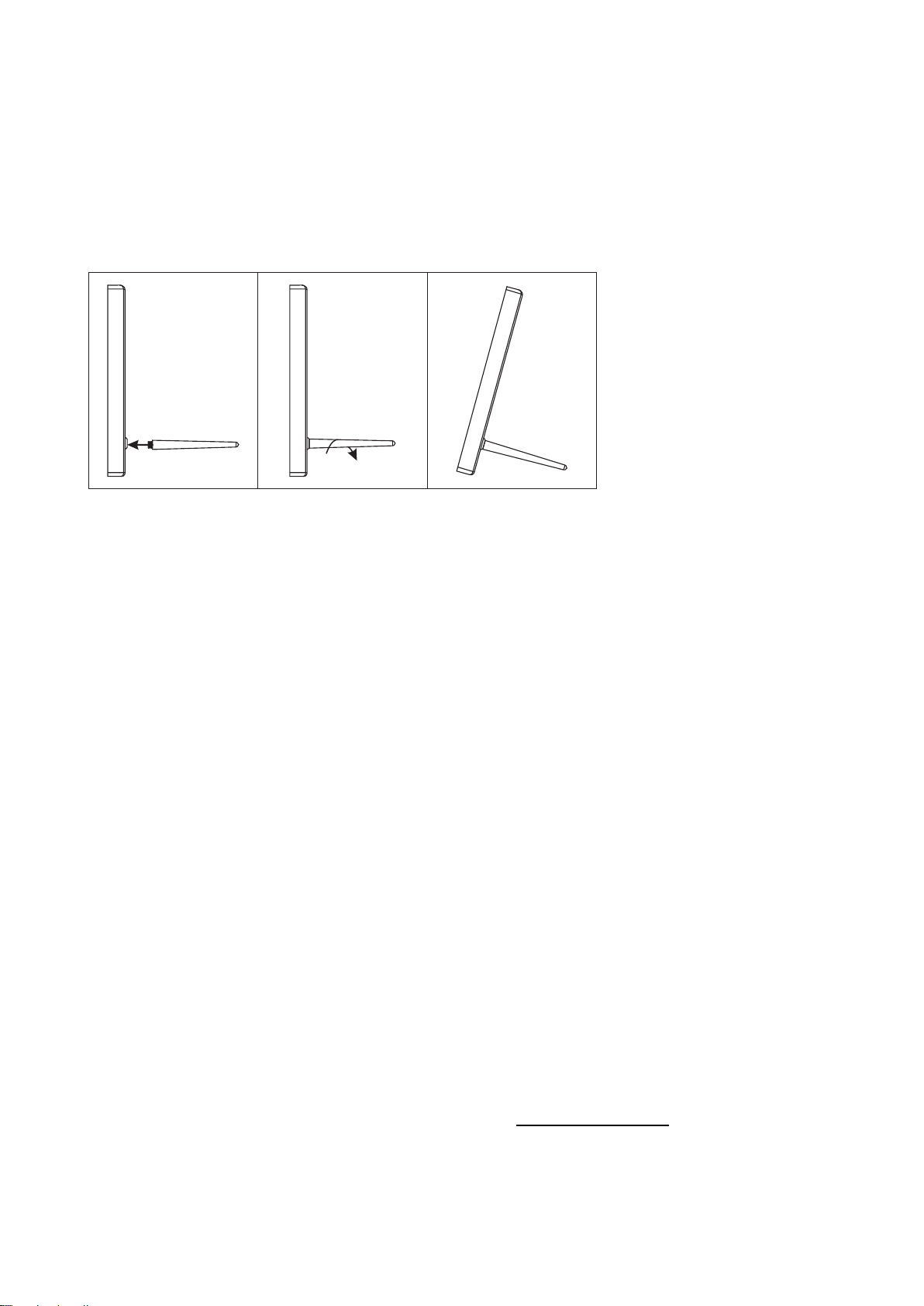

7. Stand Instructions

Insert the bracket into the slot of the digital photo frame and rotate the bracket clockwise.

Please make sure the stand is locked in before you put it on the table steadily. Please

refer to the illustration below.

8. Technical Specifications

Adapter :Input AC 100-240 V50/60 HZ, Output DC: 5V/2 A

Picture Formats: JPEG

Video formats: MP4

Memory Cards: Micro SD

USB: Micro USB

Screen Parameter:

Screen size: 10.1 Zoll (25,7 cm) LCD

Resolution: 1280 x800 Bildpunkte

Aspect ratio: 16:10

Brightness: 200 cd/m²

Viewing angle : ca. 180° (horizontal)

Working temperature: 0°C bis 40 °C, humidity: 10 bis 85 %

9. Privacy

For more information regarding privacy, please visit privacy.frameo.net

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Braun Cornice digitale

Braun

Braun DigiFrame 1360 Manuale utente

Braun

Braun 7000SLT Manuale utente

Braun

Braun DigiFrame 1587 Manuale utente

Braun

Braun Phototechnik DigiFrame 1160 Manuale utente

Braun

Braun DIGIFRAME 880 Manuale utente

Braun

Braun DigiFrame 1040 Manuale utente

Braun

Braun DigiFrame 8 Slim Manuale utente

Braun

Braun DigiFrame 1587 8GB Manuale utente

Braun

Braun DIGIFRAME 1960 Manuale utente

Braun

Braun BA DF88 Manuale utente

Braun

Braun DigiFrame 1010 WiFi Manuale utente

Braun

Braun DigiFrame 2050 Manuale utente

Braun

Braun DigiFrame 1850 Manuale utente

Braun

Braun DigiFrame 711 Manuale utente

Braun

Braun DigiFrame 1593 Manuale utente

Braun

Braun DigiFrame 1080 Manuale utente

Braun

Braun DigiFrame 10.2 Manuale utente

Braun

Braun DigiFrame 1361 Manuale utente

Braun

Braun DigiFrame 1019 Manuale utente

Braun

Braun DigiFrame 1095 Manuale utente

Braun

Braun DigiFrame 1590 Manuale utente

Braun

Braun DigiFrame 1060 Manuale utente

Braun

Braun DigiFrame 720 Manuale utente

Braun

Braun BUSINESS LINE 158 8GB Manuale utente

Manuali Cornice digitale popolari di altre marche

LENCO

LENCO DF-830 Manuale utente

NIX

NIX Advance X10G Manuale utente

Nextar

Nextar N7S-100 Manuale utente

Sungale

Sungale TD350A Manuale utente

texet

texet DPF-830 Istruzioni per il montaggio

Philips

Philips SPF2017 Manuale utente

Philips

Philips SPF1327 Manuale utente

Philips

Philips SPF7010/10 Manuale utente

Digital Spectrum

Digital Spectrum MemoryVue MV-1500 Manuale utente

ViewSonic

ViewSonic VFM1042-52 Manuale utente

YURAKU

YURAKU YUR.PHOTO 7B4C Manuale utente

Denver

Denver PFF-710WHITE MK2 Manuale utente

Pandigital

Pandigital PAN8000DWPCF1 Manuale utente

Rekam

Rekam Deja View HD-850 Manuale utente

Majestic

Majestic DF 918HD MP3 Manuale utente

ViewSonic

ViewSonic DPF8-CAM Manuale utente

Philips

Philips SPF2527 Manuale utente

Digital Foci

Digital Foci Image Moments IMT-063 Manuale utente
