BraunAbility Carony 24 Manuale utente
Carony 24”
Transfers a person between wheelchair and car
Carony
18
Thank you for choosing a
Carony
from BraunAbility!
The following manual is an important part of the product, providing you with
information on how to achieve maximum performance and safe operation. Keep the
manual in a safe place so that you can refer to it when necessary.
If you have any questions about your adaptation, please contact your installation
engineer. If you want to know more about us and our range of car adaptation
solutions visit www.braunability.eu.
Once again, thank you for placing your confidence in our products!
Carony 24”
19
EN
Index
29
20
31
22
23
24
26
28
“Product certificate” at the end of the manual.
Adjustments
Brakes
From the Carony to the vehicle
From the vehicle to the Carony
Driving the wheelchair
Carony 24”
Safety
Operation
Care instructions
Introduction for users
Carony 24”
20
S afet y
To fold in or remove the Anti-tip protection, pull out the release button.
Use the back edge of the wheel unit as tread rail when tipping the whe-
elchair over sidewalk edges etc.
When transported in a vehicle without the Carony
swivel base, the Carony must have the Transporta-
tion tie down mounted, in which the securing belts
are fastened. The Carony Transportation tie down is
available as option.
Carony 24” 21
EN
Safety

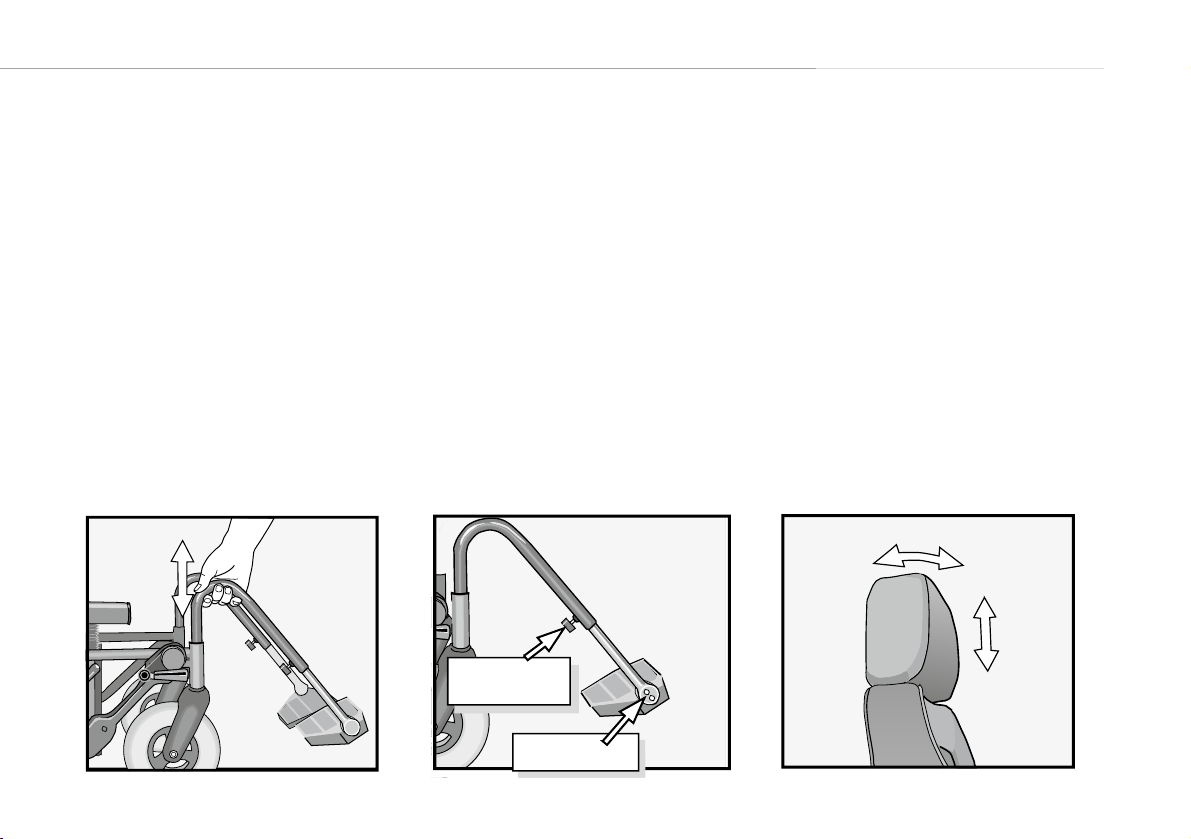

Legrests
Angle adjustment /
Height adjustment /
Headrest
Mount the legrest into the legrest
anchorage. There is a fixing track at the
bottom of the anchorage pipe, which
keeps the legrests in forward position.
To turn the legrests outwards You need
to first lift slightly upwards.
Note! Do not lift the wheelchair by
holding onto the legrests!
Adjust the angle by loosening the socket
head screws, using an 5 mm.
Unscrew the height adjustment to adjust
the position of the foot plate.
Push the headrest by hand, to adjust
it forward or backward. The height
adjustment is done by pulling up-wards,
or pushing downwards.
Adjustments
Carony 24”
Height adjusment
22
Operation
Backrest
Angle adjustment /
Armrests
Height adjustment /
The adjustment of backrest is limited to
avoid risk for tilting. Adjust the backrest
by turning the control, placed on the
right hand side of the seat. Turn clock-
wise for raising the seat forward and
counter-clockwise for leaning
backwards.
Move the screw for the height adjust-
ment to a suitable hole.
The screw for angle adjustment is placed
on the front edge of the arm rest.
Release the brakes. Push the release le-
ver down and pull the units apart. Rotate
the user into the car using the Turnout
or Turny.
Remove the foot supports and fold the
anti-tip devices in. Bend your knees when
lifting to avoid back strain. Secure firmly
during transport.
B r akes
Backrest
adjustment
Height
adjustment
Angle
adjustment
Brake
Carony 24” 23
EN
Operation

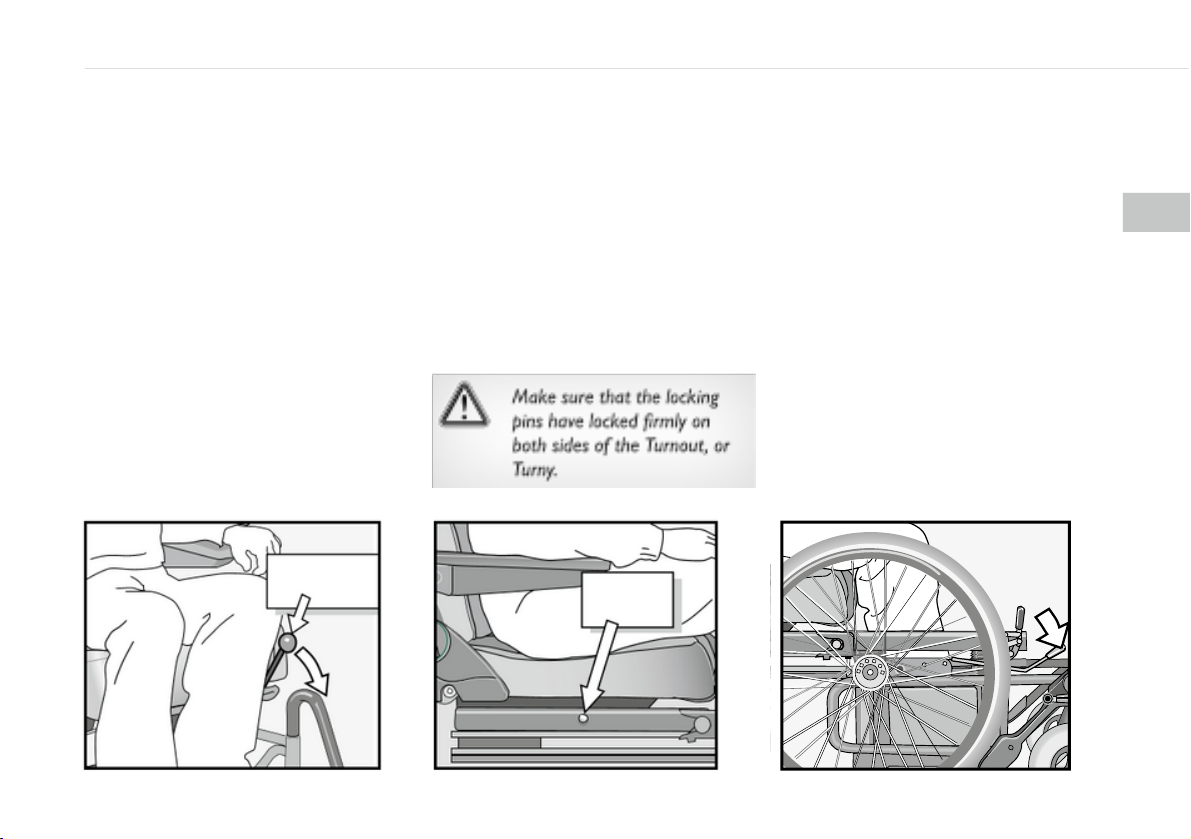

1. Preparing 2. Height adjustment 3. Docking onto the Carony
Open the door and swivel the Turnout,
or Turny, fully outwards.
Adjust to the correct docking height with
the crank on the Carony, or with the
Turny.
For a Turnout, Turny HD / Orbit
- brake the Carony after docking!
For a Turny Evo
- do not brake the Carony after docking!
Pull on the Carony to ensure that the units
have locked firmly into one another.
From the Carony to the vehicle
Carony 24”
24

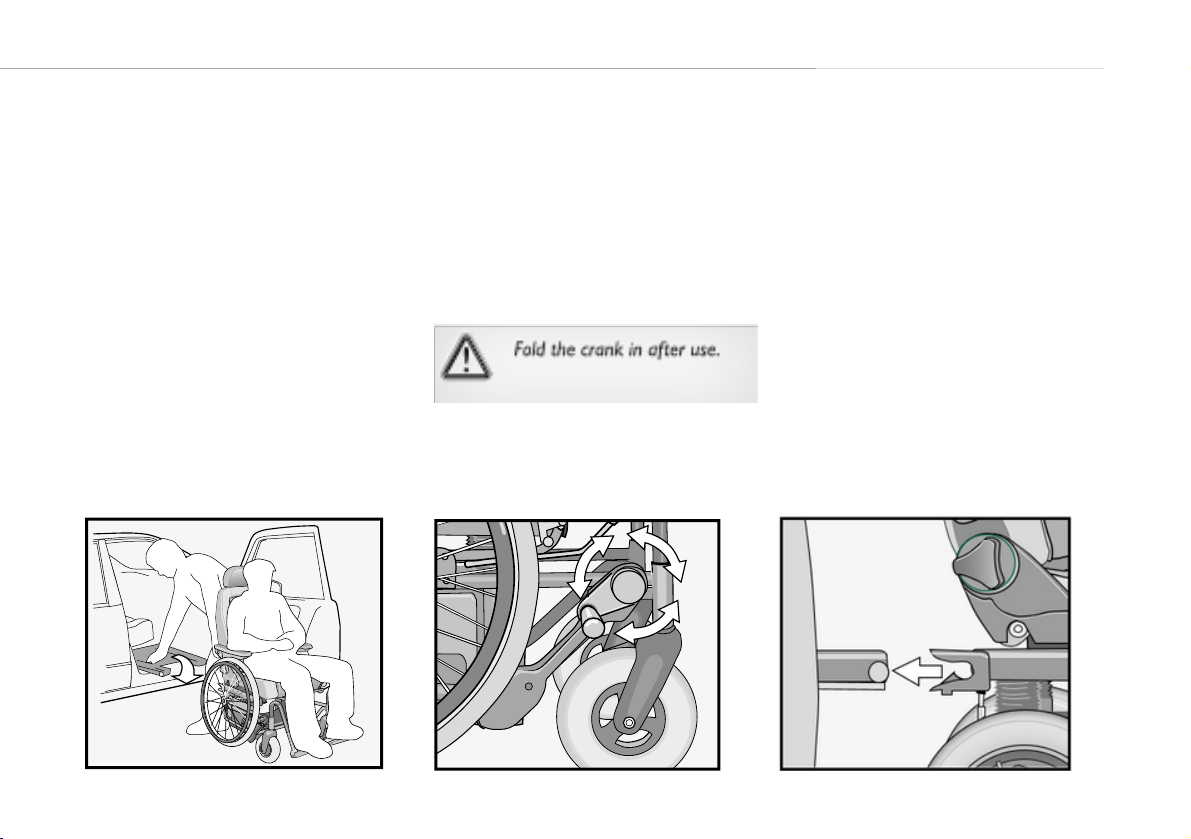

4. Sliding the seat in 5. Releasing the Carony
Push the release lever down and slide the
seat into the car. Allow the user’s feet to
slide over the Carony’s chassis,
protecting the head from the door post.
The weight displacement means that the
product into which the Carony docks
and the Carony are no longer on the
same level. Correct this by lowering the
Carony, or raising the Turny.
Release the brakes. Push the release
lever down and pull the units apart.
Rotate the user into the car using the
Turnout or Turny.
Remove the foot supports and fold the
anti-tip devices in. Bend your knees when
lifting to avoid back strain. Secure firmly
during transport.
Release lever
Locking pin
Carony 24” 25
EN
Operation
1. Preparing 2. Height adjustment 3. Docking the Carony
Open the door and swivel the Turno-
ut, or Turny, fully outwards. Move the
Carony forward.
Adjust to the correct docking height with
the crank on the Carony, or with the
Turny.
For a Turnout, Turny HD / Orbit
- brake the Carony after docking!
For a Turny Evo
- do not brake the Carony after docking!
Pull on the Carony to ensure that the units
have locked firmly into one another.
From the vehicle to the Carony
Carony 24”
26
