BA-6640 Elevate 6.6 Six Source, Six Zone Audio System
Quick Start Guide
Step 1 Check your Elevate 6.6 System for its contents which are:.
Qty Description
1 BA-6640M 6 source, 6 zone amplifier
6 BA-6640KP Keypads with white, ivory, almond and black inserts and trim plates
1 BA-6640AP Allport connection hub
1 BA-6640APC Allport cable
6 BA-VEC Visible LED IR emitters
1 BA-NC1 Network cable
1 BA-PC2-NA Power cable, 2 wire, North America
Step 2 Terminate the zone speaker wires into the back of the BA-6640AP Allport connection hub. The speaker terminations are labeled zones 1 - 6 L-,L+ and R-,
R+, fig. 1.
Step 3 Plug the zone CAT5 cables into the RJ45 ports on the back of the Allport, fig. 2. Note that the CAT5 plug in order is irrelevant to the operation of the system.
Step 4 Install the Allport into any dual gang low-voltage mounting ring.
Step 5 Plug the BA-6640M amplifier into an AC power source. This activates important internal protective circuitry. When the amplifier is plugged in and the power
button is pressed the blue Stand By LED should be lit.
The new Elevate 6.6 whole-home audio system is the perfect 6 source, 6 zone audio system for any home. Jazz up the kitchen, do the salsa on the patio, and let the
kids listen to. . .what ever kids listen to these days. . .in the living room, and so on. You can choose music from six audio sources in up to 12 zones throughout the home.
Providing music for the entire family is easy with the Elevate 6.6.
ZONE4
L-
L+
R-
R+
ZONE5
L-
L-
L+
L+
R-
R+
ZONE4
L-
L+
R-
R+
ZONE3
ZONE1 ZONE2
L-
L-
L-
L+
L+
L+
R-
R-
R-
R+
R+
R+
ZONE5
L-
L+
R-
R+
ZONE6
L-
L+
R-
R+
Fig. 1 Fig. 2

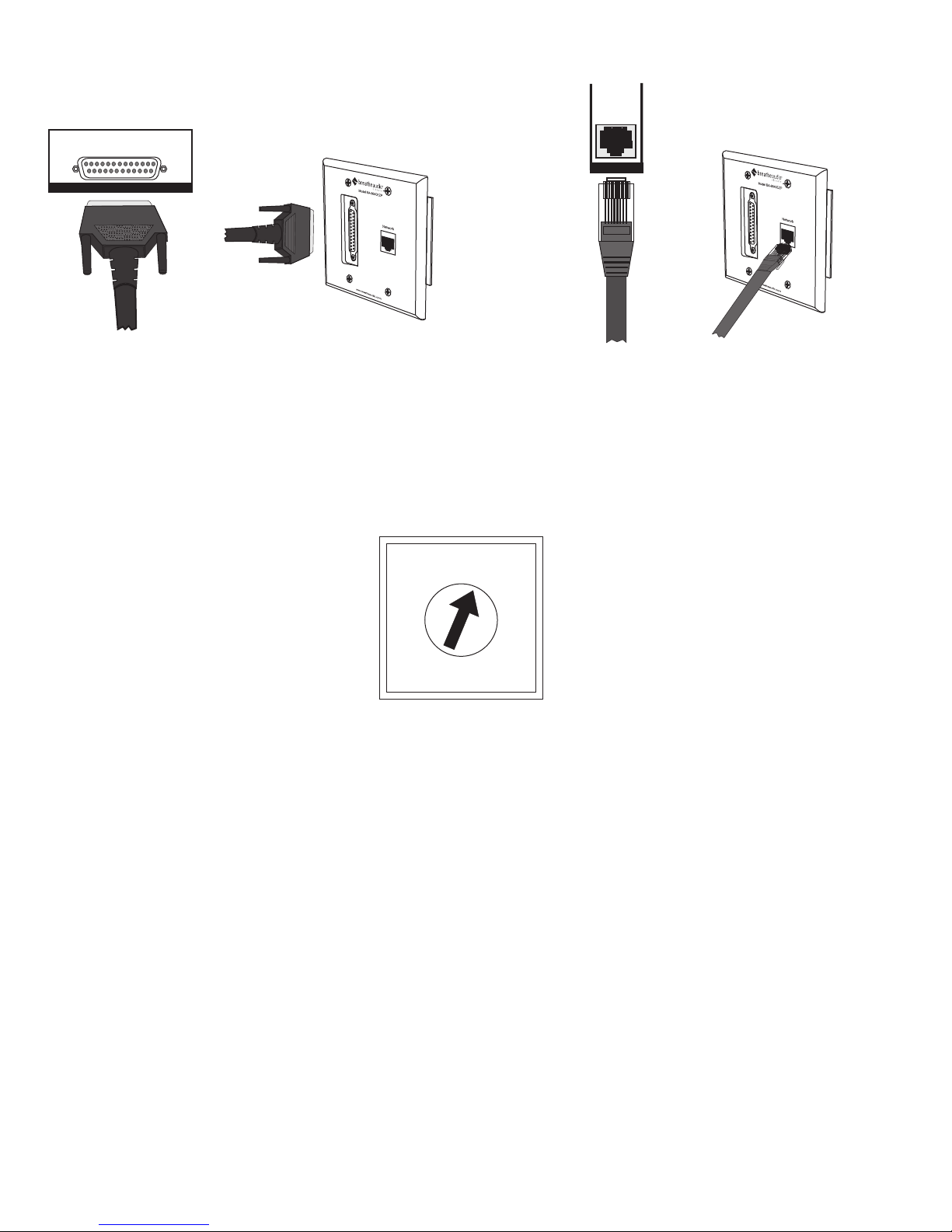

Step 6 Plug the Allport Cable into the back of the BA-6640 amplifier and into the face of the Allport, fig. 3. Connect the Network Cable at the Network connection on
the Allport and at the back of the BA-6640 amplifier, fig. 4.
Step 7 Connect the audio source equipment into the appropriate audio RCA connections at the back of the BA-6640. This connection is made using standard stereo
RCA cables.
Step 8 For each source 1 - 6 plug in one of the included BA-VEC IR emitters into the appropriate IR output 1 - 6 and attach the emitter mouse end to the IR receiver
window of the corresponding source equipment. This enables wireless IR communication from the source remote control to the through each of the keypads.
Step 9 At the back of each keypad, set the correct zone number using the Zone Address rotary switch, fig. 5. Note that if you are using the BA-6640XS expander
system, that the settings for zones 7 - 12 are settings 7 - C on the rotary switch. Each keypad must have its own unique zone setting. Once set and plugged in, the
keypad should be fully functional.
SP EA KE R AN D D ATA SIG NA LS
AL L PORT CO NNECT IO N
CO NNECT TO
BA -6640 EZ P
NETWORK
Fig. 3 Fig. 4
0
1
F
2
E
3
4
D
5
C
6
B
7
A
8
9
Fig. 5
Elevate 6.6 Specifications
Zones 1-6 Power Amplifier Outputs Zone Trigger Outputs
Continuous AverageOutput Power 40W (20W x 2) Output Power 12V @ 50mA
Two channels driven 30-20kHz @1% THD Outputs 6 (zones 1-6)
Rated Distortion (1/2 power) 0.40%
Rated Impedance 6 Ohms Power Requirements
Damping Factor 50+ Power Supply 120VAC/240VAC 50/60Hz
Frequency Response (20-20kHz) ±2 dB Power Consumption all channels 340VA (290W)
driven to full-rated power
Zones 1-4 Preamplifier Outputs Cower Consumption average 50VA (40W)
Variable output 0-600mV operating conditions
Fixed output 600mV Power Consumptionno signal 30VA (12.5W)
Impedance 600 Ohms USA Safety Listing (UL 6500)
Canada Safety Listing(CAN/CSA E60065.00)
Source Inputs 1-6 CE Listing/SEMKO (EN60065, EN55013,
input Impedance 10K EN55020, EN6100-3-2, EN6100-3-3/A1)
Input Sensitivity for rated power 300mV RMS
Input Overload 3V RMS Physical Specifications
Unit Size Millimeters 88 H x 430W x 325 D
Emitter Outputs Unit Size Inches 3 1/2 H x 17 W x12 3/4 D
Source Outputs 6 Shipping Size Millimeters 290 x 540 x 440
Sum Outputs 2 Shipping Size Inches 11 3/8 x 21 1/4 x17 3/8
Output Drive Current 100mA Unit Weight Kilograms 7.8
Output Drive Voltage 12V Unit Weight Pounds 17.0
Compatible with single and dualemitters Shipping Weight Kilograms 12.7
Shipping Weight Pounds 28.0
System Keypad Size Millimeters 107.2 H x 41.5 W x 32.5 D
System On 12V @ 50mA Keypad Size Inches 4 1/4 H x 15/8 W x 1 1/4 D
External Mute 3-12V DC
BreatheAudio reservesthe right to change specifications
without notice.
