Brecknell RD65 Manuale utente

RD65

User/Technical

Manual

Contents subject to change without notice

Version 1.3

05/2016

TABLE OF CONTENTS

1.INTRODUCTION..................................................................................................1

General Information................................................................................................................................... 1

Specifications................................................................................................................................................ 1

Contents.............................................................................................................................. ............................. 1

2.Installation.............................................................................................................2

Display Setup.............................................................................................................4

3.1 Protocol Format Details................................................................................................................... 5

1.Connection and Wiring Details.................................................................9

RS232 Interface connection.................................................................................................................. 9

RS485 Interface connection.................................................................................................................. 9

2.Symbols Defined:..............................................................................................9

3.Troubleshooting.............................................................................................. 10

RD65 www.brecknellscales.com.1.

1. INTRODUCTION

General Information

Read and understand all operating instructions before using this product. Keep this

manual for future reference.

Ensure that the data communication format, protocol, and interface selection are correctly

set up before using.

Do not use in areas of fluctuating voltage.

Do not operate near high power electronic devices that can emit RF signals and cause

unstable readings.

Specifications

Model RD65

Communication

Interface Types RS232

RS485

Data format 8N1, 7E1,7O1 selectable

Baud rate 1200bps～115200bps selectable

Protocols 14 Selectable fixed Protocols

Display Contents Net/Gross, kg/lb indicators, weight data

Display Type Ultra-bright LED display with 6 digits, 5” high, 7-segment digits

Display Range -99,999 to 999,999

Operating Temp. -5° to 160°F (-20° to 70°C)

Power Supply 11V-32V DC adaptor

Waterproof

Grade IP65

Contents

RD65 remote display RS232 10m communication cable

DC24V 2.5A UL adaptor 2A fuse

Quick Guide & Technical Manual

RD65 www.brecknellscales.com.2.

2. Installation

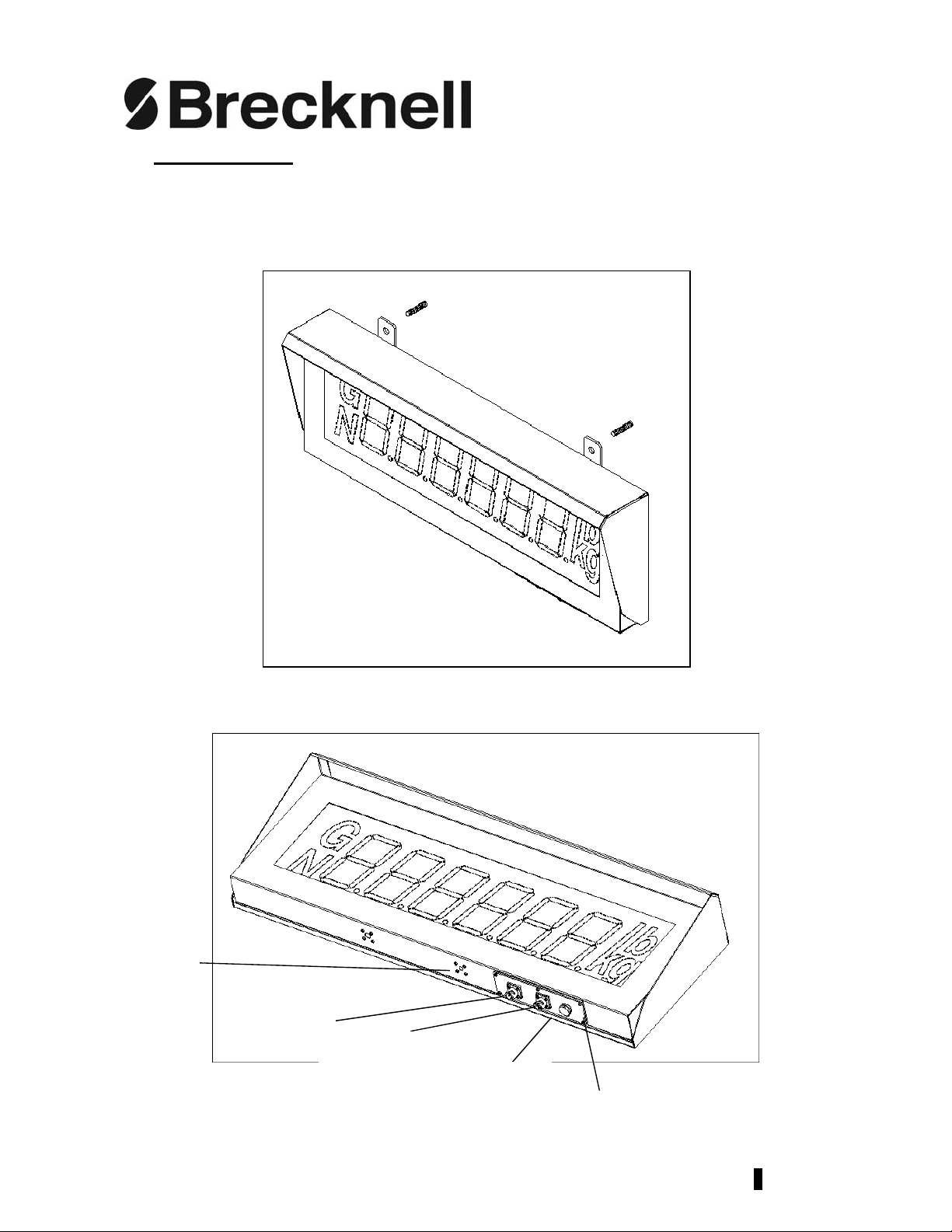

1. Install the remote display through the hanging holes on wall with two M12 or 1/2”

screws. (Hanging hole’s diameter is 13mm). Ensure secure mounting before

proceeding.

2. Interface

Power

Socket Communication

Output Socket Config. Switch

Compartment 2A Fuse

Light sensor

RD65 www.brecknellscales.com.3.

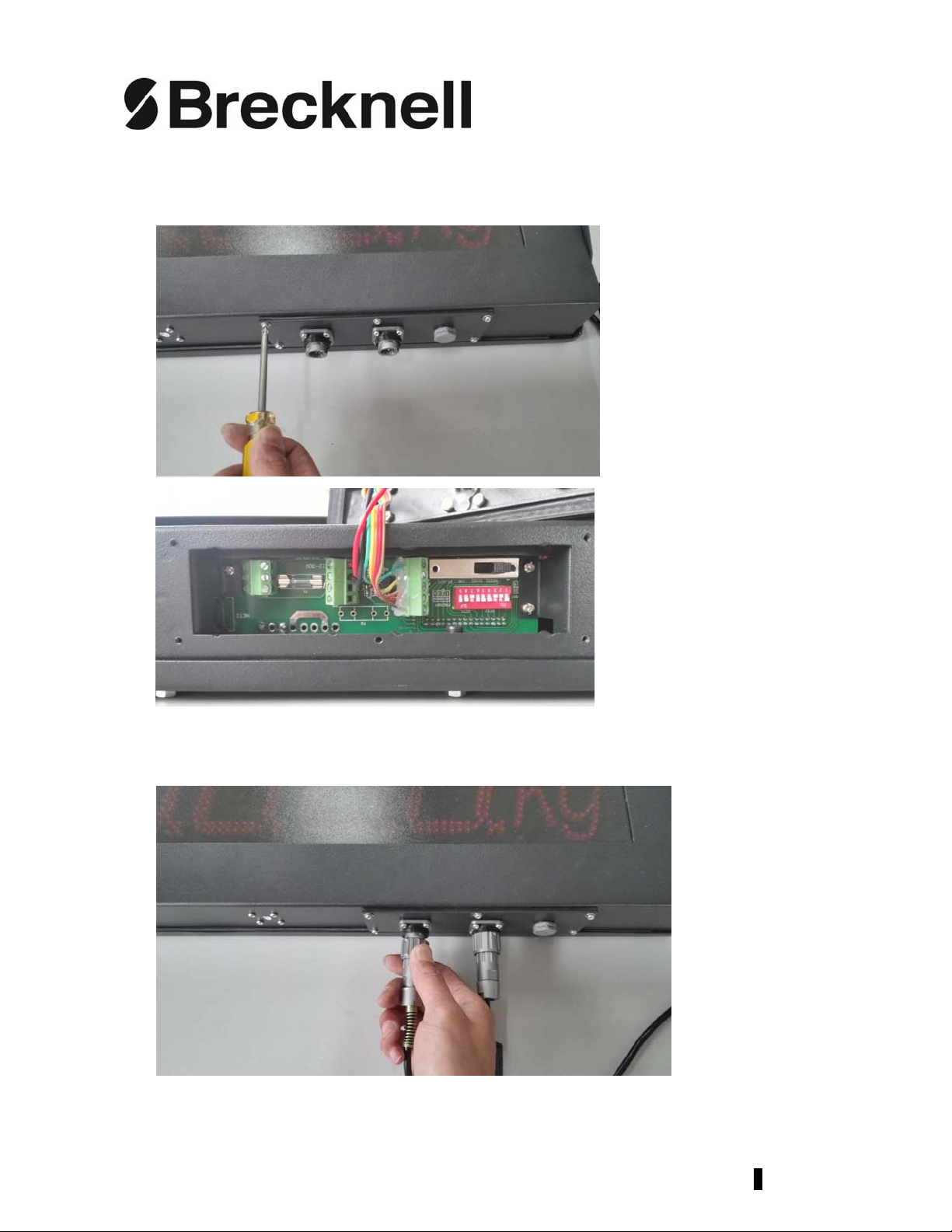

3. Open the cover of “Config Switch Compartment” for configuration switch settings

prior to use if necessary. See “Display Setup section”. (defaulted setting: Baud rate

9600, data form 8N1, Protocol format 3.1.5, Communication port RS232)

4. Attach power and communication cables. DO NOT power on until after completing

step 4.

RD65 www.brecknellscales.com.4.

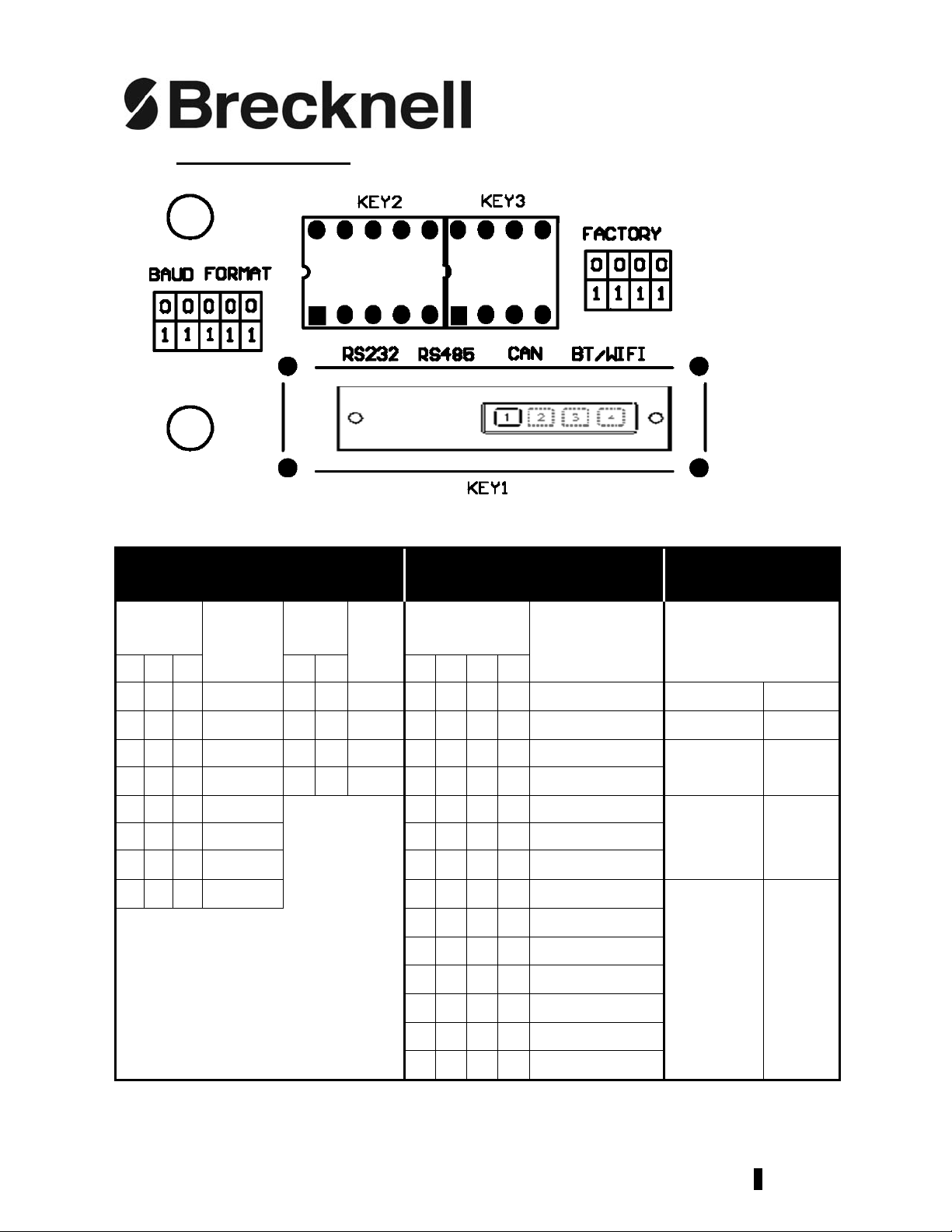

Display Setup

Note: All the configuration changes should be made with the power off !

KEY2 (5 dip switches) KEY3 (4 dip switches) KEY1

(4 position switch)

Dip

Setting Baud

rate

（bps）

Dip

Setting Data

Form

Dip

Setting Host (Indicator

Print Format) Communication

Interface Type

1 2 3 4 5 6 7 8 9

0 0 0 1200 0 0 8N1 0 0 0 0 Format: 3.1.1 Position1 RS232

0 0 1 2400 0 1 7O1 0 0 0 1 Format: 3.1.2 Position2 RS485

0 1 0 4800 1 0 7E1 0 0 1 0 Format: 3.1.3 Position3 CAN (if

avail.)

0 1 1 9600 1 1 7E1 0 0 1 1 Format: 3.1.4

1 0 0 19200

0 1 0 0 Format: 3.1.5

Position4 Bluetoo

th (if

avail.)

1 0 1 38400 0 1 0 1 Format: 3.1.6

1 1 0 57600 0 1 1 0 Format: 3.1.7

1 1 1 115200 0 1 1 1 Format: 3.1.8

1 0 0 0 Format: 3.1.9

1 0 0 1 Format: 3.1.10

1 0 1 0 Format: 3.1.11

1 0 1 1 Format: 3.1.12

1 1 0 0 Format: 3.1.13

1 1 0 1 Format: 3.1.14

Default dip switch settings in Bold

RD65 www.brecknellscales.com.5.

3.1 Protocol Format Details

3.1.1. Data Format Example: 12345lb Gross, transmit data format of Common GSE

Models:

<SP><SP><SP><1><2><3><4><5><SP><l><SP><SP><SP><SP><G><r><o><s><s><

CR><LF>

Data Format Example: 12345kg Net

<SP><SP><SP><1><2><3><4><5><SP><k><g><SP><SP><SP><SP><N><e><t><SP><S

P> <CR><LF>

Notes for symbols used in commands and response:

<LF> Line Feed character

<CR> Carriage Return character

<SP> Space

<kg/lb> kg or lb

3.1.2. Data Format Example: 123456lb, transmit data format of Salter/Transcell series

Indicators:

Notes for symbols used in commands and response:

<STX> Start of Text

<L/K> LB or KG

<G/N> G = Gross, N = Net

<SP> Space

<CR> Carriage Return character

<LF> Line Feed character

3.1.3. Data Format Example: 123456lb, transmit data format of Weigh-Tronix WI125

models:

Notes for symbols used in commands and response:

<SP> Space

<G/N> G = Gross, N = Net

<LB/KG> LB or KG

<CR> Carriage Return character

<LF> Line Feed character

RD65 www.brecknellscales.com.6.

Protocol Format Details (continued)

3.1.4. Data Format Example: 123456lb, transmit data format of Dillon ED Dynamometers

and FBI521:

"Print Format # 1"

Notes for symbols used in commands and response:

<SP> Space

<LBF/KGF> LB or KG

<CR> Carriage Return character

<LF> Line Feed character

3.1.5. Data format example: 380.5lb, transmit data format of SBI-140/100, SBI-521 and

EHI-E1 transmit continuously mode (default setting)

Notes for symbols used in commands and response:

H1H2H3H4:three status bytes, definition refer to EASTHIGH or SBI-140/100 user’s manual

<SP> Space (20hex)

<LB/KG> LB=lb, KG=kg

<FF> Form Feed (0chex)

<ETX> end of text. (03hex)

<LF> Line Feed character (0ahex)

3.1.6. Data format example: -9999lb, transmit data format: WI127 transmit data

Notes for symbols used in commands and response:

<SP> Space (20hex)

<G/N> G = Gross, N = Net

<LB/KG> LB=lb, KG=kg

<CR> Carriage Return character (0dhex)

<LF> Line Feed character (0ahex)

RD65 www.brecknellscales.com.7.

Protocol Format Details (continued)

3.1.7. Data format example: 123123kg, transmit data format: SMA transmit data

Notes for symbols used in commands and response:

<LF> Line Feed character (0ahex)

<SP> Space (20hex)

<G/N> G = Gross, N = Net

<kg/lb> lb = lb, kg = kg

<CR> Carriage Return character (0dhex)

3.1.8. Data format example: 123.233lb, transmit data format of SB-400:

Notes for symbols used in commands and response:

<SP> Space (20hex)

<kg/lb>lb = lb，kg = kg

<G/N> G = Gross, N = Net

<CR> Carriage Return character (0dhex)

3.1.9. Data format example: 233233lb, transmit data format of SB-200:

Notes for symbols used in commands and response:

<CR> Carriage Return character (0dhex)

<SP> Space (20hex)

<kg/lb> lb = lb，kg = kg

<G/N> G = Gross, N = Net

<ETX> end of text. (03hex)

3.1.10. Data format example: 233233lb, transmit data format of IQ355:

Notes for symbols used in commands and response:

<STX> Start of Text ( 02hex)

<SP> Space (20hex)

<L/K> L = lb，K = kg

<G/N> G = Gross, N = Net

<CR> Carriage Return character (0dhex)

<LF> Line Feed character (0ahex)

RD65 www.brecknellscales.com.8.

Protocol Format Details (continued)

3.1.11. Data format example: 233233lb, transmit data format of 205/210:

RD65 transmit commands : <ENQ> (05hex, Request weight from the indicator BI-Directional)

Indicator Response:

Notes for symbols used in commands and response:

<SP> Space (20hex)

<kg/lb> lb = lb，kg = kg

<G/N> G = Gross, N = Net

<CR> Carriage Return character (0dhex)

3.1.12. Data format example: 323334lb, transmit data format:

Notes for symbols used in commands and response:

<STX> Start of Text (02hex)

<SP> Space (20hex)

<ETX> end of text (03hex)

yy=40 Gross weight (lb)，yy=43 Gross weight (kg)，

yy=41 net weight (lb)，yy=44 net weight ( kg)，

yy=42 tare weight ( lb)，yy=45 tare weight (kg)

3.1.13. Data format example: 13233lb, transmit data format of WI-110S/120S

Notes for symbols used in commands and response:

<SP> Space (20hex)

<G/N> G = Gross, N = Net

<lb/kg> lb = lb，kg = kg

<CR> Carriage Return character (0dhex)

<LF> Line Feed character (0ahex)

3.1.14. Data format example: 149946, transmit data format of E1010

Notes for symbols used in commands and response:

<SP> Space (20hex)

<CR> Carriage Return character (0dhex)

Note: Before communicating between the two devices, please make sure the parity setting, data

bits, baud rates, and RS232 format port are correctly selected. In normal working mode the

RD65 will display the indicated weight from the host.
