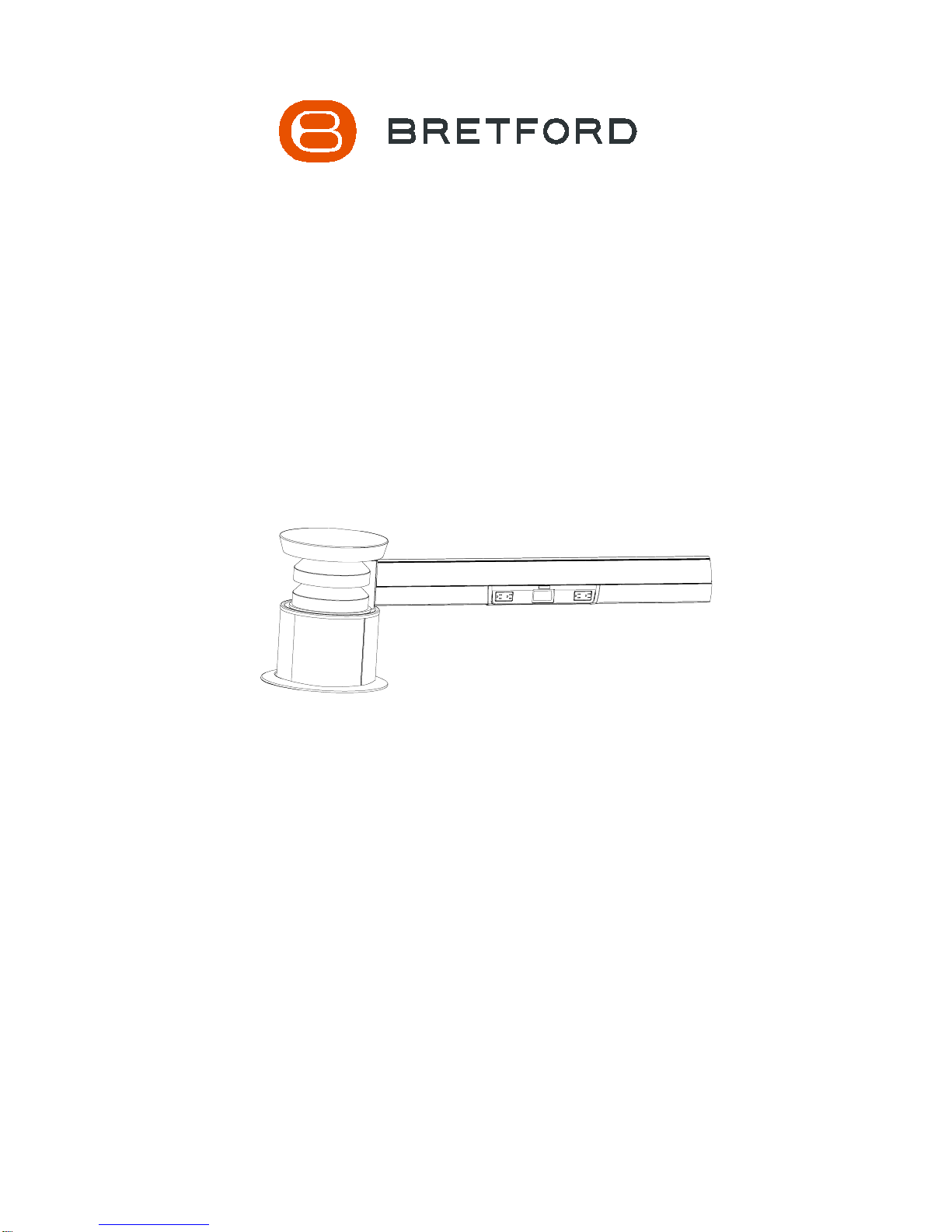

SUBSTATION AND CHANNEL
MODEL:
AssemblyInstructions
TOOLS REQUIRED
1/2”WRENCH
PHILIPSSCREWDRIVER
3/8”WRENCH
ELECTRICHANDDRILL
LIQUID™WORKSPACE
M-SUB
SubstationTopCover
SubstationTrack
Plate
SubstationSkin
Substation Skin
Fig. 1
STEP 1
SubstationSkirt
RemoveSubstationTop Cover bypullingit up. Disassemble Substation Track
PlateandSubstation Skins by removing threeSubstationTrack Plate screws(Fig.
1). Save hardware for reassembly.
Substation
TracPlate
Screw
Note:
Power connection using power infeed should be performed by
qualified electrician.
Fig. 2
STEP 2
LiftSubstation Skirt upand hold it inplace with twowooden blocks 7”long (Fig. 2).
Markboltholepattern(3holes) on the floor using hole locationsinmountingplate
astemplate.Move Substation aside.
Wooden Block
Mountingplate
STEP 3
a) For concrete floor:
Recommendedhardwareis1/4-20 x 2” concrete expansionanchor. Drillholes
andcompleteinstallationusing hardware manufacturer’s recommendedproce-
dure.
b) For wood floor:
Drillappropriate holes depending on type of woodfor 1/4 x 2” lag screws.
FastenSubstationtothe floor with lag screws.
Fig. 3

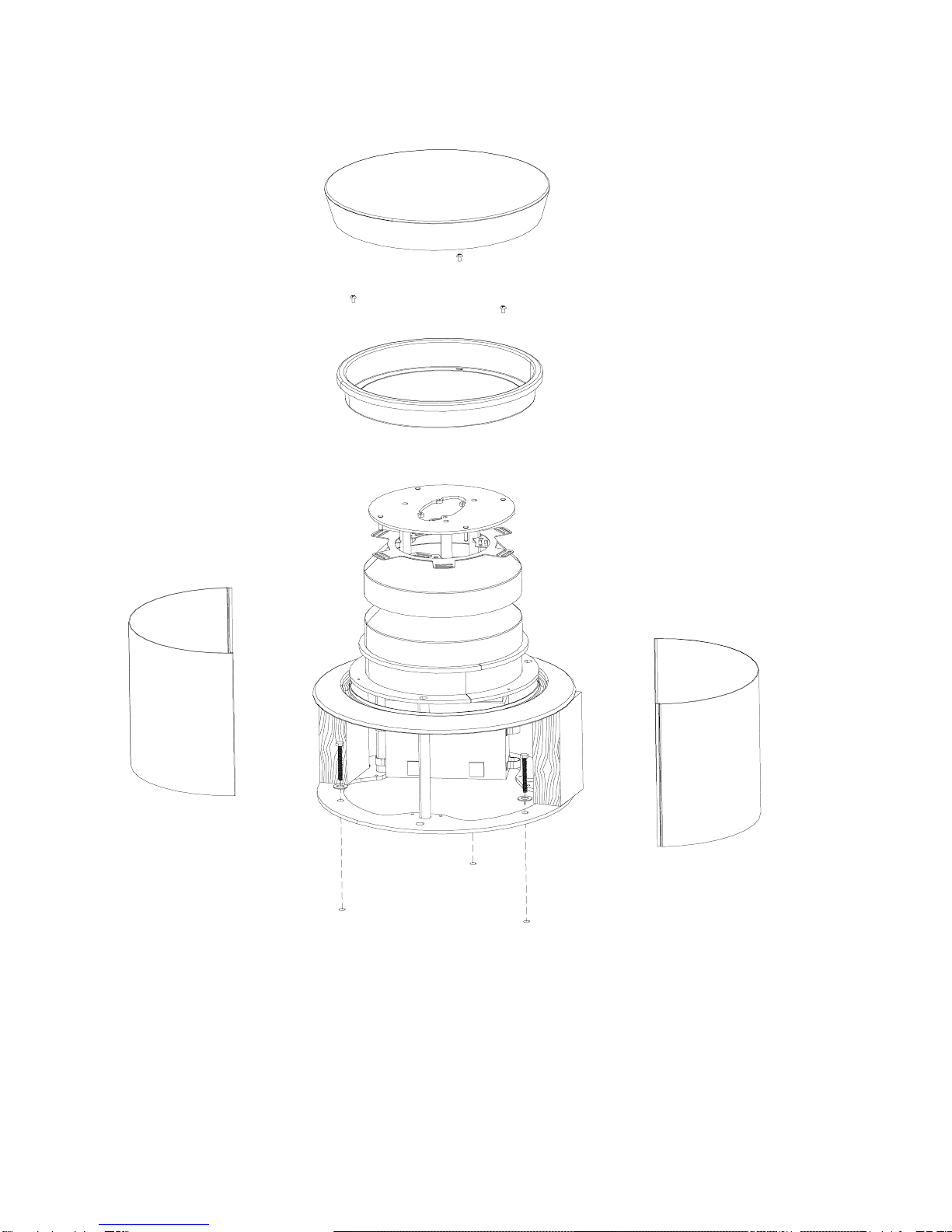

STEP 4
Removewoodenblocks. Reassemble Substation skins andSubstationtrack
plate.

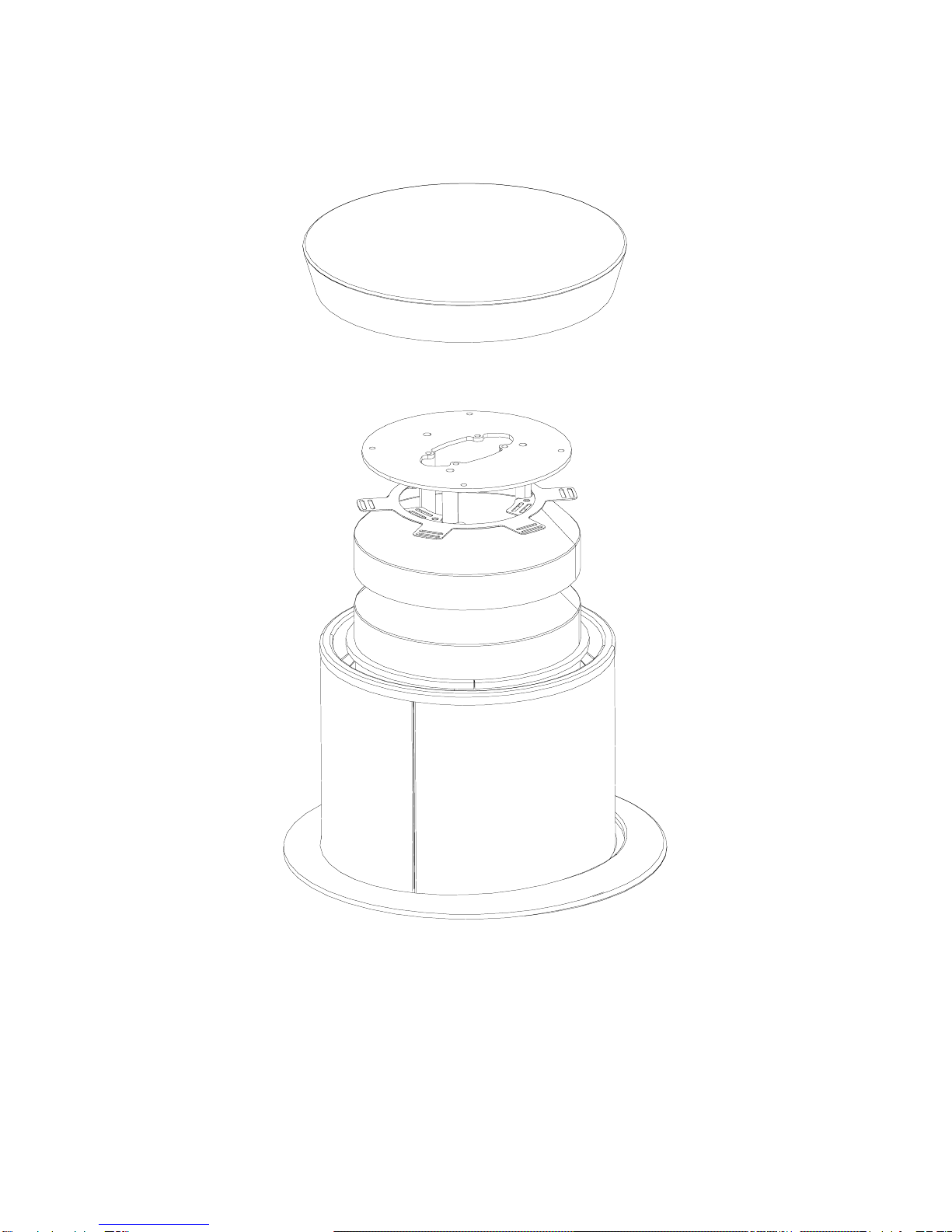

Fig. 4
Note: If attaching power channels do not reassemble
Substation Top Cover at this time.
CoverPin
Plate
Cover Pin Plate
HexBolt
Substation
Spider
STEP 5
DisassembleCover Pin Plate andSubstation Spider by unfasteningthe Cover Pin
PlateHexBolts.Savehardware.
Fig. 5
MetalVisual
Blocker
MetalVisual Blocker
Screw
STEP 6
DisassembleMetalVisualBlocker by unfastening the threeVisual
BlockerScrews.Savehardware.
Fig. 6
Fig. 7
Fig7.Shown with parts
removed for clarity
Channel
CamLever
UnlockPosition
Jumper
SubstationSkin
OpenPosition
JunctionBox
STEP 7
AssemblePlasticVisual Blocker to channelconnector bracket. Set CamLeverin unlock
position.OpenboththeSubstationSkins.Install theChannel ontoSubstationTrack
Plate.ThreadtheJumperendthroughtheSubstationandplugtoJunctionBox(Fig.7).
Closethe Substation Skins. ReassembleMetal VisualBlocker,SubstationSpider and
CoverPin Plate. Lock the Channelin desired position to Substation by flipping CamLever
over 180° (Fig. 8). Both ends of channel must be installed into Substation/Support
before locking down Cam Lever.
Fig. 8
Plastic Visual
Blocker
Data cable
Channel
To data
inputport
Data
bracket
Channel
door Fig. 9
STEP 8
SnapopenChanneldoor. Run data cable through the Channel upper compartment.Thread
thedatacable through the slotto get to thedatabracket opening(Fig. 9). Snapclose
Channeldoor(Fig. 10).
Fig. 10
Part#031-6464
Rev.07.15.03 IM
Bretford Bretford Ltd.
11000 Seymour Avenue Technology House
Franklin Park, IL 60131 7 Lake End Court, Taplow
TEL: 847.678.2545 Bucks SL6 0JQ England
800.521.9614 TEL: 01628 603558
FAX: 847.678.0852 FAX: 01628 604923
800.343.1779
www.bretford.com
Note: When repositioning Channel caution should be taken not to obstruct free
movement of jumper.
