Bretford Explorer Manuale utente

031-11279 Rev. 1 02/2023 1 of 9

User Guide

031-11279 Rev. 1 02/2023 2 of 9

About Your Product

Product Overview

The ExplorerTM TV Cart

TV Mount

Bottom Shelf

8” Premium Casters

031-11279 Rev. 1 02/2023 3 of 9

TV Mount

8” Premium Casters

Bottom Shelf

About Your Product

Product Overview

The ExplorerTM TV Cart with Handle and Directional Locks

Directional Locks

Ergonomic Handle

031-11279 Rev. 1 02/2023 4 of 9

About Your Product

Technical Specifications

ExplorerTM TV Cart

Model ETCM ExplorerTM TV Cart

ETCMHD ExplorerTM TV Cart with Handle and Directional Locks

Outer Dimensions

(W x D x H)

43ʺx 30ʺx 68ʺ/ 40.6cm x 41.3cm x 99.1 cm

66ʺx 30ʺx 68ʺ/ 40.6cm x 41.3cm x 99.1 cm

Display Sizes

Supports up to 86” displays

Mounting Pattern

Meets VESA standards 100 x 100mm to 400 x 400mm

Weight

98 lbs / 44.5kg

114 lbs/ 51.7kg

Warranty

For the latest information, please visit bretford.com/warranty.

Certifications

ETL Listed to UL Standard 1678

031-11279 Rev. 1 02/2023 5 of 9

Using Your Product

ExplorerTM TV Cart

Getting started

Your Explorer TV Cart was designed to be flexible to fit your desired set up.

First thing you want to decide is where to mount your display. There are

two positions on the frame to choose from. Keep in mind to set the TV

height below 84” to make it easy to move between rooms and through door

frames. We recommend displays of 75” of bigger to be on the lower

position.

The second decision is the tilt position. There are 3 settings to choose – 0°,

5° or 10° degrees.

031-11279 Rev. 1 02/2023 6 of 9

Using Your Product

ExplorerTM TV Cart

Features

The hole pattern in the middle of the frame is a flexible system for Explorer

TV Cart accessories. Configure your set up to how you want it. Below are

the available accessories. Visit Bretford.com for the latest offering.

Ergonomic Handle – allows for one person to easily move from room to

room. Is height adjustable with access on both sides of the display.

Device Shelf – This fold up shelf is perfect for resting laptops, tablets,

keyboards or even gaming systems on. It can be mounted on the back or in

front of the cart. When not in use, it can fold up and stay within the

footprint while moving the cart.

031-11279 Rev. 1 02/2023 7 of 9

Using Your Product

ExplorerTM TV Cart

Features

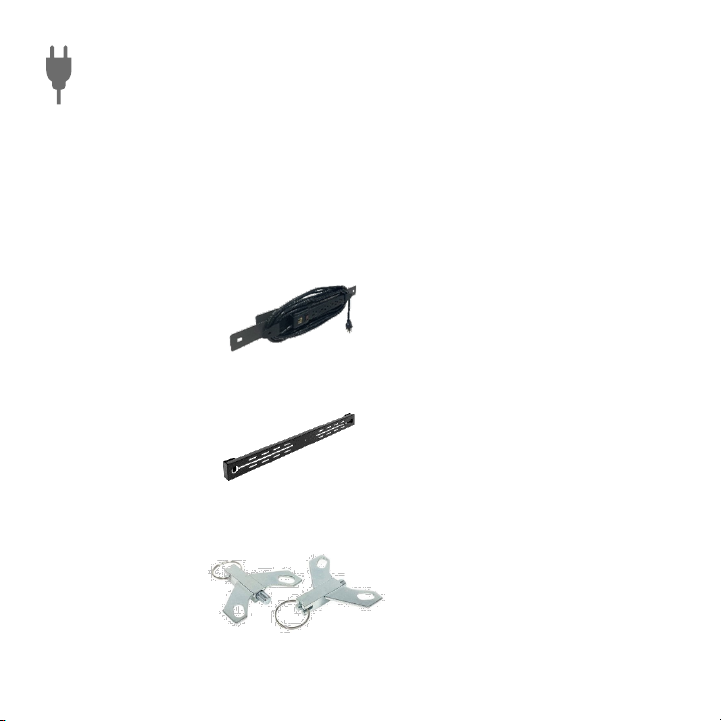

6 Outlet Strip – Mount a 6 AC outlet electrical strip to the ExplorerTM TV

Cart.Includes a 20 foot power cord and a cubby to store a TV remote, Apple

TV or excess cable hidden from the front view.

Soundbar Mount – attach most soundbars to the cart with the universal

mount. Fits keyhole slots or threaded slots that are 4.5” - 18” apart.

Directional Locks – Perfect for moving long distances and prevent drifting

while pushing. The directional locks attach to swivel casters.

031-11279 Rev. 1 02/2023 8 of 9

•

WARNING: For use with televisions weighing 200lbs (90.7kg) or less. Use with

heavier televisions may result in instability causing tip over resulting in death

or serious injury

•WARNING: Death or serious injury may occur when children climb on audio

and/or video equipment furniture. A remote control or toys placed on the

furnishing may encourage a child to climb on the furnishing and as a result

the furnishing may tip over on to the child.

•WARNING: Relocating audio and/or video equipment to furniture not

specifically designed to support audio and/or video equipment may result in

death or serious injury due to the furnishing collapsing or overturning onto a

child.

•Engage locking casters when product is not in transit.

•This cart is intended to be used with a flat panel monitor.Maximum load:

•Flat Panel Monitor: 200 lbs.

•Bottom Shelf: 50 lbs.

•Device Shelf (optional): 25 lbs.

Important Information

Safety Notice

031-11279 Rev. 1 02/2023 9 of 9

Technical support is available by contacting Bretford Customer Care via

phone, email or the web:

Hours of Operation: M-F, 7:30am - 4:30pm CST

Telephone: +1-800-521-9614

Email: customerservice@bretford.com

Website: www.bretford.com/contact

Additional Resources

Contact Support

Bretford and ExplorerTM TV Cart are trademarks or registered marks of Bretford Manufacturing, Inc. Patents
