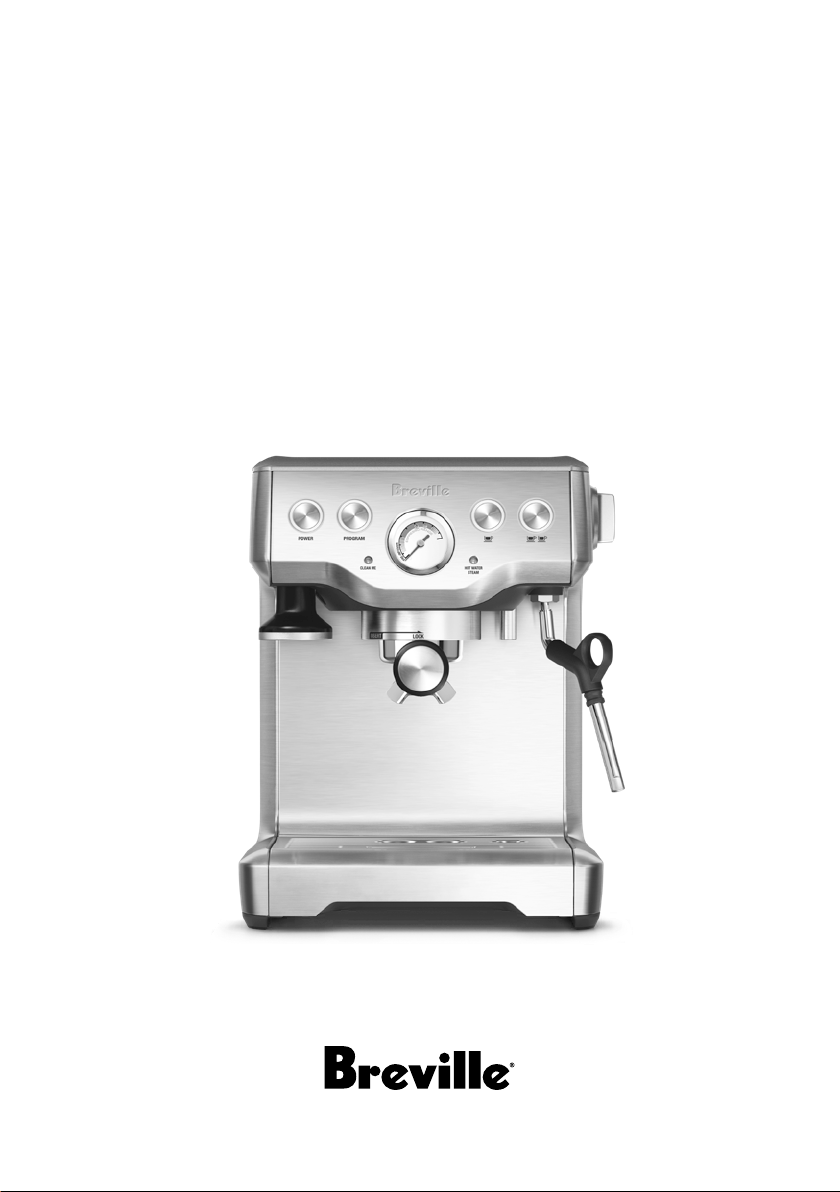

Instruction Book - BES840

the Infuser™

Contents

2 Breville Recommends

Safety First

6 The InfuserTM Features

7 Components

9 Functions

20 Care & Cleaning

25 Troubleshooting

29 Coffees to try

BREVILLE

RECOMMENDS

SAFETY FIRST

At Breville we are very safety

conscious. We design and

manufacture consumer

products with the safety of you,

our valued customer, foremost

in mind. In addition we ask

that you exercise a degree of

care when using any electrical

appliance and adhere to the

following precautions.

IMPORTANT

SAFEGUARDS

READ ALL

INSTRUCTIONS BEFORE

USE AND SAVE FOR

FUTURE REFERENCE

•Carefully read all

instructions before

operating and save for

future reference.

•Remove and safely discard

any packaging material

and promotional labels or

stickers before using the

Breville Infuser™ for the

ﬁrst time.

•To eliminate a choking

hazard for young children,

remove and safely discard

the protective cover ﬁtted

to the power plug of this

appliance.

•Do not place the Breville

Infuser™ near the edge of

a bench or table during

operation. Ensure the

surface is level, clean and

free of water and other

substances.

•Do not use the Breville

Infuser™ on a sink drain

board.

•Do not place the Breville

Infuser™ on or near a hot

gas or electric burner, or

where it could touch a

heated oven.

•Always ensure the Breville

Infuser™ is properly

assembled before

connecting to power outlet

and operating. Follow the

instructions provided in

this book.

•The appliance is not

intended to be operated by

means of an external timer

or separate remote control

system.

•Do not use attachments

other than those provided

with the Breville Infuser™.

•Do not attempt to operate

the Breville Infuser™ by

any method other than

those described in this

book.

•Use only cold, tap water in

the water tank. Do no use

any other liquid.

•Never use the Breville

Infuser™ without water in

the water tank.

•Ensure the portaﬁlter

is ﬁrmly inserted and

secured into the brewing

head before using the

machine.

•Never remove the

portaﬁlter during the

brewing operation as the

machine is under pressure.

•Do not move the Breville

Infuser™ whilst in

operation.

•Do not leave the Breville

Infuser™ unattended when

in use.

•Do not touch hot surfaces.

Allow the Breville Infuser™

to cool down before

moving or cleaning any

parts.

•Do not place anything,

other than cups for

warming, on top of the

Breville Infuser™

•Always switch off the

Breville Infuser™ by

pressing the POWER

button to ‘Off’, switch off

at the power outlet and

unplug if appliance is to

be left unattended, if not in

use, before cleaning, before

attempting to move the

appliance, disassembling,

assembling and when

storing the appliance.

•Keep the appliance and

accessories clean. Follow

the cleaning instructions

provided in this book.

WARNING

To avoid the risk of injury,

do not open the brew

chamber during the

brew process.

IMPORTANT

SAFEGUARDS

FOR ALL

ELECTRICAL

APPLIANCES

•Unwind the power cord

fully before use.

•Do not let the power cord

hang over the edge of

a bench or table, touch

hot surfaces, or become

knotted.

•To protect against electric

shock do not immerse

power cord, power plug or

appliance in water or any

other substance.

•This appliance is not

intended for use by

persons (including

children) with reduced

physical, sensory or

mental capabilities,

or lack of experience

or knowledge, unless

they have been given

supervision or instruction

concerning use of the

appliance by a person

responsible for their safety.

•Children should be

supervised to ensure

they do not play with the

appliance.

•Cleaning and user

maintenance shall not be

made by children unless

they are aged from 8 years

and above and supervised.

Keep the appliance and

its cord out of reach of

children aged less than 8

years.

•This appliance can be

used by children aged

from 8 years and above

if they have been given

supervision or instruction

concerning use of the

appliance in a safe way and

understand the hazards

involved.

•It is recommended to

regularly inspect the

appliance. Do not use the

appliance if power cord,

power plug or appliance

becomes damaged in

anyway. Return the entire

appliance to the nearest

authorised Breville

Service Centre for

examination and/or repair.

•Any maintenance other

than cleaning should

be performed at an

authorised Breville

Service Centre.

•This appliance is

recommended for

household use only. Do

not use this appliance

for anything other than

its intended use. Do not

use in moving vehicles

or boats. Do not use

outdoors. Misuse may

cause injury.

•The installation of a

residual current device

(safety switch) is

recommended to provide

additional safety protection

when using electrical

appliances. It is advisable

that a safety switch with a

rated residual operating

current not exceeding

30mA be installed in the

electrical circuit supplying

the appliance. See your

electrician for professional

advice.

WARNING

Fully unwind the cord

before use.

FOR HOUSEHOLD USE ONLY

SAVE THESE INSTRUCTIONS

PID TEMPERATURE CONTROL

Electronic PID temperature control for

increased temperature stability.

THERMOCOIL HEATING SYSTEM

Integrated stainless steel water coil accurately

controls water temperature.

COMMERCIAL STYLE STEAM WAND

Stainless steel 360° swivel-action steam wand

for effortless milk texturing.

INSTANT HOT WATER

Dedicated hot water outlet for making

Americanos or pre-heating cups.

LOW PRESSURE PRE-INFUSION

Applies low water pressure at the start

of the extraction to gently expand grinds

for an even extraction.

ESPRESSO PRESSURE GAUGE

Monitors espresso extraction pressure.

VOLUMETRIC CONTROL

Preset 1 & 2 cup volumes, manual over-ride

or reprogrammable shot volumes.

DRY PUCK FEATURE

Removes excess water from the ground coffee

in the ﬁlter basket after extraction for easy

disposal of the coffee puck.

THE RAZOR™ DOSE TRIMMING TOOL

Patented twist blade trims down the puck

to the right level for precision dosing

and a consistent extraction.

ADJUSTABLE TEMPERATURE

CONTROL

For optimum coffee ﬂavor.

The InfuserTM

Features

Components

MOPQ

A. POWER button light ﬂashes while

machine is heating.

B. Integrated & removable 54mm tamper

C. Group head for easy positioning of the

portaﬁlter.

D. 54mm stainless steel portaﬁlter with

commercial style spouts.

E. Extra-tall cup clearance for tall mugs.

F. Removable drip tray with Empty Me!

tray full indicator.

G. Storage tray (located behind drip tray)

Houses accessories when not in use.

H. 360˚ swivel action steam wand adjusts

to the perfect position for texturing.

I. Dedicated hot water outlet delivers

instant hot water for Americanos

& pre-heating cups.

J. Steam/Hot Water dial

K. 1 CUP and 2 CUP buttons with preset,

manual over-ride or reprogrammable

shot volumes.

L. Steam/Hot Water light Illuminates

to indicate that the steam/hot water

function is selected.

M. DESCALE/CLEAN light Illuminates

when a cleaning cycle is required.

N. Espresso pressure gauge monitors

espresso extraction pressure.

O. Program button reprograms the preset

1 CUP and 2 CUP shot volumes.

P. Cup warming tray

Q. 61 ﬂ.oz (1.8L) removable water tank

with replaceable water ﬁlter.

ACCESSORIES

1. Stainless steel milk jug

2. Cleaning disc

3. Cleaning tablets

4. Dual Wall ﬁlter baskets

(1 cup & 2 cup) Use with pre-ground

coffee.

5. Allen key

6. Single Wall ﬁlter baskets

(1 cup & 2 cup) Use when grinding

fresh whole coffee beans.

7. Cleaning tool

8. Water ﬁlter holder and ﬁlter

9. Coffee scoop

Measures the amount of ground

coffee for the ﬁlter baskets.

10. The Razor™ precision dose

trimming tool

11. Descaling powder

All parts that come into contact with coffee and water are BPA Free.

Functions

BEFORE FIRST USE

Machine Preparation

Remove and discard all labeling and

packaging materials attached to your

espresso machine. Ensure you have removed

all parts and accessories before discarding

the packaging.

Clean parts and accessories (water tank,

portaﬁlter, ﬁlter baskets and jug) using

warm water and a gentle dish washing liquid

and rinse well. Wipe the outer housing

and drip tray with a soft damp cloth and

dry thoroughly. Do not immerse the outer

housing, power cord or power plug in water

or any other liquid.

The water ﬁlter located inside the water tank

will need to be removed before washing the

water tank.

CONDITIONING THE WATER FILTER

• Remove ﬁlter from the plastic bag and

soak in a cup of water for 5 minutes.

• Rinse ﬁlter under cold running water.

• Insert the ﬁlter into the ﬁlter holder.

• Set the dial date 2 months ahead.

• To install ﬁlter, push down to lock

into place.

• Slide the water tank into position and

lock into place.

NOTE

To purchase water ﬁlters, contact Breville

Consumer Support.

FIRST USE

Initial Start Up

• Fill tank with water

• Press POWER on

• A pumping sound will be heard. The

machine will reach operating temperature

and go into STANDBY mode.

FLUSHING THE MACHINE

It is recommended to complete a water

ﬂushing operation, without ground coffee, to

ensure the machine has been conditioned.

When the machine has reached STANDBY

mode, run the following 2 steps.

• Press the 2 CUP button to run hot water

through the group head for 30 seconds.

• Activate hot water for 10 seconds.

• Repeat this cycle until the water tank

is empty.

NOTE

Do not clean any of the parts or accessories in

the dishwasher.

FILLING THE WATER TANK

• Ensure the water ﬁlter is securely ﬁtted

inside the tank.

• Fill the water tank with cold tap water

to the maximum mark on the side of the

tank and slide the water tank back into

position at the back of the machine.

• Plug the power cord into power outlet

and switch On at power point.

• Press the POWER button to On. The

POWER button surround will ﬂash

while the machine is heating. When the

correct temperature has been reached,

all the button surrounds on the control

panel will illuminate.

NOTE

Check the water level before use and

replace the water daily. The water tank

should be ﬁlled with fresh, cold tap water

before each use.

Do not use mineral or distilled water or any

other liquid.

TAMPING THE GROUND COFFEE

• Once the grind function has been

completed, carefully withdraw the

portaﬁlter from the grinding cradle,

being careful not to spill any ground

coffee, tap down to collapse and using

the integrated tamper, tamp down ﬁrmly

(approx. 15–20 kg of pressure).

TRIMMING THE DOSE

The Razor™ precision dose trimming tool

allows you to trim the puck to the right level

for a consistent extraction.

the Razor™

Precision dose trimming tool

Insert the Razor™ into the coffee basket

until the shoulders of the tool rest on the

rim of the ﬁlter basket. The blade of the

dosing tool should penetrate the surface

of the tamped coffee.

Rotate the Razor™ dosing tool back and forth

while holding the portaﬁlter on an angle over

the knock box to trim off excess coffee.

Your coffee ﬁlter basket is now dosed with

the correct amount of coffee.

NOTE

When using a ﬁner espresso grind for the

Single Wall Filter basket, you will need to

increase the grind amount to ensure the

ﬁlter is correctly dosed.

Altri manuali per Infuser BES840

Indice

Altri manuali Breville Macchina per il caffè

Breville

Breville Aroma Style BCM600 Manuale utente

Breville

Breville Cafe Venezia BES250 Manuale utente

Breville

Breville NESPRESSO MY MACHINE CREATISTA PRO Manuale utente

Breville

Breville the Bambino BES450 BSS Manuale utente

Breville

Breville Dynamic Duo BEP920BSS Manuale utente

Breville

Breville BES990 Manuale utente

Breville

Breville NESPRESSO CREATISTA PRO Manuale utente

Breville

Breville the YouBrew BDC600XL Manuale utente

Breville

Breville vcf011 Manuale utente

Breville

Breville the Choc & Cino LMF200 Manuale utente

Breville

Breville CAFE ROMA Manuale utente

Breville

Breville The Dynamic Duo BEP920 Manuale utente

Breville

Breville Nespresso Prodigio & milk Manuale utente

Breville

Breville CAFE ROMA Manuale utente

Breville

Breville NESPRESSO Vertuo Manuale utente

Breville

Breville the Barista Express BES870 Manuale utente

Breville

Breville coffeexpress VCF050 Manuale utente

Breville

Breville Bar Italia ESP4 Manuale utente

Breville

Breville Dual Boiler BES920 Manuale utente

Breville

Breville the YouBrew BDC600XL Manuale utente

Breville

Breville the Duo-Temp BES800XL Manuale utente

Breville

Breville VCF126X Manuale utente

Breville

Breville BarVista BES200XL Manuale utente

Breville

Breville Bar Italia ESP2 Manuale utente

Manuali Macchina per il caffè popolari di altre marche

Taurus

Taurus Livorno 6 Manuale utente

Delta-q

Delta-q QUICK Manuale utente

Bunn

Bunn LCA-1 Guida alla risoluzione dei problemi

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Istruzioni per l'installazione

Saeco

Saeco Vienna Plus Sup 018M Manuale utente

DeLonghi

DeLonghi DC300 Manuale utente

INCAPTO

INCAPTO BXCO1470E Manuale utente

Bosch

Bosch TASSIMO finesse TAS16B Series Manuale utente

Exido

Exido 245-072 Manuale utente

Animo

Animo OptiVend Choco Manuale utente

Siemens

Siemens TQ505DF Series Manuale utente

DeLonghi

DeLonghi ECI341 Manuale utente

Krups

Krups KT406511 Manuale utente

Cimbali

Cimbali M32 Classic Manuale utente

Philips

Philips HL3844N Manuale utente

Bosch

Bosch TES 515 SERIES Manuale utente

Tekmatix

Tekmatix TMFM - 65 Manuale utente

Scarlett

Scarlett SC-CM33005 Manuale utente
