Breville JC6B Manuale utente

Step 1: Lock juice jug into motor base

Place the juice jug over the drive shaft on

the motor base and turn until it locks into

position. Then sit the strainer dish on top of

the juice jug, ensuring that the spout on the

strainer dish is aligned with the spout of the

juice jug.

Step 2: Select cone size

Fit the small cone onto the drive shaft and

push down lightly, locking the small cone

into position. For larger fruits, place the large

cone on top of the small cone, after the

small cone has been correctly positioned on

the drive shaft. The large cone will lock into

place.

Step 3: Turn power ‘ON’

Plug the power cord into a 230/240V power

outlet and switch on.

Step 4: Prepare fruit and start juicing

Cut the citrus fruit in half and press fruit

firmly down onto the cone. The motor will

automatically start and the juicing cone will

begin to rotate. Lifting fruit off the cone then

reapplying pressure may cause the cone to

automatically change direction. This is

normal and ensures that the fruit is

completely juiced.

Step 5: Stop juicing

To stop, lift the fruit off the cone. Juicing will

automatically stop.

HOW TO OPERATE YOUR BREVILLE CITRUS FRESH

HANDY TIPS

•Move the fruit from side to side against

the cone whilst juicing to extract

maximum juice.

•More juice is also obtained from fruit

juiced at room temperature.

Small

Cone

Large

Cone

Model JC6B

Issue 1/00

PRINTED ON

RECYCLED PAPER

Breville is a registered trademark of Breville Holdings Pty. Limited

ABN 98 000 092 928

Due to ontinual improvements in design or otherwise,

the produ t you pur hase may differ slightly from the one

illustrated in this booklet.

Breville Customer Care Centre

Australian Customers

✉Breville Customer Care Centre

Locked Bag 2000

Botany NSW 2019

Australia

☎Customer Service P : 1300 139 798

Fax (02) 9384 9601

Email Customer Service [email protected]

New Zealand Customers

✉Breville Customer Service Centre

Private Bag 94411

Greenmount

Auckland, New Zealand

☎Customer Service P : 09 271 3980

Fax 0800 288 513

Email Customer Service [email protected]

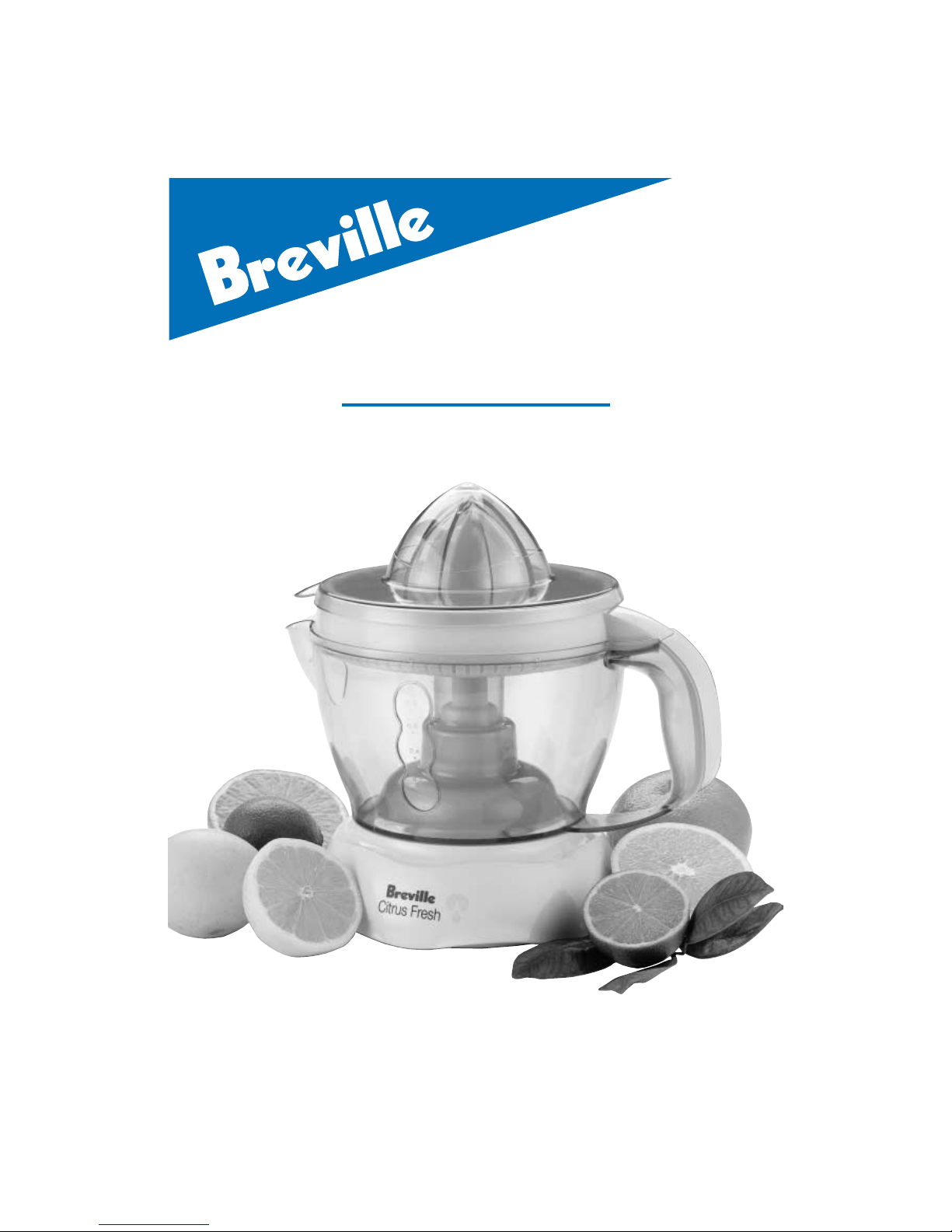

INSTRUCTIONS FOR USE

MODEL JC6B

Citrus

Fresh

BREVILLE RECOMMENDS SAFETY FIRST

Congratulations on your purchase of a new

Breville Citrus Fresh Juicer. We at Breville

are very safety conscious. We design and

manufacture consumer products with the

safety of you, our valued customer foremost

in mind. In addition we ask that you exercise

a degree of care when using any electrical

appliance and adhere to the following

precautions:

READ ALL INSTRUCTIONS BEFORE

OPERATING AND SAVE FOR FUTURE

REFERENCE.

•Do not immerse the motor base in water

or any other liquid.

•Always use the Citrus Fresh on a dry, level

surface.

•Always ensure the juice jug is locked in

position and the unit is properly and

correctly assembled before unit is

switched on.

•Always turn the power off at the power

outlet and remove the plug before

disassembling the unit. Wait for the motor

to come to a complete standstill before

removing the juice jug.

•The appliance is not intended for use by

young children or infirm persons without

supervision.

•Do not leave the appliance unattended

when in use. Young children should be

supervised to ensure that they do not play

with the appliance.

•Do not let the cord hang over the edge of

a table or counter, touch hot surfaces or

become knotted.

•If the supply cord, plug or actual

appliance becomes damaged in any way

return the entire appliance to the nearest

authorised Breville Service Centre for

examination, replacement or repair.

•Do not place this appliance on or near a

hot gas or electric burner, or where it

could touch a heated oven.

•This appliance is for household use only.

Do not use this appliance for anything

other than its intended use. Do not use

outdoors.

1. Lid for use when storing the juice jug in

the refrigerator, doubles as a dust cover

2. Large Cone ideal for extracting maximum

juice from large citrus fruits, such as

grapefruit and large oranges

3. Small Cone perfect for smaller citrus

fruits, such as lemons and limes

4. Scraper Blade at the base of the smaller

cone, prevents accumulation of pulp in

the strainer dish and helps to extract the

maximum juice from the pulp

5. Strainer Dish allows the juice to flow

through to the jug, whilst straining the

pulp and seeds

6. Removable Juice Jug with easy grip

handle and a large 800ml capacity

7. Reversible Drive Shaft drives the cone

when pressure is applied. Motor

automatically reverses direction each time

pressure is applied to the cone

8. Motor Base with cord storage

underneath

KNOW YOUR BREVILLE CITRUS FRESH

BEFORE FIRST USE

Before using your Citrus Fresh juicer for the

first time, wash all the removable parts in

warm soapy water. Rinse and dry

thoroughly.

AFTER EACH USE

•Switch off the unit at the power outlet and

unplug.

•Disassemble the unit and wash all

removable parts in warm, soapy water. Do

not place these parts in the dishwasher as

the high water temperature and harsh

detergents used will ultimately warp or

scratch these parts. It is best to rinse or

wash all removable parts immediately as

dried citrus pulp is difficult to remove and

may stain. If any staining does occur, wipe

the affected part/s with undiluted

dishwashing liquid and rinse thoroughly.

•Wipe the motor base with a damp cloth.

NEVER IMMERSE THE

MOTOR BASE IN WATER OR

ANY OTHER LIQUID. DO NOT

USE HARSH ABRASIVES OR

DETERGENTS.

CARE AND CLEANING
