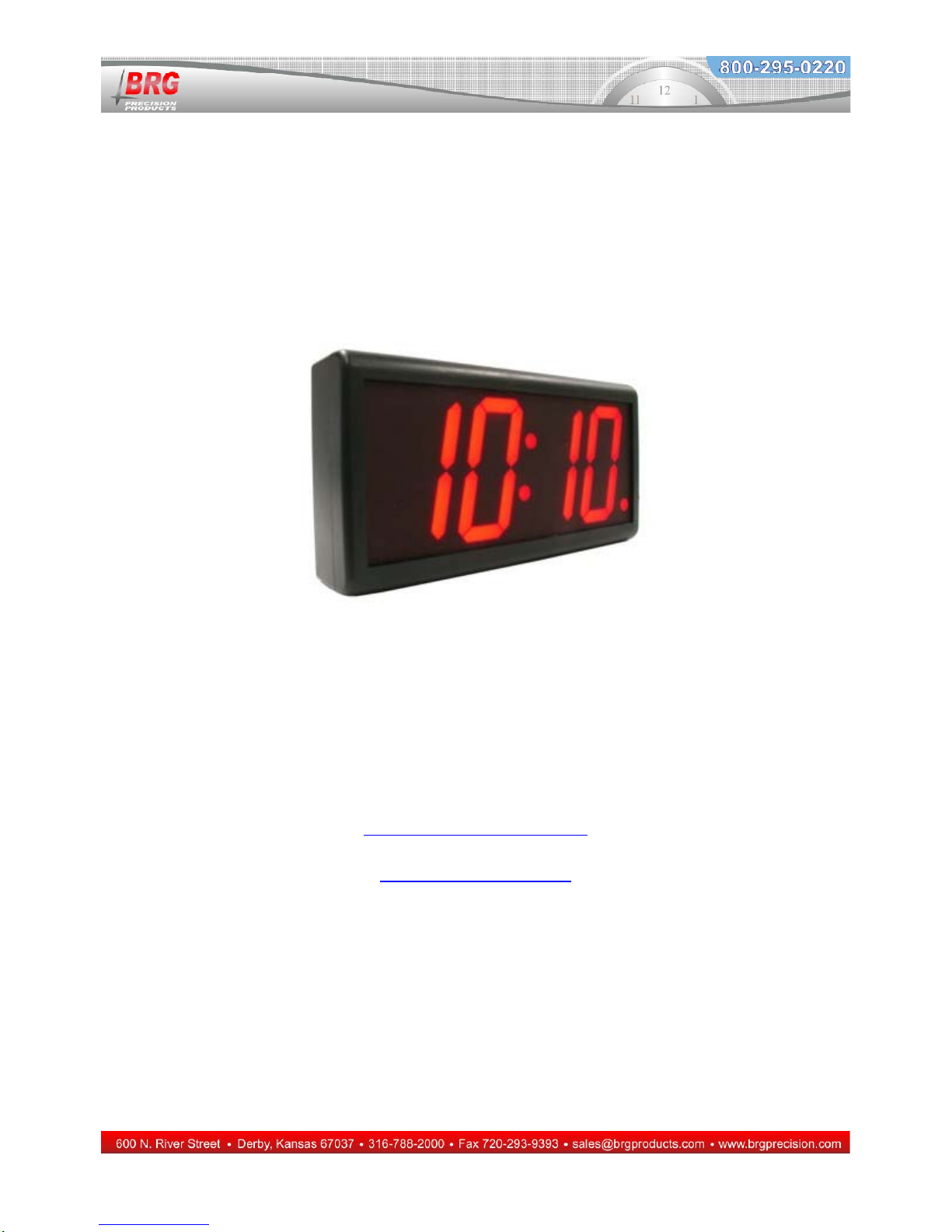

DuraTime Digital Clock

Installation and Operation Manual

BRG Precision Products

600 N. River

Derby, Kansas 67037

http://www.DuraTimeClocks.com

[email protected]

316-788-2000

Fax: (316) 788-7080

Updated: 12/8/2011

Operation

The DuraTime clock is based on super bright LED technology coupled with a very capable

microprocessor. The DuraTime microprocessor is able to store the user’s configuration in

duplicate. If the configuration becomes corrupt by someone configuring the display incorrectly, the

original customer configuration can be instantly restored. The Real Time Clock includes a high

accuracy temperature controlled oscillator as the standard time base and is accurate to a few seconds

per year without external synchronization. For absolute accuracy, the clock receives time updates

from one or more DuraTime master clocks.

Real Time Operation

There is normally no configuration required to connect the DuraTime digital clock to the wireless

network. Simply apply power to the clock within radio range of an active DuraTime network and

the clock will receive and update the display every second.

The Mega Real Time Clock employs a clock circuit with battery backup. The clock circuit will

maintain time for about ten years without power. When you receive your new clock and apply

power, you will see the clock already running. To manually change the time, simply press and hold

either the Up or Down buttons. The time will increment or decrement faster and faster as the

buttons are held. If the clock is within range of a DuraTime master clock, the clock will change to

the master clock time within a second or two.

DuraTime Clock Processor Configuration Menu

Processor Type

When the clock is displaying the time, Press the Up button to advance the time, or the Down button

to decrement the time. The longer the buttons are held down, the faster the time will change. Press

the Mode button to enter modes listed below.

First Menu

Level

Mode Number

Value

Range Mode Description and Instructions

Menu Selection

Operating

Value.

1- Press and hold the Mode button for 3-4 seconds, or until 01 appears on the

display. If the customer’s configuration was previously saved to secondary

memory, all segments on all displays will illuminate while the mode button is

held down.

2- Once in the menu system, use the Up and Down buttons to move to the

desired parameter address.

3- Once at desired parameter address, press the Mode button once to display

the parameter value.

4- Use the Up and Down buttons to change the parameter value.

5- Press the Mode button to return to the parameter address or press the

Timer Control button to save any changes and exit the menu system.

6- To exit the menu system, press the Timer Control button, or use the Down

button and move to parameter address 00. The clock will return to normal

display mode.

0. Change Time 00:00 to

23:59 or

12:00 AM to

12:00 PM

Simply press the Up button to advance the time, or the Down button to decrement the

time. The longer the buttons are held down, the faster the time will change. Press the

Mode button to enter modes listed below.

1. 01 to 31

Day of the Month

Pressing the Up button advances the days, pressing the Down button decrements the

days. Be sure to use valid day for any specific month. For example, do not enter a

day of 30 for the month of February.

2. 01 to 12

Month

Pressing the Up button advances the month, pressing the Down button decrements the

month.

3. 00 to 50 Year

First Menu

Level

Mode Number

Value

Range Mode Description and Instructions

Pressing the Up button advances the year, pressing the Down button decrements the

year.

4. 0-7

Blinking Colon

This mode configures various colon and sync indicator functions.

0= solid colon with no leading zero,

1=blinking colon with no leading zero

2=no colon with no leading zero

3=no colon with leading zero (display modes 2, 5, 17)

4=solid colon with leading zero (display modes 2, 5, 17)

5=disable blinking sync indicator

6= (default)Blink colon if serial sync is lost

7=Blink colon if serial sync is received

5. 0,1 12/24 Hour Display Format

0=12 hour display format (default), 1=24 hour display format

-15-15 Display Intensity

1=minimum intensity, 15=maximum intensity (default),

0=enable auto-brightness (if installed)

-1 to -15 alters the effect of auto-brightness (if installed),

8. Adjust Time Received for Daylight Saving Time

0=disabled

1=enabled (default)

Removes daylight saving time from serial time data received. By default, the clock

expects to receive local time updates. If daylight saving time is active, then the time

received will be decremented one hour. The hour will be restored when the time is

displayed. If daylight saving time is not active, the time will be displayed as it is

received, in addition to any time zone offsets.

10. 0,1,2,3, Daylight Savings Time Automatic Switching

(unavailable on the Mega Timers)

0 = disabled

2 = UK daylight saving time,

3 = US daylight saving time rule (default),

When this feature is enabled, the time will automatically switch between standard and

daylight saving time.

11. -12 to +12 Time Zone Offset

(unavailable on the Mega Timers)

First Menu

Level

Mode Number

Value

Range Mode Description and Instructions

-12 to 12,

0=default

This feature allows adjusting time received over a serial sync line to the local time.

30 minute offsets are not available.

15. Leading Zero on Selected Display Modes

0=disabled,

1=enabled

When enabled, leading zeros will appear on display modes 2, 5, and 17.

18.

1-4

Number of Four Digit Displays Installed

1-4,

2=default,

This value determines how many four digit displays are installed. Double and four

sided displays may use a value of 1 to set all four sides to the same display. Other

combinations are possible.

19. N/A Displays the software version number of the clock.

20. 1-99

Sets various display modes for the first display

The following modes are available:

1 - ssxx – seconds left justified

2 - hh:mm – hours and minutes (default)

4 - nnnn – four digit year

5 - mm/dd – month and day

9 - xxxx – blank display

12 - mm:ss – minutes and seconds

13 - xssx – seconds centered

17 - dd/mm – international date format – day/month

20 - hh:mm – hours and decimal minutes

21. 1-99 Sets various display modes for the second display.

See Mode 20 for available display modes. The default display format is 13.

22. 1-99 Sets various display modes for the third display.

See Mode 20 for available display modes. The default display format is 2.

23. 1-99 Sets various display modes for the fourth display.

See Mode 20 for available display modes. The default display format is 2.

28. 0-99 Rotating Display Delay for Cycle Position 1 (Ver. 2.0 or later required)

4 = (default) Up to 3 display formats may be cycled or rotated. This mode setting

determines the time in seconds each display format is displayed. See Modes 31

through 36 to assign the desired display formats. For example, to display hours and

First Menu

Level

Mode Number

Value

Range Mode Description and Instructions

minutes on display 1 and a temperature alternating between degrees F and degrees C

on display 2, using temperature sensor port 1, then set Modes 31=2, 32=2, 34=24 and

35=25.

29. 0-99 Rotating Display Delay for Cycle Position 2 (Ver. 2.0 or later required)

4 = (default) Up to 3 display formats may be cycled or rotated. This mode setting

determines the time in seconds each display format is displayed. See Modes 31

through 36 to assign the desired display formats. For example, to display hours and

minutes on display 1 and a temperature alternating between degrees F and degrees C

on display 2, using temperature sensor port 1, then set Modes 31=2, 32=2, 34=24 and

35=25.

30. 0-99 Rotating Display Delay for Cycle Position 3 (Ver. 2.0 or later required)

4 = (default) Up to 3 display formats may be cycled or rotated. This mode setting

determines the time in seconds each display format is displayed. See Modes 31

through 36 to assign the desired display formats. For example, to display hours and

minutes on display 1 and a temperature alternating between degrees F and degrees C

on display 2, using temperature sensor port 1, then set Modes 31=2, 32=2, 34=24 and

35=25.

31.

0-99 Display Format – Display 1, Cycle Position 1

The display format will be displayed on display 1, in display cycle 1. See Mode 30 to
