Brigade BE-856GM Manuale utente
BE-856GM vehicle CCTV monitor
User & fitting guide
User Guide & montage
User & Einbau Anleitung
Utente di montaggio e guida
Guía de usuario y montaje
User & montage handleiding
Stock code #3928
2

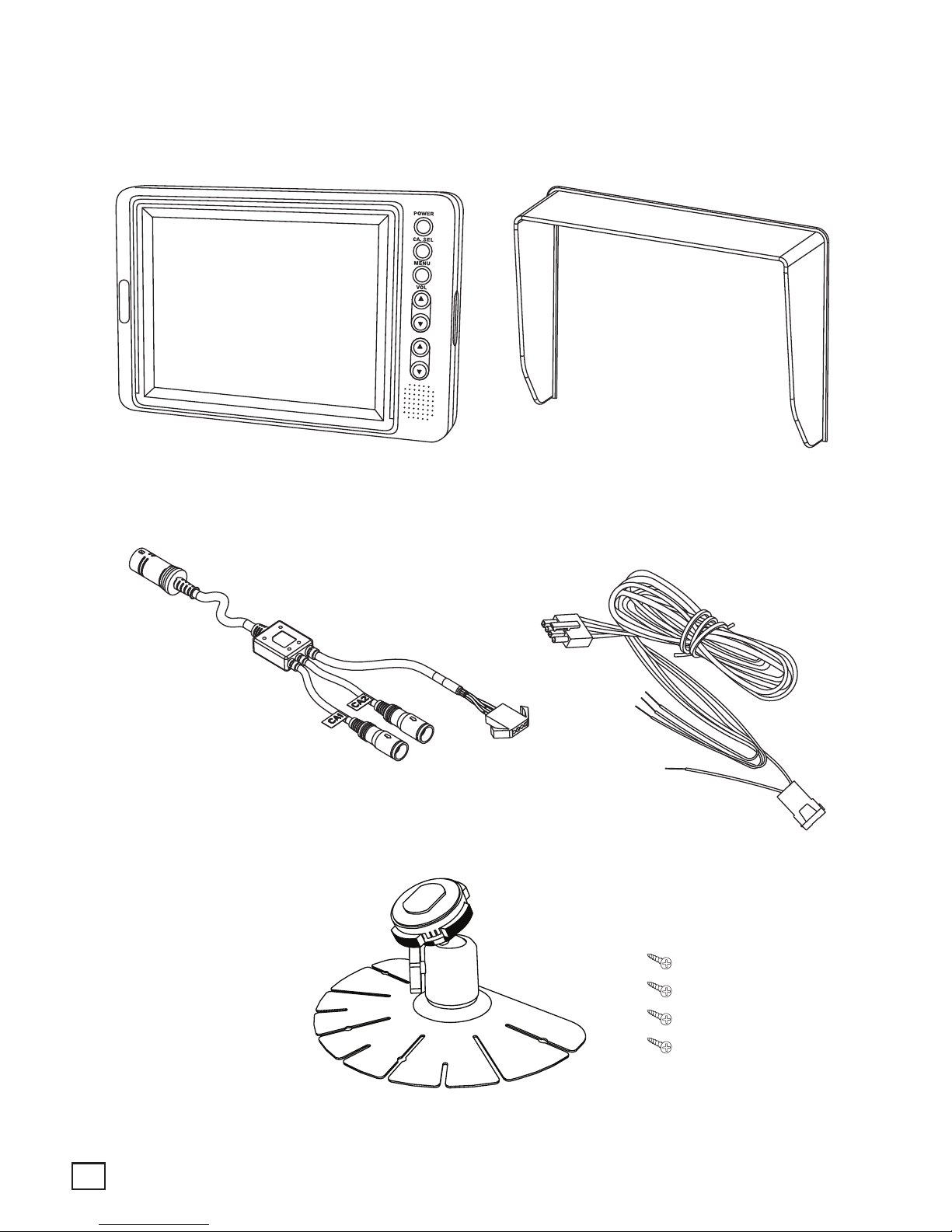

1 Contents/Contenu/Inhalt/Contenuti/Contenidos/inhoud
3

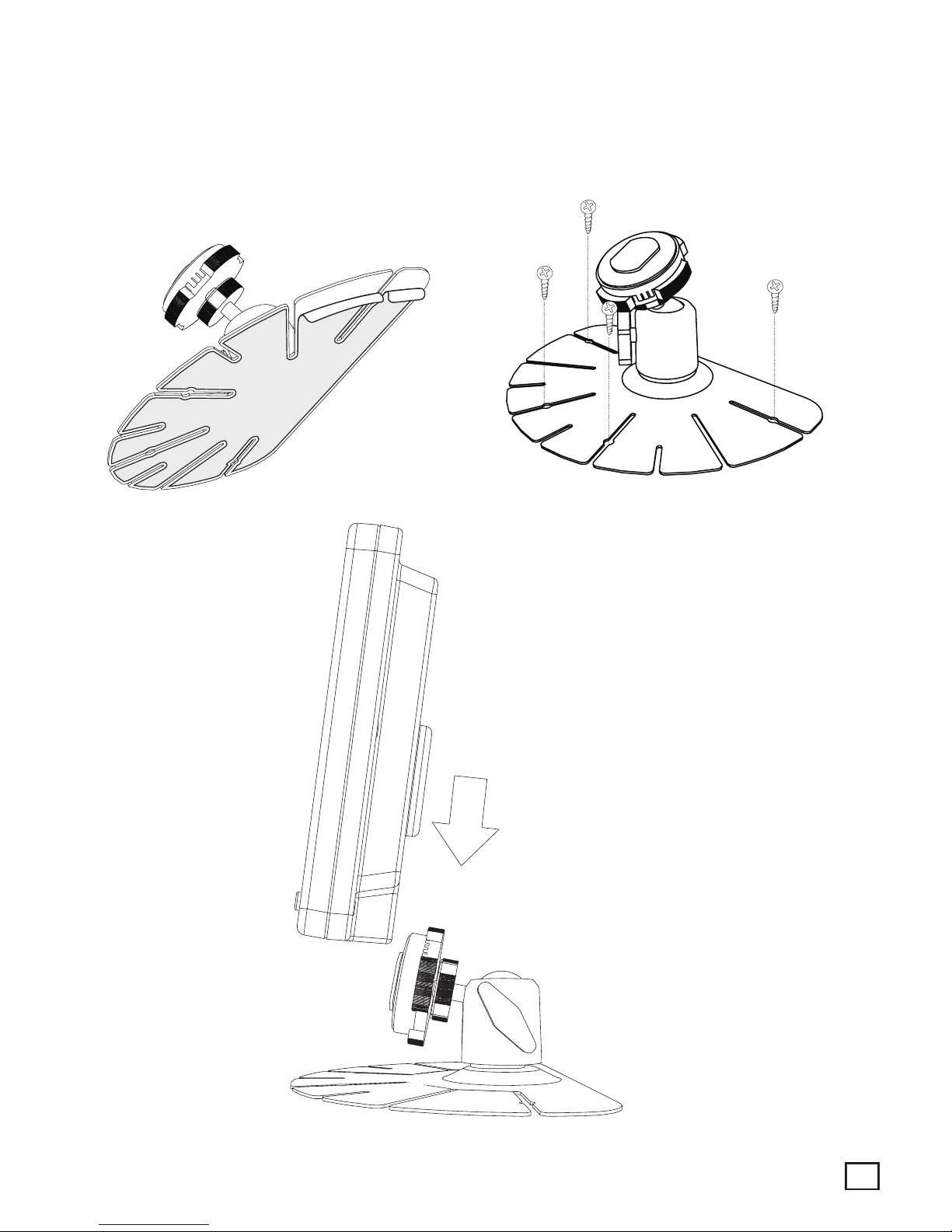

2 Monitor installation/Surveiller l’installation/
Monitor-Installation/L’installazione del monitor/
Vigilar la instalación/Monitor installatie
4

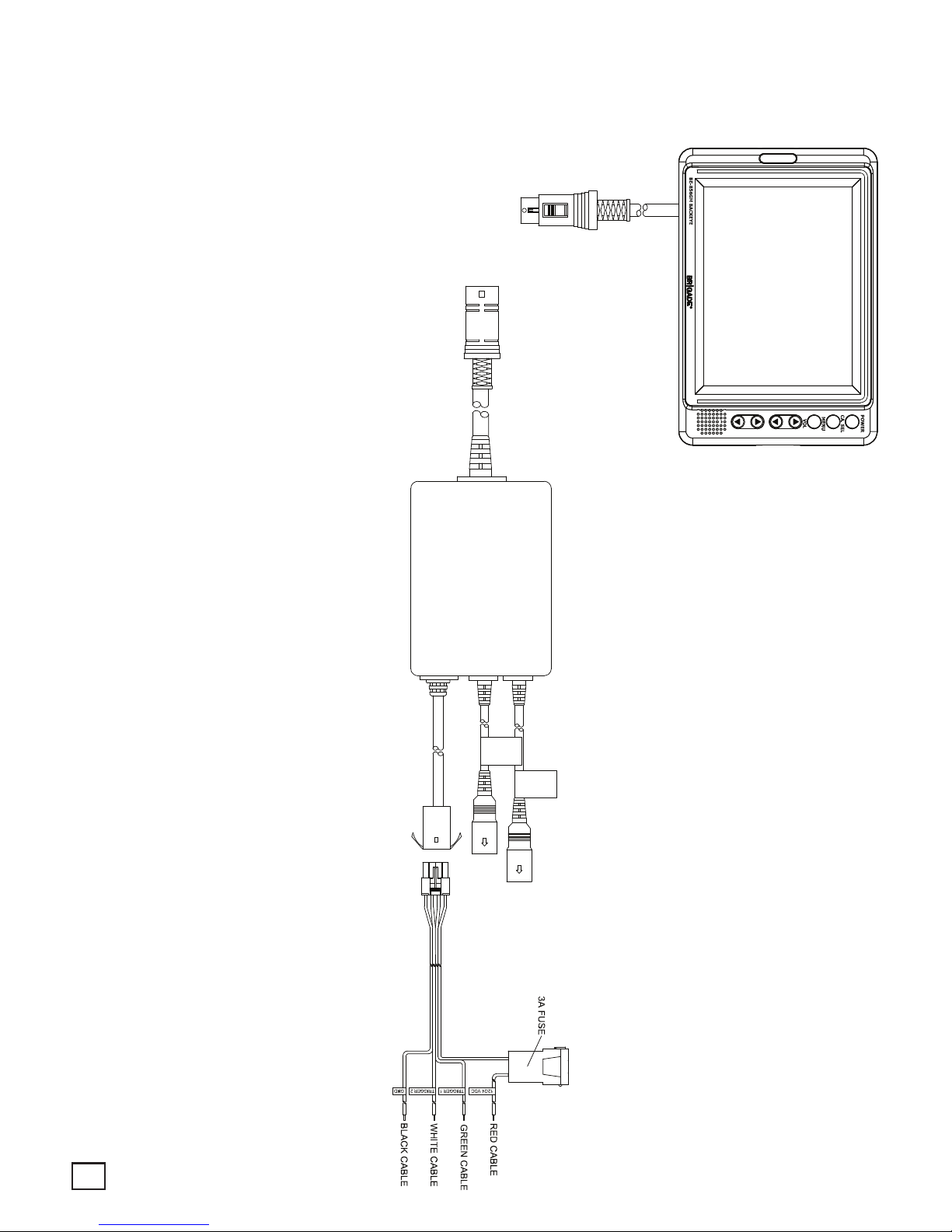

3 Connections/Connexions/Verbindungen/
Connessioni/Conexiones/Aansluitingen
Red: Rouge
Rot
Rosso
Rojo
Rood
Green: Vert
Grün
Verde
Verde
Groen
Fuse: Fusible
Sicherung
Fusibile
Fusible
Zekering
Ground: Terre
Grund
Terreno
Terreno
Grond
Trigger: Déclencher
Auslösen
Attivare
Desencadenar
Trekker
White: Blanc
Weiß
Bianco
Blanco
Wit
Black: Noir
Schwarz
Nero
Negro
Zwart
CA1:
NORMAL
CAMERA ONLY
CA2:
NORMAL
CAMERA ONLY
5
2
1
3
2
3
4
1

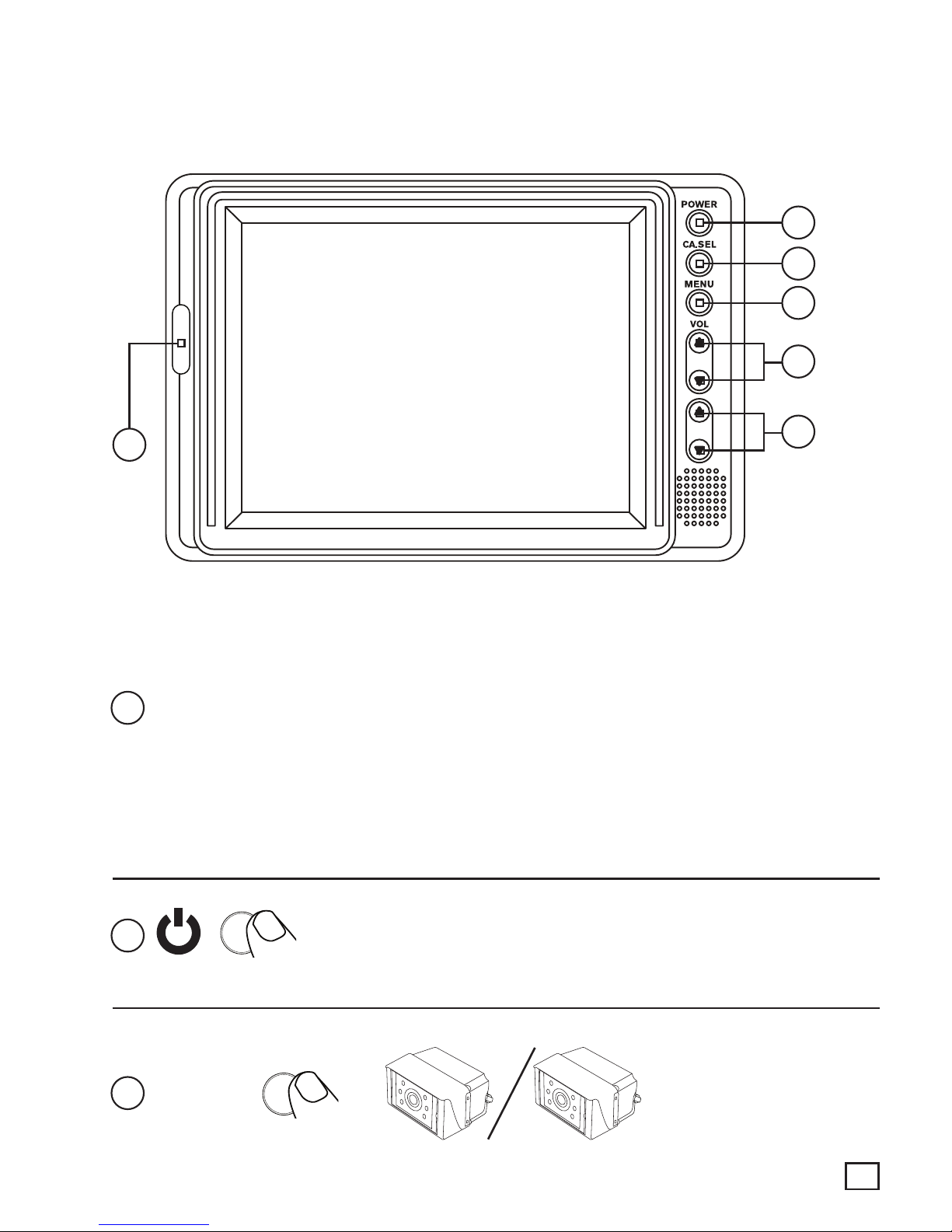

4 Controls/Contrôles/Kontrollen/Controlli/Controles/
Controles/
CA./SEL
1 2
Automatic low light sensor - automatically adjusts monitor brightness.
Capteur optique automatique de basse luminosité - Réglage automatique de luminosité du
moniteur
Automatischer Low-Light Sensor - passt Monitorhelligkeit automatisch an
Sensore automatico di bassa luminosità – varia automaticamente la luminosità dello schermo
Sensor automático de baja luminosidad – adapta automáticamente la luminosidad del monitor
Automatische low-light sensor – past de helderheid van de monitor automatisch aan
5
6
6
4
x1=
MENU
4
5
6
=
MENU
= =
=
x 0.5sec
- DISPLAY MENU -
BRIGHT 30
CONTRAST 30
COLOUR 30
TINT 30
- MAIN MENU -
1. CAMERA SETTING
2. TRIGGER SETTING
3. AUTO SCAN SETTING
4. DAY/NIGHT SETTING
5. ADVANCED MENU
- MAIN MENU -
1. CAMERA SETTING
2. TRIGGER SETTING
3. AUTO SCAN SETTING
4. DAY/NIGHT SETTING
5. ADVANCED MENU
4 Controls/Contrôles/Kontrollen/Controlli/Controles/
Controles/
7
4

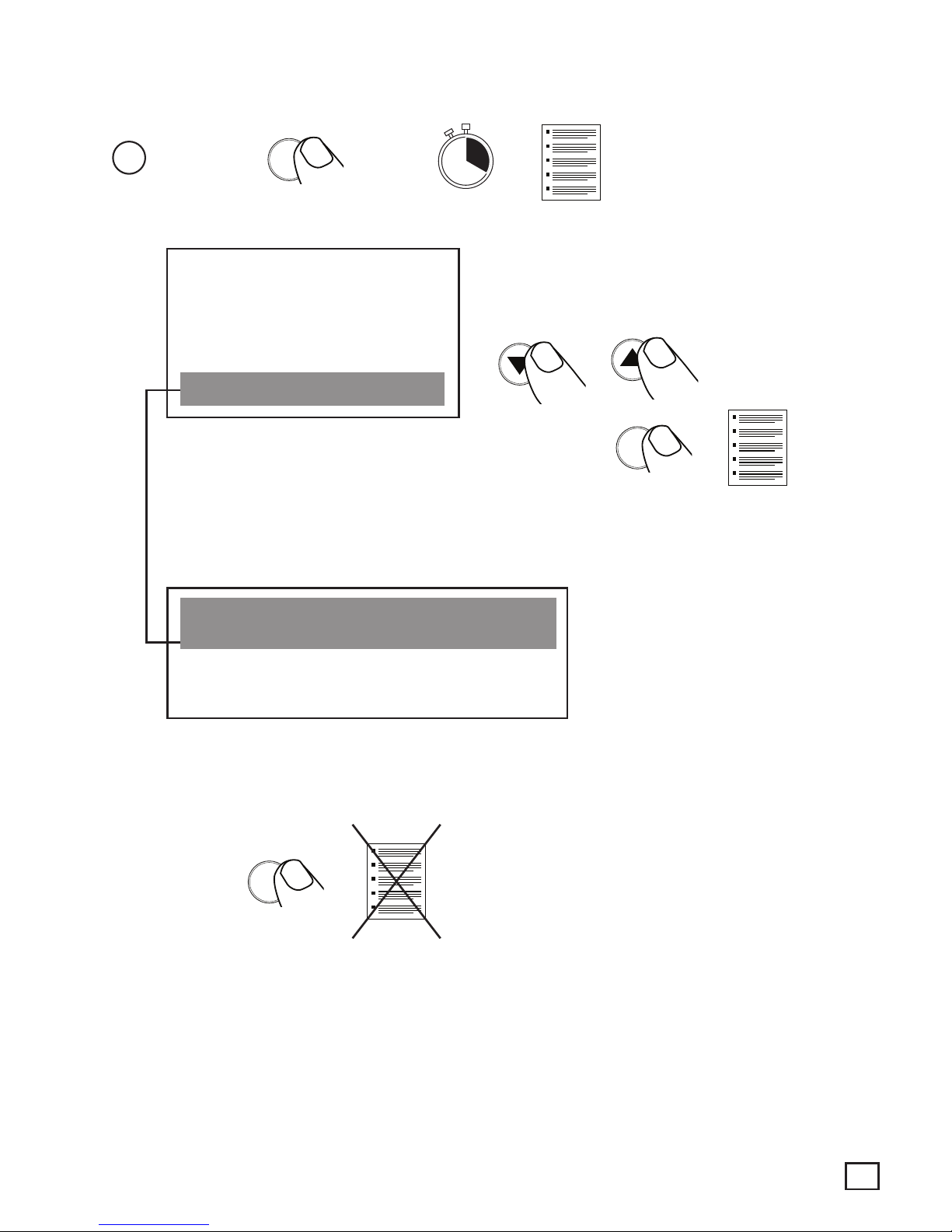

5 Set up menu/Menu setup/Setup Menü/Menu setup/Menú
setup/Setup menu
MENU
1. NORMAL / MIRROR
2. TRIGGER DELAY
3. CAMERA NAME
4. SCALE MODE
5. ADVANCED MENU
1. LANGUAGE: [ENGLISH;DEUTCH;
FRANCAIS;ITALIANO;ESPANOL]
2. AUTO POWER: [ON]
3. FACTORY RESET
x 0.5sec =
=
MENU =
CA./SEL
8
4
4
6 Operation/Opération/Betrieb/Operazione/Operación/
Werking
Auto Power
MENU x 20sec =
MENU x 20sec =
VOL
VOL
=
=
9
7 Specifications/Spécifications/ Spezifikationen/
Specifiche/Especificaciones/Specificaties
ENGLISH
Specifications
Monitor BE-856GM
TV system NTSC/PAL
Picture 5.6" TFT LCD colour monitor with
on-screen display function
Display size 5.6" diagonal
Field of view Top: 50°, Bottom: 70°, Left: 70°,
Right: 70°
Resolution
(640x3(RGB)x480)
Picture image Factory set to reverse image
Power 12~24Vdc input
Inputs 2 x camera
Dimensions 172(w) x 114.5(h) x 32(d)mm
6.8(w) x 4.5(h) x 1.3(d) inches
Operating
temperature
-40°C ~ +70°C
-40°F ~ +158°F
DEUTSCH
Spezifikationen
Monitor BE-856GM
TV-System NTSC/PAL
Bild 5.6" TFT LCD Farbmonitor mit
Funktionsanzeige (OSD)
Bildschirmgröße 5.6" diagonal
Sichtfeld Oben: 50°, Unten: 70°, Links: 70°,
Rechts: 70°
Auflösung
(640x3(RGB)x480)
Videobild Werkseinstellung Reversebild
Stromversorgung 12~24Vdc input
Eingänge 2 x kamera
Abmessungen 172(w) x 114,5(h) x 32(d)mm
6,8(w) x 4,5(h) x 1,3(d) inches
Betriebstemperatur -40°C ~ +70°C
-40°F ~ +158°F
ITALIANO
Specifiche
Schermo BE-856GM
Sistema TV NTSC/PAL
Immagine 5.6" TFT LCD colour monitor with
on-screen display function
Formato display 5.6" diagonale
Campo visivo Top: 50°, Bottom: 70°, Left: 70°,
Right: 70°
Risoluzione
(640x3(RGB)x480)
Immagine a video Immagine reversibile program-
mabile
Alimentazione 12~24Vdc input
Prese 2 x telecamera
Dimensioni 172(w) x 114,5(h) x 32(d)mm
6,8(w) x 4,5(h) x 1,3(d) inches
Temperatura di
servizio
-40°C ~ +70°C
-40°F ~ +158°F
FRANCAIS
Specifications
Moniteur BE-856GM
Système TV NTSC/PAL
Image 5.6" TFT LCD moniteur couleur
avec affichage de fonction (OSD)
Dimension de l’ecran 5.6" diagonal
Champ de vision Haut: 50°, Bas: 70°, Gauche: 70°,
Droite: 70°
Résolution
(640x3(RGB)x480)
Image vidéo Réglage d’usine sur image inverse
Alimentation 12~24Vdc input
Entrées 2 x caméra
Dimensions 172(w) x 114,5(h) x 32(d)mm
6,8(w) x 4,5(h) x 1,3(d) inches
Température
d’utilisation
-40°C ~ +70°C
-40°F ~ +158°F
10
7 Specifications/Spécifications/Spezifikationen/
Specifiche/Especificaciones/Specificaties
Specifications subject to change. Sous réserve de modifications techniques. Vorbehaltlich technischer
Änderungen. Con riserva di modifiche tecniche. Reservadas las modificaciones técnicas. Technische
wijzigingen voorbehouden.
ESPANOL
Especificaciones
Monitor BE-856GM
Sistema de TV NTSC/PAL
Imagen Monitor a color de 5.6" TFT LCD
con visualización de las funciones
(OSD)
Tamaño de pantalla 5.6" diagonal
Campo visual arriba: 50°, abajo: 70°, a la izqui-
erda: 70°, a la derecha: 70°
Resolución
(640x3(RGB)x480)
Imagen de vídeo Ajuste de fábrica de la imagen
inversa
Suministro de
corriente
12~24Vdc entrada
Entradas 2 x cámara
Dimensiones 172(w) x 114,5(h) x 32(d)mm
6,8(w) x 4,5(h) x 1,3(d) inches
Temperatura de
servicio
-40°C ~ +70°C
-40°F ~ +158°F
NEDERLANDS
Specificaties
Monitor BE-856GM
TV-systeem NTSC/PAL
Beeld 5.6" TFT LCD colour monitor with
on-screen display function
Displayformaat 5.6" diagonaal
Gezichtsveld Boven: 50°, Onder: 70°, Links:
70°, Rechts: 70°
Resolutie
(640x3(RGB)x480)
Videobeeld Fabrieksinstelling reversebeeld
Stroomvoorziening 12~24Vdc Ingang
Ingangen 2 x camera
Afmetingen 172(w) x 114,5(h) x 32(d)mm
6,8(w) x 4,5(h) x 1,3(d) inches
Bedrijfstemperatuur -40°C ~ +70°C
-40°F ~ +158°F
