441700

Illustrated Parts List

Model Series

441700

TYPE NUMBERS

0025 through 0883.

TABLE OF CONTENTS

Air Cleaner 5.........................

Alternator 7..........................

Blower Housing 5.....................

Camshaft 2...........................

Carburetor 4..........................

Controls 6............................

Crankshaft 2..........................

Cylinder 2............................

Cylinder Head 3.......................

Electric Starter 6......................

Engine Sump 2.......................

Flywheel 6............................

Fuel Supply 7.........................

Gasket Set -- Engine 4.................

Gasket Set -- Valve 3..................

Governor Spring 6....................

Ignition 7.............................

Intake Manifold 3.....................

Kit -- Carburetor Overhaul 4............

Lubrication 2.........................

Piston, Rings, Connecting Rod 2.......

Valves 3..............................

Not for

Reproduction

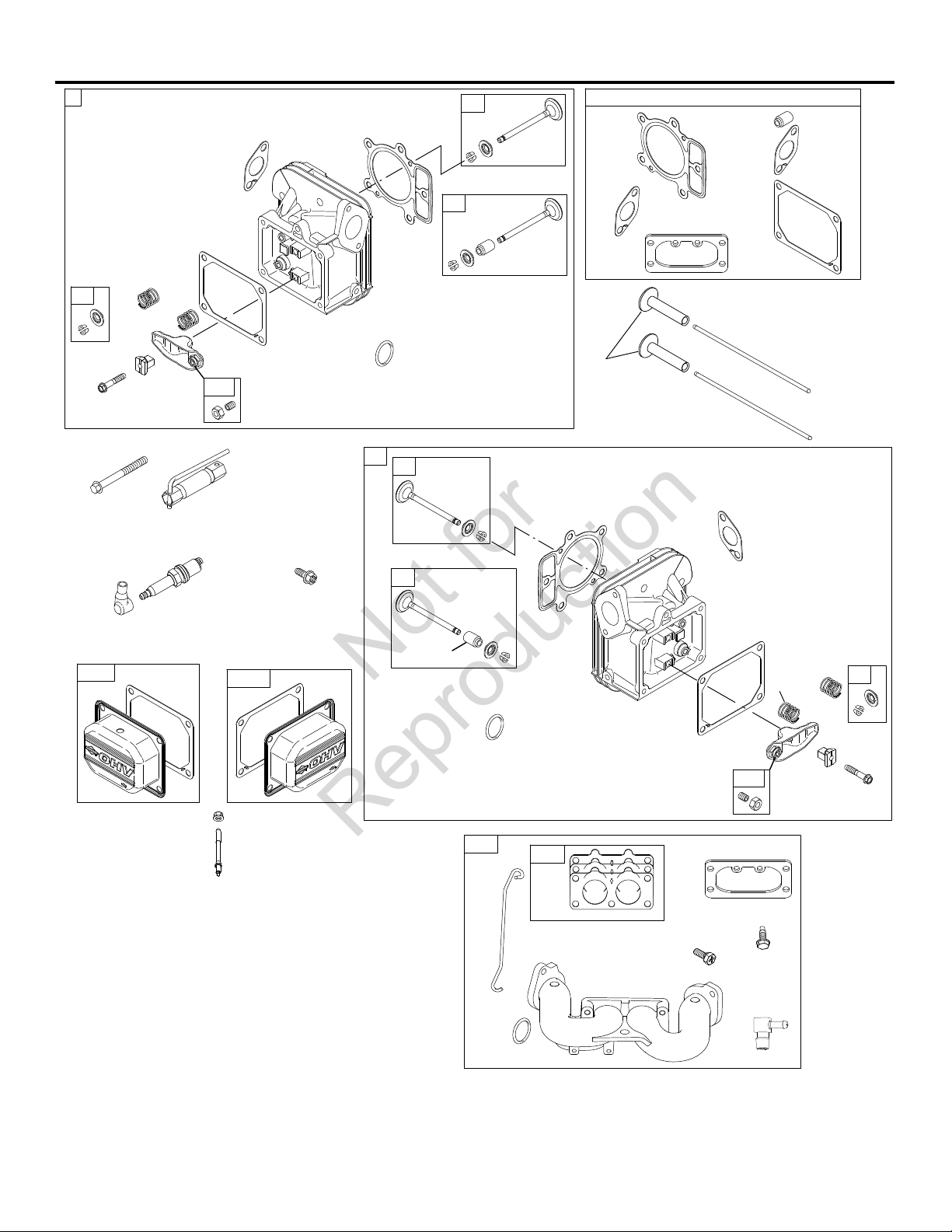

441700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3452--2 Assemblies include all parts shown in frames. 12/10/2008

415

1013

691 552

1017

252

718

250

239

943

750

1035

965

1027

718

741

146

357

287

842

524

523

525

847

15A

1024A

1330 REPAIR MANUAL

1058 OPERATOR’S MANUAL

1319 WARNING LABEL

REQUIRED when replacing parts

with warning labels affixed.

850

1027A

Not for

Reproduction

441700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3452--3 Assemblies include all parts shown in frames. 12/10/2008

654

337

635

383

798

192

1022

1100

1029

868

798

883

1022

1100

1029

36 35

868

192

1023A

1023

1022

868

1095 VALVE GASKET SET

163

883

1022

1026

1026A

914

617

51E

50A

929

212A

163

617

51A

186

Not for

Reproduction

441700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3452--4 Assemblies include all parts shown in frames. 12/10/2008

276A

1127

137

104

987

150

1128

105

1126

1124

160

1123

276A

672

418

163

135

130

947

125

975

133

131

142

276

117A

118A

118

117

142

51E

1342A

1123A

883

943

1022

358A ENGINE GASKET SET

868

842

691

524

163

51E

121 CARBURETOR OVERHAUL KIT

104

105

137

987

633

1123

276

672

1124

150

276A

1123A

163

51A

633

108

231

141 217

Not for

Reproduction

441700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3452--5 Assemblies include all parts shown in frames. 12/10/2008

304

967

703

729

1036 EMISSIONS LABEL

467B

304A

1040

968D

305

305B

467A 467

968A 968C 467 467A

431B

447

865

865A

447A

865B

447A

445A

445

573 405A

Not for

Reproduction

441700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3452--6 Assemblies include all parts shown in frames. 12/10/2008

363

1070

332

1005

668

165

695

726

742

552

616

213

216

220

615

209

211

265

188

222

219

265

552A

404

552A

691

267

1090

797

311

579

802

310

801

1051

783

513

309

510

697

188

883

613

271

269 268

270

267A

267B

562

505

227 278

212

Not for

Reproduction

441700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3452--7 Assemblies include all parts shown in frames. 12/10/2008

729

851

334

635 333

NOTE: All stators use a No. mounting screw.

1119

NOTE: The proper flywheel part number and/or the alternator magnet size will

determine the alternator type or output. See repair instruction manual

for additional information. 501A

526A

878C 578A

474C 474A

877A877C

DUAL

CIRCUIT 5--9AMP

501B

526B

877B

10 -- 16 AMP

474B

789D

1059 1059 1059

578A

789A

789B

918

387 628

788

240

385

601

958

601

187A

601

187E

187D

601

1054

601A 788A

240A

Not for

Reproduction

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

441700

KIncluded in Engine Gasket Set--Ref. No. 358A.

DIncluded in Carburetor Overhaul Kit--Ref. No. 121 or 121A. ∆Included in Valve Gasket Set--Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3452--8 Assemblies include all parts shown in frames. 12/10/2008

1 793564 Cylinder Assembly

2 499585 Kit--Bushing/Seal

(Magneto Side)

3K391086s Seal--Oil

(Magneto Side)

4 699747 Sump--Engine

5 792299 Head--Cylinder

(Cylinder #1)

5A 792300 Head--Cylinder

(Cylinder #2)

7K∆693997 Gasket--Cylinder Head

8 792185 Breather Assembly

9K690937 Gasket--Breather

10 691108 Screw

(Breather Assembly)

11 792184 Tube--Breather

12 K697227 Gasket--Crankcase

13 791130 Screw

(Cylinder Head)

15 691680 Plug--Oil Drain

15A 690946 Plug--Oil Drain

16 699700 Crankshaft

-- -- -- -- -- -- N o t e -- -- -- -- -- --

790132 Crankshaft

Used on Type No(s).

0026, 0568, 0722,

0788, 0800.

20 K791892 Seal--Oil

(PTO Side)

22 694966 Screw

(Crankcase

Cover/Sump)

23 691053 Flywheel

-- -- -- -- -- -- N o t e -- -- -- -- -- --

691054 Flywheel

Used on Type No(s).

0025, 0283, 0437,

0651, 0726, 0785,

0883.

24 222698s Key--Flywheel

25 792023 Piston Assembly

(Standard)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

792072 Piston

Assembly

(.020” Oversize)

26 792026 Ring Set

(Standard)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

792073 Ring Set

(.020” Oversize)

27 690975 Lock--Piston Pin

28 690229 Pin--Piston

(Standard)

29 699699 Rod--Connecting

32 690976 Screw

(Connecting Rod)

33 499596 Valve--Exhaust

34 792200 Valve--Intake

35 694865 Spring--Valve

(Intake)

36 694865 Spring--Valve

(Exhaust)

42 499586 Keeper--Valve

45 690977 Tappet--Valve

46 790562 Camshaft

50A 695241 Manifold--Intake

(Plastic)

51A K791677 Gasket--Intake

51E K∆690949 Gasket--Intake

53 690951 Stud

(Carburetor)

54 699816 Screw

(Intake Manifold)

73 494439 Screen--Rotating

74 698425 Screw

(Rotating Screen)

75 691056 Washer

(Flywheel)

95 690718 Screw

(Throttle Valve)

98 699721 Kit--Idle Speed

104 D694918 Pin--Float Hinge

105 D698537 Valve--Float Needle

108 699723 Valve--Choke

117 791501 Jet--Main

(Standard)

(Left)(Nikki)

117A 791502 Jet--Main

(Standard)

(Right)(Nikki)

118 695415 Jet--Main

(High Altitude)

(Left)(Nikki)

118A 843099 Jet--Main

(High Altitude)

(Right)(Nikki)

121 792455 Kit--Carburetor

Overhaul

125 791230 Carburetor

130 690993 Valve--Throttle

131 499805 Kit--Throttle Shaft

133 699724 Float--Carburetor

135 699729 Tube--Fuel Transfer

137 D690994 Gasket--Float Bowl

141 699722 Kit--Choke Shaft

142 699726 Nozzle--Carburetor

(Standard)

146 690979 Key--Timing

150 D690995 Gasket--Nozzle

160 699727 Retainer--Solenoid

163 K∆691001 Gasket--Air Cleaner

165 693148 Nut

(Ring Gear)

186 795985 Connector--Hose

187A 791766 Line--Fuel

(Cut to Required

Length)

187D 791744 Line--Fuel

(Formed)(Cut to

Required Length)

187E 791801 Line--Fuel

(Formed)(Cut to

Required Length)

188 691108 Screw

(Control Bracket)

192 690083 Adjuster--Rocker Arm

Not for

Reproduction

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

441700

KIncluded in Engine Gasket Set--Ref. No. 358A.

DIncluded in Carburetor Overhaul Kit--Ref. No. 121 or 121A.

∆Included in Valve Gasket Set--Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3452--9 Assemblies include all parts shown in frames. 12/10/2008

209 793340 Spring--Governor

(Orange)

Used on Type No(s).

0129, 0130, 0288,

0651, 0722, 0750,

0788, 0797, 0883.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

793339 Spring--

Governor

(Light Green)

Used on Type No(s).

0766, 0785, 0790,

0800.

793342 Spring--

Governor

(Dark Blue)

Used on Type No(s).

0127.

793341 Spring--

Governor

(Silver)

Used on Type No(s).

0128.

795086 Spring--

Governor

Used on Type No(s).

0110.

793339 Spring--

Governor

(Light Green)

(Used After Code Date

06081400).

Used on Type No(s).

0025, 0026, 0027,

0119, 0121, 0123,

0283, 0284, 0568,

0726.

793340 Spring--

Governor

(Orange)

(Used After Code Date

06081400).

Used on Type No(s).

0110, 0116, 0117,

0118, 0428.

793342 Spring--

Governor

(Dark Blue)

(Used After Code Date

06081400).

Used on Type No(s).

0126, 0437.

793343 Spring--

Governor

(Purple)

(Used After Code Date

06081400).

Used on Type No(s).

0124.

697674 Spring--

Governor

(Brown)

(Used Before Code

Date 06081500).

(Silver)

Used on Type No(s).

0025, 0026, 0027,

0116, 0117, 0119,

0121, 0123, 0283,

0284, 0568, 0726.

698071 Spring--

Governor

(White)

(Used Before Code

Date 06081500).

Used on Type No(s).

0118, 0428.

692909 Spring--

Governor

(Yellow)

(Used Before Code

Date 06081500).

Used on Type No(s).

0126.

791606 Spring--

Governor

(No color)

(Used Before Code

Date 06081500).

Used on Type No(s).

0124.

691018 Spring--

Governor

(Medium Green)

(Used Before Code

Date 06081500).

Used on Type No(s).

0437.

211 691019 Spring--Governed Idle

212 695238 Link--Throttle

(Used After Code Date

08071300).

-- -- -- -- -- -- N o t e -- -- -- -- -- --

792265 Link--Throttle

(Used Before Code

Date 08071400).

212A 695238 Link--Throttle

213 691021 Bracket--Choke

Control

216 691022 Link--Choke

217 695409 Spring--Choke Return

219 793338 Gear--Governor

220 690412 Washer

(Governor Gear)

222 698761 Bracket--Control

-- -- -- -- -- -- N o t e -- -- -- -- -- --

698757 Bracket--

Control

Used on Type No(s).

0288, 0651, 0722,

0750, 0797, 0788,

0883.

227 796223 Lever--Governor

Control

(Used After Code Date

08071300).

-- -- -- -- -- -- N o t e -- -- -- -- -- --

792492 Lever--

Governor Control

(Used Before Code

Date 08071400).

231 690718 Screw

(Choke Valve)

239 792028 Switch--Oil Pressure

Used on Type No(s).

0110, 0118, 0119,

0123, 0126, 0127,

0128, 0428.

240 691035 Filter--Fuel

240A 695666 Filter--Fuel

Used on Type No(s).

0722, 0788.

250 690957 Retainer--Breather

252 690956 Collector--Oil

265 691044 Clamp--Casing

267 695134 Screw

(Casing Clamp )

(Length .630)

267A 695134 Screw

(Casing Clamp )

(Length .625)

267B 792629 Screw

(Casing Clamp )

(Length .703)

268 691025 Casing--Control Wire

(Cut To Required

Length)

269 691026 Wire--Control

(Cut To Required

Length)

270 691027 Nut

(Control Wire Casing)

Not for

Reproduction

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

441700

KIncluded in Engine Gasket Set--Ref. No. 358A.

DIncluded in Carburetor Overhaul Kit--Ref. No. 121 or 121A. ∆Included in Valve Gasket Set--Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3452--10 Assemblies include all parts shown in frames. 12/10/2008

271 691028 Lever--Control

276 KD690997 Washer--Sealing

276A D695410 Washer--Sealing

Used on Type No(s).

0117.

278 792651 Washer

(Governor Control

Lever)

287 691108 Screw

(Dipstick Tube)

304 790688 Housing--Blower

(Black)

Used on Type No(s).

0121E1, 0123E1,

0785, 0788, 0790,

0797, 0800, 0883.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

790688 Housing--

Blower

(Used Before Code

Date 06103000).

Used on Type No(s).

0025, 0026, 0027,

0116, 0117, 0118,

0119, 0124, 0283,

0284, 0288, 0428,

0437, 0568, 0651.

304A 796597 Housing--Blower

(Black)

(Used After Code Date

08082700).

Used on Type No(s).

0118, 0121B1,

0123B1, 0126, 0127,

0128, 0437.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

796597 Housing--

Blower

(Black)

(Used After Code Date

08091400).

Used on Type No(s).

0025, 0026, 0027,

0110, 0116, 0117,

0119, 0124, 0129,

0130, 0283, 0284,

0288, 0428, 0568,

0651, 0722, 0726,

0750, 0766.

791243 Housing--

Blower

(Black)

(Used Before Code

Date 08082800 and

After Code Date

06102900).

Used on Type No(s).

0118, 0437.

791243 Housing--

Blower

(Black)

(Used Before Code

Date 08091500 and

After Code Date

06102900).

Used on Type No(s).

0025, 0026, 0027,

0116, 0117, 0119,

0124, 0283, 0284,

0288, 0428, 0568,

0651.

791243

Housing--Blower

(Black)

(Used Before Code

Date 08082800).

Used on Type No(s).

0121B1, 0123B1,

0126, 0127, 0128.

791243

Housing--Blower

(Black)

(Used Before Code

Date 08091500).

Used on Type No(s).

0110, 0129, 0130,

0722, 0726, 0750,

0766.

305 691005 Screw

(Blower Housing)

305B 790690 Screw

(Blower Housing to

Intake Elbow)

309 497595 Motor--Starter

-- -- -- -- -- -- N o t e -- -- -- -- -- --

499521 Motor--Starter

Used on Type No(s).

0110, 0117, 0118,

0119, 0121, 0123,

0126, 0127, 0128.

310 690323 Screw

(Starter Motor)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

691263 Screw

(Starter Motor)

Used on Type No(s).

0110, 0117, 0118,

0119, 0121, 0123,

0126, 0127, 0128.

311 497608 Brush Set

332 691059 Nut

(Flywheel)

333 691060 Armature--Magneto

334 691061 Screw

(Magneto Armature)

337 491055s Plug--Spark

-- -- -- -- -- -- N o t e -- -- -- -- -- --

691043 Plug--Spark

Used on Type No(s).

0025, 0026, 0027,

0110, 0118, 0121,

0123, 0124, 0126,

0127, 0128, 0288,

0651, 0750, 0797,

0883.

792015 Plug--Spark

Used on Type No(s).

0437.

793541 Plug--Spark

Used on Type No(s).

0722, 0788.

Not for

Reproduction

Altri manuali Briggs & Stratton Motore

Briggs & Stratton

Briggs & Stratton P0820B Manuale utente

Briggs & Stratton

Briggs & Stratton Power Built 825 Series Manuale

Briggs & Stratton

Briggs & Stratton 613200 - Guida all'installazione

Briggs & Stratton

Briggs & Stratton 255700 Series Manuale

Briggs & Stratton

Briggs & Stratton VANGUARD 810 EFI Istruzioni operative

Briggs & Stratton

Briggs & Stratton 276781 Manuale utente

Briggs & Stratton

Briggs & Stratton 290700 Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton Professional Series 775 Series 110000 Manuale utente

Briggs & Stratton

Briggs & Stratton 351700 Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton E Series Istruzioni per l'uso e l'installazione

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Manuale utente

Briggs & Stratton

Briggs & Stratton 200000 Vanguard Manuale utente

Briggs & Stratton

Briggs & Stratton PROFESSIONAL SERIES 110000 Manuale

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 20G400 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton Classic 100000 Series Manuale utente

Briggs & Stratton

Briggs & Stratton Fource 21100 Manuale

Briggs & Stratton

Briggs & Stratton 92500 Series Manuale

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manuale utente

Briggs & Stratton

Briggs & Stratton 80200 Series Manuale

Briggs & Stratton

Briggs & Stratton 40G700 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manuale utente

Briggs & Stratton

Briggs & Stratton 210400 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton 310000 VERTICAL SERIES Manuale utente

Manuali Motore popolari di altre marche

Rotax

Rotax 125 senior MAX evo Manuale utente

Kohler

Kohler K361 Manuale utente

MTD

MTD OHV Series Manuale utente

Kohler

Kohler COMMAND CH18-745 Manuale utente

Mercury

Mercury D4.2L D-Tronic Manuale utente

Selve

Selve SE Plus-RC Series Manuale utente

Perkins

Perkins 1206E-E66TA Manuale utente

Skov

Skov DA 174 Manuale

Rossi

Rossi TX11 Series Manuale utente

Siemens

Siemens SIMOTICS T-1FW3 Foglio di istruzioni

AL-KO

AL-KO PRO 350 Manuale utente

MTU

MTU 12 V 4000 Lx4 Manuale utente

Nanni

Nanni N3.30 Manuale di istruzioni

Nanni

Nanni N5.160 CR2 Manuale utente

KSB

KSB SuPreme Series Istruzioni per l'installazione

Hiwin

Hiwin EM1 Series Manuale utente

Rotax

Rotax 912 i series Istruzioni operative

Siemens

Siemens SIMOTICS XP 1MB1 Manuale utente
