44P700

Illustrated Parts List

Model Series

44P700

TYPE NUMBERS

0016 through 0884.

TABLE OF CONTENTS

Air Cleaner 6. . . . . . . . . . . . . . . . . . . . . . . . .

Alternators 8. . . . . . . . . . . . . . . . . . . . . . . . .

Blower Housing/Shrouds 6. . . . . . . . . . . .

Camshaft 3. . . . . . . . . . . . . . . . . . . . . . . . . . .

Carburetor 5. . . . . . . . . . . . . . . . . . . . . . . . . .

Controls 7. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft 3. . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Head 4. . . . . . . . . . . . . . . . . . . . . .

Electric Starter 7. . . . . . . . . . . . . . . . . . . . . .

Engine Sump 2. . . . . . . . . . . . . . . . . . . . . . .

Exhaust System 5. . . . . . . . . . . . . . . . . . . .

Flywheel 7. . . . . . . . . . . . . . . . . . . . . . . . . . .

Ignition 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Gasket Set −Engine 2. . . . . . . . . . . . . . . . .

Gasket Set −Valve 4. . . . . . . . . . . . . . . . . .

Lubrication 3. . . . . . . . . . . . . . . . . . . . . . . . .

Kit−Carburetor Overhaul 5. . . . . . . . . . . . .

Piston, Rings, Connecting Rod 3. . . . . . .

Valves 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

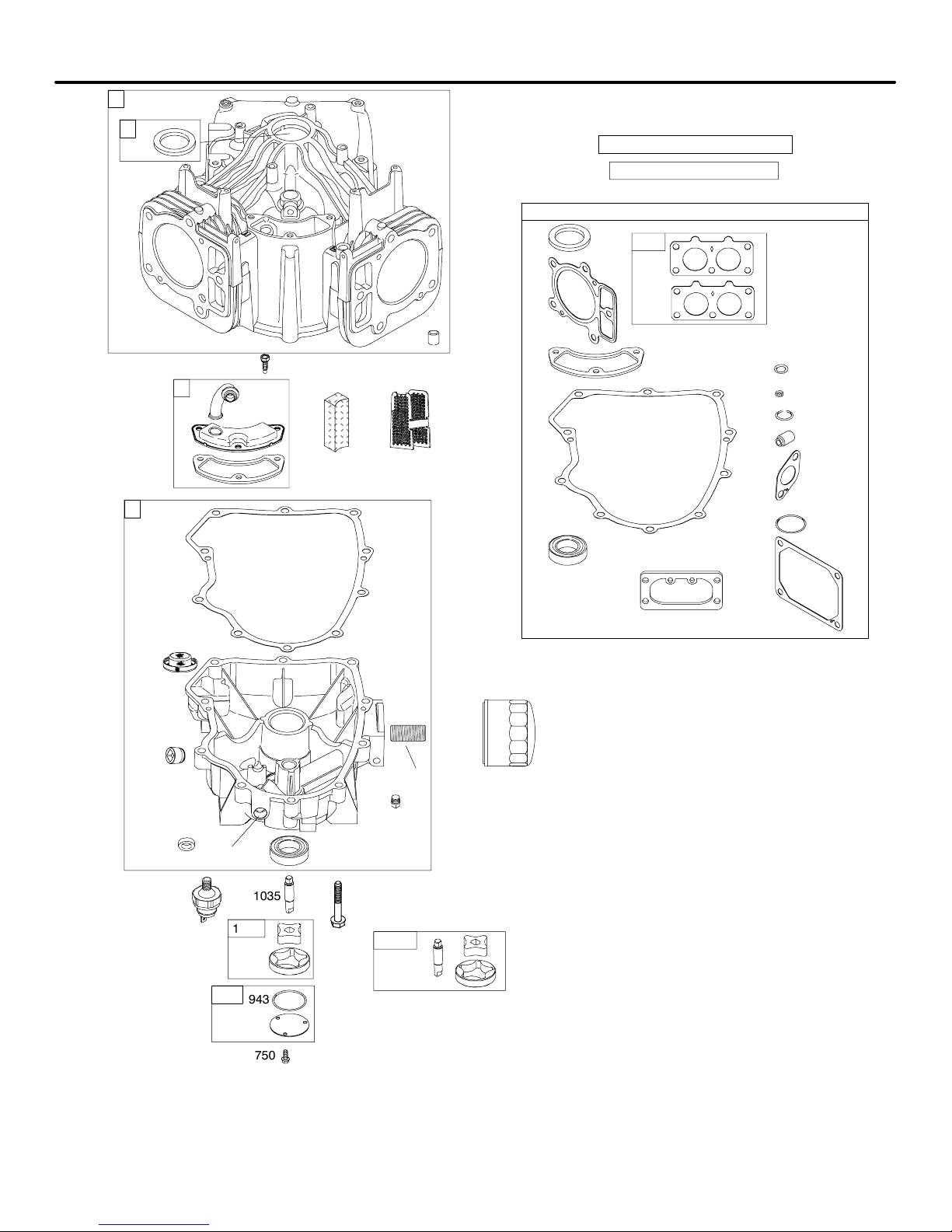

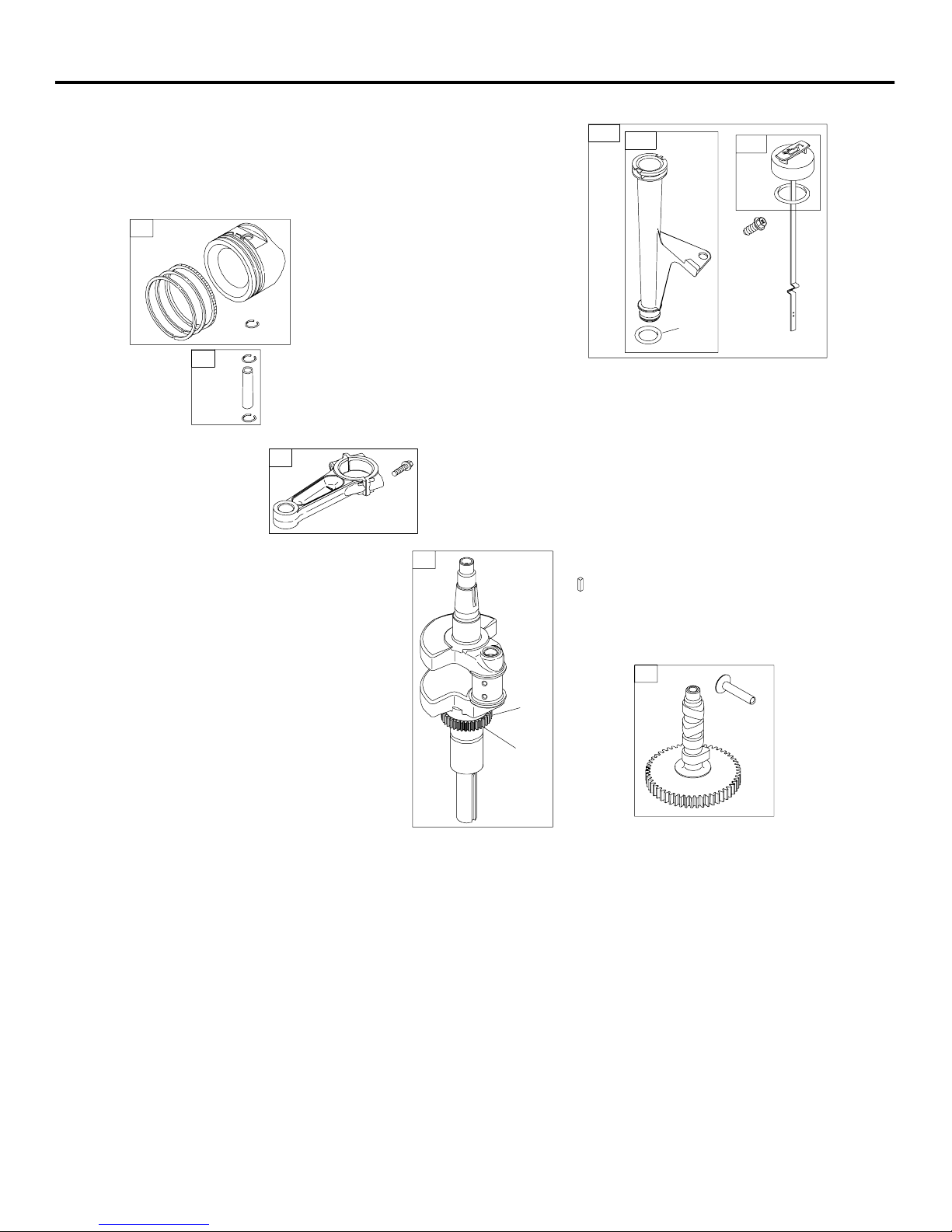

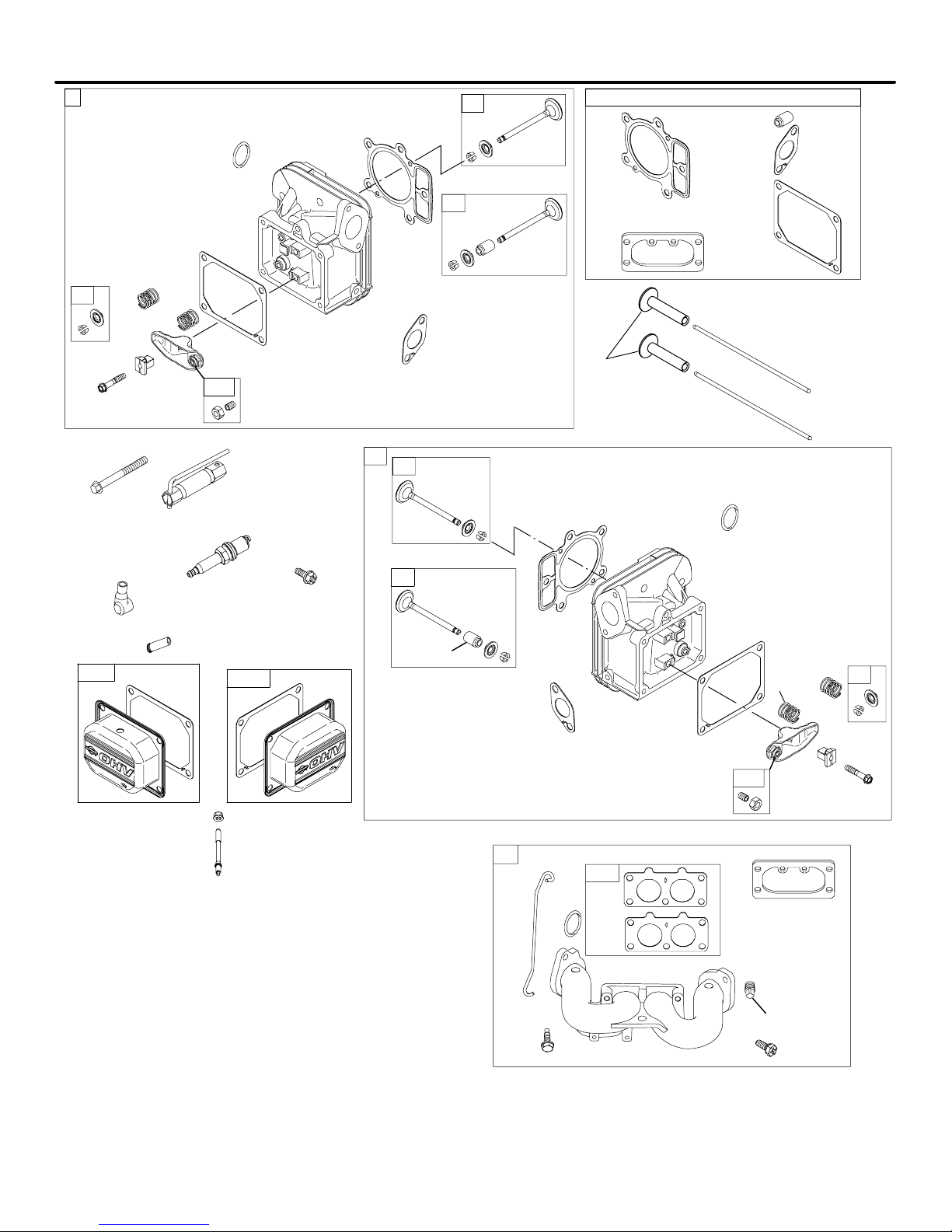

44P700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3581−2Assemblies include all parts shown in frames. 04/26/2007

1013

691 552

1017

252

718

31058 OPERATOR’S MANUAL

250

239 22

ÚÚ

943

750

1035

1024

965

1027

718

1330 REPAIR MANUAL

883

943

1022

358A ENGINE GASKET SET

868

842

691

524

163

415

51A

1024A

44P700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3581−3Assemblies include all parts shown in frames. 04/26/2007

741

146

287

842

524

523

525

847

44P700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3581−4Assemblies include all parts shown in frames. 04/26/2007

654

337

635

383

798

192

1022

1100

1029

868

798

883

1022

1100

1029

36 35

868

192

1023A

1023

1022

868

1095 VALVE GASKET SET

163

883

1022

1026

1026A

929

212

163

914

415

617

918

51A

617

44P700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3581−5Assemblies include all parts shown in frames. 04/26/2007

387

628

788

240

385

276

1127

137

104

987

150

1128

105

1126

1124

1123

276

633

108

672

418

163

135

231

130

947

141

125

975

133

131

142

1169

601601

187

601

187A

601601601

187B

121 CARBURETOR OVERHAUL KIT

104

276

1124

150

987 633

672

105

1123

137

300

613

613A

883883

187C

601

51A

117

117A

118

118A

788A

44P700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3581−6Assemblies include all parts shown in frames. 04/26/2007

447

865

573

163

304

967

445

865A

447A

865B

447A

405A

703

729

1036 EMISSIONS LABEL

431

305

1040

305B

467A

968

467A

44P700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3581−7Assemblies include all parts shown in frames. 04/26/2007

363

1070

332

668

742

552

616

213

216

220

615

209

211 267

265

188

222

219

265

552A

404

552A

691

267A

280

1090

797

311

579

802

310

801

1051

783

513

309

510

697

267

165

726

1005

695

544

803

562

505

227

278

44P700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3581−8Assemblies include all parts shown in frames. 04/26/2007

729

1119

1054

851

334

635 333

501B

526B

877B

10 −16 AMP

474B

789A

789B

1059

578A

NOTE: All stators use a No. mounting screw.

1119

NOTE: The proper flywheel part number and/or the alternator magnet size will

determine the alternator type or output. See repair instruction manual

for additional information.

789E

789D

878C

474C

877C

DUAL

CIRCUIT

1059

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

44P700

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

ΔIncluded in Valve Gasket Set−Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3581−9Assemblies include all parts shown in frames. 04/26/2007

1 793564 Cylinder Assembly

2 499585 Kit−Bushing/Seal

(Magneto Side)

3K391086s Seal−Oil

(Magneto Side)

4 699747 Sump−Engine

5 793558 Head−Cylinder

(Cylinder 1)

5A 793559 Head−Cylinder

(Cylinder 2)

7KΔ693997 Gasket−Cylinder Head

8 792185 Breather Assembly

9K690937 Gasket−Breather

10 691108 Screw

(Breather Assembly)

11 792184 Tube−Breather

12 K697227 Gasket−Crankcase

13 791130 Screw

(Cylinder Head)

15 690946 Plug−Oil Drain

16 699700 Crankshaft

−−−−−− Note −−−−−−

790136 Crankshaft

Used on Type No(s).

0025.

790132 Crankshaft

Used on Type No(s).

0016, 0026, 0110,

0111, 0115, 0120,

0412.

20 K791892 Seal−Oil

(PTO Side)

22 694966 Screw

(Crankcase

Cover/Sump)

23 691053 Flywheel

24 222698s Key−Flywheel

25 793560 Piston Assembly

(Standard)

−−−−−− Note −−−−−−

793563 Piston

Assembly

(.020” Oversize)

26 793561 Ring Set

(Standard)

−−−−−− Note −−−−−−

792073 Ring Set

(.020” Oversize)

27 690975 Lock−Piston Pin

28 690229 Pin−Piston

(Standard)

29 699699 Rod−Connecting

(Standard)

32 690976 Screw

(Connecting Rod)

33 793557 Valve−Exhaust

34 793556 Valve−Intake

35 694865 Spring−Valve

(Intake)

36 694865 Spring−Valve

(Exhaust)

42 499586 Keeper−Valve

45 690977 Tappet−Valve

46 793663 Camshaft

50 695241 Manifold−Intake

51A K791677 Gasket−Intake

53 690951 Stud

(Carburetor)

54 699816 Screw

(Intake Manifold)

73 494439 Screen−Rotating

74 698425 Screw

(Rotating Screen)

75 691056 Washer

(Flywheel)

95 690718 Screw

(Throttle Valve)

98 699721 Kit−Idle Speed

104 D694918 Pin−Float Hinge

105 D698537 Valve−Float Needle

108 699723 Valve−Choke

117 792296 Jet−Main

(Standard)

(Left)(Nikki)

117A 842627 Jet−Main

(Standard)

(Right)(Nikki)

118 699457 Jet−Main

(High Altitude)

(Left)(Nikki)

118A 699733 Jet−Main

(High Altitude)

(Right)(Nikki)

121 792455 Kit−Carburetor

Overhaul

125 792295 Carburetor

130 690993 Valve−Throttle

131 499805 Kit−Throttle Shaft

133 699724 Float−Carburetor

135 699729 Tube−Fuel Transfer

137 D690994 Gasket−Float Bowl

141 699722 Kit−Choke Shaft

142 699726 Nozzle−Carburetor

(Standard)

146 690979 Key−Timing

150 D690995 Gasket−Nozzle

163 KΔ691001 Gasket−Air Cleaner

165 693148 Nut

(Ring Gear)

187 791881 Line−Fuel

(Molded)

187A 791801 Line−Fuel

(Molded)

187B 791766 Line−Fuel

(15” Long)(Cut to

Required Length)

187C 791744 Line−Fuel

(Formed)(Cut to

Required Length)

188 691108 Screw

(Control Bracket)

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

44P700

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

ΔIncluded in Valve Gasket Set−Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3581−10 Assemblies include all parts shown in frames. 04/26/2007

192 690083 Adjuster−Rocker Arm

209 793340 Spring−Governor

(Orange)

(Used After Code Date

06081400).

Used on Type No(s).

0025, 0026, 0027,

0412.

−−−−−− Note −−−−−−

697674

Spring−Governor

(Brown)

(Used Before Code

Date 06081500).

Used on Type No(s).

0025, 0026, 0027,

0412.

793343

Spring−Governor

(Used After Code Date

06081400).

Used on Type No(s).

0110, 0111, 0112,

0113, 0115, 0116,

0117, 0120.

698071 Spring−

Governor

(White)

(Used Before Code

Date 06081500).

Used on Type No(s).

0110, 0111, 0112,

0113.

791606

Spring−Governor

(Medium Green)

(Used Before Code

Date 06081500).

Used on Type No(s).

0115, 0117.

793340

Spring−Governor

(Orange)

Used on Type No(s).

0016, 0119, 0884.

211 691019 Spring−Governed Idle

212 695238 Link−Throttle

213 691021 Bracket−Choke

Control

216 691022 Link−Choke

219 793338 Gear−Governor

(Used After Code Date

06081400).

−−−−−− Note −−−−−−

698231

Gear−Governor

(Used Before Code

Date 0608100).

220 690412 Washer

(Governor Gear)

222 698761 Bracket−Control

−−−−−− Note −−−−−−

698757

Bracket−Control

Used on Type No(s).

0884.

227 792492 Lever−Governor

Control

231 690718 Screw

(Choke Valve)

239 792028 Switch−Oil Pressure

−−−−−− Note −−−−−−

697049 Switch−Oil

Pressure

Used on Type No(s).

0115, 0119.

240 695666 Filter−Fuel

250 690957 Retainer−Breather

252 690956 Collector−Oil

265 691024 Clamp−Casing

267 691044 Screw

(Casing Clamp)

Used on Type No(s).

0025, 0027, 0113,

0115, 0116, 0117,

0119, 0120.

267A 695134 Screw

(Casing Clamp)

Used on Type No(s).

0016, 0026, 0100,

0110, 0111, 0112,

0412, 0884.

276 D695410 Washer−Sealing

278 792651 Washer

(Governor Control

Lever)

280 691526 Bracket−Rod

287 691108 Screw

(Dipstick Tube)

300 626226 Muffler

304 792301 Housing−Blower

305 691005 Screw

(Blower Housing)

305B 790690 Screw

(Blower Housing to

Intake Elbow)

309 499521 Motor−Starter

310 691263 Screw

(Starter Motor)

311 497608 Brush Set

332 691059 Nut

(Flywheel)

333 691060 Armature−Magneto

334 691061 Screw

(Magneto Armature)

337 491055s Plug−Spark

−−−−−− Note −−−−−−

691043 Plug−Spark

Used on Type No(s).

0884.

358A 694012 Gasket Set−Engine

363 19203 Puller−Flywheel

383 19374s Wrench−Spark Plug

385 691108 Screw

(Fuel Pump)

387 808656 Pump−Fuel

404 690442 Washer

(Governor Crank)

405A 697820 Screw

(Backplate)

415 690283 Plug

418 690999 Plate−Carburetor

431 792297 Elbow−Intake

445 792105 Filter−Air Cleaner

Cartridge

447 691003 Screw

(Air Guide Cover)

447A 691108 Screw

(Air Guide Cover)

467A 790697 Knob−Air Cleaner

474B 696458 Alternator

(10−16 Amp

Regulated)

474C 696459 Alternator

(Dual Circuit)

501B 691185 Regulator

(10−16 Amp

Regulated)

Altri manuali Briggs & Stratton Motore

Briggs & Stratton

Briggs & Stratton 91200 Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 150000 HORIZONTAL SERIES Manuale utente

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manuale utente

Briggs & Stratton

Briggs & Stratton 90000 series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton Racing Animal Series Manuale utente

Briggs & Stratton

Briggs & Stratton 190000 Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 12J800 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton 405700, 406700, 407700, 445700 Istruzioni per l'installazione

Briggs & Stratton

Briggs & Stratton 90000 series Manuale utente

Briggs & Stratton

Briggs & Stratton 6B-HS Manuale utente

Briggs & Stratton

Briggs & Stratton 31F700 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton 90000 series Manuale utente

Briggs & Stratton

Briggs & Stratton MS-1055 Istruzioni operative

Briggs & Stratton

Briggs & Stratton Vanguard 580000 Manuale utente

Briggs & Stratton

Briggs & Stratton Classic 100000 Series Manuale utente

Briggs & Stratton

Briggs & Stratton 205300 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton 205400 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton 110400 Istruzioni per l'installazione

Briggs & Stratton

Briggs & Stratton 195700 Series Istruzioni per l'installazione

Briggs & Stratton

Briggs & Stratton 90700 Manuale

Briggs & Stratton

Briggs & Stratton Vanguard 80000 Manuale utente

Briggs & Stratton

Briggs & Stratton E Series Istruzioni per l'uso e l'installazione

Briggs & Stratton

Briggs & Stratton 99700 Series Manuale utente

Manuali Motore popolari di altre marche

Rotax

Rotax 125 senior MAX evo Manuale utente

Kohler

Kohler K361 Manuale utente

MTD

MTD OHV Series Manuale utente

Kohler

Kohler COMMAND CH18-745 Manuale utente

Mercury

Mercury D4.2L D-Tronic Manuale utente

Selve

Selve SE Plus-RC Series Manuale utente

Perkins

Perkins 1206E-E66TA Manuale utente

Skov

Skov DA 174 Manuale

Rossi

Rossi TX11 Series Manuale utente

Siemens

Siemens SIMOTICS T-1FW3 Foglio di istruzioni

AL-KO

AL-KO PRO 350 Manuale utente

MTU

MTU 12 V 4000 Lx4 Manuale utente

Nanni

Nanni N3.30 Manuale di istruzioni

Nanni

Nanni N5.160 CR2 Manuale utente

KSB

KSB SuPreme Series Istruzioni per l'installazione

Hiwin

Hiwin EM1 Series Manuale utente

Rotax

Rotax 912 i series Istruzioni operative

Siemens

Siemens SIMOTICS XP 1MB1 Manuale utente
