Briggs & Stratton 90000/10000 Manuale

Document: - page 1 (Black)

Screen angle and frequency: 45.0000, 150.0000

Model Series

Covered in

This Manual

90000

100000

Operating & Maintenance

Instructions

Month Day Year

Note: General Model Series numbers noted above are inclusive of the specific model

number found on your engine. To get replacement parts or technical assistance in

the future, write your engine Model, Type, Code and date of purchase here.

Model Type Code

TABLE OF CONTENTS

Safety 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Information 6. . . . . . . . . . . . . . . . . . . . . . . .

Oil 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Starting Information 9. . . . . . . . . . . . . . . . . . . . . . .

Starting and Stopping 10. . . . . . . . . . . . . . . . . . . . .

Maintenance 11-13. . . . . . . . . . . . . . . . . . . . . . . . .

Adjustments 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts and Service & Storage 15-16. . . . . . . . . . . .

Warranty Information 17. . . . . . . . . . . . . . . . . . . . .

WARNING

Briggs & Stratton does not approve or authorize the use of

these engines on 3-wheel All Terrain Vehicles (ATVs), motor

bikes, aircraft products or vehicles intended for use in

competitive events. Use of these engines in such applications

could result in property damage, serious injury (including

paralysis), or even death.

Need assistance? Go to www.briggsandstratton.com

for detailed information regarding

Briggs & Stratton engines.

Or call, 1-800-233-3723, (U.S.A. and Canada)

to hear a menu of pre-recorded messages

offering engine maintenance information.

Document: - page 2 (Black)

Screen angle and frequency: 45.0000, 150.0000

The Power That Works For You.

Thank you for selecting a Briggs & Stratton engine to power your equipment.

Briggs & Stratton is committed to producing a line of engines which will make your life’s chores easier to

perform. We have, at the same time, improved the design of our engines so they are environmentally

friendly. Since 1995, we have succeeded in reducing smog-forming exhaust emissions from our engines

by 70%. Briggs & Stratton’s efforts have not stopped there. We are also committed to designing and

introducing even cleaner engines in the future, while maintaining our reputation for excellent utility and

value.

Briggs & Stratton’s environmental awareness has resulted in the engineering of the “Smart-Fill” gas

can, featuring a spill resistant nozzle which opens only when fully inserted into the gas tank, and which

shuts off automatically when the tank is full. Because refueling spills can harm the environment, the

Smart-Fillcontainer helps preserve a stronger ecosystem by reducing this source of pollution.

We hope you will enjoy your new engine and equipment. We welcome you to our worldwide family of

Briggs & Stratton engine users.

Best Wishes Always,

The Employees of Briggs & Stratton Corporation

    

    

    

Document: - page 3 (Black)

Screen angle and frequency: 45.0000, 150.0000

BEFORE OPERATING ENGINE

•Read entire Operating & Maintenance Instructions AND

the instructions for the equipment this engine powers.*

•Failure to follow instructions could result in serious injury

or death.

THE OPERATING & MAINTENANCE INSTRUCTIONS

CONTAIN SAFETY INFORMATION TO

•Make you aware of hazards associated with engines

•Inform you of the risk of injury associated with those hazards, and

•Tell you how to avoid or reduce the risk of injury.

275508

The safety alert symbol ( ) is used to identify safety

information about hazards that can result in personal injury.

A signal word (DANGER, WARNING, or CAUTION) is

used with the alert symbol to indicate the likelihood and the

potential severity of injury. In addition, a hazard symbol

may be used to represent the type of hazard.

DANGER indicates a hazard which, if not

avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not

avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not

avoided, might result in minor or moderate

injury.

CAUTION,when used without the alert symbol,

indicates a situation that could result in damage

to the engine.

WARNING

The engine exhaust from this prod-

uct contains chemicals known to the

State of California to cause cancer,

birth defects, or other reproductive

harm.

HAZARD SYMBOLS AND MEANINGS

Explosion

Toxic Fumes

Moving Parts

ShockHot Surface

Kickback

Fire

THE INTERNATIONAL SYMBOLS USED

ON THE ENGINE OR

IN THIS MANUAL INCLUDE:

On Off

Fuel Shutoff

Read Owner’s

Manual

Stop Fuel

Choke

Safety Alert

Oil

*Briggs & Stratton does not necessarily know what equipment this engine will power. For that reason, you should carefully read

and understand the operating instructions for the equipment on which your engine is placed.

Document: - page 4 (Black)

Screen angle and frequency: 45.0000, 150.0000

SAFETY

Gasoline and its vapors are extremely

flammable and explosive.

Fire or explosion can cause severe burns

or death.

WARNING

WHEN ADDING FUEL

•Turn engine OFF and let engine cool at least 2

minutes before removing gas cap.

•Fill fuel tank outdoors or in well-ventilated area.

•Do not overfill fuel tank. Fill tank to approximately

1-1/2 inches below top of neck to allow for fuel

expansion.

•Keep gasoline away from sparks, open flames,

pilot lights, heat, and other ignition sources.

•Check fuel lines, tank, cap, and fittings frequently

for cracks or leaks. Replace if necessary.

WHEN STARTING ENGINE

•Make sure spark plug, muffler, fuel cap and air

cleaner are in place.

•Do not crank engine with spark plug removed.

•If fuel spills, wait until it evaporates before starting

engine.

•If engine floods, set choke to OPEN/RUN position,

place throttle in FAST and crank until engine starts.

WHEN OPERATING EQUIPMENT

•Do not tip engine or equipment at angle which

causes gasoline to spill.

•Do not choke carburetor to stop engine.

WHEN TRANSPORTING EQUIPMENT

•Transport with fuel tank EMPTY or with fuel shut-off

valve OFF.

WHEN STORING GASOLINE OR EQUIPMENT

WITH FUEL IN TANK

•Store away from furnaces, stoves, water heaters or

other appliances that have pilot light or other

ignition source because they can ignite gasoline

vapors.

Starting engine creates sparking.

Sparking can ignite nearby flammable

gases.

Explosion and fire could result.

WARNING

•If there is natural or LP gas leakage in area, do not

start engine.

•Do not use pressurized starting fluids because

vapors are flammable.

WARNING

Rapid retraction of starter cord (kickback) will

pull hand and arm toward engine faster than

you can let go.

Broken bones, fractures, bruises or sprains

could result.

•When starting engine, pull cord slowly until

resistance is felt, then pull rapidly.

•Remove all external equipment/engine loads

before starting engine.

•Direct coupled equipment components such as,

but not limited to, blades, impellors, pulleys,

sprockets, etc., must be securely attached.

WARNING

Rotating parts can contact or entangle

hands, feet, hair, clothing, or accessories.

Traumatic amputation or severe laceration

can result.

•Operate equipment with guards in place.

•Keep hands and feet away from rotating parts.

•Tie up long hair and remove jewelry.

•Do not wear loose-fitting clothing, dangling

drawstrings or items that could become caught.

Document: - page 5 (Black)

Screen angle and frequency: 45.0000, 150.0000

SAFETY

Engines give off carbon monoxide, an

odorless, colorless, poison gas.

Breathing carbon monoxide can cause

nausea, fainting or death.

WARNING

•Start and run engine outdoors.

•Do not start or run engine in enclosed area, even if

doors or windows are open.

WARNING

Running engines produce heat. Engine

parts, especially muffler, become extremely

hot.

Severe thermal burns can occur on contact.

Combustible debris, such as leaves, grass,

brush, etc. can catch fire.

•Allow muffler, engine cylinder and fins to cool

before touching.

•Remove accumulated combustibles from muffler

area and cylinder area.

•Install and maintain in working order a spark

arrester before using equipment on forest-covered,

grass-covered, brush-covered unimproved land.

The state of California requires this (Section 4442

of the California Public Resources Code). Other

states may have similar laws. Federal laws apply

on federal land.

WARNING

Unintentional sparking can result in fire or

electric shock.

Unintentional start-up can result in en-

tanglement, traumatic amputation, or lac-

eration.

BEFORE PERFORMING ADJUSTMENTS OR

REPAIRS

•Disconnect spark plug wire and keep it away from

spark plug.

•Disconnect battery at negative terminal (only

engines with electric start).

WHEN TESTING FOR SPARK

•Use approved spark plug tester.

•Do not check for spark with spark plug removed.

ENGINE INFORMATION

TECHNICAL INFORMATION

POWER RATINGS: The power ratings for an individual engine

model are initially developed by starting with SAE (Society of Auto-

motive Engineers) code J1940 (Small Engine Power & Torque

Rating Procedure) (Revision 2002-05). Given both the wide array

of products on which our engines are placed, and the variety of en-

vironmental issues applicable to operating the equipment, it may

be that the engine you have purchased will not develop the rated

horsepower when used in a piece of power equipment (actual “on-

site” power). This difference is due to a variety of factors including,

but not limited to, the following: differences in altitude, tempera-

ture, barometric pressure, humidity, fuel, engine lubrication, maxi-

mum governed engine speed, individual engine to engine variabil-

ity, design of the particular piece of power equipment, the manner

in which the engine is operated, engine run-in to reduce friction

and clean out of combustion chambers, adjustments to the valves

and carburetor, and other factors. The power ratings may also be

adjusted based on comparisons to other similar engines utilized

in similar applications, and will therefore not necessarily match the

values derived using the foregoing codes.

Document: - page 6 (Black)

Screen angle and frequency: 45.0000, 150.0000

ENGINE INFORMATION

1. Carburetor

2. Air cleaner

3. Rope handle

4. Finger guard

5. Oil fill/Dipstick

6. Engine Model Type Code

xxxxx xxxx xx xxxxxxxx

7. Muffler/(Muffler guard, if equipped)/

(Spark arrester, if equipped)

8. Spark plug wire

9. Governor control lever

10. Primer bulb

11. Fuel tank

12. Fuel fill

13. Flywheel

GENERAL INFORMATION

This is a single cylinder, L-head, air-cooled engine. It is a

low emissions engine.

MODEL SERIES 90000

Bore 2-9/16 in. (65.09 mm). . . . . . . . . . . . . . . . . . . . . . . . . .

Stroke 1-3/4 in. (44.45 mm). . . . . . . . . . . . . . . . . . . . . . . . .

Displacement 9.02 cu. in. (147.8 cc). . . . . . . . . . . . . . . . . .

MODEL SERIES 100000

Bore 2-9/16 in. (65.09 mm). . . . . . . . . . . . . . . . . . . . . . . . . .

Stroke 1-7/8 in. (47.63 mm). . . . . . . . . . . . . . . . . . . . . . . . .

Displacement 9.67 cu. in. (158.6 cc). . . . . . . . . . . . . . . . . .

TUNE-UP SPECIFICATIONS

Armature air gap 0.006 – 0.010 in. (0.15 – 0.25 mm). . .

Spark plug gap 0.030 in. (0.76 mm). . . . . . . . . . . . . . . . . .

Valve clearance with valve springs installed and piston 1/4 in.

(6 mm) past top dead center (check when engine is cold).

See Repair Manual P/N 270962.

Intake 0.005 – 0.007 in. (0.13 – 0.18 mm). . . . . . . . . . . . .

Exhaust 0.007 – 0.009 in. (0.18 – 0.23 mm). . . . . . . . . . .

Note: For practical operation, the horsepower loading

should not exceed 85% of rated horsepower. Engine power

will decrease 3-1/2% for each 1,000 feet (300 meters)

above sea level and 1% for each 10°F (5.6°C) above 77°F

(25°C). It will operate satisfactorily at an angle up to 15°.

Document: - page 7 (Black)

Screen angle and frequency: 45.0000, 150.0000

OIL

275508

CAUTION: This engine is shipped from Briggs &

Stratton without oil. Check oil level before starting

engine. If you start the engine without oil, the engine

will be damaged beyond repair and will not be

covered under warranty.

OIL CAPACITY

The engine holds approximately 5/8 qt (20 ozs; 0.6 liter).

TYPE OF OIL TO USE

•Use a high quality detergent oil classified “For Service

SF, SG, SH, SJ” or higher, such as Briggs & Stratton

SAE 30.

•Do not use special additives.

•Choose a viscosity according to the table opposite.

Note: Synthetic oil meeting ILSAC GF-2, API

certification mark and API service symbol

(shown at left) with “SJ/CF ENERGY CON-

SERVING” or higher, is an acceptable oil at all

temperatures. Use of synthetic oil does not

alter required oil change intervals.

°F-20 0 20 40 60 80 100

°C-30 -20 -10 0 10 20 30 40

STARTING TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

*CAUTION: Air cooled engines run hotter than

automotive engines. The use of non-synthetic

multi-viscosity oils (5W-30, 10W-30, etc.) in

temperatures above 40°F (4°C) will result in higher

than normal oil consumption. When using a

multi-viscosity oil, check oil level more frequently.

** CAUTION: SAE 30 oil, if used below 40°F (4°C), will

result in hard starting and possible engine bore

damage due to inadequate lubrication.

SAE Viscosity Grades

CHECKING AND ADDING OIL

•Check oil level before starting the engine.

•Check level daily, or after every eight (8) hours.

•Keep oil level at FULL.

CAUTION: Do not overfill. Overfilling with oil may cause:

Smoking,

Hard starting,

Spark plug fouling, or

Oil saturation of air filter.

[1] Place engine level and

clean around oil fill area.

[2] Remove dipstick and wipe clean with cloth.

[3] Replace and tighten dipstick. Remove and

check oil level. Oil level should be at FULL

line on dipstick.

[4] If needed, add oil slowly -

recheck. Do not over fill.

[5] Replace and tighten dipstick.

High Oil Fill

(if equipped)

[1] Place engine level and

clean around oil fill area.

[2] Remove dipstick and wipe clean with cloth.

[3] Replace and tighten dipstick. Remove and

check oil level. Oil level should be at FULL

line on dipstick.

[4] If needed, add oil slowly -

recheck. Do not over fill.

[5] Replace and tighten dipstick.

Low Oil Fill

(if equipped)

Document: - page 8 (Black)

Screen angle and frequency: 45.0000, 150.0000

FUEL

TYPE OF FUEL TO USE

•Use clean, fresh, regular unleaded gasoline with a

minimum of 77 octane. Fresh fuel prevents gum from

forming in the fuel system or on essential carburetor parts.

Purchase fuel in quantity that can be used within 30 days.

•Do not use gasoline which contains Methanol.

•Do not mix oil with gasoline.

•For engine protection use Briggs & Stratton Gasoline

Additive available from your Authorized Briggs &

Stratton Dealer.

•This engine is certified to operate on gasoline. Exhaust

Emission Control System: EM (Engine Modifications).

CAUTION: Some fuels, called oxygenated or

reformulated gasoline, are gasoline blended with

alcohols or ethers. Excessive amounts of these

blends can damage the fuel system or cause

performance problems. If any undesirable oper-

ating symptoms occur, use gasoline with a lower

percentage of alcohol or ether.

ADDING FUEL

Fuel Fill

WARNING

[1] Remove cap. Fill tank to approximately 1-1/2

inches below top of neck to allow for fuel

expansion. Be careful not to overfill.

Briggs & Stratton Smart-fill)fuel can fills to the

correct level and automatically shuts off, reduc-

ing spills and emissions.

[2] Replace cap before starting.

•Turn engine OFF and let engine cool at least 2

minutes before removing gas cap.

•Fill fuel tank outdoors or in well-ventilated area.

•Keep gasoline away from sparks, open flames,

pilot lights, heat, and other ignition sources.

•If fuel spills, wait until it evaporates before

starting engine.

Neck

Document: - page 9 (Black)

Screen angle and frequency: 45.0000, 150.0000

STARTING

•Do not use pressurized starting fluids.

•Vapors are flammable.

•Make sure spark plug, muffler, fuel cap and air

cleaner are in place.

•Do not crank engine with spark plug removed.

•If fuel spills, wait until it evaporates before

starting engine.

•If engine floods, set choke to OPEN/RUN

position, place throttle in FAST and crank until

engine starts.

WARNING

♦Store and fuel

equipment in level

position.

♦Use fresh fuel. (See

Fuel.)

♦Use correct type of

oil for expected

starting tempera-

ture. (See Oil.)

♦Remove external

equipment/engine

loads. (See equip-

ment operating

instructions.)

♦Start lawn mower

on hard surface or

over previously cut

grass.

♦Periodically remove

grass buildup under

mower deck. (See

Maintenance.)

♦After engine has

started, let it warm

up several seconds

to several minutes,

depending on out-

side temperature.

♦For maximum per-

formance and life,

operate engine with

throttle in FAST.

STARTING AND OPERATING TIPS

If you are starting your engine for the

FIRST time, read the information

outlined under Starting A New Engine.

CAUTION:

This engine is shipped from Briggs & Stratton

without oil. Check oil level before starting engine.

If you start the engine without oil, the engine will be

damaged beyond repair and will not be covered

under warranty.

CAUTION:

•Smoking,

•Hard starting,

•Spark plug fouling,

•Oil saturation of air filter.

If engine is tipped to transport equipment, remove

grass, drain oil, etc., keep spark plug side of

engine up. Tipping engine with spark plug down

may cause:

KEEP SPARK PLUG UP

[1] Move throttle to FAST.

(if equipped)

[2] Firmly push primer bulb 5times.

Primer

bulb

Add oil and fuel as instructed in this manual prior to

attempting to start engine. (See Oil and Fuel)

Continue at step [4] under TO START ENGINE.

STARTING A NEW ENGINE

Document: - page 10 (Black)

Screen angle and frequency: 45.0000, 150.0000

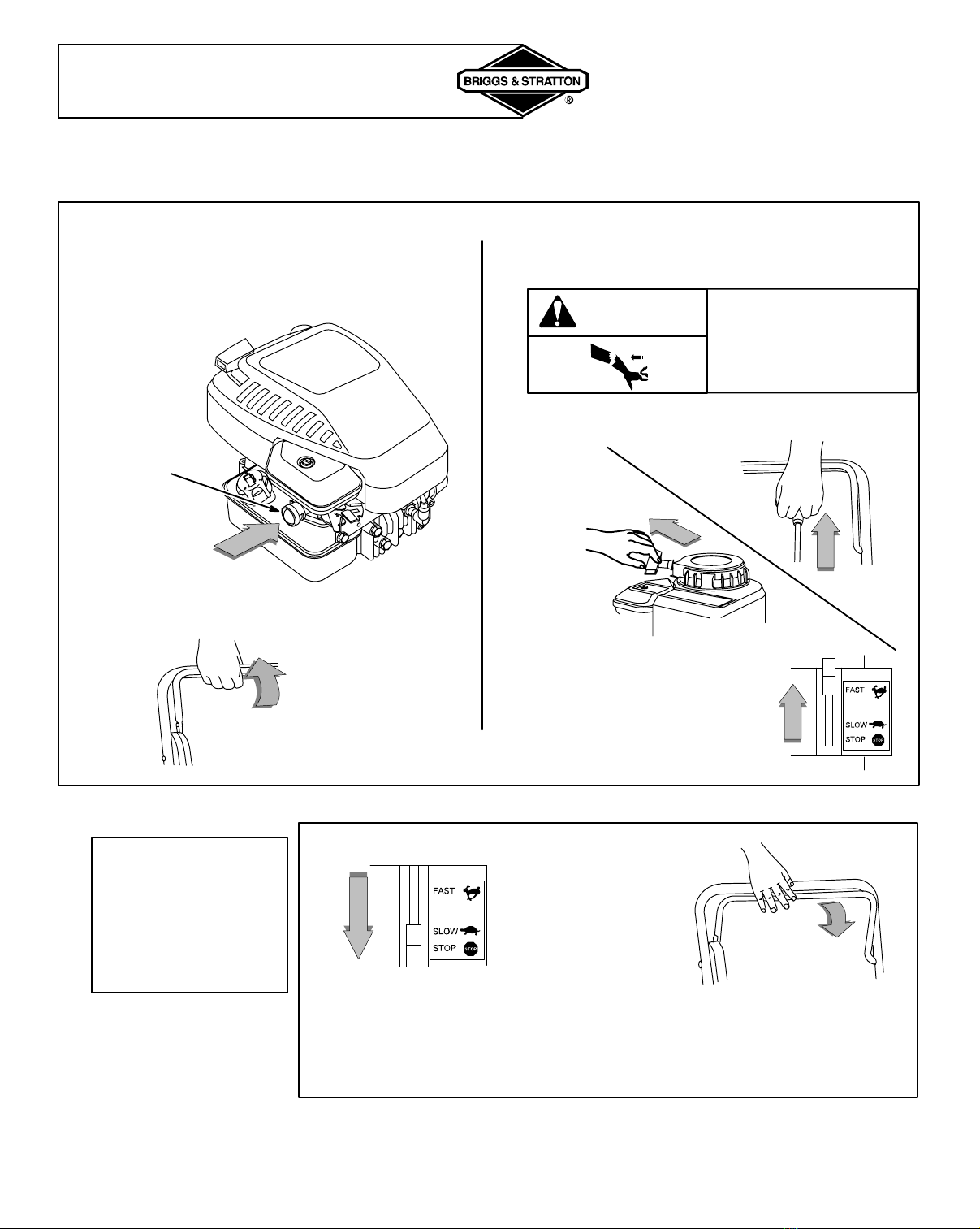

STARTING AND STOPPING

REWIND (MANUAL) STARTER

TO START ENGINE

When starting engine thereafter, push primer bulb firmly 3 times as illustrated below and pull starter rope as instructed below.

[1] Check oil level (see p. 8).

[2] Move throttle

(if equipped) to FAST.

[3] Firmly push primer

bulb 3 times.

Primer

bulb

[4] Close safety brake handle on lawn mowers

and any other equipment with this feature.

[5] Grasp rope handle. Pull slowly until resistance is

felt, then pull rapidly to start engine and avoid

kickback.

[6] Let engine warm up.

Operate engine with

throttle in FAST.

WARNING •When starting engine,

pull cord slowly until

resistance is felt, then

pull rapidly.

TO STOP ENGINE

[1] Move throttle (if equipped)

to SLOW, then

[2] Release safety brake con-

trol handle.

CAUTION:

Do not stop engine by

moving choke control

to CHOKE. Backfire,

fire or engine damage

could occur.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Briggs & Stratton Motore

Briggs & Stratton

Briggs & Stratton Power Built Intek I/C 210000 Manuale utente

Briggs & Stratton

Briggs & Stratton 12J800 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton Fource 21100 Manuale

Briggs & Stratton

Briggs & Stratton Vanguard 50000 Manuale utente

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manuale utente

Briggs & Stratton

Briggs & Stratton 400400 Series Manuale utente

Briggs & Stratton

Briggs & Stratton 700 DOV Series Istruzioni operative

Briggs & Stratton

Briggs & Stratton Professional Series 775 Series 110000 Manuale utente

Briggs & Stratton

Briggs & Stratton Quantum 625 Series Manuale utente

Briggs & Stratton

Briggs & Stratton Classic 100000 Series Manuale utente

Briggs & Stratton

Briggs & Stratton Vanguard 85400 Manuale di servizio

Briggs & Stratton

Briggs & Stratton 210000 Series Manuale utente

Briggs & Stratton

Briggs & Stratton DOV InStart 100600 Manuale utente

Briggs & Stratton

Briggs & Stratton 120000 Manuale utente

Briggs & Stratton

Briggs & Stratton 100600 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton 252799 Series Manuale operativo

Briggs & Stratton

Briggs & Stratton 12A800 Series Manuale utente

Briggs & Stratton

Briggs & Stratton 91200 Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 9B900 Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 140000 Professional 1000 Series Manuale utente

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manuale utente

Briggs & Stratton

Briggs & Stratton 12V800 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton Vanguard 50000 Manuale di installazione e funzionamento

Manuali Motore popolari di altre marche

Rotax

Rotax 125 senior MAX evo Manuale utente

Kohler

Kohler K361 Manuale utente

MTD

MTD OHV Series Manuale utente

Kohler

Kohler COMMAND CH18-745 Manuale utente

Mercury

Mercury D4.2L D-Tronic Manuale utente

Selve

Selve SE Plus-RC Series Manuale utente

Perkins

Perkins 1206E-E66TA Manuale utente

Skov

Skov DA 174 Manuale

Rossi

Rossi TX11 Series Manuale utente

Siemens

Siemens SIMOTICS T-1FW3 Foglio di istruzioni

AL-KO

AL-KO PRO 350 Manuale utente

MTU

MTU 12 V 4000 Lx4 Manuale utente

Nanni

Nanni N3.30 Manuale di istruzioni

Nanni

Nanni N5.160 CR2 Manuale utente

KSB

KSB SuPreme Series Istruzioni per l'installazione

Hiwin

Hiwin EM1 Series Manuale utente

Rotax

Rotax 912 i series Istruzioni operative

Siemens

Siemens SIMOTICS XP 1MB1 Manuale utente
