Briggs & Stratton 30372 Guida rapida

Wiring Diagram &

Schematic

SAFETY WARNINGS

Safety Alert Symbols

The safety alert symbol ( ) is used

to identify hazards that can result in

personal injury. A signal word

(DANGER, WARNING or CAUTION)

is used with the alert symbol to

indicate the potential severity of

injury. In addition, a hazard symbol

may be used to represent the type

of hazard.

DANGER: Indicates a hazard

which, if not avoided will

result in death or serious

injury.

WARNING: Indicated a

hazard which, if not avoided

could result in death or

serious injury.

CAUTION: Indicates a

hazard which, if not avoided

might result in death or

serious injury.

HAZARD SYMBOLS AND MEANINGS

EXPLOSION FIRE SHOCK

ENTANGLEMENT

DISCONNECT

SPARK PLUG

DANGER

IMPORTANT: The measuring

equipment used in troubleshooting

this equipment should be of

industrial quality and should have

the sensitivity to measure electronic

values to the third decimal. Its

accuracy should conform with

acceptable industry tolerances.

Ensure that all specified tools

and/or equipment are available

before attempting to troubleshoot.

Generators produce powerful

voltages. Failure to isolate

generator from power utility can

result in death or injury to electric

utility workers due to

backfeed of electrical energy.

• When testing generators used for backup

power, notify utility company.

DANGER

Physical contact with energized

electrical components will result

in dangerous and possibly fatal

electrical shock

•Do not touch bare wires or

receptacles.

CAUTION

These wiring diagrams and

schematics are intended for use

by trained and qualified electrical

service technicians who are

working in a properly equipped

service environment. Familiarity

with the proper method of using

tools, measuring equipment and

service procedures is essential to

performing successful

troubleshooting and repair of this

equipment.

•Only qualified electrical technicians

should attempt to service this

equipment.

Accidental starting of the unit

may cause entanglement or

electrocution

•Where applicable, disconnect the

negative (-) battery terminal

•Disconnect the spark plug wire.

•Remove the control panel fuse when

available.

Rev. 02162007

WARNING

7000 Watt Home Generator System

SCHEMATIC

7000 Watt Home Generator System

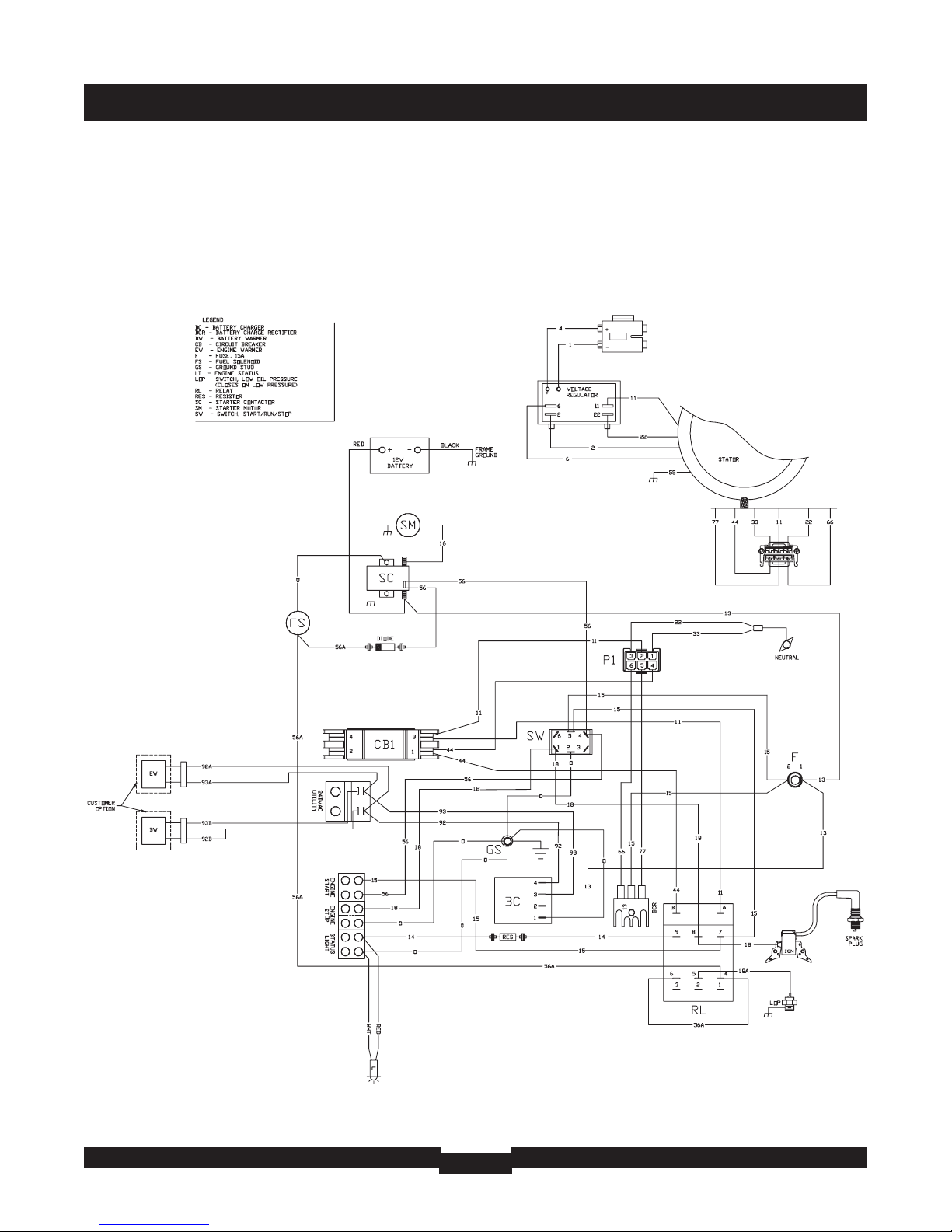

WIRING DIAGRAM
