TECHNICAL NOTES

Configuring the XD1230 for ZeeVee

BrightSign, LLC. 16795 Lark Ave., Suite 200 Los Gatos, CA 9503

408-852-9263 | www.brightsign.biz

Technical Notes – Configuring the XD1230 for ZeeVee 1

INTRODUCTION

This BrightSign Tech Note explains how to configure your XD1230 to receive input

from a ZeeVee RF modulator box (model ZVBox170). When following these steps,

make sure you are using BrightAuthor version 3.5.0.22 or later.

Instructions

1. Set up the RF modulator box using the instructions provided by ZeeVee.

2. Attach the coax cable to the RF In connector on the XD1230.

3. Open BrightAuthor and create a new XD1230 project (or open an existing one).

4. Navigate to Tools > ATSC Setup.

Technical Notes – Configuring the XD1230 for ZeeVee 2

5. Click the Add Channel button for each channel you would like to use.

6. Enter the following information for each channel:

a. Name: Enter a desired name for the channel.

b. Frequency: See the table on the following page for frequencies that correspond to

each channel. The channel number is the current channel to which your ZeeVee

box is set.

Note: The numbers in the following table are provided in megahertz (MHz), but

BrightAuthor requires you to input the value in hertz(Hz). For example, a channel with

a 57.00MHz frequency must be entered into the field as “57000000”.

c. Encoding: Select QAM_256 from the dropdown list.

d. Video PID: Enter the value 257

e. Audio PID: Enter the value 258

7. Click OK when you are finished entering channels. You now will be able to select the

channels from the dropdown list when creating or editing RF In states in BrightAuthor.

Technical Notes – Configuring the XD1230 for ZeeVee 3

ZeeVee Channel Frequency Table (MHz)

Lowband

Midband

Highband

57.00

93.00

123.00

177.00

63.00

99.00

129.00

183.00

69.00

105.00

135.00

189.00

75.00

111.00

141.00

195.00

79.00 or 81.00 (A-7)

117.00

147.00

201.00

85.00 or 87.00 (A-6)

153.00

207.00

159.00

213.00

165.00

171.00

Superband

Hyperband

Ultraband

219.00

303.00

471.00

225.00

309.00

477.00

231.00

315.00

483.00

237.00

321.00

489.00

243.00

327.00

495.00

249.00

333.00

501.00

255.00

339.00

507.00

261.00

345.00

513.00

267.00

351.00

519.00

273.00

357.00

525.00

279.00

363.00

531.00

285.00

369.00

537.00

291.00

375.00

543.00

297.00

381.00

549.00

387.00

555.00

393.00

561.00

399.00

567.00

405.00

573.00

411.00

579.00

417.00

585.00

423.00

591.00

429.00

597.00

435.00

603.00

441.00

609.00

447.00

615.00

453.00

621.00

459.00

627.00

465.00

633.00

639.00

645.00

Indice

Altri manuali BrightSign Lettore multimediale

BrightSign

BrightSign HD110 Manuale del proprietario

BrightSign

BrightSign 4K Series Manuale utente

BrightSign

BrightSign HD110 Manuale utente

BrightSign

BrightSign HD120 Manuale utente

BrightSign

BrightSign HD2000 Manuale utente

BrightSign

BrightSign HD222 Manuale utente

BrightSign

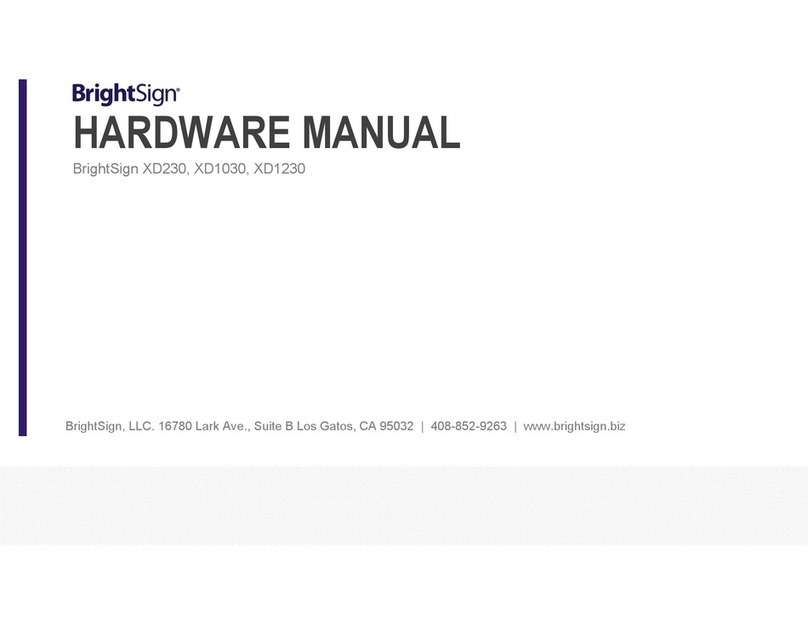

BrightSign XD230 Manuale utente
