Dear User,
Thank you for purchasing BRIK Power Master.
Please read this User Manual before operating the machine to ensure its
best performance and your safety.
Instructions:
Connecting BRIK
Use 2.1mm diameter cables (thinner ones) to connect BRIK 12V In items to
Power Master’s DC12V sockets.
Use the 2.5mm diameter cable (thicker one) to connect BRIK Integrated
Amplifier 20V In to Power Master’s DC20V socket.
Connecting Mains
This unit is supplied with a power supply suitable for your country’s mains
supply. Before connecting, check the label to ensure the local power supply is
compliant.
CAUTION: Connect the power cable to the Power Master’s AC 115V / AC 230V
socket before connecting to the mains. Once this has been done, press the
Power button on the front panel to turn on the machine.
Switching On/Off
Press Power button on the front panel of Power Master to turn on/off all
machines connected.
Use the switch on an individual item’s rear panel or press Power button on its
front panel to turn on/off the individual item.
-- Power Master is designed for BRIK Integrated Amplifier with additional
BRIK items. Do NOT use Power Master as the power supply to other machines.

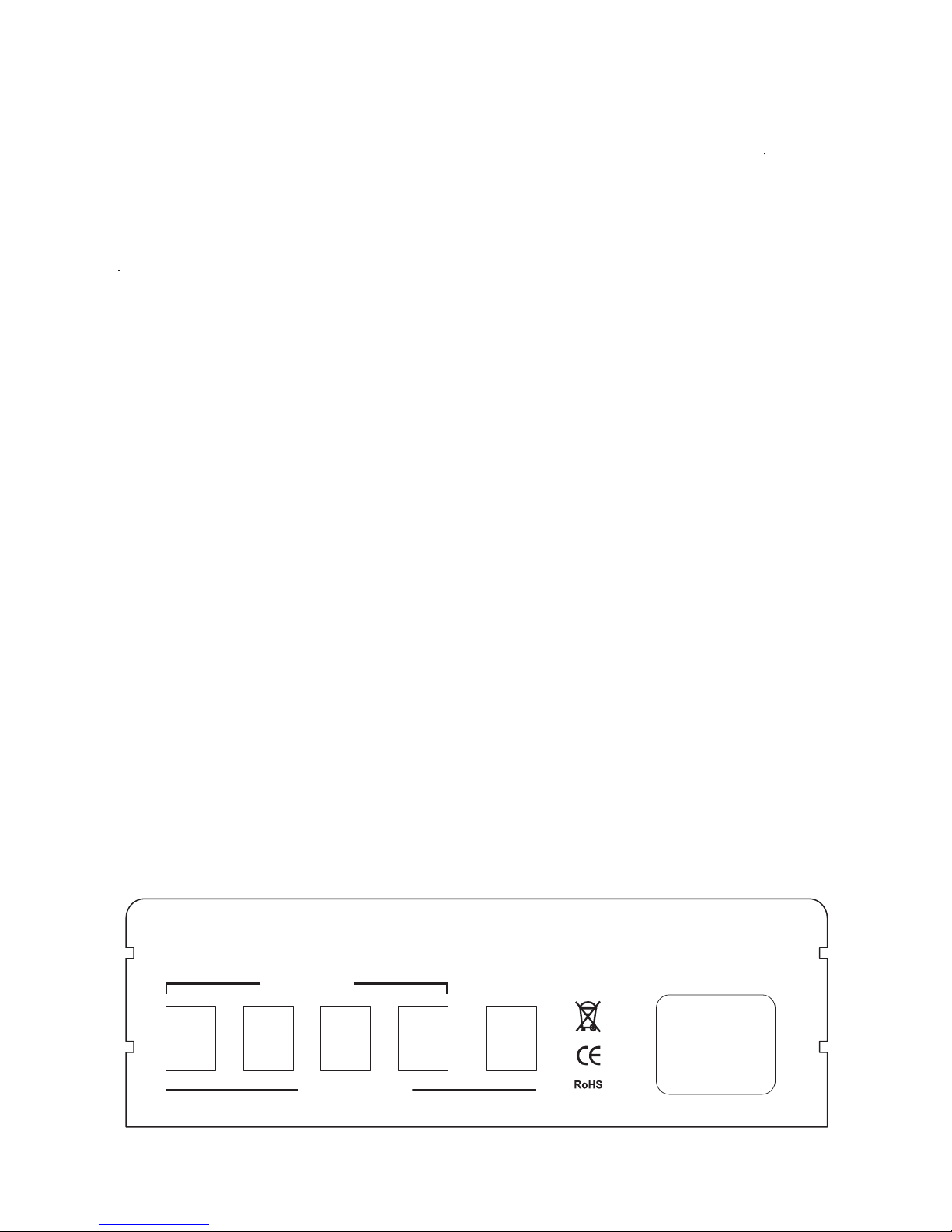

Power Output
AC 230V 0.5A 50Hz
Power Consumption:18WTypicalMade In Taiwan
DC20V
Max 3A
DC12V
Max total 1A
Power Master
Specifications:
POWER SUPPLY - A
POWER SUPPLY - B
POWER INPUT
POWER CONSUMPTION
DIMENSION
DC 12V x 4
DC 20V x 1
AC 230V 50HZ (Europe)
AC 115V 60HZ (US)
18W
W 140 x H 48 x D160 mm

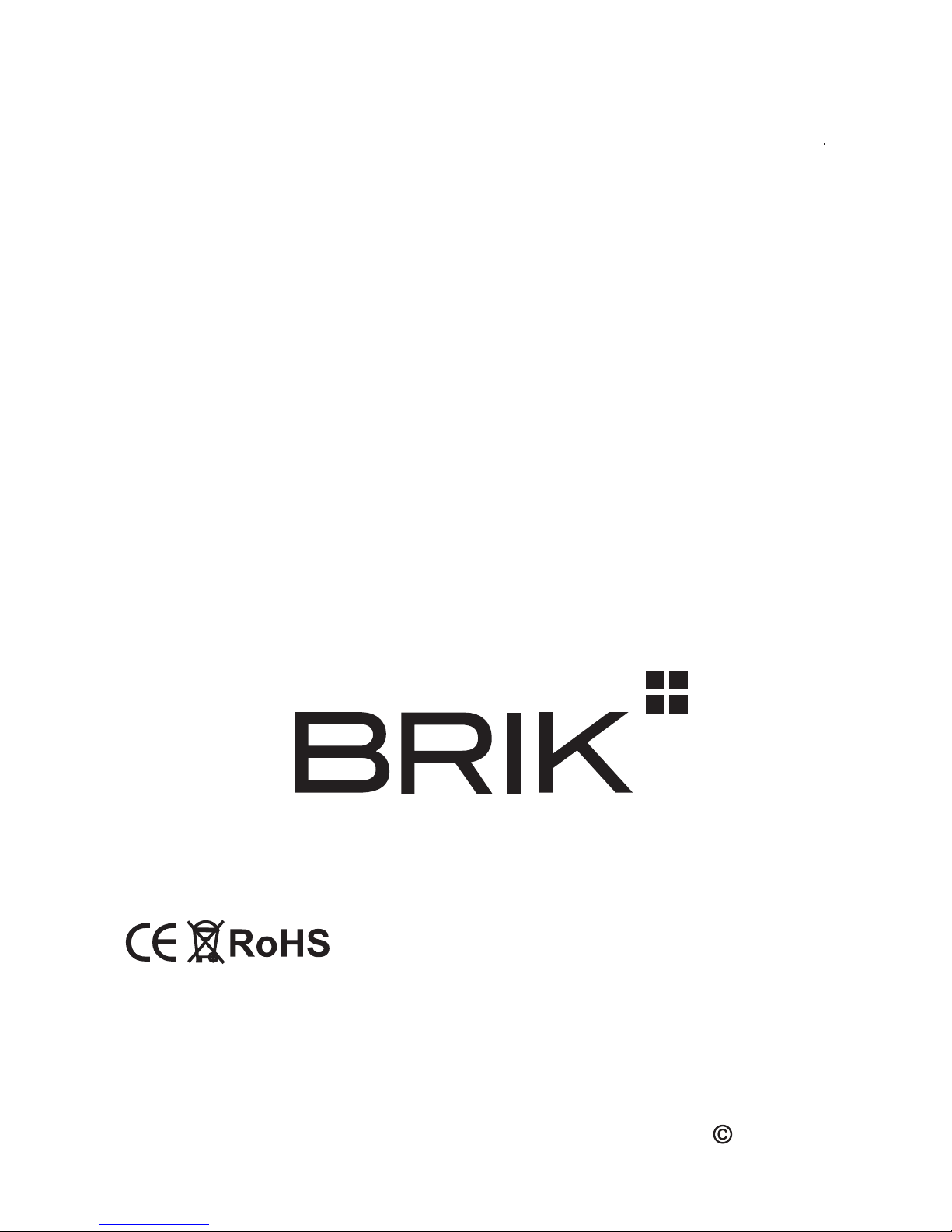

The information was correct at the time of going to press. The manufacturer reserves
the rights to make changes to the technical specification without prior notice.
The manufacturer accepts no responsibility for damage caused by not adhering to
these instructions for use. Modification or change to any part of the product by
unauthorized persons releases the manufacturer from any liability over and above the
lawful rights of the customer.
