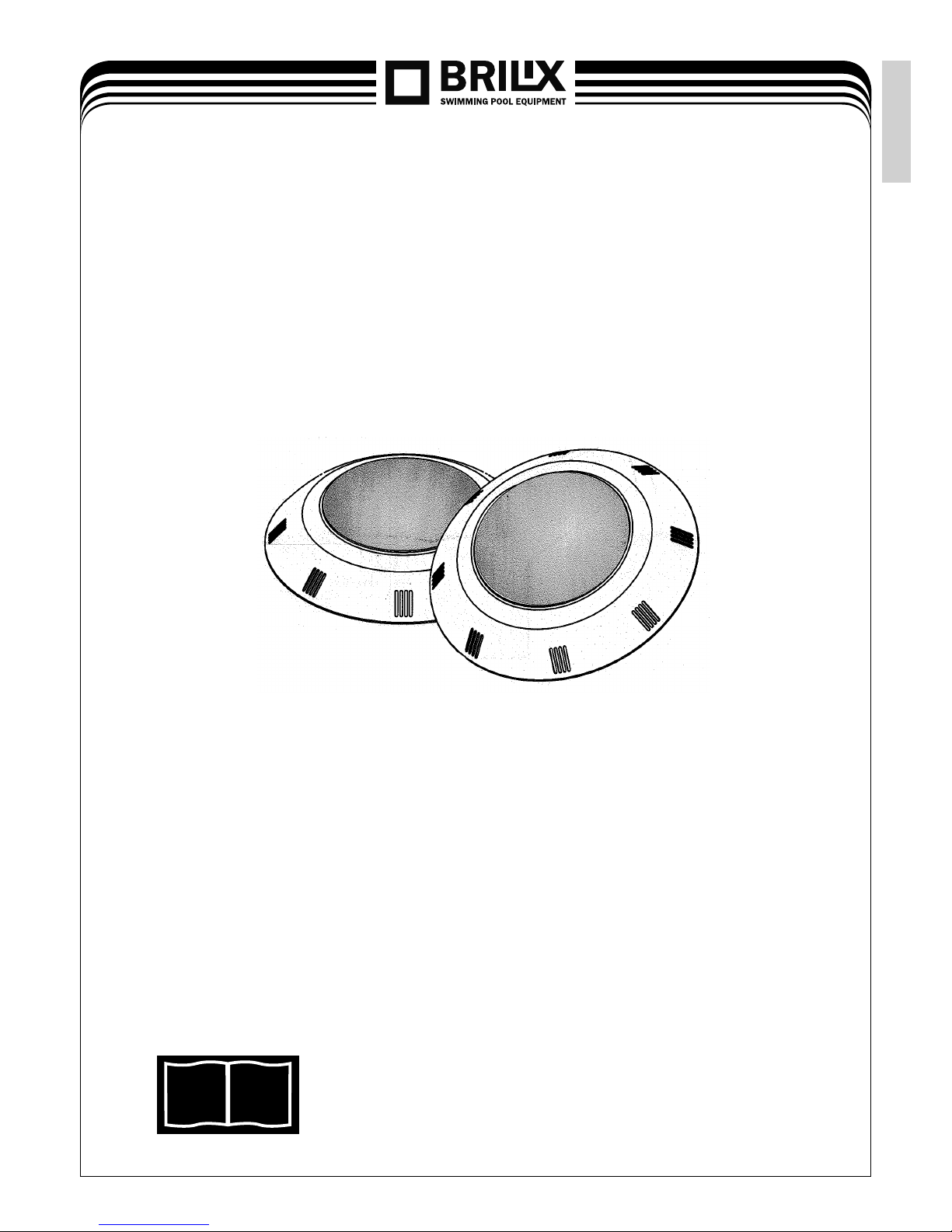

Brilix P100 Manuale utente

POOL LIGHT UL - P100
(12V/100W)
INSTALLATION
AND
USER GUIDE
EN
i
Please, carefully read the instruction

2
1. Preparation steps that must be taken by an
electrician before the light installation: See picture 1.
1. Make sure that the electric system and its installation meet the requirement of your governmental or local
bodies. The installation of the underwater light can be operated only by a qualified electrician.
a) The junction box of the low-voltage transformer for 12V model of the light must be placed at least
120 cm from the edge of the pool, see picture 1.
b) The light and all metal components placed 240 cm from the edge of the pool must be appropriately
protected by inflexible materials and the binds must be waterproofed.
c) The assembly consol must be properly installed in a way that the top edge of the light lentil is at least
45 cm under the pool water level, see picture 1.

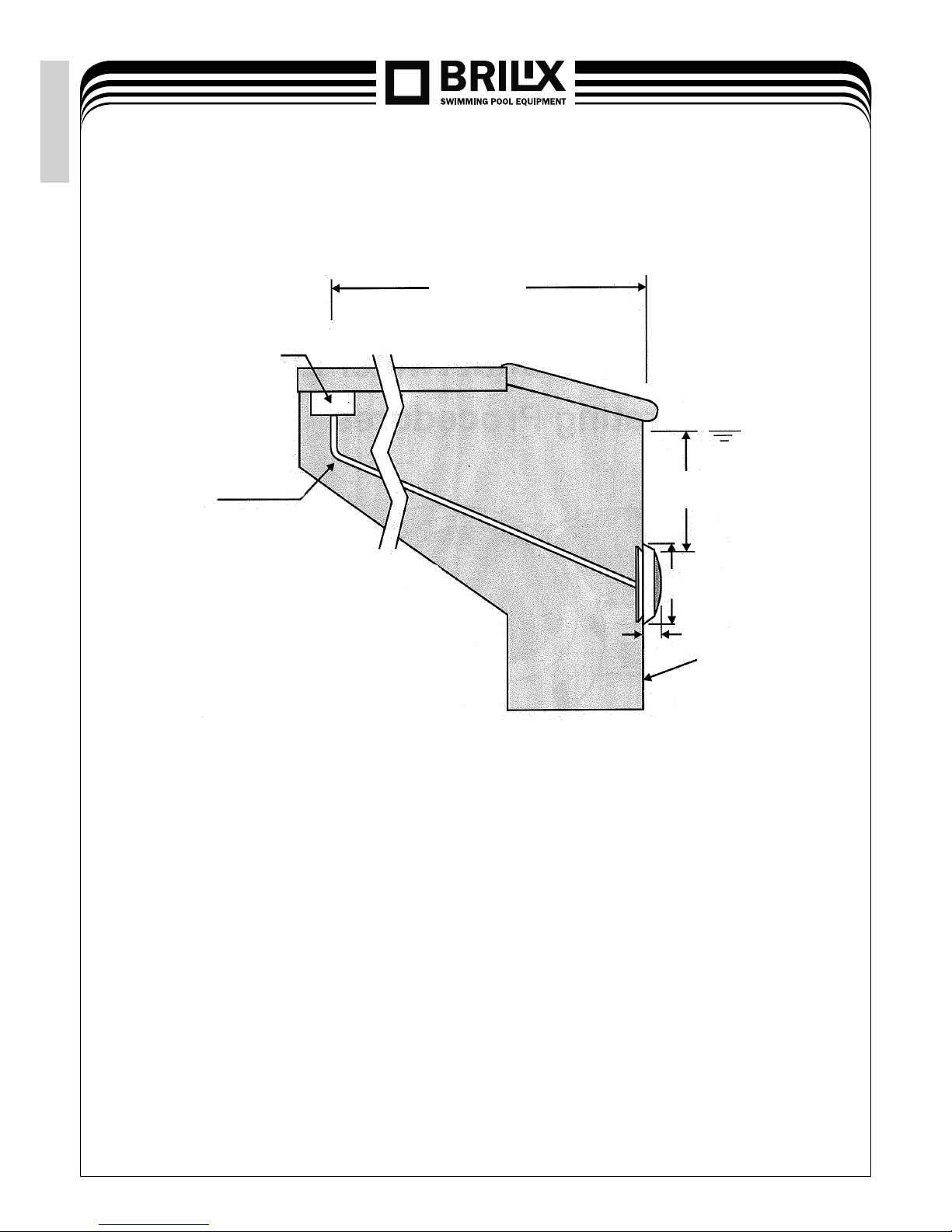

TO THE POWER SUPPLY UNIT
CAST IN PARAFFIN
WATER LEVEL
INFLEXIBLE
INSTALLATION PIPE
MINIMUM 120 CM
29,6 CM
6,6 CM
MINIMUM 45CM FROM THE WATER
LEVEL TO THE TOP EDGE OF THE LENTIL
THE CONCRETE MUST BE
RECEDED AROUND THE
BAY IN ORDER TO CREATE
THE SPACE FOR THE COM-
PACTPADDING FROM THE
PLASTER.
Picture 1
EN

3
2. After meeting requirements for the electric system,
carry out the following steps
1. Find a place on the vertical surface where you want to install the light. The top edge of the lentil should
be placed 45cm under the pool water level, see picture 1.
2. Connect the installation pipe to the centre of the distant erection pack (left from the consol), see picture 2
3. If the surface of the pool should be plastered, you must leave the concrete receded of the thickness
of the plaster. Completed surface of the concrete must be levelled with the assembly spacer washer.
ATTENTION: Completed surface in the surroundings of the assembly spacer washer MUST BE flat and
aligned with the surface of the assembly spacer washer. It ensures the perfect adhesion of the light to the
wall of the pool, see picture 3.
4. After finishing the surface of the pool, trim the installation pipe.
5. Roll the electric cable up in a way that its available length does not exceed 2,4 m. This superfluous cable
enables to remove the light from the pool in order to exchange the lamp and carry out the service.
6. Pull the cable through the installation pipe and connect its conductors in the junction box. While connecting
the conductors be careful not to pull more than 75-80 mm of the superfluous cable on the light through the
installation pipe.
7. Connect all conductors to the appropriate circuit conductors in the junction box and pad all connections
by the use of paraffin.
8. Fix the cover of the junction box.
9. Before turning the light on for longer than 10 seconds, fill the pool in a way that the light will be completely
immersed in the water. In order to check the correct functions, turn the main switch or the fuse on, also
activate the switch controlling the appropriate light.
10. The safe installation of the light to the consol is secured by turning the safety system, see picture 4.
EN

4
3. Preparation for winter:
the light should remain in place during the winter

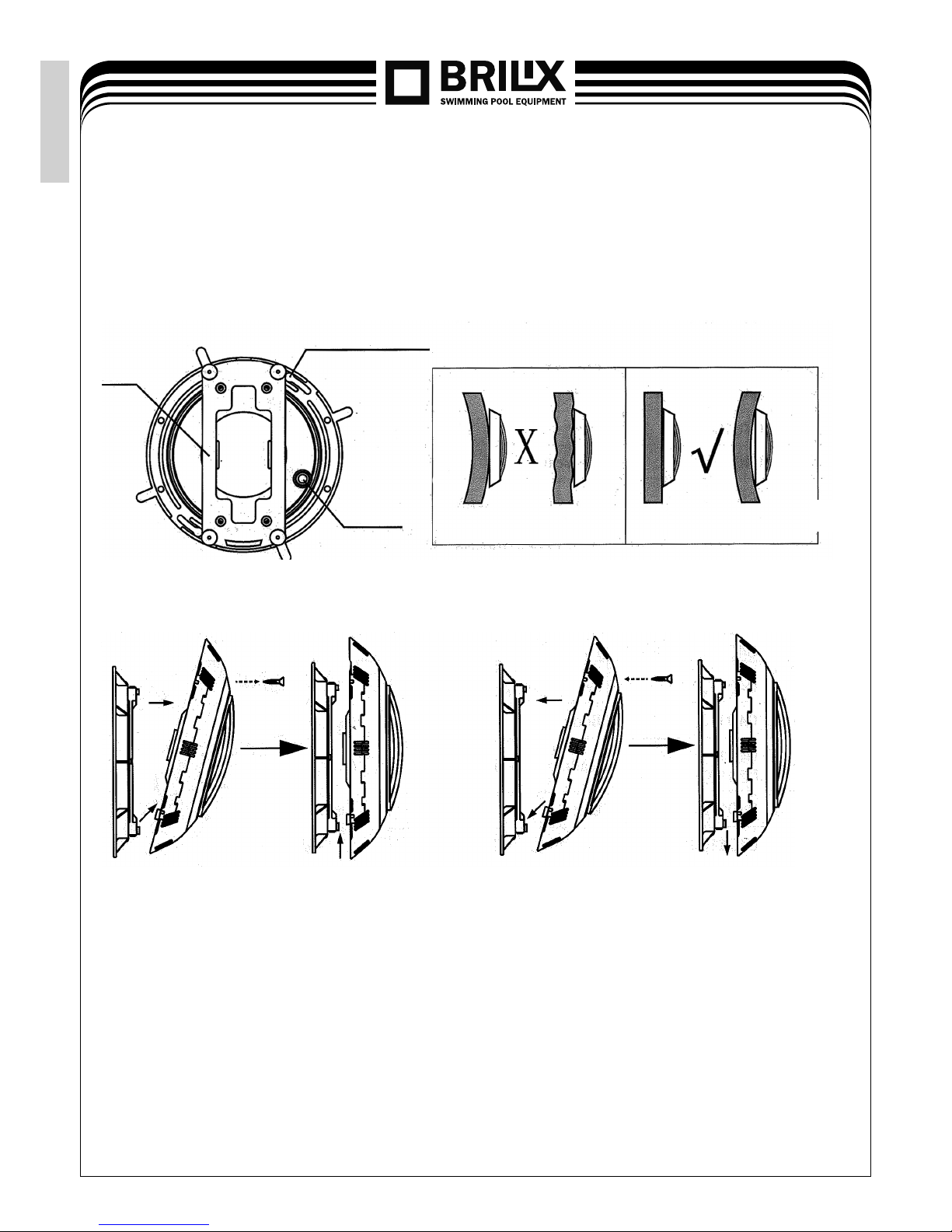

Picture 2 Picture 3
ASSEMBLY CONSOL
LIGHT
INSTALLATION
PIPE
DO NOT ASSEMBLE ON ASSEMBLE ON
SURFACE WITH
INVERSED RADIUS
IRREGULAR OR
UNEQUAL SURFACES
FLAT
SURFACE
Picture 4
OPEN POSITION SECURED POSITION
WALLS WITH A RADIUSTHAT IS NOT
SMALLER THAN 1,83 M WHILE OBSERVING
FROM THE ABOVE LEVEL
EN

5

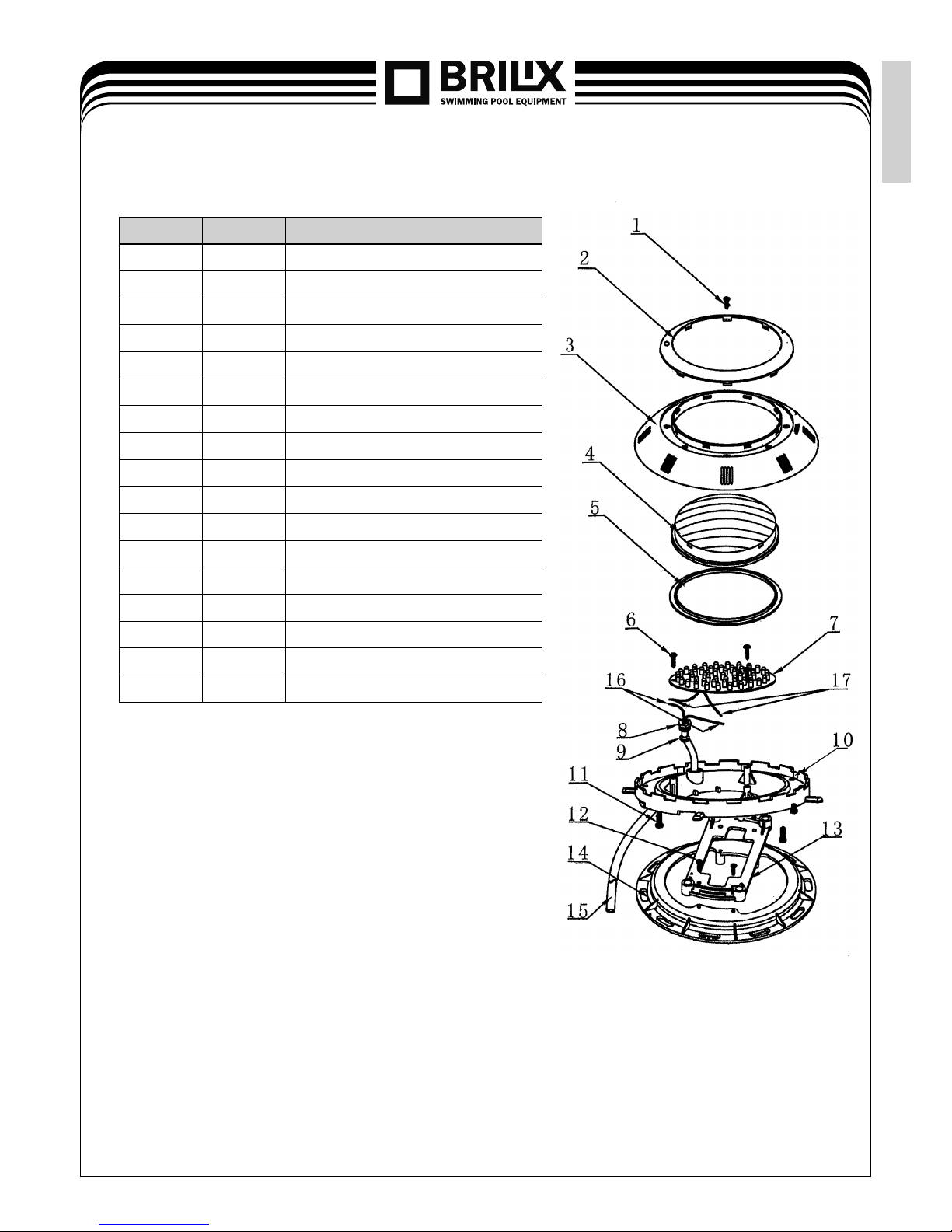

4. List of components
Position Amount Description
1 1 Coloured lentil cover
21Screw
31Frontring
41Cover
51Lentil
61Lentilpadding
7 2 Padding nut with a screw
8 1 12V/100W lamp
91Lamppadding
10 1 Mirror
11 1 Head with a cut
12 1 Sealing O-ring
13 1 Body
14 8 Padding nut with a screw
15 4 Screw
16 1 Assembly consol
17 1 Assembly spacer washer
EN

6
Conditions of guarantee
Conditions of guarantee abide by the trading and guarantee conditions of your supplier.
Secure disposal of the product after the lifetime expiry
After the lifetime expiry, ensure its ecologic disposal made by a skilled company
Complaints and customer service
Complaints abide appropriate consumer protection rights. In the event of unrecoverable effect
please, address the written complaint to your supplier.
Date................................................................
Supplier
EN

7
WARNING
Never use this light for longer than 10 seconds if it isn’t completely immersed under the water.
In case, the assembled light will not be completely immersed, it will heat up considerably which can
cause a serious injury to the users of the pool, plumbers and passers-by, or can deteriorate assets.
Before installation or removing the lamp, the power supply must be switched o. Before
changing, leave the lamp to cool down. This light uses a halide siliceous lamp. Do not touch
the lamp with bare arms, it might considerably shortened its lifetime. Use the plastic protector
delivered with a spare lamp in order not to touch the lamp with your ngers.
DANGER!
THE RISK OF BEING STROKEN OR KILLED BY THE ELECTRIC CURRENT
This light must be installed by a qualied electrician or a qualied service engineer in conformity with
standards introduced by your governmental or local bodies. Incorrect installation creates electric
danger that might lead to the serious injury, death or it might deteriorate assets. Before starting
the service work on the light, disconnect the current from its supply. If you do not follow this
instruction you might be exposed to the risk of a serious injury, death or deterioration of assets.
EN
