WINDOW PANE PAGODA

OWNER’S MANUAL

ASSEMBLY AND OPERATING INSTRUCTIONS

EXTRA-LONG RUNNING SOLAR POWERED L.E.D. GARDEN ACCENT LIGHTS

INSTR_Window Pane-SG.qxd 12/23/03 9:28 AM Page 1

HOW YOUR WINDOW PANE PAGODA™

SOLAR-POWERED L.E.D. LIGHTS WORK

READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR SOLAR LIGHT.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

IMPORTANT: The EPA Certified RBRC®Battery

Recycling Seal on the nickel-cadmium (Ni-Cd)

battery contained in our product indicates The

Brinkmann Corporation is voluntarily participating

in an industry program to collect and recycle

these batteries at the end of their useful life,

when taken out of service in the United States or

Canada. The RBRC®program provides a

convenient alternative to placing used Ni-Cd

batteries into the trash or the municipal waste

stream, which may be illegal in your area.

Please call 1-800-8-BATTERY™ for information

on Ni-Cd battery recycling and disposal

bans/restrictions in your area. The Brinkmann

Corporation’s involvement in this program is part

of our commitment to preserving our environment

and conserving our natural resources.

During the day, the solar panel converts sunlight

into electricity and recharges the battery. At

night, the light turns on automatically using the

electricity stored during that day.

The number of hours the light will stay on is

dependent on your geographical location, weather

conditions and seasonal lighting availability.

Solar lights do not receive as much direct

sunlight in winter months. Therefore, the

number of hours the light will stay on will be

reduced during winter.

BEFORE FIRST USE – Pull out to remove the clear plastic strip with orange

sticker in the light fixture to charge batteries.

Your new solar light’s rechargeable Ni-Cd battery is fully charged and ready for

use. Install the solar light in direct sunlight. For optimum performance, it is

best to charge the solar light for a FULL, SUNNY DAY. The light will turn on

automatically at night. The Ni-Cd rechargeable battery provides increased

brightness and stays on longer as it cycles over time (days and nights of

charging and discharging). The more direct sunlight that the light receives

during the day, the brighter and longer the light will stay on at night.

The rechargeable Ni-Cd battery must be allowed to fully charge to operate

properly. Partially charging the battery on a consistent basis will drastically

reduce the life of the battery.

INSTR_Window Pane-SG.qxd 12/23/03 9:28 AM Page 2

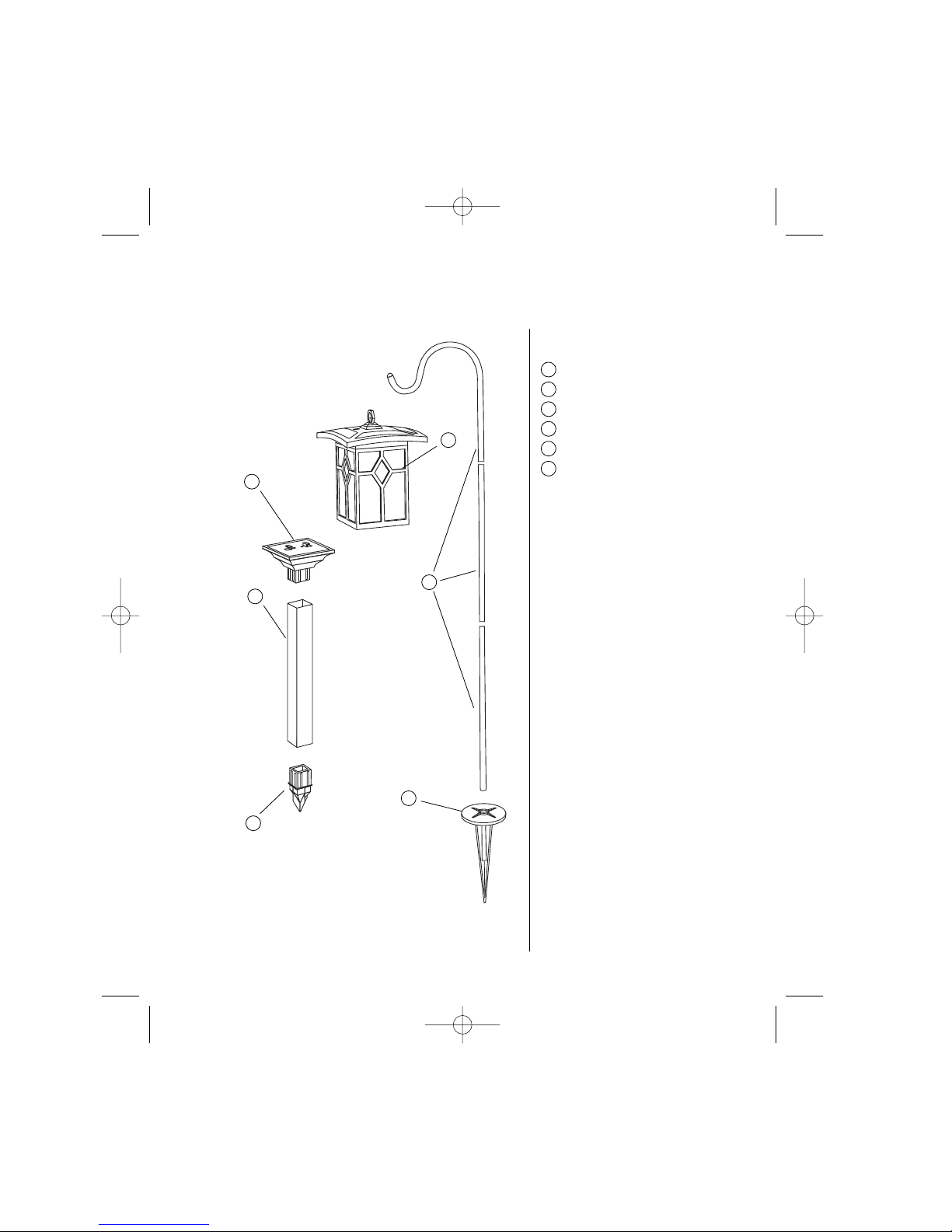

PARTS LIST:

Window Pane Pagoda Light Head Fixture

Ground Stake Adaptor

Ground Stake

Ground Stake Connector

3-Piece Hanging Hook

Ground Stand

ASSEMBLY INSTRUCTIONS

Inspect contents of the box to ensure all parts are included and undamaged.

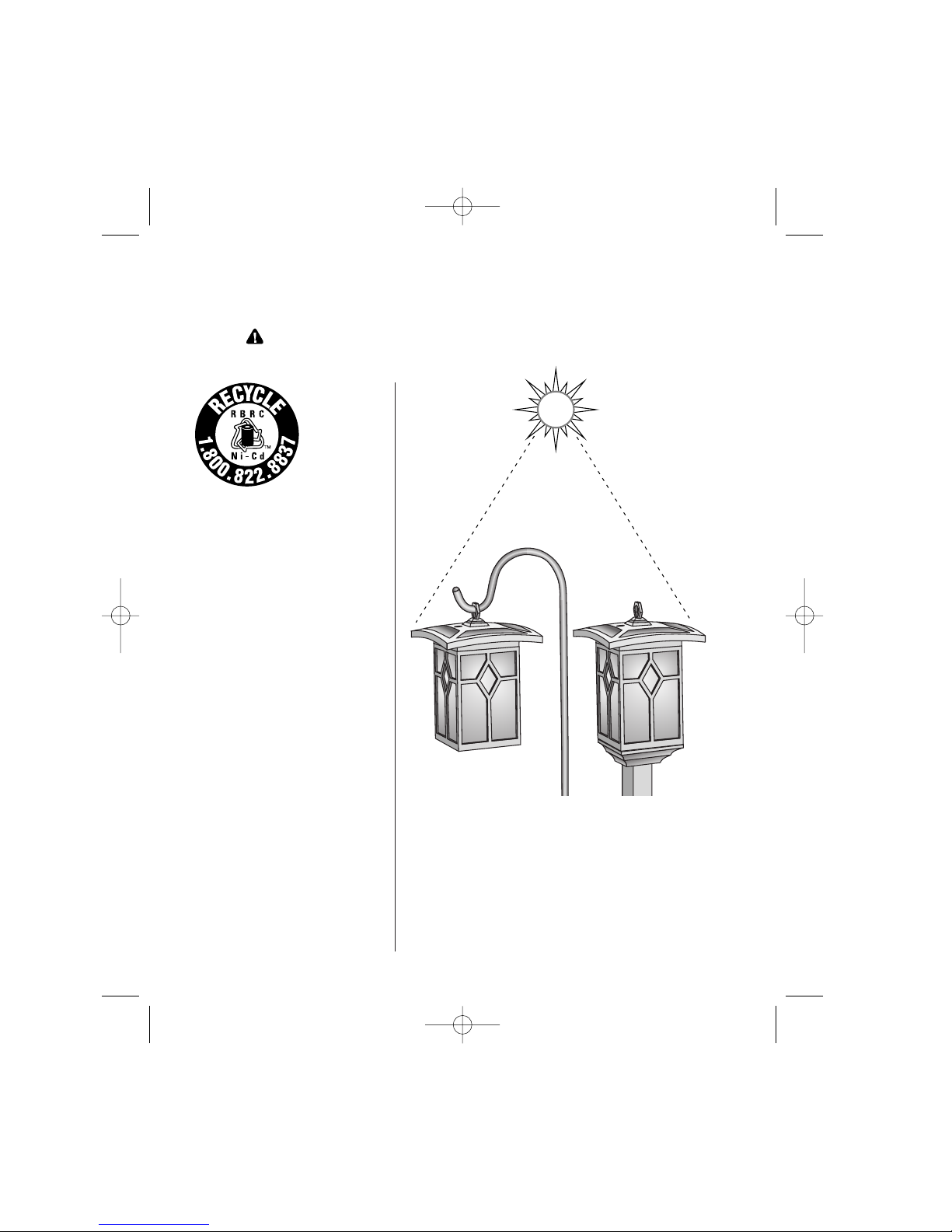

Select a location with FULL, DIRECT

SUNLIGHT. Shady locations will not allow the

battery to charge fully and will reduce the

hours of nighttime light.

NOTE: The rechargeable Ni-Cd battery

must be allowed to fully charge to

operate properly. Partially

charging the battery on a

consistent basis will drastically

reduce the life of the battery.

The selected location should not be near a

nighttime light source such as a porch light or

street light, as these might keep the solar

lights from automatically turning on. The solar

lights should not be placed closer than 5 feet

from one another. This could cause the solar

lights to flicker from the adjacent light source.

INSTR_Window Pane-SG.qxd 12/23/03 9:28 AM Page 3

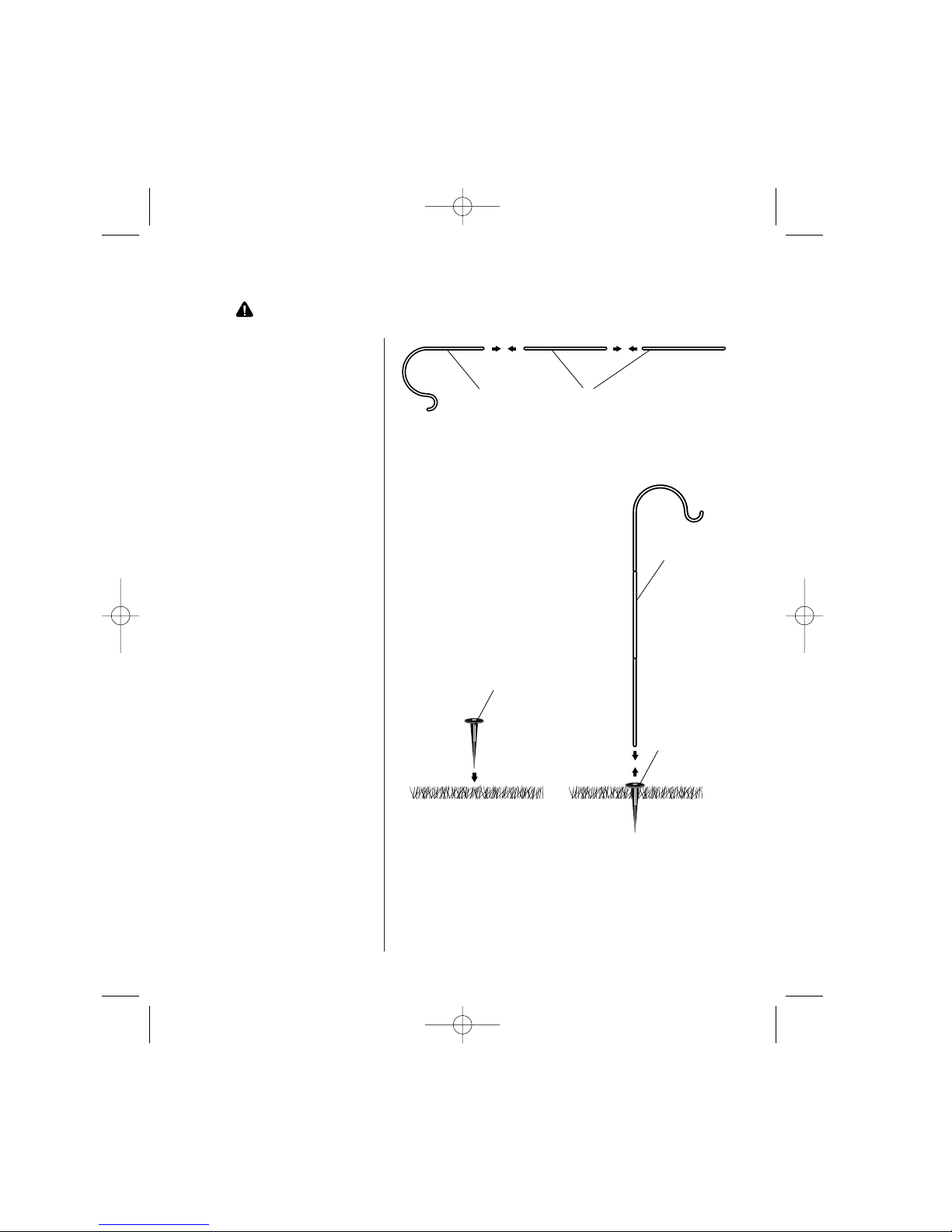

Step 1

To form a hanger for the solar light,

connect the hook section with one or two

stand sections, depending on the height

desired.

Step 2

Locate an area of solid ground where you

can place your solar lights and insert

ground stand.

Step or press down on ground stand to

aid in driving stand into ground. Make

sure ground stand is inserted all the way

into ground.

NOTE: Ground can be softened by soaking

area with water first.

Step 3

Once ground stand is firmly in place,

insert hanging hook into center hole of

ground stand.

Step 4

Hang light fixture from hanging hook.

The photocell light sensor should point

away from other nighttime light sources.

Step 5

For optimum performance, it is best to

charge the solar light for a FULL, SUNNY

DAY. The light will turn on automatically

at night. The Ni-Cd rechargeable battery

provides increased brightness and stays

on longer as it cycles over time (days and

nights of charging and discharging). The

more direct sunlight that the light

receives during the day, the brighter and

longer the light will stay on at night.

Ground Stand

Hook Section

Hanging Hook

Ground Stand

Stand Sections

OPERATING INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR SOLAR LIGHT.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Hanging Light Assembly

INSTR_Window Pane-SG.qxd 12/23/03 9:28 AM Page 4

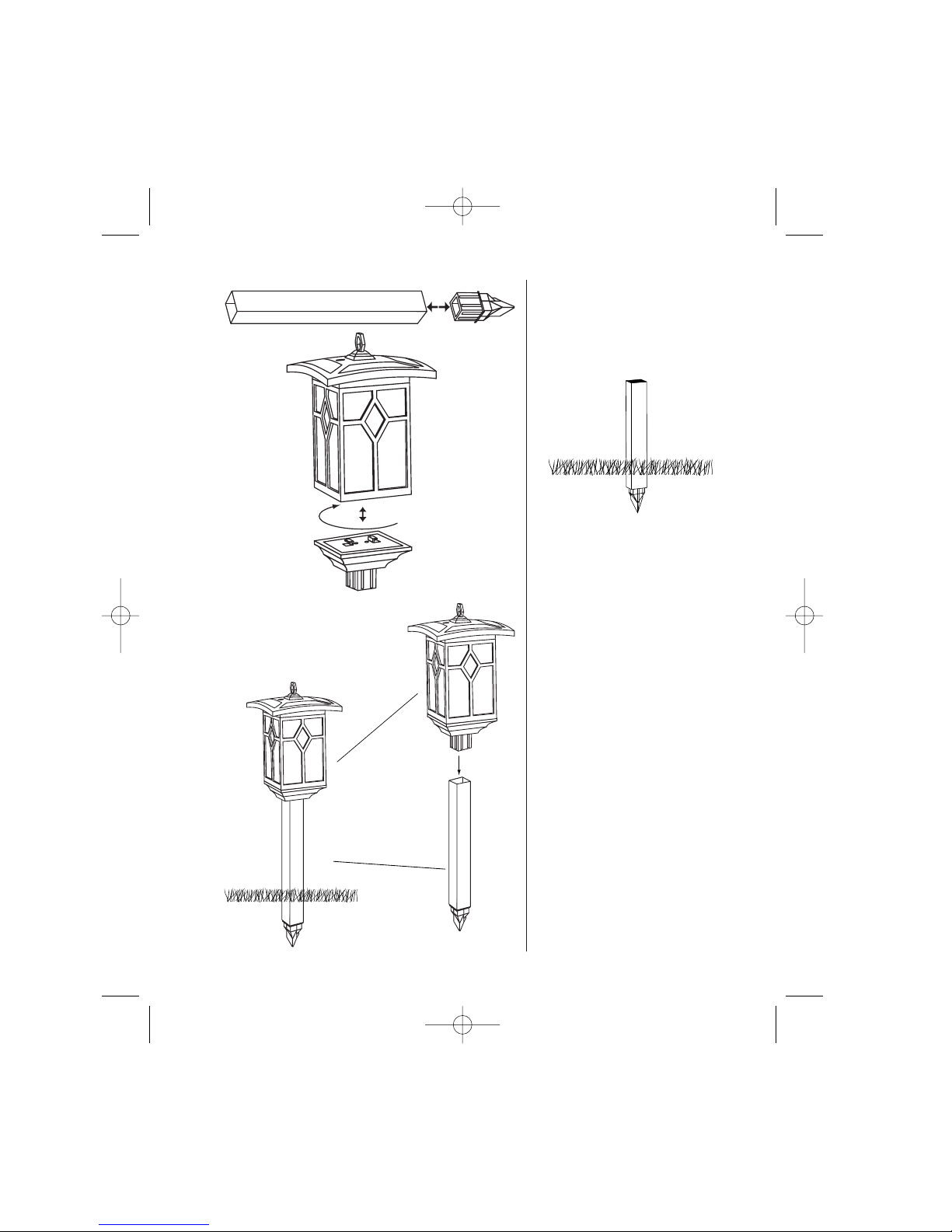

Step 1

Attach the ground stake to a pointed

connector. Push approximately 3" of the

ground stake into the ground. If the

ground is too hard, soak area with

water to soften.

Step 2

Attach light head to ground stake adaptor by

inserting tabs on adaptor into slots in

bottom of light head. Twist adaptor

clockwise to fasten.

Step 3

Insert light head into ground stake. The

photocell light sensor should point away

from other nighttime light sources.

Step 4

For optimum performance, it is best to

charge the solar light for a FULL, SUNNY

DAY. The light will turn on automatically at

night. The Ni-Cd rechargeable battery

provides increased brightness and stays on

longer as it cycles over time (days and

nights of charging and discharging). The

more direct sunlight that the light receives

during the day, the brighter and longer the

light will stay on at night.

Ground Light Assembly

INSTR_Window Pane-SG.qxd 12/23/03 9:28 AM Page 5

Top Housing

Battery

Changing Battery

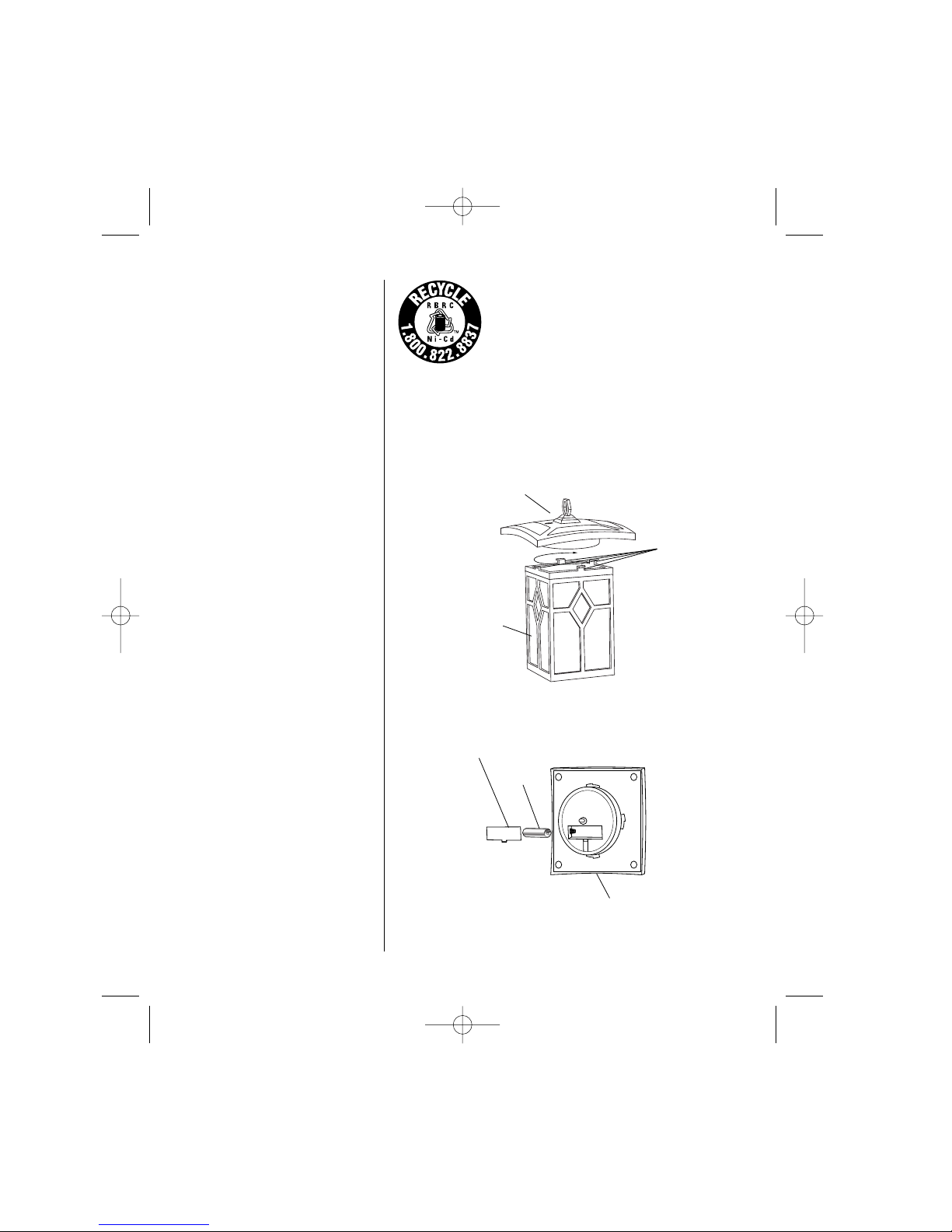

Step 1

Remove lens from top housing by

turning lens clockwise.

Step 2

With top housing upside down (solar

panel facing down), push battery

compartment tab and lift off battery

compartment lid.

Step 3

Remove battery. Replace with new Ni-Cd

rechargeable battery.

Step 4

Replace battery compartment lid.

Step 5

Attach the lens by aligning the tabs with

the slots in top housing. Turn counter-

clockwise to lock in place.

NOTE: These lights utilize L.E.D. (Light

Emitting Diode) technology. There

are no bulbs to replace.

Battery

Compartment Lid

It is important that the solar panel is kept free

of dirt and debris. A dirty solar panel will not

allow the battery to fully charge. This will

shorten the life of the battery and cause the

light to malfunction. Clean regularly with a

dampened cloth or paper towel.

Cleaning

Lens

Top Housing

Tabs

IMPORTANT: The EPA Certified RBRC®Battery Recycling Seal on

the nickel-cadmium (Ni-Cd) battery contained in our product

indicates The Brinkmann Corporation is voluntarily participating

in an industry program to collect and recycle these batteries at

the end of their useful life, when taken out of service in the

United States or Canada. The RBRC®program provides a

convenient alternative to placing used Ni-Cd batteries into the

trash or the municipal waste stream, which may be illegal in your area. Please call

1-800-8-BATTERY™ for information on Ni-Cd battery recycling and disposal

bans/restrictions in your area. The Brinkmann Corporation’s involvement in this

program is part of our commitment to preserving our environment and conserving our

natural resources.

INSTR_Window Pane-SG.qxd 12/23/03 9:28 AM Page 6

Solar lights can be left outside year round, even in cold weather. However, if you

wish to store your light indoors for more than two or three days, follow these steps

to prevent damage to rechargeable batteries:

• Store at room temperature in a dry location.

• Store solar light where it can receive some sunlight or room light each day.

The battery needs light to maintain a charge during storage.

• During prolonged storage, units must be fully discharged and charged once

every month or remove batteries and replace with new Ni-Cd rechargeable

batteries when ready for use. Check and replace batteries periodically

throughout the year.

• Do not store solar lights in a box, or a dark room without a source of light on

the solar panel. This will damage the batteries and prevent their ability to hold

a charge.

• For best performance, do not store for prolonged periods.

Storage Tips

• Clean snow and debris off the solar panel to allow battery to recharge.

• Check and replace battery periodically throughout the year, especially after

winter months.

Wintertime

Tips

If your solar light does not turn on at night, it may be caused by one the

following conditions:

• Battery is not fully charged or needs replacement:

a. Make sure your light is located in an area where the solar panel gets the

maximum amount of FULL, DIRECT SUNLIGHT every day.

b. If the weather has been cloudy or overcast during the day, the battery will

not be recharged for operation at night. The solar light must have direct

sunlight every day to fully charge the battery. If the solar light does not

receive enough sunlight one day, it will recharge the next sunny day and

resume normal operation.

c. Check and replace the battery periodically throughout the year, especially

after winter months. Replacement batteries may be purchased from The

Brinkmann Corporation Customer Service Department by calling

1-800-468-5252.

• Other light sources: If your solar lights are located too close to a street light,

porch light or another solar light, it may not turn on automatically at night. The

built-in photocell light sensor is reacting to the other light source. Eliminate the

other light source or relocate your solar lights.

• Dirty solar panel: A dirty solar panel will not allow the battery to fully charge.

This will shorten the life of the battery and cause the light to malfunction.

Clean regularly with a dampened cloth or paper towel.

After correcting the problem, check the light operation immediately after dark or in a

dark room. If the light will only operate for a short time, the battery needs recharging.

Troubleshooting

Information

INSTR_Window Pane-SG.qxd 12/23/03 9:28 AM Page 7

140-2509-0

12/03 Owner’s Manual for Model

822-2509-2

For 2-years from date of purchase, The Brinkmann Corporation warrants the Window Pane Pagoda solar light against defects due to

workmanship or materials to the original purchaser. The Brinkmann Corporation’s obligations under this warranty are limited to the fol-

lowing guidelines:

• This warranty does not extend to the L.E.D. or battery.

• This warranty does not cover solar lights that have been altered or damaged due to: normal wear, abuse, improper maintenance,

improper use, disassembly of parts and/or attempted repair by anyone other than an authorized employee of The Brinkmann

Corporation.

• This warranty does not cover surface scratches or weathering as this is considered normal wear.

• Warranty service is limited to repair or replacement of solar lights which prove defective under normal use and which upon

examination shall indicate to Brinkmann’s satisfaction, they are defective. If Brinkmann confirms the defect and approves the

claim, Brinkmann will elect to repair or replace the solar light as covered by the terms of this warranty.

• This warranty extends to the original purchaser only and is not transferable or assignable to subsequent purchasers.

The Brinkmann Corporation requires reasonable proof of purchase. Therefore, we strongly recommend that you retain your sales

receipt or invoice. To obtain repair or replacement of your Window Pane Pagoda solar light under the terms of this warranty, please

call Customer Service Department at 1-800-527-0717 for a Return Authorization Number and further instructions. A receipt or

proof of purchase will be required. Solar lights returned to Brinkmann must include your name, address and telephone number.

Please make sure the light is properly packed, postage prepaid, and insured. A Return Authorization Number must be clearly

marked on the outside of the box. Brinkmann cannot be responsible for any solar lights forwarded to us without a Return

Authorization Number.

EXCEPT AS ABOVE STATED, THE BRINKMANN CORPORATION MAKES NO OTHER EXPRESS WARRANTY.

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO

2-YEARS FROM THE DATE OF PURCHASE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY

LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE FAILURE OF THE WINDOW PANE

PAGODA SOLAR LIGHT TO COMPLY WITH THIS WARRANTY OR ANY IMPLIED WARRANTY IS EXCLUDED. CUSTOMER

ACKNOWLEDGES THAT THE PURCHASE PRICE CHARGED IS BASED UPON THE LIMITATIONS CONTAINED IN THE WARRANTY SET

OUT ABOVE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,

SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,

AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

2-YEAR LIMITED WARRANTY

Dallas, Texas 75244

www.brinkmanncorp.com

INSTR_Window Pane-SG.qxd 12/23/03 9:28 AM Page 8

Altri manuali per Solar Gallery

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Brinkmann Illuminazione del paesaggio

Brinkmann

Brinkmann Solar Gallery Manuale utente

Brinkmann

Brinkmann Solar Max 822-B504-2 Manuale utente

Brinkmann

Brinkmann Emperor Solar Garden Accent Lights Manuale utente

Brinkmann

Brinkmann ENDURA Manuale utente

Brinkmann

Brinkmann Solar Gallery 822-1506-B Manuale utente

Brinkmann

Brinkmann Endure Manuale utente

Brinkmann

Brinkmann ENDURA Manuale utente

Brinkmann

Brinkmann Endura 822-2502-2 Manuale utente

Brinkmann

Brinkmann Solar Max Solar Powered L.E.D. Garden Accent... Manuale utente

Brinkmann

Brinkmann Solar Max 822-2507-8 Manuale utente

Brinkmann

Brinkmann Modern Tier Light Manuale utente

Brinkmann

Brinkmann Metal Manuale utente

Brinkmann

Brinkmann Solar Gallery Manuale utente

Brinkmann

Brinkmann 822-0429-0 Manuale utente

Brinkmann

Brinkmann TIER Manuale utente

Brinkmann

Brinkmann Solar Max Solar Powered L.E.D. Garden Accent... Manuale utente

Brinkmann

Brinkmann 822-0408-0 Manuale utente

Brinkmann

Brinkmann HANGING MISSION Manuale utente

Manuali Illuminazione del paesaggio popolari di altre marche

Intex

Intex SL1006 Manuale utente

LED Group

LED Group ROBUS R2IN13W Manuale utente

Patriot Lighting

Patriot Lighting 343-1484 Manuale utente

Hess

Hess SERA G: SERA S Manuale utente

LIGMAN

LIGMAN JET 44 Manuale utente

LIGMAN

LIGMAN MALTA 1 Manuale utente

Cooper Lighting

Cooper Lighting MCGRAW-EDISON WBG Manuale utente

Cooper Lighting

Cooper Lighting Invue 42 - 175W Manuale utente

Saxby Lighting

Saxby Lighting Islay 68784 Manuale

LIGMAN

LIGMAN EU-10016-3 Manuale utente

Cooper Lighting

Cooper Lighting McGraw-Edison ZD Credenza Manuale utente

LIGMAN

LIGMAN KI-60475 Manuale utente

Cooper Lighting

Cooper Lighting Generation CLB25MWW5C373 Manuale utente

Malibu Boats

Malibu Boats CL905K Manuale utente

LIGMAN

LIGMAN NYB-30161 Manuale utente

LIGMAN

LIGMAN SI-80021 Manuale utente

Volt

Volt 2-in-1 Tiki-Brass Torch Light Manuale utente

Malibu Boats

Malibu Boats CM110P Manuale utente
