Bristan CAS BAS C Manuale utente
Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave them
with the user.
Installation Instructions
Casino Tap Range
Models covered:
CAS BAS C, CAS BF C, CAS BSM C,
CAS 3HBAS C, CAS 3HBF C,
CAS WMBAS C, CAS WMBF C
2
Contents
Thank you for choosing Bristan, the UK’s leading taps and showers expert.
We have designed this product with your enjoyment in mind. To ensure that it works
to its full potential, it needs to be fitted correctly. These fitting instructions have been
created to give you all of the information you need and, if you need any further help,
please do not hesitate to contact us.
Important Safety Information................................................... 3
General Information ................................................................. 4
Specifications ........................................................................... 5
Dimensions............................................................................... 6-9
Installation Requirements ....................................................... 10
Installation................................................................................ 11-14
Basin Mixer............................................................................... 11
Bath Filler & Bath Shower Mixer............................................. 12
3 Hole Basin Mixer & Bath Filler ............................................. 13
3 Hole Wall Mounted Basin Mixer & Bath Filler .................... 14
Maintenance ............................................................................. 15
Troubleshooting........................................................................ 16
Notes......................................................................................... 17
Guarantee ................................................................................. 18-19
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
3
Important Safety Information
•Please read these instructions thoroughly and retain for future use.
•All products manufactured and supplied by Bristan are safe provided they are
installed, used correctly and receive regular maintenance in accordance with these
instructions.
•If you are in any doubt about your ability to install this product safely you must
employ the services of an experienced qualified plumber.
•This fitting needs to be installed in accordance with, and meet the requirements of the
Water Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004.
•Remove all packaging and check the fitting for damage before starting installation.
•Warning: Before starting any installation please consider the following: before
drilling into walls, check that there are no hidden electrical wires, cables or water
supply pipes. This can be checked with the aid of an electronic detector.
•If power tools are used do not forget to: - Wear eye protection
- Unplug equipment after use
•Important: Remember to turn off the mains water supply before connecting to any
existing pipe work. Fitting isolating valves to the inlet feeds is recommended for ease
of maintenance.
•Warning: Before installing the new fitting it is essential that you thoroughly flush
through the pipework in order to remove any remaining swarf, solder, etc.
Failure to carry out this procedure could cause problems or damage to the workings of
the fitting.
•Take care when handling the ‘flexible connecting pipes’, do not bend, twist or crush
them. Only tighten the pipes by hand.
•Do not crush or kink the shower hose, this could damage the hose and cause leaks.
• This product must not be modified in any way as this will invalidate the guarantee.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
4
General Information
This product has been tested to the Water Regulations Advisory Scheme (WRAS) and
satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and
current bylaws. For full Installation Requirements & Notes (IRN) please visit
www.wras.co.uk/directory.
Designed to comply with BS EN 200 for combination taps to be used within systems
designed to BS 6700.
BS 6700 recommends the temperature of stored water should never exceed 65°C.
A stored water temperature of 60°C is considered sufficient to meet all normal
requirements and will minimise the build up of lime scale in hard water areas.
If the fitting is installed at low pressure (tank fed), then the minimum distance from the
highest installed position of the outlet to the underside of the cold tank should be at
least 2 metres to ensure adequate performance.
Note: CAS 3HBF C requires 3 metres and CAS WMBF C requires 4 metres if installed on
a low pressure system.
These taps and mixers should be installed in compliance with the Water Regulations.
Where the supplies are unbalanced, i.e. Hot water from cylinder tank / cold from the
mains, approved check valves must be fitted in the supply pipes.
For further details contact your Local Water Authority.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
5
Specifications
Product Code
Working pressure
Inlet
Min Max
CAS BAS C 0.2 5.0 M10 15mm Compression Flexible Tails
CAS BF C 0.2 5.0 3/4" BSP Threaded Tail
CAS BSM C 0.2 5.0 3/4" BSP Threaded Tail
CAS 3HBAS C 0.2 5.0 15mm Compression Threaded Tail
CAS 3HBF C 0.3 5.0 3/4" BSP Threaded Tail
CAS WMBAS C 0.2 5.0 15mm Compression Threaded Tail
CAS WMBF C 0.4 5.0 22mm Compression Threaded Tail
Maximum static pressure- 10.0 bar
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
6

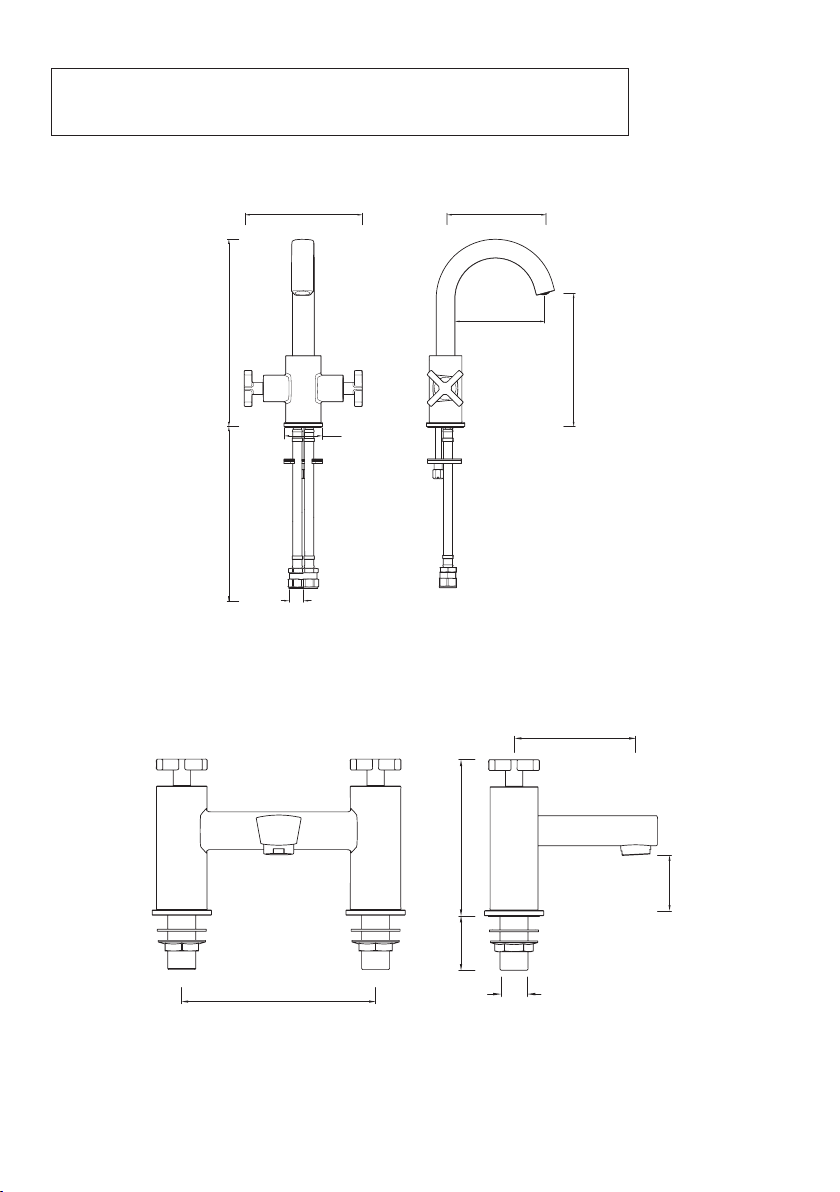

Dimensions
Dimensions are nominal and in millimetres.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
155
246
336
15
50
119
131
175
Basin Mixer
Bath Filler
Basin Mixer
180
145
50
115
G 3/4”
5
6
7

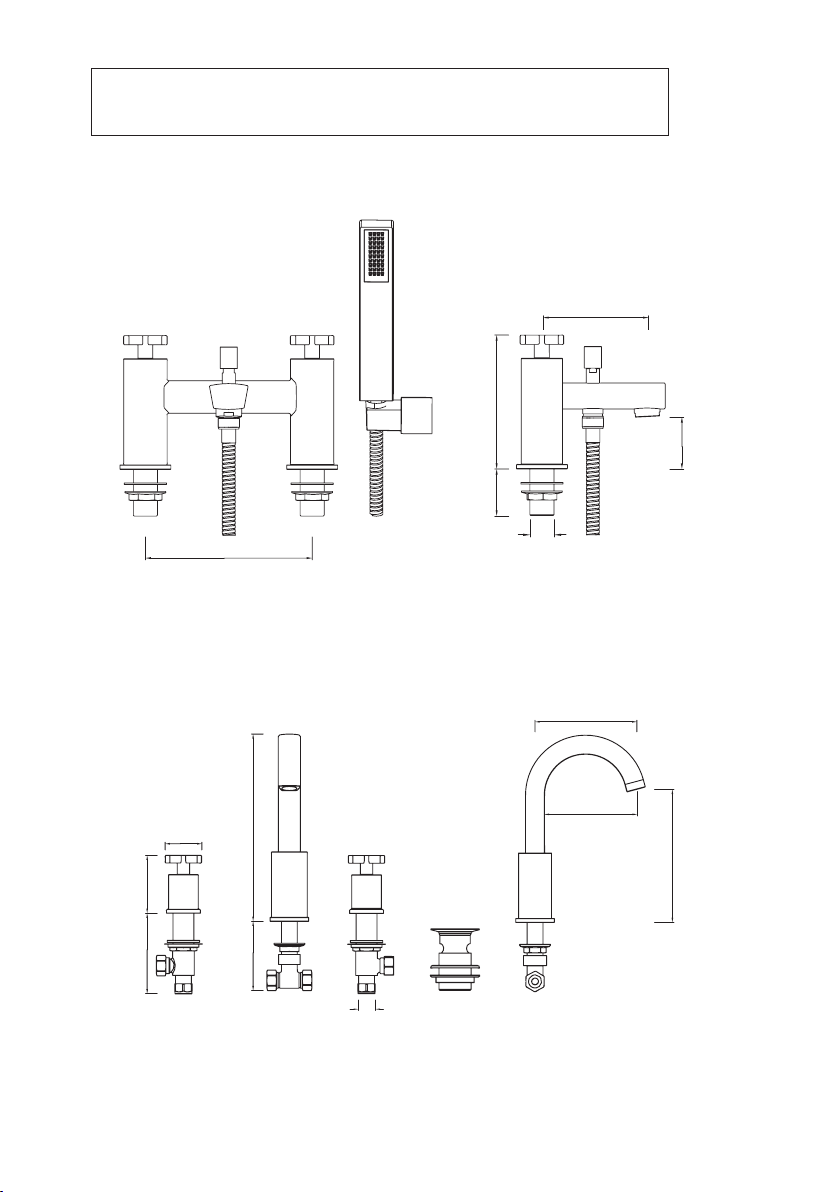

Dimensions Cont.
3 Hole Basin Mixer
Dimensions are nominal and in millimetres.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
170
119
132
243
47
90
75
104
15
Bath Shower MixerBath Shower Mixer
115
145
50
5
6
180
G 3/4”
8
Dimensions Cont.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
3 Hole Bath Filler
Wall Mounted Basin Mixer
220
205
190.5
49.5
34
1
5
C
avity Depth
Min 49.5- Max 53.5
172
118
130
243
91
97
75
51.5
G 3/4”
9
Dimensions Cont.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
Wall Mounted Bath Filler
220
195
176
64.5
22
Cavity Depth
Min 64.5- Max 68.5
43
10
Installation Requirements

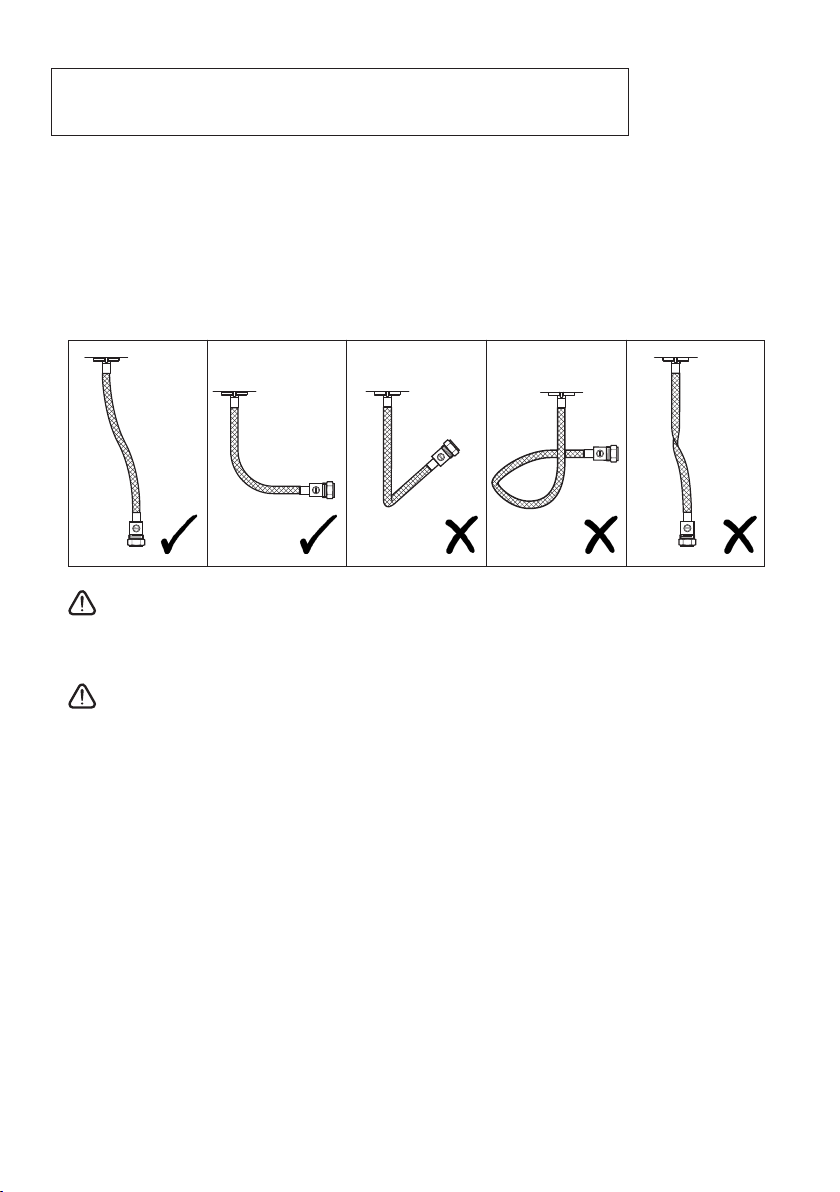

Flexible Connecting Pipes
Care must be taken when connecting the flexible connection pipes to the household pipework to
ensure they do not bend sharply and kink or twist.
See below for recommended ways to fit the flexible connecting pipes.
Slight
bend
90°
Angle
Kink Curved
round
Twists
Important: Failure to follow these guidelines may result in poor performance and damage
to the flexible connecting pipes.
Important: Full access must be made available on installation for future maintenance/
servicing purposes.
System Requirements:
Gravity fed hot & cold (Equal pressures)
Gravity fed hot & cold (Differential pressure, maximum ratio 5:1)
Unvented systems
Instantaneous water heater (Combination boiler)
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
