SPECIFICATION SHEET

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted By Date

11D 99044445F

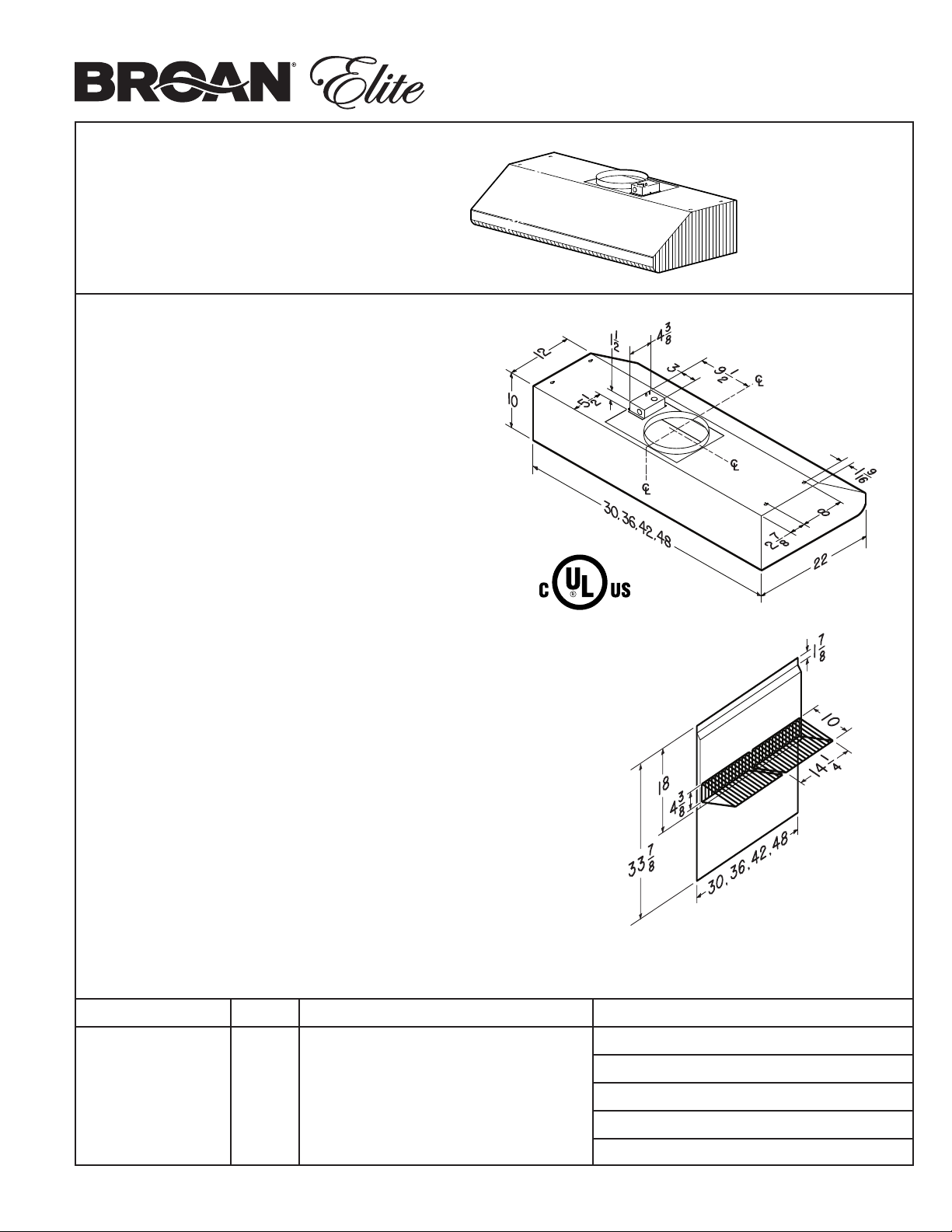

E64E SERIES

RANGE HOOD

For domestic

cooking only.

Styling is fresh and modern, yet designed to easily

complement popular pro-style, high performance cooking

products.

A complete installation requires several optional components.

Refer to page 2 when planning your installation.

FEATURES

HOOD:

• Widths available - 30” to 48” in 6” increments

• Stainless steel, 22 gauge, type 430, #4 brush

• Stainless steel baffle filters with handles - easily accessible,

dishwasher safe

• 2-level cooktop lighting (30” & 36” wide hoods = 2 lamps,

42” & 48” wide hoods = 3 lamps. Uses 50W, GU10 halogen

lamps. Bulbs not included.)

• Solid-state, variable speed blower control with speed

memory

• Exclusive, Heat Sentry™ turns blower ON to HIGH speed

when excess heat is detected

• 10” round duct adapter (Model 332KR - included)

• Compatible with Broan Automatic Make-up Air Dampers -

MD6T (6” duct), MD8T (8” duct)

• For indoor use only.

BACKSPLASH:

RMP Series (Optional)

• Widths - 30” to 48” in 6” increments

• Stainless steel, 22 gauge, type 430, #4 brush - protects back

wall and wipes clean easily

• Two, removable, dual position condiment storage shelves

SPECIFICATION:

• 120 VAC, 60 Hz,

• 0.8 Amps without blower (30” & 36” widths)

1.3 Amps without blower (42” & 48” widths)

Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711

Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119

Models

E64E30SS

E64E36SS

E64E42SS

E64E48SS

RMP Series

Backsplash

(Optional)

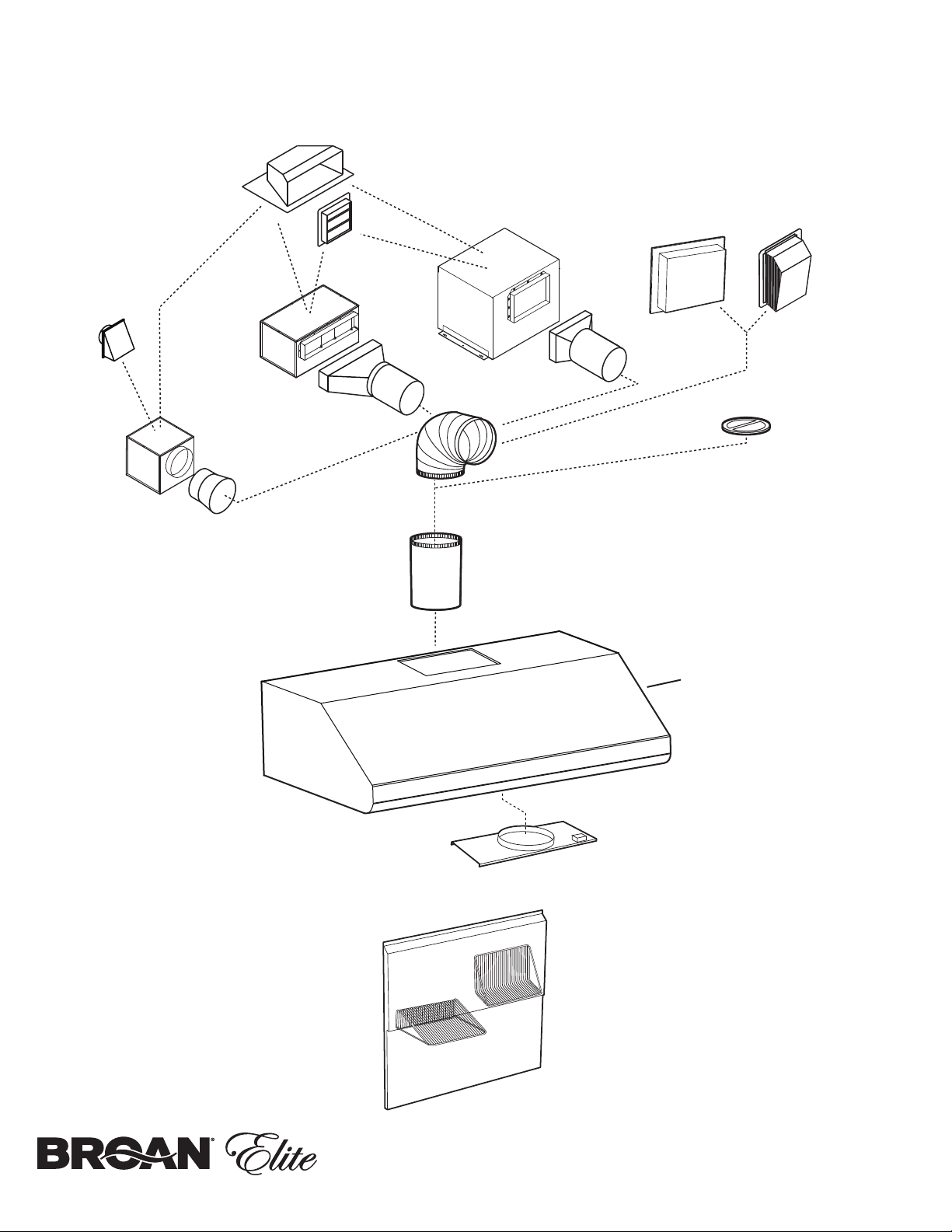

E64E SERIES RANGE HOOD SYSTEM

INLINE AND EXTERIOR BLOWERS

MODEL 437

(HIGH CAPACITY ROOF CAP)

MODEL 441

(10” ROUND

WALL CAP)

MODEL 643

(8” ROUND

WALL CAP)

MODEL 418

(10” ROUND

ADJUSTABLE ELBOW)

MODEL 421

(10” ROUND

VERTICAL

IN-LINE

DAMPER -

RECOMMENDED

FOR USE WITH

EXTERIOR BLOWERS)

MODEL 410

(10” ROUND DUCT - 2 FT. SECTIONS)

RMP SERIES BACKSPLASH

(STAINLESS STEEL WALL COVERING

WITH WARMING SHELVES -

OPTIONAL)

E64E SERIES HOOD

MODEL 332KR

(IN-LINE AND EXTERIOR

BLOWER ROUGH-IN KIT)

MODEL HLB9 (800 CFM)

OR HLB11 (1100 CFM)

INLINE BLOWER

(INCLUDES TW0 8” X 12”

TO 10” ROUND TRANSITIONS)

MODEL HLB6 (600 CFM)

INLINE BLOWER

(INCLUDES TW0 4½” X 18½” TO

10” ROUND TRANSITIONS)

MODEL HLB3 (280 CFM)

INLINE BLOWER

(INCLUDES ONE 8” X 10”

ROUND TRANSITION)

MODEL 331H (600 CFM)

OR 332H (900 CFM)

EXTERIOR BLOWER

MODEL 335 (1200 CFM)

OR 336 (1500 CFM)

EXTERIOR BLOWER
