SPECIFICATION SHEET

BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

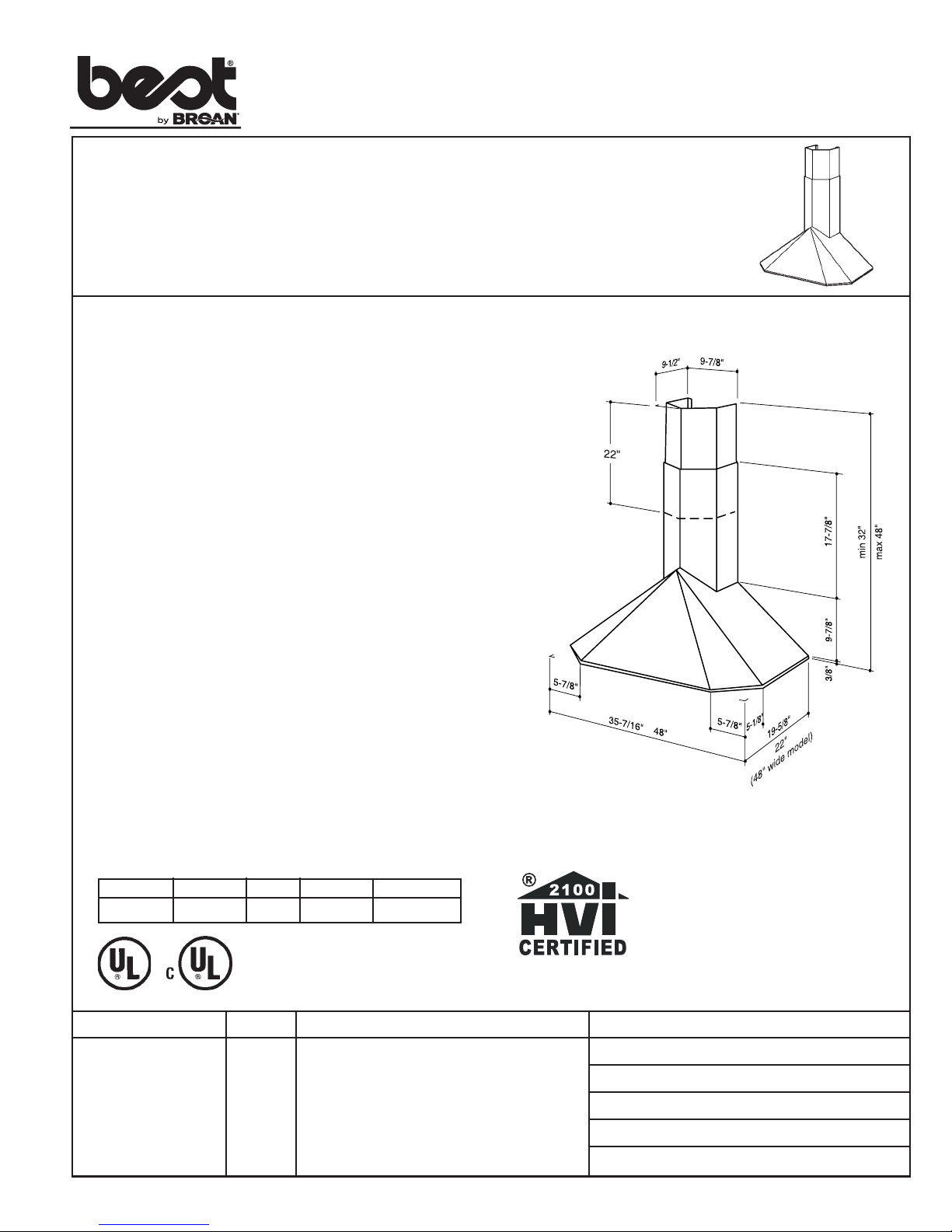

K30 SERIES

RANGE HOODS

Seamless, handcrafted beauty and multifaceted

construction create a timeless object of desire.

FEATURES

•Italian design

•Wall mount

•Finishes: 304 Stainless Steel #4 Brushed, White, Black

•Widths: 35-7/16” (90cm), 48”

•Ducted telescopic flue accommodates 8’ to 9’ ceilings

•6” round duct connector/backdraft damper

•Halogen lighting (2 x 20 watt, Type MR16 for 35-7/16”

model; 3 x 20 watt, Type MR16 for 48” model) provides two-

level lighting – bright cooktop illumination and a low

nighttime setting (bulbs included)

•Advanced, multispeed, electronic push-button controls

with individual speed indicators

•Quiet, variable-speed centrifugal blower with high-

efficiency motor produces 500 CFM of exhaust

•Delay timer control automatically shuts off range hood

after ten minutes

•Special control indicates when it’s time to clean the filter

•Dishwasher-safe filters feature a quick-release latch and

polished stainless steel

•Heat SentryTM - automatically turns blower to high speed

when excess cooking heat is detected

OPTIONS

•Replacement grease filters available

•Flue extension for 10’ ceiling (Model FEXTK30 in Stainless

Steel, White, Black) (30-1/8” Long)

•Exterior blower version (KEX30) available, providing 600,

900, 1200, or 1500 CFM exhaust

50J 99043158C

HVI-2100CERTIFIEDRATINGScomplywithnewtesting

technologies and procedures prescribed by the Home

Ventilating Institute, for off-the-shelf products, as they

are available to consumers. Product performance is

rated at 0.1 in. static pressure, based on tests

conducted in AMCA’s state-of-the-art test laboratory.

Sones are a measure of humanly-perceived loudness,

based on laboratory measurements.

SPECIFICATIONS

VOLTS AMPS CFM SONES DUCT

120 3.13/3.34 500 8.5 6” round

BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027

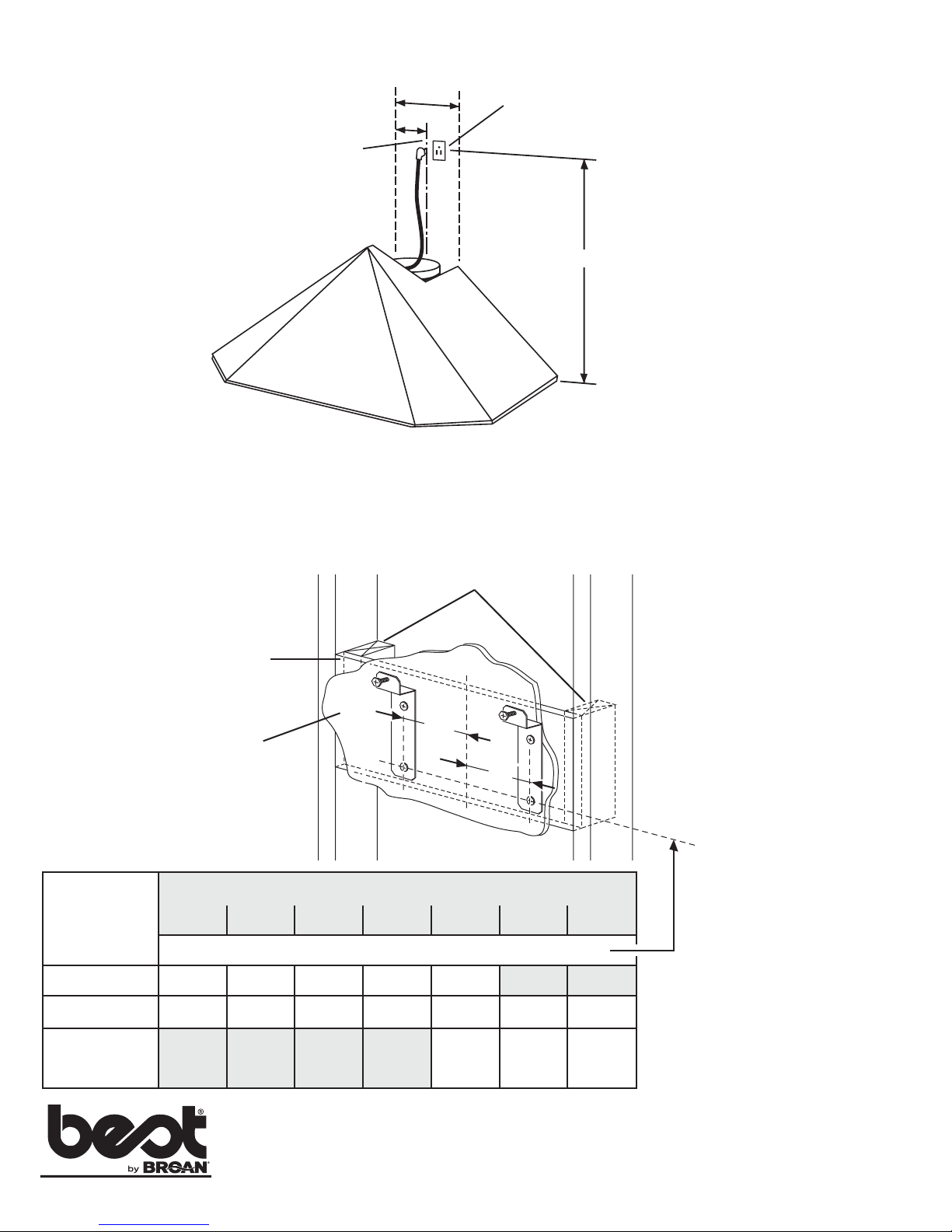

K30 SERIES WIRING

K30 SERIES MOUNTING

FRAMING BEHIND

WOOD CROSS

SUPPORT

WOOD CROSS SUPPORT –

SECURED TO FRAMING AND

LOCATED BEHIND DRYWALL

DRYWALL

21” - 27”

8½”

4¼”

CENTERLINE OF

HOOD & DUCT

120-VOLT, 60 HZ, GROUNDED WALL OUTLET

OFFSET FROM DUCT CENTER LINE

(STAY WITHIN 8½” DIMENSION)

GNILIEC

THGIEH

)ETONEES(POTKOOCHGIH"63EVOBAECNATSIDDOOH

"42 "52 "62 "72 "82 "92 "03

POTKOOCHGIH"63EVOBANOITACOLTEKCARBGNITNUOM

TEEF8"8/5-92"8/5-03"8/5-13"8/5-23"8/5-33

TEEF9"8/5-92"8/5-03"8/5-13"8/5-23"8/5-33"8/5-43"8/5-53

HTIWTEEF01

EULF03KTXEF

NOISNETXE

"8/5-33"8/5-43"8/5-53

MOUNTING

BRACKET

LOCATION

(ABOVE 36” HIGH

COOKTOP)

NOTE: Minimum hood distance

above cooktop must not be less

than 24”.

A maximum of 30” above the

cooktop is highly recommended

for best capture of cooking

impurities.

Distances over 30” above the

cooktop are at the installer’s and

user’s discretion - providing that

ceiling height and flue length

permit.
