SPECIFICATION SHEET

REFERENCE QTY. REMARKS Project

Location

Architect

Engineer

Contractor

Submitted by Date

Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)

NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-800-543-8687)

Broan-NuTone Canada, Inc., 1140 Tristar Drive, Mississauga, Ontario, L5T 1H9 (1-888-882-7626)

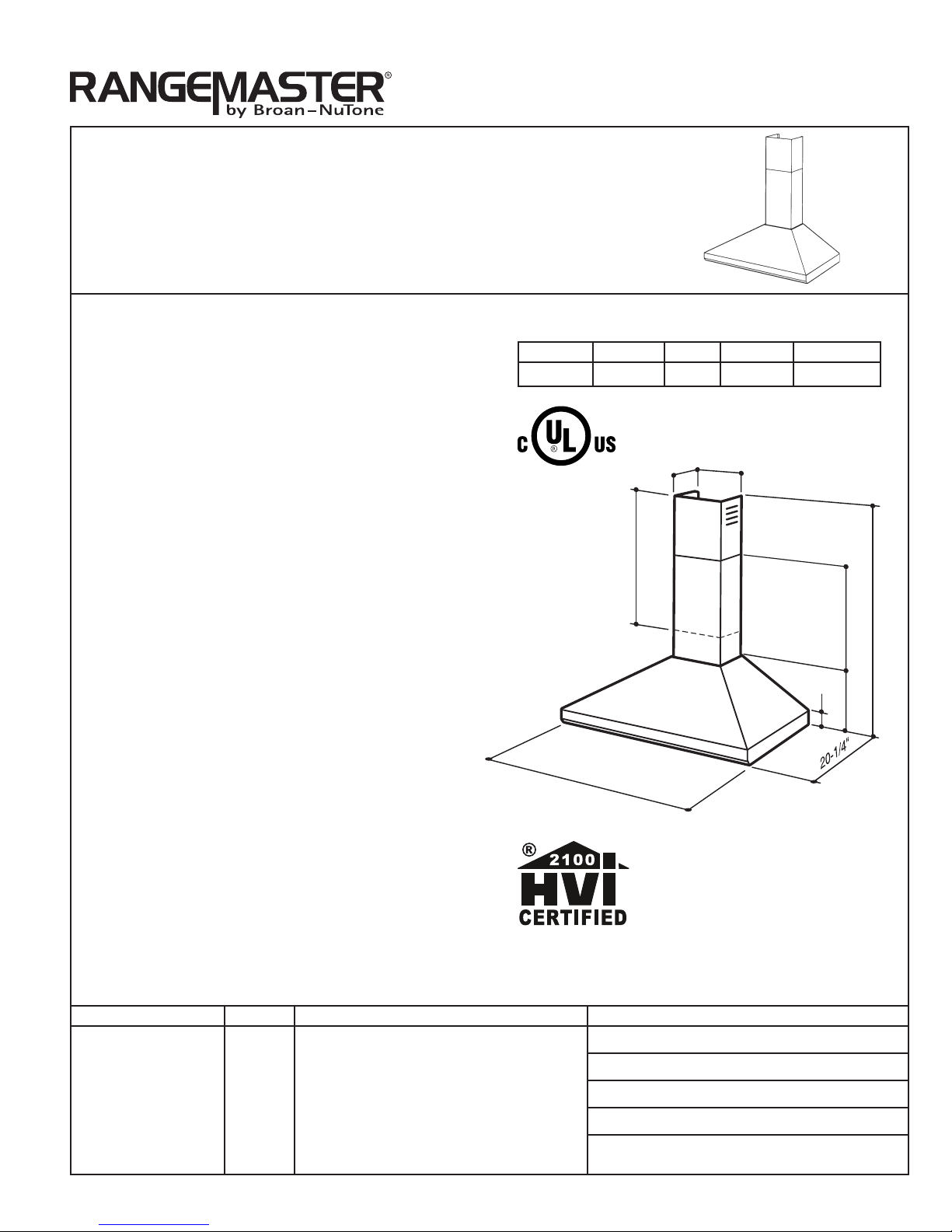

9-3/8"

min 33"

max 48"

30", 35-7/16"

6-5/8"

9-1/4"

2-1/2"

22-1/2"

18"

40F 99043361B

613004 / 619004

RANGE HOOD

An enduring stainless steel design that combines

the ﬂawless look of Italian style with a lasting

impression.

FEATURES

•Italian design

•Wall mount

•Finish: 430 Stainless Steel #4 Brushed

•Widths: 30”, 35-7/16” (90cm)

•Telescopic ue accommodates 8’ to 9’ ceilings

•Convertible to ducted or non-ducted operation

•6” round duct connector/backdraft damper

•Halogen lighting (2 x 20 watt, Type JC 12V 20W G4 base,

bulbs included)

•Concealed three-speed slide control

•450 CFM centrifugal blower

•Dishwasher-safe lters feature a quick-release latch and

polished stainless steel cover plate

•Heat SentryTM - automatically turns blower to high speed

when excess cooking heat is detected

OPTIONS

•Replacement grease lters available

•Non-ducted lter kit (contains two 6” round lters) (Model

ROUNDFILTER)

•Flue extension for 10’ ceiling (Model RFX6104) (Ducted

only – 31-7/8” long)

•Exterior blower version available in 35-7/16” (90cm) and 48”

widths, providing 600, 900, 1200, or 1500 CFM exhaust

•48” wide integral blower version (614804) available,

providing 900 CFM exhaust

SPECIFICATIONS

HVI-2100 CERTIFIED RATINGS comply with new

testing technologies and procedures prescribed

by the Home Ventilating Institute, for off-the-shelf

products, as they are available to consumers. Product

performance is rated at 0.1 in. static pressure,

based on tests conducted in AMCA’s state-of-

the-art test laboratory. Sones are a measure of

humanly-perceived loudness, based on laboratory

measurements.

vOLTS AMPS CFM SONES DUCT

120 3.13 450 9.0 6” round

11 "

16 2 "

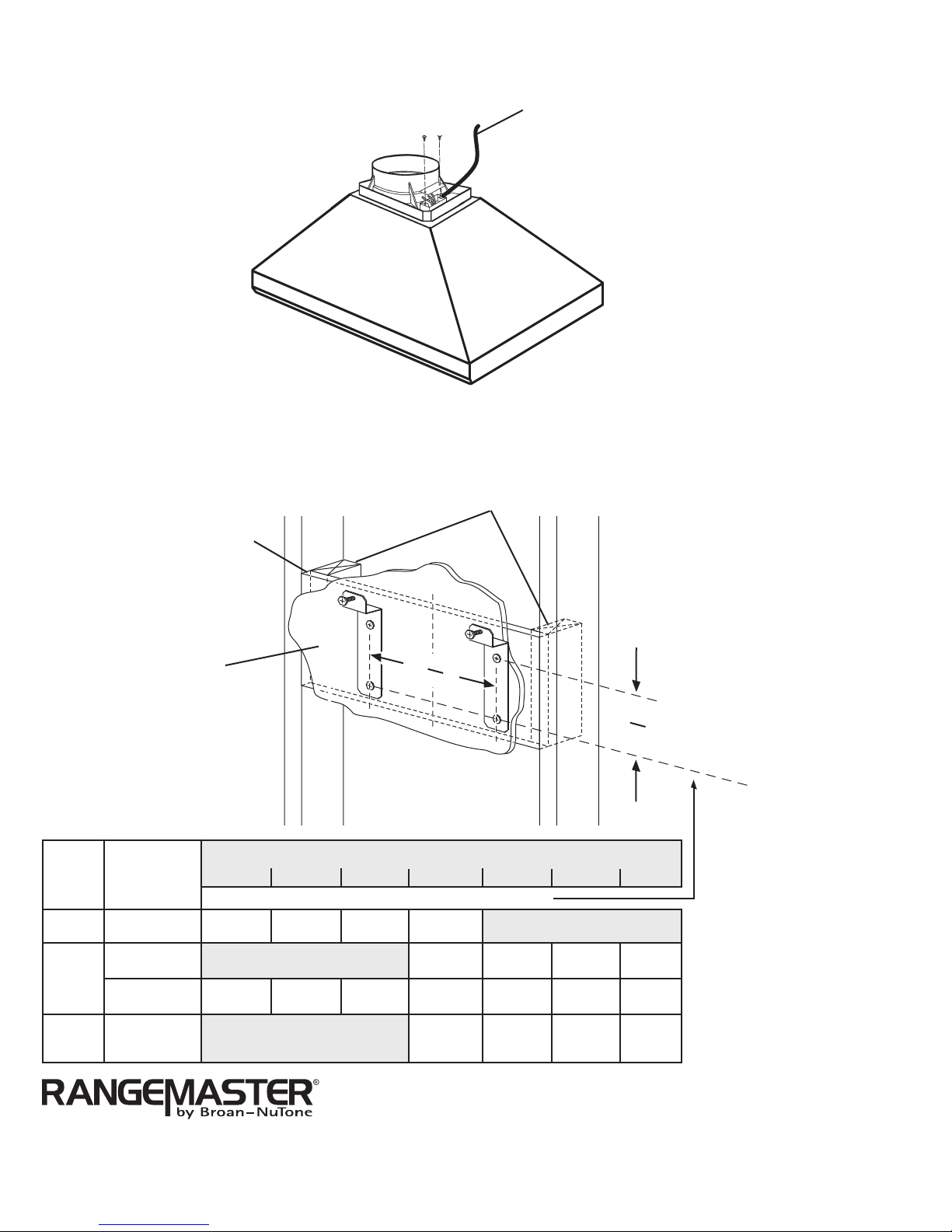

613004 / 619004 MOUNTING

WOOD CROSS SUPPORT

– SECURED TO FRAMING AND

LOCATED BEHIND DRYWALL

613004 / 619004 WIRING

120 vOLT 60 HZ

2-WIRE PLUS

GROUND POWER

SUPPLY

FRAMING BEHIND WOOD

CROSS SUPPORT

Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)

NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-800-543-8687)

Broan-NuTone Canada, Inc., 1140 Tristar Drive, Mississauga, Ontario, L5T 1H9 (1-888-882-7626)

DRYWALL

NOTE: Minimum hood distance above

cooktop must not be less than 24”.

A maximum of 30” above the cooktop is

highly recommended for best capture of

cooking impurities.

Distances over 30” above the cooktop

are at the installer’s and user’s discre-

tion - providing that ceiling height and

ﬂue length permit.

MOUNTING BRACKET

LOCATION

(ABOvE 36” HIGH

COOKTOP)

CEILING DUCT HOOD DISTANCE ABOVE 36” HIGH COOKTOP (SEE NOTE AT RIGHT)

HEIGHT METHOD 24” 25” 26” 27” 28” 29” 30”

MOUNTING BRACKET LOCATION ABOVE 36” HIGH COOK TOP

8 FEET DUCTED OR 27” 28” 29” 30”

NONDUCTED

9 FEET DUCTED 30” 31” 32” 33”

NONDUCTED 27” 28” 29” 30” 31” 32” 33”

10 FEET DUCTED WITH 30” 31” 32” 33”

RFX6104 FLUE

EXTENSION
