Brodit 810850 Manuale utente

Product 810850

810850 Headrest mount with monitor mount For multimedia-monitors with a vertical slot in back. NOT for

model with built-in monitor in headrest.

Headrest mount

For installation of multimedia screens in vehicles. Fits screens with a vertical slot on the back side. The screen

mount is placed onto a front seat’s head rest. It comes with a tilt swivel so the screen can be adjusted in order to

avoid reflection. It’s easy to take the screen with you when leaving the vehicle. The installation is quick and will

not damage the interior of the vehicle.

EAN: 7320288108506

Item no 810850 fits:

Volvo C70 97-05 (For all countries)

Volvo C70 97-05 (England)

Volvo S60 00-15 (For all countries)

Volvo S70 99-00 (For all countries)

Volvo S80 99-16 (For all countries)

Volvo V60 11-18 (For all countries)

Volvo V70 99-00 (For all countries)

Volvo V70 II 08-16 (For all countries)

Volvo V70 N 00-08 (For all countries)

Volvo XC60 09-17 (For all countries)

Volvo XC70 00-16 (For all countries)

Volvo XC90 02-14 (For all countries)

Volvo XC90 02-14 (For Europe)

Volvo XC90 09-12 (For USA)

1. 2.

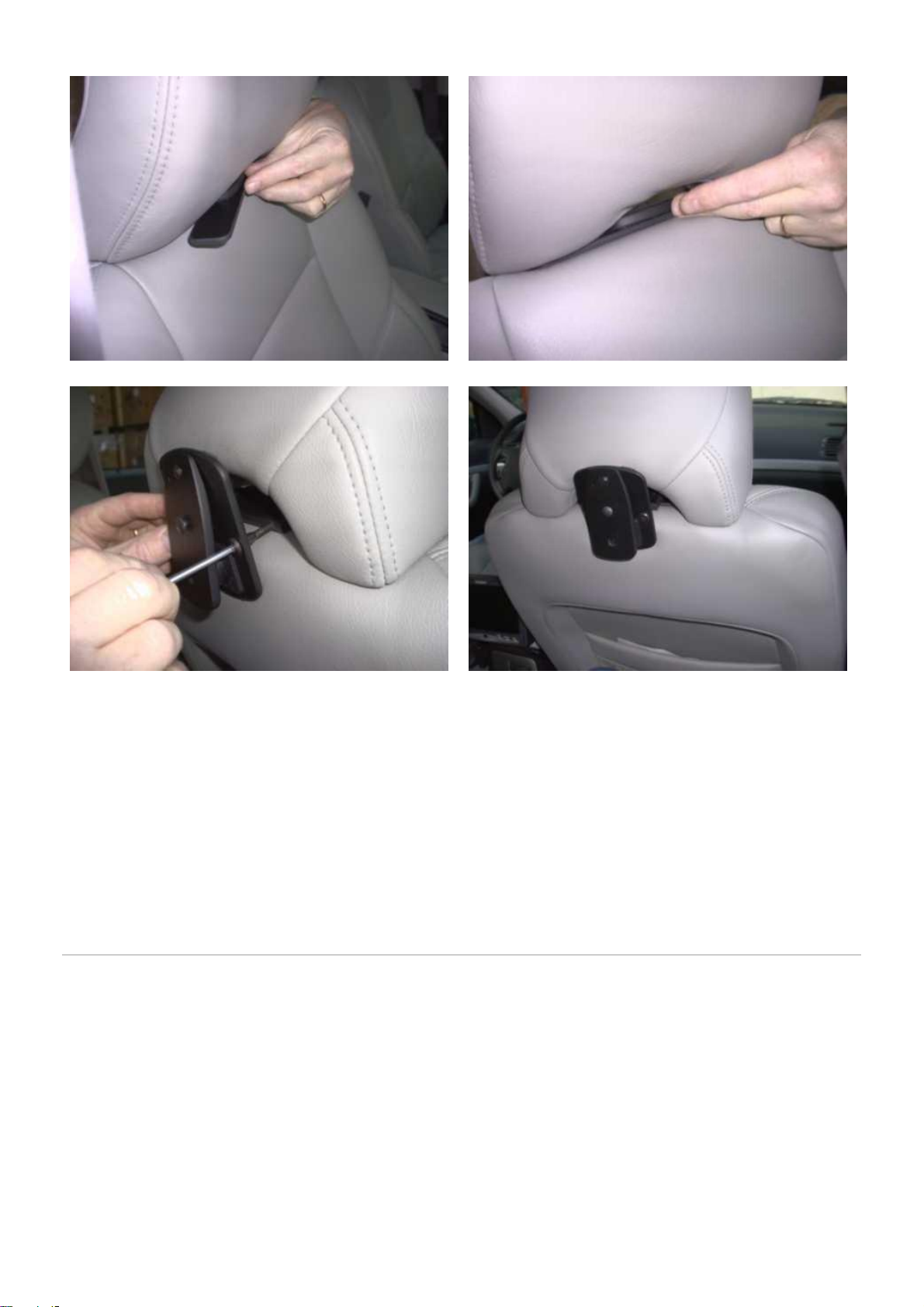

INSTALLATION INSTRUCTIONS

4.3.

Attention! Read all instructions before attaching the head rest mount.

1. Loosen the screws in the head rest mount so you get two parts. Press the flat part into the gap between the

head rest and the front seat's back support.

2. Press the flat part all the way in until it stops.

3. Place the front part of the mount on the back side of the head rest so the screws fit in the holes in the flat part.

Tighten the screws on the frontside of the head rest mount, using the enclosed tool. Screw until the head rest

mount is properly in place.

4. Adjust the face plate into desired position. Tighten the screw in the face plate. Note that the face plate will be

harder/looser to tilt and swivel depending on how hard you tighten the screw. The head rest mount is in place.
