Active Holder

for Fixed Installation

With Molex adapter system

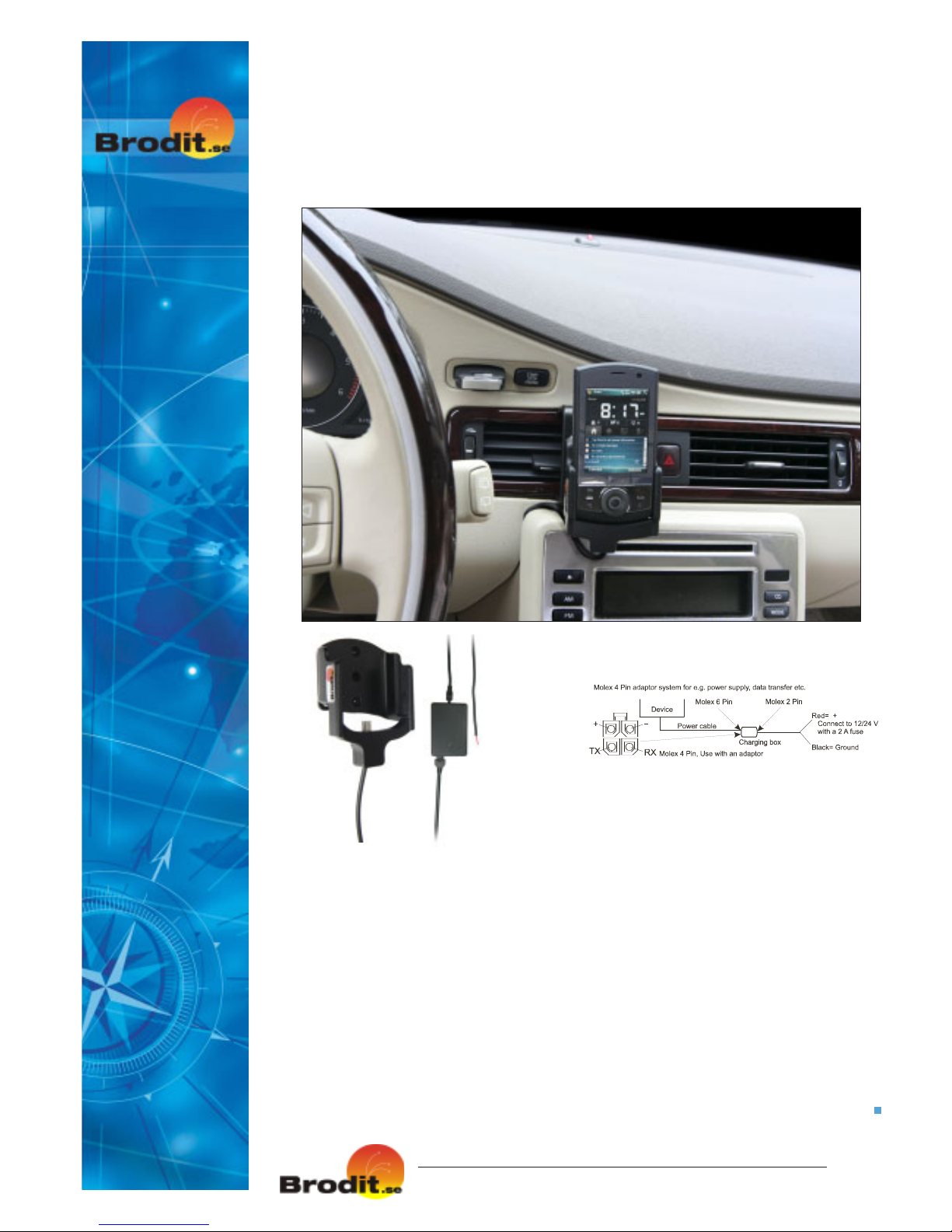

An active holder with a straight cable with

open end for fixed installation and a cable with

Molex adapter system. The cables are to be

connected inside the dashboard, this gives a

discreet, neat installation without cables hang-

ing over the interior.

You can choose to use the holder as an active

holder only for charging, or to connect an

adapter to the Molex connector for additional

features. Then you can use the holder also for

power supply of a GPS receiver, data transfer

or other own solutions. (Support for TX/RX

signal in the device is required.)

The holder is attached onto a tilt swivel so it

can be adjusted in order to avoid light reflec-

tion. Attach onto the ProClip Mounting

Platform.

New improved charger

The 2nd Generation Molex active holder has now

been released. The charger has many improved

features, such as

- New overmoulded connector

- Improved protection against peaks

- Built-in resettable fuse in the box (2 A)

- Improved overload protection

- New box design, with ventilation holes

- More efficient charging, generates less heat

The product is CE and E approved.

Connect the power cable with a 2 A fuse.

5 Volt out.

2 A charger.

12/24 Volt.

Professional installation recommended.

For a complete range, please visit www.brodit.se

2nd Generation

Tel +46 (0)505 109 00

Fax +46 (0)505 445 72

Gesällvägen 8

546 34 Karlsborg, Sweden

[email protected]

www.brodit.se

234492 831
