B100691-4-0606 Page 1

Deluxe "D" Gas Grill

Owner’s Manual

D3-1 and D4-1 Models

Optional Accessories Shown

Page 2 B100691-4-0606

IMPORTANT

This manual should be read thoroughly by the person installing the grill and all persons who

will use and maintain the grill. The installer should be sure the manual is left in the possession

of the user. The user should retain this manual for future reference when using or cleaning

the grill and to properly identify any repair parts that may be required.

WARNING

Reference this manual for proper installation and maintenance instructions. Improper instal-

lation, adjustment, alteration, service or maintenance can cause personal injury or property

damage. For assistance or additional information consult a qualiﬁed installer, service agency

or the gas supplier.

CAUTION: FOR YOUR SAFETY

IF YOU SMELL GAS:

1. Shut off gas to the appliance.

2. Extinguish any open ﬂame.

3. Open the grill lid.

4. If odor continues, immediately call your gas supplier or ﬁre

department.

5. Do not touch electrical switches.

CAUTION: FOR YOUR SAFETY

1. Do not store or use gasoline or other ﬂammable vapors and liquids in the vicinity of this

or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other

appliance.

CAUTION:

Parts may have sharp edges. Wear leather work gloves and handle parts carefully during the

unpacking, assembly and installation.

WARNING

Broilmaster® Gas Grills must ONLY use propane cylinders equipped with an Overﬁll Protec-

tion Device (OPD). Use only a reputable propane dealer when exchanging or ﬁlling cylinders.

An overﬁlled or improperly ﬁlled propane cylinder can be dangerous.

B100691-4-0606 Page 3

Congratulations!

Welcome to the beauty, durability, and prestige of a Deluxe Gas Grill

by Broilmaster®. With award-winning excellence built into every

feature and durability that surpasses other Deluxe gas grills, Broilmas-

ter has manufactured the ultimate gas grill for discriminating outdoor

chefs for over 30 years.

At Broilmaster, we continually strive to enhance the performance and

quality of our products for your grilling enjoyment. Every effort will

be made to ensure that Broilmaster continues to be your choice as the

Deluxe grill of the future.

Whether you are at the lake or in the privacy of your own backyard,

the Broilmaster® Deluxe Gas Grill performs far beyond the ordinary

and is designed to provide your family with years of outdoor cooking

pleasure.

Thank You!

Broilmaster® is a registered trademark of

Empire Comfort Systems, Inc.

918 Freeburg Ave.

Belleville, Illinois 62220

Telephone 800-851-3153

Page 4 B100691-4-0606

Model No. Dealer

Serial No. Dealer Phone No.

Gas Type: Propane Natural Date of Purchase

Your Broilmaster® Deluxe Gas Grill is identiﬁed by model number, serial number, and gas type.

This information is provided on a product identiﬁcation label located on the grill’s control panel.

For your convenience, complete this section for future reference when contacting your dealer.

Hardware Package ..............................................................................................................................5

Parts Diagram ......................................................................................................................................6

List

........................................................................................................................................................7

Grill Assembly ............................................................................................................................. 8-12

Propane Gas Grills ...................................................................................................................... 13-15

Gas Conversion .................................................................................................................................16

Gas Valve ..........................................................................................................................................17

Natural Gas Grills .............................................................................................................................18

Operation- Propane & Natural Grills ................................................................................................19

Operation ...........................................................................................................................................20

Maintenance .........................................................................................................................................21

Troubleshooting ..................................................................................................................................22

Warranty ........................................................................................................................................ 23-24

Congratulations!

You have chosen the ﬁnest grill for your outdoor cooking pleasure. Please take time to read this entire

manual before assembling your Deluxe Broilmaster® gas grill.

TABLE OF CONTENTS

B100691-4-0606 Page 5

Hardware Package

Page 6 B100691-4-0606

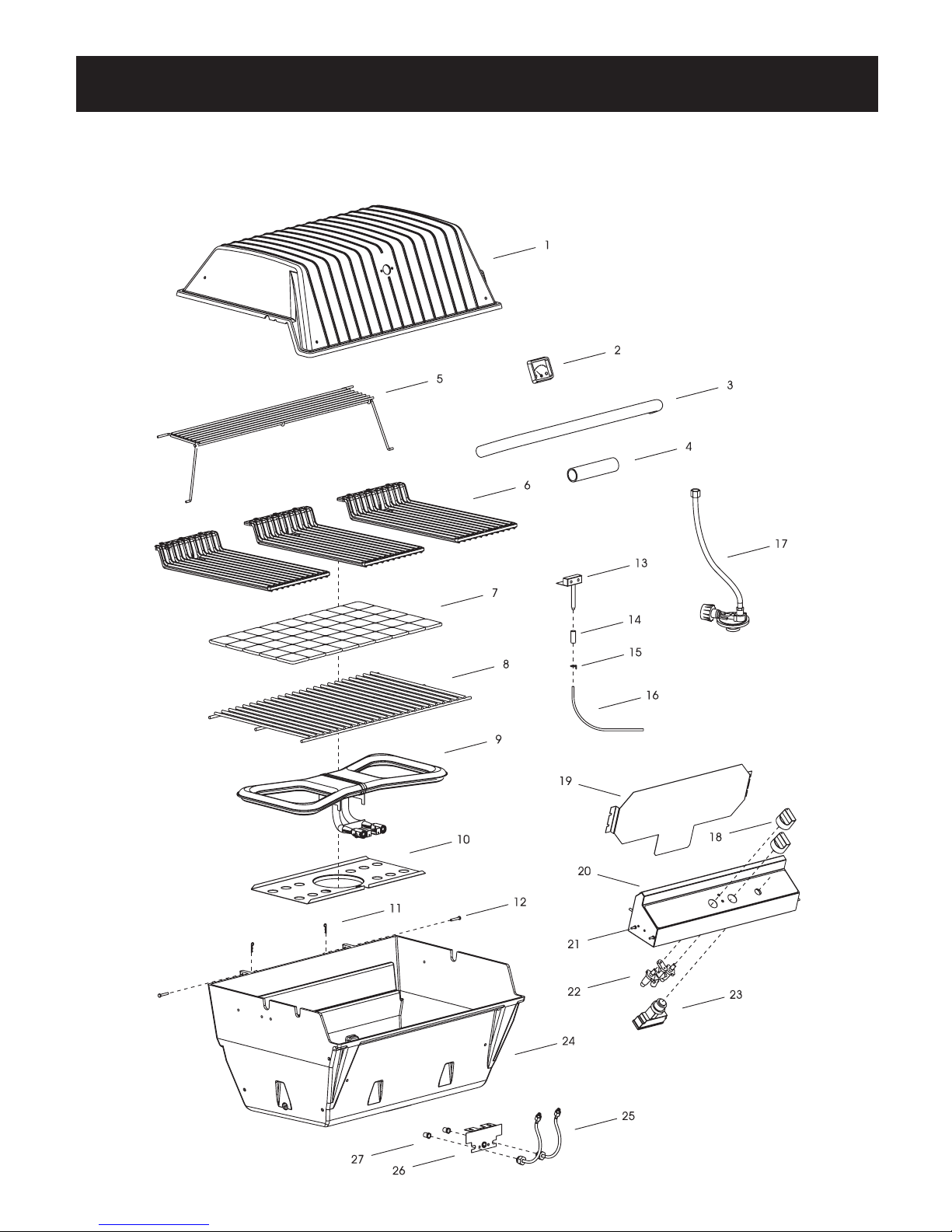

PARTS DIAGRAM

All repair part orders should be placed through your local Broilmaster® dealer. To locate a dealer in your area, contact

Broilmaster Customer Service at 800-851-3153 • WWW.broilmaster.com. To ensure prompt and accurate service, please

provide the following information when placing a repair part order: Model Number, Serial Number, Part Name, Part

Number, and Quantity of parts needed.

B100691-4-0606 Page 7

DELUXE "D" SERIES PARTS LIST

Index Part Description D3BL-1 D4BL-1

1 Grill Body Top (with Heat Indicator, Hinge and Bridge Pins) B100453 B073286

1 Grill Body Top (casting only) B100456 B076621

2 Heat Indicator (stainless) B076625 B076625

3 Lid Handle B070486 B070486

4 Foam Grip B073097 B073097

5 Retract-A-Rack (chrome) B100594 B060757

6 Cooking Grid (set of 3) DPP11 DPP12

6 Cooking Grid (single) B100468 B100497

7 Briquette Bag B058122 B058122

8 Briquette Rack B063066 B067449

9 Burner Assembly DPP101 DPP102

10 Radiation Shield (Heat & Wind Deﬂector) DPP6SS DPP6SS

11 Bridge Pin B057805 B057805

12 Hinge Pin B057804 B057804

13 Collector Box B100446 B100446

14 Collector Box Spacer B069743 B069743

15 Ignitor Grounding Lug B069747 B069747

16 Ignitor Ground Wire B072684 B072684

17 Hose & LPG Regulator B069756 B069756

18 Valve Knob - Black B070084 B070084

19 Control Panel Shield B100730 B100731

20 Control Panel Assembly (with label) B100753 B100754

20 Control Panel Label (not shown) B072686 B072197

21 Shelf Pin B073963 B073963

22 Valve - LPG B076790 B076790

22 Valve - NAT B076789 B076789

23 Electronic Ignitor B072218 B072218

24 Grill Body Bottom (with Hinge and Bridge Pins) B100460 B073287

24 Grill Body Bottom (casting only) B100463 B076622

25 Manifold - LPG (includes oriﬁce) B069002 B069002

25 Manifold - NAT (includes oriﬁce) B069003 B069003

26 Manifold Mounting Plate B100517 B100517

27 Oriﬁce - LPG (#55 drill) B056649 B056649

27 Oriﬁce - NAT (#48 drill) B056647 B056647

28 Hardware Package - LPG (not shown) B100854 B100854

28 Hardware Package - NAT (not shown) B100855 B100855

Page 8 B100691-4-0606

Grill Assembly

Recommended Tools

These items are recommended for the assembly of your

grill:

• Phillips screwdriver

• Adjustable wrench set

• Socket set

• Soapy water solution (to test for leaks)

• Liquid soap (for foam grip)

Grill Mountings

Assemble your base option before assembling your Broil-

master® grill head.

Refer to the Broilmaster® Cart, Base, and Post instructions

provided with each accessory for assembly, installation,

and mounting procedures.

Before You Begin

All Broilmaster grills require some assembly and

installation. Follow all instructions unless noted to apply

only to other speciﬁc models.

If you purchased an accessory with your Broilmaster,

follow the instructions provided with the accessory for

assembly and installation. If an instruction refers to a step

that is not required for your grill model, please continue

to the next step.

Each step of the installation is illustrated. In each

illustration parts are identified with “Key” numbers.

Key numbers appear in parenthesis after a part name is

mentioned for the ﬁrst time in the instructions and are

labeled on the illustrations. You can reference each part

by its key number on the Parts List if you need help in

identifying a part.

Compare the parts found in the shipping container to the

parts list provided. If any parts are missing contact your

Broilmaster® dealer before beginning assembly.

CAUTION: FOR YOUR SAFETY

Parts may have sharp edges. Wear leather work gloves

and handle parts carefully during the unpacking, as-

sembly and installation.

B100691-4-0606 Page 9

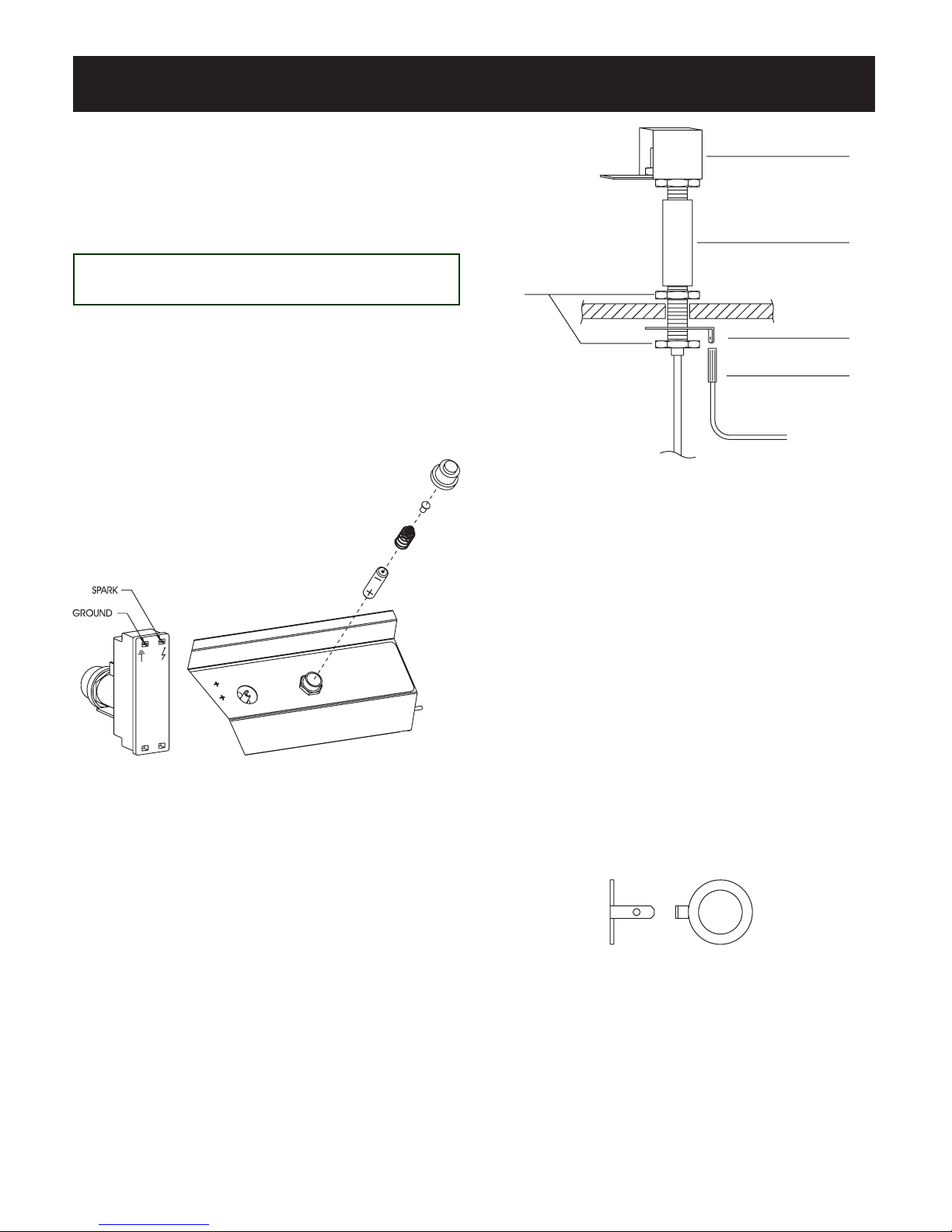

Nut

Ignitor Assembly

Slide the collector box spacer (26) and nut (provided

on assembly) onto the collector box shaft and tighten.

Figure 1.

Note: Peel protective ﬁlm from control panel label before

installing ignitor.

GRILL ASSEMBLY

Installing the Ignitor

Caution: Do not cut or damage ignitor wire.

Carefully thread the end of the ignitor wire through the

center hole in the grill bottom. Slide the ground lug (25)

over the ignitor wire and fasten with nut provided.

Attach one end of the ground wire (24) to the terminal on

the rear of the electronic ignitor. Attach the remaining end

to the ground lug. Figures 1 and 2.

Attach ignitor wire to the spark terminal on the rear of the

electronic ignitor.

Figure 1

Figure 2

Page 10 B100691-4-0606

AIR

SHUTTER

GRILL ASSEMBLY

Radiation Shield

Place the radiation shield (10) in the grill bottom (22).

Figure 3.

Installing the Burner

Insert the burner assembly (9) into the grill bottom (22) with

the venturi tubes facing the front of the grill. Figure 4.

The gas jets from the control valve will be inside the ends

of the venturi tubes when properly installed. Attach venturi

to manifold mounting bracket (15) with 2-8 x 3/4 Phillips

screws. Figure 5.

Figure 5

Figure 3

Figure 4

27 10
