Brother DCP-115C Manuale utente

STEP 1

STEP 2

Setup is Complete!

Quick Setup Guide

Setting Up the Machine

Installing the Driver & Software

DCP-115C

DCP-117C

DCP-120C

DCP-315CN

Before you can use the machine, you must set up the hardware and install the software.

Please read this ‘Quick Setup Guide’ for the correct setup procedure and installation instructions.

Keep this ‘Quick Setup Guide’, the User’s Guide and the supplied CD-ROM in a convenient place for

quick and easy reference at all times.

To use the machine safely

Warning

Caution

User’s Guide, Software User’s Guide or

Network User’s Guide

Warnings tell you what to do to prevent

possible personal injury.

Cautions specify procedures you must

follow or avoid to prevent possible

damage to the machine or other objects.

Indicates reference to the User’s Guide,

Software User’s Guide or Network

User’s Guide which is on the CD-ROM

we have supplied.

Improper Setup

Note

Improper Setup icons alert you to

devices and operations that are not

compatible with the machine.

Notes tell you how you should respond

to a situation that may arise or give tips

about how the current operation works

with other features.

Table of Contents

Getting Started

Carton components...................................................................................................................................... 2

Control panel................................................................................................................................................ 3

STEP1 –

Setting Up the Machine

Removing the protective parts ..................................................................................................................... 4

Attaching the control panel cover................................................................................................................. 4

Loading paper .............................................................................................................................................. 4

Installing the power cord .............................................................................................................................. 5

Choosing your language .............................................................................................................................. 5

Installing the ink cartridges........................................................................................................................... 6

Print quality check ........................................................................................................................................ 8

Setting the date and time ............................................................................................................................. 9

STEP2 –

Installing the Driver & Software

Windows®

For USB Interface Users

(For Windows®98/98SE/Me/2000 Professional/XP) ................................................................................ 12

For Network Interface Users (DCP-315CN only)

(Windows®98/98SE/Me/2000 Professional/XP)....................................................................................... 15

Macintosh®

For USB Interface Users ........................................................................................................................... 18

For Mac OS®X 10.2.4 or greater......................................................................................................... 18

For Mac OS®9.1 to 9.2........................................................................................................................ 21

For Network Interface Users (DCP-315CN only) ...................................................................................... 23

For Mac OS®X 10.2.4 or greater......................................................................................................... 23

For Mac OS®9.1 to 9.2........................................................................................................................ 26

For Network Users

Installing the BRAdmin Professional configuration utility (Windows®only) ............................................... 28

Setting your IP address, Subnet Mask and Gateway using BRAdmin Professional (Windows®only) ...... 28

Consumables

Replacement consumables........................................................................................................................ 29

Ink cartridge .......................................................................................................................................... 29

Getting Started

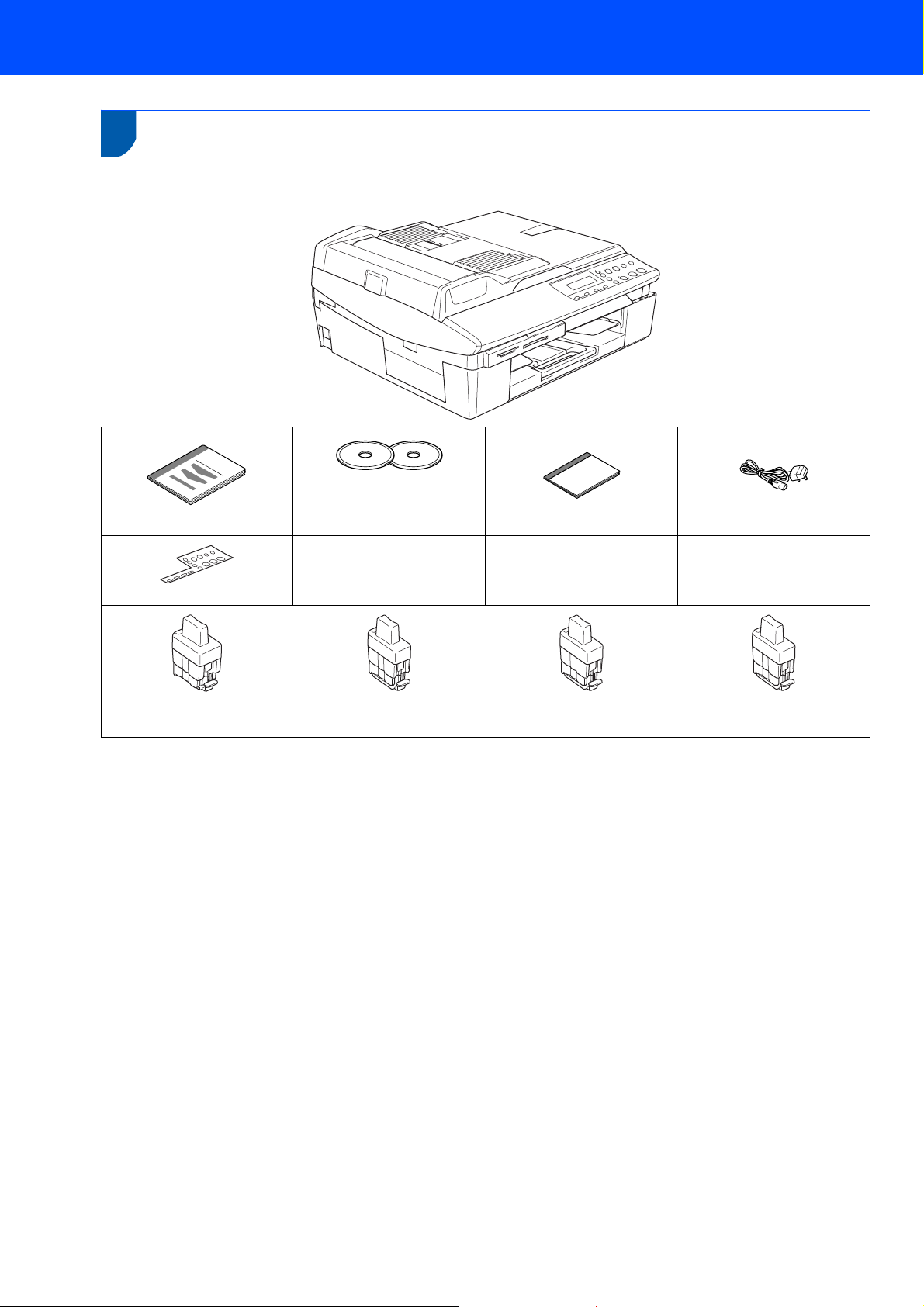

Carton components

Carton components may vary from one country to another.

Save all packing materials and the carton in case for any reason you must ship your machine.

If you are connecting the machine via USB:

The interface cable is not a standard accessory. Please purchase an appropriate USB 2.0 interface cable.

Please make sure you use a USB 2.0 cable that is no longer than 6 feet long (2 meters).

Your DCP has a USB interface. This interface is compatible with Hi-Speed USB 2.0; however, the maximum

data transfer rate will be 12 Mbits/s. The DCP can also be connected to a computer that has a USB 1.1

interface.

DO NOT connect the interface cable at this time.

Connecting the interface cable is done during the software installation process.

Quick Setup Guide

CD-ROMs

For Windows®

For Macintosh®

User’s Guide

Power Cord

Control Panel Cover

Black (LC900 BK)

Magenta (LC900M)

Yellow (LC900Y)

Cyan (LC900C)

Ink Cartridges

Getting Started

Control panel

(For DCP-115C, DCP-117C, DCP-120C and DCP-315CN)

1 Copy keys

2 Set key

3 Navigation keys

4 Stop/Exit key

5 Start keys

6 On/Off key

7 Ink management key

8 Scan key

9 PhotoCapture key

10 Menu key

11 LCD (Liquid Crystal Display)

12 Warning LED

For the details of the control panel, see Control panel overview in Chapter 1 of the User’s Guide.

Illustrations in this Quick Setup Guide are based on DCP-120C.

The screens for Windows®in this Quick Setup Guide are based on Windows®XP.

The screens for Mac OS®in this Quick Setup Guide are based on Mac OS®X 10.3.

11 10 9 8 76

345

Setting Up the Machine

STEP1

1 Removing the protective

parts

1Remove the protective tape and scanner glass

protection sheet.

Improper Setup

DO NOT connect the USB cable. Connecting

the USB cable is done during the software

installation process.

2 Attaching the control panel

cover

1Attach the control panel cover to the machine.

3 Loading paper

You can load up to 100 sheets of 80 g/m2

(20 lb) paper.

For details, see About paper in Chapter 1 of

the User’s Guide.

1Pull the paper tray completely out of the

machine and remove the output paper tray.

2Press and slide the paper guide (1) to fit the

paper width.

3Pull out the paper support (1) and unfold the

paper support flap (2).

Note

Use the paper support flap for Letter, Legal and A4

paper.

Setting Up the Machine

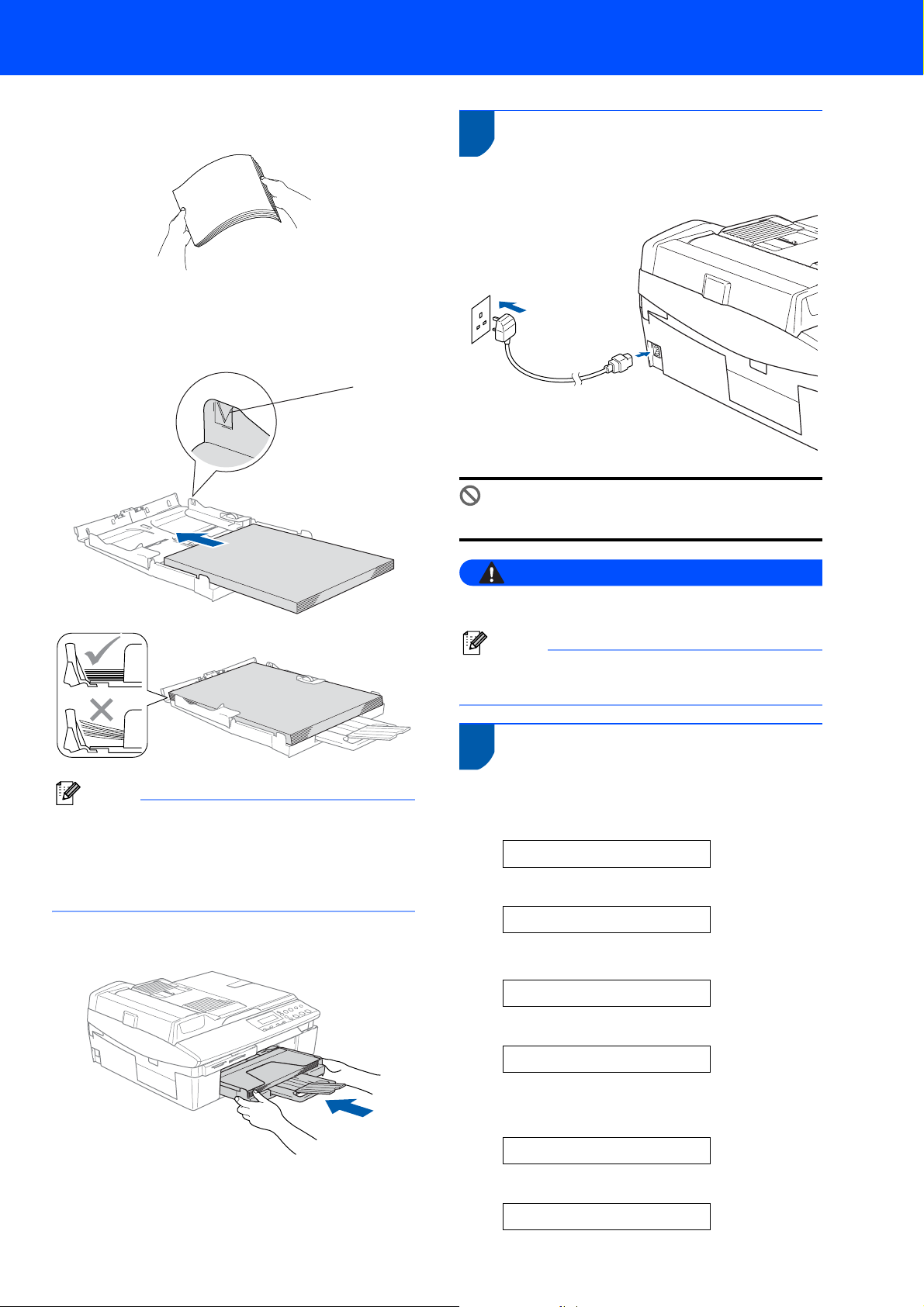

4Fan the stack of paper well to avoid paper jams

and misfeeds.

5Gently put the paper into the paper tray print

side down and top edge first.

Check that the paper is flat in the tray and

below the maximum paper mark (1).

Note

• Make sure the paper side guides touch the sides

of the paper.

• Be careful that you do not push the paper in too

far; it may lift at the back of the tray and cause

paper feed problems.

6Put the output paper tray back on and push the

paper tray firmly back into the machine.

4 Installing the power cord

1Connect the power cord.

Improper Setup

DO NOT connect the USB cable yet.

Warning

The machine must be fitted with an earthed plug.

Note

The control panel warning LED will stay on until

you have installed the ink cartridges.

5 Choosing your language

1After connecting the power cord, the LCD

shows:

Select language

Press Set Key

Press Set.

English e

Select ab &Set

2Press aor bto choose your language and

press Set.

English?

aYes bNo

Setting Up the Machine

STEP1

3If your language is chosen, press a(Yes).

If you have set the language wrongly, you

can change the language after setting the

date and time. (For details, see "How to

change LCD language" in Chapter 5 of the

User's Guide)

6 Installing the ink cartridges

Warning

If ink gets in your eyes, wash them out with water

at once, and if irritation occurs consult a doctor.

1Make sure that the power is turned on.

The LCD shows:

No Cartridge

2Lift the scanner cover (1) from the right-hand

side of the machine until it locks securely into

the open position.

3Remove the protective parts (1).

Note

Do not throw away the protective parts. You will

need them if you transport the machine.

4Take out the ink cartridge.

5Carefully remove the protective yellow cap (1).

Improper Setup

DO NOT touch the area shown in the

illustration below.

Note

If the protective yellow cap comes off when you

open the bag, the cartridge will not be damaged.

Keep the ink cartridge in an upright position

when you put it into the slot.

OKOK

Setting Up the Machine

6Press firmly down on the ink cartridge until the

hook snaps over it, taking care to match the slot

colour (1) with the cartridge colour (2), as

shown in the diagram below.

7Lift the scanner cover to release the lock.

Gently push the scanner cover support down

and close the scanner cover.

Note

If the LCD shows Install XXXX after you install

the ink cartridges, check that the ink cartridges are

installed properly.

The machine will clean the ink tube system for

use for the first time. This process will occur

only once, the first time ink cartridges are

installed. The cleaning process will last

approximately four minutes.

The LCD shows:

Preparing System

Approx 4 Minutes

Caution

• DO NOT take out ink cartridges if you do not

need to replace them. If you do so, it may

reduce the ink quantity and the machine will

not know the quantity of ink left in the

cartridge.

• DO NOT shake the ink cartridges. If ink stains

your skin or clothing, wash with soap or

detergent at once.

• DO NOT repeatedly insert and remove the

cartridges. If you do so, ink may seep out of the

cartridge.

• If you mix the colours by installing an ink

cartridge in the wrong position, clean the print

head several times after correcting the

cartridge installation. (See Cleaning the print

head in chapter 11 of the User’s Guide.)

• Once you open an ink cartridge, install it in the

machine and use it up within six months of

installation. Use unopened ink cartridges by

the expiration date written on the cartridge

package.

• DO NOT dismantle or tamper with the ink

cartridge, this can cause the ink to leak out of

the cartridge.

• Brother multifunction machines are designed

to work with ink of a particular specification

and will work to a level of optimum

performance when used with genuine Brother

branded ink cartridges. Brother cannot

guarantee this optimum performance if ink or

ink cartridges of other specifications are used.

Brother does not therefore recommend the use

of cartridges other than genuine Brother

branded cartridges with this machine or the

refilling of empty cartridges with ink from other

sources. If damage is caused to the print head

or other parts of this machine as a result of

using incompatible products with this

machine, any repairs required as a result may

not be covered by the warranty.

OKOK

Setting Up the Machine

STEP1

7 Print quality check

1After the cleaning cycle is finished, the LCD

shows:

Set Paper and

Press Start

2Make sure the paper is loaded in the paper

tray.

Press Colour Start.

The machine starts printing the Print Quality

Check Sheet (only during initial ink cartridge

installation).

3Check the quality of the four colour blocks on

the sheet.

(black/ cyan/ yellow/ magenta)

Improper Setup

Avoid touching the printed surface of the

paper immediately after printing, the surface

may not be completely dry and may stain your

fingers.

4The LCD shows:

Is Quality OK?

aYes bNo

5Do one of the following:

If all lines are clear and visible, press a

(Yes) to finish the quality check.

If you can see missing short lines, press b

(No) and go to step 6.

6The LCD asks you if the print quality is OK for

black and colour. Press a(Yes) or b(No) .

Black OK?

aYes bNo

After pressing a(Yes) or b(No) for both black

and colour, the LCD shows:

Start Cleaning?

aYes bNo

7Press a(Yes), the machine will then start

cleaning the colours.

8After cleaning is finished, press Colour Start.

The machine starts printing the Print Quality

Check Sheet again and goes back to step 3.

Print Quality Check

1. Check the quality of the four-color blocks formed by the short lines.

2. If all the short lines are clear and visible, the quality is acceptable. the quality is acceptable.

Select (Yes). If you can see missing short lines, select (No) to begin the color cleaning process

and follow the prompts on the LCD.

OK Poor

Altri manuali per DCP-115C

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Brother Stampante tutto in uno

Brother

Brother DCP-1600 Manuale utente

Brother

Brother MFC-8510DN Istruzioni per il montaggio

Brother

Brother MFC 240C - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-J4410DW Guida utente

Brother

Brother MFC-790CW Manuale utente

Brother

Brother Work Smart MFC-J470dw Istruzioni per il montaggio

Brother

Brother MFC-J615W Manuale utente

Brother

Brother DCP-T520W Manuale utente

Brother

Brother DCP 385C - Color Inkjet - All-in-One Manuale utente

Brother

Brother Backup Battery Manuale utente

Brother

Brother MFC-J6920DW Manuale utente

Brother

Brother MFC-L5705DW Manuale tecnico

Brother

Brother MFC-J4320DW Manuale di istruzioni

Brother

Brother MFC-J775DW Manuale operativo

Brother

Brother MFC-8420 Manuale utente

Brother

Brother DCP-395CN Manuale elenco delle parti

Brother

Brother MFC-J220 Manuale operativo e di manutenzione

Brother

Brother MFC-J995DW Manuale utente

Brother

Brother DCP-375CW Manuale utente

Brother

Brother MFC-J425W Manuale utente

Brother

Brother MFC-J2730DW Manuale utente

Brother

Brother Work Smart MFC-J450dw Manuale utente

Brother

Brother DR8000 Manuale utente

Brother

Brother MFC-9760 Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Copystar

Copystar CS 4551ci Manuale utente

Konica Minolta

Konica Minolta Magicolor 4650EN Manuale utente
