Brother DCP-135C Manuale utente

STEP 1

STEP 2

Setup is Complete!

Quick Setup Guide

Setting Up the Machine

Installing the Driver & Software

DCP-135C

DCP-150C

DCP-153C

DCP-157C

Before you can use the machine, you must set up the hardware and install the software.

Please read this Quick Setup Guide for the correct setup procedure and installation instructions.

Keep this Quick Setup Guide, the User’s Guide and the supplied CD-ROM in a convenient place for

quick and easy reference at all times.

Symbols used in this guide

Warning

Caution

Improper Setup

Warnings tell you what to do to prevent

possible personal injury.

Cautions specify procedures you must

follow or avoid to prevent possible

damage to the machine or other objects.

Improper Setup icons alert you to

devices and operations that are not

compatible with the machine.

Note

User’s Guide or Software User’s Guide

Notes tell you how you should respond

to a situation that may arise or give tips

about how the current operation works

with other features.

Indicates reference to the User’s Guide

or Software User’s Guide which is on

the CD-ROM we have supplied.

Table of Contents

Getting Started

Carton components...................................................................................................................................... 2

Control panel................................................................................................................................................ 3

STEP 1 –

Setting Up the Machine

Removing the protective parts ..................................................................................................................... 4

Loading paper .............................................................................................................................................. 4

Connecting the power cord .......................................................................................................................... 6

Choosing your language .............................................................................................................................. 6

Installing the ink cartridges........................................................................................................................... 7

Print quality check ........................................................................................................................................ 9

Setting the LCD contrast ............................................................................................................................ 10

Setting the date and time ........................................................................................................................... 10

STEP 2 –

Installing the Driver & Software

Windows®

For USB Interface Users

(For Windows®2000 Professional/XP/ XP Professional x64 Edition/Windows Vista™) .......................... 14

Installing FaceFilter Studio.................................................................................................................... 17

Macintosh®

For USB Interface Users

(For Mac OS®X 10.2.4 or greater) ........................................................................................................... 18

Installing FaceFilter Studio Help

Instructions on how to install FaceFilter Studio Help

(For Windows®users) ................................................................................................................................ 21

Installing FaceFilter Studio Help ........................................................................................................... 21

Consumables

Replacement consumables........................................................................................................................ 22

Ink cartridge .......................................................................................................................................... 22

Getting Started

Carton components

Carton components may vary from one country to another.

Save all packing materials and the carton in case for any reason you must ship your machine.

A USB interface cable is not a standard accessory.

Please make sure you use a USB 2.0 cable that is no longer than 2 metres.

Your machine has a USB interface that is compatible with the USB 2.0 specification.

DO NOT connect the interface cable at this time.

Connecting the interface cable is done during the software installation process.

Quick Setup Guide

CD-ROM

User’s Guide

Power Cord

Black (LC970BK)

Yellow (LC970Y)

Cyan (LC970C)

Magenta (LC970M)

Ink Cartridges

Getting Started

Control panel

1 Copy keys

2 Menu keys

3 Stop/Exit key

4 Start keys

5On/Offkey

6 Ink Management key

7 Scan key

8 PhotoCapture key

9 LCD (Liquid Crystal Display)

10 Warning LED

For the details of the control panel, see Control panel overview in Chapter 1 of the User’s Guide.

Note

When the machine is idle (not being used) it will return to the default display shown above. The default display

can give you useful information about the current settings.

Illustrations in this Quick Setup Guide are based on DCP-135C.

10 9

1 Current Enlarge/Reduce setting

2 Current Copy Quality setting

3 Current Number of Copies setting

123

Setting Up the Machine

STEP 1

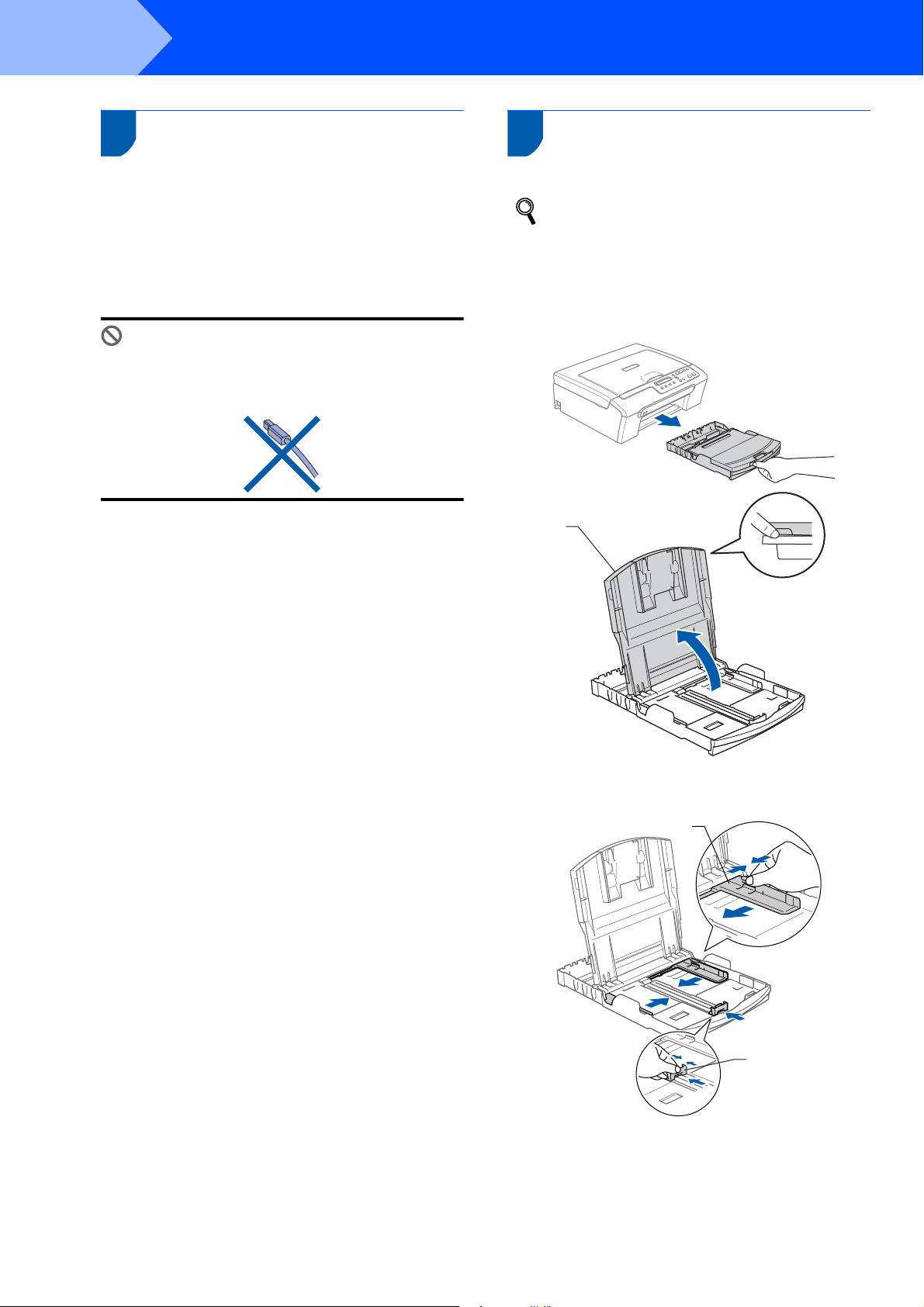

1 Removing the protective

parts

1Remove the protective tape and film covering

the scanner glass.

2Remove the foam bag containing the ink

cartridges from on top of the paper tray.

Improper Setup

DO NOT connect the interface cable.

Connecting the interface cable is done during

the software installation process.

2 Loading paper

You can load up to 100 sheets of 80 g/m2

paper.

For details, see Acceptable paper and other

media in Chapter 2 of the User’s Guide.

1Pull the paper tray completely out of the

machine and lift the output paper tray cover (1).

2Press and slide the paper side guides (1) and

paper length guide (2) to fit the paper size.

Setting Up the Machine

3Fan the stack of paper well to avoid paper jams

and misfeeds.

4Gently put the paper into the paper tray print

side down and top edge first.

Check that the paper is flat in the tray.

Note

When you use Legal size paper, press and hold

the universal guide release button (1) as you slide

out the front of the paper tray.

5Gently adjust the paper side guides with both

hands to fit the paper.

Make sure that the paper guides touch the

edges of the paper.

Note

Be careful that you do not push the paper in too

far; it may lift at the back of the tray and cause

paper feed problems.

6Close the output paper tray cover (1).

7Slowly push the paper tray completely into the

machine.

Setting Up the Machine

STEP 1

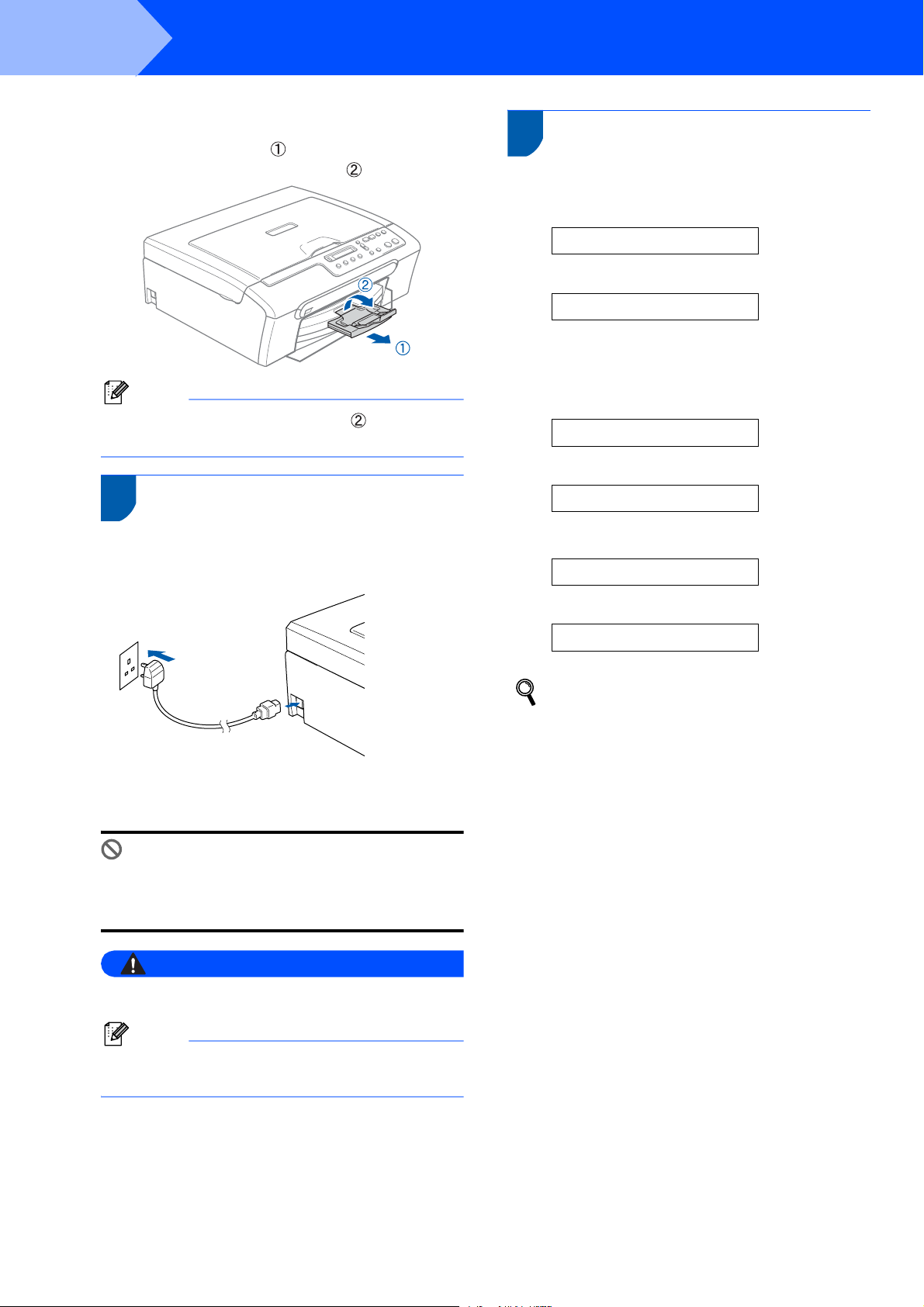

8While holding the paper tray in place, pull out

the paper support until it clicks, and then

unfold the paper support flap .

Note

Do not use the paper support flap for Legal size

paper.

3 Connecting the power cord

1Connect the power cord.

Improper Setup

DO NOT connect the interface cable.

Connecting the interface cable is done during

the software installation process.

Warning

The machine must be fitted with an earthed plug.

Note

The control panel warning LED will stay on until

you have installed the ink cartridges.

4 Choosing your language

1After connecting the power cord, the LCD

shows:

Select Language

Press OK Key

Press OK.

2Press aor bto choose your language and

press OK.

English e

Select ab &OK

3If your language is chosen, press a(Yes).

English?

a.Yes b.No

If you set the wrong language, you can

change the language after setting the date

and time. (For details, see Changing LCD

language in Appendix B of the User’s Guide.)

Setting Up the Machine

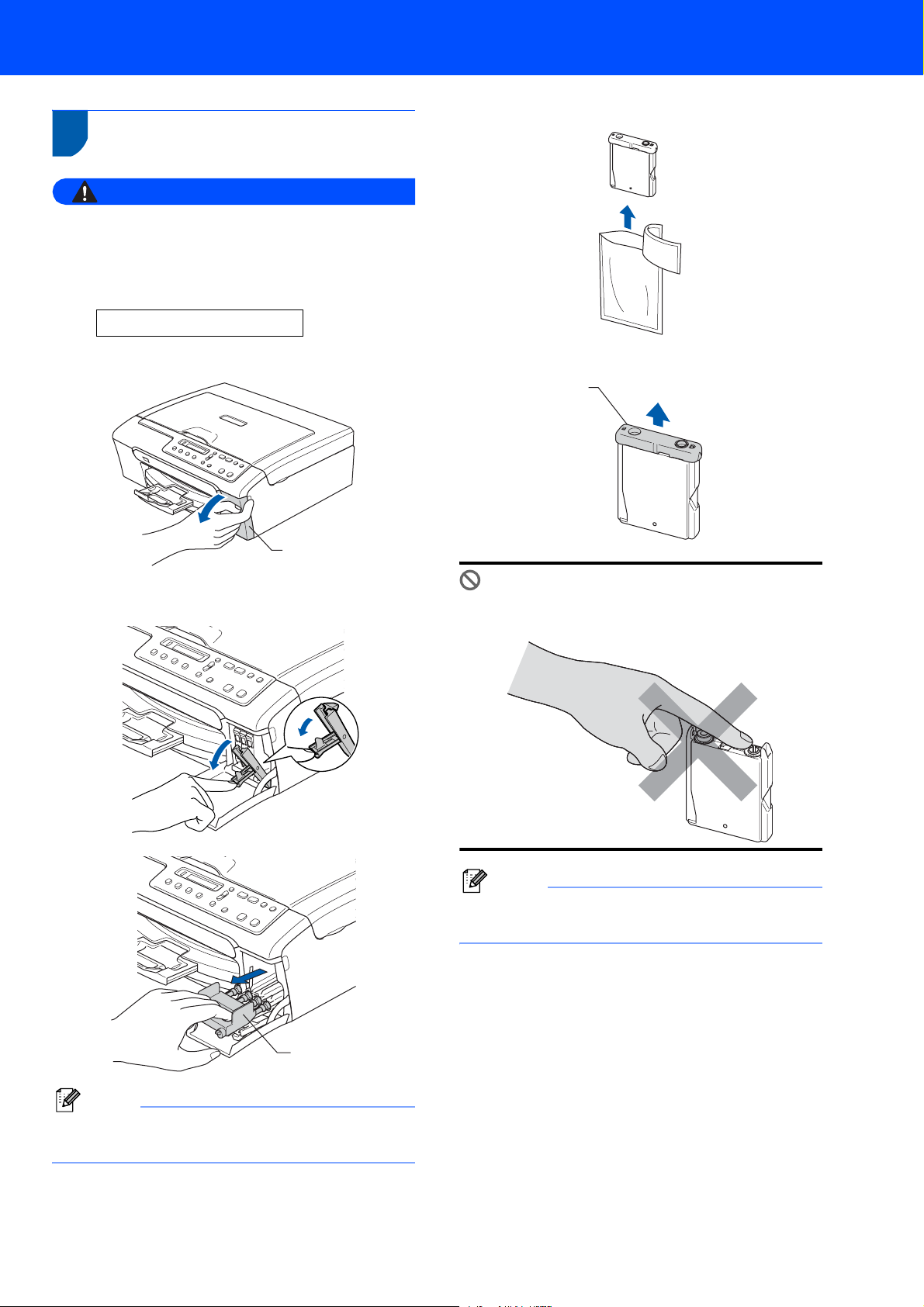

5 Installing the ink cartridges

Warning

If ink gets in your eyes, wash them out with water

at once, and if irritation occurs consult a doctor.

1Make sure that the power is turned on.

The LCD shows:

No Cartridge

2Open the ink cartridge cover (1).

3Pull all the lock release levers down and

remove the yellow protective part (1).

Note

Do not throw away the yellow protective part. You

will need it if you transport the machine.

4Take out the ink cartridge.

5Carefully remove the protective yellow cap (1).

Improper Setup

DO NOT touch the area shown in the

illustration below.

Note

If the protective yellow cap comes off when you

open the bag, the cartridge will not be damaged.

Setting Up the Machine

STEP 1

6Install each ink cartridge in the direction of the

arrow on the label.

Take care to match the colour of the lock

release lever (1) with the cartridge colour (2),

as shown in the diagram below.

7Lift each lock release lever and gently push it

until it clicks, and then close the ink cartridge

cover.

Note

If the LCD shows Install Black,

Install Yellow, Install Cyan or

Install Magenta after you install the ink

cartridges, check that the ink cartridges are

installed correctly.

The first time the ink cartridges are installed the

machine prepares and cleans the ink tube

system. This initial process will take more time

than a normal cleaning cycle but will happen

only once.

The LCD shows:

Preparing System

Approx 4 Minutes

Cleaning

Please Wait

Caution

• DO NOT take out ink cartridges if you do not need

to replace them. If you do so, it may reduce the ink

quantity and the machine will not know the

quantity of ink left in the cartridge.

• DO NOT shake the ink cartridges. If ink stains your

skin or clothing, wash with soap or detergent at

once.

• DO NOT repeatedly insert and remove the

cartridges. If you do so, ink may seep out of the

cartridge.

• If you mix the colours by installing an ink cartridge

in the wrong position, clean the print head several

times after correcting the cartridge installation.

(See Cleaning the print head in Appendix B of the

User’s Guide.)

• Once you open an ink cartridge, install it in the

machine and use it up within six months of

installation. Use unopened ink cartridges by the

expiration date written on the cartridge package.

• DO NOT dismantle or tamper with the ink

cartridge, this can cause the ink to leak out of the

cartridge.

• Brother multifunction machines are designed to

work with ink of a particular specification and will

work to a level of optimum performance when

used with genuine Brother branded ink cartridges.

Brother cannot guarantee this optimum

performance if ink or ink cartridges of other

specifications are used. Brother does not

therefore recommend the use of cartridges other

than genuine Brother branded cartridges with this

machine or the refilling of empty cartridges with ink

from other sources. If damage is caused to the

print head or other parts of this machine as a result

of using incompatible products with this machine,

any repairs required as a result may not be

covered by the warranty.

brother

Altri manuali per DCP-135C

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Brother Stampante tutto in uno

Brother

Brother MFC-J6510DW Manuale utente

Brother

Brother MFC-8460N Manuale utente

Brother

Brother MFC-L8610CDW Manuale utente

Brother

Brother MFC-9700 Manuale utente

Brother

Brother MFC-8950DW Manuale utente

Brother

Brother DCP-T300 Manuale operativo e di manutenzione

Brother

Brother MFC-9340CDW Manuale utente

Brother

Brother MFC-J615W Istruzioni per il montaggio

Brother

Brother MFC-9760 Manuale utente

Brother

Brother MFC-9125CN Manuale utente

Brother

Brother MFC 3100C - Inkjet Multifunction Manuale utente

Brother

Brother DCP-6690CW Manuale utente

Brother

Brother MFC-J825DW Manuale utente

Brother

Brother DCP-T520W Manuale utente

Brother

Brother MFC-J280W Manuale utente

Brother

Brother MFC-9450CDN Manuale utente

Brother

Brother DCP-J552DW Manuale operativo e di manutenzione

Brother

Brother DCP-J1800DW Manuale operativo

Brother

Brother MFC-9420CN Manuale utente

Brother

Brother DCP 330C - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-J775DW Manuale operativo

Brother

Brother DCP-9270CDN Istruzioni per il montaggio

Brother

Brother MFC 3100C - Inkjet Multifunction Manuale utente

Brother

Brother DCP-J140W Istruzioni per il montaggio

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Copystar

Copystar CS 4551ci Manuale utente

Konica Minolta

Konica Minolta Magicolor 4650EN Manuale utente
