Start Here
DCP-7055 / DCP-7057
DCP-7060D / DCP-7065DN
Quick Setup Guide
UK/IRE Version 0
Please read the Safety and Legal booklet first before you set up your machine. Then, please read this Quick Setup
Guide for the correct setup and installation.
To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.
1
Unpack the machine and check the components
WARNING
Plastic bags are used in the packaging of your machine. Plastic bags are not toys. To avoid danger of
suffocation, please keep these bags away from babies and children and dispose of them correctly.
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injuries.
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injuries.
Drum Unit and Toner Cartridge Assembly
(pre-installed)
Installation CD-ROM,
Documentation CD-ROM
AC Power Cord Quick Setup Guide
Safety and Legal booklet
WARNING
CAUTION
2
CAUTION
CAUTION

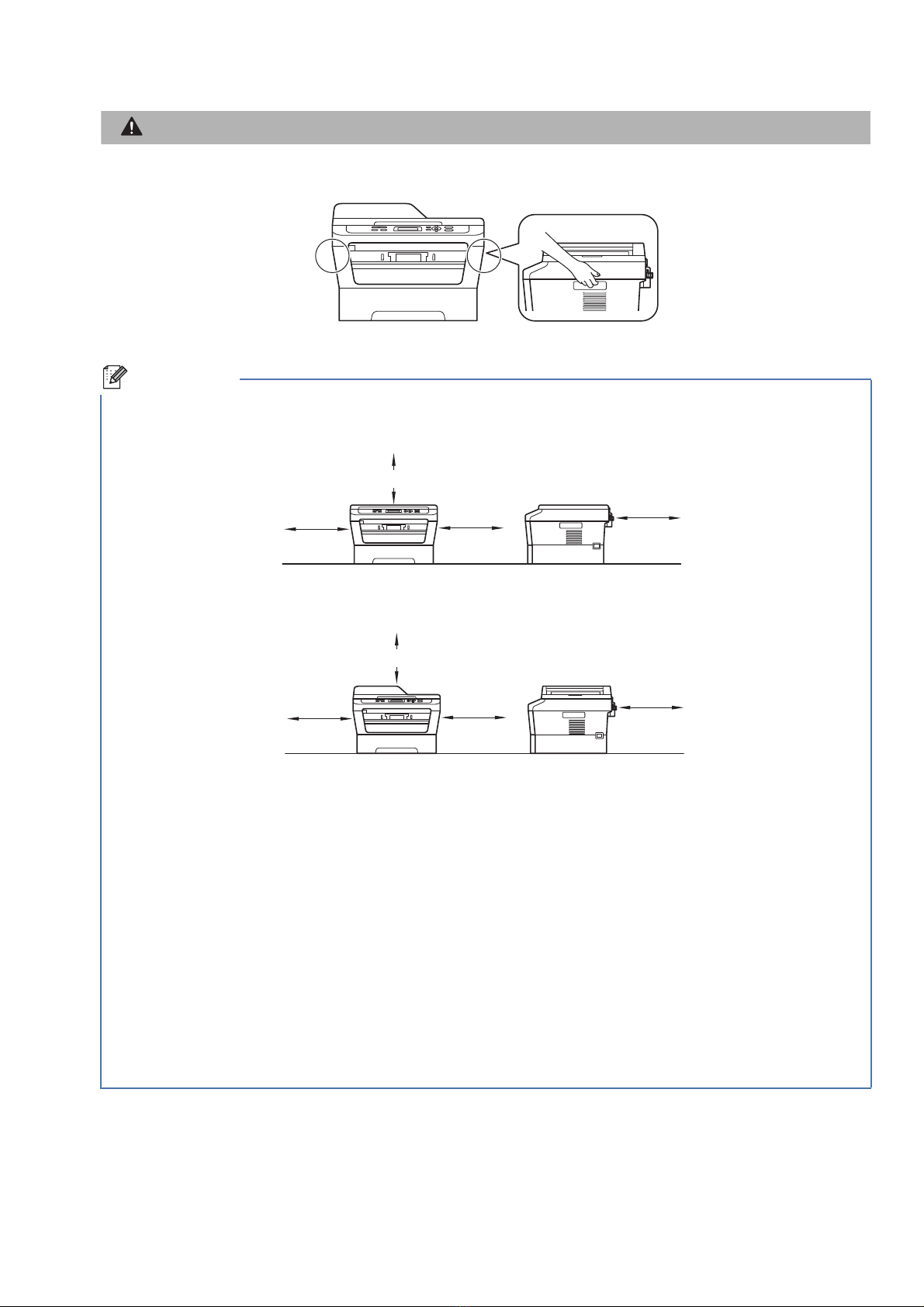

When you move the machine, grasp the side handholds that are under the scanner. DO NOT carry the machine
by holding it at the bottom.
Note
• Keep a minimum gap around the machine as shown in the illustration.
DCP-7055 / DCP-7057 / DCP-7060D
DCP-7065DN
• The components included in the box may differ depending on your country.
• Please save the original packaging should you need to ship the machine in future.
• If for any reason you must ship your machine, carefully repack the machine in the original packaging to avoid
any damage during transit. The machine should be adequately insured with the carrier. For how to repack
the machine, see Packing and shipping the machine in the Advanced User's Guide.
• The interface cable is not a standard accessory. Buy the appropriate interface cable for the interface you
want to use (USB or Network).
USB cable
• It is recommended to use a USB 2.0 cable (Type A/B) that is no longer than 2 metres.
• DO NOT connect the interface cable at this time. Connecting the interface cable is done during the MFL-Pro
installation process.
Network cable
Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet
Network.
100 mm 100 mm
90 mm
350 mm
100 mm 100 mm
90 mm
250 mm
3
2

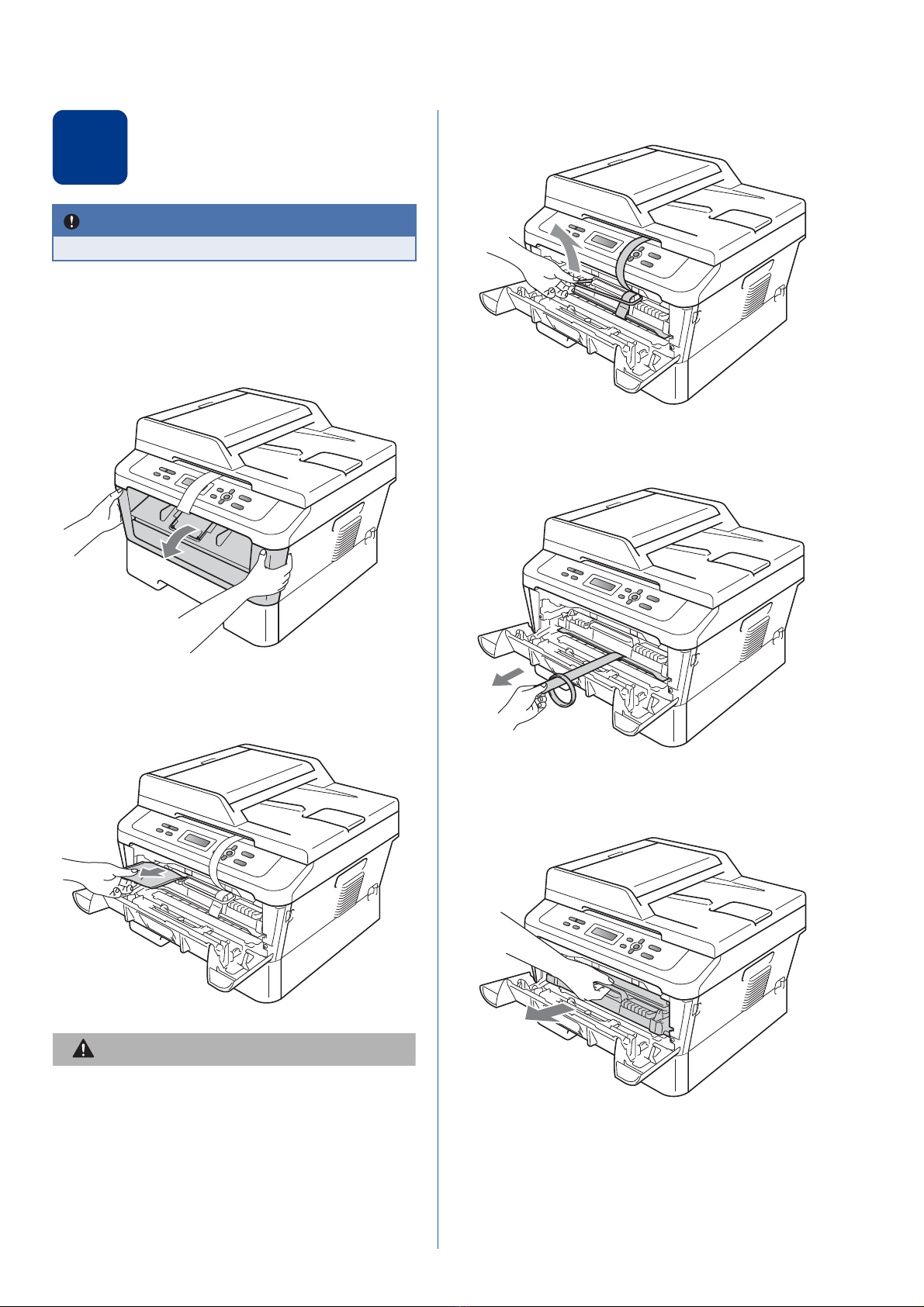

Remove the packing
material from the
machine
aRemove the packing tape from the outside of
the machine and the film covering the scanner
glass.
bOpen the front cover.
cRemove the Silica Pack from the inside of the
machine.
CAUTION
CAUTION
DO NOT eat the Silica Pack. Please discard.
If ingested seek medical attention immediately.
dLift the elastic band off the drum.
ePull the paper strip to remove the protective
material as shown in the illustration.
fTake out the drum unit and toner cartridge
assembly.
IMPORTANT
DO NOT connect the AC power cord yet.
4
gGently shake it from side to side several times
to distribute the toner evenly inside the
assembly.
hPut the drum unit and toner cartridge assembly
back in the machine.
iClose the front cover of the machine.
3
Load paper in the paper
tray
aPull the paper tray completely out of the
machine.
bWhile pressing the green paper-guide release
lever a, slide the paper guides to fit the paper
size you are loading in the tray. Make sure that
the guides are firmly in the slots.
1
5
cFan the stack of paper well to avoid paper jams
and misfeeds.
dPut paper in the tray and make sure:
The paper is below the maximum paper
mark (bbb)a.
Over filling the paper tray will cause paper
jams.
The side to be printed on must be face down.
The paper guides touch the sides of the
paper so it will feed correctly.
ePut the paper tray firmly back in the machine.
Make sure that it is completely inserted into the
machine.
4
Connect the power cord
aConnect the AC power cord to the machine,
and then plug it into an electrical socket.
bTurn on the machine’s power switch.
For more information about recommended
paper, see Recommended paper and print
media in the Basic User’s Guide.
1
IMPORTANT
DO NOT connect the interface
cable yet.
6
5
Choose your language
aAfter turning the power switch on, the LCD
shows:
Select Language
Press OK Key
Press OK.
bPress aor bto choose your language and
press OK.
Select Language
English
cIf the LCD shows the correct language, press a.
—OR—
Press bto go back to step bto choose the
language again.
English?
aYes bNo
6
Set the LCD contrast
(if needed)
If you are having difficulty reading the LCD, try
changing the contrast setting.
aPress Menu.
bPress aor bto choose 1.General Setup.
Press OK.
cPress aor bto choose 3.LCD Contrast.
Press OK.
dPress ato increase the contrast.
—OR—
Press bto decrease the contrast.
Press OK.
ePress Stop/Exit.
Note
If you have set the wrong language, you can
change the language from the control panel menu
of the machine. For details, see Changing the
LCD language in the Basic User's Guide.
7
Windows®
USB
Macintosh
Windows®Macintosh
Wired Network
7
Choose your connection type
These installation instructions are for Windows®2000 Professional, Windows®XP Home/Windows®XP
Professional, Windows®XP Professional x64 Edition, Windows Vista®, Windows®7, and Mac OS X (versions
10.4.11, 10.5.x and 10.6.x).
Note
For Windows Server®2003/2003 x64 Edition/2008/2008 R2, visit your model page at
http://solutions.brother.com/.
For USB Interface Users
Windows
®
, go to page 8
Macintosh, go to page 10
For Wired Network
Windows
®
, go to page 12
Macintosh, go to page 14
Note
You can download the latest drivers and utilities for your machine from the Brother Solutions Center at
http://solutions.brother.com/.
8
Windows®
USB
For USB Interface Users
(Windows®2000 Professional/XP/XP Professional x64 Edition/Windows Vista®/Windows®7)
8
Before you install
aMake sure that your computer is ON and you
are logged on with Administrator rights.
bTurn off the machine and make sure the USB
interface cable is NOT connected to the
machine. If you have already connected the
cable, disconnect it.
9
Install MFL-Pro Suite
aPut the installation CD-ROM into your
CD-ROM drive. If the model name screen
appears, choose your machine. If the language
screen appears, choose your language.
bClick Initial Installation and then Install
MFL-Pro Suite.
cClick Yes if you accept the license agreements.
dFollow the on-screen instructions until this
screen appears.
IMPORTANT
• If there are any programs running, close
them.
• The screens may differ depending on your
operating system.
Note
The installation CD-ROM includes ScanSoft™
PaperPort™ 12SE. This software supports
Windows®XP (SP3 or greater), XP Professional
x64 Edition (SP2 or greater), Windows Vista®
(SP2 or greater) and Windows®7. Update to the
latest Windows®Service Pack before installing
MFL-Pro Suite. For Windows®2000 (SP4 or
greater) users, when the ScanSoft™ PaperPort™
11SE download screen appears during the
installation of MFL-Pro Suite, follow the on-screen
instructions.
Note
If the Brother screen does not appear
automatically, go to My Computer (Computer),
double-click the CD-ROM icon, and then
double-click start.exe.
Note
• If the installation does not continue
automatically, open the top menu again by
ejecting and then reinserting the CD-ROM or
double-click the start.exe program from the
root folder, and continue from step bto install
MFL-Pro Suite.
• For Windows Vista®and Windows®7 users,
when the User Account Control screen
appears, click Allow or Yes.
9
Windows®
USB
Windows®
USB
Macintosh
eConnect the USB cable to the USB connector
marked with the symbol on your machine
and then connect the cable to your computer.
fTurn the machine on, and follow the on-screen
instructions to complete setup.
IMPORTANT
DO NOT cancel any of the screens during the
installation. It may take a few seconds for all
screens to appear.
Note
• For Windows Vista®and Windows®7 users,
when the Windows Security screen appears,
select the check box and click Install to
complete the installation correctly.
• If an error message appears during the
software installation, run the
Installation Diagnostics located in
Start/All Programs/Brother/DCP-XXXX
(where DCP-XXXX is your model name).
Finish
The installation is now
complete.
Note
• Depending on your security settings, a
Windows Security or antivirus software window
may appear when using the machine or its
software. Please allow or permit the window to
continue.
•XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is
the most suitable driver for Windows Vista®and
Windows®7 when printing from applications
that use the XML Paper Specification
documents. Please download the latest driver
by accessing the Brother Solutions Center at
http://solutions.brother.com/.
10
Macintosh
USB

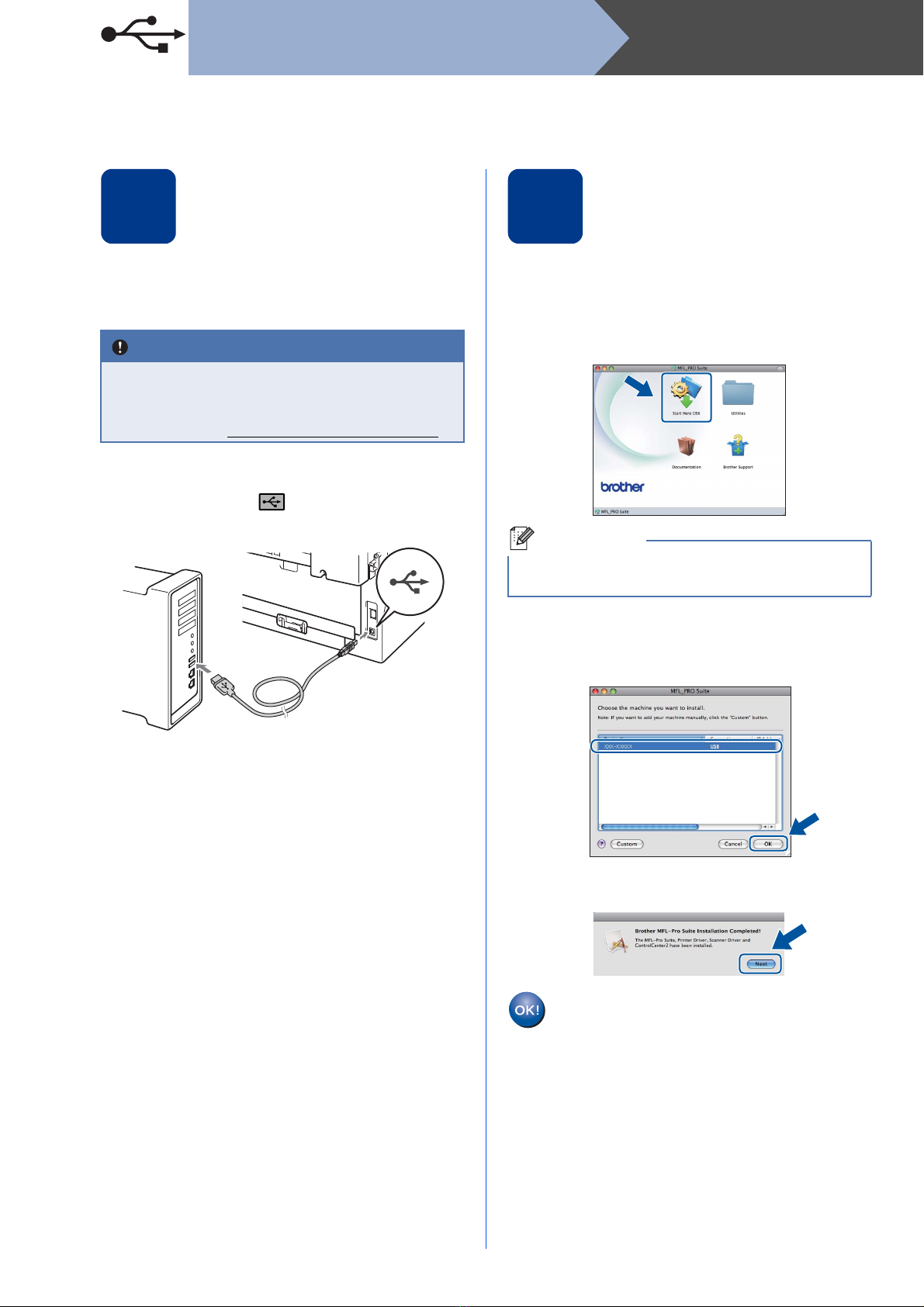

For USB Interface Users
(Mac OS X 10.4.11 - 10.6.x)
8
Before you install
aMake sure your machine is connected to the
power and your Macintosh is ON. You must be
logged on with Administrator rights.
bConnect the USB cable to the USB connector
marked with the symbol on your machine
and then connect the cable to your Macintosh.
cMake sure your machine’s power switch is on.
9
Install MFL-Pro Suite
aPut the installation CD-ROM into your
CD-ROM drive.
bDouble-click the Start Here OSX icon. Follow
the on-screen instructions.
cFollow the on-screen instructions until this
screen appears. Choose your machine from
the list, and then click OK.
dWhen this screen appears, click Next.
IMPORTANT
For Mac OS X 10.4.10 users, upgrade to
Mac OS X 10.4.11 - 10.6.x. (For the latest
drivers and information on the Mac OS X you
are using, visit http://solutions.brother.com/.)
Note
It may take a few minutes for installation to
complete.
The installation of MFL-Pro Suite is now
complete.
Go to step 10 on page 11.
Altri manuali per DCP-7060D
3
Questo manuale è adatto per i seguenti modelli
4
Indice
Altri manuali Brother Stampante tutto in uno
Brother
Brother MFC-9840CDW Manuale utente
Brother
Brother MFC-7840W Manuale utente
Brother
Brother MFC-6890CDW - Color Inkjet - All-in-One Manuale utente
Brother
Brother DCP-J4110DW Manuale utente
Brother
Brother MFC 250C - Color Inkjet - All-in-One Manuale elenco delle parti
Brother
Brother MFC 7345N - Laser Multifunction Center Guida utente
Brother
Brother MFC-J825DW Manuale utente
Brother
Brother MFC MFC-290C Manuale utente
Brother
Brother MFC-420CN Manuale utente
Brother
Brother MFC-9*970CDW Manuale operativo e di manutenzione
Brother
Brother MFC-J680DW Manuale di istruzioni
Brother
Brother MFC 665CW - Color Inkjet - All-in-One Manuale utente
Brother
Brother MFC-J6510DW Manuale utente
Brother
Brother MFC 5890CN - Color Inkjet - All-in-One Manuale utente
Brother
Brother DCP-8020 Manuale utente
Brother
Brother MFC-9660 Manuale utente
Brother
Brother MFC 795CW - Color Inkjet - All-in-One Manuale utente
Brother
Brother MFC 5490CN - Color Inkjet - All-in-One Guida rapida
Brother
Brother DCP-310CN Manuale utente
Brother
Brother MFC-J245 Manuale operativo e di manutenzione
Manuali Stampante tutto in uno popolari di altre marche
Triumph Adler
Triumph Adler DC 2016 Manuale
Epson
Epson WorkForce WF-2510 Guida utente
Epson
Epson Stylus Scan 2000 Manuale di installazione e funzionamento
Epson
Epson PictureMate Snap PM 240 Manuale di istruzioni
Konica Minolta
Konica Minolta bizhub C35 Manuale utente
Konica Minolta
Konica Minolta BIZHUB 558 Manuale utente
