Brother DCP-8070D Manuale utente

Start Here DCP-8070D

Quick Setup Guide

ARL/ASA/NZ/SAF/GLF Version 0

(EU only)

Before you can use the machine, read this Quick Setup Guide for the correct setup and installation.

To help you get your machine ready for use as soon as possible this guide leaves most of your machine's features

at their factory default settings. For detailed information on how to use all the features, change the default settings,

or to troubleshoot your machine please refer to the User’s Guide.

To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.

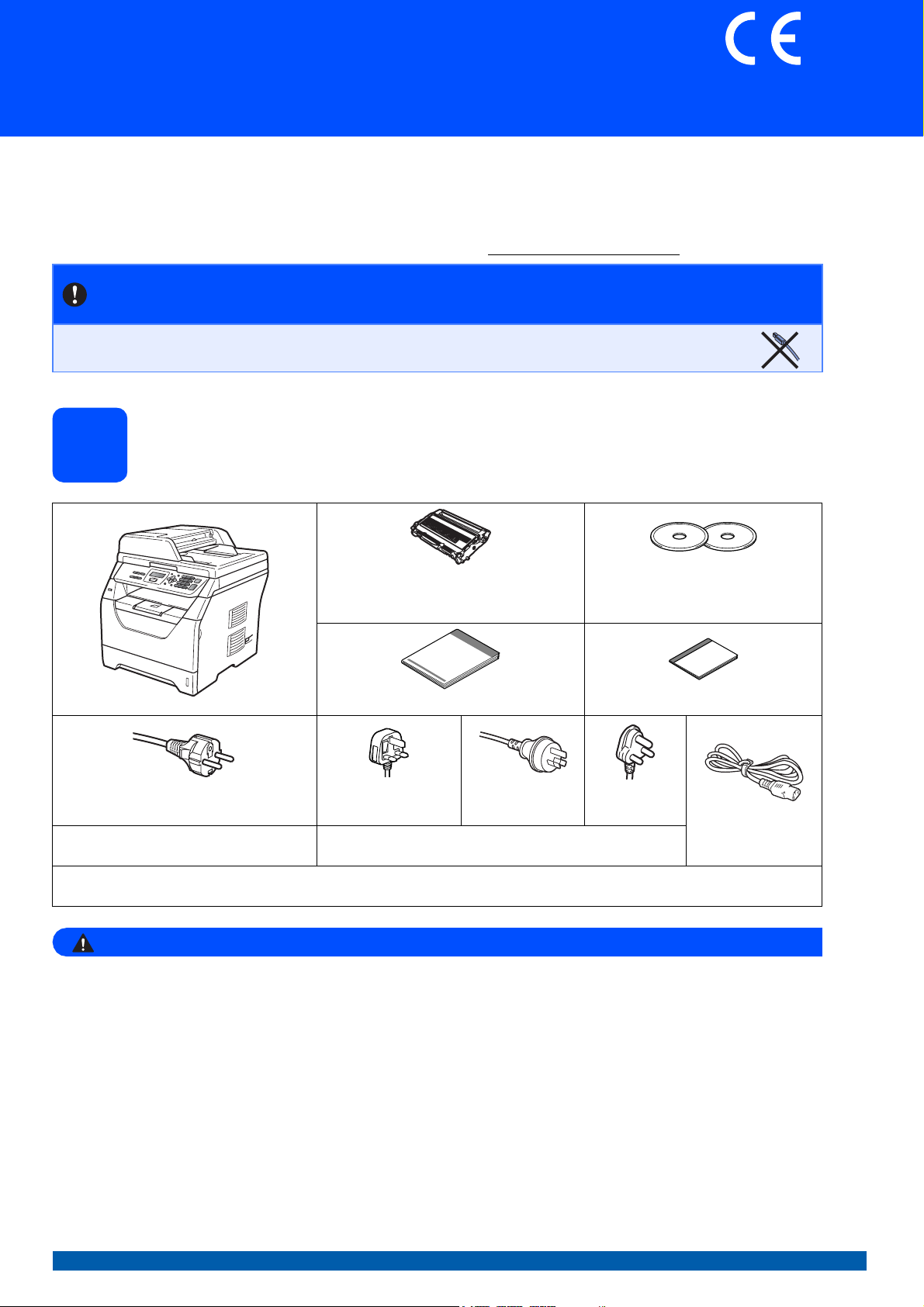

Unpack the machine and check the components

WARNING

Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep

these bags away from babies and children.

IMPORTANT

DO NOT connect the interface cable yet.

Drum Unit Assembly

(including Standard Toner Cartridge)

CD-ROMs

(Windows®)

(Macintosh)

Quick Setup Guide User’s Guide

Philippines/Thailand Hong Kong/Malaysia/

Singapore

Australia/

New Zealand

India/

South Africa

The mains plug supplied with this

machine is a side grounded two pin plug.

The mains plug supplied with this machine is a grounded

three pin plug.

AC Power Cord

Make sure that the AC socket will accept the supplied grounded pin plug. This machine must be grounded, If in doubt, call a

qualified electrician.

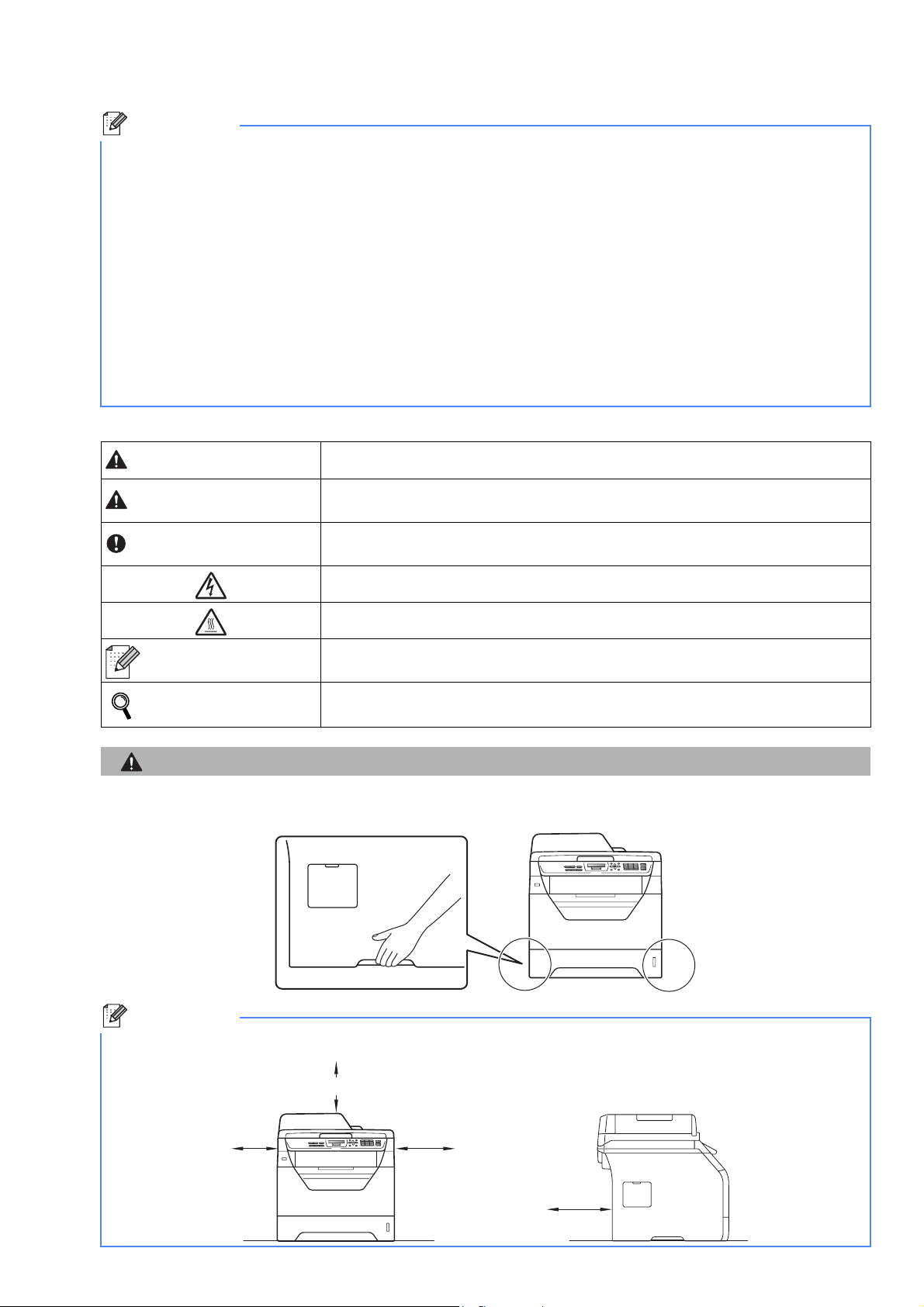

Symbols used in this guide

CAUTION

When you move the machine, grasp the side hand holds that are located at the bottom of the machine. DO

NOT carry the machine by holding the scanner unit.

Note

• The components included in the box may differ depending on your country.

• Save all packing materials and the box in case for any reason you must ship your machine.

• The interface cable is not a standard accessory. Buy the appropriate interface cable for the interface you

want to use (USB).

• To ensure safe operation the supplied plug must be inserted only into a standard power outlet that is

properly grounded through the standard electrical wiring. Non grounded equipment may cause an electrical

shock hazard, and may cause excessive electrical noise radiation.

USB cable

• Please make sure you use a USB 2.0 cable (Type A/B) that is no longer than 2 metres.

• DO NOT connect the interface cable at this time. Connecting the interface cable is done during MFL-Pro

installation process.

• When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB

port on a keyboard or non-powered USB hub.

WARNINGs tell you what to do to prevent possible personal injury.

CAUTIONs specify procedures you must follow or avoid to prevent possible

minor injuries.

IMPORTANT describes procedures you must follow or avoid to prevent

possible machine problems or machine damage, or damage to other objects.

Electrical Hazard icons alert you to a possible electrical shock.

Hot Surface icons warn you not to touch machine parts that are hot.

Note Notes tell you how you should respond to a situation that may arise or give tips

about how the current operation works with other features.

User’s Guide

Software User’s Guide

Indicates reference to the User’s Guide or Software User’s Guide.

Note

Keep a minimum gap around the machine as shown in the illustration.

WARNING

CAUTION

IMPORTANT

130 mm

500 mm

200 mm

300 mm

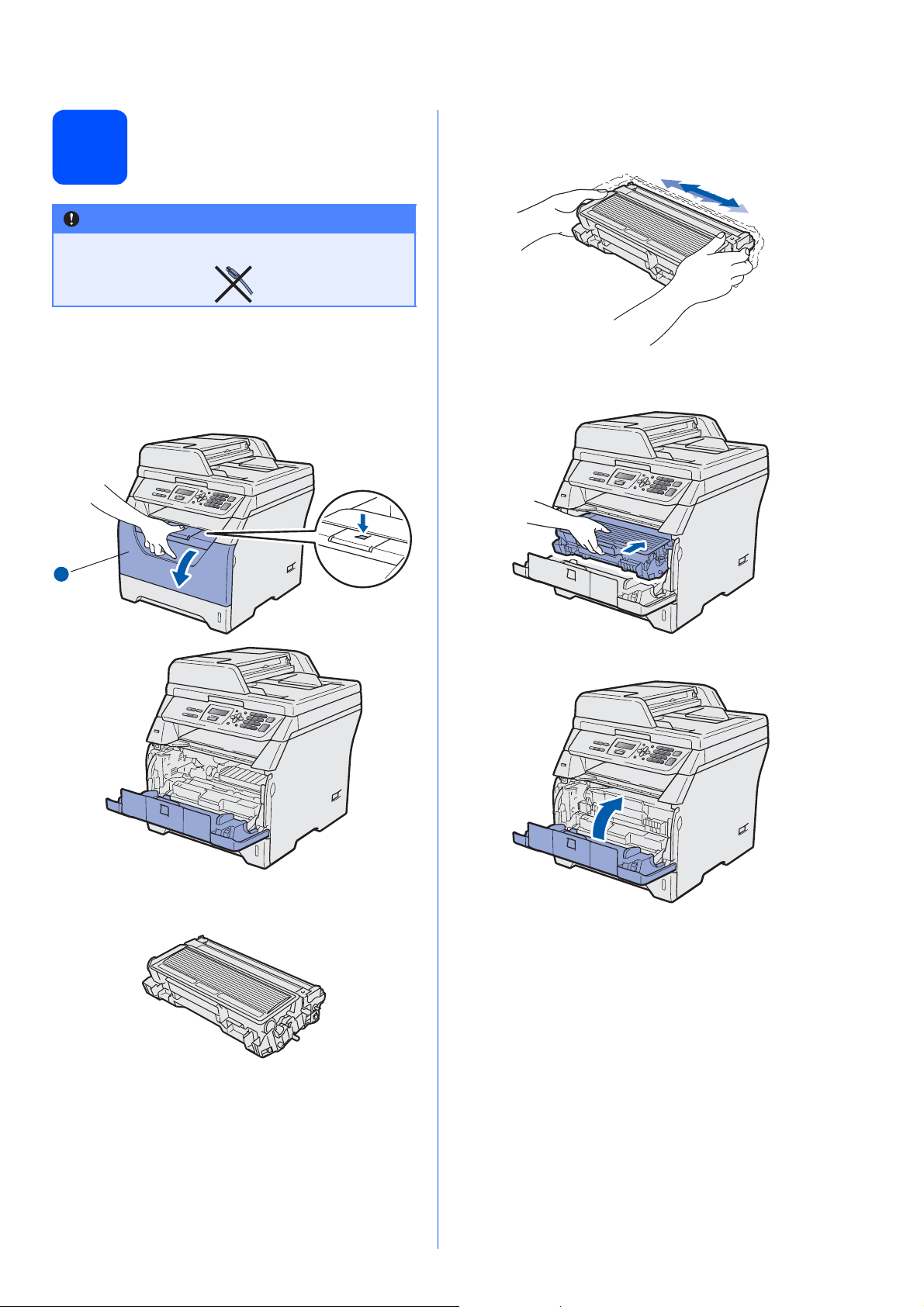

Install the drum unit and

toner cartridge assembly

aRemove the protective tape and film covering

the scanner glass.

bPress the front cover release button and open

the front cover a.

cUnpack the drum unit and toner cartridge

assembly.

dGently shake it from side to side several times

to distribute the toner evenly inside the

assembly.

ePut the drum unit assembly into the machine

until it clicks into place.

fClose the front cover of the machine.

IMPORTANT

DO NOT connect the interface cable yet.

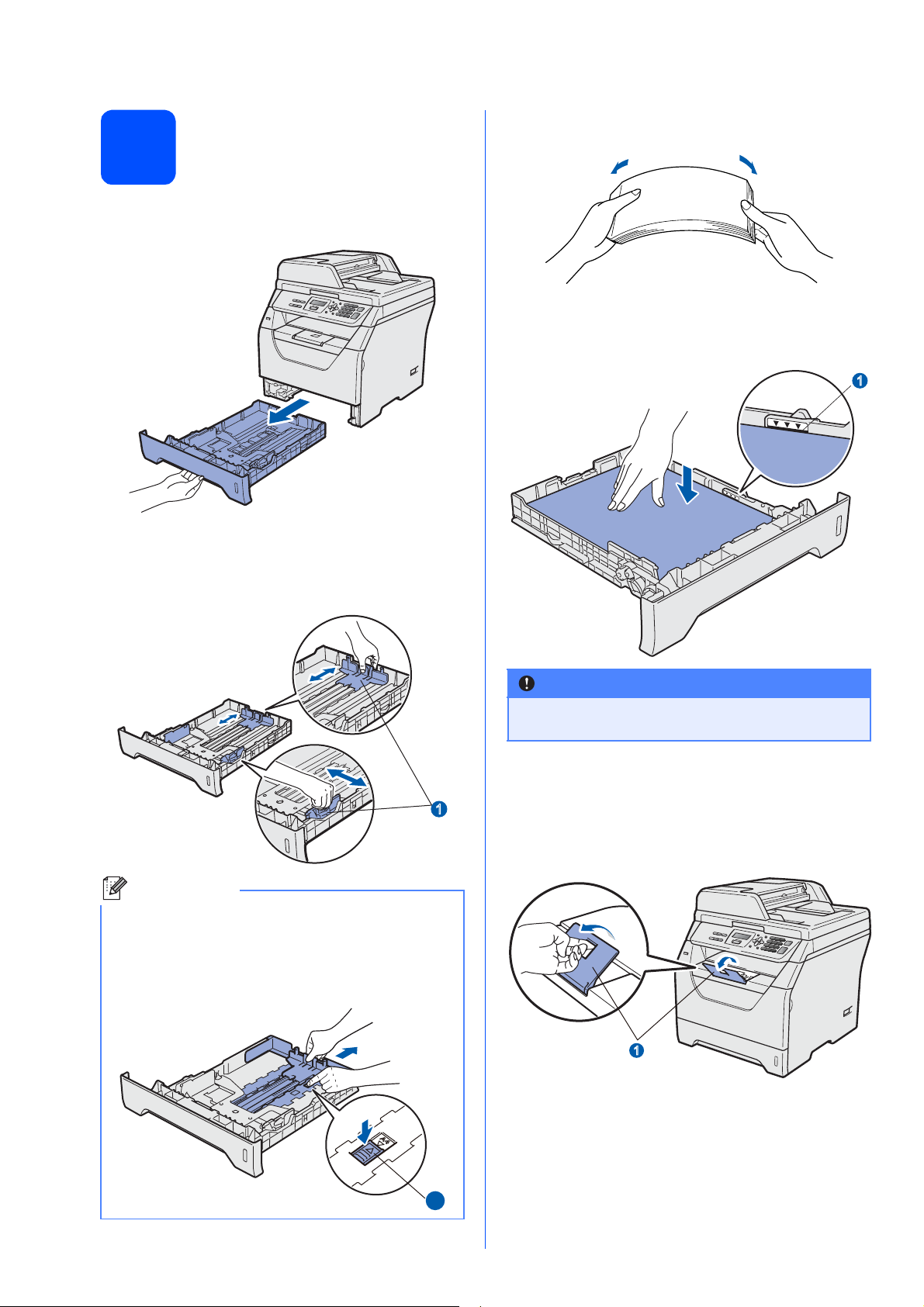

Load paper in the paper

tray

aPull the paper tray completely out of the

machine.

bWhile pressing the blue paper-guide release

lever a, slide the paper guides to fit the paper

size you are loading in the tray. Make sure that

the guides are firmly in the slots.

cFan the stack of paper well to avoid paper jams

and misfeeds.

dPut paper in the tray, and make sure that the

paper is below the maximum paper mark a.

The side to be printed on must be face down.

ePut the paper tray firmly back in the machine.

Make sure that it is completely inserted into the

machine.

fUnfold the support flap ato prevent paper

from sliding off the face-down output tray.

Note

For Legal or Folio size paper, press the release

button ain the bottom of the paper tray and then

pull out the back of the paper tray.

(Legal or Folio size paper are not available in

some regions.)

IMPORTANT

Make sure the paper guides touch the sides of

the paper so it will feed correctly.

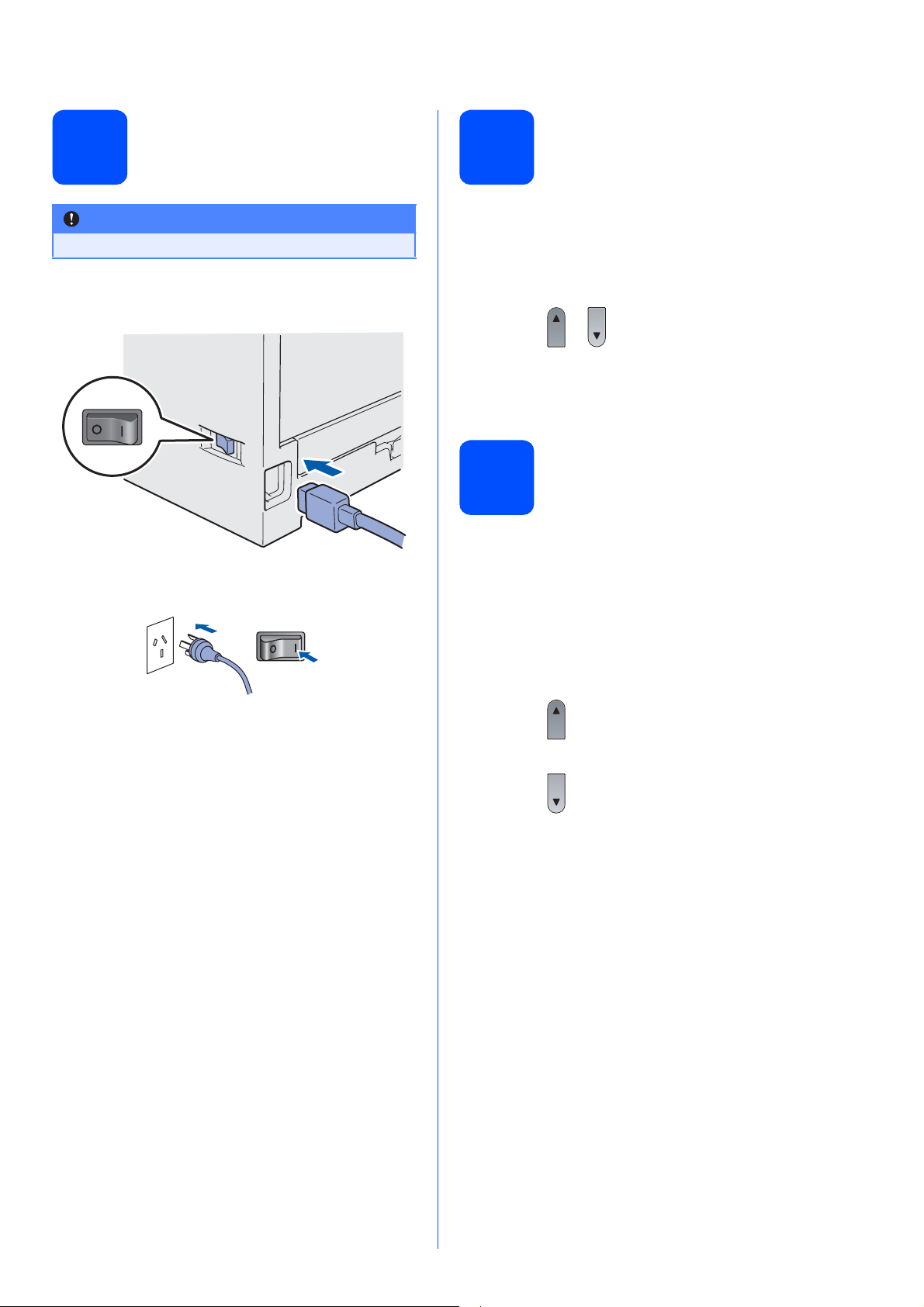

Connect the power cord

aMake sure that the machine's power switch is

off. Connect the AC power cord to the machine.

bPlug the AC power cord into an AC outlet. Turn

the power switch on.

Choose your language

(if needed)

aPress Menu.

bPress 1.

cPress 0.

dPress or to choose your language.

Press OK.

ePress Stop/Exit.

Set the LCD contrast

(if needed)

If you are having difficulty reading the LCD, try

changing the contrast setting.

aPress Menu.

bPress 1.

cPress 5.

dPress to increase the contrast.

—OR—

Press to decrease the contrast.

Press OK.

ePress Stop/Exit.

IMPORTANT

DO NOT connect the interface cable yet.

Set the date and time

This setting allows the machine to name files created

when using the Scan to USB feature.

aPress Menu.

bPress 5.

cPress 1.

dEnter the last two digits of the year on the dial

pad, and then press OK.

Date&Time

Year:2009

(e.g. Enter 0, 9for 2009.)

eEnter the two digits for the month on the dial

pad, and then press OK.

Date&Time

Month:03

(e.g. Enter 0, 3for March.)

fEnter the two digits for the day on the dial pad,

and then press OK.

Date&Time

Day:25

(e.g. Enter 2, 5.)

gEnter the time in 24-hour format on the dial

pad, and then press OK.

Date&Time

Time:15:25

(e.g. Enter 15, 25for 3:25 P.M.)

hPress Stop/Exit.

Set Daylight Saving Time

(for Asia and Oceania)

You can set the machine to change for Daylight

Saving Time. If you choose On, it will reset the time

forward one hour and if you choose Off, it will reset

the time backward one hour.

aPress Menu.

bPress 5.

cPress 2.

dPress or to choose On or Off.

ePress OK.

fPress 1or 2to choose 1.Change or 2.Exit.

gPress Stop/Exit.

Automatic Daylight

Savings Time (for

Middle East and Africa)

You can set the machine to change automatically for

daylight savings time. It will reset itself forward one

hour in the Spring and backward one hour in the

Autumn.

aPress Menu.

bPress 5.

cPress 2.

dPress or to choose On (or Off).

Press OK.

ePress Stop/Exit.

Windows®

USB

Macintosh

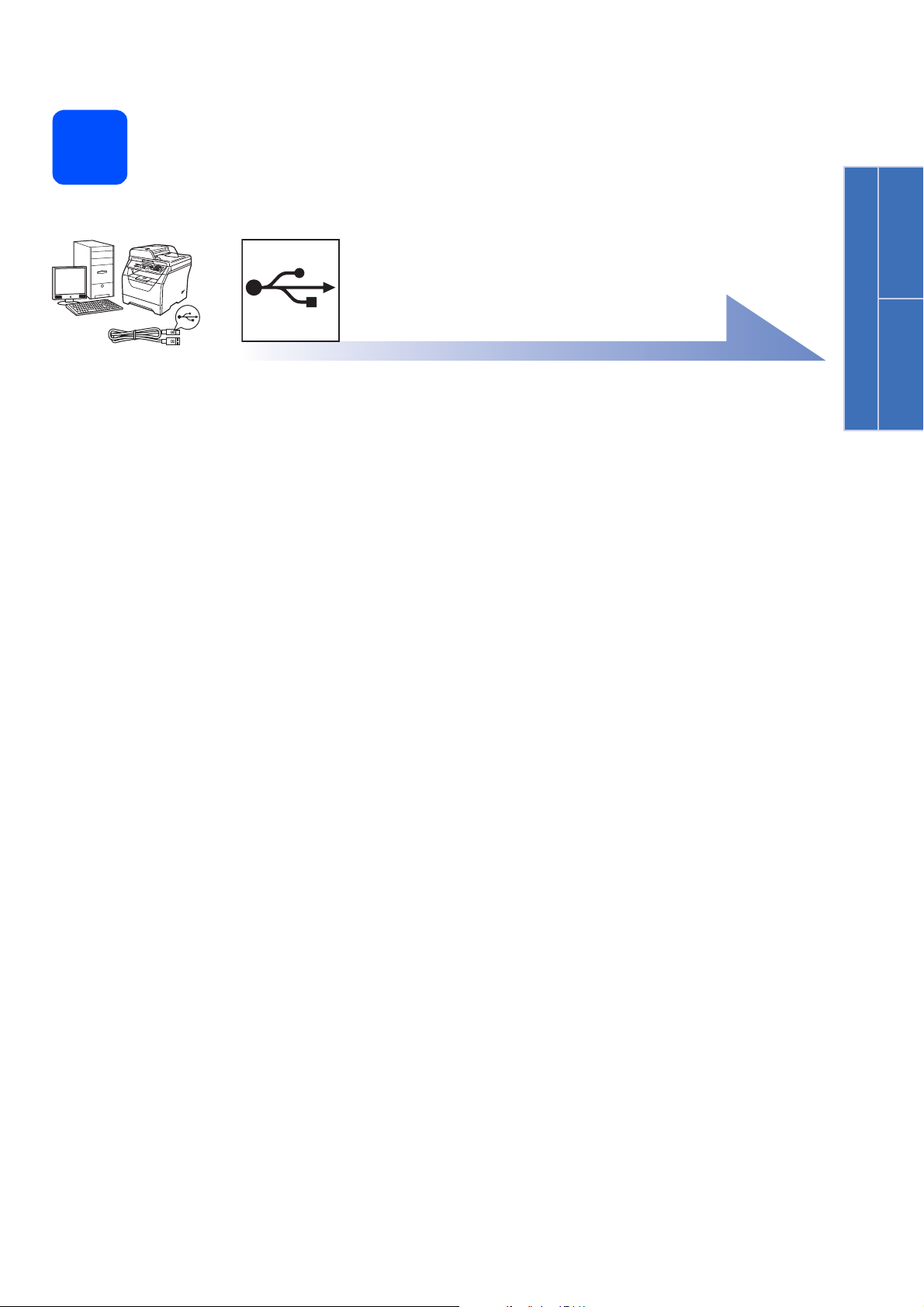

Choose your connection type

For USB Interface Users

Windows

, go to page 8

Macintosh, go to page 12

Windows®

USB

For USB Interface Users

(Windows

2000 Professional/XP/XP Professional x64 Edition/

Windows Vista

)

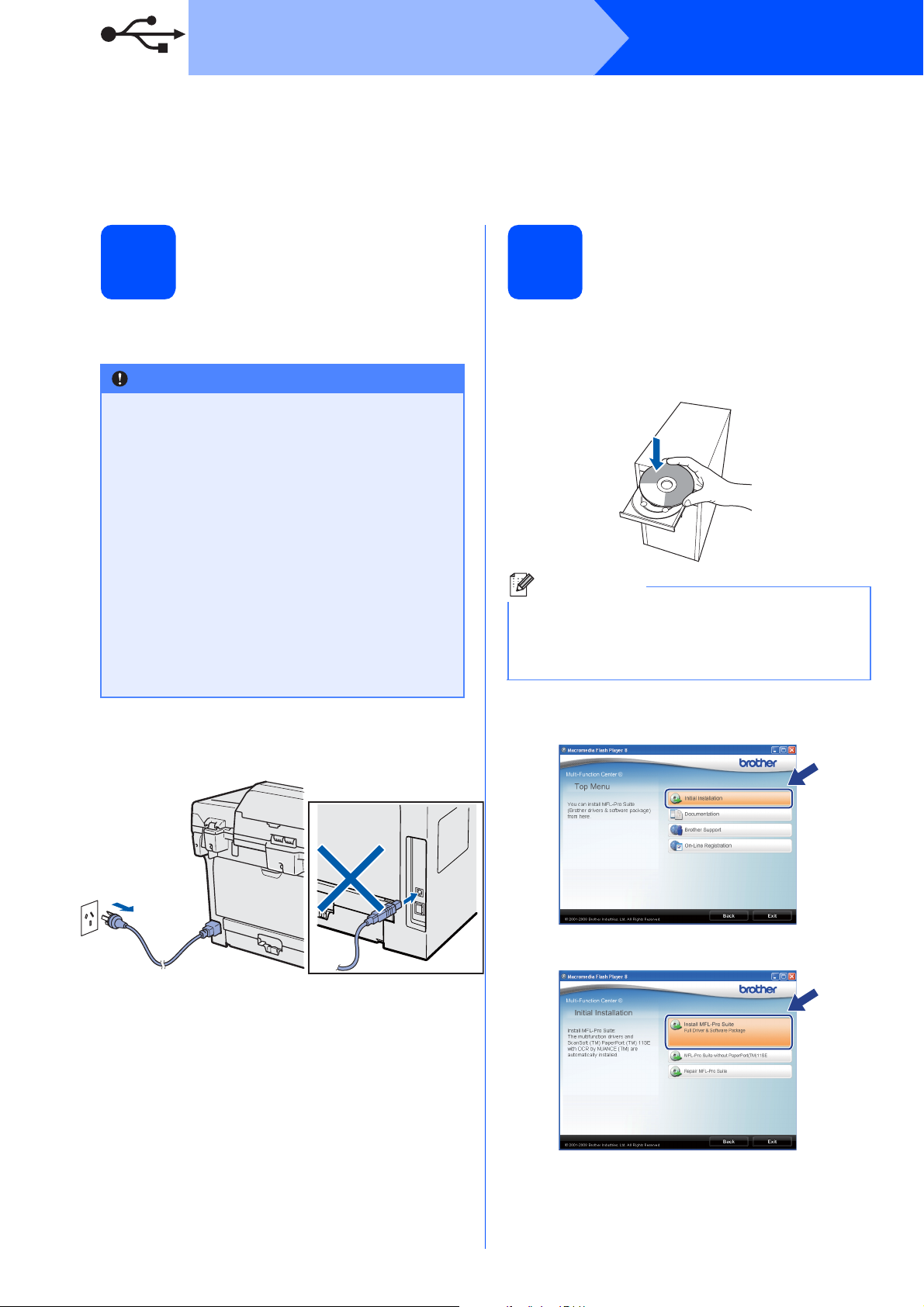

Before you install

aMake sure that your computer is ON and you

are logged on with Administrator rights.

bTurn off and unplug the machine from the AC

outlet and disconnect it from your computer, if

you already connected an interface cable.

Install MFL-Pro Suite

aPut the supplied CD-ROM into your CD-ROM

drive. If the model name screen appears,

choose your machine. If the language screen

appears, choose your language.

bThe CD-ROM top menu will appear. Click

Initial Installation.

cClick Install MFL-Pro Suite.

IMPORTANT

• DO NOT connect the USB cable yet.

• If there are any programs running, close

them.

• Make sure a USB Flash memory drive is not

inserted into the machine.

• The screen may differ depending on the

operating system.

• The supplied CD-ROM includes ScanSoft™

PaperPort™ 11SE. This software supports

Windows®2000 (SP4 or greater), XP (SP2 or

greater), XP Professional x64 Edition and

Windows Vista®. Update to the latest

Windows®Service Pack before installing

MFL-Pro Suite.

Note

If the Brother screen does not appear

automatically, go to My Computer (Computer),

double-click the CD-ROM icon, and then

double-click Start.exe.

Windows®

USB

Windows®

USB

Macintosh

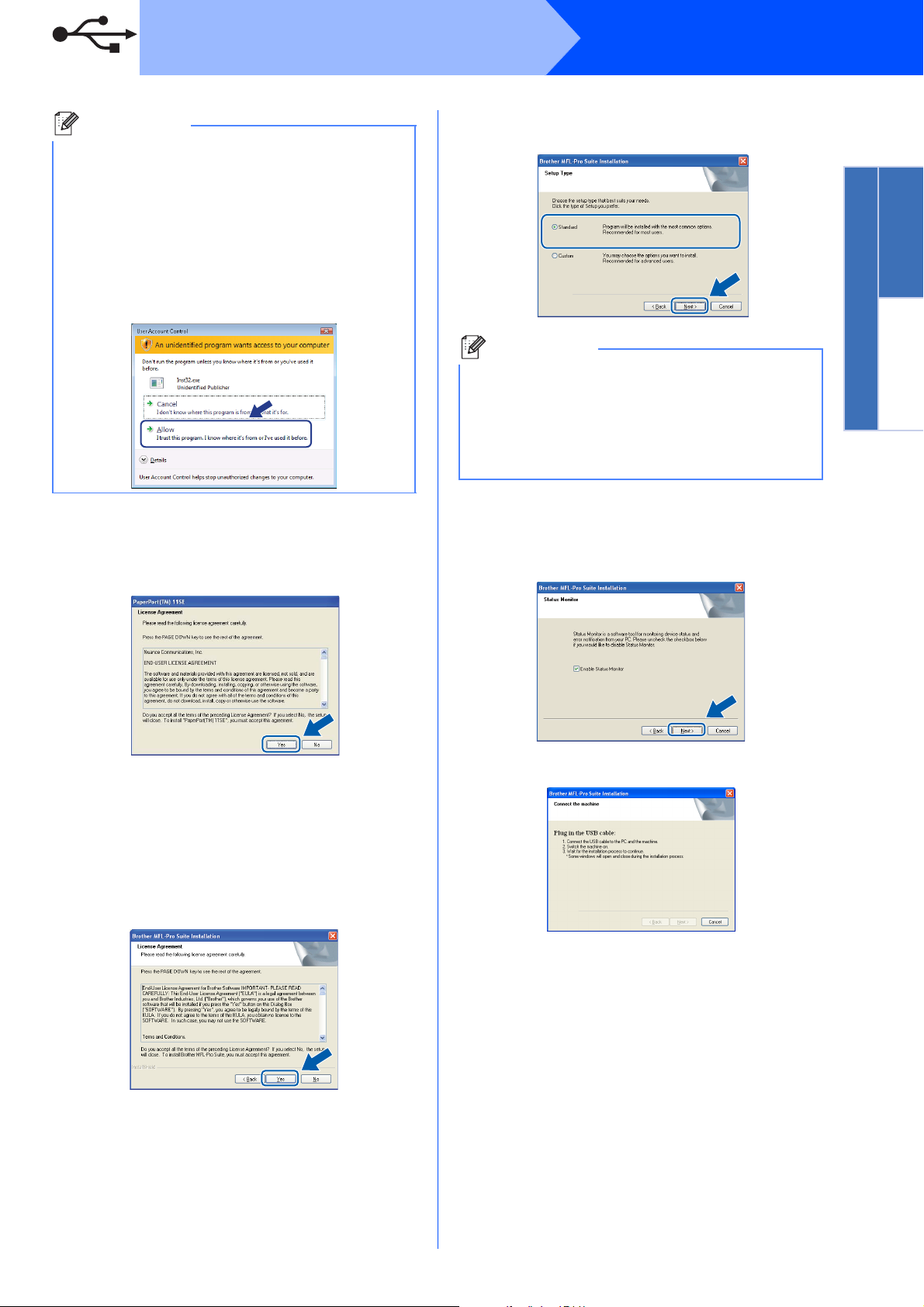

dWhen the ScanSoft™ PaperPort™ 11SE

License Agreement window appears, click

Yes if you agree to the Software

License Agreement.

eThe installation of ScanSoft™ PaperPort™

11SE will automatically start and is followed by

the installation of MFL-Pro Suite.

fWhen the Brother MFL-Pro Suite Software

License Agreement window appears, click

Yes if you agree to the Software

License Agreement.

gChoose Standard, and then click Next. The

installation continues.

hIf you do not want to monitor the machine

status and error notifications from your

computer, uncheck Enable Status Monitor

and then click Next.

iWhen this screen appears, go to the next step.

Note

• If the installation does not continue

automatically, open the top menu again by

ejecting and then reinserting the CD-ROM or

double-click the Start.exe program from the

root folder, and continue from step cto install

MFL-Pro Suite.

• For Windows Vista®, when the

User Account Control screen appears, click

Allow.

Note

If you want to install the PS driver (Brother’s

BR-Script Driver), choose Custom and then

follow the on-screen instructions. When the

Select Features screen appears, check

PS Printer Driver, and then continue following

the on-screen instructions.

Windows®

USB

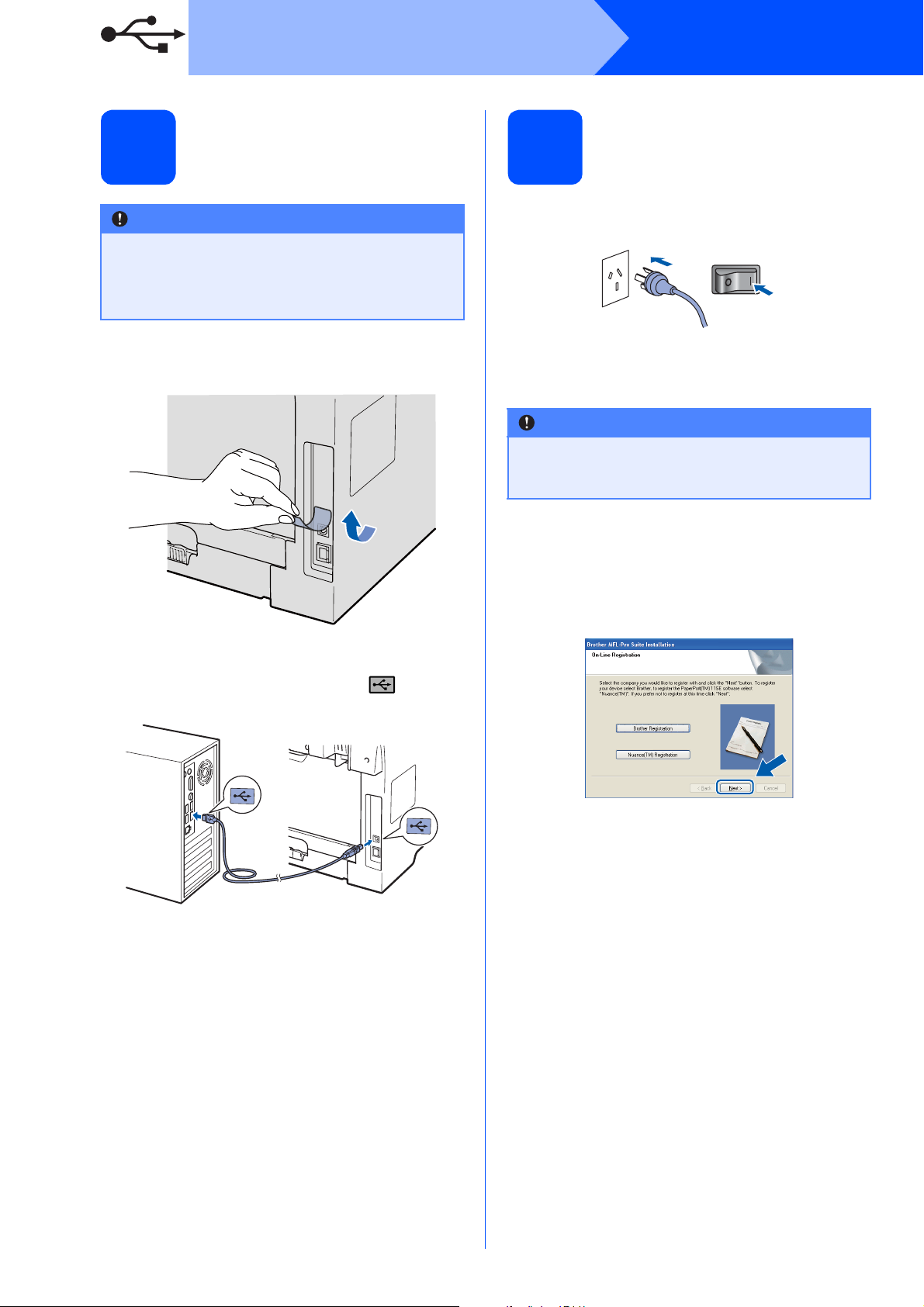

Connect the USB cable

aRemove the label covering the USB interface

connector.

bConnect the USB cable to the USB connector

on the machine marked with the symbol.

Then connect the cable to your computer.

Connect the power cord

aPlug the AC power cord into an AC outlet. Turn

the power switch on.

The installation of the Brother drivers will

automatically start.

The screens appear one after another.

bWhen the On-Line Registration screen is

displayed, make your selection and follow the

on-screen instructions. Once you have

completed the registration process, close your

web browser to return to this window.

Then click Next.

IMPORTANT

• DO NOT connect the machine to a USB port

on a keyboard or a non-powered USB hub.

• Connect the machine directly to your

computer.

IMPORTANT

DO NOT cancel any of the screens during the

installation. It may take a few seconds for all

screens to appear.

Altri manuali per DCP-8070D

Indice

Altri manuali Brother Stampante tutto in uno

Brother

Brother MFC 8220 Manuale utente

Brother

Brother DCP-J140W Guida utente

Brother

Brother MFC-9560CDW Manuale operativo e di manutenzione

Brother

Brother Work Smart MFC-J650dw Manuale operativo e di manutenzione

Brother

Brother MFC490CW - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-8880DN Manuale utente

Brother

Brother MFC-J6910DW Istruzioni per il montaggio

Brother

Brother DCP-9040CN Manuale utente

Brother

Brother DCP 385C - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-7860DW Manuale utente

Brother

Brother MFC-8510DN Manuale operativo e di manutenzione

Brother

Brother DR8000 Manuale utente

Brother

Brother MFC-L8600CDW Manuale utente

Brother

Brother MFC-J220 Manuale utente

Brother

Brother 5200c - MFC Color Inkjet Manuale utente

Brother

Brother DCP-J562DW Manuale operativo e di manutenzione

Brother

Brother HL-4150CDN Istruzioni per l'installazione

Brother

Brother MFC-5840CN Manuale utente

Brother

Brother 420CN - MFC Color Inkjet Manuale utente

Brother

Brother DCP-195C Manuale utente

Brother

Brother DCP-130C Manuale utente

Brother

Brother MFC-J690DW Manuale utente

Brother

Brother MFC-4820C Manuale utente

Brother

Brother MFC-J6925DW Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Copystar

Copystar CS 4551ci Manuale utente

Konica Minolta

Konica Minolta Magicolor 4650EN Manuale utente
