Start Here DCP-9270CDN

Quick Setup Guide

UK/IRE Version 0

Please read Safety and Legal Booklet first before you set up your machine. Then, please read this Quick Setup

Guide for the correct setup and installation.

To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.

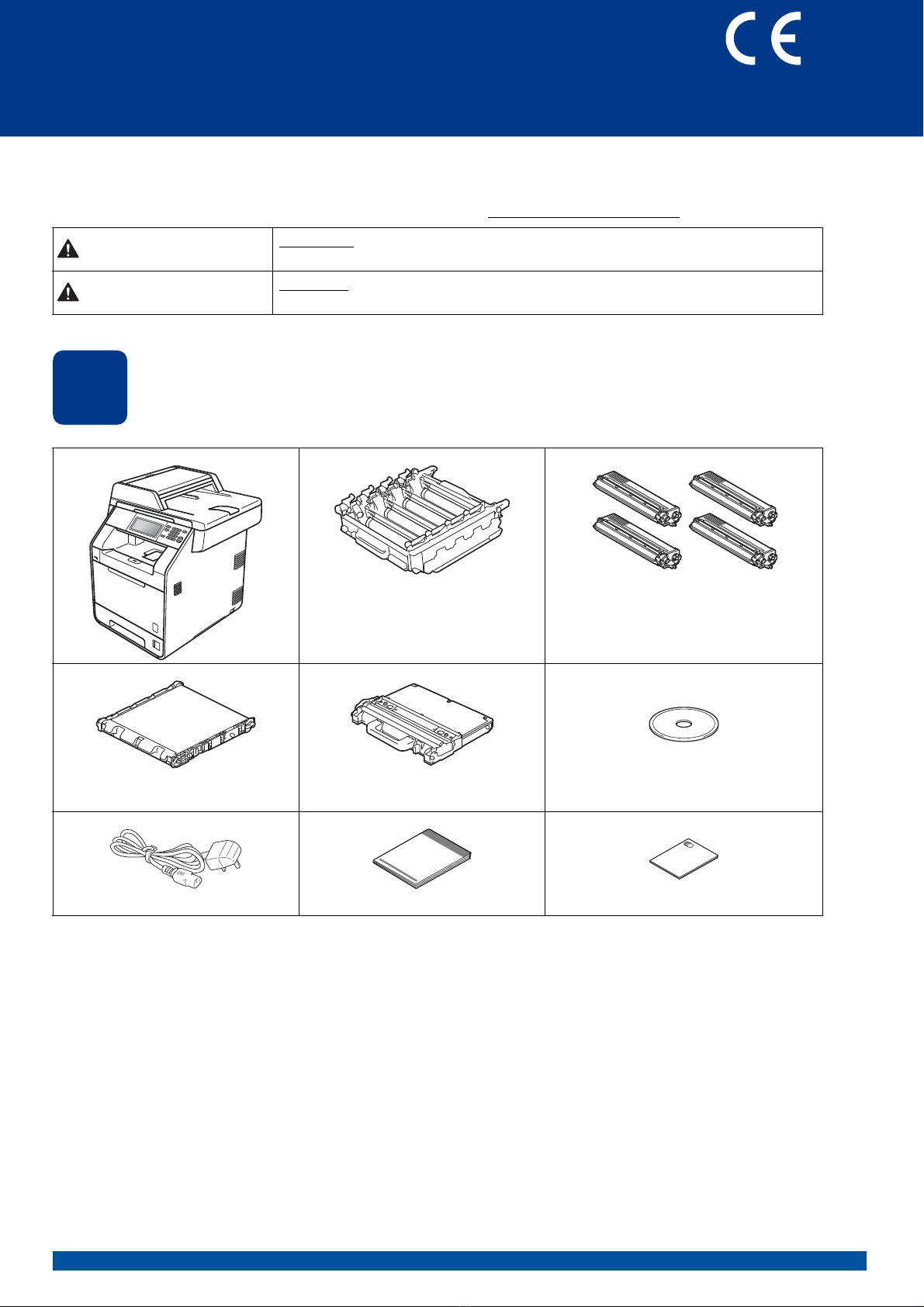

Unpack the machine and check the components

WARNING indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injuries.

CAUTION indicates a potentially hazardous situation which, if not avoided, may

result in minor or moderate injuries.

Drum Unit

(pre-installed)

Starter Toner Cartridges

(pre-installed)

(Black, Cyan, Magenta and Yellow)

Belt Unit

(pre-installed)

Waste Toner Box

(pre-installed)

Installation CD-ROM,

Documentation CD-ROM

AC Power Cord Quick Setup Guide Safety and Legal Booklet

WARNING

CAUTION

WARNING

• Plastic bags are used in the packaging of your machine. Plastic bags are not toys. To avoid danger of

suffocation, please keep these bags away from babies and children and dispose of them correctly.

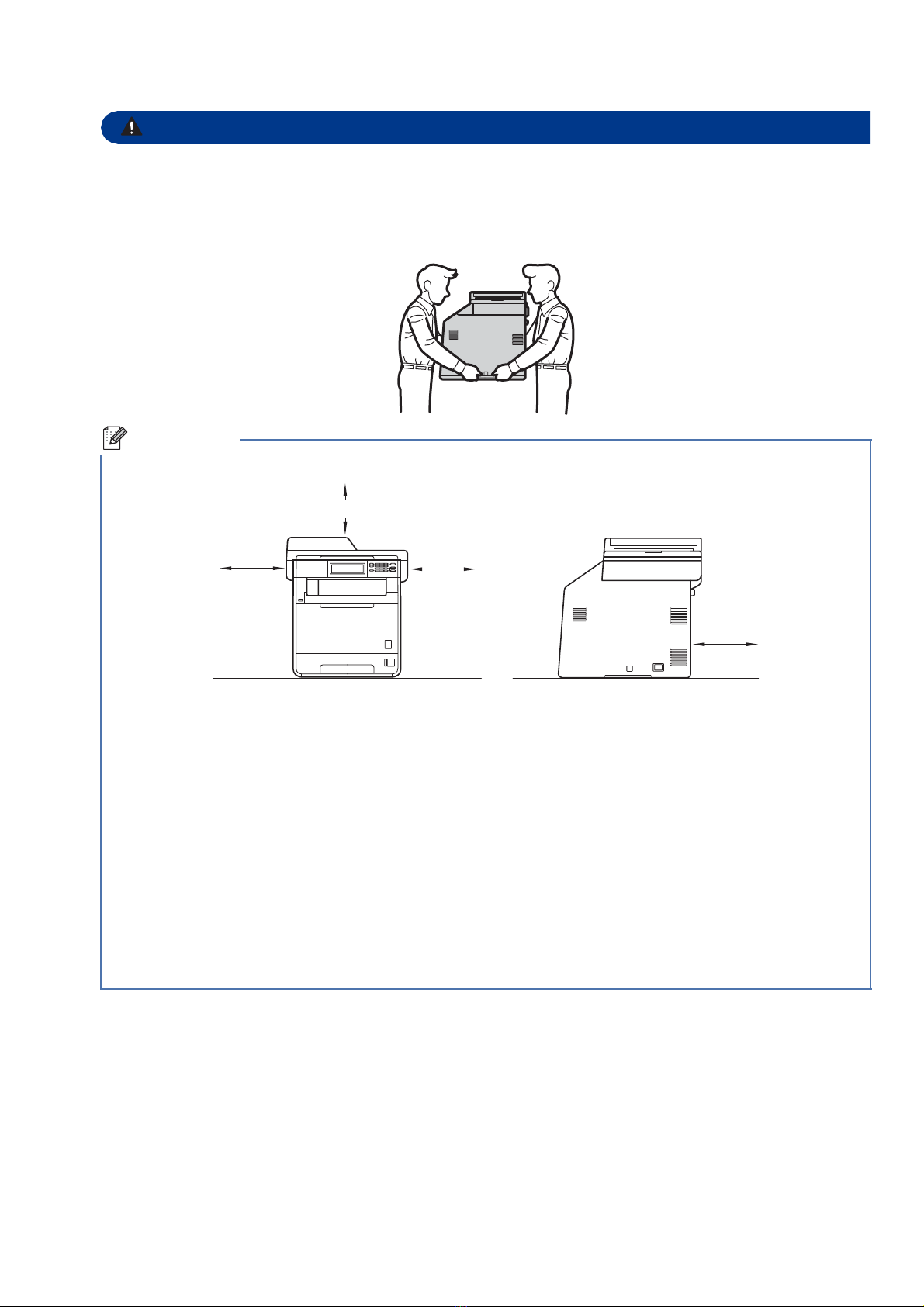

• This machine is heavy and weighs approximately 28.5 kg. To prevent possible injuries at least two

people should lift the machine. Be careful not to pinch your fingers when you put the machine down.

• If you use a Lower Tray, carry it separately from your machine.

Note

• Keep a minimum gap around the machine as shown in the illustration.

• The components included in the box may differ depending on your country.

• We recommend that you save the original packaging.

• If for any reason you must ship your machine, carefully repack the machine in the original packaging to avoid

any damage during transit. The machine should be adequately insured with the carrier. For how to repack

the machine, see Packing and shipping the machine in the Advanced User's Guide.

• The interface cable is not a standard accessory. Buy the appropriate interface cable for the interface you

want to use (USB or Network).

USB cable

• It is recommended to use a USB 2.0 cable (Type A/B) that is no longer than 2 metres.

• DO NOT connect the interface cable at this time. Connecting the interface cable is done during MFL-Pro

installation process.

Network cable

Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet

Network.

100 mm 100 mm

400 mm

250 mm

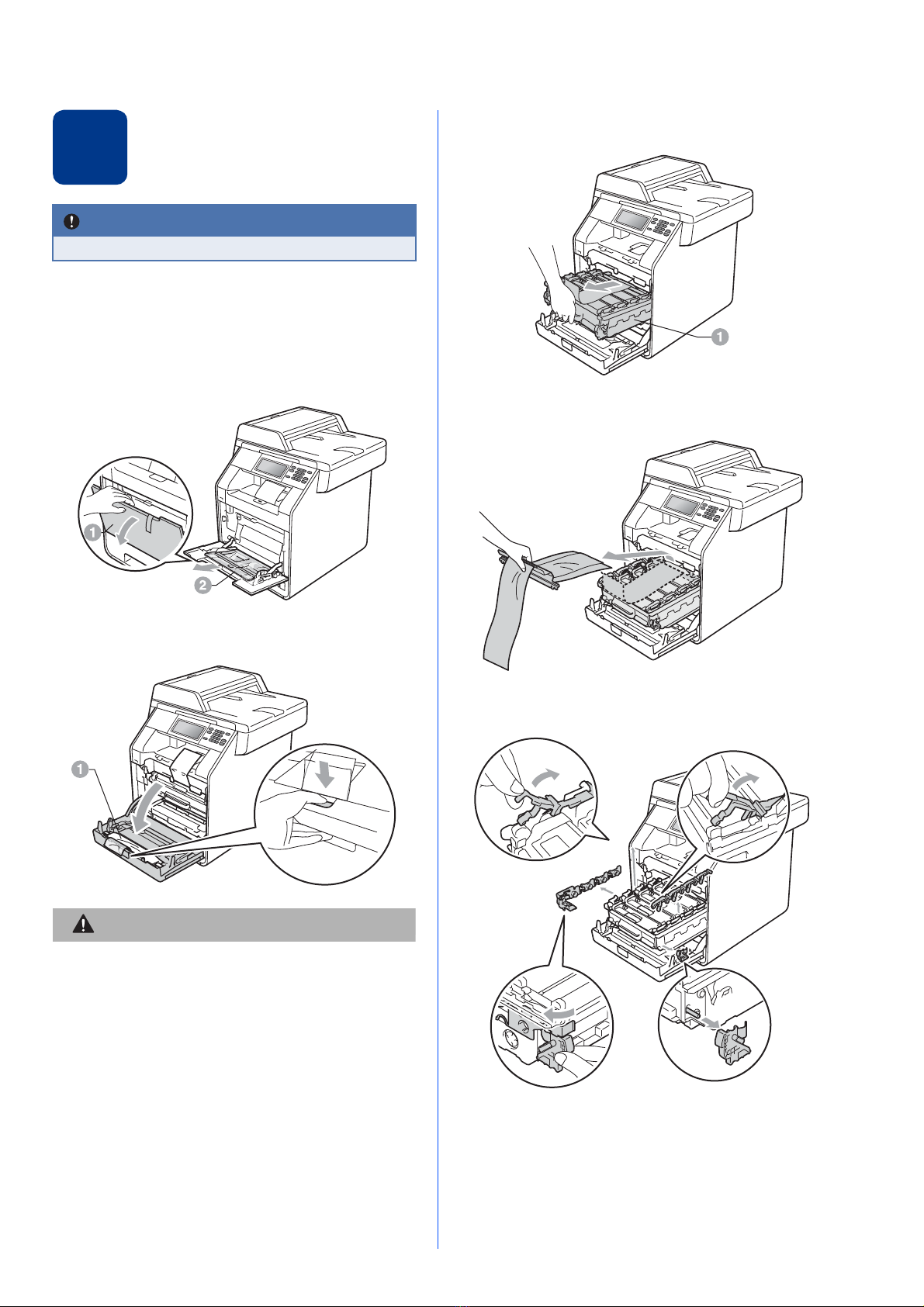

Remove the packing

material from the

machine

aRemove the packing tape from the outside of

the machine.

bOpen the MP tray a, and remove the plastic

sheet bfrom the MP tray support, then close

the MP tray.

cPress the front cover release button and open

the front cover. Remove the silica gel pack a.

CAUTION

DO NOT eat the Silica Pack. Discard immediately.

dHold the green handle of the drum unit aand

pull it out until it stops.

eGently pull the orange packing material

towards the front of the machine to remove it.

fRemove the packing tape and the 4 orange

packing pieces.

gPush the drum unit firmly back into the

machine.

hClose the front cover of the machine.

IMPORTANT

DO NOT connect the AC power cord yet.

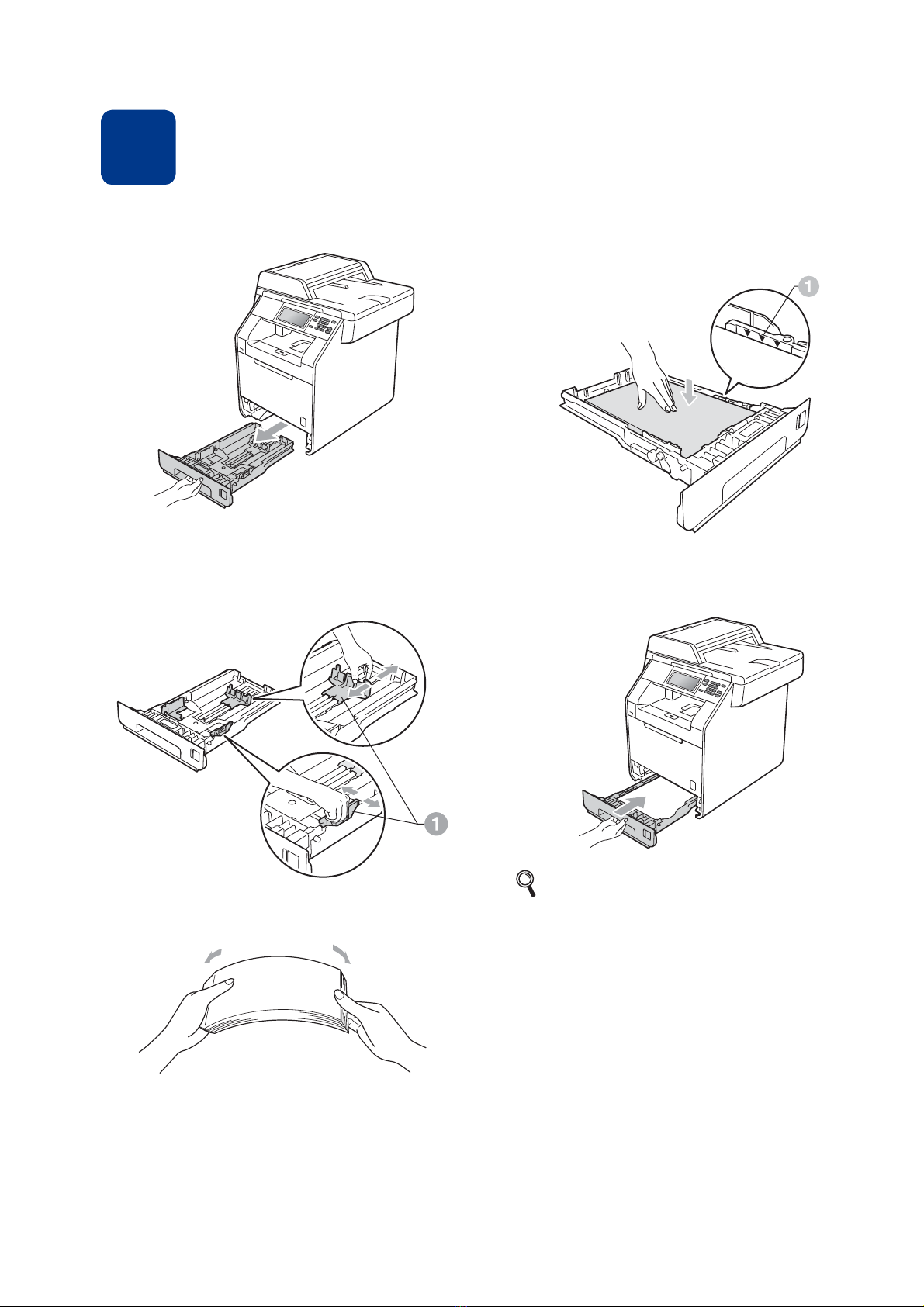

Load paper in the paper

tray

aPull the paper tray completely out of the

machine.

bWhile pressing the green paper-guide release

lever a, slide the paper guides to fit the paper

size you are loading in the tray. Make sure that

the guides are firmly in the slots.

cFan the stack of paper well to avoid paper jams

and misfeeds.

dPut paper in the tray and make sure:

The paper is below the maximum paper

mark (bbb)a.

Over filling the paper tray will cause paper

jams.

The side to be printed on must be face down.

The paper guides touch the sides of the

paper so it will feed correctly.

ePut the paper tray firmly back in the machine.

Make sure that it is completely inserted into the

machine.

For more information about recommended

paper, see Recommended paper and print

media in the Basic User's Guide.

Connect the power cord

aConnect the AC power cord to the machine,

and then plug it into an electrical socket.

bRemove the label covering the machine's

power switch, and then switch the machine on.

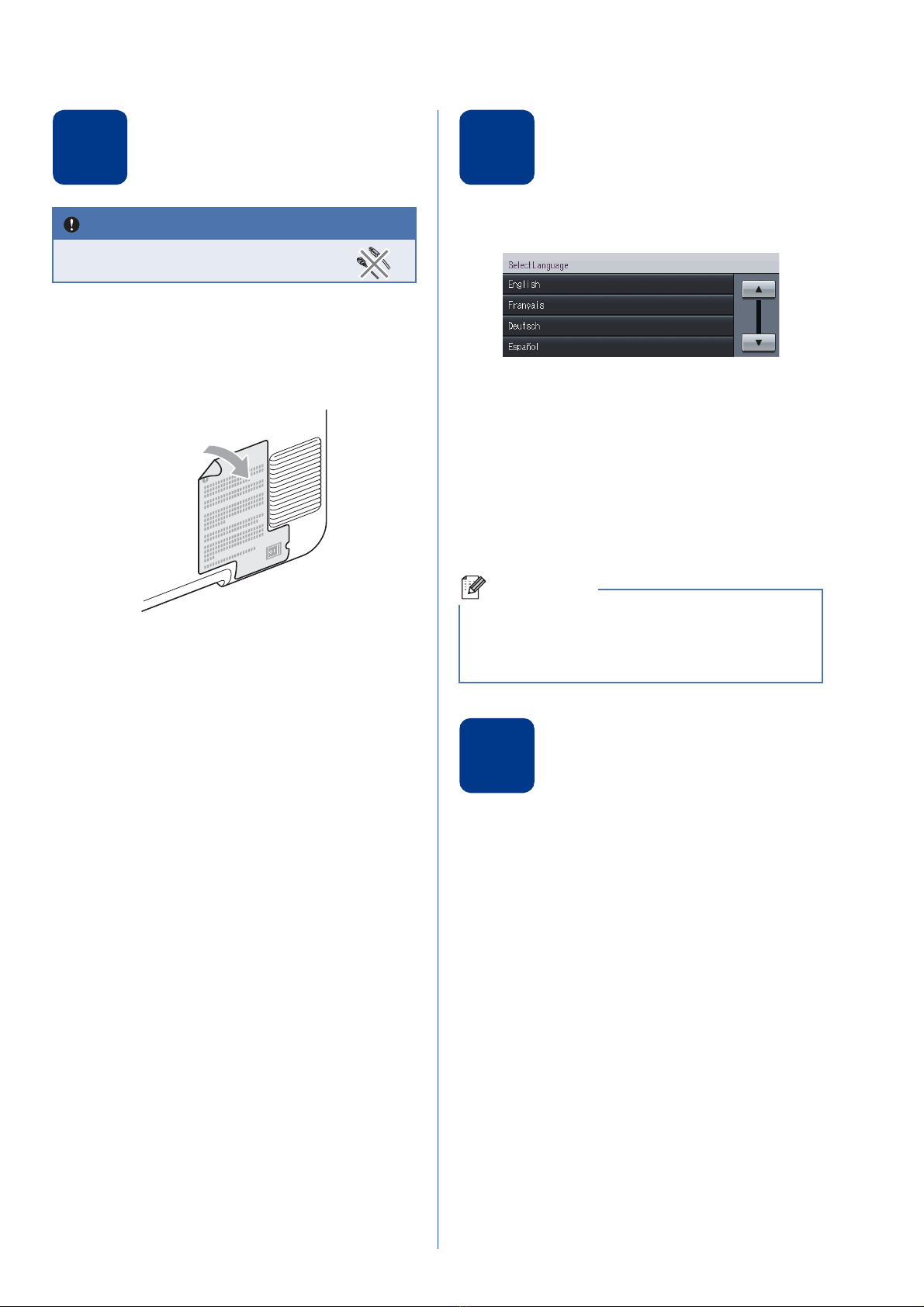

Choose your language

aAfter turning the power switch on, the LCD

shows:

Press aor bto display your language and press

your language.

bThe LCD prompts you to confirm your

selection.

If the LCD shows the correct language, press

Yes.

—OR—

Press No to go back to step ato choose the

language again.

Set the LCD brightness

(if needed)

If you are having difficulty reading the LCD, try

changing the brightness setting.

aPress MENU.

bPress aor bto display General Setup.

Press General Setup.

cPress aor bto display LCD Settings.

Press LCD Settings.

dPress Backlight.

ePress Light, Med or Dark.

fPress Stop/Exit.

IMPORTANT

DO NOT connect the interface

cable yet.

Note

If you have set the wrong language, you can

change the language from the MENU button on the

Touchscreen. (MENU, Initial Setup,

Local Language)

Set the date and time

aPress MENU.

bPress aor bto display Initial Setup.

Press Initial Setup.

cPress Date&Time.

dPress Date&Time again.

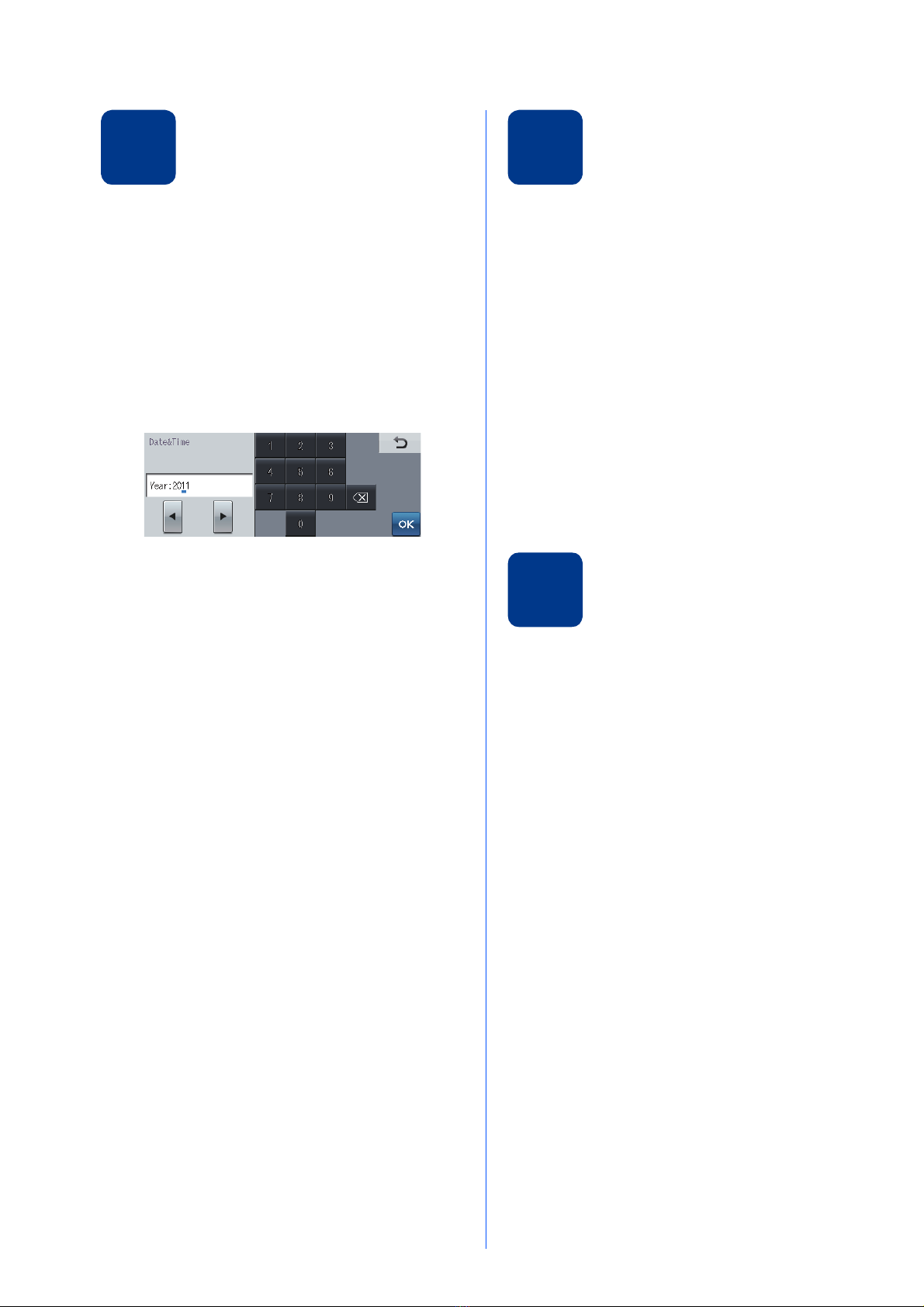

eEnter the last two digits of the year using the

buttons on the Touchscreen, and then press

OK.

(e.g. Enter 1, 1for 2011.)

fEnter the two digits for the month using the

buttons on the Touchscreen, and then press

OK.

(e.g. Enter 0, 3for March.)

gEnter the two digits for the day using the

buttons on the Touchscreen, and then press

OK.

(e.g. Enter 2, 5for 25th.)

hEnter the time in 24-hour format using the

buttons on the Touchscreen, and then press

OK.

(e.g. Enter 1, 5, 2, 5for 3:25 P.M.)

iPress Stop/Exit.

Automatic Daylight

Savings Time

You can set the machine to change automatically for

daylight savings time. It will reset itself forward one

hour in the Spring and backward one hour in the

Autumn.

aPress MENU.

bPress aor bto display Initial Setup.

Press Initial Setup.

cPress Date&Time.

dPress Auto Daylight.

ePress On (or Off).

fPress Stop/Exit.

Set the Time Zone

You can set the time zone (not summer time but

standard time) on the machine for your location.

For example, the time zone for Eastern Time in the

USA and Canada is UTC-05:00.

aPress MENU.

bPress aor bto display Initial Setup.

Press Initial Setup.

cPress Date&Time.

dPress Time Zone.

ePress +or -to set your time zone.

Press OK.

fPress Stop/Exit.

Windows®

USB

Macintosh

Windows®Macintosh

Wired Network

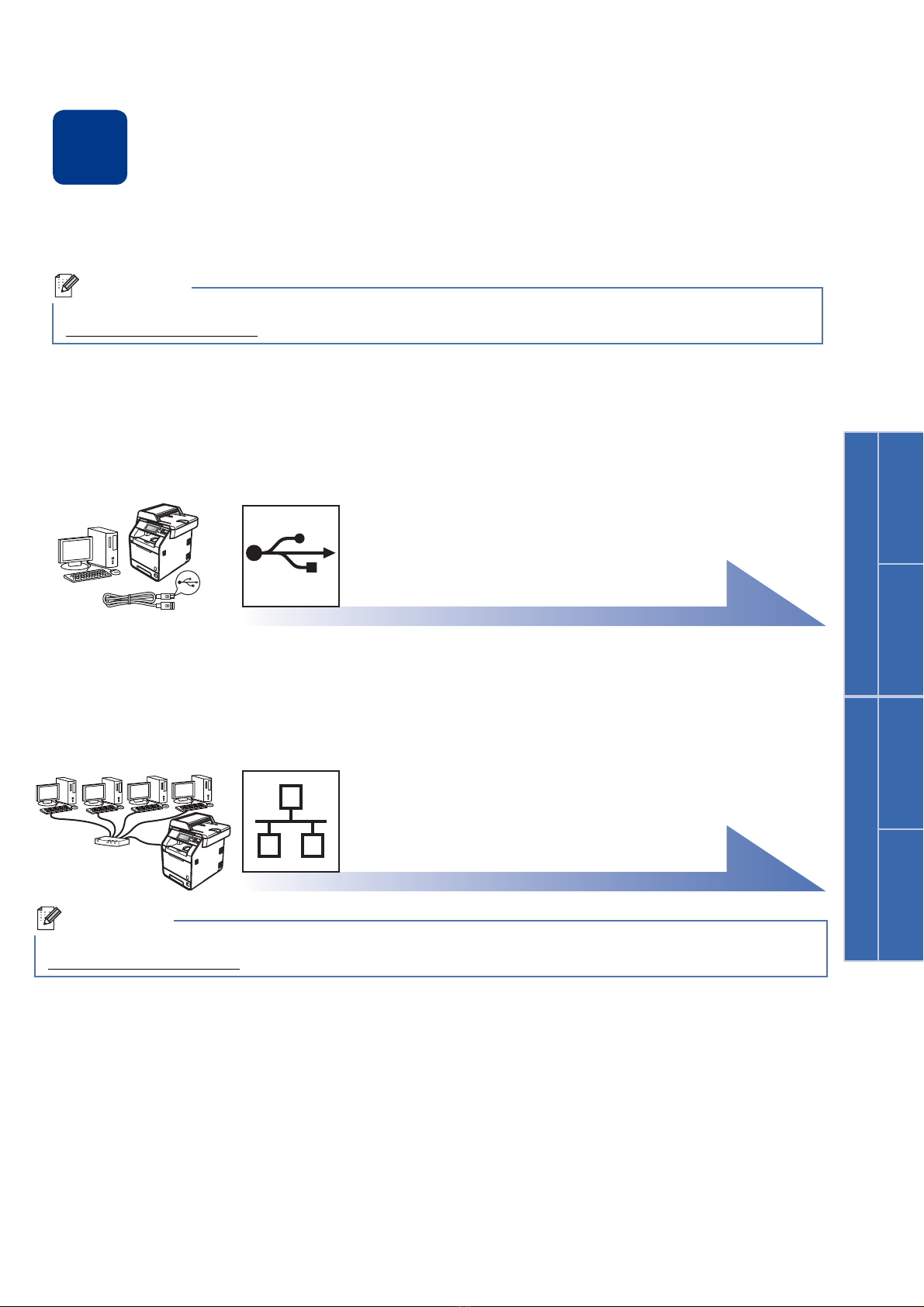

Choose your connection type

These installation instructions are for Windows®2000 Professional, Windows®XP Home/Windows®XP

Professional, Windows®XP Professional x64 Edition, Windows Vista®, Windows®7, and Mac OS X (versions

10.4.11, 10.5.x and 10.6.x).

Note

For Windows Server®2003/2003 x64 Edition/2008/2008 R2, visit your model page at

http://solutions.brother.com/.

For USB Interface Users

Windows

, go to page 8

Macintosh, go to page 10

For Wired Network

Windows

, go to page 12

Macintosh, go to page 15

Note

You can download the latest drivers and utilities for your machine from the Brother Solutions Center at

http://solutions.brother.com/.

Windows®

USB

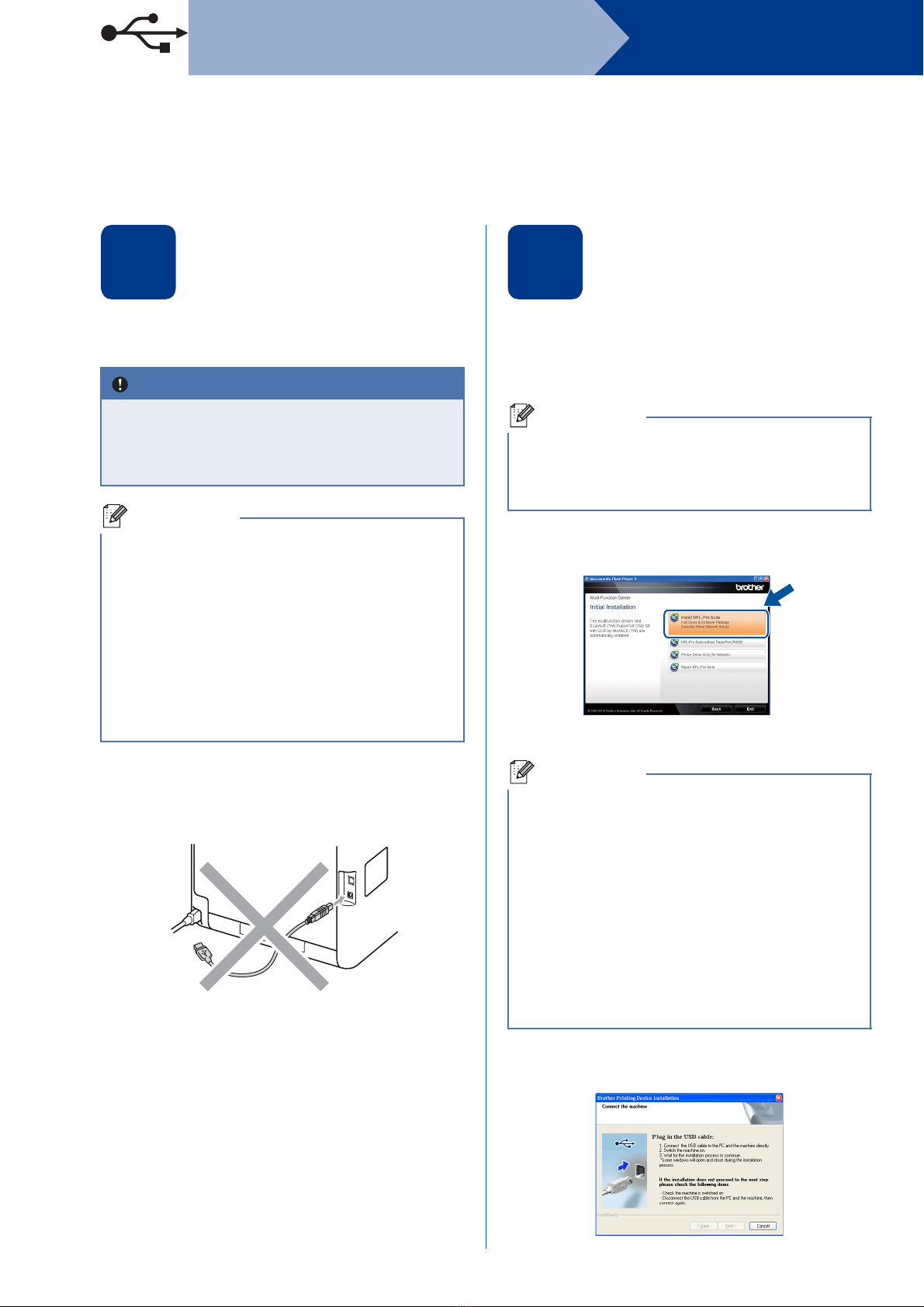

For USB Interface Users

(Windows

2000 Professional/XP/XP Professional x64 Edition/

Windows Vista

/Windows

Before you install

aMake sure that your computer is ON and you

are logged on with Administrator rights.

bTurn off the machine and make sure the USB

interface cable is NOT connected to the

machine. If you have already connected the

cable, disconnect it.

Install MFL-Pro Suite

aPut the installation CD-ROM into your

CD-ROM drive. If the model name screen

appears, choose your machine. If the language

screen appears, choose your language.

bClick Initial Installation and then Install

MFL-Pro Suite.

cClick Yes if you accept the license agreements.

dFollow the on-screen instructions until this

screen appears.

IMPORTANT

• If there are any programs running, close

them.

• The screens may differ depending on your

operating system.

Note

The installation CD-ROM includes ScanSoft™

PaperPort™ 12SE. This software supports

Windows®XP (SP3 or greater), XP Professional

x64 Edition (SP2 or greater), Windows Vista®

(SP2 or greater) and Windows®7. Update to the

latest Windows®Service Pack before installing

MFL-Pro Suite. For Windows®2000 (SP4 or

greater) users, when the ScanSoft™ PaperPort™

11SE download screen appears during the

installation of MFL-Pro Suite, follow the on-screen

instructions.

Note

If the Brother screen does not appear

automatically, go to My Computer (Computer),

double-click the CD-ROM icon, and then

double-click start.exe.

Note

• If the installation does not continue

automatically, open the top menu again by

ejecting and then reinserting the CD-ROM or

double-click the start.exe program from the

root folder, and continue from step bto install

MFL-Pro Suite.

• For Windows Vista®and Windows®7 users,

when the User Account Control screen

appears, click Allow or Yes.

• If you want to install the PS driver (BR-Script3

printer driver), choose Custom Install and then

follow the on-screen instructions.

Windows®

USB

Windows®

USB

Macintosh

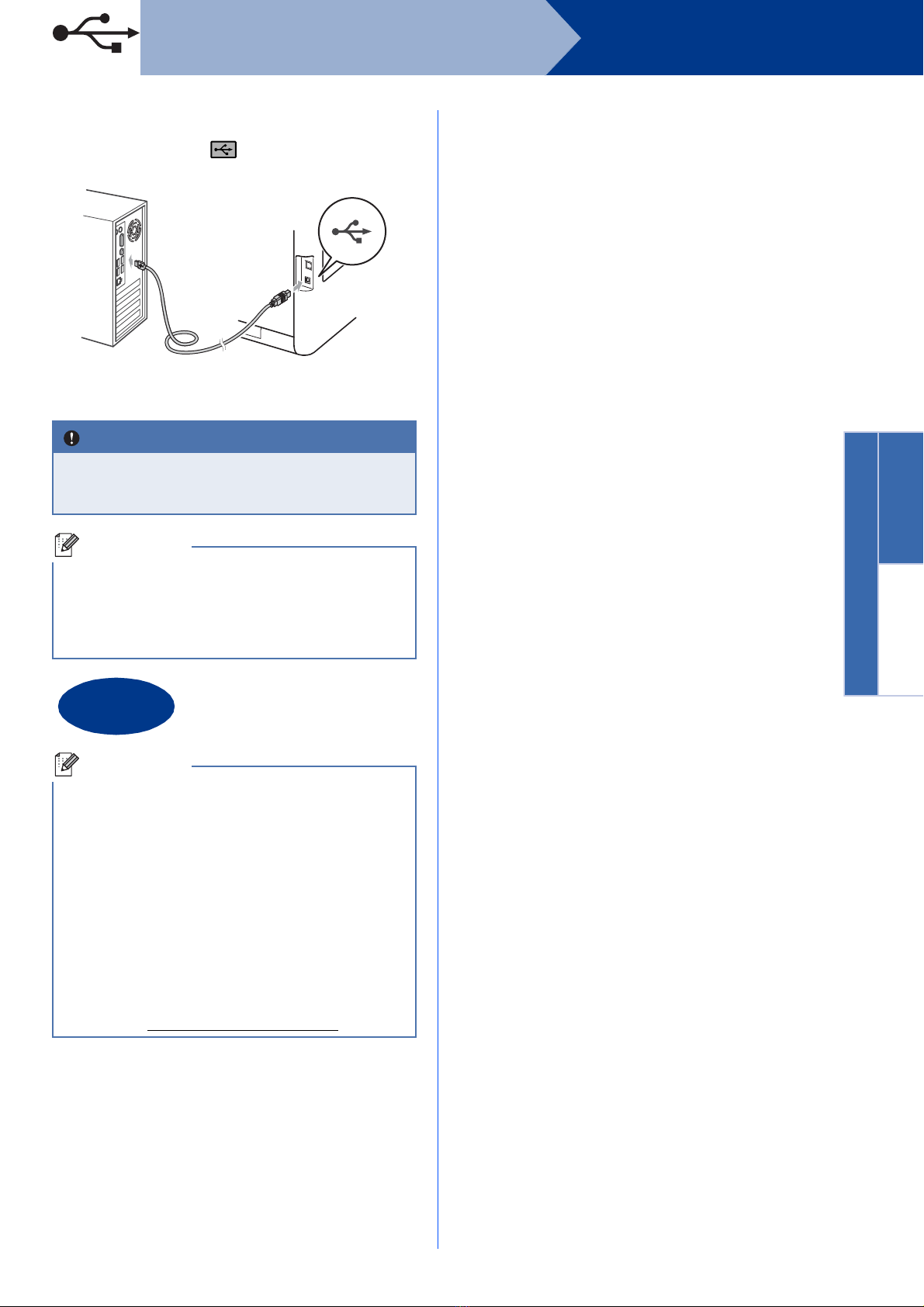

eConnect the USB cable to the USB connector

marked with the symbol on your machine

and then connect the cable to your computer.

fTurn the machine on, and follow the on-screen

instructions to complete setup.

IMPORTANT

DO NOT cancel any of the screens during the

installation. It may take a few seconds for all

screens to appear.

Note

If an error message appears during the software

installation, run the Installation Diagnostics

located in start/All Programs/Brother/

DCP-XXXX (where DCP-XXXX is your model

name).

Finish

The installation is now

complete.

Note

• Depending on your security settings, a

Windows Security or antivirus software window

may appear when using the machine or its

software. Please allow or permit the window to

continue.

•XML Paper Specification Printer Driver

The XML Paper Specification Printer Driver is

the most suitable driver for Windows Vista®and

Windows®7 when printing from the

applications that use the XML Paper

Specification documents. Please download the

latest driver by accessing the Brother Solutions

Center at http://solutions.brother.com/.

Macintosh

USB

For USB Interface Users

(Mac OS X 10.4.11 - 10.6.x)

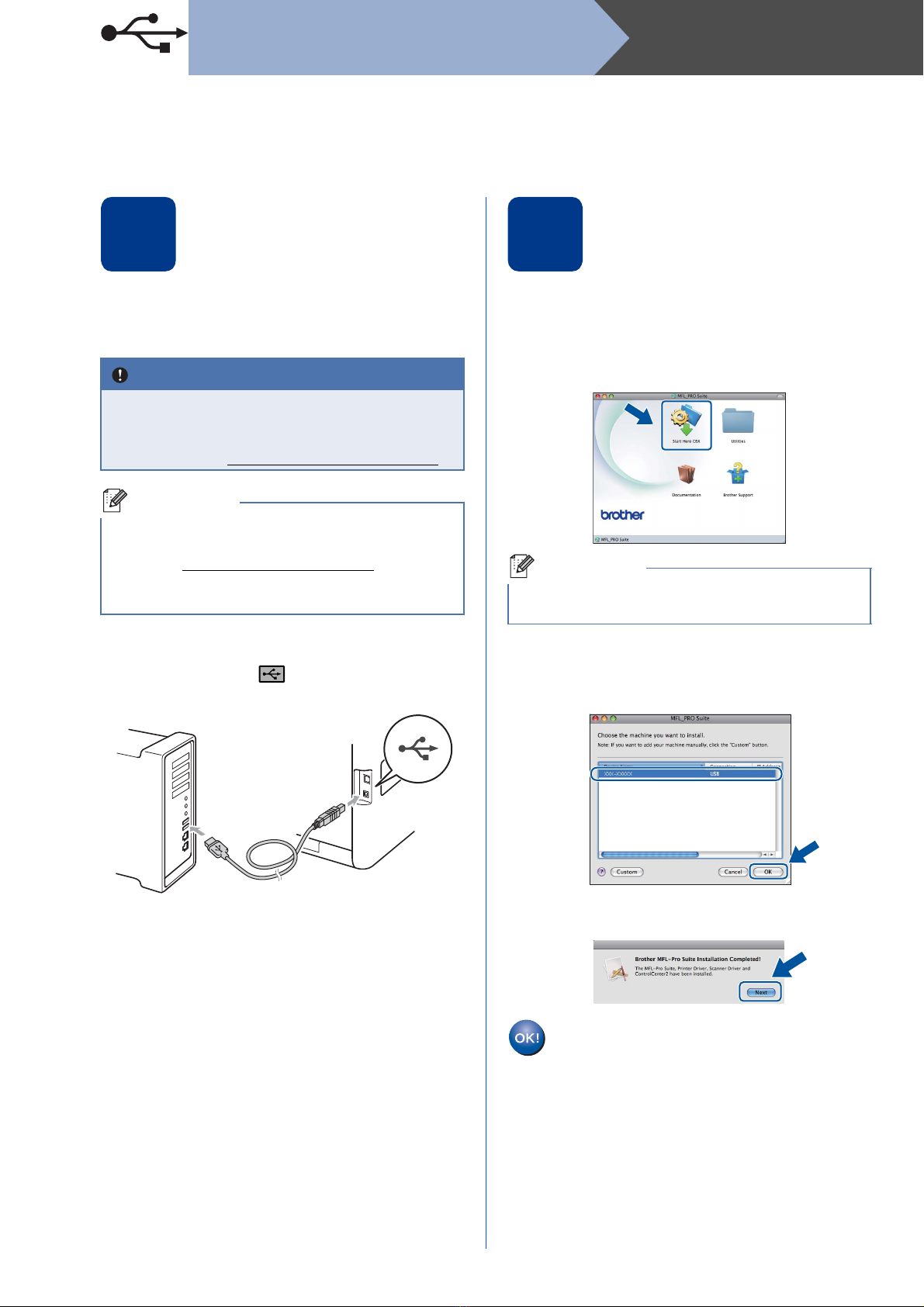

Before you install

aMake sure your machine is connected to the

power and your Macintosh is ON. You must be

logged on with Administrator rights.

bConnect the USB cable to the USB connector

marked with the symbol on your machine

and then connect the cable to your Macintosh.

cMake sure your machine's power switch is on.

Install MFL-Pro Suite

aPut the installation CD-ROM into your

CD-ROM drive.

bDouble-click the Start Here OSX icon. Follow

the on-screen instructions.

cFollow the on-screen instructions until this

screen appears. Choose your machine from

the list, and then click OK.

dWhen this screen appears, click Next.

IMPORTANT

For Mac OS X 10.4.10 users, upgrade to

Mac OS X 10.4.11 - 10.6.x. (For the latest

drivers and information on the Mac OS X you

are using, visit http://solutions.brother.com/.)

Note

If you want to setup the PS driver (BR-Script3

printer driver), please go to the Brother Solutions

Center at http://solutions.brother.com/ and click

Downloads on your model page and visit FAQ's

for setup instructions.

Note

It may take a few minutes for installation to

complete.

The installation of MFL-Pro Suite is now

complete.

Go to step 13 on page 11.

Altri manuali per DCP-9270CDN

Indice

Altri manuali Brother Stampante tutto in uno

Brother

Brother MFC 7460DN Manuale utente

Brother

Brother DCP-J140W Guida utente

Brother

Brother DCP-J562DW Manuale operativo e di manutenzione

Brother

Brother MFC-7420 Manuale utente

Brother

Brother 9045CDN - DCP Color Laser Manuale utente

Brother

Brother MFC 685CW - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-8440 Manuale utente

Brother

Brother MFC-J5340DW Manuale operativo

Brother

Brother DCP 1200 Manuale utente

Brother

Brother MFC 3240C - Color Inkjet - All-in-One Guida di sicurezza

Brother

Brother DCP-L2550DW Manuale utente

Brother

Brother DCP-J125 Manuale utente

Brother

Brother DCP-J140W Manuale operativo e di manutenzione

Brother

Brother MFC 495CW - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-J220 Guida utente

Brother

Brother MFC-J615W Manuale operativo e di manutenzione

Brother

Brother DCP-J572DW Manuale utente

Brother

Brother MFC-215C Manuale utente

Brother

Brother MFC-7360N Manuale utente

Brother

Brother MFC-7470D Manuale operativo e di manutenzione

Brother

Brother 4420c - MFC Color Inkjet Manuale utente

Brother

Brother MFC-760 Manuale utente

Brother

Brother MFC-J615 Manuale utente

Brother

Brother DCP-9270CDN Istruzioni per il montaggio

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Copystar

Copystar CS 4551ci Manuale utente

Konica Minolta

Konica Minolta Magicolor 4650EN Manuale utente
