Brother MFC-3200C Manuale utente

Quick Setup Guide

MFC-3200C

Before you can use the MFC, you must set up the hardware and install the driver.

Please read this “Setup Guide” for proper set up and installation instructions.

For the latest driver and to find the best solution for your problem or question, access the Brother

Solutions Center directly from the driver or go to

http://solutions.brother.com

Keep this “Quick Setup Guide”, User’s Guide and supplied CD-ROM in a convenient place for

quick and easy reference at all times.

Step 1

Setting Up the MFC

Step 2

Installing the Driver & Software

Setup is Complete!

Setting Up

the MFC

Windows

98/98SE/Me/

2000 Professional

Windows

Macintosh

OS 8.5-9.2

Macintosh

OS X 10.1

Installing the Driver & Software

Carton components may differ from one country to another.

Save all packing materials and the carton.

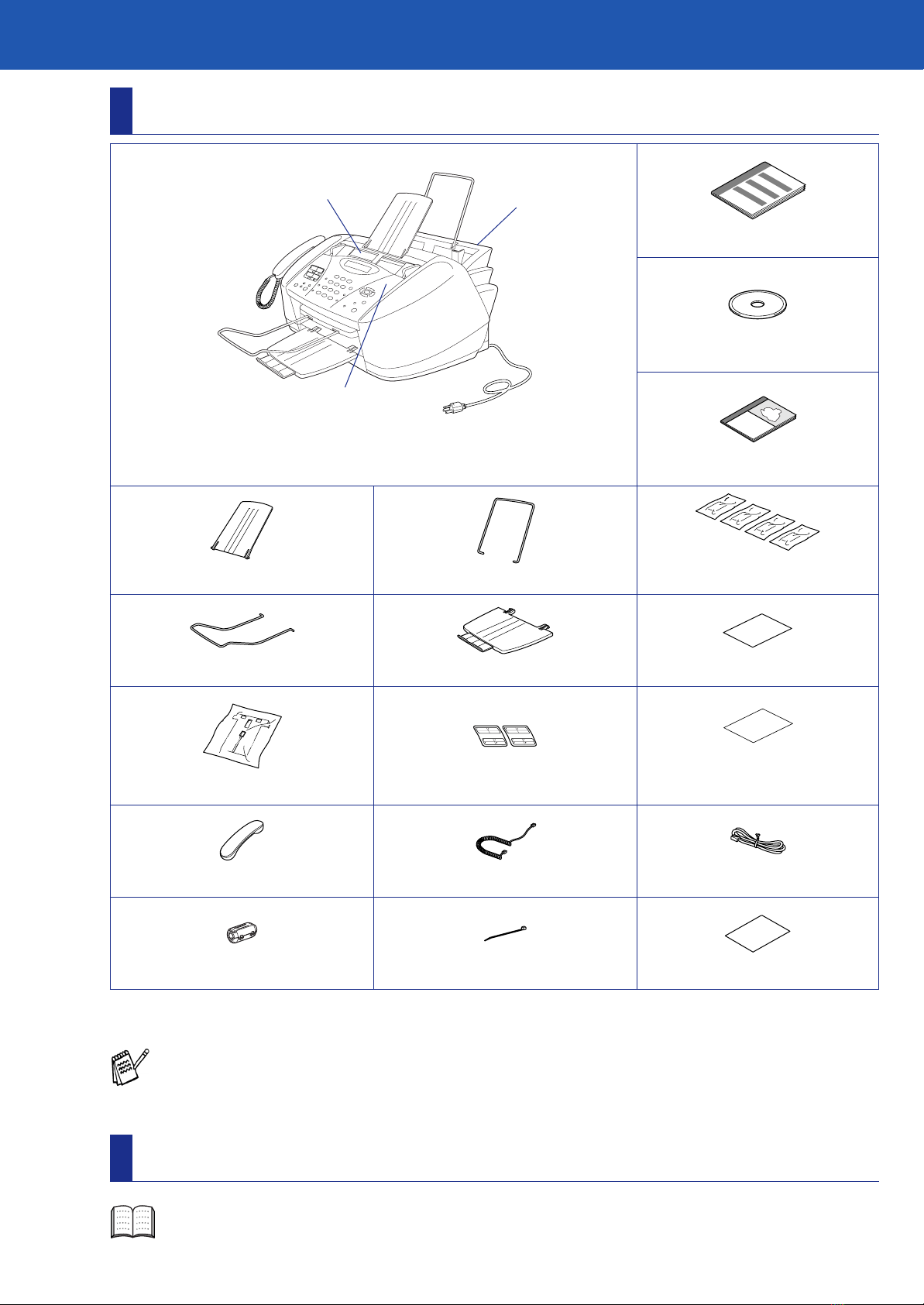

Carton Components

Quick Setup Guide

CD-ROM

User’s Guide

ADF Document Support Paper Support

Ink Cartridges

(Black, Cyan, Yellow, Magenta)

ADF Document Output Support

Output Paper Support Accessory Order Form

Card Stock Support One Touch Labels Test Sheet

(USA only)

Telephone Handset Handset Curled Cord Telephone Line Cord

Filter Core for USB Cable Cable Tie for USB Cable

Software License Agreement

■

You must use the appropriate USB cable.

■

The interface cable is not a standard accessory. If you don’t have it, please purchase an appropriate

cable.

■

Use only a USB interface cable that is not longer than 6 feet long (1.8 meters).

Control Panel

For the details of the control panel, see "MFC-3200C Control Panel Overview" in Chapter 1 of the

User's Guide.

1. Control Panel

2. Paper Tray

3. Top Cover

MFC

■

Getting Started

Setting Up the MFC

1. Removing the Protective Yellow Bar .................................................................2

2. Install Handset .....................................................................................................2

3. Attaching the Paper Supports ............................................................................3

4. Load Paper ...........................................................................................................3

5. Install Phone Line and Power Cord....................................................................4

6. Installing the Ink Cartridges................................................................................5

7. Color Block Quality and Alignment Check........................................................6

8. Selecting a Receive Mode ...................................................................................8

9. Setting a Date and Time ......................................................................................8

10.Setting Your Station ID........................................................................................9

11.Sending in the Warranty Registration and Test Sheet (USA Only).................9

Installing the Driver & Software

Supplied CD-ROM (MFC Software Suite).......................................................................10

For Windows

98/98SE/Me/2000 Professional Users...................................................12

■

For Windows

98/98SE/Me Users .....................................................................14

■

For Windows

2000 Professional Users...........................................................16

For Windows

XP Users .................................................................................................17

■

Installation of Brother Native Drivers For Windows®XP ...............................21

For Mac

OS 8.5 - 9.2 Users............................................................................................24

For Mac

OS X v.10.1 Users ...........................................................................................26

Warning Hint User’s Guide

Indicates warnings that

must be observed to

prevent possible

personal injury.

Indicates cautions that

must be observed to use

the MFC properly or

prevent damage to the

MFC.

Indicates notes and

useful tips to remember

when using the MFC.

Indicates reference to the

User’s Guide.

Step 1

Step 2

Table of Contents

Setting Up the MFC

Do NOT connect the USB cable.

Connecting the USB cable is done

when installing the driver.

Open the control panel cover by pulling it

toward you (

), and then lift the top cover

toward the back (

Pull the protective yellow bar out of the

machine.

Close the top cover, and then close the

control panel cover.

Connect the curled handset cord to the

MFC and the other end to the handset.

1Removing the Protective

Yellow Bar

Do not throw away the protective yellow bar.

You will need it in the future to transport the

machine.

Top Cover

Control

Panel Cover

Protective Yellow Bar

2Install Handset

Step 1

Setting Up

the MFC

Windows

98/98SE/Me/

2000 Professional

Windows

Macintosh

OS 8.5-9.2

Macintosh

OS X 10.1

Attach the paper support to the paper tray.

Attach the ADF document support.

Attach the output paper support to the paper

output slot, and then pull out the extension.

Attach the ADF document output support.

Fan the stack of paper well to avoid paper

jams and misfeeds.

Gently insert the paper.

Make sure the print side is towards you and

the paper is below the maximum paper

mark.

Press and slide the paper guide to fit the

paper width.

3Attaching the Paper

Supports

Paper Support

ADF Document

Support

Output Paper Support

Output Paper

Support Extension

ADF Document

Output Support

4Load Paper

You can load up to 100 sheets of 20 lb.

(75 g/m

) plain paper. For more details, see

“Paper Capacity of Paper Tray”in Chapter

3 of the User's Guide.

Paper Guide Line

Paper Width Guide

Setting Up the MFC

Connect the power cord.

Connect the telephone line cord.

Connect one end of the telephone line cord

to the jack on the MFC marked

LINE

and

the other end to a modular wall jack.

Do not connect the USB cable yet.

Warning

■

The MFC must be grounded using a 3-prong plug.

■

Since the MFC is grounded through the power

outlet, you can protect yourself from potentially

hazardous electrical conditions on the telephone

network by keeping the power to your MFC on

when you connect it to a telephone line. Similarly,

you can protect yourself when you want to move

your MFC by disconnecting the telephone line first

and then the power cord.

5Install Phone Line and Power Cord

Power Cord

Telephone Line

Cord

If you are sharing one phone line with an

external telephone answering machine,

connect it as shown below.

Please select “TAD”on your machine if you

have an external answering machine. For

more details, see “Connecting the MFC”in

Chapter 2 of the User’s Guide.

Step 1

Setting Up

the MFC

Windows

98/98SE/Me/

2000 Professional

Windows

Macintosh

OS 8.5-9.2

Macintosh

OS X 10.1

Warning

If ink gets in your eyes irrigate them with water

immediately, and if irritation occurs consult a doctor.

Make sure that the power is turned on.

The LCD shows;

Open the control panel cover by pulling it

toward you (

), then lift the top cover

toward the back (

The print heads will move to the ink

replacement position.

Remove the protective blue tape from the

colored ink cartridge covers.

Push the four colored ink cartridge covers

one at a time so they pop up.

Remove the white shipping cover by pulling

it towards you.

Take out black ink cartridge.

Carefully remove the sealing tape from the

bottom of the ink cartridge.

To prevent spilling ink and staining your

hands and clothing, peel the sealing tape

gently and slowly

Do not touch the ink opening on the

cartridge or removed tape.

6Installing the Ink Cartridges

CHECK CARTRIDGE

Control Panel Cover

Top Cover

PUSH

PUSHPUSH

Colored Ink

Cartridge Covers

■

The bottom of the white shipping cover is

wet with ink that will cause stains, so wipe

it clean before you place it down.

■

Do not throw away the white shipping

cover. You will need it when you transport

the machine.

White Shipping Cover

Opening

To be continued

Setting Up the MFC

Gently insert the black ink cartridge in the

black ink position.

Press the cover down until it clicks.

Repeat Steps 6 to 9 to install each color ink

cartridge. Match the colors of the ink

cartridge covers.

Close the top cover and control panel cover.

The MFC will enter a head cleaning cycle for

approximately

four minutes

•DO NOT remove ink cartridges if you

do not need to replace them. If you

do so, it may reduce the ink quantity

and the MFC will not know the

quantity of ink left in the cartridge.

•DO NOT shake the ink cartridges. If

you do so, the ink may spill when you

take off the sealing tape. If ink stains

your body or clothing, wash with

soap or detergent immediately.

•DO NOT refill the ink cartridges.

Attempting to use refilled cartridges

and using incompatible inks may

cause damage to the print head in

this machine and such damage will

not be covered by warranty.

Warranty coverage does not apply to

problems caused by the use of 3rd

party ink or 3rd party ink cartridges.

Use only genuine Brother ink

cartridges.

After the cleaning cycle is finished, the LCD

shows;

Make sure the paper is loaded in the paper

tray.

Press the

Black Fax Start

key.

The MFC starts printing the PRINT

QUALITY CHECK SHEET (only during

initial ink cartridge installation).

CLEANING

7Color Block Quality and

Alignment Check

PRESS FAX START

■

If you mix the colors by installing an ink

cartridge in the wrong color position, you

must clean the print head several times

after correcting the cartridge installation

and before you start printing.

■

Once you open an ink cartridge, install it in

the MFC and use it up within six months of

installation. Use unopened ink cartridges

by the expiration date written on the

cartridge package.

■

If INK EMPTY shows on the LCD after you

install the ink cartridges, check to make

sure the ink cartridges are installed

correctly.

Check in Step A

Check in Step B

Step 1

Setting Up

the MFC

Windows

98/98SE/Me/

2000 Professional

Windows

Macintosh

OS 8.5-9.2

Macintosh

OS X 10.1

The LCD shows:

Check the quality of the four color blocks

printed on the sheet.

(BLACK/CYAN/YELLOW/MAGENTA)

If the quality is OK for all colors, press the

key on the dial pad to go to

STEP B :

Alignment Check

---OR---

If white horizontal lines appear in some of

the color blocks, press the key on the

dial pad and go to

The LCD asks you if the print quality is OK for each

color. Press the key or key on the dial pad.

When you have finished selecting the

key (YES) or the key (NO) for magenta,

the LCD shows:

Press the key (YES), and then MFC

starts cleaning the colors.

After cleaning is finished, press the

Black

Fax Start

key. The MFC starts printing

PRINT QUALITY CHECK SHEET again

and goes back to the first step of STEP A.

The LCD shows:

Check the 600 DPI and 1200 DPI test print

to see if

No.5

most closely matches the OK

sample (

No.0

). Press the key if

No.5

matches it.

If another test print number is a better match

for either 600 DPI or 1200 DPI, press the

key to select NO and go to

For 600 DPI, select the number from 1 to 8

that most closely matches the

No.0

sample

and enter it using the dial pad.

For 1200 DPI, enter the number from 1 to 8

that most closely matches the

No.0

sample.

The Quality check is now complete.

Step A:Color Block

Quality Check

IS STEP "A" OK?

1.YES 2.NO

BLACK OK?

1.YES 2.NO

START CLEANING?

1.YES 2.NO

OK Poor

Step B:Alignment Check

IS STEP "B" OK?

1.YES 2.NO

600DPI ADJUST

SELECT BEST #

1200DPI ADJUST

SELECT BEST #

600 DPI

1200 DPI

No.5

600 DPI 1200 DPI

Setting Up the MFC

Choose the mode which best suits your needs by

pressing the

Receive Mode

key repeatedly.

The MFC displays the date and time, and prints it on

every fax you send.

Press the

Menu/Set

key.

Press the key.

Enter the last two digits of the year on the

dial pad, and then press the

Menu/Set

key.

(e.g. Enter

for 2003.)

Enter the two digits for the month on the dial

pad, and then press the

Menu/Set

key.

(e.g. Enter

for September.)

Enter the two digits for the day on the dial

pad, and then press the

Menu/Set

key.

(e.g. Enter

Enter the time in 24-hour format on the dial

pad, and then press the

Menu/Set

key.

(e.g. Enter

for 3:25 P.M.)

Press the

Stop/Exit

key.

3200C

Fax Printer Copier Scanner PC Fax

Dial pad

Stop/Exit

Menu/Set

Black

Fax Start

Receive Mode

8Selecting a Receive

Mode

Did you connect an external telephone answering machine

to the MFC?

Did you use the voice message

function of your external

telephone answering machine?

FAX ONLY

The MFC automatically

answers every call as a

fax.

Do you want the MFC to

answer fax calls only?

FAX/TEL

The MFC controls the

line and automatically

answers every call. If

the call is not a fax, it will

ring for you to pick up

the call.

MANUAL

You control the phone

line and must answer

every call yourself.

TAD:ANSWER MACH.

Your external answering

machine (TAD)

automatically answers

every call. Voice

messages are stored on

the external TAD. Fax

messages are printed.

You must set your TAD

to answer calls.

For more details, see Setup Receive in

Chapter 6 of the User’s Guide.

Yes No

Yes

9Setting a Date and Time

3.DATE TIME

YEAR:03

MONTH:09

DAY:06

TIME:15:25

If you want to repeat from step1, press the

Stop/Exit

key.

Step 1

Altri manuali per MFC-3200C

Indice

Altri manuali Brother Stampante tutto in uno

Brother

Brother MFC-8220 Manuale utente

Brother

Brother DCP-7030 Manuale utente

Brother

Brother MFC9800 - MFC 9800 B/W Laser Manuale utente

Brother

Brother MFC-8440 Manuale utente

Brother

Brother DCP 385C - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-6890CDW - Color Inkjet - All-in-One Manuale utente

Brother

Brother DCP-L5500D Manuale utente

Brother

Brother MFC-J6720DW Manuale di installazione e funzionamento

Brother

Brother MFC-9180 Manuale utente

Brother

Brother HL-2260D Manuale operativo

Brother

Brother DCP-1600 Manuale utente

Brother

Brother MFC 3100C - Inkjet Multifunction Manuale utente

Brother

Brother MFC-J220 Manuale operativo e di manutenzione

Brother

Brother MFC-J6925DW Manuale operativo e di manutenzione

Brother

Brother Work Smart MFC-J870dw Manuale

Brother

Brother MFC-J4310DW Guida utente

Brother

Brother MFC-J4310DW Manuale operativo e di manutenzione

Brother

Brother MFC-7240 Manuale utente

Brother

Brother DCP 350C - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC 7220 - B/W Laser - All-in-One Manuale utente

Brother

Brother MFC-7840W Manuale utente

Brother

Brother MFC 7460DN Manuale utente

Brother

Brother DCP-J4120DW Manuale utente

Brother

Brother MFC-8660DN Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Copystar

Copystar CS 4551ci Manuale utente

Konica Minolta

Konica Minolta Magicolor 4650EN Manuale utente
