Brother MFC-8420 Manuale utente

MFC-8420

MFC-8820D

USER’S GUIDE

THIS EQUIPMENT IS DESIGNED TO WORK WITH A TWO WIRE

ANALOGUE PSTN LINE FITTED WITH THE APPROPRIATE

CONNECTOR.

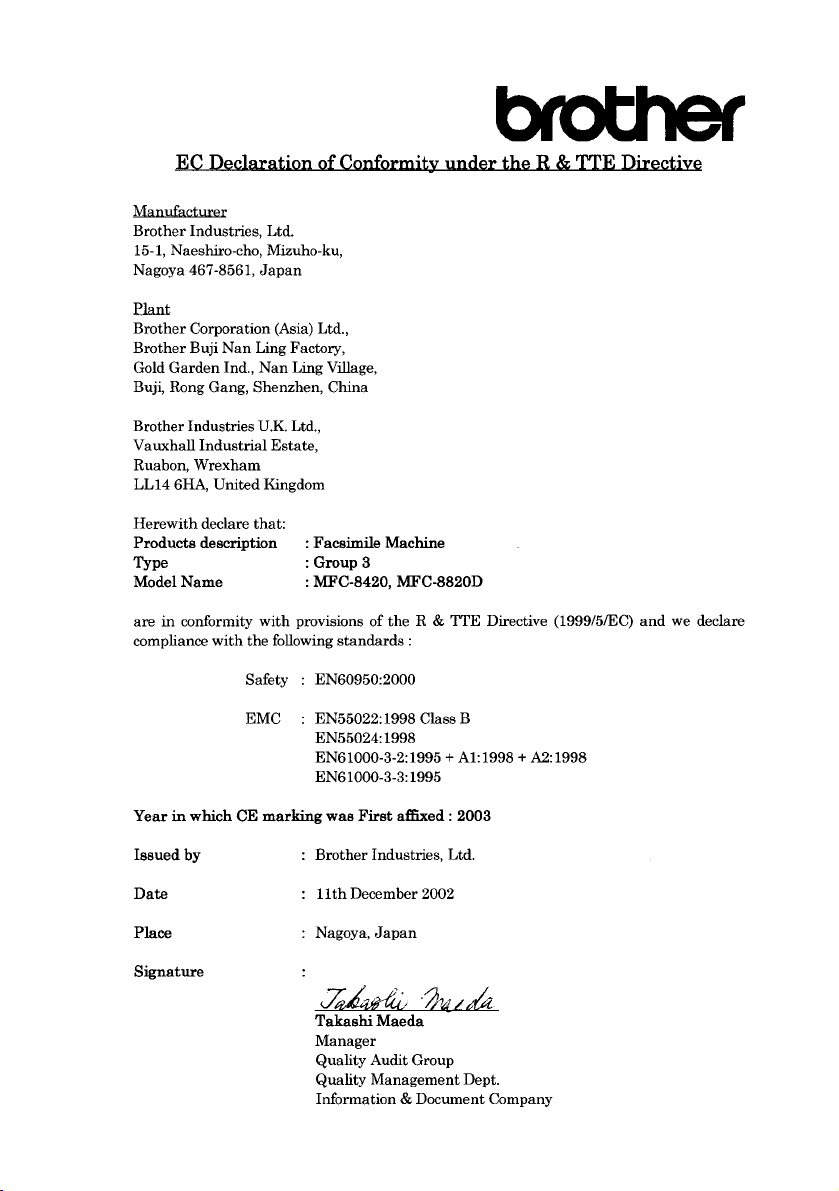

APPROVAL INFORMATION

Brother advises that this product may not function correctly in a

country other than where it was originally purchased, and does not

offer any warranty in the event that this product is used on public

telecommunication lines in another country.

Compilation and Publication Notice

Under the supervision of Brother Industries Ltd., this manual has

been compiled and published, covering the latest product

descriptions and specifications.

The contents of this manual and the specifications of this product are

subject to change without notice.

Brother reserves the right to make changes without notice in the

specifications and materials contained herein and shall not be

responsible for any damages (including consequential) caused by

reliance on the materials presented, including but not limited to

typographical and other errors relating to the publication.

iii

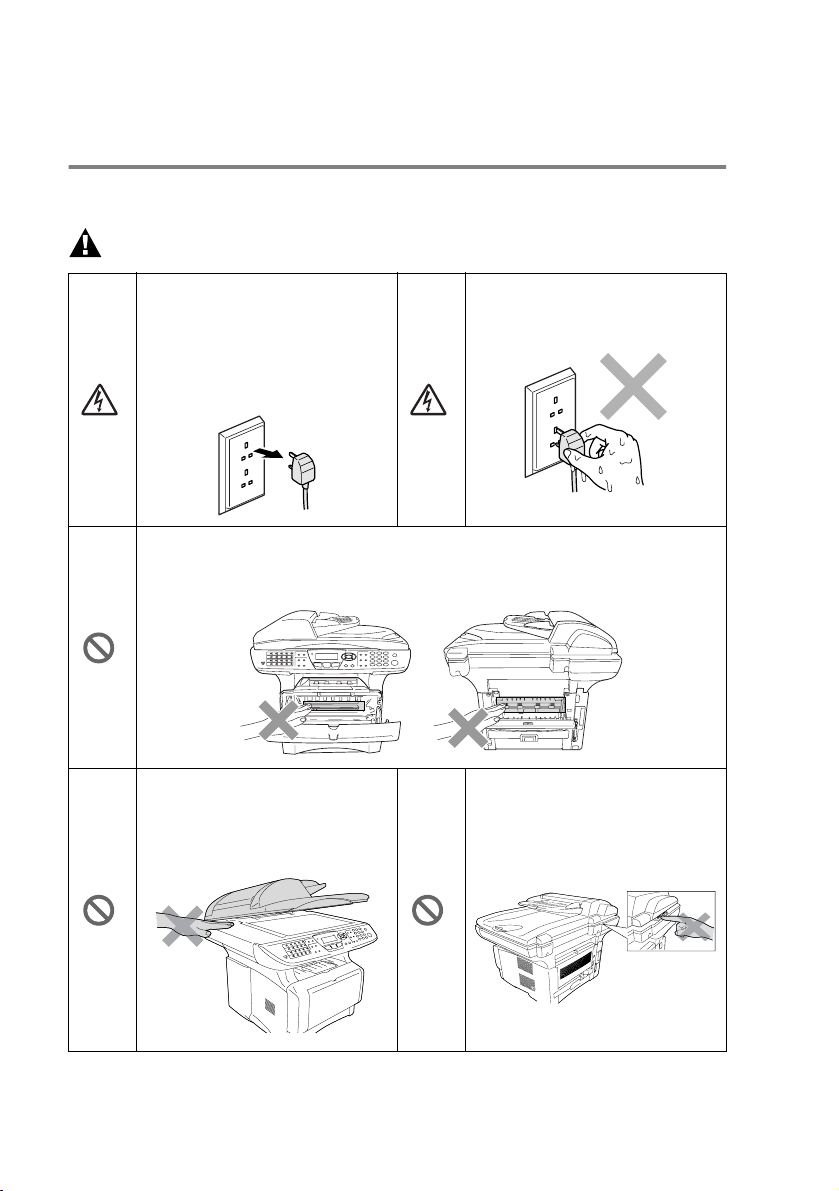

Safety precautions

To use the MFC safely

Save these instructions for later reference.

WARNING

There are high voltage

electrodes inside the machine.

Before you clean the MFC or

clear a paper jam, make sure

you have unplugged the power

cord from the power outlet.

Do not handle the plug with wet

hands. Doing this might cause

an electrical shock.

After you use the MFC, some internal parts are extremely HOT!

To prevent injuries, be careful not to put your fingers in the area shown in

the illustration.

To prevent injuries, be careful

not to put your hands on the

edge of the MFC under the

document cover.

To prevent injuries, be careful

not to put your fingers in the

area shown in the illustration.

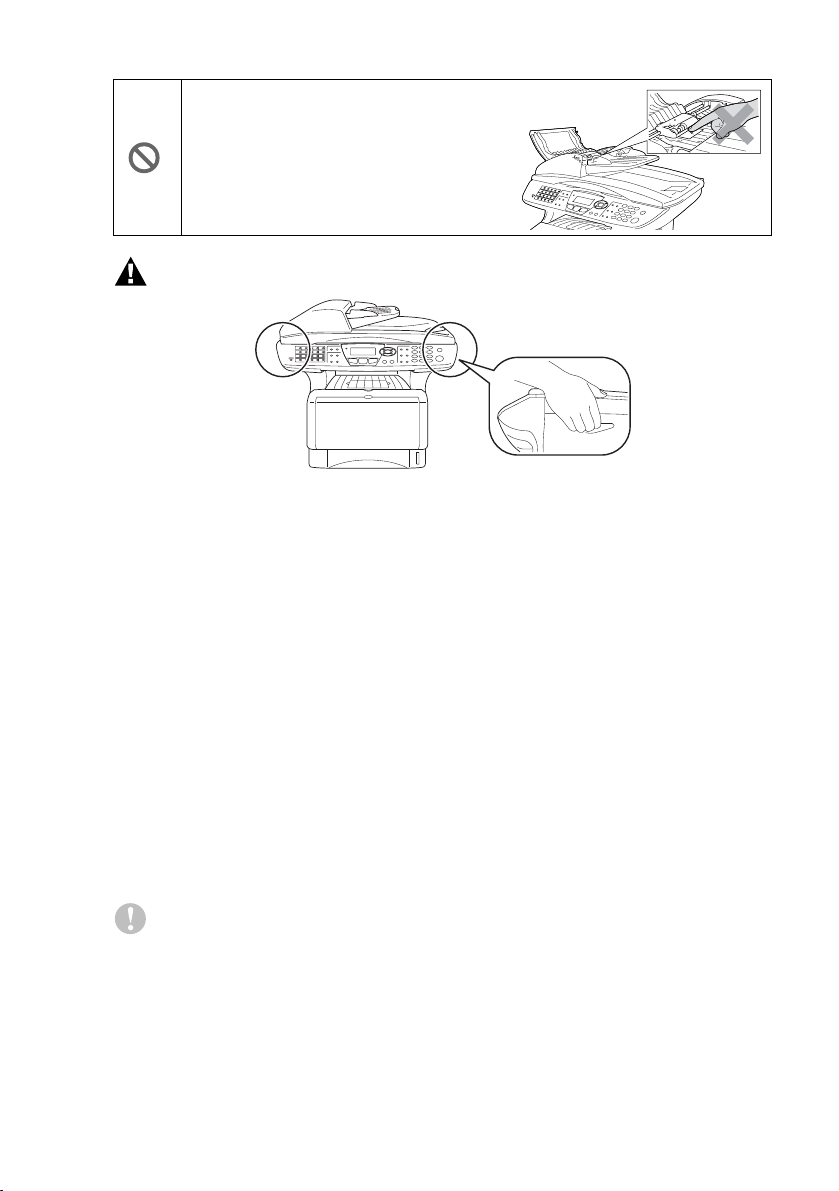

WARNING

■When you move the MFC, grasp the side handholds that are

under the scanner. Do NOT carry the MFC by holding it at the

bottom.

■Use caution when installing or modifying telephone lines. Never

touch telephone wires or terminals that are not insulated unless

the telephone line has been disconnected at the wall socket.

Never install telephone wiring during a lightning storm. Never

install a telephone socket in a wet location.

■Install equipment with a power cord near a socket/outlet that is

easily accessible.

■Do not use a telephone in the vicinity of gas leak to report leak.

■Do not use this product near appliances that use water, in a wet

basement or near a swimming pool.

■There may be a remote risk of electric shock from lightning.

Caution

■Lightning and power surges can damage this product! We

recommend that you use a quality surge protection device on the

AC power line and on the telephone line, or unplug the lines

during a lightning storm.

To prevent injuries, be careful not to put

your fingers in the area shown in the

illustration.

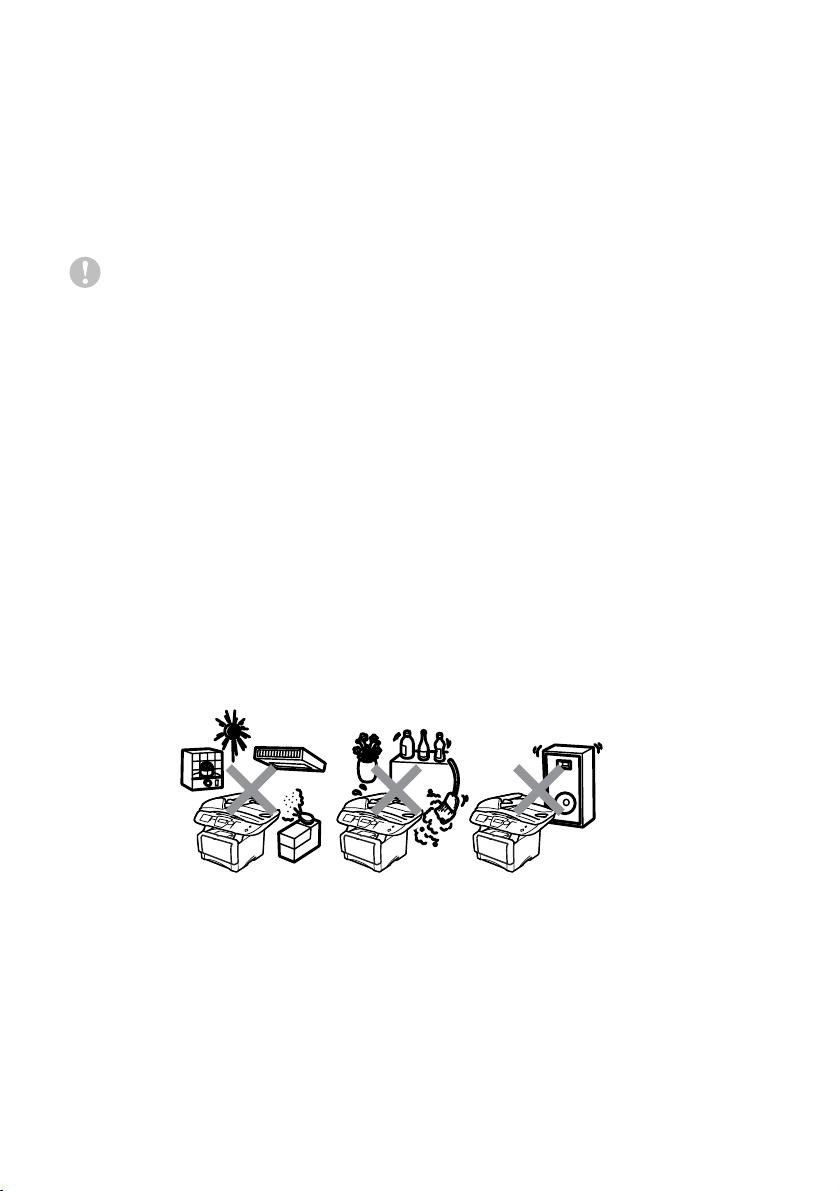

Choosing a location

Place your MFC on a flat, stable surface that is free of vibration and

shocks, such as a desk. Put the MFC near a telephone socket and a

standard, grounded power outlet. Choose a location where the

temperature remains between 10° and 32.5°C.

Caution

■Avoid placing your MFC in a high-traffic area.

■Do not place near heaters, air conditioners, water, chemicals, or

refrigerators.

■Do not expose the MFC to direct sunlight, excessive heat,

moisture, or dust.

■Do not connect your MFC to electrical outlets controlled by wall

switches or automatic timers.

■Disruption of power can wipe out information in the MFC’s

memory.

■Do not connect your MFC to electrical outlets on the same circuit

as large appliances or other Equipment that might disrupt the

power supply.

■Avoid interference sources, such as speakers or the base units

of cordless phones.

Quick Reference Guide

Sending faxes

Automatic Transmission

If it is not illuminated in

green, press (Fax).

Place the document face up

in the ADF, or face down on

the scanner glass.

Enter the fax number using

One-Touch, Speed-Dial,

Search or the dial pad.

Press Start.

If you are using the scanner

glass, press 2or Start.

Real Time Transmission

You can send faxes in real time.

If it is not illuminated in

green, press (Fax).

Place the document face up

in the ADF, or face down on

the scanner glass.

Press Menu, 2, 2, 5.

Press or to select

On, and then press Set.

—OR—

For the next transmission

only, press or to

select Next Fax Only,

and then press Set.

For the next fax only, press

or to select Next

Fax:On, and then press

Set.

Press 1if you want to

choose more settings and

the LCD will return to the

Setup send menu.

—OR—

Press 2to fax.

Enter the fax number.

Press Start.

Receiving faxes

Select Receive Mode

Press Menu, 0,1.

Press or to select

Fax Only, Manual,

Fax/Tel and External

TAD and then press Set.

Storing numbers

Storing One-Touch Dial

numbers

Press Menu, 2, 3, 1.

Press the One-Touch key

where you want to store the

number.

Enter a number (up to 20

digits), and then press Set.

Enter a name (up to 15

characters or leave it blank),

and then press Set.

Press Stop/Exit.

vii

Storing Speed-Dial numbers

Press Menu, 2, 3, 2.

Enter a three-digit

Speed-Dial number, and

then press Set.

Enter a number (up to 20

digits), and then press Set.

Enter a name (up to 15

characters or leave it blank),

and then press Set.

Press Stop/Exit.

Dialling operations

One-Touch Dialling /

Speed-Dialling

If it is not illuminated in

green, press (Fax).

Place the document face up

in the ADF, or face down on

the scanner glass.

Press the One-Touch key of

the number you want to call.

—OR—

Press

Search/Speed Dial

press #, and then press the

three-digit Speed-Dial

number.

Press Start.

Using Search

If it is not illuminated in

green, press (Fax).

Press

Search/Speed Dial

and then enter the first letter of

the name you’re looking for.

Press or to

search the memory.

Press Start.

Making copies

Single copy

Press (Copy)to

illuminate it in green.

Place the document face up

in the ADF, or face down on

the scanner glass.

Press Start.

Sorting multiple copies

(Using the ADF)

Press (Copy) to

illuminate it in green.

Place the document face up

in the ADF.

Use the dial pad to enter the

number of copies you want

(up to 99).

Press Sort.

Sort icon appears on the

LCD.

Press Start.

viii

Table of Contents

Introduction ..........................................................................1-1

Using this Guide ...............................................................1-1

Finding information.....................................................1-1

Symbols used in this Guide........................................1-1

MFC part names and operations................................1-2

Control panel overview ..................................................... 1-5

Status LED indications .............................................1-10

About fax machines ........................................................ 1-12

Fax tones and handshake ........................................ 1-12

ECM (Error Correction Mode)...................................1-13

Connecting the MFC....................................................... 1-14

Connecting an external telephone............................ 1-14

Connecting an external telephone answering device

(TAD).................................................................... 1-15

Sequence ............................................................. 1-15

Connections .........................................................1-16

Recording outgoing message (OGM) on an

external TAD ....................................................1-17

Using extension telephones (For U.K. only)......... 1-18

Multi-line connections (PBX) .................................... 1-20

If you are installing the MFC to work

with a PBX........................................................1-20

Custom features on your phone line......................... 1-20

Paper .....................................................................................2-1

About paper ...................................................................... 2-1

Type and size of paper ...............................................2-1

Recommended paper................................................. 2-1

Choosing acceptable paper.............................................. 2-2

Paper capacity of the paper trays........................... 2-3

Paper specifications for each paper tray ................ 2-4

How to load paper ......................................................2-5

To load paper or other media in the paper tray ...... 2-5

To load paper or other media in the manual

feed tray (For MFC-8420)...................................2-7

To load paper or other media in the multi-purpose

tray (MP tray) (For MFC-8820D) ........................ 2-9

To use Automatic Duplexing for fax, copy and print

operations (For MFC-8820D) ...............................2-11

On-screen programming .....................................................3-1

User-friendly programming ............................................... 3-1

Menu table.................................................................. 3-1

Memory Storage ......................................................... 3-1

Navigation keys ................................................................3-2

Getting started .....................................................................4-1

Initial Setup.......................................................................4-1

Setting the Date and Time..........................................4-1

Setting the Station ID..................................................4-2

Entering text ...........................................................4-3

Inserting spaces .....................................................4-3

Making corrections .................................................4-4

Repeating letters .................................................... 4-4

Special characters and symbols ............................4-4

PABX and TRANSFER...............................................4-5

Setting PABX..........................................................4-5

General Setup...................................................................4-6

Setting the Mode Timer ..............................................4-6

Setting the Paper Type...............................................4-7

Setting the Paper Size................................................ 4-8

Setting the Ring Volume.............................................4-9

Setting the Beeper Volume.........................................4-9

Setting the Speaker Volume.....................................4-10

Setting the Clock Change.........................................4-10

Toner Save ...............................................................4-10

Sleep Time................................................................4-11

Turning off the Scanner Lamp ..................................4-11

Power Save ..............................................................4-12

Setting the Tray Use for Copy mode ........................4-13

Setting the Tray Use for Fax mode...........................4-14

Setting the LCD Contrast..........................................4-14

Initial Setup depending on Your Country ........................4-15

Setting Tone or Pulse dialling mode

(Except for the Nordic Countries) .........................4-15

Setup Receive ......................................................................5-1

Basic receiving operations................................................ 5-1

Choosing the Receive Mode.......................................5-1

To select or change your Receive Mode ................ 5-2

Setting the Ring Delay ...............................................5-2

Setting the F/T Ring Time (Fax/Tel mode only)..........5-3

Fax Detect ..................................................................5-4

Printing a reduced incoming fax (Auto Reduction) .....5-5

Altri manuali per MFC-8420

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Brother Stampante tutto in uno

Brother

Brother MFC-295CN Manuale utente

Brother

Brother MFC-J6959DW Manuale utente

Brother

Brother MFC-L8650CDW Manuale operativo e di manutenzione

Brother

Brother MFC-J3520 Manuale di installazione e funzionamento

Brother

Brother MFC-820CW Manuale utente

Brother

Brother MFC-J6935DW Manuale utente

Brother

Brother DCP-9040CN Manuale utente

Brother

Brother MFC-440CN Manuale utente

Brother

Brother 420CN - MFC Color Inkjet Manuale utente

Brother

Brother MFC-J220 Manuale operativo e di manutenzione

Brother

Brother DCP-395CN Guida di sicurezza

Brother

Brother MFC-J6535DW Manuale operativo e di manutenzione

Brother

Brother MFC-210C Manuale utente

Brother

Brother MFC-J4410DW Manuale elenco delle parti

Brother

Brother MFC-J825DW Manuale operativo e di manutenzione

Brother

Brother DCP-T300 Istruzioni per il montaggio

Brother

Brother MFC-J6520DW Manuale di installazione e funzionamento

Brother

Brother MFC-J220 Manuale operativo e di manutenzione

Brother

Brother MFC-9560CDW Manuale utente

Brother

Brother MFC-L8600CDW Manuale operativo e di manutenzione

Brother

Brother MFC-J2320 Manuale utente

Brother

Brother MFC-L8600CDW Manuale utente

Brother

Brother DCP-J552DW Manuale operativo e di manutenzione

Brother

Brother DCP-9270CDN Manuale operativo e di manutenzione

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Copystar

Copystar CS 4551ci Manuale utente

Konica Minolta

Konica Minolta Magicolor 4650EN Manuale utente
